ENKIN SS-EN-00-PDM400 User manual
ON OFF & DIMMING FUNCTION
Dimmer switch is activated by pressing the dimmer shaft only, dimming function
by rotating the dimmer shaft only.
Operating Voltage 240V ac
Nominal Operating Frequency 50 Hz
Dimming Technique Trailing & Leading edge phase control
Compliance BS EN 60669-2-1
Load
Symbol Compatible Loads Max Load Min Load
Dimmable LED lighting 400W TE
150W LE 2W
240V Incandescent & Halogen lamps 400W TE
150W LE 2W
Low voltage lighting with electronic
transformers
400W TE
150W LE 2W
Multi-Gang Switch De-Rating Chart
1 Gang 2 Gang 3 Gang 4 Gang 5 Gang
400W 340W 280W 220W 160W
SS-EN-00-PDM400
400W LED Intelligent Dimmer
Setting the Minimum Level
1. Whilst on, slowly adjust dimmer to your desired minimum brightness.
2. Push the rear setup button 3 times within 2 seconds.
3. The LEDs will step up and down in brightness once to conrm the setting has
been saved.
Setting the Maximum Level
1. Whilst on, slowly adjust dimmer to your desired maximum brightness.
2. Push the rear setup button 5 times within 3 seconds.
3. The LEDs will step up and down in brightness once to conrm the setting has
been saved.
Factory reset for Min/Max brightness
Please note this factory reset will reset all the min and max brightness settings.
1. Whilst on, push the rear setup button 7 times within 5 seconds.
2. The LEDs will step up and down in brightness three times to conrm that the
min/max setting has been cleared.
Changing the Dimming Mode
The default mode of the dimmer is Trailing Edge, but it can be put into Leading
Edge if required. Please ensure that you know the correct mode for your lamp.
1. Whilst on, push the rear setup button 9 times within 5 seconds.
2. The LEDs will step up and down in brightness twice to conrm the setting
has been saved.
NOTE:
To switch back to Trailing Edge mode, just repeat the process again, the LEDs
will step up and down once to show the dimmer is back in Trailing Edge mode.
REAR PANEL PRESS BUTTON - DIMMER SETUP SEQUENCES
OPERATING INSTRUCTIONS
• Easy push button setup
• Trailing/Leading Edge
• Soft start feature
• Silent & icker free
• Self Recovering Thermal Fuse
• Short Circuit & Overload Protection
WARNING - PLEASE READ
RISK OF ELECTRIC SHOCK
●Hazardous voltage and electrical current may be present at the wire leads of this product even when
the device is switched o.
●Lock out and tag the input circuit before accessing the wiring connections.
●This device must be installed by a qualied and experienced electrician in accordance with applicable
current electrical regulation.
●To comply with all safety standards, the product must be used only for the purpose described in this
instruction and must be installed in accordance with the wiring rules and regulation in the location
where it is installed.
●There are no user serviceable parts inside the product.
Failure to follow these instructions can result in death or serious injury.
EQUIPMENT DAMAGE HAZARD
●Install the device according to instructions in this document.
●Pay attention to the specications and wiring diagrams related to the installation.
●Do not use this product for any other purpose than specied in this instruction.
●The product is suitable for indoor use only.
●Apply IEC60898-1 compliant 250V~ 6A MCB as an overload protective device.
LEGAL DISCLAIMER
The installation of electrical products is inherently dangerous and can lead to serious injury or death.
The products we sell MUST be installed by a qualied and experienced electrician in accordance with
applicable current electrical regulation. Any advice, guidance or other information provided by Enkin on
their website or within any of our publications cannot completely anticipate your situation and common
sense must prevail. Products need to be checked prior to installation and regularly for damage and wear
and tear. Products should be returned and not used if in any doubt of their integrity.
Electrical rated loads and limits of a given product should NEVER be exceeded at any time. The
electricity supply should always be isolated at its source (Distribution Board) before attempting any
installation or maintenance.
No advice or information, whether oral or written, obtained by you from us or through the service, our
employees, consultants and/or retailers shall create any warranty not expressly made herein.
You agree to assume all and any risk resulting from the utilisation of information provided by Enkin. You
also expressly agree not to hold us responsible for any damage, personal injury, death or loss resulting
from your use of our information, service or regulatory compliant products.
Enkin is a trading name of Trade Ivy. Registered in England Number: 10809945. Copyright © 2021
All Rights Reserved. Trade Ivy Limited, Unit 3C Latham Park, St Blazey Road, Par, PL24 2HY.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice.
Scan QR Code for more detailed technical
information on this product
IP20
www.enkin.com
N
L
LOAD
SWITCHED LIVE
LIVE
L1
CL2
DIMMER

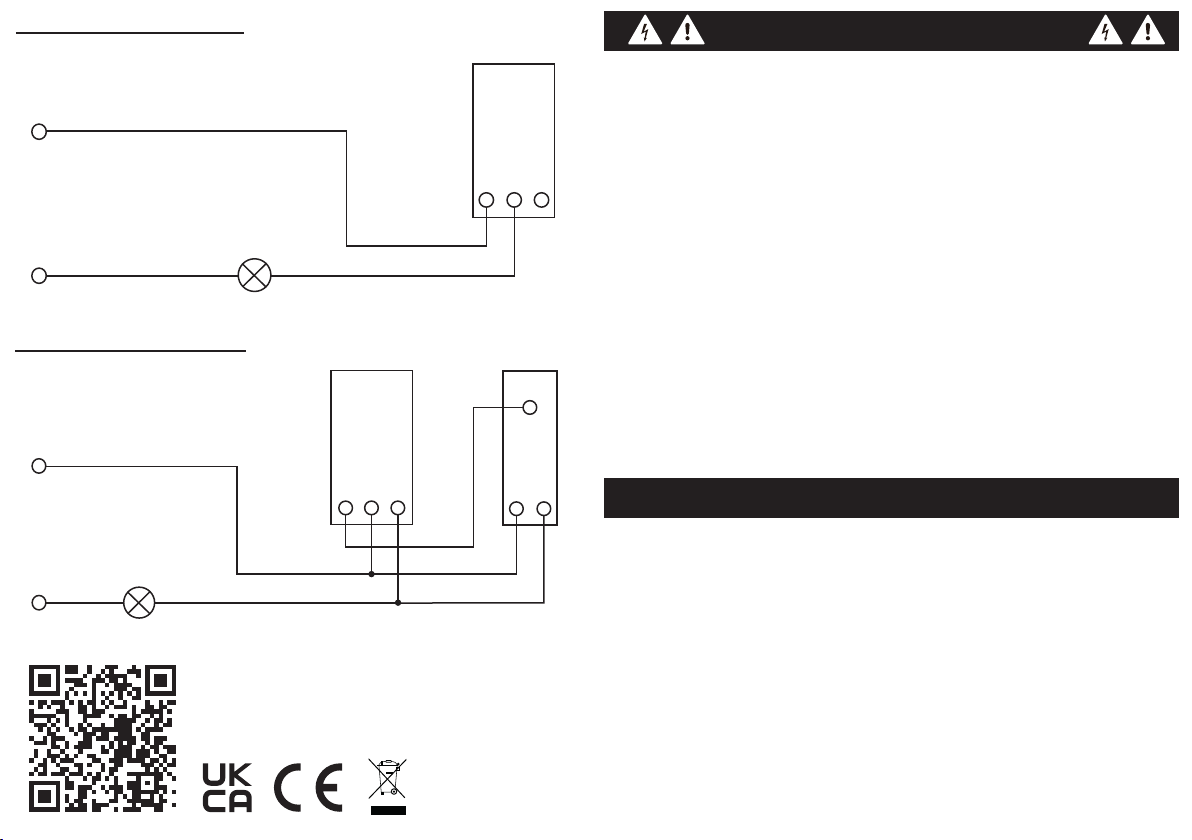

WIRING DIAGRAM - ONE WAY
WIRING DIAGRAM - TWO WAY
N
L
LOAD
SWITCHED LIVE
LIVE
L1
CL2
DIMMER
L2
2 WAY SWITCH
L1
COM
