ensto One Home User manual

ENG
Ensto One Home
RAK131_ENG
6.4.2021
© 2020 Ensto
Installation Manual

RAK131_ENG / 6.4.2021
2 / 24
Contents
1. Safety instructions................................................................................................ 3
2. Delivery contents.................................................................................................. 3
3. Mounting instructions..........................................................................................4
3.1. Before installation.....................................................................................4
3.2. Cable entries..............................................................................................5
3.3. Wall mounting........................................................................................... 7
4. Power supply.........................................................................................................9
5. Technical information........................................................................................ 13
6. Code key.............................................................................................................. 15
7. Installation / Commissioning checklist.............................................................16

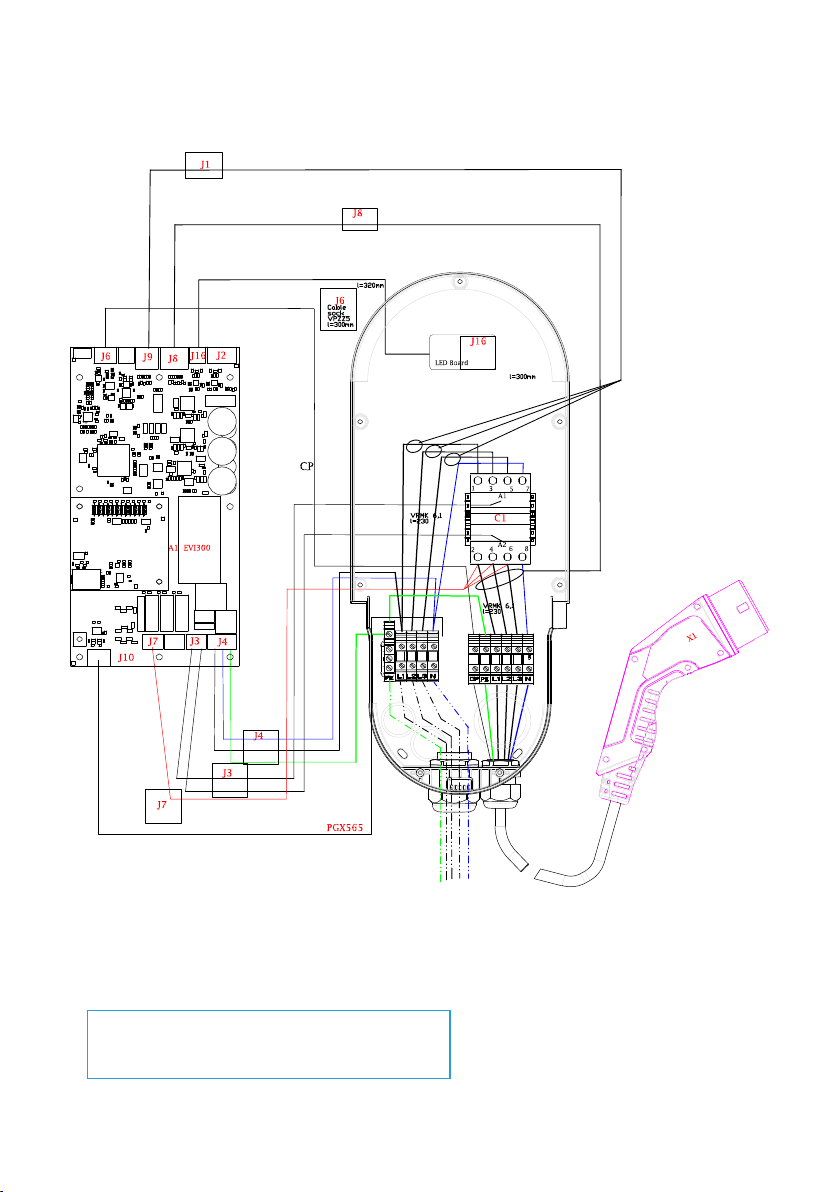

8. EVH161-HC000 / EVH321-HC000 internal circuit example............................ 17

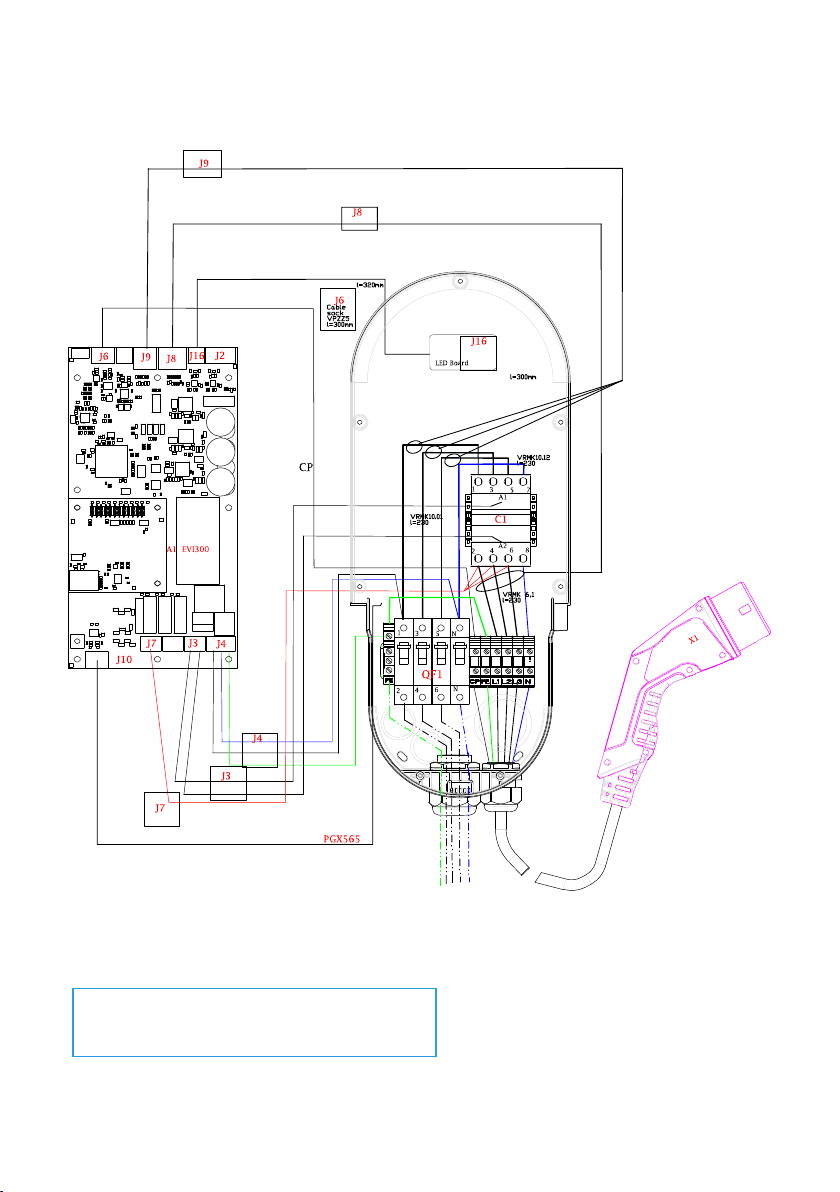

9. EVH163-HC000 / EVH323-HC000 internal circuit example............................ 18
10. EVH161-HCR00 / EVH321-HCR00 internal circuit example..........................19
11. EVH163-HCR00 / EVH323-HCR00 internal circuit example..........................20
12. Dimension drawing.......................................................................................... 21
13. Troubleshooting............................................................................................... 21
14. Ensto Charger Control Application.................................................................22
14.1. Installer menu in the Ensto Charger Control Application................22
14.1.1. Self test............................................................................................... 22
14.1.2. Update device rmware................................................................... 23
14.1.3. Maximum charging current..............................................................23
14.1.4. Connected phases............................................................................. 23
14.1.5. Phase rotation (only 3-phase chargers)..........................................23
14.1.6. Eathing System...................................................................................23
14.1.7. Overcurrent limit............................................................................... 23

RAK131_ENG / 6.4.2021 3 / 24
Plug
Fixed cable
Installation Manual
1. Safety instructions
Electrically skilled person
• The installation must only be done by an electrician with the appropriate qualica-
tions.
• Read this Installation Manual carefully before starting the installation work.
• Follow the instructions in this Installation Manual, and make sure that the installation
complies with national safety regulations, installation methods and restrictions.
• The information provided in this Installation Manual in no way exempts the installer or
user from responsibility to follow all applicable safety regulations.
• This Installation Manual is a part of the product and must be stored in a safe location
so that it is available for future installation and service.
WARNING
Danger of electric shock! Risk of re!
• Improper installation can cause personal injury and property damage.
• Do not switch on the power supply before the installation work is completed.

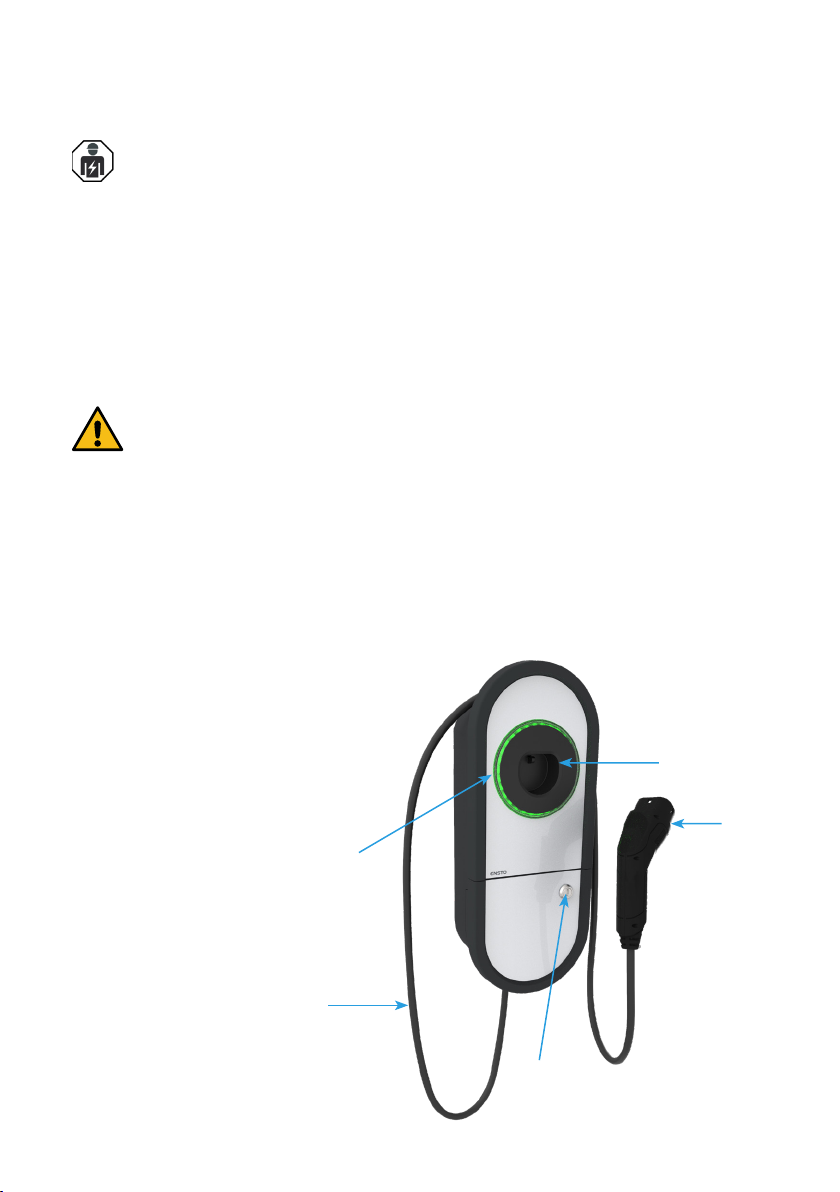

2. Delivery contents
• EVH Charger
• Cable gland M32/M25 (depending on the model)
• Installation Manual in English,
other languages please see www.ensto.com.
• Multilingual User Guide
4-color LED indicates
the charger’s status
Plug holder
Screw xing /
mechanical hatch lock
(depending on the model)

RAK131_ENG / 6.4.2021
4 / 24
Recommendation
900 - 1200 mm
Follow always national regulations and
site requirements
min. 200 mm min. 200 mm
3. Mounting instructions
3.1. Before installation
Remove the charger from its package. Do not scratch the surface of the charger after removal
from the package.
When selecting installation site, take into account the following:
• The charger is suitable for indoor and outdoor use.
• In order to ensure the optimal charging performance, the charger should not be exposed
to direct sunlight.
• The minimum space needed for operating and maintenance.

RAK131_ENG / 6.4.2021 5 / 24
3.2. Cable entries
• Take the cable routing into consideration when planning the installation. The supply cable
can be routed into the enclosure from the rear or bottom. Default cable routing is from
the bottom.
• The M32 cable gland for the supply cable is pre-assembled on the bottom of the charger.
• If you need to open additional cable entries, you have to disassemble the charger.

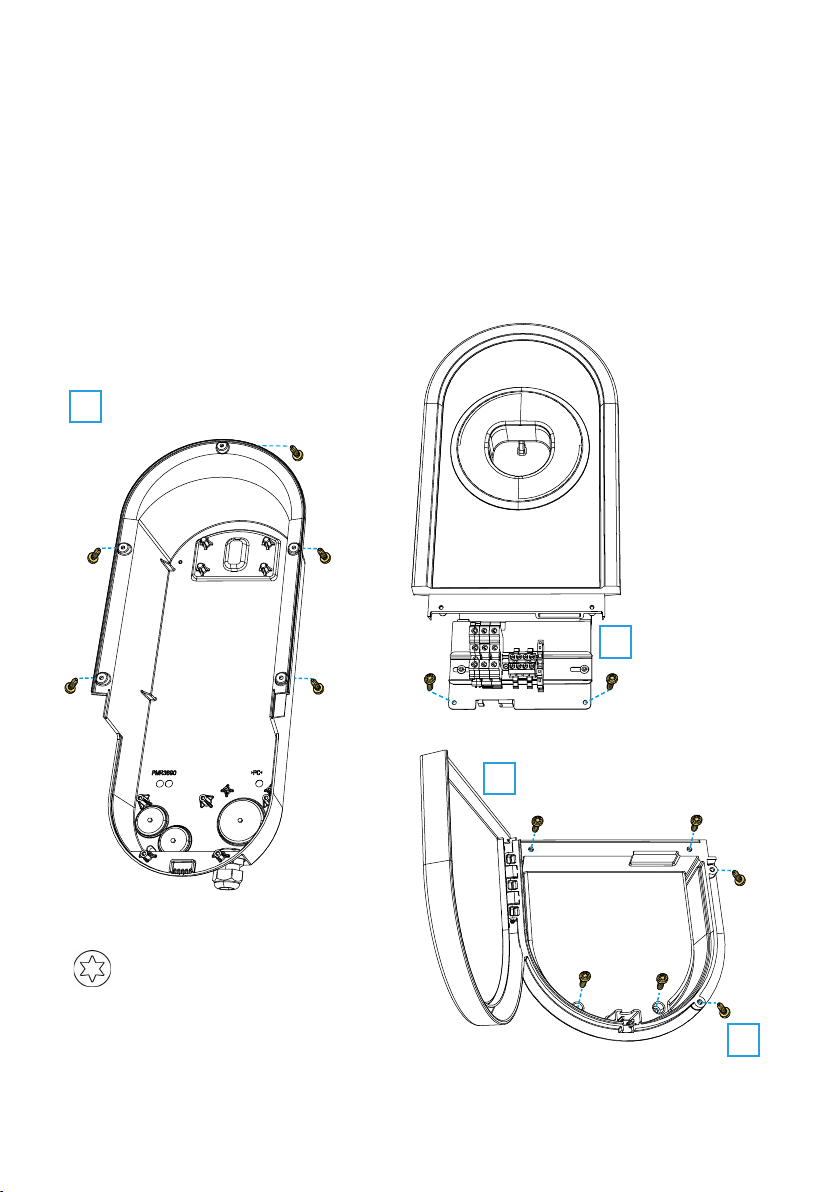

Installation steps when cable routing is from alternative cable entries
1. Disassemble the charger.
TX20
Installation box
Base
Installation
box cover
1
Screw xing: Remove the screws 2pcs.
Mechanical lock: Unlock the hatch with a coin or suchlike.
2Remove the screws 4pcs.
Remove the installation box cover.
3Remove the
screws 2pcs.
4Remove the screws 5pcs.
Remove the insert from the base.

RAK131_ENG / 6.4.2021
6 / 24
Accessories
Part number Description Note
PMR1217.32B Black cover plug for M32 opening
KTM24.25/BLACK M25 cable gland for cable Ø 10 - 16mm EVH16...: included 1pc
PMR1219.3225B Black reduction nipple, M32 => M25 EVH16...: included 1pc
RGM16B Membrane gasket for cable Ø 5 - 9mm
RMM25B Membrane gasket for cable Ø 8 - 17mm
RMM32B Membrane gasket for cable Ø 12 - 24mm
2. Open the needed cable entries with a step drill bit.
3. Prepare the cable entries with suitable accessories.
4. Remove the included cable gland from the bottom and close the cable entry with a cover
plug, PMR1217.32B (accessory).
5. Assemble the base and insert.
6. Assemble also the installation box cover, if electrical cables are installed in a separate
session.
2 x M16
1 x M25 / M32
2 x M16
1 x M25 / M32
M32 cable gland for cable Ø 17-25mm
pre-assembled

RAK131_ENG / 6.4.2021 7 / 24
1270
367.5
108.5
max. Ø12
7
max. Ø5
Installation steps
1. Use for the wall material suitable screws.
2. Fasten the upper screw 1270 mm measured from the ground
surface. The plug holder will be at a height of 1200 mm.
3.3. Wall mounting
• When selecting the installation location, make sure that the wall material is suitable and
robust. The mounting surface should be at and vertical.

RAK131_ENG / 6.4.2021
8 / 24

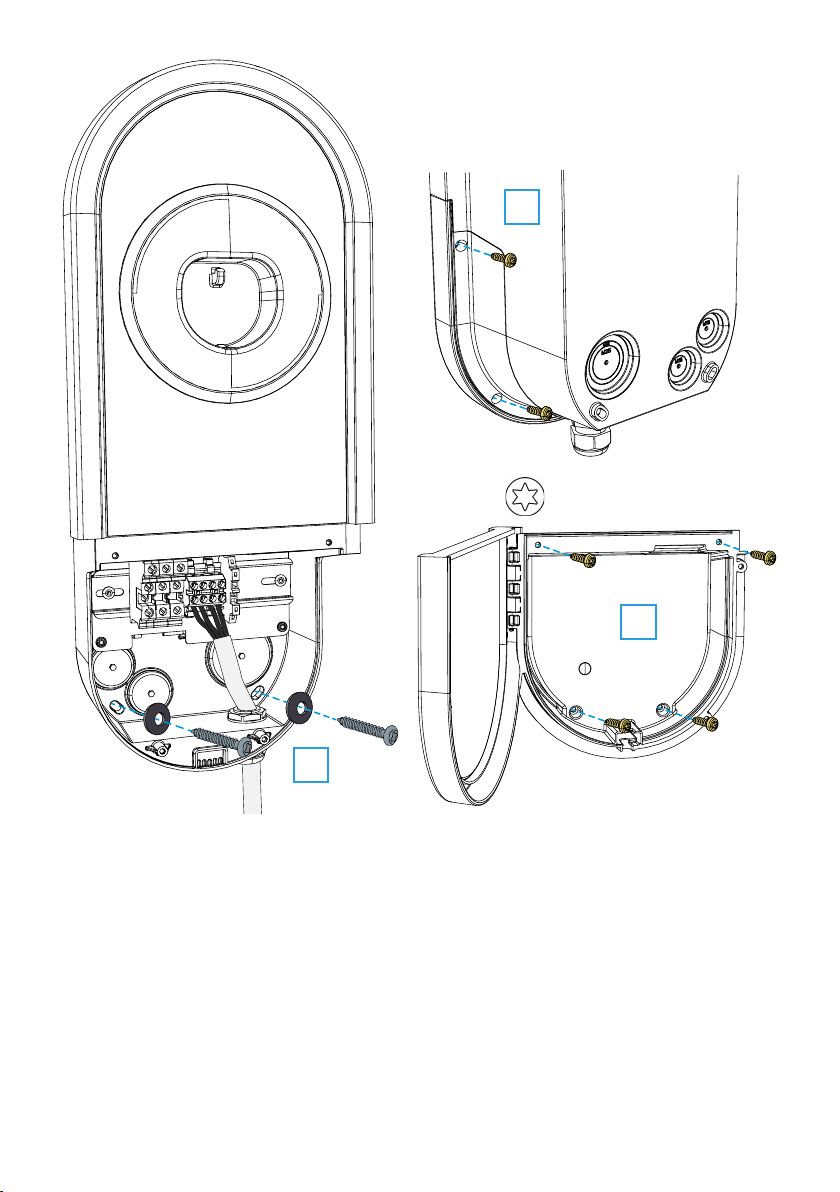

3. Open the installation box hatch by removing the fastening screws (2 pcs) / unlocking the
hatch lock [1].
4. Remove the entire installation box cover by unscrewing the fastening screws (4 pcs) [2].
5. Hang the charger on the screw you attached to the wall.
6. Secure the charger on wall with two washers and fastening screws (not included) [3].
Be careful not to damage the xed charging cable!
7. Pull the electrical cables approx. 150mm through the cable glands.
8. Cut the supply cable leads in suitable lengths. Leave the ground lead long enough so that
if a fault occurs it is the last one that comes loose.
9. Strip the leads 11 mm and connect to the supply connectors.
10. Put the installation box cover back in right position and secure with the screws you re-
moved.
11. Close the installation box hatch.
1
2
3
TX20
Tightening torque 1,5 Nm

RAK131_ENG / 6.4.2021 9 / 24
4. Power supply
The voltage and current ratings including cable sizes must comply with national regulations.
The system dimensioning must be done by a qualied electrical designer.
The default setting for the earthing system is TN network. If you connect the charger to
an IT network, you have to change the settings for the charger accordingly.
You can change the setting with the Ensto Charger Control Application.
Please see the chapter 14. Ensto Charger Control Application on pages 22 - 23.
EVH161-HC000 / EVH321-HC000:
• Install a residual current device (RCD type A, 30mA) and a circuit breaker (MCB max. 16A
or max. 32A depending on charger model) to the supply line. In addition follow local regu-
lations for the power supply line.
• These charger models can be connected to an IT network.
Supply
Cu 2.5 - 10 mm²
Supply
Cu 2.5 - 10 mm²
PE L N PE L1 L2
TN network IT network
L1 NPEL1 NPE

RAK131_ENG / 6.4.2021
10 / 24
EVH163-HC000 / EVH323-HC000:
• Install a residual current device (RCD type A, 30mA) and a circuit breaker (MCB max. 16A
or max. 32A depending on charger model) to the supply line. In addition follow local regu-
lations for the power supply line.
• Do not connect these charger models to an IT network.
L1 L2 L3L1 N
PE
Supply
Cu 2.5 - 10 mm²
PE L1 L2 L3 N
TN network

RAK131_ENG / 6.4.2021 11 / 24

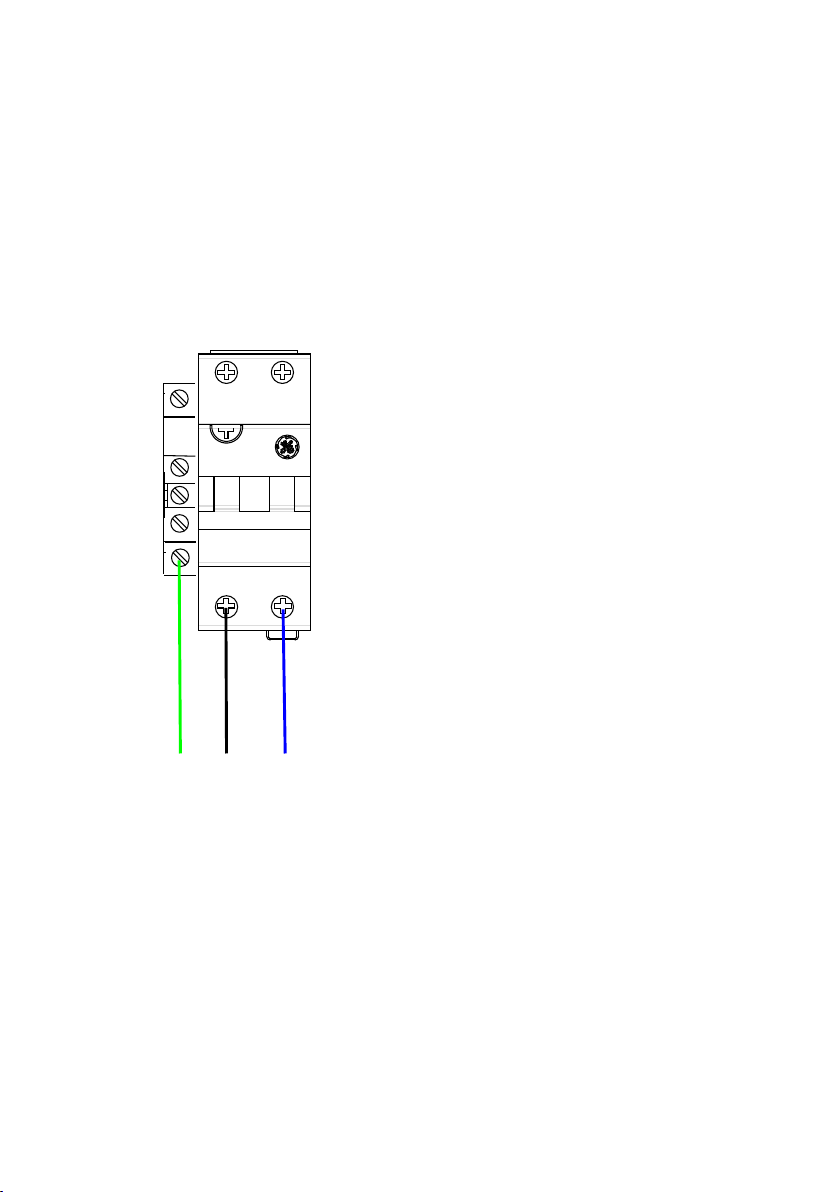

EVH161-HCR00 / EVH321-HCR00:
• A combined device with residual current circuit breaker and over current protection
(RCBO) is integrated.
• A label set of RCBO testing instructions is included in the delivery. Attach a language spe-
cic label on the installation box hatch.
• Do not connect these charger models to an IT network.
L N
PE
L N
QF1
Supply
Cu 2.5 - 10 mm²
PE L N
TN network

RAK131_ENG / 6.4.2021
12 / 24
EVH163-HCR00 / EVH323-HCR00:
• A combined device with residual current circuit breaker and over current protection
(RCBO) is integrated.
• A label set of RCBO testing instructions is included in the delivery. Attach a language spe-
cic label on the installation box hatch.
• Connect these charger models to a 3-phase supply, otherwise the RCBO test button does
not work.
• Do not connect these charger models to an IT network.
PE
1 3 5 N
2 4 6 N
QF1
TN network
Supply
Cu 2.5 - 10 mm²
PE L1 L2 L3 N

RAK131_ENG / 6.4.2021 13 / 24
5. Technical information
Electrical Connections EVH161-HC000 EVH321-HC000 EVH161-HCR00 EVH321-HCR00
Nominal supply
voltage 1-ph, 230 VAC
Nominal frequency AC 50 Hz
Charging current max. 1x16 A 1x32 A 1x16 A 1x32 A
Charging power max. 3600 W 7400 W 3600 W 7400 W
Supply connections
and terminals
L1, N, PE
Cu 2.5 – 10 mm²
Tightening torque: 1.5 - 1.8 Nm
L1, N, PE
Cu 2.5 – 10 mm²
Tightening torque
PE: 1.5 - 1.8 Nm
L + N: 2.5 - 3.0 Nm
Design and Mechanics EVH161-HC000
EVH163-HC000
EVH321-HC000
EVH323-HC000
EVH161-HCR00
EVH163-HCR00
EVH321-HCR00
EVH323-HCR00
Material Polycarbonate
Color Frame: RAL7021 dark grey
Cover: Silver
Installation box Screw xing Mechanical hatch lock
Weight approx. 7 kg
Ingress Protection IP54
Impact Resistance IK10
Operating temperature -40 °C … +50 °C
Mounting Wall / Ground
Electrical Connections EVH163-HC000 EVH323-HC000 EVH163-HCR00 EVH323-HCR00
Nominal supply
voltage 3-ph, 400 VAC
Nominal frequency AC 50 Hz
Charging current max. 3x16 A 3x32 A 3x16 A 3x32 A
Charging power max. 11 000 W 22 000 W 11 000 W 22 000 W
Supply connections
and terminals
L1, L2, L3, N, PE
Cu 2.5 – 10 mm²
Tightening torque: 1.5 - 1.8 Nm
L1, L2, L3, N, PE
Cu 2.5 – 10 mm²
Tightening torque
PE: 1.5 - 1.8 Nm
L + N: 2.5 - 3.0 Nm

RAK131_ENG / 6.4.2021
14 / 24
User Interface EVH161-HC000
EVH163-HC000
EVH321-HC000
EVH323-HC000
EVH161-HCR00
EVH163-HCR00
EVH321-HCR00
EVH323-HCR00
Connection to vehicle Fixed cable, length 5m
Charging status
indication
4-color LED:
Green = Ready / Blue = Charging / Red = Error /
Yellow = Internal maintenance
Use access Free access
Mobile application
Safety Features EVH161-HC000
EVH163-HC000
EVH321-HC000
EVH323-HC000
EVH161-HCR00
EVH163-HCR00
EVH321-HCR00
EVH323-HCR00
Residual current device
RCD
Leakage detection integrated
RDC-DD, 6mA
RCD, type A 30mA must be in-
stalled in distribution board
Leakage detection integrated
RDC-DD, 6mA
Residual current circuit breaker
and over current protection
integrated, RCBO, 30mA
Miniature circuit
breaker
MCB
Max. 16A must
be installed in
distribution
board
Max. 32A must
be installed in
distribution
board
Control and
Communication
EVH161-HC000
EVH163-HC000
EVH321-HC000
EVH323-HC000
EVH161-HCR00
EVH163-HCR00
EVH321-HCR00
EVH323-HCR00
Operation mode Standalone
Wireless Bluetooth
Charging control
system
“Simplied control pilot” functionality, specied in EN IEC 61851-1:2019,
Annex A.2.3 is not supported.
ZEReady 1.2b and EVReady 1.4b are not supported.

RAK131_ENG / 6.4.2021 15 / 24
EVH 16 1 H C 0 0 0
Not available
D
Domestic socket
Not available
M
MID class kWH meter
Not available
R
RCBO
Fixed charging cable
2
Type 2 socket (T2)
S
Type 2 Shutter socket (T2S)
Home
A
Apartment
1-phase
3
3-phase
Max. charging current 16A
32
Max. charging current 32A
Ensto One
6. Code key

RAK131_ENG / 6.4.2021
16 / 24
7. Installation / Commissioning checklist
Introduction
Check the mechanical and electrical installation according this checklist in order to make sure
that the charger is properly installed.
Checking the Installation
Go through the visual, mechanical and electrical installation when the charger is un-
powered.
CATEGORY X ITEM
Overall look You have received the ordered material.
You do not see any scratches or damages.
Mechanical
installation The charger is xed properly on installation site.
Electrical
installation
Charger’s power supply capacity meets electrical planning (cable size,
protective devices…).
Review the local electrical design plan.
The the PE-cable screw is tight.
The power supply conductors (L1, L2, L3, N and PE) are properly con-
nected.
The insulation of the power supply cable and conductors (L1, L2, L3, N
and PE) is intact.
The voltage between PE and N is less than 10 V.
The PE conductor resistance is less than 3 Ω.
Operational
check
All the LED states / color (green, blue, red) are functioning.
• Use a car simulator.
• Create fail and charge.
• Red at bootup, green at idle and blue while charging.
Test the functionality of the protective device.
Ready for
use Correct software is in use.

RAK131_ENG / 6.4.2021 17 / 24
8. EVH161-HC000 / EVH321-HC000 internal circuit example
LED Board
A1 EVI200
x1
C1
PE
PE N
L1
CP
L1 N
J1
J4
J3
J8
J16
J6
J7
J6 J1 J16 J8
J4
J5
J7 J3
L1
L1
N
N
Note! All signal wires must be at a sucient
distance from the power wires or protected
with insulating shield / plastic spiral.
Fixed charging cable
Supply
Cu 2.5–10 mm²

RAK131_ENG / 6.4.2021
18 / 24
9. EVH163-HC000 / EVH323-HC000 internal circuit example
Note! All signal wires must be at a sucient
distance from the power wires or protected
with insulating shield / plastic spiral.
Supply
Cu 2.5–10 mm²
Fixed charging cable

RAK131_ENG / 6.4.2021 19 / 24
10. EVH161-HCR00 / EVH321-HCR00 internal circuit example
LED Board
x1
C1
PE N
L1
CP
J1
J4
J3
J8
J16
J6
J7
J4
LN
QF1
LN
LN
LN
PE
A1 EVI200
J6 J1 J16 J8
J4
J5
J7 J3
Note! All signal wires must be at a sucient
distance from the power wires or protected
with insulating shield / plastic spiral.
Fixed charging cable
Supply
Cu 2.5–10 mm²
Fixed charging cable

RAK131_ENG / 6.4.2021
20 / 24
11. EVH163-HCR00 / EVH323-HCR00 internal circuit example
Note! All signal wires must be at a sucient
distance from the power wires or protected
with insulating shield / plastic spiral.
Supply
Cu 2.5–10 mm²
Fixed charging cable
