EOS Hitech JAY 101 User manual
Make sure to carefully read this User Manual before using this product.
Make sure you read“Safety Warning”to ensure proper use.
EOS HITECH Co., Ltd. MADE IN KOREA
2146, Wonmun-ro, Munmak-eup, Wonju-si, Gangwon-do, Korea
·Ues of 7 TFT LCD
·
·
·
·LCD touch screen

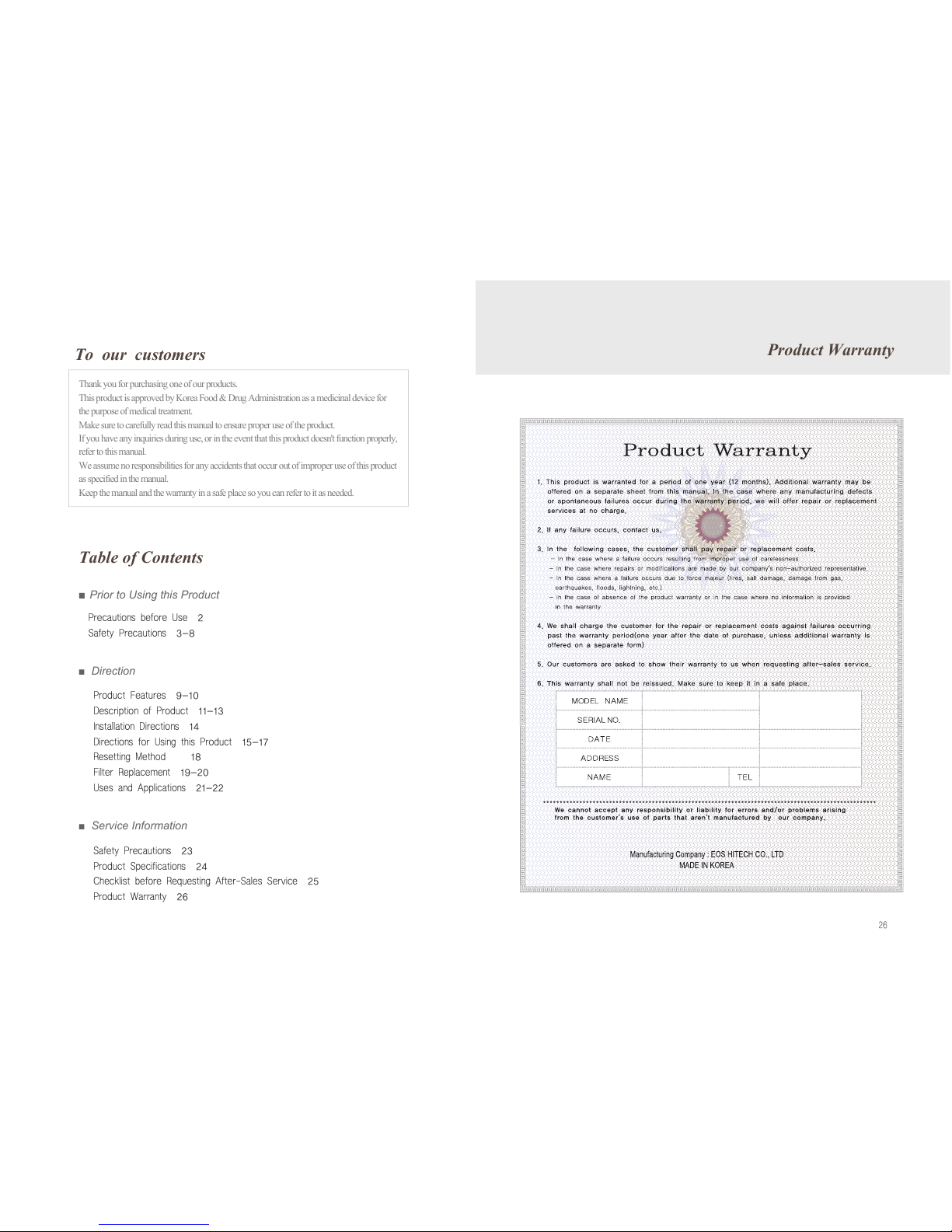

Table of Contents
Thank you for purchasing one of our products.
This product is approved by Korea Food & Drug Administration as a medicinal device for
the purpose of medical treatment.
Make sure to carefully read this manual to ensure proper use of the product.
If you have any inquiries during use, or in the event that this product doesn't function properly,
refer to this manual.
We assume no responsibilities for any accidents that occur out of improper use of this product
as specified in the manual.
Keep the manual and the warranty in a safe place so you can refer to it as needed.
Prior to Using this Product
Product Warranty
To our customers
Precautions before Use
When you begin drinking alkaline water, start with "Alkali 1" for
the first month. If no negative symptoms occur, then gradually
increase the level of alkaline water to "alkali 2" for the next
month. After your body has become acclimated to "Alkali 2",
then you can progress to your final step of "Alkali 3".
CAUTION : DO NOT DRINK "ALKALI 4", IT IS FOR SPECIAL
USE. SEE PAGE 21 OF MANUAL.
Don't take medicine with alkaline water.
When taking medicine, use purified or filtered water.
A person who suffers from achlorhydria should not drink
alkaline water. (Please consult your physician.)
Achlorhydria refers to an abnormal deficiency or absence
of free hydrochloric acid in the gastric juice, often
associated with severe anemias and cancer of the
stomach.
It is recommended that you use tap water as source water.
(Don't use well water as source water if possible.) (For
customers who want to use well water as source water,
contact our service center.)
The person who falls under one of the following categories
should consult his/her doctor or pharmacist prior to
drinking alkaline water. (Please consult your physician.)
1. A person who is a carrier of a chronic disease;
2. A person who has a disorder of the liver and bowels;
3. A person who is being treated under his/her doctor's
prescription;
Water tastes abnormal
No water outflow
Amount of water generated
different from specified
Incorrect pH levels
(pH samples are provided
on a fee-for-service basis)
The filter replacement icon
remains turned on even after
the filter has been replaced.
The product automatically
stops while it is producing
reduction water.
Leaks from the filter
or product
Hazy substance settles down
on the bottom of the bottle
filled with reduction water
Only purified water
is extracted
The product doesn’t
operate in Cleaning Mode
Symtoms Checkpoints
Check the product
for the period of use.
Check the filter for replacement
time intervals.
Check if the valve on the raw water
supply line is closed.
Check if the hose is bent or folded.
Check if flow rates are low
Check if water supply is cut off or
if the water supply line is frozen.
Check the purifying filter for
being clogged.
Check water for solidity.
Check flow rates for higher levels.
Check if the amount of water
drained is small.
Check if the filter flow rate
is initialized.
Check if the continuous operating
time exceeds 5 minutes
Check the filter for proper mounting.
Check for the inside of the product
with the exception of the filter
for any leaks.
Check if calcium ions and
carbonic acids bond together
in water, forming deposits.
Check if the flow rate is low
(1kgf/ or slower)
Check if the flow rate is high
(5kgf/ or faster)
Check if the amount of working
Check if the operating time
exceeds 12 hours.
Measures to be taken
Operate the product so that
it should be drained of
stagnant water for one minute.
Request that the filter
should be replaced.
Open the valve.
Stretch out the hose.
Contact our A/S center to install
a water pump.
Wait until water comes out of the
water supply pipe.
Request that the filter should be
replaced.
Depending on regions and
water quality, pH levels may vary.
Reduce the amount of raw water.
Set the system.
(Request for after-sales service)
Initialize the filter flow rate
in the System Setting Mode.
Request for after-sales service.
Water production is automatically
stopped in 10 minutes in order to
prevent water outflow due to user’s
carelessness.
Immediately deplug the power cord
and request for after-sales service.
Depending on raw water quality,
calcium minerals in raw water
are extracted.
There is no problem in drinking
the calcium minerals in water.
However, it is recommended that
the customer should request for
after-sales service to protect the
product units in the case where
such calcium minerals are
generated in a continuous manner.
Contact our A/S center to
install a pressurized pump.
Contact our A/S center to install
a pressure-reducing valve.
The product returns to the normal
condition after performing auto
cleaning for 15 seconds.
Things to be confirmed before
requesting after-sales service
CAUTION :This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
Safety precautions
Safety precautions are provided for the safe and proper use of this product and prevent
unexpected danger or possible damage.
Make sure you are familiar with the safety precautions for the proper use of the product.
Power Supply Precautions
Do not use a damaged power cord or
loose connector, electric shock or fire
may occur.
The "DANGER" sign indicates an imminent hazard that,
if not avoided, will result in serious injury or death.
The "WARNING" sign indicates a potential hazard that,
if not avoided, will result in significant injury to the body
or damage to property.
The "ATTENTION" sign indicates a potential hazard that,
if not avoided, will result in minor injury to the body or
damage to property.
Do not pull the power cord.
Do not touch it with wet hands,
otherwise, electric shock or fire
may occur.
Do not forcibly bend the power cord
and make sure the power cord isn't
squeezed, damaged or deformed by
heavy things. Otherwise, electric
shock or fire may occur.
In the event that water gets into the
power supply unit, pull the power cord
and make it completely dry prior to use.
Otherwise, electric shock or fire may
occur.
Product Specifications
Safety precautions
During product repair/inspection and/or
parts replacement,
be sure to unplug the power cord,
otherwise, electric shock or fire may occur.
Use a dedicated connector per outlet
for each electrical product. Otherwise,
electric shock or fire may occur.
Do not separate, sever or splice the
power cord. Otherwise, electric shock
or fire may occur.
Do not plug and unplug the power cord
repeatedly. Otherwise, electric shock or
fire may occur.
In the case of a damaged power cord,
do not replace it with another one.
Contact our customer service to get
a new power cord.
Otherwise, electric shock or fire may occur.
1. Never Modify the unit at your will
2. Never use or store this unit in a place with extreme temperatures or dampness
3.
4.
5.
of the water and consult doctor.
6. Do not use ionic water with medicine.
7.
8.
A place water is easy to e frozen
A place re may e contacted directly
Water of hih hardnes
Never use water as descried elow
Water reaent was put in for testin p
Beware of the following
Special Acidic Water Usage
Direction for Alkaline Water Storage
Burns and stanching : Acidic water delivers excellent styptic
characteristics. As such, if cut wounds and/or burns are soaked directly
in acidic water, or if a poultice is applied to them, good results may be
obtained.
Gargling and respiratory diseases : In the case of a sore throat or
heavy cough, gargle with acidic water for positive results.
area of the foot in acidic water for about twenty minutes per day.
Bathing, face washing, and shampoo :
When washing, use acidic water
that will be good for skin care. Acidic water can act as an astringent that
makes your skin elastic, and that prevents chloasma, pimple, and freckles
from occurring (your skin is lightly acidic by nature.) If you rinse your hair
with acidic water after shampoo, the alkalinity of your soap will be
neutralized and your hair will have a good shine.
The acidic water (astringent) used after shaving can be used as skin lotion
for disinfection and as an astringent.
To help disinfect in the kitchen : Soak tableware, cutting board, dish
towel, etc. in strong acidic water for about 20 to 30 minutes.
Flower arrangement : Apply one part acidic water diluted with two part
a longer time.
Alkaline water should be stored in glass, china wear or stainless
steel all of which have excellent resistance to corrosion.
Keep alkaline water in a sealed container within the refrigerator.
This alkaline water is available for use up to three days.
Astringent refers to an acidic cosmetic lotion that tends to draw
together or constrict soft organic tissue.
In the case where source water
isn’t used over a long period,
lock the source water valve and
pull the power cord out.
Otherwise, electric shock, fire
or leaks may occur.
Never poke or scratch the touch
screen with a sharp object, this
may cause electric shock or
damage to the product.
(Give a light touch to the touch
screen)
If alkaline water is used over a long
period of time, some problems may
occur in the product.
In such situations, use acidic water.
The same holds true for the opposite
case.
During the humid summer months,
it is normal for condensed water
can flow out of the product.
However, it is not normal for
condensed water to flow out of
the product during the cold months.
If this occurs please contact
customer service.
Safety precautions
Regarding Medicinal
Substance-Producing Equipment
Safety precautions
Do not place a vessel filled with water,
pharmaceuticals, food, or small metals
on this product, if introduced into the
product, this may cause electric shock
or fire.
In the event that abnormal noise, a
burning smell, or smoke is generated
from the product immediately unplug
the power connector and contact our
customer service department.
Otherwise, fire or damage to the unit
may occur.
In the event that water flows from
inside of the product, or water is
present around the product, lock the
source water valve, pull out the power
cord, and contact over service center.
Replace filters according to the filter
replacement cycles to ensure clean water.
If a filter that has reached the end of its life
cycle is still in use, purifying performance
and product life can be degraded.
[Replacement cycle (primary filter: 6months,
secondary filter: 12months)] Even though the
filrer replacement indicator lamp isn't turned
on, replace filters every 6 months to maintain
the purifying performance of this product.
Special Alkaline Water Usage
When cooking rice : Before getting rice ready to cook, wash rice with acidic water
and soak it in alkaline water for 30 to 60 minutes. When the rice is completely
cooked, it becomes cooked ion rice that has a good polish just as cooked glutinous
rice, that tastes good, and maintains freshness for a longer period of time.
taste better.
lasting freshness.
or when the stomach is empty in the morning.
Try to cook bamboo shoots, tree sprouts, taros, and brown seaweeds through
the use of alkaline water. The burning pungency of those food ingredients
will be eliminated, and their unique taste will be retained. In particular,
Animal distemper :
laying rate of chickens while making meat more tasty by inhibiting the growth of fat.
Direction for Alkaline Water Application
other symptoms until your body gets acclimated to it.
If you any symptoms persist, cease drinking the water and consult with your physician.
Regarding Medicinal
Substance-Producing Equipment
Safety precautions
Cleaning
Others
Disconnect the power cord before cleaning.
Do not spray water directly onto the power
cord, do not clean it with benzene or thinner.
This may cause electric shock, fire or
damage to this product.
Be sure to dry water thoroughly on and
around the power cord and on the prong
before reconnecting to the electrical
outlet.
Do not spray water onto the machine directly.
use a damp cloth to clean the outside casing.
Never wet or clean inside of the machine.
Otherwise, a short circuit or electric shock may
occur. (In the case where the LCD gets
contaminated, clean it with a damp cloth.)
When moving the machine to another
place, do not drag the machine by the
power cord, this may cause electric
shock or fire.
Do not disassemble or refurbish this
product at your discretion.
Otherwise, electric shock or damage
to the product may occur(voiding warranty).
Use purified or filtered water,
(not alkaline or acidic water),
for fishtanks and bowls.
Filter Replacement
Safety precautions
Installation
Do not install this product near heat
appliances.
Never place a candle or cigarette on
this product. Otherwise, fire may occur.
Do not install this product on a sloped or
uneven surface and do not apply
excessive force or impact to this product,
which, may cause physical injuries and
damage to the product.
Do not connect source water to the hot
water supply line.
CONNECT TO COLD WATER LINE ONLY
(At no time should the machine be
connected to the hot water line)
Install this product around the sink,
allowing water to be drained into the
sink.
Install the acidic water outlet hose below
the height of the product to be drained
downward into the sink. Make sure the end
of the hose is installed in such a way that it
is less than 8 inches from the bottom of the
product. Otherwise, product performance
can be degraded, and residual water may
remain unextracted.
How to Replace Filter
Replace filters according to the filter replacement cycle notified
by the voice announcement. Delay in filter replacement can
cause the product to function improperly.
Filter Replacement
Product Features
CPU embedded, fully automated system
Every motion of an apparatus for producing,
electrolytic water is controlled by semiconductor
Merely pressing the touch button allows you
Voice announcement
and safety warning voice announcements
Filter replacement cycle display and announcement
replacement time intervals by the voice
Neat and Elegant Design
This product uses a compact and deluxe
design that harmonizes with the kitchen
LCD Back Light
Color LCD Touch Screen
Resetting Method
Please turn on the power by
Under the condition of turn on, please
touch continuously left upper end for
If the “+” sign appears on the left
upper end, please touch the “+” sign
Also, if the “+” sign appears on the
right lower end, please touch the “+”
If the screen returns to the normal
condition, please check if the buttons
The “+” sign appears on the left
Step-by-step pH Configuration
Touch the pH Setting by steps button of Function
Setting after touching right upper“mode button”
and set the pH for each step to your preference
using the“<”or “>”button.
And then touch“Confirm button”
Step-by-step ORP Configuration(range : -50~-520)
Touch the ORP Setting by steps button of Function
Setting after touching right upper“mode button”
and set the ORP for each step to your preference
using the“<”or “>”button.
And then touch“Confirm button”
Time setting Configuration
Touch the Time Setting button of System Setting
after touching right upper“mode button”
and set the time to your preference using the“<”
or “>”button. And then touch“Confirm button”
Language selection Configuration
Touch the Language selection button of System
Setting after touching right upper“mode button”.
And set the language to your preference using the
“<”or “>”button.
And then touch“Confirm button”
Product Features
Safety Function
Direction for Using this Product
Electrolytic antibacterial system
The energy generated when extracting targeted
water allows for inhibiting microorganisms from
multiplying, and automatic cleaning allows for
maintaining optimal conditions.
optimal purifying condition complying
with tap water.
SMPS Type Power Supply
types of parts, thereby ensuring this product
is used in a stable manner.
Alkaline 1step( 1-19: pH 8.5)
Alkaline 3step(39-57: pH 9.5)
Alkaline 5step(70-74: pH 11.0)Alkaline 2step(20-38: pH 9.0)
Alkaline 4step(58-69: pH 10.0)
Alkaline 1step(-100~-180)
Alkaline 3step(-280~-360)
Alkaline 5step(-460~-520)Alkaline 2step(-190~-270)
Alkaline 4step(-370~-450)
recommend not to change it randomly.
Description of Product Direction for Using this Product
Bottom
Front
Back
<Configuration of Product Function>
The JAY 101 machine comes manufactured with a preset control figuration,
the control figuration does not have to be changed.
Waiting screen setting
Touch the LCD light setting button of Function
Setting after touching right upper“mode button”
and if the letter“ON”appears on the screen,
the LCD is set to be constantly on.
If you want to turn the LCD light on while a product
is in use only, touch the “<”or“>”button to
select“OFF”and then touch“Confirm button”
Volume Control
Touch the Volume settings button of Function
Setting after touching right upper“mode button”
and set the volume to your preference using the
“<”or “>”button.
And then touch“Confirm button”
◎ Original Water pH Configuration
(Range: pH 6.5~8.0)
Touch the Raw water pH setting button of Function
Setting after touching right upper“mode button”
and set the pH of the original water by touching
the“<”or “>”button.
And then touch“Confirm button”
Automatic Cleaning Period Configuration
( Recommended period : every 30 liters)
Touch the Automatic Cleaning button of Function
Setting after touching right upper“mode button”
and then set the automatic cleaning period to your
preference using the“<”or “>”button.
And then touch“Confirm button”
Direction for Using this Product Description of Product
① ALKALINE Water
② ACIDIC Water
③ PURIFY Water
④ ON/OFF Operation Button
⑤ Current pH Indication
⑥ Current ORP Indication
⑦
⑧
⑨
⑩
⑪ ALKALINE Water Button 1-5step
⑫ Mode Button
LCD SCREEN
Initial Use of Machine
·
·
·
※
appropriate pH
·
·
Measuring pH Density
·
·Pour 50㎖
※
5.
3.
4.
1.
Connect the valve to the adapter before connecting
the water inlet hose to the nipple.
2.
Separate the tap from the water pipe.
Lock the main valve on the water pipe.
Assemble the tap back into the adapter.
Installation of a tube in the wall-mounted faucet
Description of Product Installation Direction
ALKALINE Water Button 1-5 steps /
Touch the Alkaline step of your preference
ACIDIC Water Button 1-4 steps /
Touch the acid step of your preference
PURITY Water Button /
ON/OFF Operation Button
Touch Button& Operation
Table of contents
Popular Water Filtration System manuals by other brands
Clarke
Clarke CAT152 FITTING & MAINTENANCE
Bestway
Bestway Flowclear 58397 owner's manual
Evolution Aqua
Evolution Aqua nexus 310 Installation and instruction manual
KENT
KENT Pride Mineral Ro Instruction handbook
IMI NORGREN
IMI NORGREN F68H Installation & maintenance instructions
Oase
Oase FiltoClear 5000 operating instructions
