EOS SteamRock Premium User manual

INNOVATIVE SAUNA TECH N O L OGY
Made in Germany
SteamRock Premium
print no. 2934 4827 / 49.17
EN Installation and operation manual
steam generator for steam rooms

2
EN
English
Contents
1. Identification..........................................................................................................................................5
1.1 Manufacturer ..............................................................................................................................5
1.2 Copyright......................................................................................................................................5
1.3 Product identification..............................................................................................................5
1.4 Intended use ...............................................................................................................................5
1.5 Foreseeable incorrect use ......................................................................................................5
1.6 Applicable norms ......................................................................................................................6
2. Safety advice..........................................................................................................................................7
3. Specifications .....................................................................................................................................10
4. Delivery scope....................................................................................................................................12
5. Mechanical installation - steam generator .............................................................................. 13
5.1 Installation overview.............................................................................................................13
5.2 Construction and location of components.............................................................14-15
5.3 Prerequisites on the installation site ............................................................................... 16
5.4 Mechanical installation ..................................................................................................16-17
5.5 How to open water tank ...................................................................................................... 18
5.6 Water supply and drain connection ................................................................................ 19
5.6 Steam pipe connection........................................................................................................ 20
6. Mechanical installation - display panel...............................................................................21-24
7. Temperature sensor (installation and connection).........................................................25-26
8. Electrical connection .......................................................................................................................27
8.1 Mains connection...................................................................................................................25
8.2 Display panel............................................................................................................................ 27
8.3 Temperature sensor............................................................................................................... 27
8.4 Water level control................................................................................................................. 28
8.5 Connection plan and wiring diagram.......................................................................29-30
8.6 Main board connection overview ....................................................................................31
8.7 Cabin light connection.........................................................................................................32
8.8 Fan................................................................................................................................................ 32
8.9 Volt-free contact (potential free contact) ...................................................................... 32
8.10 Level probe connection for descaling and essence dosing system...............32-33
8.11 Power output adjustment................................................................................................... 33
8.12 Leakage current ......................................................................................................................34
9. Cleaning and descaling system .............................................................................................35-37
10. General operation principle.......................................................................................................... 38
11. Commissioning and setup.......................................................................................................39-40

3
EN
12. Multiple cabins connection........................................................................................................... 41
12.1 How to connect several cabins to one display panel.................................................41
12.2 How to program the cabin address (ID) .......................................................................... 42
12.3 Connection example for 8 cabin connection................................................................ 43
13. Operation............................................................................................................................................. 45
• Graphic interface and basic functions............................................................................. 45
• Additional settings and functions..................................................................................... 45
• Operation concept..................................................................................................................46
• Startscreen - operation symbols..................................................................................46-47
• Current climate query............................................................................................................ 48
• Operation (general functions) ......................................................................................49-52
• Timer programming...............................................................................................................50
• Extended settings ................................................................................................................... 53
• Display lock................................................................................................................................54
• Heating time ............................................................................................................................. 54
• Operation data query ............................................................................................................55
• Display brightness...................................................................................................................55
• Holiday home mode............................................................................................................... 55
• Volt-free contact operation..................................................................................................56
14. Service level settings .......................................................................................................................57
• Access to service level and graphic interface................................................................ 57
• Overview of operation symbols......................................................................................... 58
• Settings and functions ....................................................................................................59-63
• Firmware update .....................................................................................................................63
15. Maintenance.......................................................................................................................................64
16. Troubleshooting..........................................................................................................................65-66
17. Recycling.............................................................................................................................................. 66
18. Service address ..................................................................................................................................67
19. General terms of service and warranty terms......................................................................... 68

4
EN
Introduction
Dear customer
Thank you very much for purchasing EOS sauna & steam equipment. You have purchased a mod-
ern, technically advanced product which will provide you with years of reliable service.
EOS steam generators have been designed and tested to comply or exceed the currently applica-
ble European safety norms and are produced in our factory in accordance with the quality man-
agement norms DIN EN ISO 9001:2008.
This installation manual or operating guide is intended for your information. Please read it careful-
ly before installing and operating the steam generator, in order to prevent damages of the device
or physical injuries. Please keep this document for further references.
We wish you a pleasant and relaxing time in your steam room.
Your EOS team.

5
EN
1. Identication
1.1 Manufacturer
EOS Saunatechnik GmbH
Schneiderstriesch 1
D-35759 Driedorf, Germany
Tel.: [phone]
Fax: [phone]
1.2 Copyright
The copyright owner of the present installation manual and operating guide is EOS Saunatechnik
GmbH.
1.3 Identication of the product
Steam generator SteamRock Premium
1.4 Intended use
The SteamRock Premium steam generator is intended for production of steam in steam rooms.
The SteamRock Premium includes a control system with an external display panel.

6
EN
1.5 Foreseeable incorrect use
Following may be regarded as foreseeable incorrect use:
• Steam room size does not match the steam generator power (incorrect power selection).
• Operation without legally required safety and protection features.
• Operation without proper knowledge of the safety advices (chapter 3).
• Operation without adherence to the required operation rules, maintenance and servicing re-
quirements.
• Operation of the device after unauthorized technical alterations or repairs.
• Operation or use by infants or persons with limited mental abilities without the proper prior
instruction.
• Operation or use by persons with certain ailments or health conditions, such as for instance
heart and cardiovascular disorders, which might lead to physical injuries through the use of a
sauna or a steam room (a doctor should be consulted in advance).
1.6 Applicable norms
DIN EN 60335-1:2012-10 Household and similar electrical appliances - Part 1: General re-
quirements
DIN EN 60335-2-53:2012-06 Household and similar electrical appliances. Safety - Part 2-53:
Particular requirements for sauna heating appliances and infra-
red cabins
DIN EN 60335-2-98:2009-04 Household and similar electrical appliances. Safety - Part 2-98:
Particular requirements for air humidiers
DIN EN 60335-2-101:2009-02 Household and similar electrical appliances. Safety - Part 2-101:
Particular requirements for vaporizers
DIN EN 1717:2011-08 Protection against pollution of potable water installations and
general requirements of devices to prevent pollution by back-
ow
DIN 1988-100:2011-08 Codes of practice for drinking water installations - Part 100: Pro-
tection of drinking water, drinking water quality control
DIN EN 55014-1:2012-05 Electromagnetic compatibility - Requirements for household ap-
pliances, electric tools and similar apparatus - Part 1: Emission
DIN EN 55014-2:2009-06 Electromagnetic compatibility - Requirements for household ap-
pliances , electric tools and similar apparatus - Part 2: Immunity
DIN VDE 0100-703:2006-02 Low voltage installations – Requirements for special installations
or locations - Rooms and cabins containing sauna heaters
DIN EN 82079:2012 Requirements for instruction manuals in the European Market

7
EN
2. Safety advices
!DANGER
Risk of re and danger of electric shock.
Risk of re by incorrect installation.
• Make sure to have the steam generator installed only by an ap-
propriately qualied specialist according to the present instruction
manual.
• All electrical connections in the steam generator and other equip-
ment with a permanent connection may be only carried out by an
appropriately qualied and licensed electrician. All applicable lo-
cal legal codes and safety requirements should be observed. In the
case of a warranty claim a proof of such installation (e.g. invoice of
the electrician) should be presented.
!DANGER
Risk of health damage by too long operation time.
• If the device is used in a commercial (public) sauna so that it does
not switch o automatically after a certain time, then it should be
appropriately supervised.
• By operation with certain time intervals or by switching through
a remote system the sauna cabin should be visually inspected be-
fore it is switched on.
• This is also required if the device has been set to a stand-by mode
in order to be switched on at a later time.

8
EN
!DANGER
Risk of scalding.
Hot steam may cause burns, scalding and dangerous to life injuries, if
the steam generator has not been properly installed or is operated not
as per its intended use.
• During planning and installation make sure, that the steam out-
put always remains open and may not be blocked.
• The overpressure release vent and its drain pipe should be in-
stalled and connected so, that it the case of a unforeseen release
of hot water by overpressure there is no risk of scalding.
!DANGER
Danger to life and risk or dangerous to life injuries
The use of sauna by persons with certain health conditions may cause
severe dangerous to life injuries or even death.
• Please consult a doctor before using a sauna if there is possibility
that the use of sauna may lead to heath damages.
• Please make sure to read carefully the present installation manual
and operating guide before using the steam generator.

9
EN
!WARNING
Risk of burns through hot surfaces in the device.
The steam generator has hot surfaces, e.g. pipelines, water tank,
which may cause burns.
• Keep a secure distance to hot surfaces of the device.
!ATTENTION
So-called plasticizers are able to modify the water surface tension in the
steam generator water tank.This can lead to strong foaming, so that the
hot water may come out of the steam outlet. Furthermore this can lead
to incorrect water level detection and overheating errors.
Please ensure that the water supply is clear of plasticizers or similar sub-
stances.
Plasticizers and similar substance are, among others, oils (e.g. essences),
detergents, lubricants or specic chemicals contained in plastics like
PVC. It must be ensures that the water supply line does not use any ma-
terials which may contain plasticizers.
!ATTENTION
In areas with calcareous water (over 5 ° dH), it is recommended to install a
water softener to remove lime or automatic decalcication.
The softener must not be foam-forming or contain harmful chemicals. This is
especially advisable in public areas.
!ATTENTION
This device can be used by children over the age of 8 or by persons with
physical, sensory, or mental disabilities, or who have inadequate experi-
ence and knowledge, if they are instructed in the safe use of the device,
or initially supervised, and if they understand the risk associated with
this device. Children may not play with this unit. Children may not
clean or service the unit unless supervised by an instructed adult.
Children should be supervised to ensure that they do not play with the
unit.

10
EN
3. Specications
Dimensions H x W x D [mm] 670 x 460 x 350 mm
Weight 28 kg (Type 1 - 9 kW) / 30 kg (Type 2 - 18 kW)
Water supply pressure [bar] 2 - 8 bar
Operation pressure max. [bar] Pressureless system. With overpressure release valve.
Performance at 3 bar [steam/h] 3 kW - 4 kg/h, 6 kW - 8 kg/h, 9 kW - 12 kg/h, 12 kW - 16
kg/h, 15 kW - 20 kg/h, 18 kW - 24 kg/h
Protection class IP x4
Water tank Stainless steel, accessible via opening lid
Internal overheating protection 2-level system with water temperature sensor and
separate overheating limiter fuse
Heating system Heating elements on the outer side of the water tank,
switchable in 3 kW steps
Cleaning and drain system Integrated automatic descaling and draining system,
external 5 l container for cleaning liquid.
Attention - use only non-foaming cleaners!
Drain 1“ pipe on the water tank bottom
Water level control Automatic via level probe, automatic water relling
Control unit Integrated control unit with external cable-connect-
ed Emotouch 3 display panel
Sensor system Incl. cabin air temperature sensor, 5 m cable.
Optional - temperature sensor for oor and bench
temperature control
Essence dosing Integrated, with 2 built-in dosing pumps
Water supply ¾“ external thread
Steam output 1 1/4“ external thread, incl. 2-part brass union
Outputs / connections • Light - 230 V AC, dimmable
• 2 x fan - 230 V AC
• AUX - volt-free output
• Floor heating - volt-free output
• Bench heating - volt-free output
• 4 x saunabus (S-Bus) connector (RJ12) for display /
modules
• 1 x essence level control (optional)
• Mass storage connector (type A) in display panel
Power supply 400V 3N AC, 50/60 Hz
premounted 2 m mains cord with Cekon type plug

11
EN
Power output Adjustable on site:
• Type 1 - 3 / 6 / 9 kW (9 kW default)
• Type 2 - 9 / 12 / 15 / 18 kW ( 18 kW default)
Fuse protection • Type 1 - 3 x 16 A
• Type 2 - 3 x 35 A
Min. cross section power supply line • Type 1 - 5 x 2,5 mm²
• Type 2 - 5 x 6,0 mm²

12
EN
4. Delivery scope
SteamRock Premium delivery includes:
• SteamRock Premium steam generator
• EmoTouch 3 display panel with separate bottom housing
• Connection cable for control panel, 5 m
• Temperature sensor, incl. 5 m connection cable
• 4 screws 5 x 40
• 4 dovels F6
• 2-part brass union 1 1/4“ to 35 mm (for steam output)
• Steam outlet, 1 1/4“ mm external thread
• 0,5 m steel braided water supply hose 500 mm 3/8“ to 3/4“
• 2 brass injectors for essence dosing system
• 1 m white connection cable with o-ring connectors (for essence containers).
• 5 l plastic container for descaler liquid with built-in level probe
• 2 replacements fuses (for the main board, attached to the main board)
• Installation manual and operating guide
Accessories (optional)
• Temperature sensor for bench heating item 94.6617
• Temperature sensor for oor heating item 94.6616
• 5 l canister for essences, with level probe item 94.6298
• Connection cable for temperature sensor 20 m item 94.6281
• Connection cable for temperature sensor 50 m item 94.6282
• Connection cable for display panel 25 m (RJ10/RJ14) item 94.6285
• Connection cable sauna bus 10 m (RJ14/RJ14) item 94.5861
• Connection cable sauna bus 25 m (RJ14/RJ14) item 94.4647
• Connection cable sauna bus 50 m (RJ14/RJ14) item 94.4648
• Power adapter for display panel installation
at distances up to 50 m item 94.6671
• Filtering grill for water tanks (against blockage of the drain) item 94.6819

13
EN
5.1 General installation overview
5. Installation
1000
300
150-250
1600 - 1700
floor drain
steam pipe
Lighting
duct vent in the
cabin ceiling
Tür
sensor*
drain inside steam room
steam outlet
5 L canister for descaler
* For sensor installation please refer to
the installation guide supplied with the
control unit.
Steamrock Premium
Control panel

14
EN

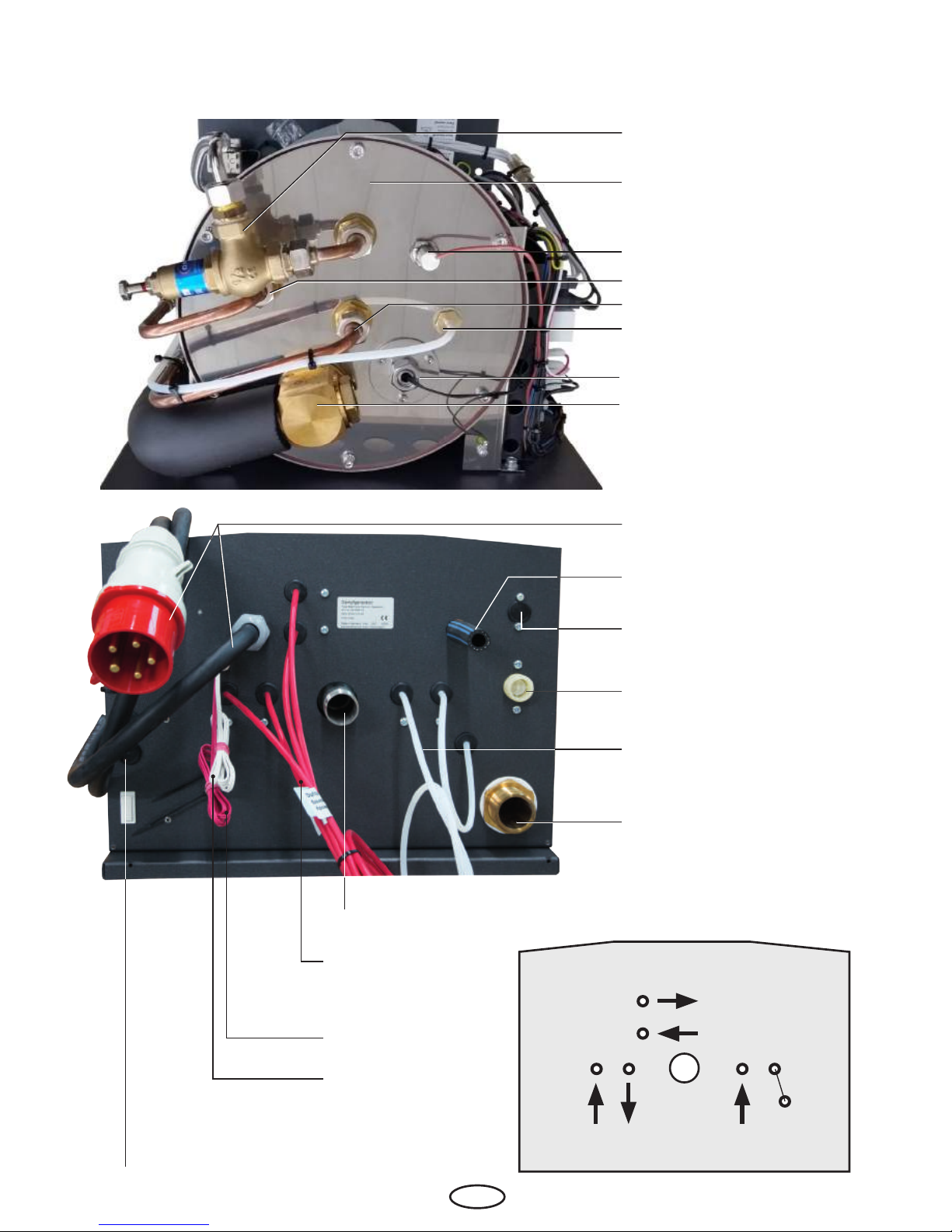

5.2 SteamRock Premium - location of principal components
Overpressure valve
with discharge
Water tank lid
Water supply (slow lane)
Water supply (rinsing)
Water level probe
Descaling liquid supply
Steam output with piv-
ot joint connection
Water temperature sensor
top view
discharge hose from overpres-
sure valve
bottom
view
Water supply, 3/4”external
thread
Connection (red)
cable for essence
level probe
power supply, mains cable with
Cekon plug 400 V 3N AC
Supply tube (white) for descaler
(connects with the descaler
canister)
Steam output, 1 1/4”
external thread
Reset button for overheating
thermal fuse
Supply tubes (red)
for essence dosing
(pump 1 and 2)
Connection (white)
cable for desca-
ler level probe
Cable gland for display
panel and temperature
sensor connection
Essence pump 1
Essence pump 2 Descaling pump
Connections for integrated
pumps (input / output)

15
EN
water tank
6x fuse 6,3 x 32 mm
16 A 500 V AC
Essence dosing pumps
dosing pump for
cleaning system
thermal insulation jacket (removalbe))
water supply line
Thermofuse (STB)
Main board with connec-
tion jacks and terminals for
connection of sensors, display
panel and external equipment
Heating elements
Connection terminals for light, fans
and optional heating circuits
Water drain valve with actuator

16
EN
5.3 Installation site and requirements
The steam generator is designed for installation outside steam room (sauna) only and should be
connected to the steam room (sauna) with a steam pipeline. The following ambient climate condi-
tions should be observed at the installation site:
• Ambient temperature during operation 5°C to 40°C
• Air humidity during operation 30% to 75% rel. air humidity
• Storage temperature 0°C to 60°C
5.4 Mechanical installation
The SteamRock Premium is a wall-hanging device. It is mounted to the wall with 4 screws. Please
ensure that the wall is able to carry the load of min. 45 kg. We recommend to allow certain reserve
for safety. Please consider that the steam generator is subject to light vibrations during operation.
Make sure to observe the required gaps for installation and later servicing (Pic. 1b).

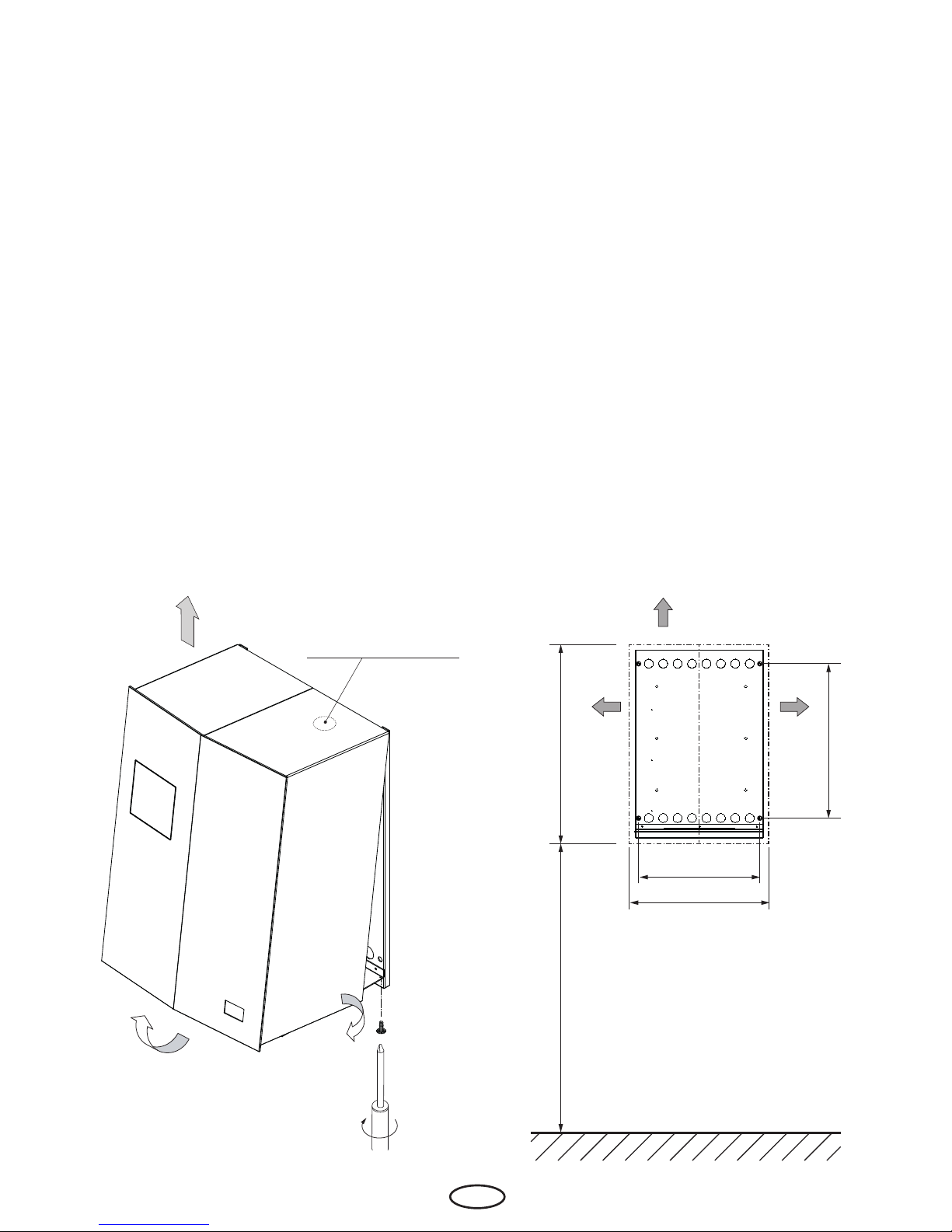

To mount the steam generator rst take the outer housing o the chassis. See Pic. 1 below.
• Remove two xation screws at the bottom side on the left and on the right.
• Pull the side walls of the housing slightly apart, so that the mounting aps of the housing
are not blocked by the chassis.
• Tilt the housing with the bottom slightly forward (from wall) and lift it upwards. Take the
housing o the chassis.
1.
3.
4.
2.
knock-out circle for steam pipe
installation upwards
Pic. 1
Pic. 1b alle Maße in mm
535
670
min. 250
1000
460
420
min. 100 min. 100

17
EN
Pic. 2

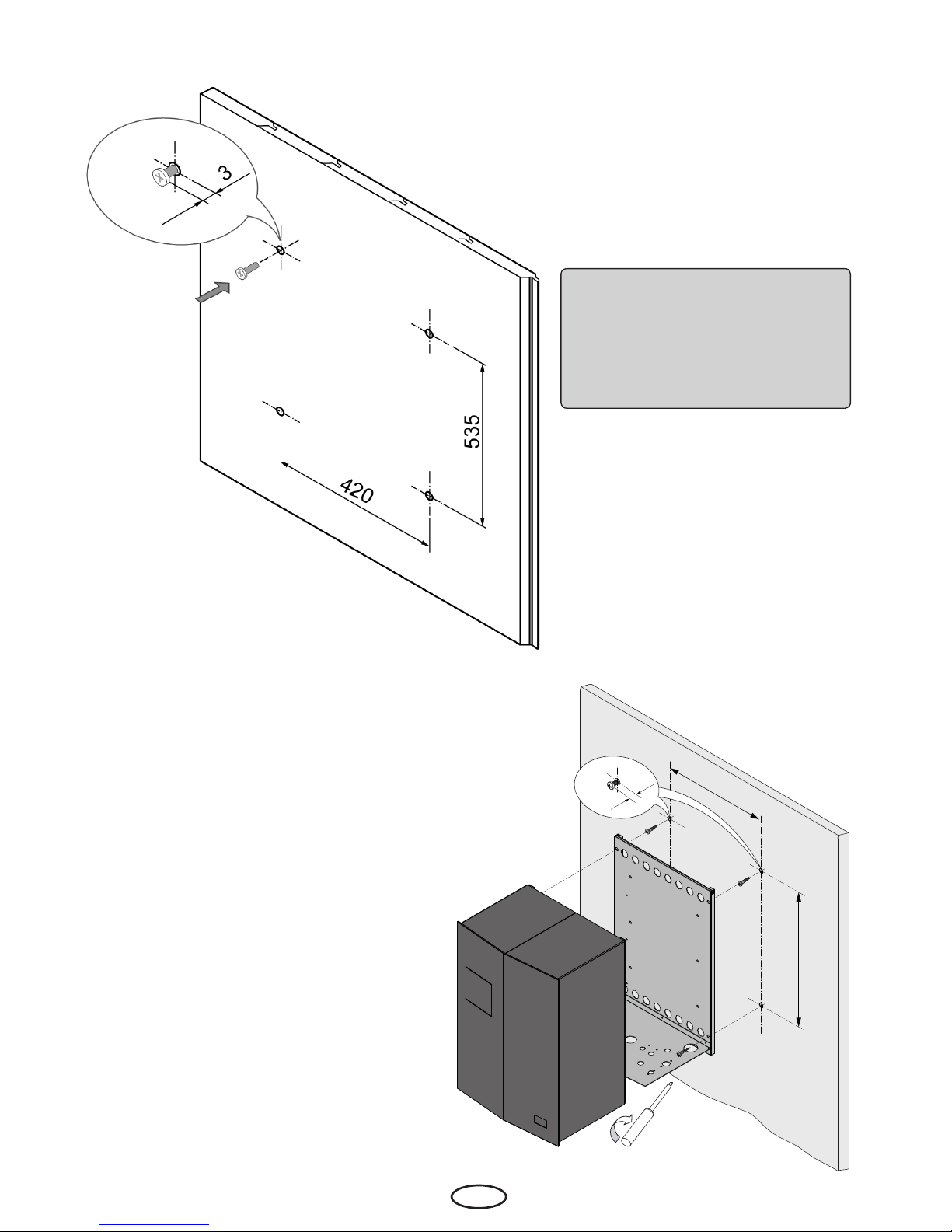

Drill 4 mounting holes in the wall as shown on the template below. If
necessary use the appropriate dowels to securely mount the screws in
the drilled holes.
At rst screw in the two upper screws. As shown on the pic. 2.
please make sure to leave 3 mm gap between the screw
head and the wall surface.
Now hang the steam generator with the
corresponding mounting holes in the chas-
sis on these two screws. Make sure that the
generator is hanging vertically (by using a
spirit level).
After that secure the generator by screw-
ing the bottom pair of screws to the wall
through the corresponding bottom mount-
ing holes in the chassis. After that also tight-
en the upper pair of screws.
Put the outer housing back on the chassis.
Lower it down so that the housing snaps at
the top into the chassis, then pull the low-
er end sides slightly apart and push them
on the lower side of the chassis. Line up the
holes in the housing with the correspond-
ing holes in the chassis. Secure the housing
with the mounting screws.
See the pic. 3 for details.
3
535
420
alle Maße in mm
all sizes in mm
Pic. 3
Important notice:
Make sure that the steam gen-
erator is mounted level and
perpendicular.

18
EN
5.5 How to open water tank
The water tank can be opened if required e.g. for servicing & maintenance as described below.
1. Disconnect the power supply and water supply to the steam generator. Remove the housing.
2. Undo 6 hexagonal nuts along the
top edge of the water tank lid using
an Allen key.
4. Loosen 2 fixation screws at the bot-
tom panel which hold the steam pipe.
4
7
2
7. Now lift the lid up slightly, tilt
it to the right and take if o the
water tank.
8. Close the water tank in reverse order. Place the lid back in position. Please observe to position
the sealing gasket so that its holes are lined up with the corresponding holes in the tank. Be care-
ful not to bend the deector shield on the inner side of the lid (protects the steam exit opening).
Restore other connections (water supply, cleaner supply, water level probe).
9. Double check that all connections are correct and tight. Check that the water supply line is tight .
3
3. Disconnect the tube of the
descaling&cleaning system.
5. If required disconnect both
water supply tubes at the wa-
ter inlet valve by loosening the
clamps and pulling them o.
5
6. Disconnect the water level
probe 2-core connection ca-
ble from the main board.
6

19
EN
• Connect the cold water supply using the included water connection hose to the water
supply connector (3/4”) on the bottom side of the generator. The supplied water should
have drinking water quality. The water pressure in the supply line should be 2 to 8 bar.
• Connect the main drain and the additional drain hose from overpressure release valve at
the bottom of the generator to the drain system. Please notice that the generator has an
automatic drain system.
• Caution: the drain water may be hot, the appropriate precautions should be met.
• The limescale contained in water will lead to deposits on the inner surfaces of the water
tank, which may cause overheating and considerably reduce the service life of the heat-
ing elements and of the generator.
• By commercial use it is obligatory to install a water softening system in order to reduce
the amount of limescale getting into the generator with water. By home use such wa-
ter softening system is recommended by water hardness from 14° dH (~ 2,5 mmol/l).
Make sure to observe additional notes on the pages 35-37!
Notice: damages resulting from the limescale deposits are excluded from warranty!
Important Notice:
Please observe the EN 1717 / DIN 1988 and DIN 1986 / EN 12056 4 requirements. It must be ensured
that the water may not ow back into the water supply system. If necessary the additional equipment
has to be installed to prevent the back-ow. Please consult your water supplier or specialist dealer.
5.6 Water supply and drain connection
Important! The diame-
ter may not be smaller!
Important! No sharp
bends in the drain pipe!
How to connect the drain:

20
EN
5.6 Steam pipe connection
• The steam pipe should be heat-resistant to at least 110°C. We recommend copper or
stainless steel pipes with Ø35 mm. Do not use small diameter steam pipes!
• The steam pipeline should be reclining towards the steam outlet. Sharp angles should
be avoided. If there is a risk that the water condensate may block the pipeline a syphon
has to be integrated. The layout of the pipeline should prevent the back ow of the con-
densed water into the generator.
• Use the supplied 2-part brass union 1“ to 35 mm for steam pipe
connection. This will facilitate the connection or disconnection
of the pipeline.
• The steam output pipe features an innovative pivot
joint connection at the water tank lid.You can turn the
pipe around to rise upwards. For this unscrew the x-
ation nut in the bottom plate and turn the steam pipe
around. Push out the knock-out circle in the housing
before mounting it back on the chassis.
Notice: by the use of essence dosing systems the essence
injection line should be connected to the steam pipe so that no essences may get into the
water tank with the back ow of the steam or water condensate. Even the small quantity
of essences in the water tank may lead to malfunctions. Place the injection point possible
close to the steam outlet.
Pic. 4
Pic. 5
Connect and lead the steam pipe correctly!
• No sharp bends.
• Should decline towards steam outlet.
• Diameter may not be smaller.
• Avoid water condensation in the pipe.
