OPERATING MANUAL
Series EE240
Wireless Sensor for
Humidity
Temperature
CO2

E+E Elektronik Ges.m.b.H. accept warranty and liability claims neither upon this publication nor in case of improper
treatment of the described products.
The document may contain technical inaccuracies and typographical errors. The content will be revised and
updated on aregular basis. The described products can be improved and changed at any time without prior notice.
© Copyright E+E Elektronik Ges.m.b.H.
All rights reserved.
EMC note USA (FCC):
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
EMC note Canada (ICES-003):
CAN ICES-3 (A) / NMB-3 (A)

CONTENT
1 GENERAL ...............................................................................................................................................................4
1.1 Explanation of symbols .................................................................................................................................4
1.2 Environmental aspects ..................................................................................................................................4
1.3 General safety instructions............................................................................................................................4
2 PRODUCT DESCRIPTION .....................................................................................................................................5
2.1 Wireless Network ..........................................................................................................................................5
2.1.1 General ................................................................................................................................................................5
2.1.2 Installation of a wireless system...........................................................................................................................6
2.1.3 Example for a wireless measurment setup ..........................................................................................................6
2.2 Components of the series EE240..................................................................................................................6
2.2.1 Sensing Probe .....................................................................................................................................................6
2.2.2 Transmitter ...........................................................................................................................................................6
2.2.3 Router ..................................................................................................................................................................7
2.2.4 Basis Station ........................................................................................................................................................7
3 FUNCTION DESCRIPTION / INSTALLATION........................................................................................................7
3.1 Base Station ..................................................................................................................................................7
3.1.1 Installation............................................................................................................................................................7
3.1.2 Electrical Connections..........................................................................................................................................7
3.1.3 Operating Components........................................................................................................................................8
3.1.4 Webserver............................................................................................................................................................8
3.1.5 Network Reset......................................................................................................................................................8
3.2 Transmitter, Sensing Probe...........................................................................................................................9
3.2.1 Installation EE244 ................................................................................................................................................9
3.2.2 Electrical Connections EE244............................................................................................................................10
3.2.3 Operating components EE244........................................................................................................................... 11
3.2.4 Installation EE245 ..............................................................................................................................................12
3.2.5 Electrical Connections EE245 - for external supply ...........................................................................................12
3.2.6 Operating components EE245...........................................................................................................................13
3.3 Router..........................................................................................................................................................14
3.3.1 Installation..........................................................................................................................................................14
3.3.2 Electrical Connections........................................................................................................................................14
3.3.3 Operating Components......................................................................................................................................14
4 STARTING UP THE WIRELESS SYSTEM...........................................................................................................14
4.1 Necessary Steps to Start up the System.....................................................................................................14
4.2 Increasing the Transmission Distance with Routers....................................................................................15
4.3 Parallel Operation of Several EE240 Wireless Networks............................................................................15
5 CALIBRATION OF MEASUREMENT SYSTEM ...................................................................................................16
5.1 Calibration of the EE244 Sensing Probes at E+E’s OEKD-Lab ..................................................................16
5.2 Customer’s Calibration of the Humidity/Temperature Sensing Probes .......................................................16
5.3 Functional Test of the Entire Measurement System....................................................................................16
5.4 Loop-Calibration ..........................................................................................................................................16
6 TROUBLESHOOTING / MAINTENANCE ............................................................................................................17
6.1 Replacing Sensing Probes ..........................................................................................................................17
6.2 Troubleshooting...........................................................................................................................................17
7 TECHNICAL DATA................................................................................................................................................18
8 REPLACEMENT PARTS / ACCESSORIES .........................................................................................................19
9 GENERAL .............................................................................................................................................................19
10 INSTALLATION.....................................................................................................................................................19
11 CREATING AN ETHERNET CONNECTION BETWEEN
PERSONAL COMPUTER AND EE242.................................................................................................................20
11.1 IP-address of the base station (default factory settings) .............................................................................20
11.2 Setup of IP-address.....................................................................................................................................20
12 MENU ITEMS ........................................................................................................................................................21
12.1 Overview .....................................................................................................................................................21
12.2 Transmitters.................................................................................................................................................22
12.2.1 Transmitter List ..................................................................................................................................................22
12.2.2 Probe Status ......................................................................................................................................................23
12.2.3 Transmitter Status..............................................................................................................................................24
12.3 Outputs........................................................................................................................................................24
12.4 Modbus Map................................................................................................................................................25
12.5 Management ...............................................................................................................................................27
12.6 About ...........................................................................................................................................................27

1 GENERAL
This operation manual is part of the scope of supply and serves for ensuring proper handling and opti-
mal functioning of the device.
The operation manual shall be read before commissioning the equipment and it shall be provided to all
staff involved in transport, installation, operation, maintenance and repair.
The operation manual may not be used for the purposes of competition without the written consent of
E+E Elektronik® and may not be forwarded to third parties. Copies may be made for internal purposes.
All information, technical data and diagrams included in these instructions are based on the information
available at the time of writing.
1.1 Explanation of symbols
This symbol indicates safety information.
It is essential that all safety information is strictly observed. Failure to comply with this information can
lead to personal injuries or damage to property. E+E Elektronik® assumes no liability if this happens.
This symbol indicates instructions.
The instructions shall be observed in order to reach optimal performance of the device.
1.2 Environmental aspects
Products from E+E Elektronik® are developed and manufactured observing of all relevant requirements
with respect to environment protection. Please observe local regulations for the device disposal.
For disposal, the individual components of the device must be separated according to local recycling
regulations. The electronics shall be disposed of correctly as electronics waste.
1.3 General safety instructions
• Avoid any unnecessary mechanical stress and inappropriate use.
• When replacing the lter cap make sure not to touch the sensing elements.
• For sensor cleaning and lter cap replacement please see “Cleaning instructions” at www.epluse.com.
• Installation, electrical connection, maintenance and commissioning shall be performed by
qualied personnel only.
Specic safety instructions for “Wireless”:
Standards:
CE: Electromagnetic Compatibility according EN61326-1 and EN61326-2-3 / Industrial environment
FCC: Part 15 Class A
ICES: ICES-003 Class A
4
Operating manual Series EE240 Wireless sensor

Transmission module:
EE242/EE244: Contains FCC ID: MCQ-S2CTH
EE245: Contains FCC ID: MCQ-XBS2C
This equipment complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
• this device may not cause harmful interference
• under direct inuence of EMC interference the device must continue to function, including interference
that may cause an undesired operational situation.
Regulatory conformity EE242 / EE244 EE245
United States (FCC Part 15.247) FCC ID: MCQ-S2CTH FCC ID: MCQ-XBS2C
Industrie Kanada (IC) IC: 1846A-S2CTH IC: 1846A-XBS2C
Europa (RED) CE Labeling CE Labeling
Australien RCM RCM
Specic Instructions:
The transmission energy of the series EE240 is limited according to certain standards,
alterations of the electronics are therefore, with respect to the transmission license, prohibited.
USA:
The antenna must be mounted more than 20cm (8 inches) away from any human body.
2 PRODUCT DESCRIPTION
The wireless transmitter series EE240 combines modern sensor technology, easiest system installation
and the highest reliability of the data transmission. The several different modules of the series EE240
are within a short time operational.
2.1 Wireless Network
2.1.1 General
The series EE240, based on the “ZigBee” protocol, transmits at a frequency of 2.4 GHz with a power of
6,3 mW. A bi-directional wireless connection prevents loss of data, if disturbances may occur.
The maximum transmission distance depends greatly on the local conditions. Obstacles, like walls of
reinforced concrete, steel buildings, or structures attenuate the signal and decreases the transmission
distance.
5
Operating manual Series EE240 Wireless sensor

2.1.2 Installation of a wireless system
In principle, in an ideal situation, the transmitter and the router resp. the base station should be within
‘eyesight’ to achieve an optimal strength of the signal. If that is not possible, a more appropriate location
can be found using the features of the base station EE242, with the support of an amplifying router. The
changes of the strength of the transmitter signal are indicated in a percentage (%), by the signal indica-
tor on the web server of the EE242.
If obstacles interfere with radio communication between the transmitter and the base station, routers
can be used to circumvent these obstacles and extend the distance between the transmitter and base
station. A "series connection" of routers is possible without any problems.
Optimal positioning of a router:
• To reduce cost several different transmitters can be channeled over one router.
• The router should always be aligned with the weakest transmission connection.
• A maximum of 10 wireless connections per router / base station; see outline 2.1.3.
2.1.3 Example for a wireless measurment setup
SENSING PROBE
TRANSMITTER
(max. 500 pcs)
ROUTER
(max. 60 pcs)
BASE STATION
max. 10 transmitters
*) Range of coverage: up to 60m within buildings / up to 1.000m free ied (without obstacles)
*)
max. 10 transmitters or routers
2.2 Components of the series EE240
2.2.1 Sensing Probe
There are several different sensing probes available, for the measurement of temperature, relative
humidity, and carbon dioxide (CO2). Each sensing probe has its calibration data stored internally, is
therefore 100% interchangeable, and can be installed remotely with a sensor cable at up to 10m (33ft).
For a detailed technical description, see chapter 3.2.
2.2.2 Transmitter
The transmitter powers the sensing probe and transmits wirelessly the measurement data. Each trans-
mitter can be equipped with a maximum of three sensing probes. For a detailed technical description,
see chapter 3.2.
6
Operating manual Series EE240 Wireless sensor

2.2.3 Router
The router is designed to increase the overall transmission distance and to bypass obstacles. Each
router has the ability to receive and transmit a maximum of 10 signals (transmitter or another router). It
is not possible to connect measuring probes to a router. For a detailed technical description, see
chapter 3.3 Router
2.2.4 Basis Station
The base station processes the data of the sensing probe and output an analogue or digital signal.
Each base station has four analogue outputs and a (optional) display. The base station of the series
E240 provides the most recent measurement readings via Modbus (ASCII, RTU, TCP), JSON and four
analogue outputs. For a detailed technical description, see chapter 3.1 Base Station.
3 FUNCTION DESCRIPTION / INSTALLATION

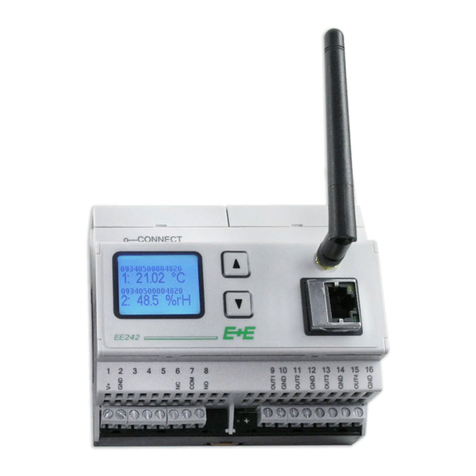

3.1 Base Station
With the EE242 base station a comprehensive wireless network can be build. The network can consist
out of 500 transmitters and 50 routers. Each base station can receive a maximum of 10 signals (router
or transmitter) The Ethernet interface, Modbus and Webserver allow for easy conguration of the
system as well an easy integration in existing networks.
3.1.1 Installation
The housing can be installed on DIN-rail.
To remove from the rail, both orange snap locks can be opened with the use of a screwdriver.
11 (4.3") 11 (4.3")
62 (2.4")
108 (4.3") 5 (0.2")
90 (3.5")
Pluggable antenna which can also be ordered with a remote cable
(antenna cable refer to accessories)
top hat rail mounting
3.1.2 Electrical Connections
Screw terminal assignment of series EE242:
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
V+
GND
GND
GND
GND
GND
NC
NC
NC
GND
B-
A+
OUT1
OUT2
OUT3
OUT4
24V AC/DC*
+_
V/
mA
V/
mA
V/
mA
V/
mA
SELV
RS485
Modbus RTU
*) The supply circuit must be fused with ≤ 8A
Jumper to enable the
Modbus termination resistor
7
Operating manual Series EE240 Wireless sensor

3.1.3 Operating Components
On the display of the Base Station only the measuring signals of those sensors are indicated, which are
also available at the 4 analogue outputs.
"Connect" button
Display with keypads
Antenna plug
Supply clamps
Analog clamps
Line 1: Serial number or name of the sensing probe
Line 2: Measuring value of the selected sensing probe
Line 3: Serial number or name of the sensing probe
Line 4: Measuring value of the selected sensing probe
On the display of the Base Station only the measuring signals of those sensors are indicated, which are
also available at the 4 analogue outputs.
3.1.4 Webserver
The EE242 can be set up with any desired conguration by means of the webserver; as a result one
has full control of the entire network. The base station of the series E240 provides the most recent
measurement readings via Modbus (ASCII, RTU, TCP), JSON and four analogue outputs.
For a detailed technical description, see chapter „Conguration Software“.
3.1.5 Network Reset
To reset the system to the default factory settings, the push-button “Connect” should be pressed for
10 seconds.
All wireless connections (with transmitters and routers) will be cancelled.
All settings will reset to the default factory settings:
IP address of the base station, password of the web server, etc.
8
Operating manual Series EE240 Wireless sensor

3.2 Transmitter, Sensing Probe
3.2.1 Installation EE244
Installation of xed sensing probe:
The transmitter should be mounted in such a way that the probe points downwards.
32 18
41
Ø13 (0,5")
25
(1")
(1.3")
18
(0.7")
(0.7")
50
(2")
(1.6")
Ø6 (0.2")
Ø12 (0.4")
Installation a remote sensing probe:
The sensing probes can be installed remotely up to 10m (33ft).
For pluggable sensor cables (2m, 5m, and 10m) and radiation shields, see chapter 8, Replacement
parts / Accessories.
During installation it is recommended to create a water-drip-off-bend in the cable.
Ø13 (0,5")
(1.3")(3.3")
32
83
Installation of the housing:
1. Drill the mounting holes according to the drill template (see sketch). There is a special mounting kit
available for the installation on DIN- rail (see chapter 8. Replacement parts / Accessories).
2. Mount the bottom part of the housing with 4 screws; less than 4.2mm in diameter
(not in the scope of supply).
3. Connect the transmitter (see chapter 3.2.2 Electrical Connections).
4. Install the cover with 4 screws (in the scope of supply).
(2")
(4.6")
(5.3")
(3.5")
9
Operating manual Series EE240 Wireless sensor

3.2.2 Electrical Connections EE244
Sensing probe
All available sensing probes have a matching 4-pin plug, to t the connector on the transmitter housing.
For further detailed information see the data sheet of the particular sensing probe.
Transmitter
Depending on the type ordered up to three sensing probes can be connected to the transmitter.By
means of a pluggable sensor cable (optional) the probe can be installed remotely up to 10m (33ft). For
pluggable sensor cables 2m (6ft), 5m (16ft), and 10m (33ft), see chapter 8, Spare parts / Accessories.
Pluggable Antenna
The transmitter EE244 is supplied with an assembled antenna. If needed the antenna can be un-
plugged and connected to an optional 2m (6ft) antenna cable and relocated. Antenna cable,
see chapter 8, Spare parts / Accessories.
Power supply
• Transmitter "EE244-Axx" 4 x 1.5V, AA / LR6 alkaline batteries (not in the scope of supply)
• Transmitter "EE244-Bxx" will accept an external power supply
Counterpart = specic straight cable female socket 4-pole (ELKA 4012 PG7)
Pin assignement:
1. +Ub1) 24V AC/DC ±20% SELV
2. n.c.
3. GND
4. n.c.
1) The supply circuit must be fused with ≤ 8A
Battery change
• Open the cover on the transmitter (screwed).
• Use 4 x 1.5V, AA / LR6 alkaline batteries. Make sure the batteries are inserted with correct polarity.
Weak batteries should be replaced quickly to avoid running out of batteries.
• After successful launch of the transmitter close the cover carefully.
Attention:
Please do not dispose of old equipment and used batteries in domestic waste. Take them to the
environmentally compliant disposal at designated collection points in accordance with national or
local regulations.
10
Operating manual Series EE240 Wireless sensor

3.2.3 Operating components EE244
1. Interval rotary-switch „TIME“
4. Battery compartment
2. Push-button „CONNECT“
5. Jumper „J1“ (EXT/BAT)
3. Display
1. Interval rotary-switch “TIME”:
With the rotary switch “TIME”, the following transmission and measurement intervals can be selected:
Switch positon Interval
0 20 sec.
1 30 sec.
2 45 sec.
3 1 min.
4 2 min.
5 = default 5 min.
6 10 min.
7 15 min.
8 20 min.
9 30 min.
Switch positon Interval
A 45 min.
B 60 min. (1 hr)
C 90 min. (1,5 hr)
D 120 min. (2 hr)
E 180 min. (3 hr)
F 240 min. (4 hr)
Attention: With the webserver (EE242 Base Station), any time interval can be congured. Selecting a
time interval of less than 15 minutes for the transmitter, will greatly reduce the operating life of the batte-
ries. Typical operating life is up to 3 years, based on a transmission interval of 15 minutes (for T / %RH).
2. Push-button „CONNECT“:
To establish the initial connection between the base station and the transmitter.
(For a detailed technical description, see chapter 4. “Starting up the Wireless System”.)
Additionally the status of "signal strength level [%]" can be activated temporary with this key.
If you press the key for 1 sec while connecting the voltage supply (or the last battery is
inserted) the EE244 shows the "signal strength level [%] of the wirless connection for 60 sec before
switching back to the normal display mode.
3. Display:
Place the display on the designated pins.
Display symbols:
><
>< This symbol is ‘on’ if the wireless connection is established
and ‘blinks’ if the connection fails.
°C / °F Unit of the chosen temperature value
%RH Unit for rel. humidity (%RH)
On the display all available measured values (RH, T, CO2) of the sensors (up to 3) are alternatly
indicated. Warning: The measured values are updated in the adjusted interval „TIME“ (see chapter
3.2.3.1).
4. Battery compartment:
Alkaline batteries, 4 off (1.5V, AA)
5. Jumper „J1“ (EXT/BAT):
The allocation of the jumper allows for the selection of ‘battery power’ or ‘external power’.
11
Operating manual Series EE240 Wireless sensor

3.2.4 Installation EE245
D
B
C
A
Opening the housing:
Press pin A until cover can be opened.
Closing the housing:
Set cover into ute B and move it to direction C until pin A
snaps in.
Installation:
Mount housing on wall with srews through therefore
designated holes D.
Material of housing: PC
Protection class: IP30
Dimensions Mounting holes
85 (3.3“)
11,5 (0.5“)
31 (1.2“)
32 (1.3“)
136 (5.4“)
3.2.5 Electrical Connections EE245 - for external supply
power supply
DC 8-28V SELV
AC 12V (±20%)
GND
VCC
10 9 8 7 6 5 4 3 2 1
See page 10 for battery replacement.
12
Operating manual Series EE240 Wireless sensor

3.2.6 Operating components EE245
1. Interval rotary-switch „TIME“
2. Push-button „CONNECT“
4. Battery compartment
3. Jumper „J1“ (EXT/BAT)
6. CO2-Module
5. Humidity-Module
1. Interval rotary-switch “TIME”:
With the rotary switch “TIME”, the following transmission and measurement intervals can be selected:
Switch positon Interval
0 20 sec.
1 30 sec.
2 45 sec.
3 1 min.
4 2 min.
5 = default 5 min.
6 10 min.
7 15 min.
8 20 min.
9 30 min.
Switch positon Interval
A 45 min.
B 60 min. (1 hr)
C 90 min. (1,5 hr)
D 120 min. (2 hr)
E 180 min. (3 hr)
F 240 min. (4 hr)
Attention: With the webserver (EE242 Base Station), any time interval can be congured. Selecting a
time interval of less than 15 minutes for the transmitter will greatly reduce the operating life of the
batteries. Typical operating life is up to 3 years, based on a transmission interval of 15 minutes (for T /
%RH).
2. Push-button „CONNECT“:
To establish the initial connection between the base station and the transmitter.
(For a detailed technical description, see chapter 4. “Starting up the Wireless System”.)
Additionally the status of "signal strength level [%]" can be activated temporary with this key. If you
press the key for 1 sec while connecting the voltage supply (or the last battery is inserted) the EE244
shows the "signal strength level [%] of the wirless connection for 60 sec before switching back to the
normal display mode.
3. Jumper „J1“ (EXT/BAT):
The allocation of the jumper allows for the selection of ‘battery power’ or ‘external power’.
4. Battery compartment:
Alkaline batteries, 4 off (1.5V, AA)
13
Operating manual Series EE240 Wireless sensor

3.3 Router
The router is designed to increase the overall transmission distance and to bypass obstacles. Each
router has the ability to receive and transmit a maximum of 10 signals (transmitter or another router).
Sensing probes cannot be connected to the router.
3.3.1 Installation
For the installation of the router, see chapter 3.2.1. Installation of a transmitter.
3.3.2 Electrical Connections
The router is powered by an external power supply. Pin assignment of the female socket, see chapter
3.2.2. Electrical Connection (Transmitter), under “Power Supply”.
3.3.3 Operating Components
• Jumper „J1“
• Push-button "Connect"
For details refer to chapter 3.2.3 Operating components (Transmitter).
4 STARTING UP THE WIRELESS SYSTEM
4.1 Necessary Steps to Start up the System
For the conguration of the EE242 a personal computer is needed (with admin authorization), to
manage all transmitters and to congure the analogue outputs of the base station.
1. Preparing the hardware:
Attention: the base station can handle a maximum of 10 wireless signals (transmitter or router). If
more than 10 transmitters are needed, an extra router will extend the network further (for details, see
chapter 3.3. Router).
2. Establish the power supply to the base station.
3. Connect the sensing probe to the transmitter, either direct or with a sensor cable.
4. Establish the power supply to the transmitter 4 x 1.5 V, AA/LR6 alkaline batteries
(not in the scope of supply).
5. Establish the wireless connection: Press the push-button “Connect” for 3 sec.. Immediately the base
station switches to the ‘Connect-Mode’ and searches for active transmitters – for 30 sec.. The LED
next to the push-button lights up to indicate the ‘Connect-Mode’ is active. Within these 30 sec., the
push-button “Connect” on the transmitter must be pressed for 3 sec. to establish a connection. As
soon as the base station recognizes the wireless signal from the transmitter, the addresses of the
devices are automatically exchanged and the wireless connection established.
6. Checking the active wireless connection:
Base station: The wireless connection is active, as soon as the measurement data is available
(display, analogue output).
Transmitter: The wireless connection is active, as soon as in the display the symbol >< is
continuously illuminated (see chapter 3.2.3. Operating Components, under 3. Display).
7. Alterations of the conguration of the transmitter: The transmission interval is set at a default of 5
minutes. To increase the operating life of the batteries the transmission interval can easily be altered
with the rotary switch “TIME” in accordance with the interval-time table, see chapter 3.2.3 Operating
Components, under 1. Rotary Switch “TIME”.
8. Preparing the personal computer:
- PC with admin authotization, no disk space is needed on the personal computer, because the
EE242 is equipped with a web server.
- crossover cable (PC-EE242: HA010333) for connecting directly with the EE242 or Switch and two
network cables.
14
Operating manual Series EE240 Wireless sensor

9. Conguration of the wireless network:
Connect the base station with the personal computer by way of the Ethernet connection and adjust
the network settings (see chapter, Conguration Software).
- Start the internet browser (Internet Explorer, Firefox, ….).
- Enter the default IP-address (//192.168.0.64) of the EE242 in the address line.
10. Changing the conguration settings of the transmitter and the base station, see chapter Congurati-
on Software.
4.2 Increasing the Transmission Distance with Routers
In order to register the transmitter EE244 to the network through the router the following steps have to
be taken:
a) Register the router:
Press the push-button “Connect” on the base station for 3 sec.. Within 30 sec., the push-button “Con-
nect” on the router must be pressed for 3 sec. to establish a connection. As soon as the base station
recognizes the wireless signal from the router, transmitters can be added and connected through the
router.
b) Register transmitters to the network through the router:
Press the push-button “Connect” on the base station for 3 sec. Within 30 sec., the push-button “Con-
nect” on the transmitter must be pressed for 3 sec. to establish a con-nection. As soon as the base sta-
tion recognizes the wireless signal from the transmitter, the addresses of the devices are automatically
exchanged and the wireless connection established.
4.3 Parallel Operation of Several EE240 Wireless Networks
Each wireless network is built around an EE242 base station, and depending on the number of trans-
mitters, may include one or more EE244-R routers. For the parallel operation of several EE240 net-
works at one site it is of paramount importance for each transmitter and router to be within the
transmission range of the routers and basis station of only one network.
Very important:
A transmitter may not be located in the transmission range of basis stations or routers from two different
networks. Failure to comply with this disorganizes the networks and leads to critical failures.
15
Operating manual Series EE240 Wireless sensor

5 CALIBRATION OF MEASUREMENT SYSTEM
5.1 Calibration of the EE244 Sensing Probes at E+E’s OEKD-Lab
Any of the sensing probes can be sent to E+E’s OEKD-lab for calibration.
5.2 Customer’s Calibration of the Humidity/Temperature Sensing Probes
a) Calibration software on the personal computer:
The calibration can be done by means of software on a personal computer → see respective product
data sheet.
b) For all EE07 sensing probes by use of EE220 transmitter:
The calibration of the RH and T outputs is done by means of the calibration
buttons on the board of the EE220 humidity/temperature transmitter. For
details, see manual EE220 and in chapter 8. Replacement Parts / Accesso-
ries.
A humidity calibrator is needed in order to perform an accurate humidity
calibration (e.g. E+E’s “Humor 20”, see chapter 8. Replacement Parts /
Accessories).
5.3 Functional Test of the Entire Measurement System
It is possible by utilizing reference probes (xed output value) to test the
entire measurement system. A reference probe, available as an accessory
(incl. calibration certicate / see chapter 8. Replacement Parts / Accesso-
ries), is used to test the function and accuracy of the measurement loop.
Both reference probes, with a xed output value for humidity and tempera-
ture, are connected to the transmitter instead of the standard interchange-
able sensing probes. The reference probes simulate a high humidity and a
low temperature value and vice versa, in order to test the high and low end
of the scales of the analogue outputs.
5.4 Loop-Calibration
The loop calibration of the humidity and temperature outputs, as recommended by the FDA for the phar-
maceutical and biotech industry, can easily be realized with separate humidity and temperature sensing
probes (type EE07). E+E’s “Humor 20” can be utilized as the high accurate humidity calibrator (see
chapter 8. Replacement Parts / Accessories).
RH probe T probe
16
Operating manual Series EE240 Wireless sensor

6 TROUBLESHOOTING / MAINTENANCE
6.1 Replacing Sensing Probes
If a sensing probe is damaged (e.g. mechanically damaged,...), the user can replace the probe with
a new one without any adjustment of the transmitter. This way an elaborate process of returning the
equipment to the factory will be avoided.
Procedure to replace a sensing probe:
1. Remove the faulty sensing probe.
2. Connect the new replacement probe.
3. In addition, the webserver of the base station EE242 offers the possibility to manage the sensing
probes (see chapter Conguration software).
6.2 Troubleshooting
Error
• possible cause → Action / Correction
Sensing probe measures incorrectly
• Error during recalibration of the transmitter → Reset to default factory settings and repeat the
calibration procedure.
• Filter cap dirty → Replace lter cap
• Sensor faulty → Replace sensing probe
Long response time
• Filter cap dirty → Replace lter cap
• Wrong lter cap → Replace with suitable lter cap for the application.
Transmitter failure
• Interrupted power supply or weak batteries → Check the wiring of the power supply resp. test the bat-
teries. If the batteries are replaced within 7 days after the failure, the system will automatically restart.
If the batteries are replaced after 7 days, it sufces to press the push-button “Connect” at the base
station to restore the connection.
Too high humidity value
• Condensation at the tip of probe → Dry out the probe tip and check if the probe is mounted in the
correct way.
• Wrong lter cap → Replace with suitable lter cap for the application.
Failure of the wireless connection
• Interrupted power supply or weak batteries → Check the wiring of the power supply resp. test the
batteries.
• New erected obstacles (metal structures …) attenuate the wireless signal → Bypass the obstacles
utilizing additional router(s).
Forgot password
• → Reset the base station E242 to the default factory settings (IP- address, Password,.) see chapter
3.1.5. Network Reset.
17
Operating manual Series EE240 Wireless sensor

7 TECHNICAL DATA
Measuring values of sensing probes
Refer to data sheet of respective sensing probes
General
Transmission frequency 2.4 GHz
Transmission system IEEE 802.15.4
Transmission power 6.3mW
Radio range up to 100m (330 ft) indoors, up to 1000m (3300 ft) in open eld
Antenna pluggable
Approval ETSI / FCC Part 15.247 / IC
Electromagnetic compatibility EN61326-1 Industry FCC Part 15 Class A
EN61326-2-3 Industry ICES-003 Class A
Pollutional index 2
Devices of measurement category II
Power supply Class III (SELV)
Installation altitude up to 2000 m above sea level
EE244 (Transmitter, Router)
Supply transmitter (EE244-A) battery 4x1.5V AA / LR6 (not in the scope of supply)
Battery lifetime 1 year with a measuring data transmission every 5 min. (for T / %RH)
External supply transmitter (EE244-B) 8...28V DC SELV, typ. IL = 20mA at 24V; max. IL = 35mA at 24V DC
External supply router (EE244-R) 8...28V DC SELV, typ. IL = 20mA at 24V; max. IL = 35mA at 24V DC
Power consumption typ. 0.5VA; max. 0.8VA
Housing material polycarbonate (PC)
Protection class housing IP65
Temperature ranges working temperature: -40...50°C (-40...122°F) (with display: -20...50°C / -4...122°F)
storage temperature: -40...+50°C (-40...122°F) (with display: -20...50°C / -4...122°F)
working temperature range of probe: refer to respective data sheet
Max. number of sensing probes 3 (2)1)
Max. number of measuring signals 6 (4)1)
EE242 (Base Station)
Supply voltage SELV 24V AC/DC ±20%
Digital interface • Ethernet (Modbus TCP or JSON)
• RS485 (Modbus RTU / ASCII)
Current consumption typ. IL= 150mA at 24V DC; max. IL= 180mA at 24V DC
Power consumption typ. 3.6VA; max. 4.3VA
Analogue outputs
0-5V -0.5mA < IL< 0.5mA
0-10V -1mA < IL< 1mA
0-20mA / 4-20mA RL < 500 Ohm
Number of analogue outputs 4
Accuracy of analogue outputs ±5mV resp. ±10µA
Temperature dependence
of analogue outputs max. 0.1 mV
°C resp. 1
µA
°C
Resolution of analogue outputs 0.7mV resp. 1.50µA
Electrical connection screw terminals max. 2.5mm2
Housing material polycarbonate (PC)
Protection class housing IP20
Temperature ranges working temperature: -30...50°C (-22...122°F) (with display: -20...50°C / -4...122°F)
storage temperature: -30...50°C (-22...122°F) (with display: -20...50°C / -4...122°F)
1) with external supply
18
Operating manual Series EE240 Wireless sensor

8 REPLACEMENT PARTS / ACCESSORIES
Sensing probes:
• membrane lter HA010101
• PTFE lter HA010105
• metal grid lter (polycarbonate) HA010106
• metal grid lter (stainless steel) HA010109
• replacement probe RH/T in metal EE07-MFTx
• replacement probe RH/T in polycarbonate EE07-PFTx
• replacement probe T in metal EE07-MTx
• replacement probe T in polycarbonate EE07-PTx
• radiation shield for EE07 HA010502
• reference probes EE07 RH/T HA010403
• replacement probe CO2in polycarbonate EE871-Cxxx
• cable for remote sensing probe
- 2m (7ft) HA010801
- 5m (16ft) HA010802
- 10m (33ft) HA010803
• device for adjustment for RH, T-probes EE220-xxx2x
• humidity calibrator Humor 20
Transmitter, Router:
• bracket for rail installation HA010203
• external power supply unit V02
Base station:
• antenna cable, 2m (7ft) HA010330
• crossover cable (PC to base station) HA010333
• external power supply unit V02
CONFIGURATION SOFTWARE
Limited Liability
E+E Elektronik® is not liable for any direct or consequential damages (for example, but not restricted
to loss of earnings, interruption of business, loss of information and data or any other nancial losses),
which result from the installation, usage and also impossibility of usage of a software product from E+E
Elektronik® and any associated support or non-performance of support.
9 GENERAL
In addition to the control keypad on the optional display, the web-server of the EE242 (conguration
software) offers a user-friendly possibility to congure the base station and the entire wireless network.
System requirements are a modern internet browser (Internet Explorer, Mozilla Firefox …) and an
Ethernet connection with the base station. In order to setup a smooth conguration of the base station
through the Ethernet (network address), admin authorization may be necessary.
10 INSTALLATION
Because of the integrated web server of the EE242 (conguration program) there is no need to install
additional software.
19
Operating manual Series EE240 Wireless sensor

11 CREATING AN ETHERNET CONNECTION BETWEEN
PERSONAL COMPUTER AND EE242
11.1 IP-address of the base station (default factory settings)
IP-address of EE242-Basis Station: 192.168.0.64
Subnet Mask: 255.255.255.0
11.2 Setup of IP-address
1. STEP:
In order to establish communication between the personal computer and EE242, the IP-address of the
personal computer has to be altered to t the IP-number range of the EE242 base station.
For example Windows XP: [start] ► Systemsteuerung ► Netzwerkverbindungen
Right-click „Local Area Connection“ a click "Properties"
In the dialog box “Local Area Connections
Properties” point at “Internet Protocol
(TCP/IP)” and click the button “Properties”.
Check “Use the following IP-address” and
change the computer IP-address to 192.168.0.X
(choose X between 33 and 63).
192.168.0.64 is already used by EE242!
Enter in the “Subnet Mask” eld ‘255.255.255.0’
and click the “OK” button to save the setup.
20
Operating manual Series EE240 Wireless sensor
