Epson Printer Interface Cartridge User manual

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means, mechanical, photocopying, recording or other-
wise, without the prior written permission of Epson America, Inc. No patent liability is as-
sumed with respect to the use of the information contained herein. While every precaution has
been taken in the preparation of this book, Epson America, Inc. assumes no responsibility for
errors or omissions. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Printout on page 45 courtesy of PalSoftware Corporation, Los Angeles, CA, drawn using
ArtPak Presentation System.
Artpak is a trademark of PalSoftware Corporation.
HomeWriter, LX-90, and PIC are trademarks of Epson America, Inc.
IBM is a registered trademark and PCjr is a trademark of International Business Machines
Corporation.
WordStar is a registered trademark of MicroPro International Corporation.
Copyright © 1985 by Epson America, Inc.
Torrance, California 90505
P8592021
ii

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1.
Installation and Operation ......................
Inserting the Printer Interface Cartridge
...........
Printing the Test Patterns
.......................
Connecting the Printer to Your PCjr
..............
Control Panel .................................
Using Your Printer
.............................
3
3
3
4
4
6
2.
SelecType ....................................
7
SelecType Operation
...........................
7
Turning SelecType On
..........................
7
Selecting typestyles
..........................
8
SelecType exercise
...........................
9
Mode combination
..........................
11
SelecType Tips
................................
12
3. Elements of Dot Matrix Printing
and Computer/Printer Communications ...........
The Print Head
...............................
Changing Pitches
..............................
NLQ Mode ...................................
ESCape and ASCII
............................
4.
LX-90 Features ................................
17
Demonstration Programs
.......................
17
How to Run BASIC Programs
...................
18
Pica Printing
..................................
19
Changing Pitches
..............................
19
Cancelling Codes
..............................
20
Resetting the Printer
...........................
20
Pitch Comparison
.............................
21
Near Letter Quality Mode
......................
21
13
13
14
15
16
. . .
III

5. Print Enhancements and
Special Characters .............................
Bold Modes ..................................
Emphasized Mode
.............................
Double-Strike
.................................
Expanded Mode.. .............................
Mode Combinations
...........................
Underline Mode
...............................
Master Select .................................
Superscript and Subscript
.......................
6. Page Formatting ...............................
29
Margins.. ....................................
29
Skip Over Perforation
.......................... 30
Line Spacing.. ................................
30
Paper Out Sensor .............................
31
Justification with NLQ
.........................
31
7. User-Defined Characters
.......................
Defining Your Own Characters
..................
Designing Process
.............................
Definition program 1
.........................
Running the program
........................
Definition program 2
.........................
Running the program
........................
Defining NLQ Characters
.......................
NLQ grid
..................................
NLQ definition program 1
....................
NLQ definition program 2
....................
8. Introduction to Dot Graphics ....................
Dot Patterns
..................................
The Print Head and Graphics
....................
Graphics Mode
...............................
Pin Labels ....................................
First Graphics Program
.........................
WIDTH Statements
............................
Multiple-Line Exercise
..........................
Density Varieties
..............................
Reassigning Code
..............................
Column Reservation Numbers
...................
Designing Your Own Graphics
...................
String variables
.............................
23
23
23
24
25
25
26
27
28
33
33
34
36
37
38
39
39
40
42
43
45
46
46
47
48
49
50
50
52
53
53
54
57
iv

Appendixes
A.
B.
C.
D.
E.
LX-90 Characters ..............................
Standard Character Mode (Draft)
................
Standard Character Mode (NLQ)
................
Alternate Character Mode (Draft)
................
Alternate Character Mode (NLQ)
................
A-l
A-2
A-4
A-6
A-8
Control Codes in Numeric Order ..................B-l
Control Key Chart .............................
B-9
Control Codes by Function ......................
Near Letter Quality Mode
......................
Character Width (Pitch)
........................
Character Weight
..............................
Print Enhancement
............................
Mode and Character-Set Selection
................
Special Printer Features
.........................
Line Spacing ..................................
Forms Control ................................
Page Format ..................................
User-Defined Characters
........................
Dot Graphics
.................................
C-l
C-l
C-l
C-l
c-2
c-2
c-2
c-2
c-3
c-3
c-3
c-3
The DIP Switches .............................D-l
Troubleshooting and Advanced Features ...........
Installation of Commercial Software Programs
.....
SelecType Features and Solutions
................
Troubleshooting ...............................
Beeper Error Warnings
.........................
Graphics .....................................
Data Dump Mode .............................
IBM PC BASIC Solutions
.......................
Index.. ......................................
E-l
E-l
E-2
E-3
E-3
E-4
E-4
E-6
F-l
V

Introduction
The Epson LX-90 printer combines low price with the high quality
and advanced capabilities formerly available only on more expensive
printers.
The LX-90 User’s Manual tells you how to set up your printer. This
Printer Interface Cartridge Operation Manual gives you the specific
information you need to use the LX-90 with your PCjr computer.
This manual won’t waste your time with unnecessary information,
but it also won’t neglect anything you need to know about the LX-90
and its features.
You can read as much or as little of this manual as you wish. The
first chapter tells how to test the printer and connect it to your com-
puter. The second chapter explains SelecType, a feature that offers
you five special typefaces. The other chapters explain the main fea-
tures of the LX-90, and the appendixes give technical information on
the printer.
Note
Although all references in this manual are to the Epson
LX-90 printer, this PIC can also be used with the Epson
HomeWriter™-10.
The samples of typestyles and graphics on the next page are a pre-
view of what your LX-90 can do.
1

Expandedemphasized
Typewriter-style Near Letter Quality
Emphasized bold printing
Double-strike bold printing
Compressed narrow printing
Elite printing

Chapter 1
Installation and Operation
After you have set up your printer and loaded the paper (following
the directions in the LX-90 User’s Manual), you are ready to plug in
your Printer Interface Cartridge (PIP™) and begin printing.
Inserting the Printer Interface Cartridge
Inserting the PIC is easy. The cartridge slides into the rectangular
opening, as shown in the LX-90 manual. Be sure the printer is OFF
when you insert the PIC. Once the PIC is installed, you are ready to
test your printer.
Printing the Test Patterns
It’s time to see the LX-90 in action. You’ll start with a test pattern.
Don’t connect the printer to your computer yet-just follow these
steps:
1. Make sure that your printer has paper in it and that the power
switch (on the right side of the printer) is off.
2. Press the LF button on the control panel, and at the same time,
turn the printer on with the power switch.
The LX-90 begins printing letters, numbers, and symbols in the
draft mode. It won’t stop until you turn it off or until it gets near the
end of the paper.
To see the same test in the NLQ (Near Letter Quality) mode, turn
the printer on while pressing the FF button. Figure l-1 shows what
both test patterns look like.

Draft
/0123456789::<=>?@ABCDEFGHIJKLMNOPQRSTUVWXY
0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ
123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[
23456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\
.3456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUUVWXYZ[\]
456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]'
NLQ
3456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]
456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]ˆ
56789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]ˆ-
6789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]ˆ-'
789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\I^-'a
89:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\l
A
-'ab
Figure I-l. Test patterns
Connecting the Printer to Your PCjr
Before connecting the LX-90, be sure that all your computer equip-
ment is turned off.
Plug the PIC cable into the socket marked S in the back of your
PCjr. Now the printer can communicate with your computer.
Control Panel
After connecting your LX-90 to your computer system, turn on the
printer and look at the control panel on the top.

Figure 1-2. Control panel
You have already used the control panel for a special purpose,
printing the test patterns. Here are the main functions of the lights and
buttons on this panel:
l The POWER light glows green when the power is on.
l The READY light glows green when the printer is ready to accept
data. Don’t worry if this light flickers somewhat during printing;
this flickering is normal.
l The PAPER OUT light glows red when the printer is out of paper or
the paper is loaded incorrectly.
l The ON LINE light glows green when the printer can receive data.
In addition to the lights, the control panel has three buttons.
l ON LINE-switches the printer between on-line and off-line status.
When the printer is on-line, the ON LINE light glows and the
printer is ready to accept data.
The other two buttons, FF and LF, work only when the printer is
off-line (when the ON LINE light is off). If the ON LINE light is on,
press the ON LINE button before you use these.
5

l FF (Form Feed)-advances continuous paper to the top of the
next page or ejects a single sheet of paper.
l LF (Line Feed)-advances the paper one line at a time.
The control panel can also be used to turn on several printing func-
tions using SelecType, a feature which is described in the next chapter.
Using Your Printer
If you have a word processing or other commercial software pro-
gram, just load the program into your computer, follow the printing
instructions, and watch your LX-90 print.
If your software program requires you to specify which printer you
are using, see Appendix E for instructions.
If you plan to use your LX-90 for printing program listings, load a
program and use the appropriate listing command for the program-
ming language you are using.
For example, if you are using the BASIC that is built into your PCjr
computer, type NEW and then enter the following simple program:
10 FOR X=1 TO 5
20 PRINT X/3
30 NEXT X
Then make sure your printer is turned on and type the following:
LLIST
Then press ENTER and your LX-90 will list the program.
You can now begin using the LX-90 with your software, or you can
find out about the special features of the printer in the next chapters.
You may be especially interested in SelecType, the feature described in
Chapter 2, which you can use with nearly all software.
6

Chapter 2
SelecType
The LX-90 enables you to use a feature called SelecType to produce
five special typestyles:
Typewriter-style Near Letter Quality,
Emphasized bold printing,
Double-strike bald printing ,
Compressed narrow printing,
or Elite printing.
Choosing typestyles with SelecType is simple. A few taps on the
printer’s control panel tell the printer which style you want, and
SelecType lets you choose the typestyle each time you print. For
example, you can print the first draft of a letter or report in the stan-
dard mode and the final version in the NLQ mode.
SelecType Operation
Using SelecType is simple. You turn on SelecType and select a
typestyle, then turn off SelecType and print.
Turning SelecType On
1. Make sure that the printer is on and that the POWER, READY, and
ON LINE lights are all on.
2. Press both the ON LINE and FF buttons at the same time, as illus-
trated in Figure 2-1.

Figure 2-1. Turning SelecType on
When you press the ON LINE and FF buttons, the LX-90 signals in
three ways that SelecType is on.
l The printer beeps.
l The READY light turns off.
l The ON LINE light begins flashing.
Selecting typestyles
In SelecType, each button has a function:
l ON LINE selects typestyles.
. FF sets the styles.
l LF turns SelecType off.
After turning on SelecType, follow these three steps to select a
typestyle:
1. Find the typestyle you want in Table 2-1.
8

Table 2-1. SelecType modes
Mode Typestyle
1NLQ ABCDEFGHIJKLMnopqrstuvwxyz
2
Emphasized
ABCEDEFGHIJKLMnopqrstuvwxyz
3
Double-strike
ABCDEFGHIJKLMnopqrstuvwxyz
4
Compressed
ABCDEFGHIJKLMnopqrstuvwxyz
5EliteABCDEFGHIJKLMnopqrstuvwxyz
2. Press the ON LINE button the number of times indicated in the
mode column. Be sure that the printer beeps each time you press
the ON LINE button.
3. Press the FF button to set the typestyle.
4. Press the LF button to turn SelecType off. The control panel
returns to its normal functions, but the printer is off-line.
5. Press the ON LINE button, and you are ready to print.
SelecType exercise
You will probably use SelecType mainly with commercial software,
but since there are so many different commercial software programs,
the sample exercises are in BASIC because it is built into the PCjr.
You don’t need to know anything about programming for this exer-
cise because it is merely for practice. If you would rather not use
BASIC, use your word processing or business program to create a
short file or document of the type you will usually print.
If you do want to use BASIC for this exercise, simply turn on your
computer and printer. Then type the short program listed below.
Only the words inside the quotation marks are printed. You can put
anything you want there.
l0 LPRINT "This is an example of"
20 LPRINT "LX-90 printing."
9

Now, run the program by typing RUN and pressing ENTER, or
print your file or document by following the printing instructions of
your software. The LX-90 will print your example in standard single-
strike printing, as shown below:
This is an example of
LX-90 printing.
Now that you have created a sample, follow these steps to print it in
emphasized mode:
1. See that both the ON LINE and READY lights are on.
2. Press the ON LINE and FF buttons at the same time. You hear a
beep to signal that SelecType is on.
3. As shown in Table 2-1, the code for emphasized is two. Therefore,
press the ON LINE button two times. (Remember to make sure
you hear a beep each time you press the ON LINE button when
you are in SelecType mode.)
4. Now that you have selected the emphasized mode, push the FF
button once to set it.
5. Push the LF button once to return the panel to its standard opera-
tion .
6. Press the ON LINE button so the LX-90 is ready to print.
Now you have set the LX-90 to print in emphasized mode. Print
your sample once more. It should appear in emphasized mode just as
you see below:
This is an example of
LX-90 printing.
Turn off your printer to cancel the emphasized setting, and-if you
wish-try this exercise with other modes. If you are using commercial
software and SelecType will not change the typestyle, see “SelecType
Features” in Appendix E.
10

Mode combination
Two of the SelecType modes (NLQ and emphasized) can be com-
bined to create an impressive effect. If you want to see this combina-
tion, turn your printer off and back on and follow the instructions
below :
1. See that the ON LINE and READY lights are on.
2. Press the ON LINE and FF buttons at the same time.
3. Press the ON LINE button once and then the FF button once.
Since one is the code for NLQ, you have now set the LX-90 for NLQ.
4. Press the ON LINE button one more time and then the FF button
once again.
This makes a total of two times, and thus sets the LX-90 for empha-
sized also.
5. Press the LF button to return the panel to its standard operation.
6. Press the ON LINE button to put the LX-90 on-line.
Now print your sample document or run your sample program. If
your printing appears in
emphasized Near Letter Quality
as you see here, you have successfully combined the two modes. If
you get any other results, turn your printer off and back on and then
try the steps again.
You can combine other modes using the same technique, but some
modes will not mix with others. Table 2-2 shows which modes can be
combined. A dot in a box indicates that the two modes can be com-
bined.
11

Table 2-2. Mode combinations
Mode NLQ
Emphasized Double-
Compressed Elite
strike
NLQ•
Emphasized ••
Double-strike •• •
Compressed ••
Elite ••
Don’t worry about harming your printer if you try to combine two
modes that the LX-90 can’t mix. Your settings cannot damage the
printer because it is prepared for the possibility of receiving codes for
conflicting modes. If it receives codes for two modes that it can’t com-
bine, it uses only one of the codes.
SelecType Tips
After you turn on a mode with SelecType, it usually stays in effect
until the printer is turned off. If, for example, you use SelecType to
print a document in emphasized, anything you print after that will be
emphasized unless you first turn the printer off and back on.
If you like NLQ or compressed well enough to use it most of the
time, you can turn it on and keep it on with a special switch in the
back of your printer. See Appendix D for instructions.
For more information on the SelecType typestyles, see Chapters 3,
4, and 5.
12

Chapter 3
Elements of Dot Matrix Printing
and Computer/Printer Communications
This chapter is for those of you who want to know something about
how your printer works. It’s a simple, non-technical explanation of
the basics of dot matrix printing that will help you understand some of
the later chapters, particularly the ones on user-defined characters and
graphics.
The Print Head
The LX-90 uses a print head with nine pins or wires mounted verti-
cally. Each time a pin is fired, it strikes the inked ribbon and presses it
against the paper to produce a dot. This dot is about 1/72nd of an inch
in diameter. The size varies slightly depending upon the age of the
ribbon and the type of paper used. As the head moves horizontally
across the page, these pins are fired time after time in different patterns
to produce letters, numbers, symbols, or graphics.

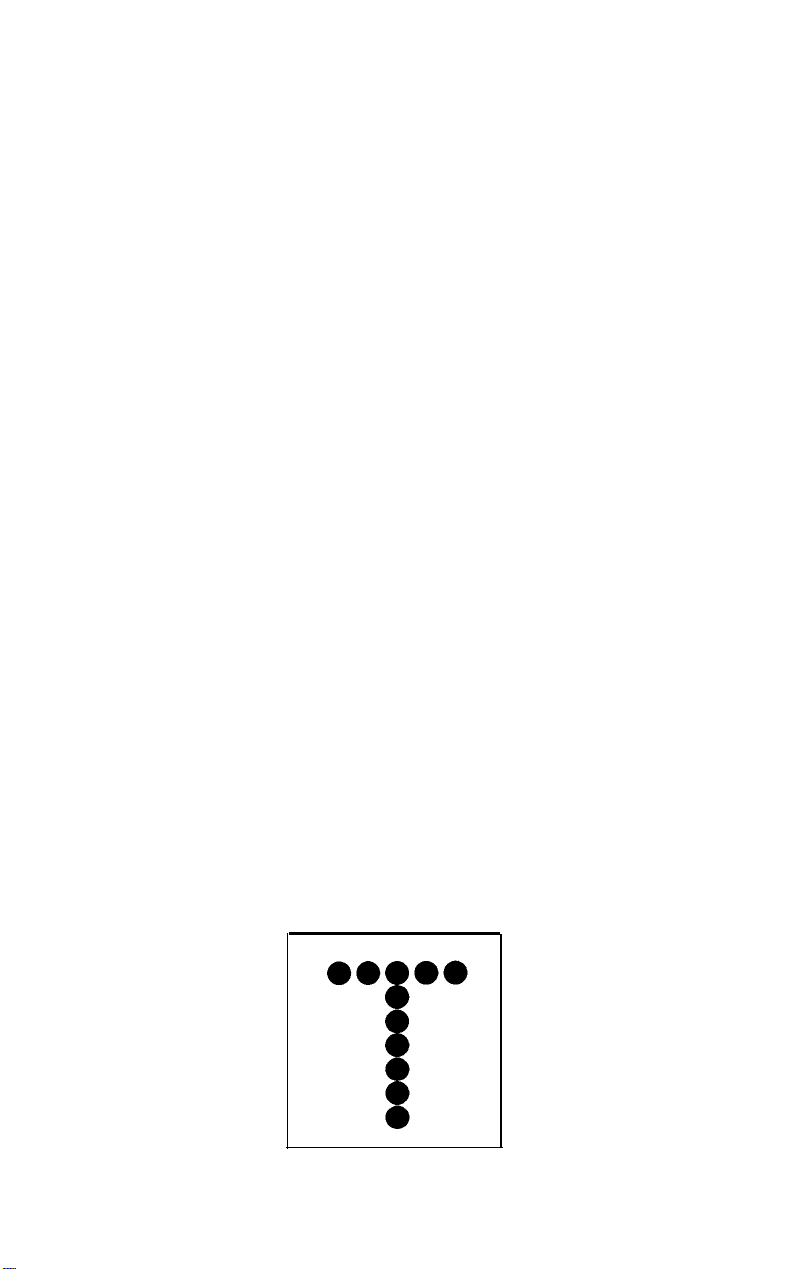

For example, to print a pica capital T, the head fires the top pin,
moves 1/60th of an inch, fires the top pin again, moves 1/60th of an
inch, fires the top pin and the six below it at the same time, moves
1/60th of an inch, fires the top pin, moves another 1/6Oth of an inch,
and fires the top pin once more to finish the letter. All this happens in
only l/lOOth of a second.
Figure 3-7. A capital T
13

Changing Pitches
In addition to pica, in which there are 10 characters per inch, the
LX-90 can also print in other widths, or pitches. It does so by reducing
the distance between pin firings. In the elite mode it prints 12 charac-
ters per inch and in the compressed mode it prints slightly more than
17 characters per inch. The pattern of the dots is not changed, but the
horizontal space between them is reduced.

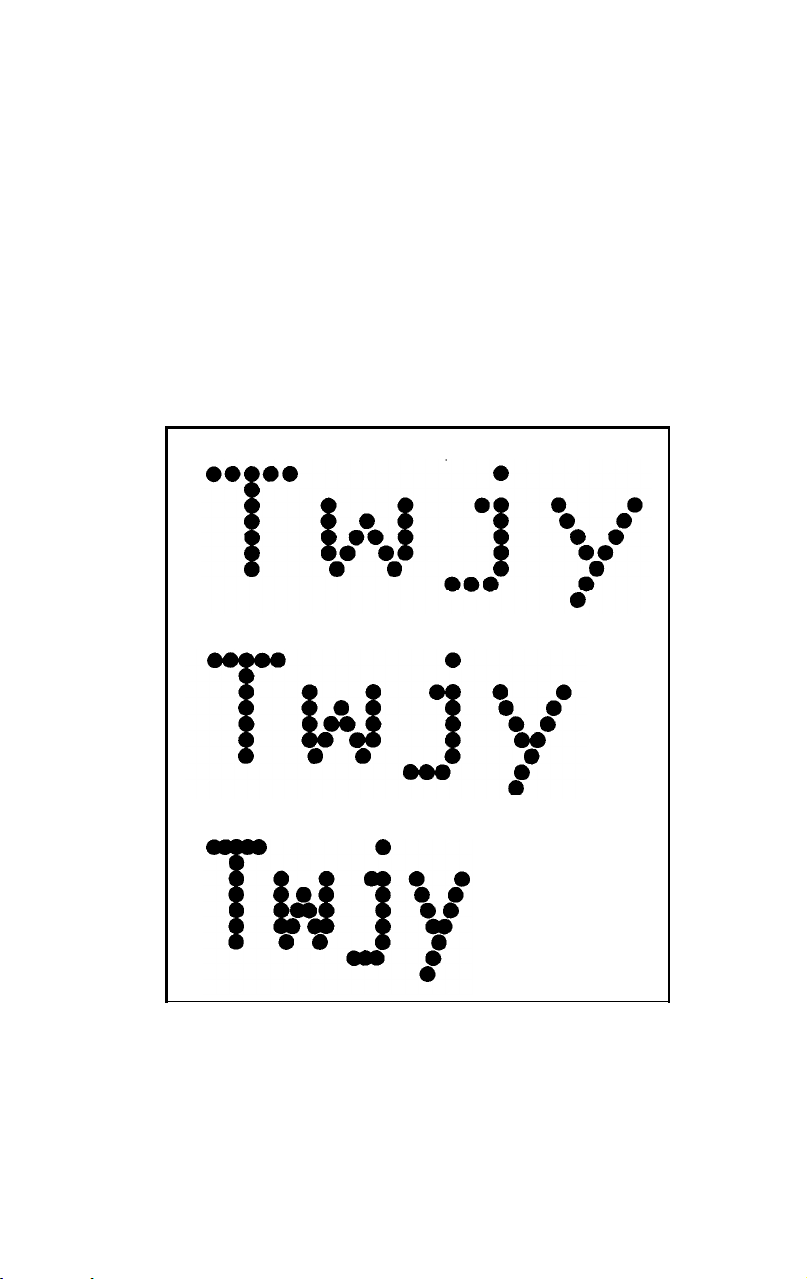

Figure 3-2 shows enlargements of four sample letters in each of the
three pitches. These letters are chosen to show how the LX-90 prints
letters that are uppercase and lowercase, wide and narrow, and with
and without descenders (the bottom dots of the j and y).
This is pica.
This is elite.
This is compressed.
Figure 3-2. The three pitches of the LX-90
The dot pattern of each character is carefully designed so that in
pica no dot overlaps another. The reason is that in normal high-speed
printing the pins cannot fire and retract and fire again quickly enough
to print one dot overlapping another.
14

NLQ Mode
The preceding examples are in the LX-90’s draft mode, but the
LX-90 also has the high-quality NLQ (Near Letter Quality) mode that
you have seen in previous chapters.
The NLQ letters are more fully-formed than the draft letters
because they are made up of many more dots as you can see below.

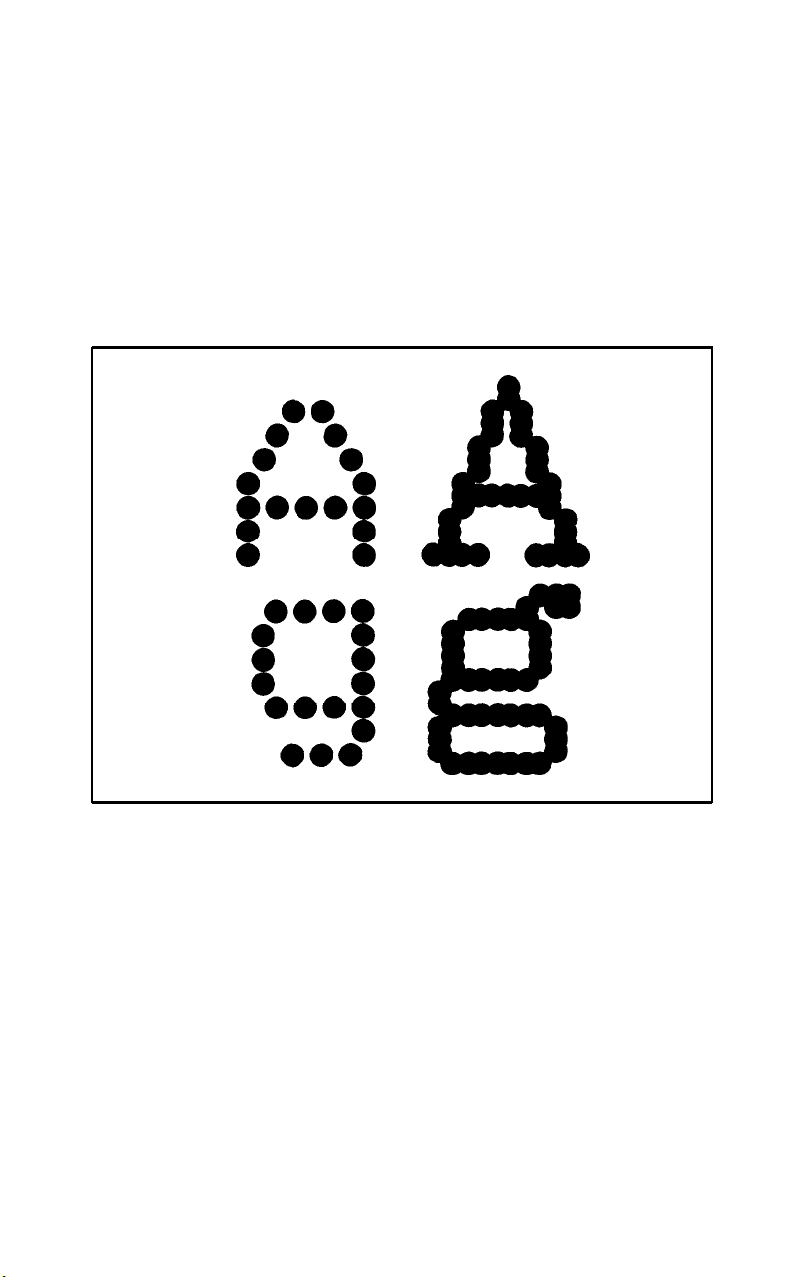

Figure 3-3 shows enlargements of two letters in draft mode compared
with the same two in the NLQ mode.
Figure 3-3. Near Letter Quality and draft characters compared
With the two modes, draft and NLQ, the LX-90 lets you choose
high speed or high quality each time you print. You can print your
ordinary work or preliminary drafts quickly in the draft mode and use
the NLQ mode for final copies or special purposes.
SelecType makes it especially easy to change from draft to NLQ,
but you can also select and cancel the NLQ mode with a software
command or with a special switch in the back of your printer. You can
find the software command in Chapter 4 and the operation of the
switch (called a DIP switch) in Appendix D.
15
