PREFACE
This manual describes functions, theory of electrical and mechanical operations, maintenance, and repair of
Stylus Color IIs / Stylus 820.
The instructions and procedures included herein are intended for the experience repair technician, and
attention should be given to the precautions on the preceding page. The chapters are organized as follows:
CHAPTER 1. PRODUCT DESCRIPTION
Provides a general product overview, lists specifications, and illustrates the main components of the printer.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of printer operation.
CHAPTER 3. DISASSEMBLY AND ASSEMBLY
Includes the step-by-step guide for product disassembly and assembly
CHAPTER 4. ADJUSTMENTS
Includes a step-by-step guide for adjustment.
CHAPTER 5. TROUBLESHOOTING
Provides Epson-approved techniques for adjustment.
CHAPTER 6. MAINTENANCE
Describes preventive maintenance techniques and lists lubricants and adhesives required to service the
equipment.
APPENDIX
Describes connector pin assignments, circuit diagrams, circuit board component layout and exploded diagram.
The contents of this manual are subject to change without notice.
-iv-

REVISION SHEET
Revision Issue Date Contents
Rev.-A August 25,1995 1st issue
-v-

TABLE OF CONTENTS
CHAPTER 1. PRODUCT DESCRIPTION
CHAPTER 2. OPERATION PRINCIPLES
CHAPTER 3 DISASSEMBLY AND ASSEMBLY
CHAPTER 4. ADJUSTMENT
CHAPTER 5. TROUBLESHOOTING
CHAPTER 6. MAINTENANCE
APPENDIX
-vi-

Chapter 1 Operating Principles
Table of Contents
1.1 OVERVIEW 1-1
1.2 SPECIFICATIONS 1-1
1.2.1 PrintingSpecifications ......................................1-2
1.2.2 PaperHandlingSpecifications................................1-4
1.2.3 PaperSpecifications........................................1-4
1.2.4 InkCartridgeSpecifications..................................1-6
1.2.5 ElectricalSpecifications.....................................1-7
1.2.6 EnvironmentalSpecifications.................................1-7
1.2.7 Reliability..................................................1-8
1.2.8 Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.2.9 AcousticNoise.............................................1-8
1.2.10 PhysicalSpecifications.....................................1-8
1.3 INTERFACE SPECIFICATIONS 1-9
1.3.1 ParallelInterfaceSpecifications...............................1-9
1.4 OPERATION CONTROLS 1-11
1.4.1 ControlPanel .............................................1-11
1.4.2 PanelOperationandBuilt-inFunction.........................1-11
1.4.3 DefaultSettings...........................................1-14
1.4.3.1 Setting Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
1.4.3.2 Setting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
1.4.4 ErrorConditions...........................................1-18
1.4.5 PrinterInitialization ........................................1-18
1.4.5.1 Hardware Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1.4.5.2 Sofware Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1.4.5.3 PanelInitialization...................................1-18
1.5 MAIN CONPONENTS 1-19
1.5.1 MainControlBoard(C160MainControlBoard) .................1-19
1.5.2 PowerSupplyBoard(C160PSB/PSEBoard)....................1-20
1.5.3 C160I/FBoard ............................................1-20
1.5.4 PrinterMechanism((M-4C10).................................1-21
1.5.5 Housing..................................................1-21
Rev. A 1-i

List of Figures
Figure1-1.ExteriorViewoftheStylusColorIIs(820).................. 1-1
Figure1-2.NozzleConfiguration................................... 1-2
Figure1-3.PrintableArea......................................... 1-4
Figure1-4.PaperSelectLever..................................... 1-5
Figure1-5.Temperature/HumidityRange........................... 1-7
Figure1-6.DataTransmissionTiming.............................. 1-9
Figure1-7.ControlPanelAppearance............................. 1-11
Figure 1-8. C160 Main Control Board Component Layout . . . . . . . . . . . . . 1-19
Figure1-9.C160PSB/PSEBoardComponentLayout ................ 1-20
Figure1-10.C160I/FBoardComponentLayout..................... 1-20
Figure1-11.M-4C10PrinterMechanism............................ 1-21
Figure1-12.Housing............................................ 1-21
List of Tables
Table1-1. PrintSpeedandPrintableColumn........................ 1-2
Table1-2.CharacterTables....................................... 1-3
Table1-3. PaperSpecifications ................................... 1-4
Table1-4. AdjustLeverSettings................................... 1-5
Table1-5. PaperSelectLeverSettings ............................. 1-5
Table1-6. BlackI/CSpecifications................................. 1-6
Table1-7. ColorI/CSpecifications................................. 1-6
Table1-8. RatedElectricalRanges................................. 1-7
Table1-9. AcceptableEnvironmentalConditions..................... 1-7
Table 1-10. Siganal and Connector Pin Assignment for Parallel I/F . . . . . 1-10
Table1-11. PanelOperation..................................... 1-11
Table1-12. Built-inFunctionsonthePanel......................... 1-12
Table 1-13. Button Operations in Default Setting Mode. . . . . . . . . . . . . . . 1-12
Table1-14. ErrorIndicators...................................... 1-13
Table 1-15. Default Setting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Table1-16. LanguageSelections................................. 1-15
Table1-17.FeatureSelections.................................... 1-16
Table1-18. CharacterTableSelection............................. 1-17
1-ii Rev. A

1.1 FEATURES
The Stylus Color IIs printer is a color ink jet dot matrix printer that comes with a 64-nozzle black printhead
and a 60-nozzle CMY color printhead, either of which can be installed in the printer. The Stylus 820 version
of the same printer comes standard with only the 64-nozzle black printhead; however, the CMY color
printhead can be purchased as an optional upgrade. Whenever this manual mentions the Stylus Color IIs, its
descriptions are equally applicable to the Stylus 820. The major printer features are:
❏High-quality color print
-720 dpi printing
-720 dpi printing on plain paper
-720, 360 dpi printing on special coated paper
(Use the monochrome head only with plain paper)
❏High-speed print
-LQ 125 cps (monochrome head)
-LQ 170 cps (CMY head, using one-pass printing)
Note: The CMY head prints 360 dpi printing in three passes.
❏Built-in auto sheet feeder
-Plain paper (Can be installed up to the hopper guide marker.)
-Transparency film (Can be installed up to the hopper guide marker.)
-Glossy paper (1-sheet only)
-Coated paper (Can be installed up to the hopper guide marker.)
-Envelopes (30 sheets)
-Postcards (30 sheets)
❏Built-in I/F
-Parallel I/F only (8-bit parallel: IEEE P1284 mode)
❏Easy setup
-No DIP switches
❏3 scalable fonts and 3 LQ fonts standard
-Roman T, Sans Serif H, Roman, Sans Serif (scalable)
-Roman, Sans Serif, Courier, Prestige, Script (LQ, bitmap)
❏Character tables
-9 character tables (standard version)
-15 character tables (NLSP version)
❏Low running cost
The figure below shows the Stylus Color IIs.

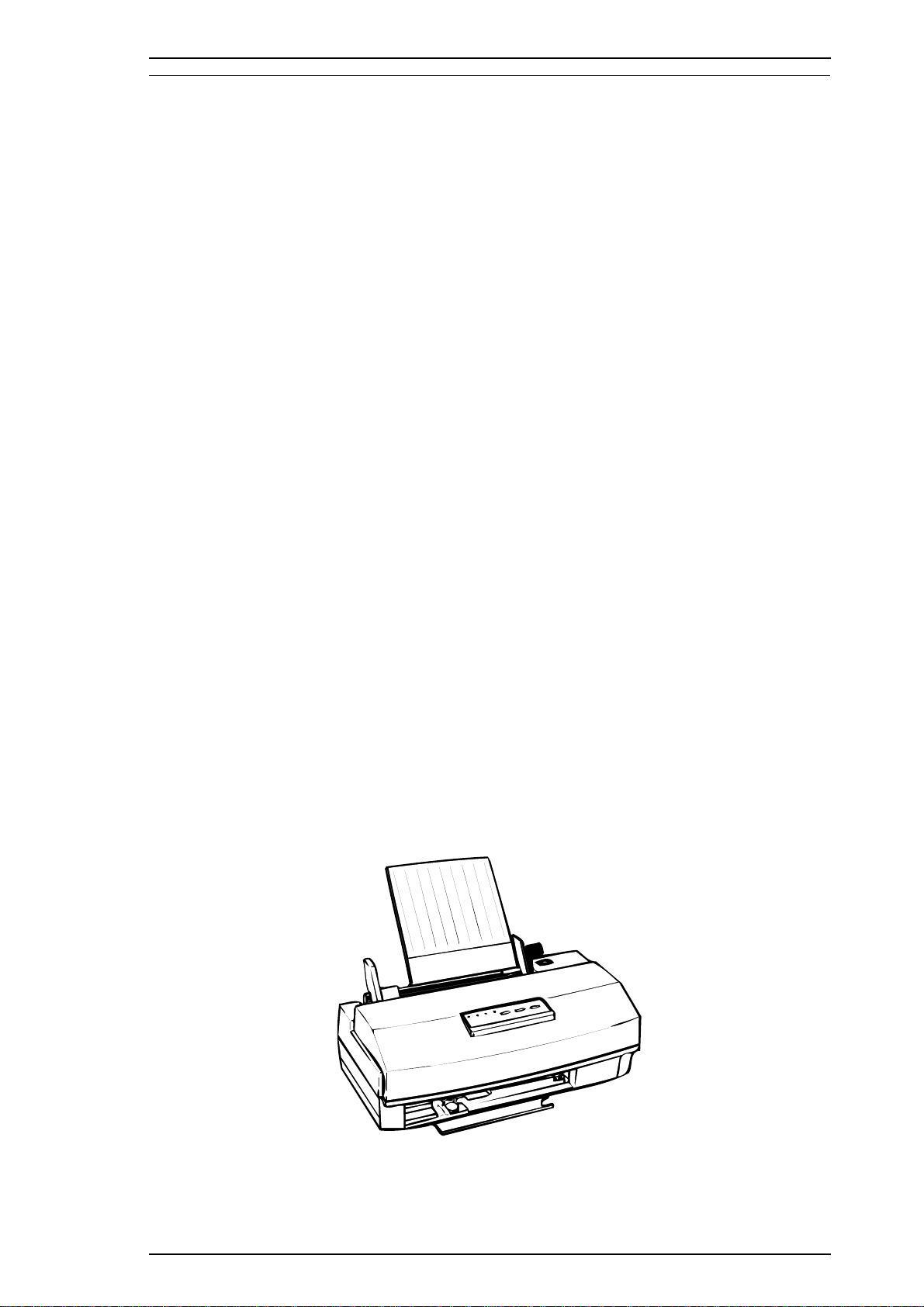

Figure 1-1. Exterior Viewing of Stylus Color IIs(820)
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-1

1.2 SPECIFICATIONS
This section provides statistics and other detailed information for the printer.
1.2.1 Printing Specifications
Print system: On-demand ink jet system
Nozzle configuration: 64 nozzles (10 ×2+11×4 standard ): monochrome
60 nozzles (20 ×3 standard): color
Printing direction: Bidirectional with logic-seeking
Table 1-1. Print Speed and Printable Columns
Character
Pitch
Printable
Columns Printing Speed (cps)
Monochrome CMY
10 cpi (Pica) 80 125 170
12 cpi (Elite) 96 150 204
15 cpi 120 188 255
17 cpi (Pica condensed) 136 214 290
20 cpi (Elite condensed) 160 250 340
#1 #1 #1
#2 #2 #2
#19
#20
#19
#20 #20
#19
#1 #2 #3
#4
#5
#6
#64
#61
#59 #62 #63
#60
(Row M) (Row C) (Row Y)
(A) (B) (C) (D) (E) (F)
120 dpi 360 dpi
120 dpi

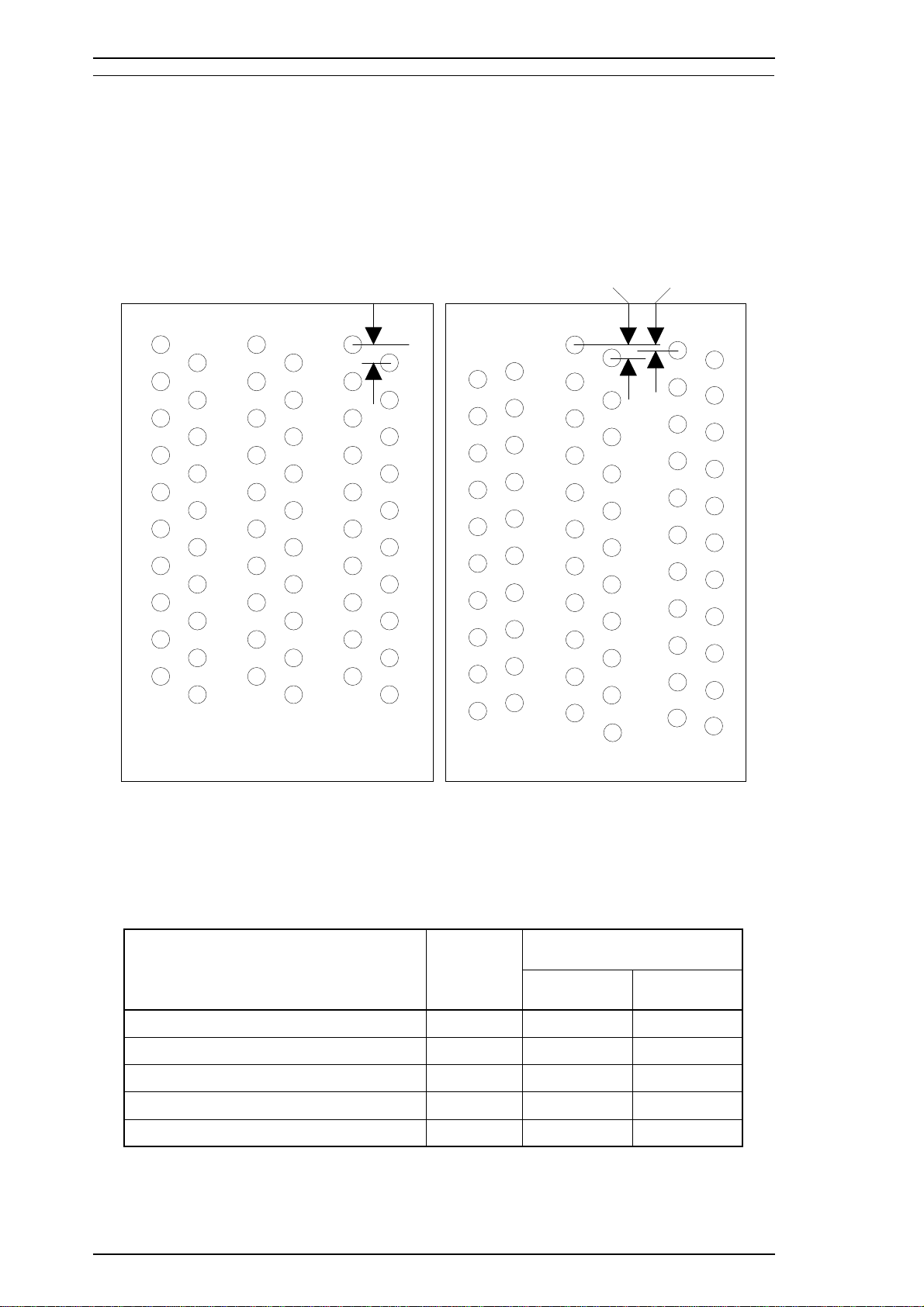

Figure 1-2. Nozzle Configuration
Product Description Stylus Color IIs / Stylus 820
1-2 Rev. A

Character tables: Legal and 14 international sets
Table 1-2. Character Tables
Character Tables
Bitmap Fonts Scalable Fonts
EPSON Roman
EPSON Sans Serif
EPSON Courier
EPSON Roman
EPSON Sans
Serif
EPSON Roman T
EPSON Sans Serif H
Standard
Italic
Supported Supported Supported
PC437 (U.S./Standard Europe)
PC850 (Multilingual)
PC860 (Portuguese)
PC861 (Icelandic)
PC863 (Canadian-French)
PC865 (Nordic)
Abicomp
BRASCII
NLSP
Italic Supported Supported Supported
PC437 (U.S./Standard Europe)
PC850 (Multilingual)
PC437 (Greek)
Supported Supported Not supported
PC852 (East Europe)
PC853 (Turkish)
PC855 (Cyrillic)
PC857 (Turkish)
PC866 (Russian)
PC869 (Greek)
MAZOWIA (Poland)
Code MJK (Czecho/Slovakia)
ISO 8859-7 (Latin/Greek)
ISO Latin 1T (Turkish)
Bulgaria (Bulgaria)
Fonts: Bitmap LQ fonts
- EPSON Roman (10 cpi/12 cpi/15 cpi/Proportional)
- EPSON Sans Serif (10/12/15/Proportional)
- EPSON Courier (10/12/15)
Scalable fonts
- EPSON Roman 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Sans Serif 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Roman T 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Sans Serif H 10.5 points, 8 ∼32 points (in units of 2 points)
Control codes: ESC/P 2 and expanded raster graphics codes
Input data buffer: 0.5KB or 64KB
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-3

1.2.2 Paper Handling Specifications
Feeding method: Friction feed paper is fed from the built-in auto sheet feeder (ASF).
Line spacing: 1/6 inch feed or programmable in 1/360 inch minimum increments.
Paper path: Cut sheets are fed from the built-in auto sheet feeder (ASF).
Top in and front out.
Feeding speed: 102 msec. (at 1/6-inch feed pitch).
1.2.3 Paper Specifications
Table 1-3. Paper Specifications
Cut Sheets Envelopes
Transparencies
A4 Letter Legal No. 10 DL
PW Width 210 mm 216 mm 216 mm 240 mm 220 mm
PL Length 297 mm 279 mm 358 mm 104 mm 110 mm
LM Left margin 3 mm or
more 3 mm or more 3 mm or more 3 mm or more 3 mm or more
RM Right margin 3 mm or
more 3 mm or more 3 mm or more 3 mm or more 3 mm or more
TM Top margin 3 mm or
more 3 mm or more 3 mm or more 3 mm or more 3 mm or more
BM Bottom margin 14 mm or
more 14 mm or more 14 mm or more 14 mm or more 14 mm or more
LM
PW
RM
PL
BM
TM
Figure 1-3. Printable Area
Product Description Stylus Color IIs / Stylus 820
1-4 Rev. A

The adjust lever on the upper case must be set to the proper position for the paper
thickness, as shown in Table 1-4.
Table 1-4. Adjust Lever Settings
Lever Position Paper Paper Thickness
Front
(0 position) Normal position 0 mm
Rear
(+ position) 0.62 mm
Also the paper select lever on the upper case must be set to the proper position for
the paper varieties shown in Table 1-5.
Table 1-5. Paper Select Lever Settings
Specifications for the Medium
PF Mode Cut Sheets Envelopes
Postcards
Lever Position
ASF Feed Thick paper (Rear) NO OK
Thinner paper (Front) OK NO
Manual Feed Thick paper (Rear) OK OK
Thinner paper (Front) NO NO
Note: “OK” means paper can be used and “NO” means paper cannot.
Paper In Paper Out
Manual Feed
Auto Feed
Hopper
Paper Select Lever
Thicker Paper
Thinner Paper

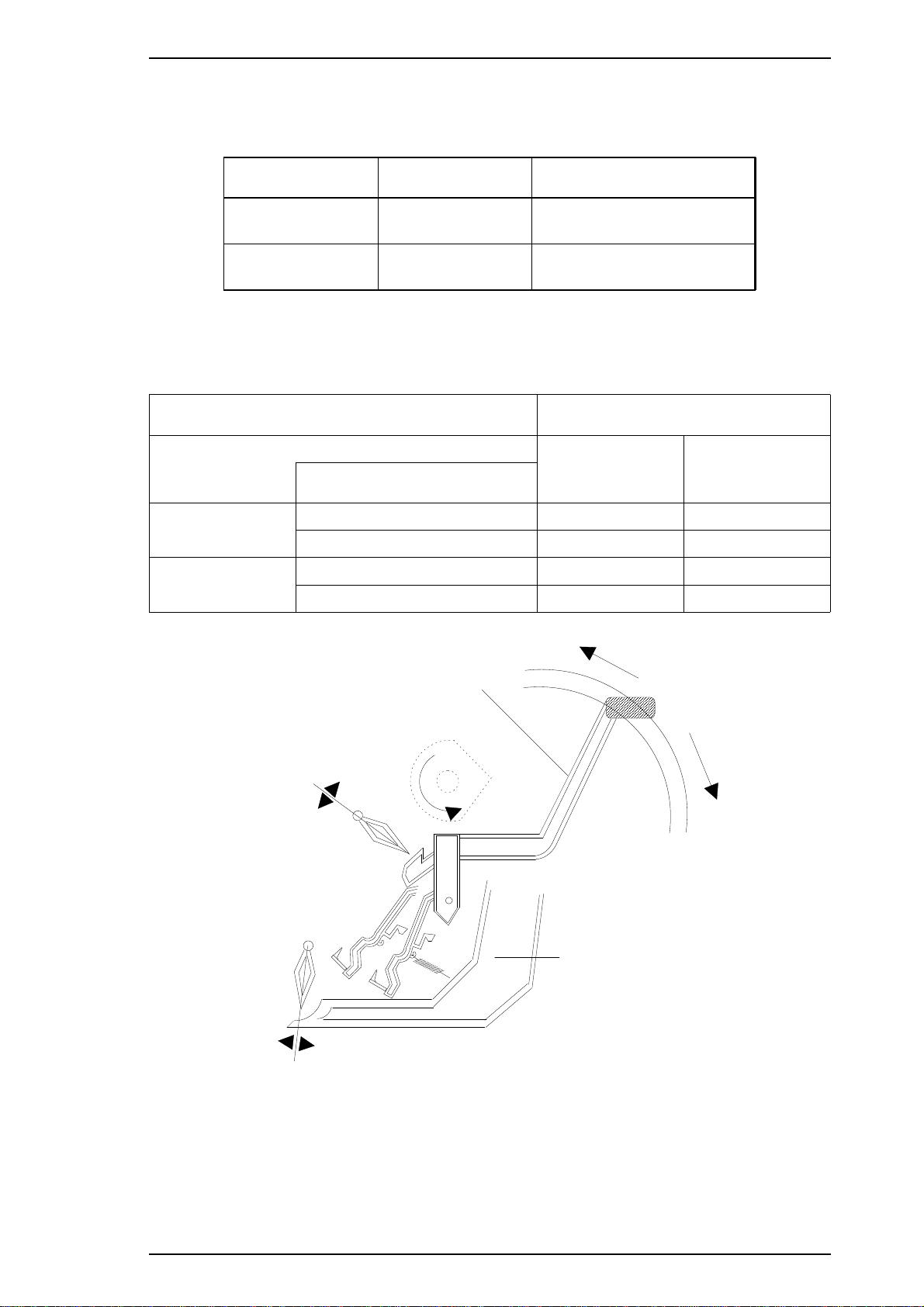

Figure 1-4. Paper Select Lever
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-5

1.2.4 Ink Cartridge Specifications
Table 1-6. Black I/C Specifications
Item Specifications
Type Exclusive cartridge
Color and Weight Approximately 54 g (internal ink weight is 36 g ±0.5 g)
Ink Life High-quality ink produces 800 thousand characters
Validity 2 years (sealed in package) / 6 months (out of package)
Storage
Temperature
❏–30 to 40°C(−22 ∼104°F) (Storage: a month or less at 40°C (104°F))
❏–20 to 40°C(−15 ∼104°F) (Transit: a month or less at 40°C (104°F))
❏–30 to 60°C(−22 ∼140°F) (Transit: 120 hours or less at 60°C (140°F))
Dimensions 30.0 (W) ×58.0 (D) ×38.5 ±0.3 (H) mm
Table 1-7. Color I/C Specifications
Item Specifications
Type Exclusive cartridge
Color and Weight Approximately 70 g (internal ink weight is 12.8 g ±0.5 g)
Ink Life 100% solid pattern: A4 — 16 sheets / each color
Validity 2 years (sealed in package) / 6 months (out of package)
Storage
Temperature
❏–30 to 40°C(−22 ∼104°F) (Storage: a month or less at 40°C (104°F))
❏–20 to 40°C(−15 ∼104°F) (Transit: a month or less at 40°C (104°F))
❏–30 to 60°C(−22 ∼140°F) (Transit: 120 hours or less at 60°C (140°F))
Dimensions 42.9 (W) ×56.5 (D) ×38.5 ±0.3 (H) mm
Product Description Stylus Color IIs / Stylus 820
1-6 Rev. A

1.2.5 Electrical Specifications
Table 1-8. Rated Electrical Ranges
Specification 120 V Version 220 - 240 V Version
Rated voltage 120 VAC 220 - 240 VAC
Input voltage range 103.5 ∼132 V 198 ∼264 V
Rated frequency range 50 ∼60 Hz 50 ∼60 Hz
Input frequency range 49.5 ∼60.5 Hz 49.5 ∼60.5 Hz
Rated current 0.5 A 0.3 A
Power consumption Approx. 13 W
(self-test with 10-cpi LQ characters) Approx. 13 W (self-test with 10-cpi LQ characters)
Insulation resistance 10 MΩ, minimum
(applying 500 VDC between AC line
and chassis)
10 MΩ, minimum
(applying 500 VDC between AC line
and chassis)
Dielectric strength 1000 VAC rms for 1 minute or 1200 VAC rms for 1 second
(between AC line and chassis)
1500 VAC rms for 1 minute
(between AC line and chassis)
1.2.6 Environmental Conditions
Table 1-9. Acceptable Environmental Conditions
Condition Operating Non Operating
Temperature 10 ∼35°C (50 ∼95°F) *1 −20 ∼60°C (−4∼122°F) *2
Humidity 20 ∼80% RH *1, 3 5∼85% RH *2, 3
Shock resistance 1G (within 1 msec.) 2G (within 2 msec.) *2
Vibration resistance 0.15 G 0.50 G *2
*1
: For printer operation, conditions must be in the range shown in the figure below.
*2
: These conditions are applicable when the printer is in its shipping container.
*3
: Without condensation.
80%
55%
20%
Humidity
(% RH) Guaranteed Range
(Degrees)
10 27 35
Figure 1-5. Temperature / Humidity Range
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-7

1.2.7 Reliability
Total print volume: 25,000 pages (A4, letter)
Printhead life: 500 million dots/nozzle (color and monochrome)
1.2.8 Safety Approvals
Safety standards: 120 V version: UL1950 with D3,
CSA C22.2 # 950 with D3
220-240 V version: EN 60950 (TÜV, SEMKO, DEMKO,
NEMKO, SETI)
Radio frequency interference (RFI): 120 V version: FCC Part 15 Subpart B Class B
220-240 V version: Vfg.243 (VDE0878 part 3, part 30)
EN55022 (CISPR PUB. 22) class B
CSA C108.8
1.2.9 Acoustic Noise
Level: Approximately 45 dB (A) (Per ISO 7779)
1.2.10 Physical Specifications
Dimensions (W ×D×H): 396.7 mm (W) ×205.6 mm (D) ×144.0 mm (H)
Weight: About 3.9 kg (8.6 lb.), excluding head and ink cartridge
Product Description Stylus Color IIs / Stylus 820
1-8 Rev. A

1.3 INTERFACE SPECIFICATIONS
The Stylus Color IIs is standard-equipped with an 8-bit parallel and serial interface.
1.3.1 Parallel Interface Specifications
Data format: 8-bit parallel
Synchronization: By STROBE pulse synchronization
Handshaking: By BUSY and ACKNLG signals
Signal level: TTL compatible level
Adaptable connector: 36-pin 57-30360 (Amphenol) or equivalent
Data transmission timing: See Figure 1-6.
Note:
Transition time (rise time and fall time) of every input signal must be less than 0.2 µs.
The Busy signal is active (HIGH) under the following conditions:
❏During data reception (See Figure 1-6.)
❏When the input buffer is full
❏When the INIT input signal is active
❏During initialization
❏When the ERROR or PE signal is active
❏During the self-test mode
❏During the demonstration mode
❏During the default setting mode
❏When a fatal error occurs
The ERROR signal is active (LOW) under the following conditions:
❏When a paper-out error occurs
❏When a no ink cartridge error occurs
❏When a fatal error occurs
The PE signal is active (HIGH) under the following conditions:
❏When a paper-out error occurs
❏When a fatal error occurs
0.5 µsec (min.)
0.5 µsec (min.)
5 µsec (min.)
BUSY
ACKNLG
DATA
STROBE
0 µsec(min.)
0.5 µsec (min.)

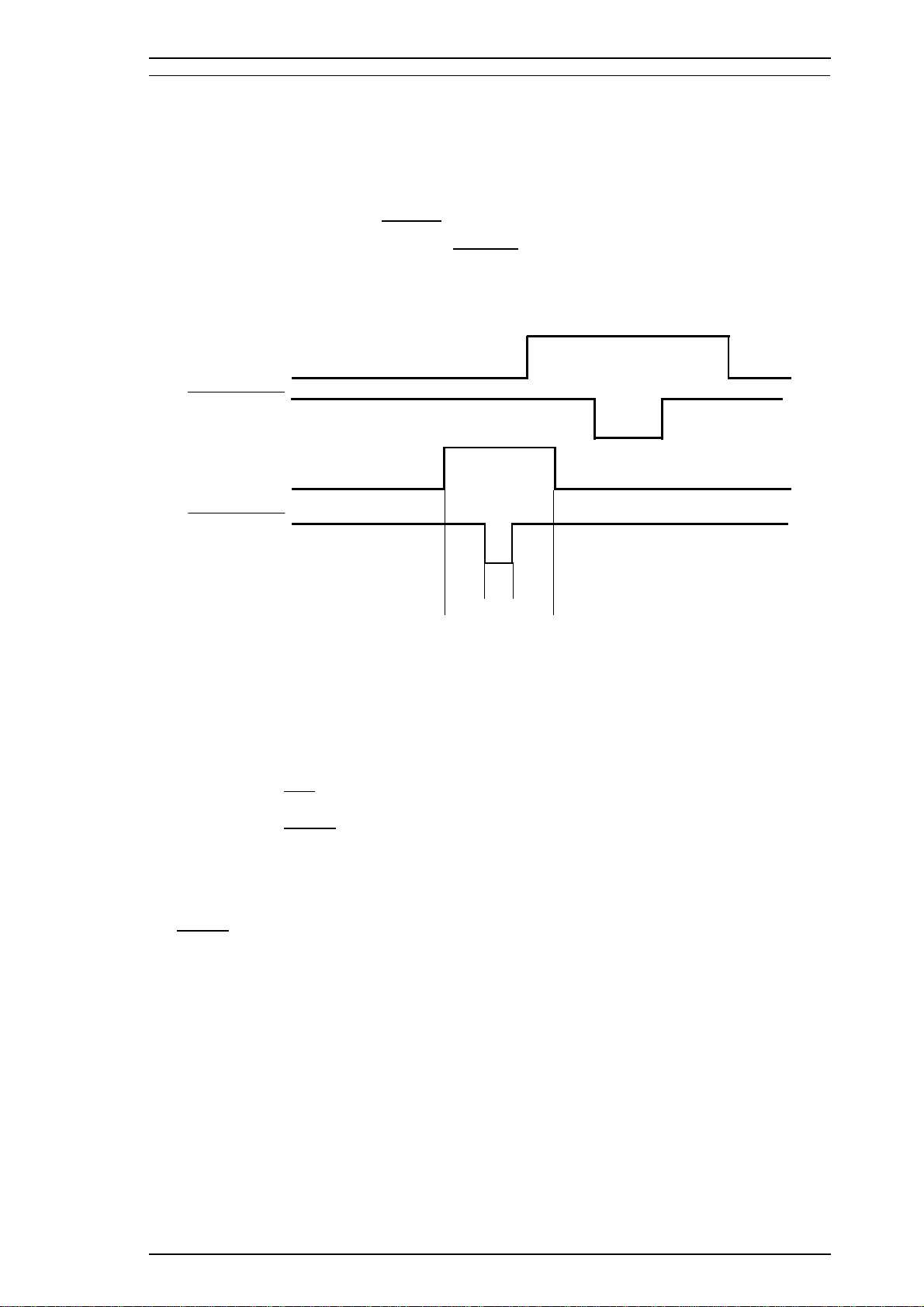

Figure 1-6. Data Transmission Timing
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-9

Table 1-10 shows the connector pin assignments and signal functions of the 8-bit parallel interface.
Table 1-10. Signal and Connector Pin Assignments for Parallel Interface
Pin No. Signal Name I/O* Description
1STROBE I
The STROBE pulse is used to read data from the host
computer. The pulse width must be 0.5 µs or more. Normally,
it is HIGH, and data is latched with the rising edge of this
signal.
2-9 DATA 1-8 I
DATA 1-8 are parallel data bits. When one of these signals is
HIGH, the data bit is 1; when LOW, the data bit is 0. The
most significant bit (MSB) is DATA 8. The signal state must
be maintained for 0.5 µs on either side of the STROBE
signal’s active edge.
10 ACKNLG O
ACKNLG is an acknowledge pulse with a width of
approximately 10 µs. This signal goes LOW upon the
completion of data reception to indicate that the printer is
ready to receive further data.
11 BUSY O The BUSY signal informs the host computer of the printer’s status. When this signal is HIGH, the printer cannot accept
any more data.
12 PE O This signal indicates whether paper is available in the printer
or not. A HIGH level indicates no paper.
13 SLCT O Pulled up to +5 V through a 1.0 KΩresistor in the printer.
14 AFXT I
If this signal is set to LOW, the printer automatically performs
one line feed upon receipt of a CR (carriage return) code. The
status of this signal is checked only at power on and
initialization.
31 INIT I If this signal goes LOW, the printer is initialized. The pulse
width of this signal must be 50 µs or more.
32 ERROR O This signal goes LOW if the printer has a fatal error or runs
out of paper.
35 +5 V — Pulled up to +5 V through 1.0 KΩresistor in the printer.
17 CHASSIS — Chassis ground.
16 GND — Signal ground.
19-30 — — —
33,36 — — Not used.
15,18,34 — — —
* The I/O column indicates the direction of the signal as viewed from the printer.
Product Description Stylus Color IIs / Stylus 820
1-10 Rev. A

1.4 OPERATIONS
This section describes the basic operations of the printer.
1.4.1 Control Panel
The control panel for this printer has 3 non-lock-type push buttons, and 5 LED indicators for easy operation
of the various printer functions.
1.4.2 Panel Operation and Built-in Function
You can activate the following modes by doing the procedure in table 1-11 and 1-12.
Table 1-11. Panel Operation
Button Operations +
^Single Button Operations Combined with Alt Button
^Pressed and released Held down 3 seconds Pressed and released
Alt No function I/C or head unit
replacement ———
Load/Eject Load/Eject No function Economy/Condensed
Pause Pause Reset Cleaning
Power Error
Condensed Economy
Alt Load / Eject Pause
Cleaning
Figure 1-7. Control Panel Appearance
Stylus Color IIs / Stylus 820 Product Description
Rev. A 1-11

Table 1-12. Built-in Functions on the Panel
Button Function
Alt Demonstration printing
Load/Eject Self-test
Pause Default setting mode (with printing)
Alt + Load/Eject Non-smear printing
Load/Eject + Pause Data dump mode (Hex mode)
Pause + Alt Default setting mode (without printing)
Pause + Load/Eject + Pause Reset to the default settings
Other combinations Not available
Table 1-13. Button Operations in Default Setting Mode
Button Function
Alt Move to the next item or menu
Pause Set item
Product Description Stylus Color IIs / Stylus 820
1-12 Rev. A
