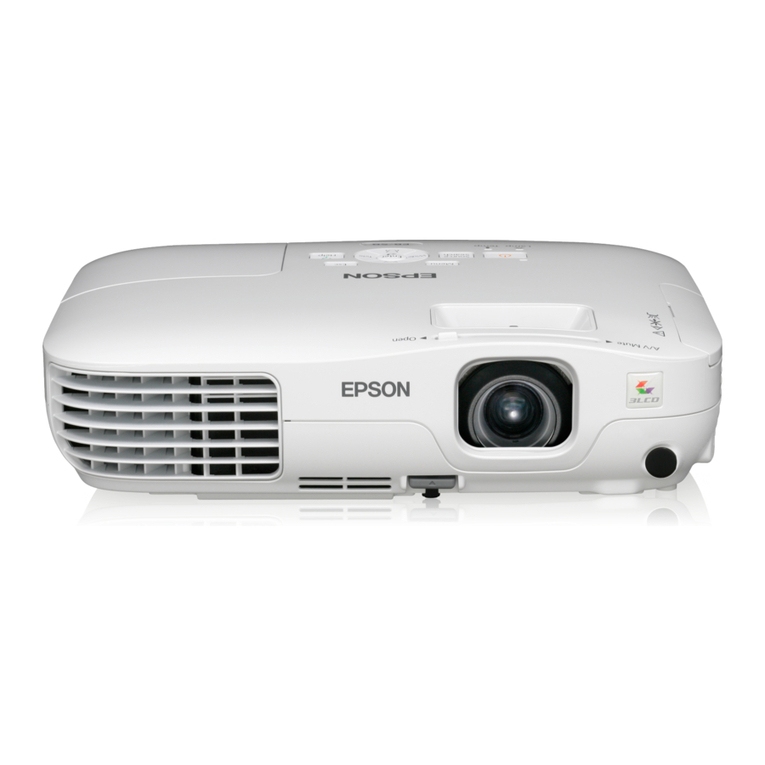

Epson EB-93 User manual

User’s Guide

Notations Used in This Guide
•Safety indications
The documentation and the projector use graphical symbols to show how to use the projector safely.
Please understand and respect these caution symbols in order to avoid injury to persons or property.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
Caution
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
•General information indications
Attention
Indicates procedures which may result in damage or injury if sufficient care is not taken.
a
Indicates additional information and points which may be useful to know regarding a topic.
sIndicates a page where detailed information regarding a topic can be found.
g Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary"
section of the "Appendix".
s"Glossary" p.119
[Name] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
Menu Name Indicates Configuration menu items.
Example:
Select Brightness from Image.
Image - Brightness

Notations Used in This Guide ........................ 2
Introduction
ProjectorFeatures .......................................... 7
ListofFunctionsbyModel........................................7
QuickandEasySetup,Projection,andStorage..........................7
Easy writing on a whiteboard or blackboardusingthepatternfunction ........ 7
ConnectingwithaUSBcableandprojecting(USBDisplay)................7
Detecting projector movements and automatically correcting image distortion
.........................................................8
UsefulFunctionsforProjectingImages................................8
Connecting to a network and projecting images from the computer's screen
(EB-93only)................................................8
EasyconnectiontoacomputerwithQuickWireless(EB-93only)............8
Makingthemostoftheremotecontrol.............................8
EnlargeandprojectyourfileswiththeDocumentCamera .................8
Enhancedsecurityfunctions ..................................... 8
PartNamesandFunctions .................................. 10
Front/Top ...................................................10
Rear .......................................................11
Base ...................................................... 12
ControlPanel................................................13
RemoteControl...............................................14
Replacingtheremotecontrolbatteries ............................. 16
Remotecontroloperatingrange................................. 17
Preparing the Projector
Installing the Projector ..................................... 19
InstallationMethods ...........................................19
Installationmethods .........................................19
ScreenSizeandApproximateProjectionDistance.......................20
Connecting Equipment ..................................... 21
ConnectingaComputer ......................................... 21
ConnectingImageSources .......................................22
ConnectingUSBDevices .........................................24
ConnectingExternalEquipment...................................25
ConnectingaLANCable(EB-93only)................................26
Basic Usage
ProjectingImages ......................................... 28
FromInstallationtoProjection.....................................28
Automatically Detect Input Signals and Change the Projected Image (Source Search)
..........................................................29
SwitchingtotheTargetImagebyRemoteControl.......................30
ProjectingwithUSBDisplay......................................30
Systemrequirements .........................................30
Connectingforthefirsttime ....................................31
Uninstalling...............................................32
AdjustingProjectedImages ................................ 34
CorrectingKeystoneDistortion.................................... 34
Correctingautomatically(AutoV-Keystone).........................34
Correctingmanually(manualH/V-Keystone).........................34
Correctingmanually(QuickCorner)...............................35
AdjustingtheImageSize........................................37
AdjustingtheImagePosition.....................................37
AdjustingtheHorizontalTilt ......................................37
CorrectingtheFocus...........................................38
AdjustingtheVolume..........................................38
SelectingtheProjectionQuality(SelectingColorMode)...................38
SettingAutoIris..............................................39
ChangingtheAspectRatiooftheProjectedImage ......................40
Changingmethods ..........................................40
Changingtheaspectmode ..................................... 40
Contents
3

Useful Functions
ProjectionFunctions ....................................... 43
ProjectingWithoutaComputer(Slideshow)...........................43
Specifications for files that can be projectedusingSlideshow..............43
Slideshowexamples.........................................43
Slideshowoperatingmethods ...................................43
Projectingtheselectedimage...................................45
Projectingimagefilesinafolderinsequence(Slideshow)................46
ImagefiledisplaysettingsandSlideshowoperationsettings..............47
HidingtheImageandSoundTemporarily(A/VMute) .....................48
FreezingtheImage(Freeze) ......................................48
PointerFunction(Pointer) ........................................49
EnlargingPartoftheImage(E-Zoom)................................50
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 51
SavingaUser'sLogo...........................................52
SavingUserPattern ............................................54
SecurityFunctions ......................................... 56
ManagingUsers(PasswordProtect).................................56
KindsofPasswordProtect ......................................56
SettingPasswordProtect......................................56
EnteringthePassword........................................57
RestrictingOperation(ControlPanelLock)............................58
Anti-TheftLock ...............................................59
Installingthewirelock........................................59
Monitoring and Controlling ................................ 60
AboutEasyMPMonitor(EB-93Only) ................................. 60
ChangingSettingsUsingaWebBrowser(WebControl)(EB-93Only)...........60
Projectorsetup............................................. 60
DisplayingtheWebControlscreen...............................61
DisplayingtheWebRemotescreen...............................61
UsingtheMailNotificationFunctiontoReportProblems(EB-93Only)..........63
ReadingErrorNotificationMail..................................63
ManagementUsingSNMP(EB-93Only)..............................63
ESC/VP21Commands...........................................64
Commandlist..............................................64
Cablelayouts..............................................64
AboutPJLink(EB-93Only) ........................................65
About Crestron RoomView
®
(EB-93Only).............................66
Operatingaprojectorfromyourcomputer..........................66
Configuration Menu
Using the Configuration Menu .............................. 71
ListofFunctions ........................................... 72
ConfigurationMenuTable.......................................72
Networkmenu(EB-93only)..................................... 73
ImageMenu ................................................. 73
SignalMenu .................................................74
SettingsMenu................................................76
ExtendedMenu...............................................78
NetworkMenu(EB-93only).......................................79
NotesonoperatingtheNetworkmenu ............................. 80
Softkeyboardoperations......................................80
Basicmenu ................................................81
WiredLANmenu ............................................82
Mailmenu................................................82
Othersmenu..............................................83
Resetmenu...............................................84
InfoMenu(DisplayOnly)........................................84
ResetMenu................................................. 85
Troubleshooting
UsingtheHelp ............................................. 87
ProblemSolving ........................................... 88
ReadingtheIndicators .......................................... 88
WhentheIndicatorsProvideNoHelp................................91
ProblemsRelatingtoImages ...................................... 92
Noimagesappear...........................................92
Contents
4

Moving images are not displayed (only the moving image portion turns black)
........................................................93
Projectionstopsautomatically ...................................93
"Notsupported"isdisplayed .................................... 93
"NoSignal"isdisplayed.......................................93
Imagesarefuzzy,outoffocus,ordistorted..........................94
Interferenceordistortionappearinimages..........................95
The image is truncated (large) or small, ortheaspectisnotsuitable.........95
Imagecolorsarenotright......................................96
Imagesappeardark..........................................97
ProblemswhenProjectionStarts ...................................97
Theprojectordoesnotturnon..................................97
OtherProblems ...............................................98
Nosoundcanbeheardorthesoundisfaint.........................98
Theremotecontroldoesnotwork ................................98
Iwanttochangethelanguageformessagesandmenus.................99
Mailisnotreceivedevenifanerroroccurswiththeprojector.............99
About Event ID (EB-93 Only) ............................... 100
Maintenance
Cleaning ................................................. 102
CleaningtheProjector'sSurface...................................102
CleaningtheLens ............................................ 102
CleaningtheAirFilter ..........................................102
ReplacingConsumables ................................... 104
ReplacingtheLamp ........................................... 104
Lampreplacementperiod .....................................104
Howtoreplacethelamp ......................................105
Resettingthelamphours..................................... 107
ReplacingtheAirFilter......................................... 107
Airfilterreplacementperiod................................... 107
Howtoreplacetheairfilter .................................... 107
Appendix
Optional Accessories and Consumables .................... 110
OptionalAccessories .......................................... 110
Consumables ............................................... 110
Screen Size and Projection Distance ........................ 111
ProjectionDistance ........................................... 111
SupportedMonitorDisplays ............................... 112
SupportedResolutions......................................... 112
Computersignals(analogRGB)................................. 112
ComponentVideo .......................................... 112
Compositevideo........................................... 112
InputsignalfromtheHDMIport ................................ 112
Specifications ............................................ 114
ProjectorGeneralSpecifications...................................114
Appearance .............................................. 118
Glossary ................................................. 119
GeneralNotes ............................................ 121
AboutNotations............................................. 121
GeneralNotice:.............................................. 121
Index .................................................... 139
Contents
5

Introduction
This chapter explains the projector's features and the part names.

List of Functions by Model
Available functions differ depending on the model being used. See the table
below for a list of the functions available for each model.
Function EB-93 EB-92
USB Display
*1
HDMI Connection
*2
Auto V-Keystone
Quick Wireless Connection
*3
-
Wired LAN Connection -
Network Settings -
Slideshow
*1The USB display requires a commercially available USB cable.
*2 The HDMI connection requires a commercially available HDMI cable.
*3 The Quick Wireless Connection requires a Quick Wireless Connection USB
Key.
Quick and Easy Set up, Projection, and Storage
•Turn the projector on and off by simply plugging in or unplugging.
•Project onto large screens from a short distance.
•Make easy height adjustments with one lever.
•No cool down delay makes it easy to put away.
Easy writing on a whiteboard or blackboard using the pattern
function
You can project ruled lines and grid patterns.
This is useful when drawing diagrams on a
whiteboard or blackboard.
sSettings - Pattern p.76
Connecting with a USB cable and projecting (USB Display)
By simply connecting a commercially available
USB cable, you can project images from a
computer's screen without a computer cable.
s"Projecting with USB Display" p.30
Projector Features
7

Detecting projector movements and automatically correcting
image distortion
This projector automatically corrects keystone distortion which occurs when
positioning or moving the projector.
s"Correcting automatically (Auto V-Keystone)" p.34
Useful Functions for Projecting Images
Connecting to a network and projecting images from the
computer's screen (EB-93 only)
You can connect the projector to a computer on
a network and project the computer's screen
using the supplied EasyMP Network Projection
(application software).
sEasyMP Network Projection Operation
Guide
Easy connection to a computer with Quick Wireless (EB-93 only)
By simply connecting the optional Quick
Wireless Connection USB Key to a computer,
you can project the computer's screen.
(Windows computers only)
Making the most of the remote control
You can use the remote control to perform operations such as enlarging
part of the image. You can also use the remote control as a pointer during
presentations or as a mouse for the computer.
s"Pointer Function (Pointer)" p.49
s"Enlarging Part of the Image (E-Zoom)" p.50
s"Using the Remote Control to Operate the Mouse Pointer (Wireless
Mouse)" p.51
Enlarge and project your files with the Document Camera
You can project paper documents and objects using the optional Document
Camera. Image focus is automatically adjusted using the auto focus
function. You can also enlarge images using digital zoom.
s"Optional Accessories" p.110
Enhanced security functions
•Password Protect to restrict and manage users
By setting a Password you can restrict who can use the projector.
s"Managing Users (Password Protect)" p.56
•Control Panel Lock restricts button operation on the control panel
You can use this to prevent people changing projector settings without
permission at events, in schools, and so on.
s"Restricting Operation (Control Panel Lock)" p.58
Projector Features
8

•Equipped with various anti-theft devices
The projector is equipped with the following types of anti-theft security
devices.
•Security slot
•Security cable installation point
s"Anti-Theft Lock" p.59
Projector Features
9

All of the features in this guide are explained using illustrations of EB-93
unless otherwise mentioned.
Front/Top
Name Function
AAir exhaust vent Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent.
BRemote receiver Receives signals from the remote control.
CA/V mute slide knob Slide the knob to open and close the A/V mute slide.
Name Function
DFoot adjust lever Press the foot lever to extend and retract the front foot.
s"Adjusting the Image Position" p.37
EFront adjustable foot When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s"Adjusting the Image Position" p.37
FA/V mute slide Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s"Hiding the Image and Sound Temporarily (A/V
Mute)" p.48
GFocus ring Adjusts the image focus.
s"Correcting the Focus" p.38
HAir intake vent
(air filter)
Takes in air to cool the projector internally.
s"Cleaning the Air Filter" p.102
IAir filter cover open/
close switch
Opens and closes the air filter cover.
s"Replacing the Air Filter" p.107
JZoom ring Adjusts the image size.
s"Adjusting the Image Size" p.37
KControl panel Operates the projector.
s"Control Panel" p.13
LLamp cover Open when replacing the projector's lamp.
s"Replacing the Lamp" p.104
MIndicators Indicates the projector's status.
s"Reading the Indicators" p.88
Part Names and Functions
10

Rear
Name Function
AHDMI port Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with HDCP
g .
s"Connecting Equipment" p.21
BPower inlet Connects the power cable to the projector.
s"From Installation to Projection" p.28
CS-Video port For S-video signals from video sources.
DVideo port Inputs composite video signals from video sources.
EAudio-L/R port Inputs audio from equipment connected to the S-Video
port or the Video port.
FAudio1 port Inputs audio from equipment connected to the
Computer1 port.
GMonitor Out port Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
HAudio Out port Outputs audio from the currently projected image to an
external speaker.
IAudio2 port Inputs audio from equipment connected to the
Computer2 port.
Name Function
JRS-232C port When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s"ESC/VP21 Commands" p.64
KSecurity slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s"Anti-Theft Lock" p.59
LSpeaker Plays back audio.
MRemote receiver Receives signals from the remote control.
NLAN port
(EB-93 only)
Connects a LAN cable to connect to a network.
OUSB(TypeA) port •Connects a USB memory device or a digital camera, and
projects images as a Slideshow.
s"Projecting Without a Computer (Slideshow)"
p.43
•Connects the optional Document Camera.
PUSB(TypeB) port •Connects the projector to a computer via a
commercially available USB cable, and projects the
images on the computer.
s"Projecting with USB Display" p.30
•Connects the projector to a computer via the
commercially available USB cable to use the Wireless
Mouse function.
s"Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.51
QComputer2 port Inputs image signals from a computer and component
video signals from other video sources.
RComputer1 port
Part Names and Functions
11

Base
Name Function
ACeiling mount fixing
points (three points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s"Installing the Projector" p.19
s"Optional Accessories" p.110
BRear feet When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s"Adjusting the Horizontal Tilt" p.37
Name Function
CFront adjustable foot When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s"Adjusting the Image Position" p.37
DSecurity cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s"Anti-Theft Lock" p.59
Part Names and Functions
12

Control Panel
Name Function
A[t] button Turns the projector power on or off.
s"From Installation to Projection" p.28
B[Source Search]
button
Changes to the next input source that is sending an image.
s"Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.29
C[Enter] button •When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
•If pressed while projecting analog RGB signals from the
Computer1 port or Computer2 port, you can
automatically optimize Tracking, Sync., and Display
Position.
Name Function
D[w][v] buttons •Performs vertical keystone correction.
s"Correcting keystone distortion in vertical
directions" p.34
•If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s"Using the Configuration Menu" p.71
s"Using the Help" p.87
E[a][b] button [a] Decreases the volume.
[b] Increases the volume.
s"Adjusting the Volume" p.38
F[Help] button Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s"Using the Help" p.87
G[Esc] button •Stops the current function.
•If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s"Using the Configuration Menu" p.71
H[<][>] buttons •Performs horizontal keystone correction.
s"Correcting keystone distortion in horizontal
directions" p.35
•If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s"Using the Configuration Menu" p.71
s"Using the Help" p.87
I[Menu] button Displays and closes the Configuration menu.
s"Using the Configuration Menu" p.71
Part Names and Functions
13

Remote Control Name Function
A[t] button Turns the projector power on or off.
s"From Installation to Projection" p.28
B[Computer] button Each time you press the button, the input changes between
images from the Computer1 port and the Computer2
port.
C[Video] button Each time the button is pressed, the image cycles through
the S-Video, Video, and HDMI ports.
DNumeric buttons •Enter the Password.
s"Setting Password Protect" p.56
•Use this button to enter numbers in Network settings
from the Configuration menu.
E[A/V Mute] button Turns the video and audio on or off.
s"Hiding the Image and Sound Temporarily (A/V
Mute)" p.48
F[Freeze] button Images are paused or unpaused.
s"Freezing the Image (Freeze)" p.48
G[Auto] button If pressed while projecting analog RGB signals from
Computer1 port or Computer2 port, you can
automatically optimize Tracking, Sync., and Display
Position.
H[Aspect] button Each time the button is pressed, the aspect mode changes.
s"Changing the Aspect Ratio of the Projected Image "
p.40
I[Page] buttons
[Up] [Down]
Changes pages in files such as PowerPoint files when using
the following projection methods.
•When using the Wireless Mouse function
s"Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.51
•When using USB Display
s"Projecting with USB Display" p.30
•When connecting to a network (EB-93 only)
When projecting images using Slideshow, pressing these
buttons displays the previous/next screen.
Part Names and Functions
14

Name Function
J[E-Zoom] buttons
[z][x]
Enlarges or reduces the image without changing the
projection size.
s"Enlarging Part of the Image (E-Zoom)" p.50
K[Menu] button Displays and closes the Configuration menu.
s"Using the Configuration Menu" p.71
L[][ ]
[][ ] buttons
•When the Configuration menu or the Help screen is
displayed, pressing these buttons selects menu items
and setting values.
s"Using the Configuration Menu" p.71
•When projecting a Slideshow, pressing these buttons
displays the previous/next image, rotates the image, and
so on.
s"Slideshow operating methods" p.43
•During Wireless Mouse function, the mouse pointer
moves in the direction of the button that was pushed.
s"Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.51
M[Enter] button •When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
s"Using the Configuration Menu" p.71
•Acts as a mouse's left button when using the Wireless
Mouse function.
s"Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.51
N[Esc] button •Stops the current function.
•If pressed when the Configuration menu is displayed, it
moves to the previous level.
s"Using the Configuration Menu" p.71
•Acts as a mouse's right button when using the Wireless
Mouse function.
s"Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.51
Name Function
O[Volume] buttons
[a][b]
[a] Decreases the volume.
[b] Increases the volume.
s"Adjusting the Volume" p.38
P[Pointer] button Displays the on-screen pointer.
s"Pointer Function (Pointer)" p.49
Q[Help] button Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s"Using the Help" p.87
R[Color Mode] button Each time the button is pressed, the Color Mode changes.
s"Selecting the Projection Quality (Selecting Color
Mode)" p.38
S[Num] button Hold down this button and press the numeric buttons to
enter passwords and numbers.
s"Setting Password Protect" p.56
T[User] button Select any frequently used item from the six available
Configuration menu items, and assign it to this button. By
pressing the [User] button, the assigned menu item
selection/adjustment screen is displayed, allowing you to
make one-touch settings/adjustments.
s"Settings Menu" p.76
Power Consumption is assigned as the default setting.
U[USB] button Each time the button is pressed, it cycles through the
following images:
•USB Display
•Images from the device connected to the USB(TypeA)
port
V[LAN] button Changes to the image projected with EasyMP Network
Projection. When projecting using the optional Quick
Wireless Connection USB Key, this button switches to
that image. (EB-93 only)
W[Source Search]
button
Changes to the next input source that is sending an image.
s"Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.29
Part Names and Functions
15

Name Function
XRemote control light-
emitting area
Outputs remote control signals.
Replacing the remote control batteries
If delays in the responsiveness of the remote control occur or if it does not
operate after it has been used for some time, it probably means that the
batteries are becoming flat. When this happens, replace them with new
batteries. Have two AA size manganese or alkaline batteries ready. You
cannot use other batteries except for the AA size manganese or alkaline.
Attention
Make sure you read the following manual before handling the batteries.
sSafety Instructions
a
Remove the battery cover.
While pushing the battery compartment cover catch, lift the cover
up.
b
Replace the old batteries with new batteries.
Part Names and Functions
16

Caution
Check the positions of the (+) and (-) marks inside the battery holder to
ensure the batteries are inserted the correct way.
c
Replace the battery cover.
Press the battery compartment cover until it clicks into place.
Remote control operating range
Part Names and Functions
17

Preparing the Projector
This chapter explains how to install the projector and connect projection sources.

Installation Methods
The projector supports the following four different projection methods.
Install the projector according to the conditions of the installation location.
•Project images from in front of
the screen. (Front projection)
•Project images from behind a
translucent screen. (Rear projec‐
tion)
•Suspend the projector from the
ceiling and project images from
in front of a screen. (Front/Ceil‐
ing projection)
•Suspend the projector from the
ceiling and project images from
behind a translucent screen.
(Rear/Ceiling projection)
Warning
•A special method of installation is required when suspending the projector
from a ceiling (ceiling mount). If it is not installed correctly, it could fall
causing an accident and injury.
•If you use adhesives on the Ceiling mount fixing points to prevent the screws
from loosening, or if you use things such as lubricants or oils on the
projector, the projector case may crack causing it to fall from its ceiling
mount. This could cause serious injury to anyone under the ceiling mount
and could damage the projector.
When installing or adjusting the ceiling mount, do not use adhesives to
prevent the screws from loosening and do not use oils or lubricants and so
on.
Attention
•Do not use the projector on its side. This may cause malfunctions to occur.
•Do not cover the projector's air intake vent or air exhaust vent. If either of
the vents are covered, the internal temperature could rise and cause a fire.
a
•An optional Ceiling mount is required when suspending the
projector from a ceiling.
s"Optional Accessories" p.110
•You can change the setting as follows by pressing down the [A/V
Mute] button on the remote control for about five seconds.
FrontWFront/Ceiling
Set Rear or Rear/Ceiling from the Configuration menu.
sExtended - Projection p.78
Installation methods
Install the projector as follows.
Installing the Projector
19

•Install the projector so that it is parallel to the screen.
If the projector is installed at an angle to the screen, keystone distortion
occurs in the projected image.
•Place the projector on a level surface.
If the projector is tilted the projected image is also tilted.
a
•See the following if you cannot install the projector parallel to the
screen.
s"Correcting Keystone Distortion" p.34
•See the following if you cannot install the projector on a level
surface.
s"Adjusting the Horizontal Tilt" p.37
Screen Size and Approximate Projection Distance
Projection size is determined by the distance from the projector to the
screen. See the illustrations on the right to select the best position according
to the screen size. The illustrations show the approximate shortest distance
at maximum zoom. See the following for more information on the
projection distance.
s"Screen Size and Projection Distance" p.111
a
When you correct keystone distortion, the projected image may be
reduced.
4:3 Screen Size
Installing the Projector
20
