Epson EMP 5600 User manual

Before use
Installation
Connections
Projection
Useful Functions
Adjustments and
setting
Troubleshooting
Maintenance
Others

Accessory Verification

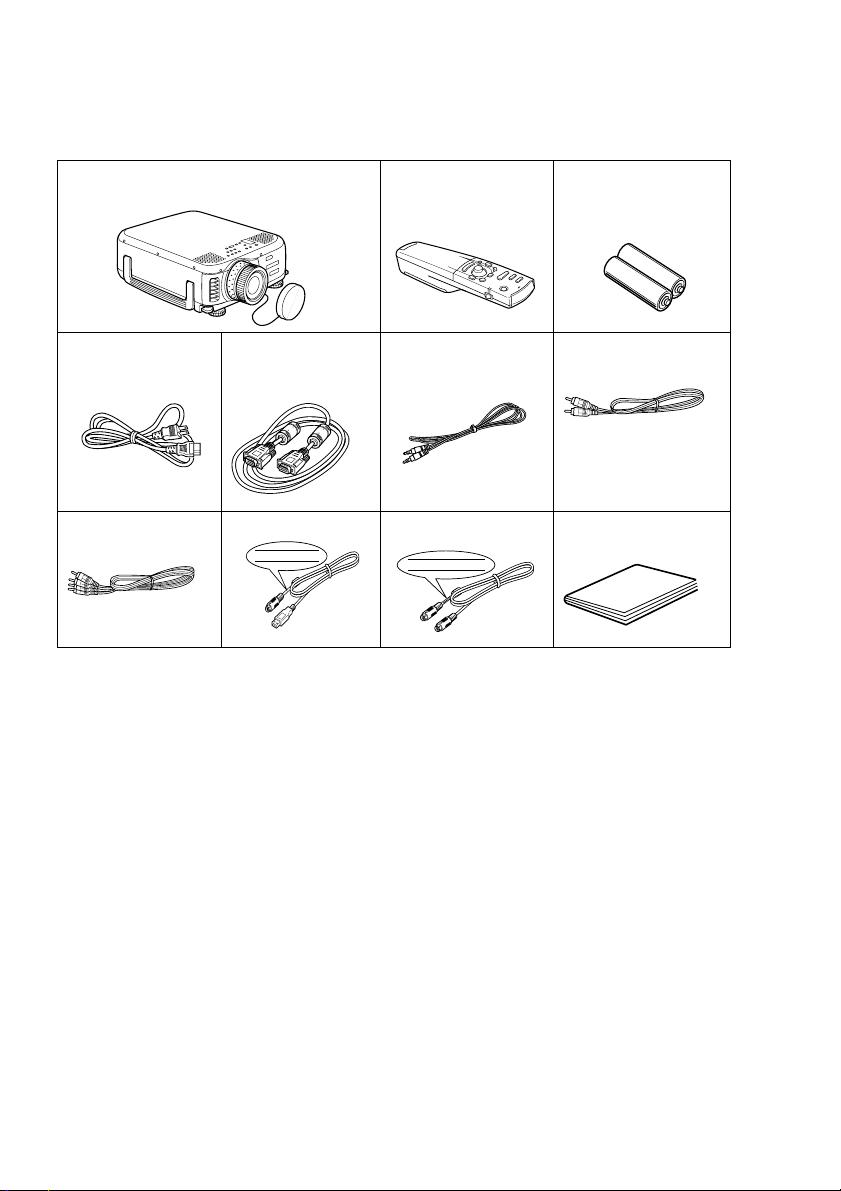

Check to confirm that the following items are included in the package when removing the pro-
jector and accessories from the box. Contact your dealer if any items are found to be missing.
·Projector
Lens Cover with string
· Remote Control · 2AA Batteries for
the remote control
(three-cell alkaline manga-
nese batteries)
· Power Cord · Computer Cable · Audio Cable · RCA Audio Cable
(Yellow)
· RCA Audio Cable
(Red/White)
· USB Mouse Cable · PS/2 Mouse Cable · Owner’s Manual
(this document)
USB MOUSE
PS/2 MOUSE

Features - 1
■
■■
■Features
● Crystal clear screen
Clarity has been vastly improved.
Provides crystal clear projections even in bright areas, perfect for presentation purposes.
● Wide range of display resolution
Uses a high-resolution liquid-crystal panel.
EMP-7600 : 1024×768
EMP-5600 : 800×600
● Compact and light
A compact body makes it easy for carrying around.
( Approximately 6.8kg, 14.9 litres)
● DVI-D* port that supports digital output
Fitted with a DVI-D Port for digital input purposes. This can also be connected to a computer’s
digital output port.

2- Contents
■
■■
■Contents
Accessory Verification 1
Features 1
Contents 2
Using this manual 7
Symbol displays ...................................................................7
Safety Precautions 8
Before using this equipment 13
Parts, Names and Operations 13
Projector .............................................................................13
Remote Control ..................................................................18
Range of Remote Control Operations ................................21
Inserting the Remote Control Batteries ..............................22
Installation 23
Installation Procedure 23
Installation example ...........................................................23
Screen size and projection distance ..................................24
Projection angles ................................................................25
Connections 26
Connecting the projector to a computer 26
Eligible computers ..............................................................26
In the case of the Computer1 port (mini D-sub 15-pin) ......29
In the case of the Computer2/Component Video port ........31
In the case of DVI-D* .........................................................32

Contents- 3
Sound connection ..............................................................33
Connecting external audio equipment ................................34
Connecting the mouse (wireless mouse function) .............35
Connecting the video equipment 37
In the case of composite image signals .............................37
In the case of S image signals ...........................................37
In the case of component (color differential*)
image signals .....................................................................38
In the case of the digital tuner's D output port ....................39
In the case of RGB image signals ......................................40
Projecting 41
Projection 41
Preparations .......................................................................41
Commencing projection .....................................................42
Ending 45
Adjusting the Projection Position 47
Feet adjustments ................................................................47
Adjusting the Projection Size 48
Zoom adjustment ...............................................................48
Keystone adjustment ..........................................................49
Picture Quality Adjustment 50
Focus adjustment ...............................................................50
Auto adjustment (when projecting computer images) ........50
Tracking adjustments
(when projecting computer images) ...................................51
Synchronization adjustments
(when projecting computer images) ...................................51
Calling out adjustment values
(when projecting computer images) ...................................51

4- Contents
Introduction of Functions 52
Useful Functions 53
Useful Functions 53
Help Function .....................................................................53
Projection Cutting 55
A/V Mute Function ..............................................................55
Freeze Function .................................................................55
Switching Image Sizes 56
Enlarging Images (E-Zoom function) 57
Effect Function 58
Cursor/Stamp .....................................................................58
Box .....................................................................................58
Spotlight .............................................................................59
Bar .....................................................................................60
Canceling effects ................................................................60
P in P Function 61
Adjustments and Settings 62
Volume Adjustment 62
Menu Configuration 63
Menu items .........................................................................63
Menu Operations 65
Operation method ..............................................................65
Setting items ......................................................................67
User logo registration .........................................................72

Contents- 5
Troubleshooting 74
Troubleshooting 74
Operation Indicator .............................................................74
Lamp Indicator ...................................................................75
Temperature Indicator ........................................................76
When the Indicators provide No Help 77
The image is not projected .................................................77
The image is unclear ..........................................................79
The image is cut up (Large)/Small .....................................81
The image color is bad .......................................................81
The image is dark ...............................................................82
No sound ............................................................................82
The remote control will not work ........................................83
Cannot end (after the [Power] button has been pressed) ..83
Maintenance 84
Cleaning the Projector, Cleaning the Lens,
Cleaning the Air Filter 84
Cleaning the projector ........................................................85
Cleaning the lens ...............................................................85
Cleaning the Air Filter .........................................................85
Replacing the Air Filter 86
Replacement method .........................................................86
Replacing the Lamp 87
Replacement method .........................................................88
Resetting the lamp illumination time ..................................89
Others 90
Optional Parts 90

6- Contents
Transportation 91
Terminology 92
Specifications 94
Check Sheet 95
World-Wide Warranty Terms 97
Index 101

Using this manual - 7
■
■■
■Using this manual
Symbol displays
A variety of pictures displays have been used in this manual and on the actual product to ensure
that the projector is used correctly and safely in order to prevent risks to users and other people,
and to prevent damage to property. Explanations for these displays are provided below. Ensure
that they are fully understood before reading this manual.
Point: Includes supplementary explanations and useful tips.
Reference: Indicates reference pages
*: Refer to the terminology
·Usage of the terms“this unit”and “this projector”in this manual
The terms “this unit”and “this projector”appear regularly in this manual, and these
terms also cover the accessories supplied with the projector and other optional products.
·The projection distances, illustrations and screen sizes apply to when the standard lens is
in use.
Warning Displays details that may result in death or injury if ignored.
Caution Displays details that may result in injury or damage to property if
ignored.

8 - Safety Precautions
■
■■
■Safety Precautions
Read and observe the following safety precautions to ensure safe use of the equipment.
Warning
●If any of the following abnormalities occur, switch off the power sup-
ply immediately, remove the plug from the power socket and contact
your dealer or nearest address provided at page 97.
· The emission of smoke, strange odors or strange noises.
· Faults, such as images not being able to be projected or no sound being
emitted.
· When water or foreign objects have entered the inside of the unit.
· When the unit has been dropped or the case damaged.
Continuation of operations under these conditions may result in the out-
break of fire or electric shocks.
Repairs should never be attempted by the user.
●The cabinet to the unit should never be opened by anyone other than
our service personnel.
The inside of the projector contains many high-voltage parts that may
result in the outbreak of fire, electric shocks or other incidents.
●Never use an electrical voltage other than that displayed.
The use of a voltage other than that specified may result in the outbreak of
fire or electric shocks.
●Verify the specifications of the Power Cord.
The Power Cord supplied with the projector conforms to the electrical
specifications of the country of purchase. If the projector is to be used in
any other location, check the electrical voltage and shape of sockets in the
relevant country beforehand and purchase a cable that conforms to that
country’s specifications.
●Never use damaged Power Cord.
Failure to observe this may result in the outbreak of fire or electric shocks.
Also ensure that the following points are strictly observed.
· Never make any modifications to the Power Cord.
· Never place anything heavy on the Power Cord.
· Never bend, twist or pull the cable.
· Ensure that the cable is not installed near heaters.
Contact your dealer or nearest address provided at page 97 if the power
cord becomes damaged.
Abnormi noise
Abnormi oder
Other than
those specifie
d

Safety Precautions - 9
●Never look into the lens when the power is switched on.
An extremely strong light is emitted that may cause sight defects. Special
attention must be paid by households with children.
●Take care when handling power plugs and power connectors.
Failure to observe these instructions may result in the outbreak of fire or
electric shocks.
Observe the following precautions when handling power plugs and power
connectors.
· Never connect too many appliances to a single socket.
· Never use plugs or connectors to which dust, dirt or other foreign objects
have adhered.
· Ensure that the plugs and connectors are firmly inserted as far as they
will go.
· Do not atempt to plug in plugs or connectors with wet hands.
· Do not pull the Power Cord when disconnecting plugs and connectors.
Always ensure that the actual plug or connector is firmly gripped.
●The projector includes many glass parts, such as the lens and lamps.
If any of these parts should break, handle them with extreme care to avoid
injury and then contact your dealer or nearest address provided at page 97
and request repairs.
●Never place vases or containers that contain liquid on top of the pro-
jector.
If the water is spilt and enters the outer case, it may result in the outbreak
of fire or electric shocks.
●Never insert or drop metal or inflammable objects, or any other for-
eign objects into the suction inlets and ventilation outlets on the pro-
jector.
Failure to observe this may result in the outbreak of fire or electric shocks.
●Never place the projector or the battery-operated remote control in
locations with excessive temperatures, such as in vehicles with
closed windows, in areas subject to direct sunlight, or near the fan
outlets of air-conditioners and heaters.
Failure to observe this may result in heat-distortion that would have an
adverse affect on the contents of the projector, and may result in the out-
break of fire or electric shocks.
●Do not block or look inside the main unit's ventilation outlet.
Failure to observe this may result in injury through glass shreds if the lamp is broken.
Warning

10 - Safety Precautions
Caution
●Never stand on the projector or place any heavy objects on it.
Failure to observe this may result in it dropping over, becoming damaged,
or causing injury.
●Never place the projector on unstable surfaces, such as wobbly
tables or slanted surfaces.
Failure to observe this may result in it dropping over, becoming damaged,
or causing injury.
●Do not place or store the projector within the reach of children’s
hands.
Failure to observe this may result in it dropping over, becoming damaged,
or causing injury.
●Do not place the projector in humid or dusty locations, or in loca-
tions where it would be subject to oil steam or water steam, such as
kitchens or near humidifiers.
Failure to observe this may result in the outbreak of fire or electric shocks.
●Never block the projector’s suction inlets or ventilation outlets. Fail-
ure to observe this may result in the build up of high temperatures
inside the projector, leading to the outbreak of fire. Do not place the
projector in the following locations.
·In narrow, badly ventilated areas, such as in cupboards or in bookcases.
·On top of carpets, matresses or blankets.
·Never cover the projectors with table cloth or other material.
Also, if placing by a wall, ensure that at least 20cm of space has been pro-
vided between the projector and the wall.
●Always ensure that the plug has been disconnented from the power
socket when it is not to be used.
Failure to observe this may result in the outbreak of fire.
●Always ensure that the power has been switched off, the plug has
been disconnected from the power socket, and all other cables have
been disconnected when moving the projector.
Failure to observe this may result in the outbreak of fire or electric shocks.

Safety Precautions - 11
●Never attempt to remove the lamp immediately after the projector has
been used. Wait for the projector to cool down sufficiently by leaving
it for at least sixty minutes after the power supply has been switched
off.
Failure to observe this may result in burns or other injuries.
●Misuse of the batteries may result in damage to the batteries and
subsequent leakages, leading to the outbreak of fire, injury and prod-
uct corrosion. Observe the following precautions to ensure safety.
·Never use combinations of different batteries, or old batteries together
with new batteries.
·Never use batteries that are not specified in the instruction manual.
·If liquid should leak from the battery, wipe up the leakage with a cloth and
then replace the battery accordingly.
·Replace the batteries immediately when the time for replacement
arrives.
·Remove the batteries when the projector is not to be used for a long
period of time.
·Never apply heat to the batteries, or place them in naked flames or water.
·Ensure that the batteries are inserted in accordance with the correct
polarity (+ and -).
·If any liquid that has leaked from a battery gets onto the hands, wash it
off immediately with water.
Batteries must be disposed of in accordance with the regulations in effect
in each relevant area.
●Ensure that the electric plug and connectors have been discon-
nected from their sockets when performing maintenance tasks.
Failure to observe this may result in electric shocks.
Caution
Confirmation

12 - Safety Precautions
Safety Precautions
●Using the projector outside of the permissible temperature range (+5C°to 40C°) may
result in unstable display and excessive loads being placed on the fan, leading to
damage to the equipment.
●Storing the projector outside of the permissible temperature range (-10C°to 60C°) may
result in damage of the case. Take special care to avoid placing the equipment in
direct sunlight for a long period of time.
●Do not use the projector with the lens cover still in place. The heat generated by the
lens may cause the cover to become malformed.
●The liquid crystal display panel has been manufactured with high-accuracy technol-
ogy and contains more than 99.99% active pixels. However, note that there is a possi-
bility of 0.01% of missing pixels and pixels that will be constantly illuminated.

Parts, Names and Operations - 13
Before using this equipment
This section provides explanations on parts and part names, and the items that should be
verified before operating the remote control.
■
■■
■Parts, Names and Operations
Projector

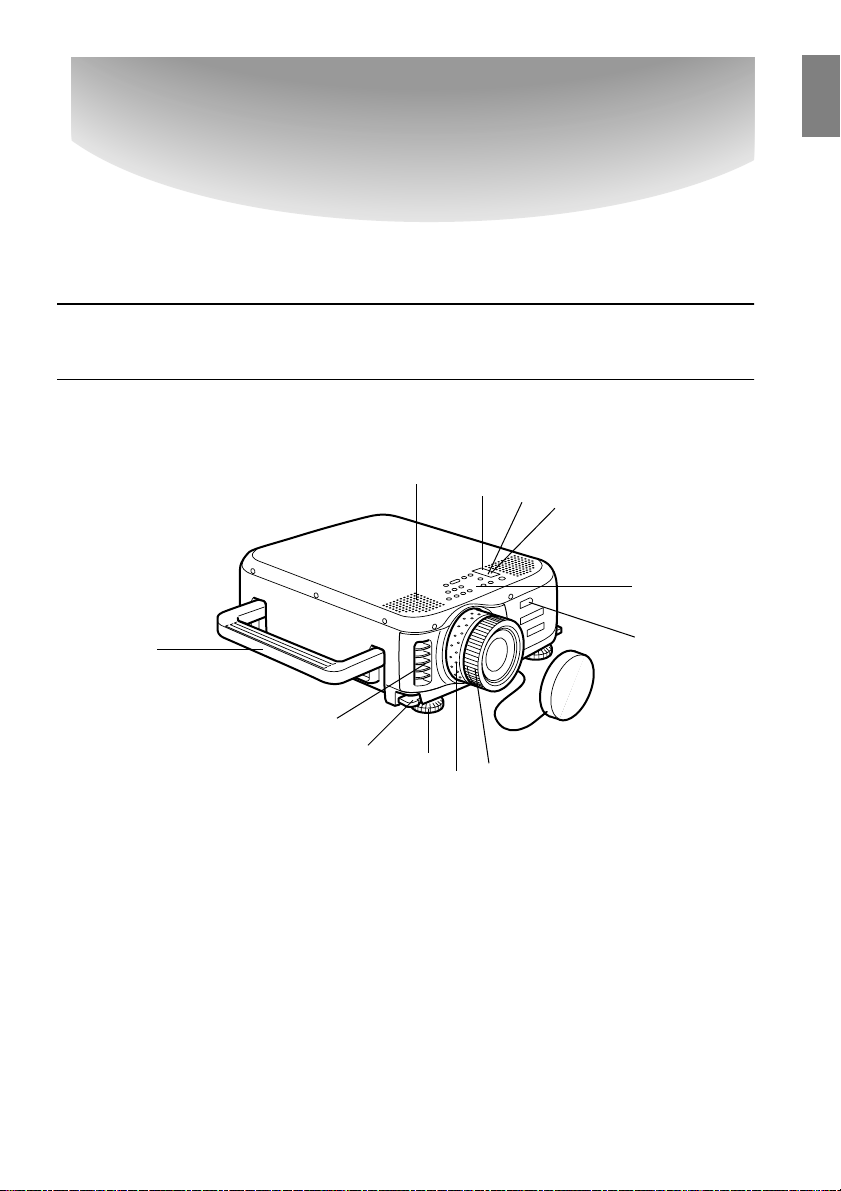

● Front Panel
1 Operation Indicator
2 Lamp Indicator
3 Temperature Indicator
4 Speaker
5 Handle
6 Ventilation Outlet
7 Foot Adjust Lever
8 Front Foot
9 Operation Panel
10 Remote Control Receiver
11 Zoom Ring
12 Focus Ring
1
2
3
4
5
6
7
9
10
11 12
8

14 - Parts, Names and Operations
● Side Panel
1 I/O Port
2 Theft-protection lock (see page 93)
3 Power Inlet
● Back Panel
1 Remote Control Receiver
2 Screw holding the lamp cover
3 Lamp Cover
1
3
2
1
3
2

Parts, Names and Operations - 15

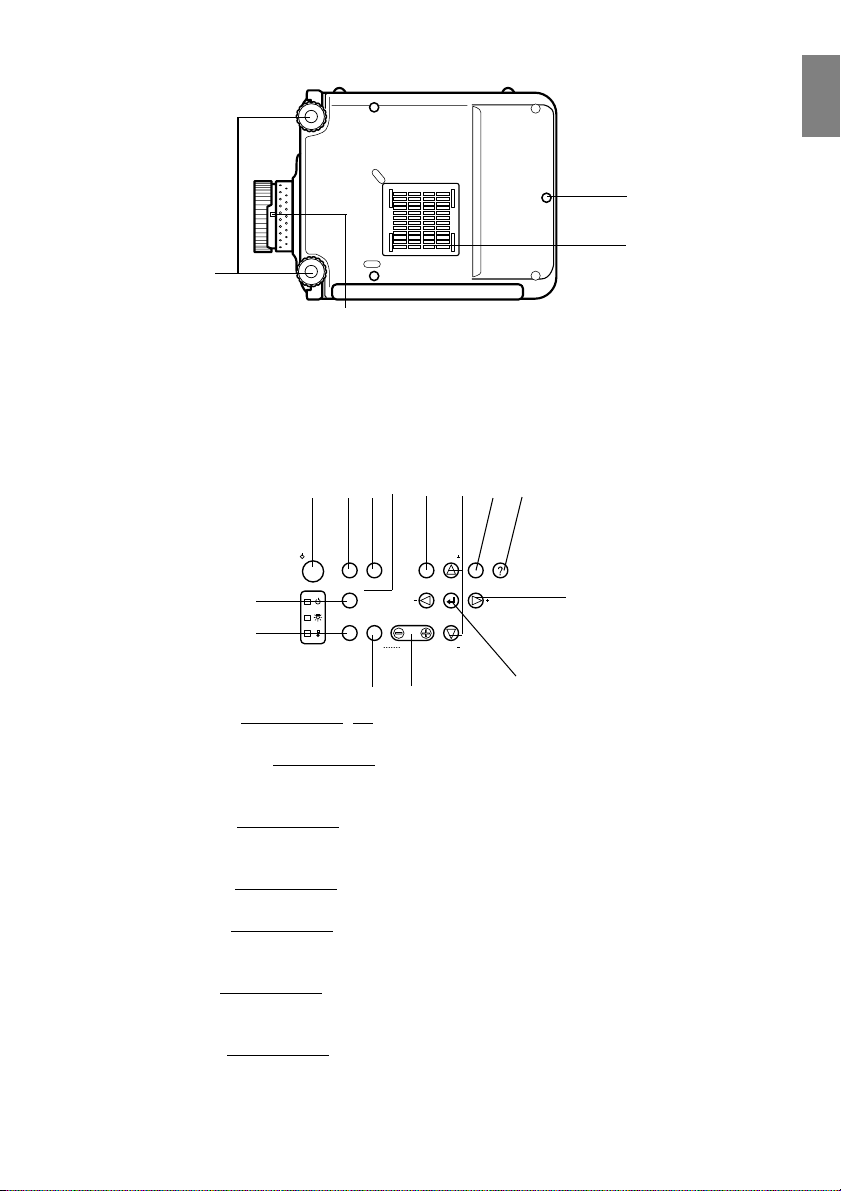

● Rear Panel
1 Front Foot
2 Rear Foot
3 Air Filter (suction inlet)
4 Lens Removal Lever
·This lever is only to be used when replacing the lens with optional attachment lenses.
● Operation Panel
1 [Power] button (see page 42, 45 )
Switches the power supply on and off.
2 [Computer] button (see page 43)
Switches between Computer #1 images and computer #2 (computer image or RGB image)
images.
3 [Video] button (see page 43)
Switches the images between video images (Video), S video (S-Video) and component
video (YCbCr, YPbPr).
4 [Menu] button (see page 65)
Displays and cancels the menu.
5 [Sync] button (see page 51)
Makes the necessary adjustments when the screen is out of focus or flickering. This button
functions as the up and down key when the menu or help text are being displayed.
6 [Esc] button (see page 66)
Ends functions that are currently in use. Returns the screen to the previous stage when this
is pressed during menu and help text display.
7 [Help] button (see page 53)
Displays the methods of solving problems. Press this button when trouble occurs.
1
2
3
4
Video
Computer
A/V mute
Resize
Esc Help
Menu
Tracking Tracking
Sync
Sync
Shift
Keystone
Volume
Power
123
11 12
567
8
9
13
4
10

16 - Parts, Names and Operations
8 [Tracking] button (see page 51)
Performs the necessary adjustments when stripes appear on the screen. Moves left and
right when this is pressed during menu and help text display.
9 [A/V mute] button (see page 55)
Temporarily erases the image and sound. Projection is resumed when this button is pressed
once more or when the volume control is adjusted or when the menu is displayed. User
logos can also be set up for projection when in the mute mode.
10 [Resize] button (see page 56)
Switches between the window display and the resizing display when computer images are
being projected. Switches the aspect ratio between 4:3 and 16:9 when video images are
being projected.
11 [Shift] button (see page 62)
Adjusts the volume when pressed simultaneously with the [Volume (Keystone)] button.
12 [Keystone] button (see page 49)
Performs the necessary adjustments when the screen distorts into a trapezoid shape.
13 [ (Enter)] button (see page 50, 65)
·Sets the menu item and moves onto the lower stage.
·Optimizes the computer image when the menu or help text are not displayed.
(Switches the input resolution across to [Auto] when set for [Manual]).

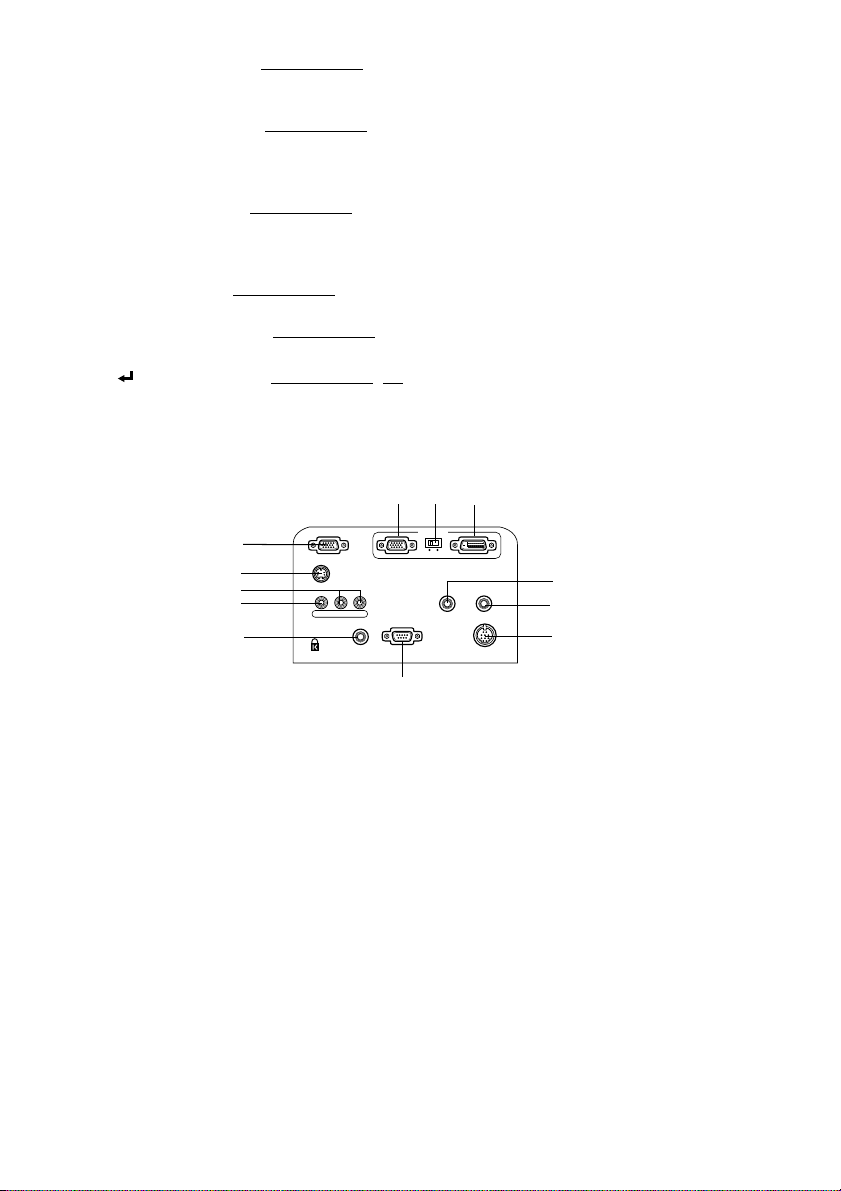

● I/O Ports
1 Computer #1 mini D-Sub 15 Port
Inputs the computer’s analog image signals.
2 Change-over Switch
Switches the valid port for Computer #1 across to either mini D-Sub15 (analog) or DVI-D
(digital). Operate the switch with the tip of a ballpoint pen or other pointed object.
·Be sure to set before inputting the signal.
3 Computer #1-DVI-D Port
Inputs the computer’s digital image signals.
4 Audio1 Port
Inputs the sound signals from the computer or the A/V equipment connected to the
Computer #1 port. The connection is made with a stereo mini-jack.
5 Audio Out Port
Outputs the projector’s sound signals.
·When a cable is connected here, no audio will be output from the speakers on the projec-
tor main unit.
6 Mouse Port
Connected to the computer when the remote control is to be used as a wireless mouse.
Computer 2 /
Component Video
Computer 1
Analog Digital
Audio 1 Audio Out
Control (RS-232C) Mouse
S-Video
L-Audio2-RVideo
Remote
321
6
7
10
11
8
5
9
12
4

Parts, Names and Operations - 17
7 Control (RS-232C) Port
Connected with a serial cable (RS-232C) available on the open market when the optional
projector software is to be used with a computer.
8 Remote Port
Connects the optional remote control receiver (ELPST04).
9 Video Port
Inputs the A/V equipment’s component image signals.
10 L-Audio2-R Port
Inputs the audio signals from A/V equipment and computers connected to the Video port,
the S-Video port, and the Computer2/Component Video port.
11 S-Video Port
Inputs the A/V equipment's S image signals.
12 Computer #2 /Component Video Port
Inputs the computer's (second computer's) analog image signals, the A/V equipment's
component signals (color -difference signals) and the RGB image signals.

18 - Parts, Names and Operations
Remote Control
● Front Panel
1 Remote control light-receiving area
Outputs the remote control unit’s signals.
2 Indicator
Illuminated when the remote control unit signals are being output.
·The light will not be output if batteries are weak, or the switch is off.
3 [Freeze] button (see page 55)
Temporarily freezes the image. Press this button once more to cancel the freeze mode.
4 [A/V Mute] button (see page 55)
Temporarily erases the images and sound. Projection will be resumed if this button is
pressed once more or the volume is adjusted.
5 [E-Zoom] button (see page 57, 61)
Enlarges and reduces the image. Enlarges the sub-screen when using P in P images. Press
the [Esc] key to cancel this mode.
6 [Effect] button (see page 58)
Executes the allocated effect function. Press the [Esc] key to cancel this mode.
7 [ (Light)] button
The remote control button will be illuminated for approximately ten seconds.
8 [Power] button (see page 42, 45)
Switches the power supply to the projector on and off.
9 [R/C ON OFF] switch (see page 42, 46)
Switches the remote control unit on and off. The remote control unit cannot be used for
operations when this switch is not set at [ON].
10 [Enter] button (see page 36, 65)
·Sets the menu item when pressed, and then moves onto the lower stage. Becomes a cur-
sor key to select the menu items when moved up, down, left or right.
·This function operates as a left-hand click on the mouse when computer images are being
projected. The pointer will move when this button is moved up, down, left or right.
Power
Freeze
A/V Mute
E-Zoom
R/C ON
OFF
3
1
5
2
4
Enter
Esc
1
3
4
5
7
2
8
9
6
10
11
