Epson EMP 7600 User manual

Before Use
Installation
Connections
Projection
Useful Functions
Adjustments and
Setting
Troubleshooting
Maintenance
Others
402120101
(9001085)
Engcover-F DICF43402120101 Rev.7
E
Printed in Japan
02.03-.1A(C01)
Printed on 100% recycled paper.

EMP_7600_EN
402120100 Rev.7
Cover.B BK
Accessory Verification
Check to confirm that the following items are included in the package when removing the projector
and accessories from the box. Contact your dealer if any items are found to be missing.
Types of Manual
The documentation for your EPSON projector is divided into the
following two manuals. The manuals cover the following topics.
❏Safety Instructions/World-Wide Warranty Terms
This manual contains information on using the projector safely, and
also includes World-Wide Warranty Terms and a Troubleshooting
check sheet.
Be sure to read this manual thoroughly before using the projector.
❏Owner’s Manual (this manual)
This Owner’s Manual contains information on installing the
projector, basic operation, using the projector menus,
troubleshooting and maintenance.
·Projector
Lens Cover with string
· Remote Control · 2 Alkaline dry cells
for the remote
control
·PowerCord ·ComputerCable ·AudioCable ·RCAVideoCable
(Yellow)
· RCA Audio Cable
(Red/White)
· USB Mouse Cable · PS/2 Mouse Cable · Safety Instructions/
World-Wide
Warranty Terms
·Owner’sManual
(this document)
USB MOUSE
PS/2 MOUSE

Features - 1
■
■■
■Features
● Crystal clear screen
Clarity has been vastly improved.
Provides crystal clear projections even in bright areas, perfect for presentation purposes.
● Wide range of display resolution
Uses a high-resolution liquid-crystal panel.
EMP-7600 : 1024×768
EMP-5600 : 800×600
● Compact and light
A compact body makes it easy for carrying around.
( Approximately 6.8kg, 14.9 litres)
● DVI-D* port that supports digital output
Fitted with a DVI-D Port for digital input purposes. This can also be connected to a computer’s
digital output port.

2- Contents
■
■■
■Contents
Features 1
Using this manual 7
Symbol displays ...................................................................7
Before using this equipment 8
Parts, Names and Operations 8
Projector ...............................................................................8
Remote Control ..................................................................13
Range of Remote Control Operations ................................16
Inserting the Remote Control Batteries ..............................17
Installation 18
Installation Procedure 18
Installation example ...........................................................18
Screen size and projection distance ..................................19
Projection angles ................................................................20
Connections 21
Connecting the projector to a computer 21
Eligible computers ..............................................................21
In the case of the Computer1 port (mini D-sub 15-pin) ......24
In the case of the Computer2/Component Video port ........26
In the case of DVI-D* .........................................................27
Sound connection ..............................................................28
Connecting external audio equipment ................................29
Connecting the mouse (wireless mouse function) .............30

Contents- 3
Connecting the video equipment 32
In the case of composite image signals .............................32
In the case of S image signals ...........................................32
In the case of component
(color differential*) image signals .......................................33
In the case of the digital tuner's D output port ....................34
In the case of RGB image signals ......................................35
Projecting 36
Projection 36
Preparations .......................................................................36
Commencing projection .....................................................37
Ending 40
Adjusting the Projection Position 42
Feet adjustments ................................................................42
Adjusting the Projection Size 43
Zoom adjustment ...............................................................43
Keystone adjustment ..........................................................44
Picture Quality Adjustment 45
Focus adjustment ...............................................................45
Auto adjustment (when projecting computer images) ........45
Tracking adjustments (when projecting computer images) 46
Synchronization adjustments
(when projecting computer images) ...................................46
Calling out adjustment values
(when projecting computer images) ...................................46
Introduction of Functions 47

4- Contents
Useful Functions 48
Useful Functions 48
Help Function .....................................................................48
Projection Cutting 50
A/V Mute Function ..............................................................50
Freeze Function .................................................................50
Switching Image Sizes 51
Enlarging Images (E-Zoom function) 52
Effect Function 53
Cursor/Stamp .....................................................................53
Box .....................................................................................53
Spotlight .............................................................................54
Bar .....................................................................................55
Canceling effects ................................................................55
P in P Function 56
Adjustments and Settings 57
Volume Adjustment 57
Menu Configuration 58
Menu items .........................................................................58
Menu Operations 60
Operation method ..............................................................60
Setting items ......................................................................62
User logo registration .........................................................67

Contents- 5
Troubleshooting 69
Troubleshooting 69
Operation Indicator .............................................................69
Lamp Indicator ...................................................................70
Temperature Indicator ........................................................71
When the Indicators provide No Help 72
The image is not projected .................................................72
The image is unclear ..........................................................74
The image is cut up (Large)/Small .....................................76
The image color is bad .......................................................77
The image is dark ...............................................................77
No sound ............................................................................78
The remote control will not work ........................................79
Cannot end (after the [Power] button has been pressed) ..79
Maintenance 80
Cleaning the Projector, Cleaning the Lens,
Cleaning the Air Filter 80
Cleaning the projector ........................................................81
Cleaning the lens ...............................................................81
Cleaning the Air Filter .........................................................81
Replacing the Air Filter 82
Replacement method .........................................................82
Replacing the Lamp 83
Replacement method .........................................................84
Resetting the lamp illumination time ..................................85

6- Contents
Others 86
Optional Parts 86
Terminology 87
Specifications 89
Index 90

Using this manual - 7
■
■■
■Using this manual
Symbol displays
A variety of pictures displays have been used in this manual and on the actual product to ensure
that the projector is used correctly and safely in order to prevent risks to users and other people,
and to prevent damage to property. Explanations for these displays are provided below. Ensure
that they are fully understood before reading this manual.
Point: Includes supplementary explanations and useful tips.
(see page xx): Indicates reference pages
*: Refer to the terminology
·Usage of the terms“this unit”and “this projector”in this manual
The terms “this unit”and “this projector”appear regularly in this manual, and these
terms also cover the accessories supplied with the projector and other optional products.
·The projection distances, illustrations and screen sizes apply to when the standard lens is
in use.
Warning Displays details that may result in death or injury if ignored.
Caution Displays details that may result in injury or damage to property if
ignored.

8 - Parts, Names and Operations
Before using this equipment
This section provides explanations on parts and part names, and the items that should be
verified before operating the projector.
■Parts, Names and Operations

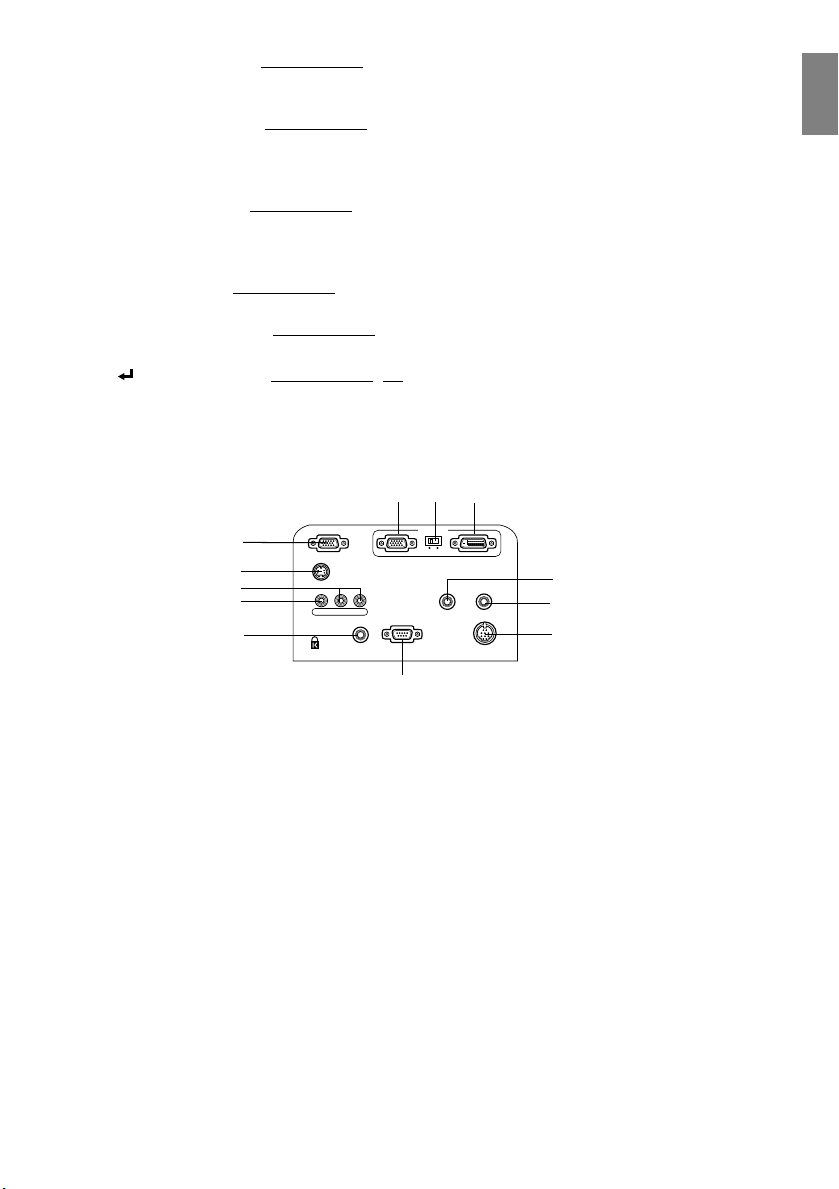

Projector
● Front Panel
1 Operation Indicator
2 Lamp Indicator
3 Temperature Indicator
4 Speaker
5 Handle
6 Ventilation Outlet
7 Foot Adjust Lever
8 Front Foot
9 Operation Panel
10 Remote Control Light-receiving Area
11 Zoom Ring
12 Focus Ring
1
2
3
4
5
6
7
9
10
11 12
8
