Epson EMP-7850 User manual

Quick Reference Guide
Be sure to read the User's Guide
carefully before using
the projector.
Setup ....................................... 1
Connections ............................. 1
Projection preparation and
adjustments .............................. 3
Turning the projector off ............ 6
Functions for Enhancing
Projection ............................... 7

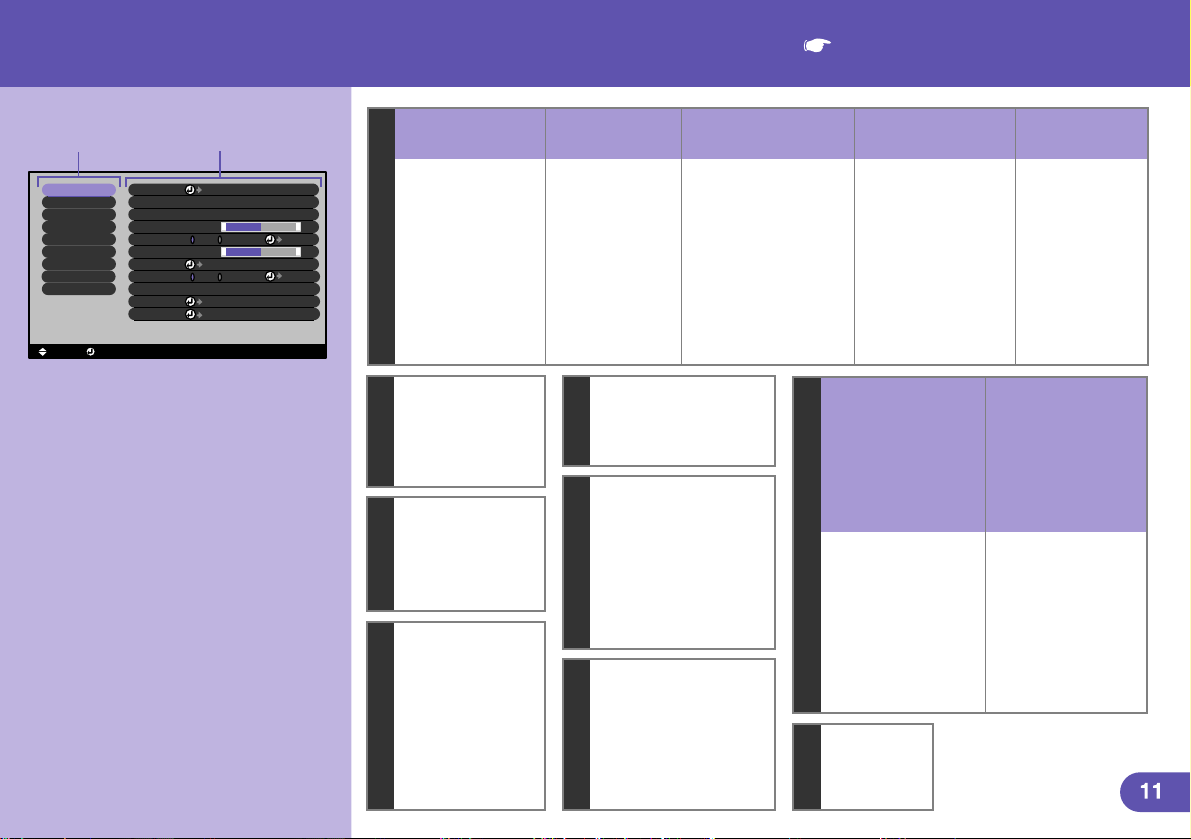

List of configuration setting
menus .....................................11
Troubleshooting ...................... 12

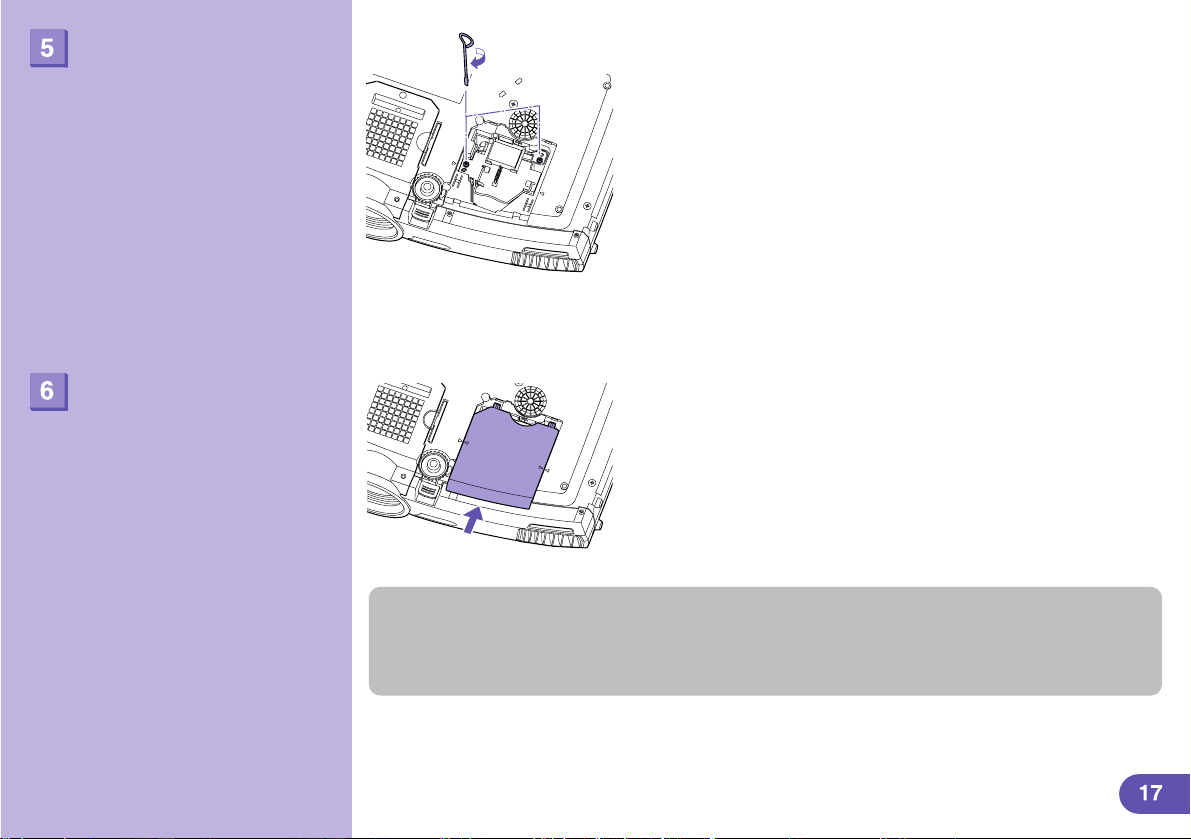

Replacing the Lamp ................15
List of Supported Monitor
Displays ................... Inside cover
WARNING
Do not look directly into the
projector's lens.

Frequency
Source
V ---.--Hz
Reset Lamp Timer
H ---.--kHz
Lamp 1900H
SYNC Mode
SYNC Polarity
------
H ------
Resolution
Refresh Rate 0.0 Hz
0x 0
Computer
Input Signal Analog-RGB
Execute
:
:
:
:
:
:
V ------
:
:
:
:
Reset Lamp Timer
Execute?
YES NO
Connecting to a
computer
If the source is connected to the
[Computer] port or [DVI] port,
the audio signals will be output
according to the "Computer/DVI
Audio Input" setting in the
"Audio" menu.
Be sure to turn the power for all components off before
making any of the following connections.
User's Guide "Connecting to a Computer"
"Connecting to a Video Source"
User's Guide
"Screen Size and
Projection Distance"
Connections
Set up the projector so that the distance from the screen to the projector's lens is 77–1113 cm.
The shorter the distance between the two, the smaller will be the images, and the greater the
distance, the larger will be the images. Adjust the distance in accordance with the size of the
screen. If using an optional lens, refer to the documentation for the lens.
Setup
The [Audio] port to use is
the port that is in the same
box as the port being used
to input the video signals.
DVI-D/DVI-D
digital video cable
or DVI-D/DFP
digital video cable
(optional)
VGA-HD15/BNC
PC cable
(optional)
Computer cable or
VGA-HD15
PC cable
(accessory or optional)
To computer's monitor
output port
(Mini D-Sub 15-pin)
To computer's monitor
output port
(DVI-D or DFP)
RCA audio
cable
(accessory)
To computer's
audio output port
To computer's
audio output port
Audio cable
(accessory)

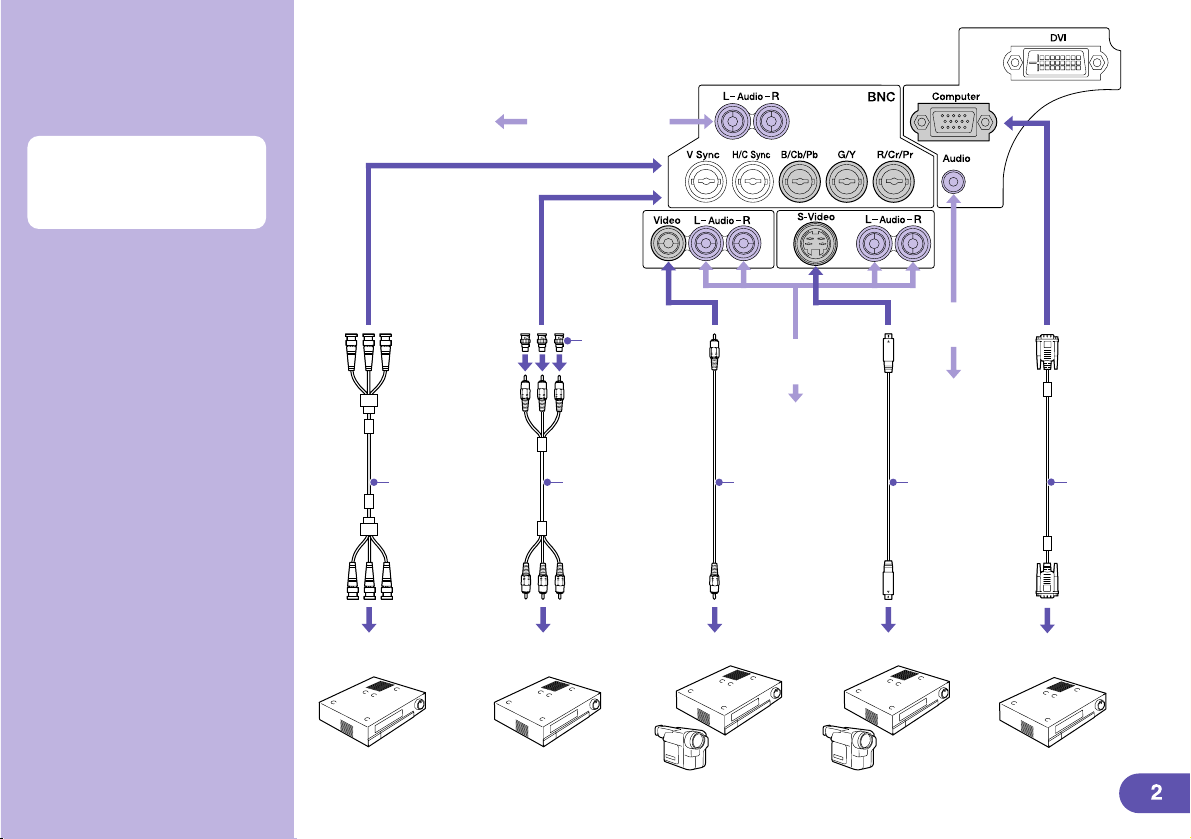

Connecting to video
equipment
RGB video cable
(commercially-
available)
Component
video cable
(commercially-
available)
S-Video
cable
(commercially-
available)
RCA video
cable
(accessory)
(Mini DIN 4-pin)
(RCA pin jack ×3
(red, green, blue))
(3BNC)
To video output port To S-Video output port
To component
video output ports
To RGB
output ports
Audio cable
(accessory)
RCA audio cable
(accessory)
Adapters
(commercially-
available)
Computer
cable or
VGA-HD15
PC cable
(accessory or
optional)
(Mini D-Sub 15-pin)
To RGB
output port
To audio
output port
To audio
output port
RCA audio cable
(accessory)
To audio
output port
The [Audio] port to use is
the port that is in the same
box as the port being used
to input the video signals.
(RCA pin jack (yellow))

(Operation) indicator
Flashes green (warm-up in progress/approx. 40 seconds)
→ Lights green (projection in progress)
Check that the power cable is connected to the projector and
to the electrical outlet.
Projection starts after a short period.
For a video source, press the [Play] button.
User's Guide
"Turning the Projector On"
Projection preparation and adjustments
If "Password Protect" has been enabled, the "Password
Protect Release" screen will be displayed when the power
is turned on for the first time after the power plug is
connected to an electrical outlet. Type in the password.
User's Guide "Preventing theft (Password Protect)"
Press the button.
Turn the power on
for all input
equipment.
Set the [R/C] switch
to "ON".

1. Press the button.
2. To view the images in more detail, switch to the active window.
Tilt the button to select an image and then press the
button.
3. Project the images in the active window.
Press the button.
You may need to change the output destination using the
keyboard or by changing settings.
To change, hold down the key and press the key
(with a symbol such as or on it).
Once the setting is changed, projection will start after a short
period.
If images are still not projected after carrying out the above,
see p.12.
The image can be changed directly by selecting the desired
image source with the [Source] button.
Computer documentation
User's Guide "Selecting an Image Source While
Viewing Projected Images (Preview Function)"

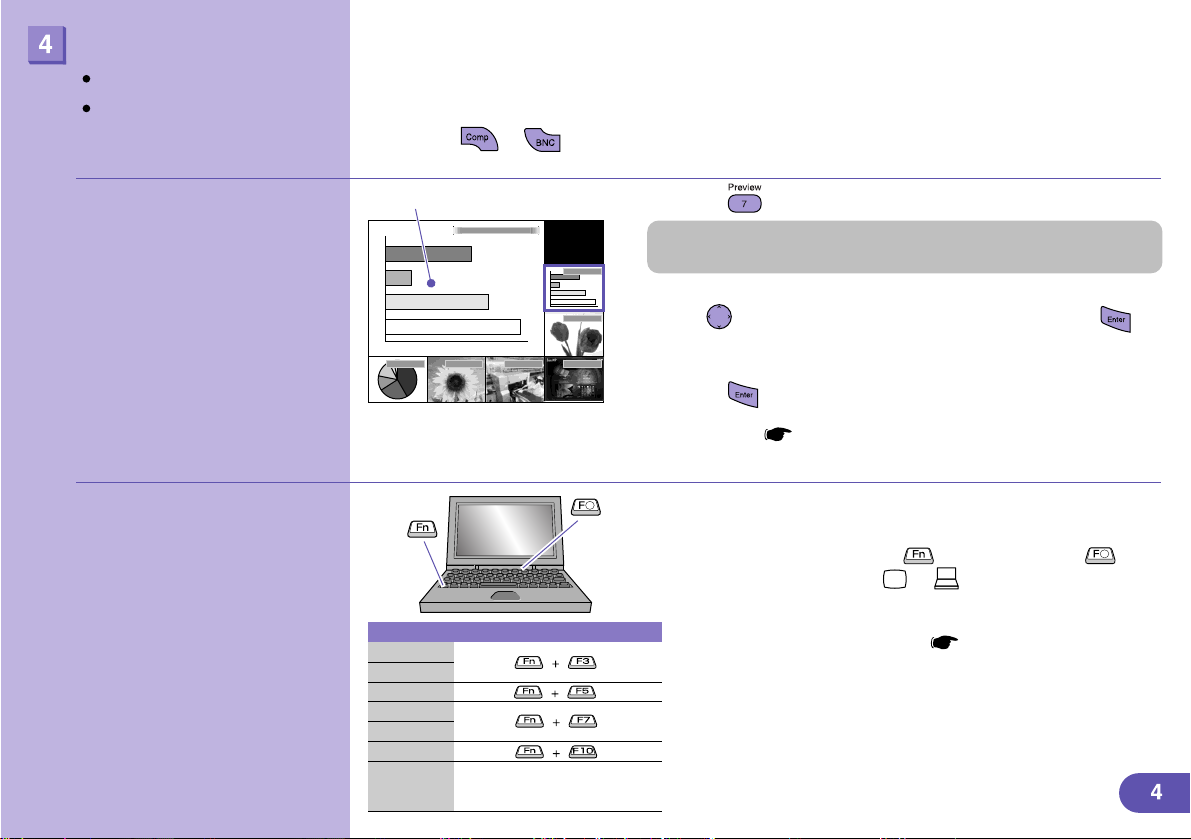

If more than one device is connected to the projector, use the [Source] button to select the image source to be projected.
If using the or buttons to select the source, you can change the signal setting by
pressing the button repeatedly.
Select the images to be projected.
To select images to be
projected while viewing
all images being input.
(Preview Function)
If the source does not
change to the laptop PC
connected by a
computer cable.
If only one signal source is connected, images from that source will be projected automatically.
Active window
After startup, change the Control
Panel adjustments so that mirroring
is active
Examples of changing output
NEC
Panasonic
TOSHIBA
IBM
SONY
FUJITSU
Macintosh
BNC Video
DVI
Computer (Analog-RGB)
Computer
S-Video EasyMP

Adjusting the projection angle Adjusting the image size and focus
While pulling the foot adjust lever,
lift up the front of the projector so
that the front adjustable foot can
extend. The Auto Keystone
function will operate when the
projector is tilted.
To retract the front adjustable foot,
gently push down on the projector
while pulling the foot adjust lever.
User's Guide "Zoom Function"
"Focus Adjustment"
User's Guide "Height Correction"
Adjusting projected
images
Fitting the image size to the projection screen (Quick Corner)
The four corners of the image can be adjusted so that the image fits
the screen exactly. This cannot be used together with Auto Keystone.
1. Press the button.
Select "Quick Corner" from the "Keystone" sub-menu of the
"Setting" menu.
2. Select the corner to be adjusted.
Press the button.
3. Adjust the corner to the desired position.
Tilt the button.
Once the adjustment is complete, press the button.
User's Guide
"Correcting Keystone Distortion so that the Projection Area Fits the Screen Exactly (Quick Corner)"
If tilted horizontally, adjust using the
left and right rear adjustable feet.
If the height of the image is too short after Auto
Keystone is carried out, adjust the height as follows.
For adjustment using the configuration menus:
"Setting" - "Keystone" - "H/V-Keystone" - "Height"
Focus adjustment
Fine adjustments to
image size
Enlarge: Turn to "W"
Reduce: Turn to "T"
User's Guide
"Adjusting the Feets"
Foot adjust lever
RetractExtend
Rear
adjustable
foot
[ ]:Adjust
[ ] :Move next
[ESC] :Return (Press 1 second
reset)
/

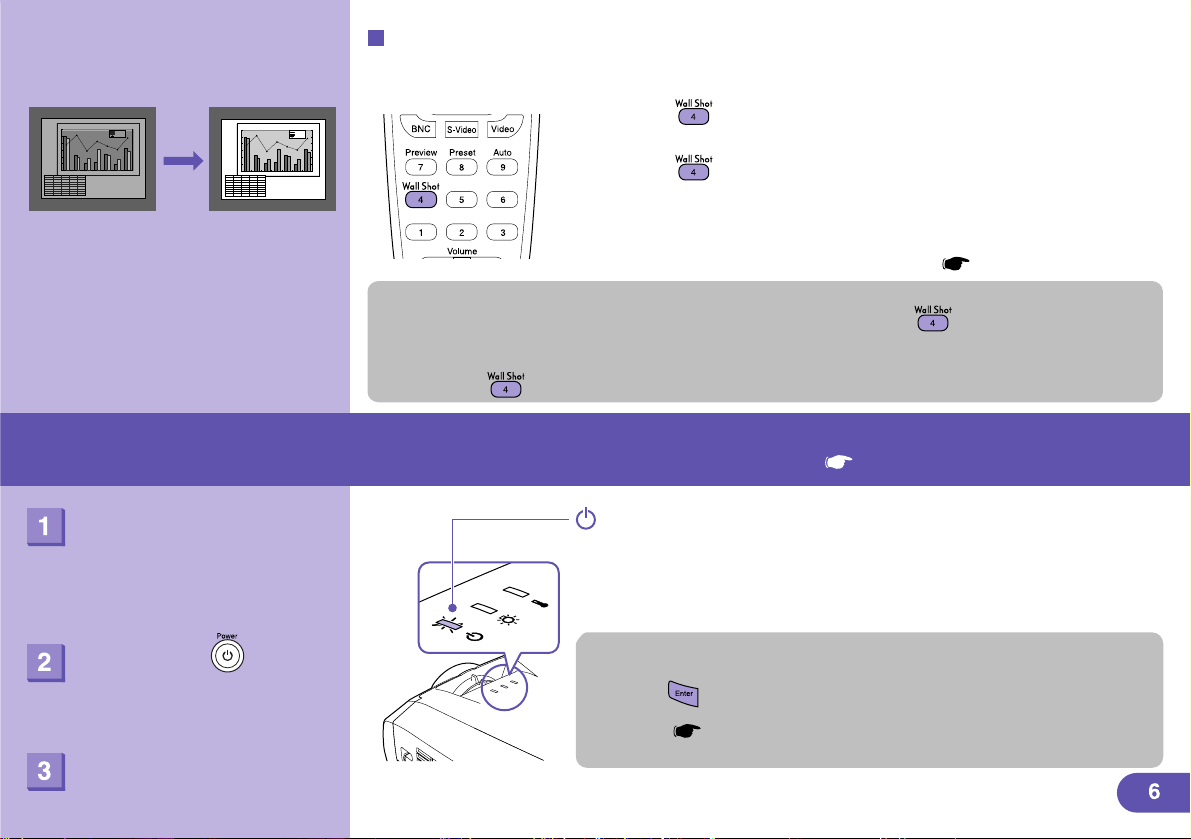

If projecting onto a
blackboard or wall
1. Press the button.
The current status is displayed on the screen.
2. Press the button while the status is displayed to change it to "Wall
Shot ON".
Colours in the order red →green →blue →black will be projected for
approximately five seconds, and then the corrected images will be
displayed.
User's Guide "Wall Shot"
When the projector's power is turned off, images will be projected next time with the status set to
"Wall Shot OFF". If projecting in the same location as before, press the button twice, you can
project images using the previous adjustment values without needing to repeat the measurements.
The status will change in the order "Wall Shot OFF" →"Wall Shot ON" →"Wall Shot Memory Call"
each time the button is pressed.
Turn the power off
for the equipment
that is connected to
the projector.
Press the button
twice to turn the
power off.
Set the [R/C] switch
to "OFF".
Flashes orange*(cool-down in progress/approx. 30 seconds)
→Lights orange
*Do not disconnect the power cable while the indicator is still flashing
orange, otherwise it may result in errors in projector operation.
If not using for a long period, disconnect the power cable from the electrical outlet.
(Operation) indicator
User's Guide "Turning the Projector Off"
Turning the projector off
If the message "The projector is overheated. Clean or replace the air filter
and lower the room temperature." appears during projection of images,
press the button to turn the power off and then clean or replace the
air filters.
User's Guide "Cleaning the Air Filters and Air lntake Vent"
"Replacing the Air Filters"
Wall Shot
Images can be automatically corrected and projected without loss of original colour onto surfaces which
are not white. In addition, the tints can be adjusted in accordance with the brightness of the room.
Sales b
y
branch for Januar
y
–Februar
y
period
38
52
29
43
31
48
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
Januarysales
Februarysales
Salestargets
Januarysales February sales Sales targets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai
33 28 48 109
Total
164 184 277 625
Sales b
y
branch for Januar
y
–Februar
y
period
38
29
43
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
Januarysales
Februarysales
Salestargets
Januarysales February sales Sales targets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai
33 28 48 109
Total
164 184 277 625
52
31
48

You can also drag and drop in the same way
using the button.
Using the remote
control for one-person
presentations
Functions for Enhancing Projection
Displaying previous or next slides in a
PowerPoint slideshow
Wireless Mouse Function
When projecting images from a computer, the accessory projector's remote control can be used to
operate the computer's mouse pointer.
Moving the mouse pointer Mouse clicks
Right click
Left click
Double-click: Press twice in rapid succession.
Drag and drop
1. Hold down the button for approx.
1.5 seconds.
The button lights and drag and drop
mode is enabled.
2. Tilt the button to drag an item.
3. Press the button to drop the item.
To previous slide
To next slide
To use the wireless mouse function,
you need to connect the computer
using a USB cable in addition to the
computer cable.
Use the accessory USB cable to
connect the USB port of a computer
to the projector's [USB TypeB] port.
The wireless mouse function may not operate correctly depending on the computer version
or function being used.
User’s Guide
"Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse Function)"

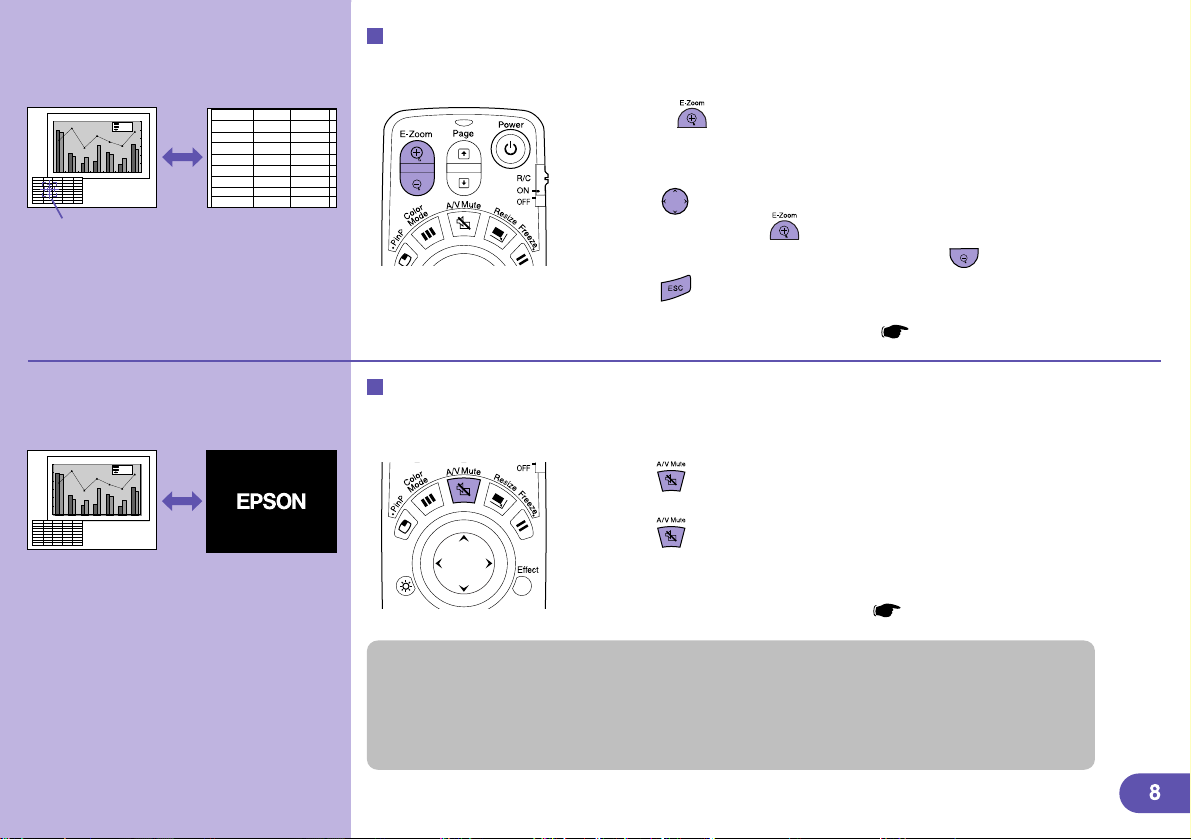

Press the button.
The images and sound are turned off (A/V mute active).
Press the button once more.
The A/V mute is cancelled.
Momentarily turning off
images and sound
Enlarging parts of
an image
1. Press the button.
A cursor (cross) will appear on the screen.
2. Move the cross to the area of the image that is to be enlarged.
Tilt the button.
3. To enlarge: Press the button.
To reduce the enlarged area size: Press the button.
E-Zoom Function
This function lets you enlarge and reduce parts of images such as graphs and tables that you
would like to view in greater detail.
User's Guide "E-Zoom Function"
•If you use this function when projecting moving images, the images and sound will still
continue to be played back by the source, and you cannot return to the point where the
A/V mute function was activated.
•You can use the "A/V Mute" command in the "Setting" menu to set the screen appearance
when the images and sound have been paused to "Black", "Blue" or "User's Logo".
You can use this function when you do not wish to show details of operations such as selecting
different files.
User's Guide "A/V Mute Function"
A/V Mute Function
Press the button to cancel.
Sales b
y
branch for Januar
y
--Februar
y
period
38
52
29
43
31
48
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
January sales
Februarysales
Sales targets
Januarysales Februarysales Salestargets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai 33 28 48 109
Total
164 184 277 625
January sales February sales
S
Sapporo 50 48
Tokyo 23 19
Nagoya 11 18
Osaka 13 32
Fukuoka 24 22
NewYork 10 17
ShangHai
33 28
Total
164 184
Sales b
y
branch for Januar
y
–Februar
y
period
38
52
29
43
31
48
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
January sales
Februarysales
Sales targets
Januarysales Februarysales Salestargets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai
33 28 48 109
Total
164 184 277 625
Cross
Video
Audio
Color Mode
Position
Tracking
Sync.
Brightness
Contrast
Sharpness
:
:
:
:
:
Select
0000
0
0
0
Adjust
[Presentation ]
:
:
Resolution
Reset
Execute
:
[]
[ ]: Enter[ ]: Select [Menu]: Exit
Reset All
About
Advanced2
Advanced1
User's Logo
Setting
Effect
Preset
Auto Manual
Auto Manual
Set
Adjust
Select

1. Press the button.
The pointer icon will appear.
2. Move the pointer icon to the starting point
for the line.
3. Press the button for approximately
1.5 seconds so that the button lights.
4. Tilt the button to move the pointer icon
and draw the line.
5. When the ending point is reached, press
the button.
1. Press the button.
The pointer icon will appear.
2. Move the pointer icon to the starting point
for the line.
3. Press the button to set the starting
point.
4. Move the pointer icon to the ending point
for the line and press the button to
draw the line.
1. Press the button.
The pointer icon will appear.
The pointer type changes to one of three types each time the
button is pressed.
2. The pointer icon moves when the button is tilted.

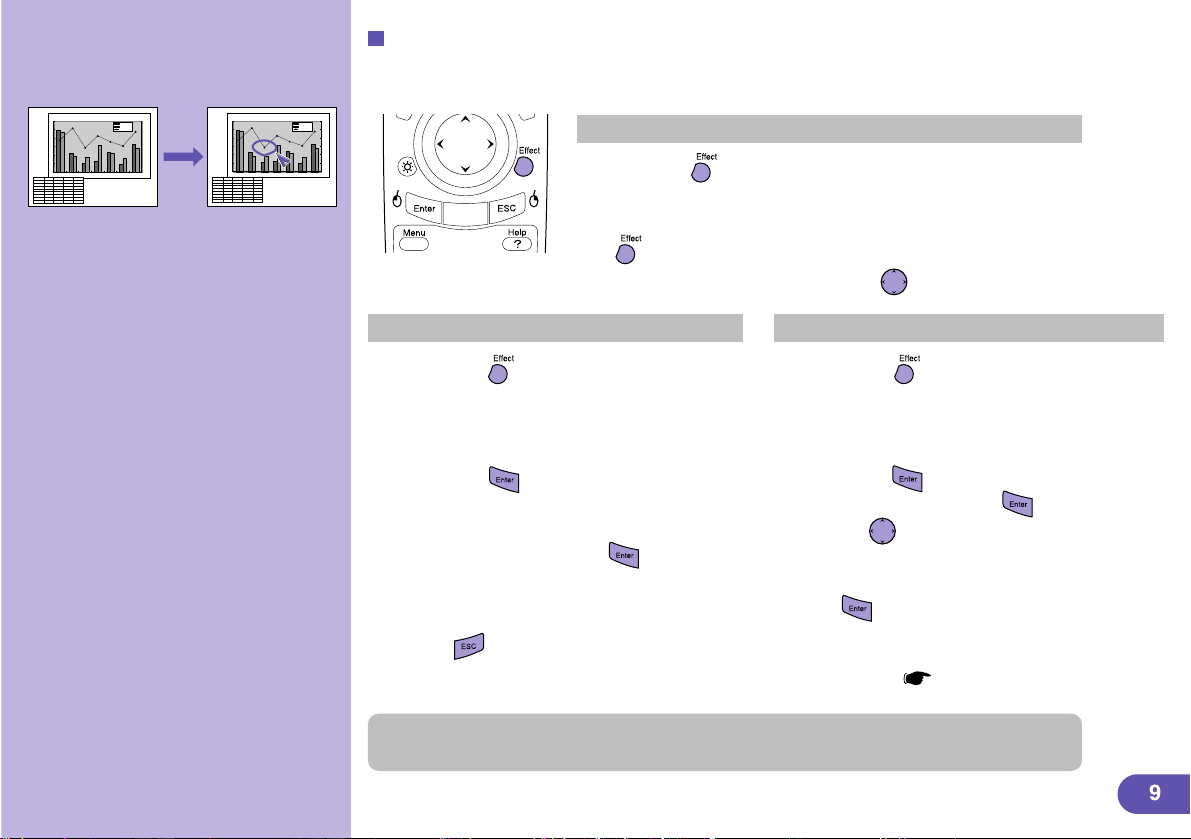

You can display a pointer icon and draw lines on the image being projected to emphasise parts
of the image that you want to draw attention to.
Effect Function
Using the pointer icon
Drawing straight lines Drawing freehand curves
Press the button to clear effects. The pointer icon and lines will all be cleared.
User's Guide "Effect Function"
Emphasising parts of an
The type, size and movement speed of the pointer icon and the colours and thicknesses
of the lines drawn can be set using the "Effect" menu.
Sales b
y
branch for Januar
y
–Februar
y
period
38
52
29
43
31
48
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
January sales
Februarysales
Sales targets
Januarysales Februarysales Salestargets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai
33 28 48 109
Total
164 184 277 625
Sales b
y
branch for Januar
y
–Februar
y
period
38
52
29
43
31
48
36
0
10
20
30
40
50
60
Sapporo Tokyo Nagoya Osaka Fukuoka NewYork ShangHai
0
10
20
30
40
50
60
January sales
Februarysales
Sales targets
Januarysales Februarysales Salestargets Total
Sapporo 50 48 38 136
Tokyo 23 19 52 94
Nagoya 11 18 29 58
Osaka 13 32 43 88
Fukuoka 24 22 36 82
NewYork 10 17 31 58
ShangHai
33 28 48 109
Total
164 184 277 625

User's Guide
"Selecting the Projection
Quality (Colour Mode
Selection)"
Other useful functions
The colour mode
changes as follows
each time this button
is pressed.
Presentation Theatre
Dynamic sRGB Living Room
This function lets you display separate images in a smaller screen
(sub-screen) over the top of the images that are currently being
projected (main screen).
The images are paused and unpaused each time this button is
pressed.
This lets you set the lamp brightness to one of two settings. Select
"Low" if the images being projected are too bright such as when
projecting images in a dark room or onto a small screen.
Color Mode
Network
Correspondence
User's Guide
"Freeze Function"
User's Guide
"Advanced2 Menu"
User's Guide
"P in P (Picture in
Picture) Function"
EasyMP Setup Guide
EasyMP Operation Guide
Brightness
Control
The "Video" menu settings (such as input resolution and tracking) for the
respective preset number are retrieved each time this button is pressed.
(Adjustment is only possible when analogue RGB signals are being
input from a computer connected by a computer cable.)
User's Guide
"Preset Function"
Preset
Function
Some examples of the projector's many useful functions include projecting
images from a computer connected via a network and automatically
sending email notifications if errors occur with the projector, such as if the
lamp cuts out during projection.
P in P
Function
Freeze
Function

User's Guide
"Using the Configuration Menu Functions"
List of configuration setting menus
Audio
User's Logo
Execute
Startup Screen
Progressive
Color Adjustment
Rear Proj.
Ceiling
Standby Mode
Language
Reset
Computer/DVI Audio Input
Volume
Tr e b l e
Bass
Reset
Pointer/Line1
Pointer/Line2
Pointer/Line3
Pointer Speed
Reset
Keystone
P in P
No-Signal Msg.
Message
A/V Mute
Computer Input
BNC Input
Sleep Mode
Reset
Brightness Control
Projector ID
COM Port
Auto Setup
BNC Sync Termination
Reset
Advanced2
Setting
Effect
Advanced1
During S-Video or
composite video
input
During computer
(analogue RBG,
digital RGB) /
component video
(YCbCr, YPbPr) /
RGB video input
or EasyMP
Lamp
Reset Lamp Timer
Source
Video Signal
Lamp
Reset Lamp Timer
Source
Input Signal*
Frequency
SYNC Polarity
SYNC Mode
Resolution
Refresh Rate
Execute
Reset All
About
Main menu Sub-menu (Video)
Position
Tracking
Sync.
Brightness
Contrast
Sharpness
Color Mode
Resolution
Preset
Reset
Brightness
Contrast
Sharpness
Color Mode
Reset
Position
Brightness
Contrast
Color
Tint
Sharpness
Color Mode
Reset
Position
Brightness
Contrast
Color
Tint
Sharpness
Color Mode
Video Signal
Reset
Position
Brightness
Contrast
Sharpness
Color Mode
Reset
During computer
(analogue RGB) input
Video
During computer
(digital RGB) input
or EasyMP
During component video
(YCbCr or YPbPr) input
During S-Video or
composite video input
During RGB video
input
Video
Audio
Color Mode
Position
Tracking
Sync.
Brightness
Contrast
Sharpness
:
:
:
:
:
Select
0000
0
0
0
0
0
+
-
+
-
Adjust
[Presentation ]
[Presentation ]
:
:
Resolution
Resolution
Reset
Reset
Execute
:
[]
[ ]:
[ ]:
Enter
Enter
[ ]:
[ ]:
Select
Select
[Men
[Men
u]:
u]:
Exit
Exit
Reset All
About
Advanced2
Advanced1
User's Logo
Setting
Effect
Preset
Auto Manual
Auto Manual
Set
Adjust
Select
*Not displayed when
running EasyMP.

Do the input signal settings
match the projector settings?
(When connected to the [BNC] port)
Has the computer been set for
dual display?
Was the projector and
computer connected while
their power was already
turned on?
If the connection is made while the power is already turned on, the
function [Fn] key that switches the computer's video signal to external
output may not work. Turn the power for the connected computer and
the projector back on.
Do the input signal settings
match the projector settings?
(When connected to the [BNC] port)
Is the computer display output
set to only the computer's
accessory screen?
If a problem occurs with the projected images even though the projector is set up and connected
correctly, check the following points.
If the following does not solve the problem
The image signals need to be output to the projector.
Change the output setting to an external destination only or to an
external destination as well as the computer's own monitor.
Computer documentation, under a title such as
"External output" or "Connecting an external monitor"
Cancel the dual display setting in the connected computer's Control
Panel.
Computer documentation, under a title such as "Video driver"
User's Guide "Using the Help"
If you cannot select images
from a computer connected by
a computer cable, or the
images do not project correctly
The computer cannot
be selected as the
image source
Images appear
greenish or purplish
Only part of the
image is displayed
Only part of the
images are projected
Repeatedly press the button on the remote control or use the
"BNC Input" command in the "Setting" menu to select the format
that matches the equipment signal.
If a problem occurs with the projector, the Help function uses on-screen displays to assist you in
solving the problem.
Press the button and answer the questions that are displayed to proceed through
the help screens.
Using the help function
User's Guide "Troubleshooting"
Troubleshooting
Repeatedly press the button on the remote control or use the
"BNC Input" command in the "Setting" menu to select the format
that matches the equipment signal.
User's Guide "When the Indicators Provide No Help"

Disconnect the power cable from the electrical outlet.
Then contact your dealer or the nearest address provided in the "International Warranty
Conditions" section of the
Safety Instructions/World Wide Warranty Terms booklet.
Check if the lamp is broken.
Disconnect the power plug from the electrical outlet and wait for the lamp to cool down
sufficiently (takes about one hour) before checking.
User's Guide "Replacing the Lamp"
User's Guide
"Reading the Indicators"
The projector is provided with indicators to notify you of
the operating status of the projector.
The following tables show what the indicators mean
and how to remedy the problems that they indicate.
Reading the Indicators
Internal error
Lamp cover is
open error./
Lamp timer
failure/Lamp out
Fan related error /
Sensor error
If the indicator is flashing or lit red Problem/Warning
(Temperature) indicator
(Operation) indicator
(Lamp) indicator
lit flashing off
If the problem is still not solved after the lamp is
replaced, stop using the projector and disconnect
the power cable from the electrical outlet. Then
contact your dealer or the nearest address
provided in the "International Warranty Conditions"
section of the
Safety Instructions/World Wide
Warranty Terms
booklet.
Replace the
lamp and
then turn the
power on.
If the lamp
still does not
turn on,
replace it with
a new lamp.
Contact your local dealer for further advice.
If the lamp is
not broken
If the lamp is
broken
Red Red Red
Red Red
Red Red

The lamp will switch off automatically
and projection will stop.
Wait for approximately 5 minutes.
Then disconnect the power cable and
check the points to the right.
User's Guide "Replacing the Lamp"
Warm-up time is approximately 40 seconds.
After warm-up is complete, the indicator will change to steady green and projection will start.
Normal operation is in progress.
Cool-down time is approximately 30 seconds.
After cool-down is complete, the projector goes into standby mode.
You cannot use the remote control or the projector's control panel during cool-down.
If you continue using the projector and
the temperature rises again, the lamp
will switch off automatically.
Check the points to the right.
If the problem is not fixed, stop
using the projector and
disconnect the power plug from
the electrical outlet.
Then contact your dealer or the
nearest address provided in the
"International Warranty
Conditions" section of the
Safety Instructions/World Wide
Warranty Terms booklet.
If the projector
is close to a
wall, move it
away from the
wall.
Clean the air
filters if they are
blocked.
If the indicator is flashing orange Warning lit flashing off
High-speed
cooling in
progress
Warm-up in
progress
Cool-down in
progress
Internal
temperature
error
(overheating)
Standby
condition
Projection in
progress
Lamp
replacement
notification
lit flashing off
Indicator is lit or flashing green or orange Normal
If you press the button, projection will start after warm-up is complete.
The lamp is near the end of its operating life. Replace the lamp with a new one as soon as possible.
If you continue to use the old lamp, the possibility that the lamp may break will increase.
Orange
Red
Green
Orange
Red
Red
Orange
Green
Orange
/

Replacing the Lamp
How to replace the lamp
User's Guide "Replacing the Lamp"
You will need the provided accessory screwdriver or another flathead screwdriver.
Turn off the power, wait for the cool down period to end (about
30 seconds) then disconnect the power cable.
Remove the cover when the projector has sufficiently cooled
down. It takes about a further one hour from when the cool
down period has finished for the lamp to be cool enough.
Disconnect the
power cable.
Remove the lamp
cover from the
underside of the
projector.
Insert the screwdriver into the opening.
Slide the lamp cover until the [ ] and [ ] marks line up, then
lift up the lamp cover to remove it.
1
2

Loosen the two lamp
fixing screws.
Lift the handle and
pull out the old lamp.
1
2
If the lamp has broken, request a replacement lamp from
EPSON, or the place of purchase.
Safety Instructions/Worldwide Warranty Terms

Install the new lamp.
Install the lamp
cover.
•Install the lamp securely. If the lamp cover is removed, the lamp turns off automatically as a safety
precaution. Moreover, the lamp will not turn on if the lamp or the lamp cover is not installed
correctly.
•Dispose of used lamps properly in accordance with local regulations.
Slide the cover until it clicks into place.
Holding the lamp facing the correct way, insert the lamp
until it clicks into place then tighten the two fixing screws.
Proceed to reset the Lamp Operating Time.

After replacing the lamp, be sure to reset the Lamp Operating Time from the configuration menu.
Do not reset the Lamp Operating Time except after the lamp has been replaced. If you do, the Lamp
Operating Time will no longer be displayed correctly.
The configuration menu is displayed.
The Lamp Operating Time is reset.
Press .
Select "About"
"Reset Lamp Timer"
and press .
Select "Yes" then
press .
Frequency
Frequency
Source
Source
V ---.--Hz
V ---.--Hz
Reset Lamp Timer
Reset Lamp Timer
H ---.--kHz
H ---.--kHz
Lamp
Lamp
1900H
1900H
SYNC Mode
SYNC Mode
SYNC Polarity
SYNC Polarity
------
------
H ------
H ------
Resolution
Resolution
Refresh Rate
Refresh Rate
0.0 Hz
0.0 Hz
0x 0
0x 0
Computer
Computer
Input Signal
Input Signal
Analog-RGB
Analog-RGB
Execute
Execute
:
:
:
:
:
:
V ------
V ------
:
:
:
:
:
Reset Lamp Timer
Reset Lamp Timer
Execute?
Execute?
YES
YES
NO
NO
Resetting the Lamp
Operating Time

List of Supported Monitor Displays
User's Guide
"List of Supported Monitor Displays"
Printed on 100% recycled paper.
Signal Refresh rate (Hz) Resolution (dots) Resolutions for resized display
(dots)
SVGA
XGA
SXGA
SXGA
SXGA+
UXGA
MAC13"
MAC16"
MAC19"
MAC21"
SDTV
(525i,525p,625i,625p)
HDTV(750p)
HDTV(1125i,1125p)
VGA
VGAEGA
56/60/72/75/85/100/120, iMac*1
60/72/75/85/100/120, iMac*1
60/70/75/85/100/120, iMac*1
70/75/85/100
60/75/85
60/75/85
60/65/70/75/80/85
640 × 480
800 × 600
1024 × 768
1152 × 864*2
1280 × 960*2
1280 × 1024*2
1400 × 1050*2
1600 × 1200*2
640 × 480
832 × 624
1024 × 768
1152 × 870*2
640 × 350
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1024 × 768
960 × 768
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1024 × 768
1016 × 768
1024 × 768 (4:3 aspect ratio)
1024 × 576 (16:9 aspect ratio)
1024 × 576
1024 × 576
1024 × 560
*1 Connection is not possible if the equipment does not have a VGA output port.
*2 The resolution for real display is the virtual (window) display resolution.
It may be possible to project signals which are not listed in the above table.
However, not all functions may be supportable with such signals.
404400300(E)Printed in Japan 03.05-.1A(C01)
