Epson PowerLite Home Cinema 3020 User manual

PowerLite® Home Cinema 3020/3020e
Home Theater Projector
User’s Guide

2Contents
Contents
Introduction 6
Projector Parts 7
Remote Control – PowerLite Home Cinema 3020 9
Remote Control – PowerLite Home Cinema 3020e 10
WirelessHD Transmitter – PowerLite Home Cinema 3020e 11
Optional Accessories 12
Registration and Warranty 12
Using This Manual 13
Setting Up the Projector 14
Choose a Location 14
Installing the Projector 17
Connecting the Cables 19
Connecting Video and Computer Equipment 19
Making Other Connections 22
Installing Batteries in the Remote Control 23
Charging the 3D Glasses 23
Turning the Projector On and Off 25
Turning On the Projector 25
Turning Off the Projector 26
Selecting the Image Source 26
Positioning the Image 27
Making Basic Adjustments 29
Focusing and Zooming 29
Choosing the Aspect Ratio 30
Viewing 3D images 31
Projecting in Split Screen mode 33
Starting a Slideshow 35

Contents 3
Choosing Slideshow Options 36
Choosing the Color Mode 37
Advanced Color Adjustments 38
Adjusting the Gamma Setting 39
Adjusting RGBCMY 40
Locking the Projector 40
Making Detailed Adjustments 42
Using the Menu System 42
Changing How the Menus Display 43
Adjusting the Picture Quality 44
Input Brightness Settings 44
Sharpness and Picture Quality Settings 46
Color Settings 47
3D Setup 49
Adjustments for Computer Images 50
WirelessHD Settings (PowerLite Home Cinema 3020e only) 51
Split Screen Setup 52
Selecting Memory Settings and Resetting the Projector 53
Creating Memory Settings 53
Selecting Memory Settings 53
Renaming Memory Settings 54
Deleting Saved Memory Settings 54
Resetting the Projector 55
Customizing Projector Features 56
Image Sizing 56
Screen Options 57
Other Setup Options 57

4Contents
Using WirelessHD 60
Placing the WirelessHD Transmitter 60
Connecting the WirelessHD Transmitter 61
Viewing WirelessHD Content 62
Switching WirelessHD Sources 62
Using Picture-in-Picture 64
Using HDMI Link 66
Setting Up HDMI Link 66
Changing HDMI Link Settings 67
Maintenance 68
Cleaning the Lens 68
Cleaning the 3D Glasses 69
Cleaning the Projector Case 69
Cleaning and Replacing the Air Filter 70
Replacing the Lamp 72
Resetting the Lamp Usage Timer 75
Checking the Projector Status 75
Storing the Projector 76
Transporting the Projector 76
Problem Solving 77
What To Do When the Lights Come On or Flash 77
Solving Picture Problems 79
Solving Remote Control Problems 83
Solving WirelessHD Problems (PowerLite Home Cinema 3020e Only) 84
Where to Get Help 85

Contents 5
Specifications 86
General 86
Lamp 86
Remote Control 87
WirelessHD Transmitter (Home Cinema 3020e only) 87
Dimensions 87
Electrical 88
Environmental 88
Safety 88
Compatible Video Formats 89
ESC/VP21 Command Codes 91
Notices 92
Important Safety Information 92
FCC Compliance Statement 94
Copyright Notice 95
A Note Concerning Responsible Use of Copyrighted Materials 95
Trademarks 96

6Introduction
Introduction
The PowerLite®Home Cinema 3020/3020e projector lets you enjoy theater-quality 2D and
3D images in the relaxing environment of your own home. Designed especially for home
cinema use, it offers these outstanding features:
■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to
2200 lumens of brightness (white light output) for incredibly rich, sharp images in any
room lighting
■Auto Iris system that constantly controls the light output based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and deepest
blacks
■Epson®C2FineTM 3LCD technology for reliable picture quality, increased contrast ratio
and uniform colors
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed
digital video
■True 16:9 wide-format projection
■Powerful 10 W per channel stereo system with two speakers
■Flexible setup configurations, including front projection and ceiling mounted, with
horizontal keystone slider for offset placement

Introduction 7

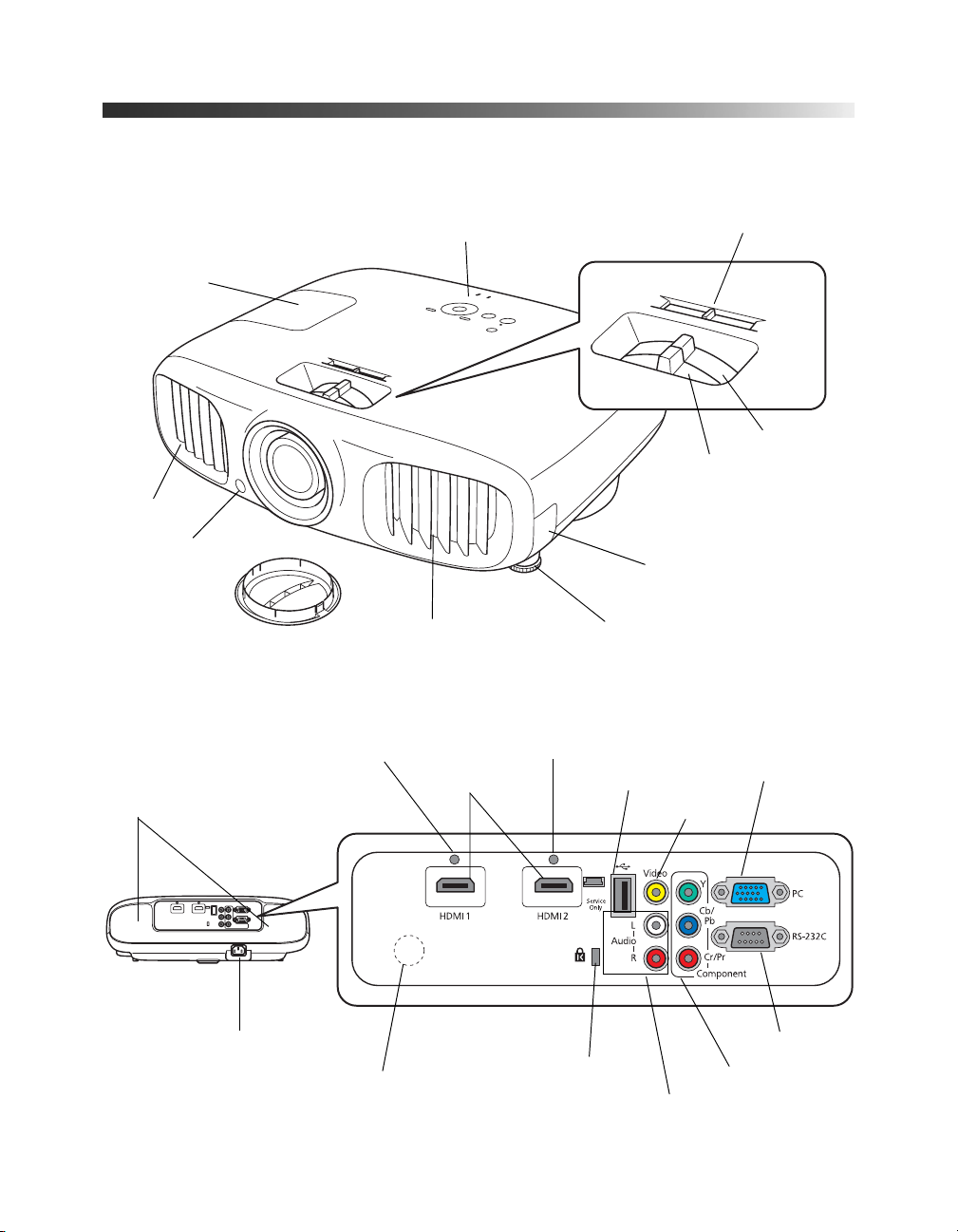

Projector Parts
Control panel
Air exhaust
Lens cover Adjustable foot
HDMI ports
Remote receiver
Horizontal keystone slider
Zoom ring
Front
Back
Lamp cover
Cable clip hole
Air intake
Air filter cover
Focus ring
Speakers
Power inlet
Cable clip hole
Kensington®lock port
Audio (L-R) port
Component port
RS-232C port
USB port
Remote receiver
Video port
PC port

8Introduction
Brightness
sensor
Escape button
Power button
Mounting bracket
attachment points
Bottom
Projector Control Panel
Front adjustable feet
Power
light
Source button
Volume/horizontal
keystone buttons
Vertical
keystone
buttons
Lamp
light
Temperature
light

Introduction 9
Remote Control – PowerLite Home Cinema 3020
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu
navigation
buttons
3D Format button
Adjusts the 3D
Format setting
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s aspect ratio
Blank button
Temporarily stops projection or
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
Frame int setting
Adjusts the Frame Interpolation
setting
Illumination button
Lights the remote control
buttons for easy viewing
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color adjustment menu
Memory button
Accesses the memory menu
HDMI Link control buttons
Control playback of a linked
video device
Super-res button
Adjusts the Super-res setting
on or off
Standby button
Turns projector off
Split button
Toggles the Split
Screen function on or
off

10 Introduction

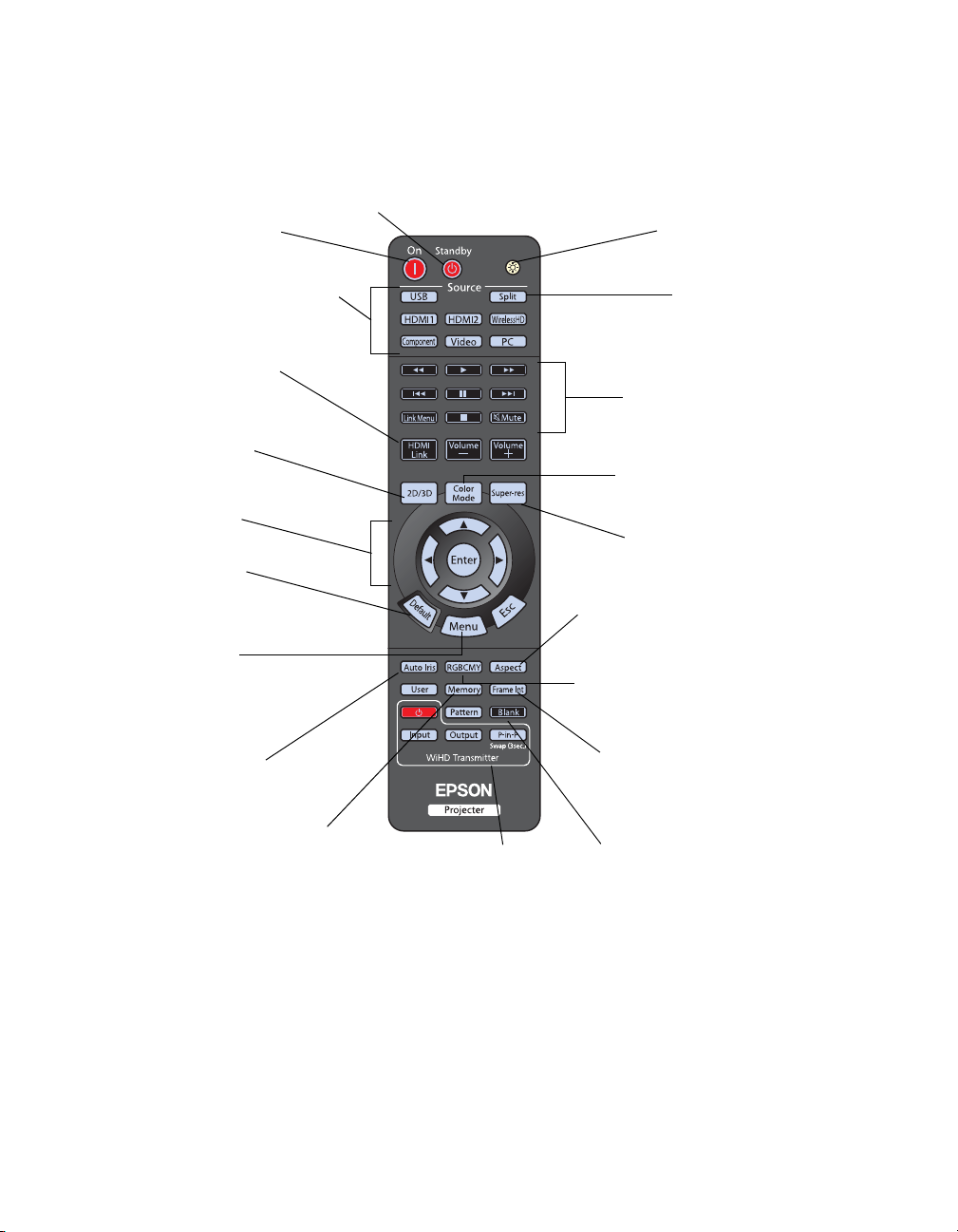

Remote Control – PowerLite Home Cinema 3020e
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu
navigation
buttons
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s aspect ratio
Blank button
Temporarily stops projection or
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
Frame Int button
Adjusts the Frame Interpolation
setting
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color adjustment menu
Memory button
Accesses the
memory menu
HDMI Link control buttons
Control playback of a linked
video device
Super-res button
Adjusts the Super-res setting
on or off
WirelessHD
Transmitter
controls
Illumination button
Lights the remote control
buttons for easy viewing
Standby button
Turns projector off
Split button
Toggles the Split
Screen function on or
off

Introduction 11
WirelessHD Transmitter – PowerLite Home Cinema 3020e
Front
Back
Power button
Input button
Output button
Power switch
Power light
WiHD light
Link light
HDMI output port
HDMI input ports
Optical Audio Out port
AC adapter port
3D glasses charging port
Setup/Reset button
(bottom of transmitter)

12 Introduction
Optional Accessories
Epson provides the following optional accessories for the projector:
In addition to the accessories listed above, 1-year and 2-year extended service plans are
available. You can purchase these plans and other accessories from an authorized Epson
reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To
purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
Registration and Warranty
Your projector comes with a basic two-year carry-in warranty for the projector, one-year 3D
glasses warranty, and a 90 day limited warranty for the lamp. For details, see the Quick Setup
sheet or warranty booklet.
In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an
equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will
ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your
Extra Care Home Service brochure for details.
To register, simply follow the registration instructions on the CD, or register online at
epson.com/webreg. Registering also lets you receive special updates on new accessories,
products, and service.
Product Part number
Replacement lamp V12H010L68
Air filter replacement V13H134A38
Kensington security lock (anti-theft device) ELPSL01
Projector mount CHF1000
Computer cable (6 feet [1.8 meters]) V12H005C02
RF 3D Active Shutter Glasses V12H548006
PixiePlus control system for Epson projectors ELPSP10
Belkin Pro Series VGA / SVGA cable – 6 ft F3H982-06
Belkin PureAV HDMI audio video cable – 3 ft AV22300-03

Introduction 13
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or
product information and e-mail Epson.
If you need more help, you can use the Epson®PrivateLine®Support service by calling
[phone].

14 Setting Up the Projector
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choose a Location
You can install the projector for the viewing setups shown below, as well as rear projection.
Center
Ceiling

Setting Up the Projector 15
Keep the projector level and place it at a height so its lens is even with the top or the bottom
of the screen and is centered horizontally. If this isn’t possible, use the horizontal keystone
slider and vertical keystone buttons to adjust the image (see page 27).
Note: Image quality is reduced if keystone correction is used. For the best possible image quality,
avoid using keystone correction.
The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the zoom ring, the actual size may differ.
Use these tables as a guide for projector placement:
16:9 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset
3.8 to 6.2 feet
116 to 190 cm
40 in. (35 × 20 in.)
101.6 cm (89 × 50 cm)
0.1 in.
(0 cm)
5.8 to 9.4 feet
176 to 287 cm
60 in. (51 × 30 in.)
152.4 cm (130 × 75 cm)
0.1 in.
(0 cm)
7.7 to 12.6 feet
235 to 383 cm
80 in. (71 × 39 in.)
203.2 cm (180 × 100 cm)
0.1 in.
(0 cm)
9.7 to 15.7 feet
295 to 480 cm
100 in. (87 × 47 in.)
254 cm (220 × 120 cm)
0.1 in.
(0 cm)
11.6 to 18.9 feet
354 to 576 cm
120 in. (106 × 59 in.)
304.9 cm (270 × 150 cm)
0.1 in.
(0 cm)
14.6 to 23.7 feet
444 to 721 cm
150 in. (130 × 75 in.)
361 cm (330 × 190 cm)
0.2 in.
(1 cm)
17.5 to 28.4 feet
533 to 866 cm
180 in. (173 × 98 in.)
457 cm (440 × 250 cm)
0.3 in.
(1 cm)
Projection distance Offset Offset refers to distance from
bottom of image to center of
lens.
Diagonal image size

16 Setting Up the Projector
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support (U.S.) or
epson.ca/support (Canada).
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block the vents underneath.
■Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or
extension cord.
4:3 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset
4.7 to 7.6 feet
143 to 233 cm
40 in. (32 × 24 in.)
101.6 cm (81 × 61 cm)
0.1 in.
(0 cm)
7.1 to 11.5 feet
216 to 352 cm
60 in. (47 × 35 in.)
152.4 cm (120 × 90 cm)
0.1 in.
(0 cm)
9.5 to 15.4 feet
289 to 470 cm
80 in. (63 × 47 in.)
203.2 cm (160 × 120 cm)
0.1 in.
(0 cm)
11.8 to 19.3 feet
361 to 588 cm
100 in. (79 × 59 in.)
254 cm (200 × 150 cm)
0.2 in.
(0 cm)
14.2 to 23.2 feet
434 to 706 cm
120 in. (94 × 71 in.)
304.8 cm (240 × 180 cm)
0.2 in.
(0 cm)
17.8 to 29 feet
544 to 883 cm
150 in. (118 × 91 in.)
381 cm (300 × 230 cm)
0.3 in.
(1 cm)
23.8 to 38.7 feet
726 to 1179 cm
200 in. (161 × 118 in.)
508 cm (410 × 300 cm)
0.3 in.
(1 cm)

Setting Up the Projector 17

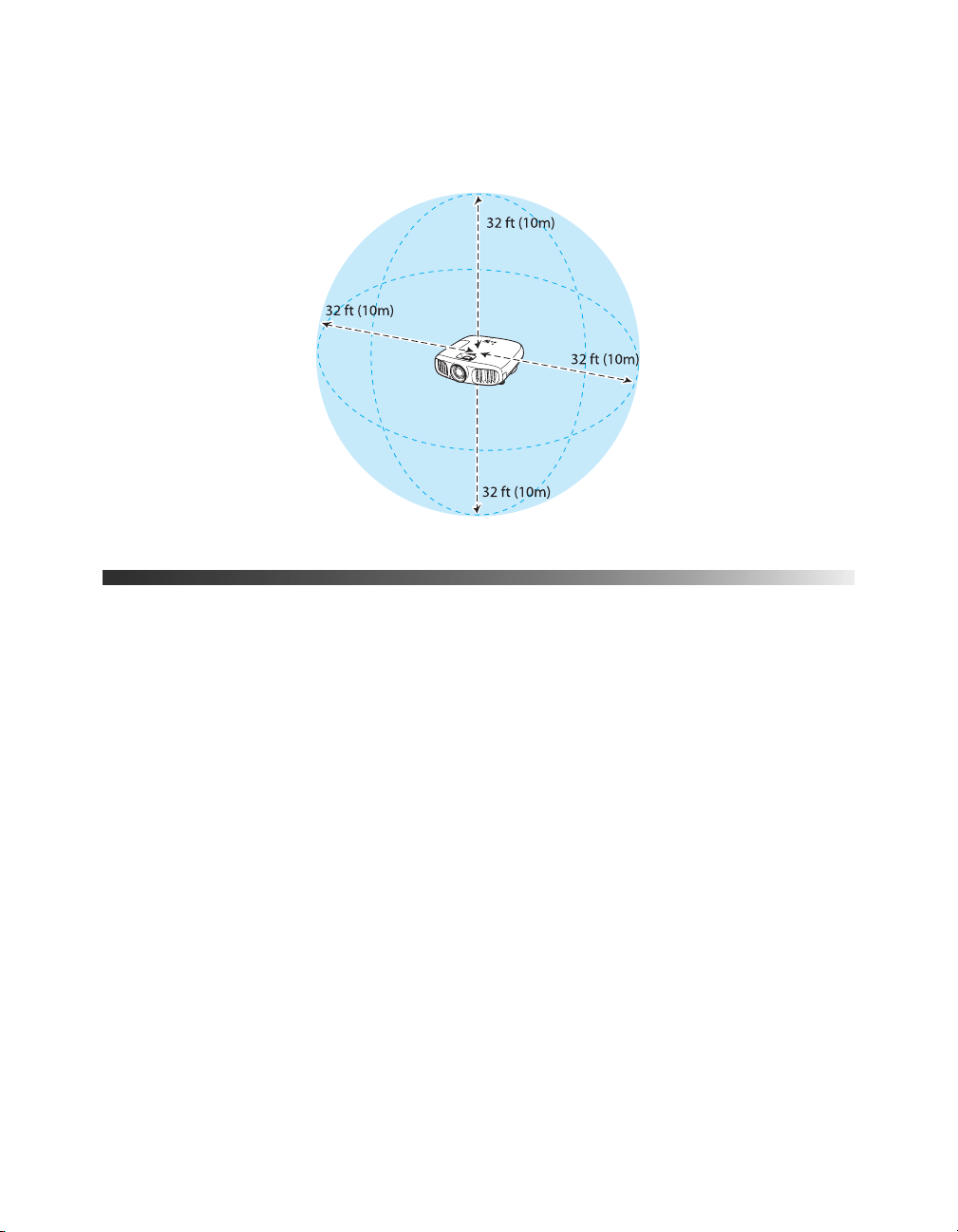

In order to view 3D images correctly, 3D glasses must be worn within 32 feet (10 m) of the
projector. Use the image below to determine the viewing distance for 3D projection (the
shading represents the 3D viewing area):
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 15 as a guide to positioning the
projector.
To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 12 for ordering information. Follow the instructions included with
the mount to install the projector.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:
1. Press the Menu button on the remote control.
2. Open the Settings menu, then select Projection.
3. Select Front/Ceiling.
4. Press the Menu button to exit the menu system.

18 Setting Up the Projector
The following illustrations show the dimensions of the projector:
Center of lens
3.2 in.
(80 mm)
5.5 in.
(139.6 mm)
8.3 in. (210 mm)
16.5 in. (420 mm)
11.8 in. (300 mm)
2.4 in.
(60 mm) 5.9 in. (150 mm)
2.8 in.
(70 mm)
14.4 in.
(365 mm)
6.3 in.
(160 mm)

Setting Up the Projector 19
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to many types of video equipment, such as a Blu-ray
Disc™/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or
digital camera. You can also connect it to a desktop or laptop PC or Apple Mac system. For
details on compatible video formats, see page 89.
To remove the interface cover and connect cables to the back of the projector (PowerLite
Home Cinema 3020e only), grip the cover at the gaps on the bottom of the cover and pull
upwards. Swing the cover out from the projector, then pull the cover straight out to detach it.
Note: If you have trouble gripping the gaps on the bottom of the cover, use a flat object, such as
a coin, to help open the cover.
To reattach the cover, insert the tabs at the top of the cover into the projector, then snap the
bottom of the cover into place.

20 Setting Up the Projector
You can connect up to five pieces of equipment directly to the projector at the same time,
using any of the commercially available cables shown below:
Note: See page 57 for information on connecting with WirelessHD (PowerLite Home Cinema
3020e only).
For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the Component (for high quality,
component video) or Video (for composite video) port.
Port name Video equipment connection Computer connection
HDMI 1/
HDMI 2
Use a High Speed HDMI cable:
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports. For audio, use a
stereo RCA audio cable:
—
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
For audio, use a stereo RCA to
mini-jack stereo (3.5 mm) audio cable:
Video Use an RCA video and audio cable: —
