EPSON PRODUCT SUPPORT BULLETIN
Date: 04/20/2009 Originator: JAM
PSB #: PSB.2009.06.001 Authorization:
Reference: TI 09-05e Rev. A/B Total Pages: 5
Product(s): PowerLite 735c / Cinema 500 / 737c / 745c / 755c / 765c / 830p / 835p /
1705c / 1715c / 6100i / 6110i / 7800p / 7850p / 7900NL / 8300i / 8300i with
EasyMP.net module / 9300NL / 1815p / 1825 / 822p / 83c / 822+ / 83+ /
G5000 / Pro G5150 / Pro G5350 / Pro G5200W / 1725 / 1735W / 400W /
410W / 84 / 85 / 825 / 826W
PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin
America) with TCP/IP to Serial converter
Subject: Release of EMP Monitor for Windows version 4.30
This bulletin was created to inform you of the release of the new version 4.30 of the Epson
EMP Monitor software utility.
Description of Change:
Improvements have been made to the EMP Monitor software utility.
Note: For the PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin
America) models, a serial to TCP/IP conversion adapter is necessary. The function of Auto
Update does not work for these models. You need to manually click on refresh to get an
updated status of projectors.
Reason:
The improved points of version 4.30 are as follows:
Application EMP Monitor
Version
upgraded Version 4.22 ÆVersion 4.30
Improved
points (1) Addition of 7 new languages
-Indonesian, Croat, Slovak, Bulgarian, Malay, Vietnamese, and
Hebrew
Existing 27 languages
-Chinese (Traditional), Netherlands, Danish, Polish, Hungarian,
Czech, Romanian, Slovene, Norwegian, Swedish, Finnish, Russian,
Ukrainian, Greek, Turkish, Arabic (Windows NT4 does not support),
English, Japanese, French, German, Italy, Spanish, Portuguese,
Chinese (Simplified), Korean, Catalan, Thai
Page 1 of 4
PSB.2009.06.001

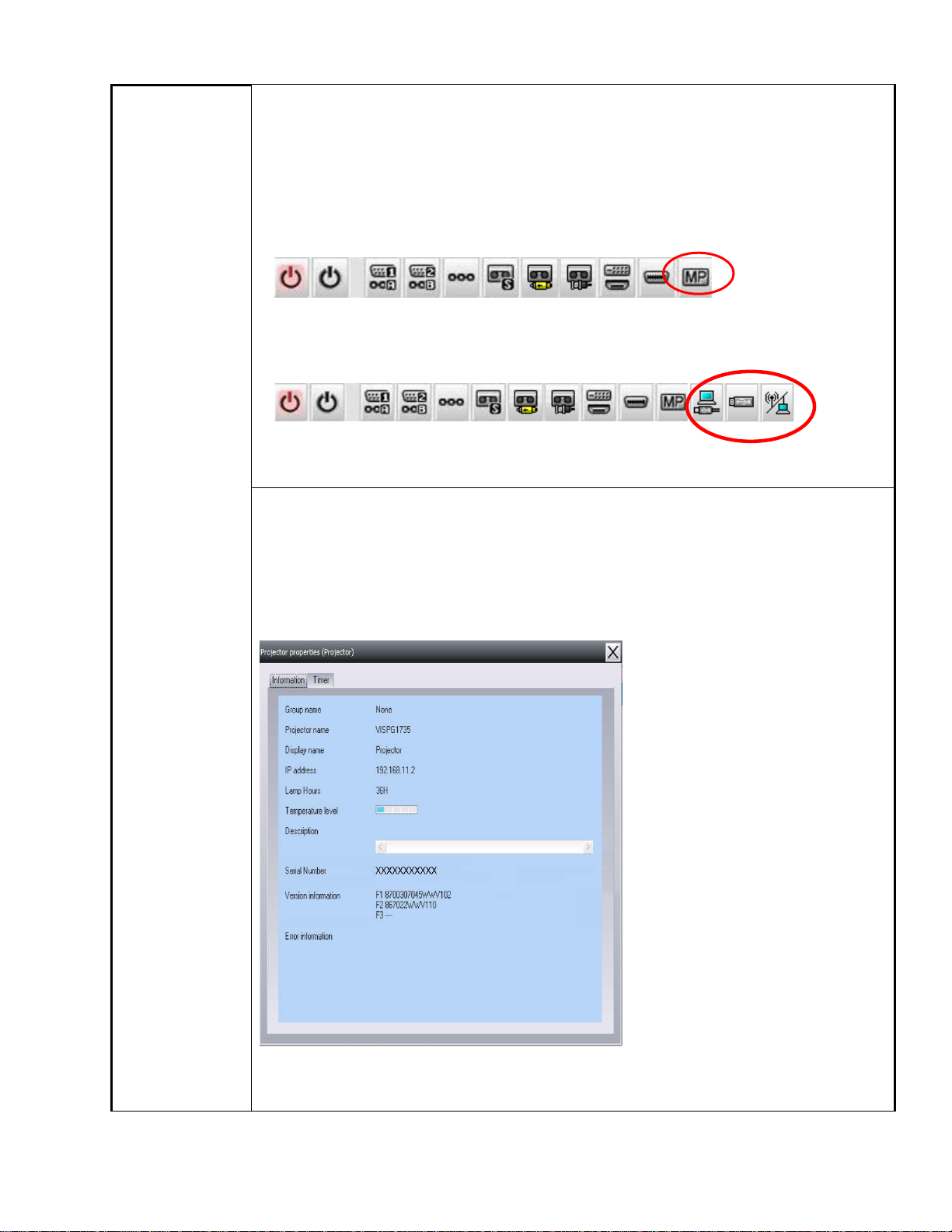

(2) Addition of Input Source (Only PowerLite 84 / 85 / 825 / 826W)
Previous version of EMP Monitor included USB Display, USB and LAN as
one source: EasyMP.
The input source buttons for USB display, USB, and LAN are available as
separate input sources as shown below:
- Old version - EMP Monitor V4.22
EMP Monitor V4.22
- New version - EMP Monitor V4.30
EMP Monitor V4.30
.
(3) New feature for the PowerLite 84 / 85 / 825 / 826W.
Displays projector’s serial number in the Menu settings
-The projector’s serial number is now displayed in the projector’s
menu under “info”,
-EMP Monitor can also display the projector’s serial number as
shown below:
Page 2 of 4
PSB.2009.06.001

Limitations When the PowerLite1725 / 1735W exhibit a Lamp Cover Open error state,
EMP Monitor cannot detect the error. The reason is that when the lamp
cover is opened, the primary power source that reports the error state to
EMP Monitor is turned off immediately. This is different from other models
which make the secondary power source turn off under the same condition.
Note: EMP Monitor Ver. 4.xx is not compatible with EMP Monitor Ver. 3.05 and earlier
versions. EMP Monitor Ver. 4.xx cannot read the setting files of EMP Monitor Ver. 3.05
and earlier versions.
System Requirements:
OS •Windows 98 SE / Me / NT 4.0 (SP6) *Except Arabic and
Hebrew / Windows 2000 Pro / XP Home Edition / XP
Professional (32 bit) / Vista Home Basic / Home Premium /
Ultimate / Business / Enterprise (32 bit) *Except Ukrainian /
Vista SP1 Home Basic / Home Premium / Ultimate /
Business / Enterprise (32 bit)
•Internet Explorer Ver. 5.0 or later must be installed
CPU Minimum: Pentium MMX 166 MHz (Recommended: Pentium II
233 MHz or higher)
Memory At least 64 MB (Recommended: 128 MB or above)
Available hard disk
space At least 50 MB
Display SVGA (800×600) or higher resolution, 32 bit or higher display
color
Obtaining the Update:
Download epson13055.exe from www.epson.com to get the version 4.30 update for EMP
Monitor. The files are extracted and copied to C:\EPSON\epson13055_emp_monitor_430.
This file is a self-extracting archive and will start the installation utility for EMP Monitor. Follow
the on-screen instructions during the installation process.
Page 3 of 4
PSB.2009.06.001

Software Upgrade History:
Version Release date Remarks
3.00 December
25,2002 Supported PowerLite 735c
3.01 February
26,2003 Supported PowerLite 7800p / 8300i
3.02 April
18,2003 Supported PowerLite 7850p / 8300i with EasyMP.net option module
3.03 November
21,2003 Supported PowerLite Cinema 500
3.04 April
1, 2004 Supported Serial -TCP/IP conversion adapter for PowerLite 61p / 81p
4.01 October
18, 2004 Supported projectors that are configured on a large-scale network.
4.02 August
29, 2005 Addition of timer function and auto search function by specifying IP addresses.
Improvement of communication logs size.
4.10 May
8, 2006 Addition of new functions, Improvement of usability, and Corresponding to PowerLite 6100i.
4.20 May
15, 2007 EMP NS Connection V2.20 supports Windows Vista (Home Basic / Home Premium / Ultimate / Business / Enterprise).
4.21 September
26, 2007 Supported 25 languages
4.22 March 31, 2008 Supported 27 languages
Addition of new Error Information
Supported Video (BNC)
4.30 April 3, 2009 Supported 34 languages
Additional Input Sources
Displays projector’s serial number in Menu settings
Page 4 of 4
PSB.2009.06.001

Page 1 of 3
PSB.2007.11.005A
EPSON PRODUCT SUPPORT BULLETIN
Date: 11/13/2007 Originator: AP
PSB #: PSB.2007.11.005A Authorization:
Reference: TI 07-63e, Rev. A Total Pages: 3
Product(s): Epson EMP Monitor
Subject: EMP Monitor Version 4.21 Release
This bulletin was created to inform you of the release of Epson EMP Monitor version 4.21
utility.
New Functions and Improvements:
New Functions,
Improvements
Supported Models Function / Improvement
Description
Support for 25
languages
All projectors (see Supported
Projectors table)
Language support extended to
include Chinese (traditional),
Dutch, Danish, Polish,
Hungarian, Czech, Romanian,
Slovene, Norwegian, Swedish,
Finnish, Russian, Ukrainian,
Greek, Turkish, Arabic.
Languages supported in prior
version of EMP Monitor: English,
Japanese, French, German,
Italian, Spanish, Portuguese,
Chinese (simplified), Korean
Abnormally low air
flow notification
PowerLite 6100i / 6110i Indicates an abnormal decrease
in the force of air flow through
the air filter. User should check
for air filter obstructions, clean
and replace air filter as
necessary.
This feature is available only for
the indicated models.
Air flow sensor error PowerLite 6100i (with firmware
version 1.10 or later) / 6110i
Indicates air flow sensor error.
This feature is available only for
the indicated models
Clean air filter
notification
PowerLite 6110i User notification to clean air filter.
This feature is available only for
the indicated model.
Supported Projectors:
This application supports the following Epson projectors:

Page 2 of 3
PSB.2007.11.005A
PowerLite 735c PowerLite 1715c PowerLite 1815p
PowerLite 737c PowerLite 6100i PowerLite 822p
PowerLite 745c PowerLite 7800p PowerLite 6110i
PowerLite 755c PowerLite 7850p PowerLite Cinema 500
PowerLite 765c PowerLite 7900NL PowerLite 61p
PowerLite 830p PowerLite 8300i / 8300NL PowerLite 81p
PowerLite 835p PowerLite 8300i with the
EasyMP.net Option Module
installed
PowerLite 82c
PowerLite 1705c PowerLite 9300NL PowerLite 821p
Supported Operating Environment:
Operating System requirement •Windows 98SE / Me / NT 4.0 SP6 (except
Ukrainian) / 2000 Professional / XP Home Edition
/ XP Professional (32 bit) / Vista Home Basic /
Vista Home Premium / Vista Ultimate (32 bit) /
Vista Business (32 bit) / Vista Enterprise (32 bit)
(except Arabic)
•Internet Explorer 5.0 or later
Minimum CPU requirement Pentium MMX 166 MHz (Recommended: Pentium II 233
MHz or faster)
Minimum RAM requirement At least 64 MB (Recommended: 128 MB or more)
Drive space requirement At least 50 MB free
Display requirements SVGA (800 x 600) or higher resolution, 32 bit color
display or higher
Obtaining the Update:
Download epson12456.exe from www.epson.com to get the version 4.21 update for EMP
Monitor. This file is a self-extracting archive and will start the installation utility for EMP
Monitor.

Page 3 of 3
PSB.2007.11.005A
Software History:
Version Release Date Notes
3.00 December 25, 2002 Added support for the PowerLite 735c
3.01 February 26, 2003 Added support for the PowerLite 7800p / 8300i
3.02 April 18, 2003 Added support for the PowerLite 7850p / PowerLite 8300i
with the EasyMP.net option module installed
3.03 November 21, 2003 Added support for the PowerLite Cinema 500
3.04 April 1, 2004 Added support for the Serial ↔TCP/IP conversion
adapter for the PowerLite 61p / 81p
4.01 October 18, 2004 Added support for projectors installed on large scale
networks
4.02 August 29, 2005 Addition of timer function, auto search by specifying IP
address.
Improvement of communication logs sizes
4.10 May 8, 2006 Addition of support for PowerLite 6100i with support for
additional monitoring features unique to the PowerLite
6100i
4.20 May 29, 2007 Added support for Windows Vista (32 bit)
4.21 September 26, 2007 Increased language support to 25 languages

Page 1 of 3
PSB.2005.06.001
EPSON PRODUCT SUPPORT BULLETIN
Date: 06/06/2005 Originator: JD
PSB #: PSB.2005.06.001 Authorization:
Reference: N/A Total Pages: 3
Product(s): Powerlite 8300/8300 with EasyMP.net/9300 series Projectors
Subject: Filter-Cleaning Procedures
This bulletin was created to inform users about the filter-cleaning procedures necessary for
maintaining proper airflow and reducing the potential for overheating.
Reason:
The PowerLite 8300 and 9300 series projectors have five (5) filters that must be cleaned on a regular
basis. Cleaning the filters is critical to maintaining proper airflow inside the projector and reducing
possible overheating issues. Incomplete or infrequent filter-cleaning maintenance can cause one or
more filters to accumulate excessive dust over time. This can inhibit proper airflow so that the
projector begins to overheat during operation and eventually shut down. The next section provides
information on the location of the filters on the projector, cleaning instructions and recommended
maintenance schedules.
Action:
The following filters should be cleaned after every 100 hours of use. For dusty environments, filter
cleaning should be performed more frequently.
1) Wire mesh filter (inside lamp housing shutter):
Hold shutter open and use a computer vacuum to remove dust.

Page 2 of 3
PSB.2005.06.001
2) Air intake filters (2)--located at bottom of projector:
Use a computer vacuum to clean both filters. If you don’t have one, then use a soft brush and gently
clean the filters. If the dirt is difficult to remove or either filter is damaged or broken, replace the
filter(s).
Note: Both filters should be replaced when the lamp is replaced.

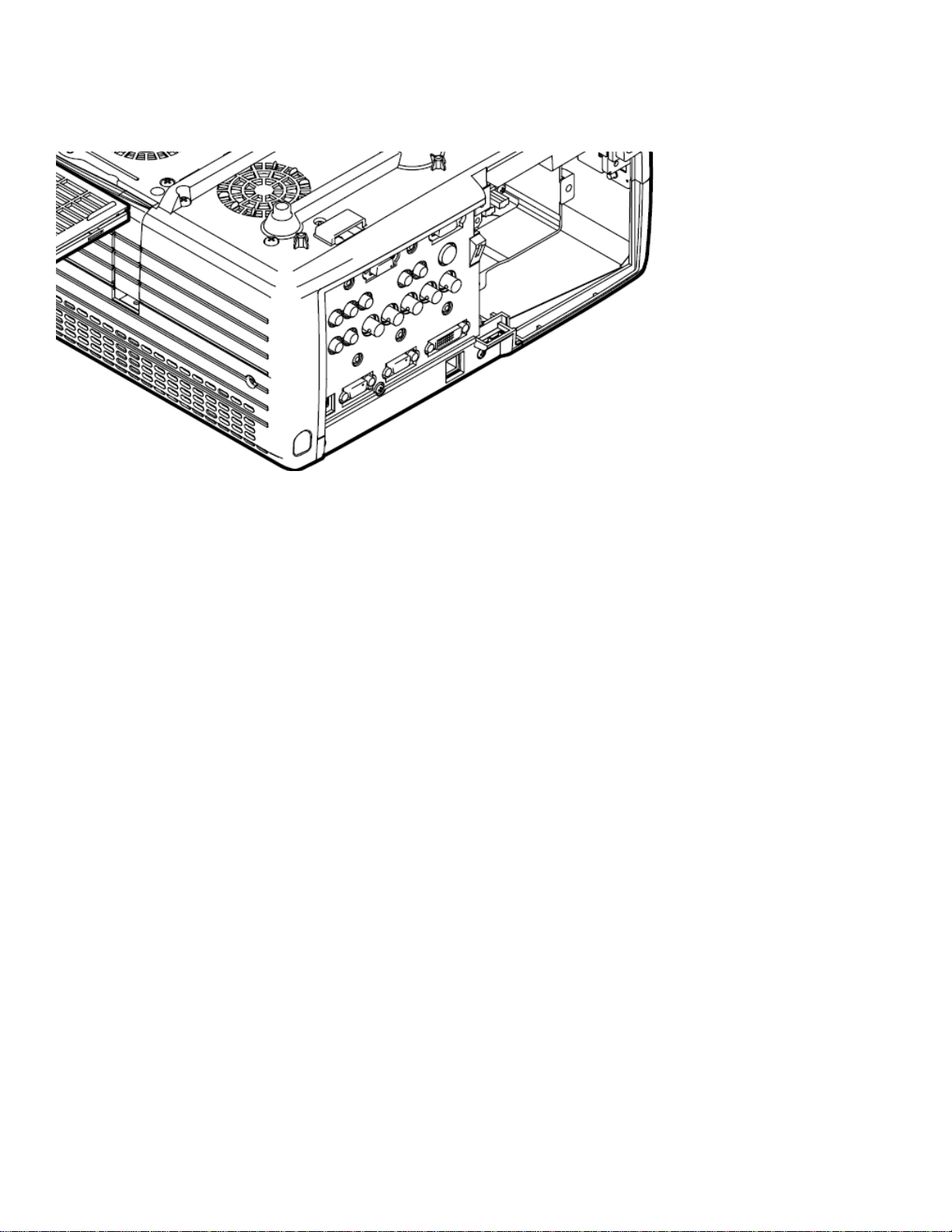

3) Power supply intake filter (located on side of projector—opposite handle side)
Use a computer vacuum to clean dust from the filter and vents.

Page 3 of 3
PSB.2005.06.001
4) Lamp intake filter (circular filter located at bottom of projector)
Use a computer vacuum to clean dust from the filter and vents.

Page 1 of 2
PSB.2005.05.004
EPSON PRODUCT SUPPORT BULLETIN
Date: 05/11/2005 Originator: JAM
PSB #: PSB.2005.05.004 Authorization:
Reference: N/A Total Pages: 2
Product(s): PowerLite 9300i
Subject: 1400 x 1050 DVI Compatibility Support
Reason:
This bulletin is to inform you of the testing results for 1400 x 1050 DVI full-screen resolution
with the Epson PowerLite 9300i Projector.
Question:
1. Has the Epson PowerLite 9300 projector been tested for 1400 x 1050 DVI
full-screen display compatibility?
2. What type of DVI port is on the PowerLite 8300 and PowerLite 9300 Projectors?
Answer:
1. Yes, the Epson PowerLite 9300 has been confirmed functional in 1400 x 1050 DVI mode
with various video sources and software operating systems for full-screen display
performance. Detailed information listed below.
2. The port on the rear A/V module is DVI-D (DVI Digital) dual link. It is not an analog port
and does not have the 4 extra analog pins for DVI-I (DVI Digital and Analog). A DVI-I cable
cannot physically attach to the port since it can cause damage to the cable.
Operating Systems tested:
System Version(s): Mac OS X 10.2.8
Hardware tested:
Computer(s): Apple PowerMac G5
Video Chip Set: NVidia, GeForce FX 5200
Video Test Generators tested:
Make: Extron
Model #: VTG 400

Page 2 of 2
PSB.2005.05.004
Projector Resolution “About” information:
Source: DVI
Input Signal: Digital-RGB
Resolution 1400 x 1050
Refresh Rate: 60 Hz
Input Device: PowerMac G5
Source: Computer 1
Input Signal: Analog-RGB
Resolution 1400 x 1050
Refresh Rate: 60 Hz
Input Device: Extron VTG 400
Tested by:
J.A.Madrigal
Epson America Inc.,
Advanced Product Support
Long Beach, CA

Page 1 of 2
PSB.2005.05.003
EPSON PRODUCT SUPPORT BULLETIN
Date: 05/11/2005 Originator: JAM
PSB #: PSB.2005.05.003 Authorization:
Reference: N/A Total Pages: 2
Product(s): PowerLite 8300i and PowerLite 9300i
Subject: 1400 x 1050 Compatibility Support
Reason:
This bulletin is to inform you of the testing results for 1400 x 1050 full-screen resolution with
the Epson PowerLite 8300i and PowerLite 9300i video projectors.
Question:
1. Have the Epson PowerLite 8300 and PowerLite 9300 Projectors been tested for
1400 x 1050 full-screen display compatibility?
2. Why do some laptops undersize the screen and perform in a pan-and-scan function on
projectors with 1400 x 1050 native resolutions?
Answer:
1. Yes, the Projectors have been confirmed functional with various video sources and
software operating systems for full-screen display performance. Detailed information
listed below.
2. Various laptop manufacturers use ATI RagePro or ATI Radeon chipsets for the built-in
LCD screen. The “Advanced Settings” of the video driver function in pan-and-scan
mode when re-directing video to the external video port. The true output at the VGA
15-HD port is only 1280 x 1024 as verified using by a VGA monitor that can sense and
display the video settings from the monitor’s menu options.
Operating Systems tested:
System Version(s): Windows 98SE and Windows XP Service Pack 2
Mac OS X 10.2.8
Hardware tested:
Mother Board(s): ASUS P4BGL-VM ATX Motherboard
Video Chip Set: Intel 8284G/GL Graphics Controller
Computer(s): Apple PowerMac G5
Video Chip Set: NVidia, GeForce FX 5200

Page 2 of 2
PSB.2005.05.003
Video Test Generators tested:
Make: Extron
Model #: VTG 400
Projector Resolution “About” information:
Source: DVI
Input Signal: Digital-RGB
Resolution 1400 x 1050
Refresh Rate: 60 Hz
Input Device: PowerMac G5
Source: Computer 1
Input Signal: Analog-RGB
Resolution 1400 x 1050
Refresh Rate: 60 Hz
Input Device: Extron VTG 400
Tested by:
J.A.Madrigal
Epson America Inc.,
Advanced Product Support
Long Beach, CA

Page 1 of 14
PSB.2004.10.002
EPSON PRODUCT SUPPORT BULLETIN
Date: 10/08/2004 Originator: DS
PSB #: PSB.2004.10.002 Authorization:
Reference: TI 04-46e Rev. A Total Pages: 14
Product(s): EMP NS Connection, EMP Network Manager, EMP Monitor,
EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver
Subject: Evaluation results of Epson Projector PC applications tested in Windows XP
with SP2.
The purpose of this bulletin is to provide information on Epson PC projector applications tested
under the Windows XP SP2 (Service Pack2) environment.
Description:
Information is provided about the evaluation results and recommendations for Epson PC
projector applications functionality in Windows XP SP2 Firewall environment.
Reason:
Compatibility testing for functionality of EMP NS Connection, EMP Network Manager, EMP
Monitor, EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver in the Windows
XP SP2 environment.
Results of Windows XP SP2 installation:
Installing SP2 on PCs did not disturb the installation of the above software applications.
Also, the application software can be installed on PCs where SP2 or earlier versions are
installed without any issues.
The information contained in the following pages provides details for executing the
applications in Windows XP SP2.

Page 2 of 14
PSB.2004.10.002
Executing the Software:
When executing the software noted below for the first time after SP2 installation completes,
the following security alert messages are displayed:
[EMP NS Connection]
Security alert screen (EMP NS Connection)
[EMP Network Manager]
Security alert screen (EMP Network Manager)

Page 3 of 14
PSB.2004.10.002
[EMP Monitor]
Security alert screen (EMP Monitor)
[EMP Multi Screen Adjustment]
Security alert screen (EMP Multi Screen Adjustment)
The Security Alert screen for EMP Multi Screen Adjustment is shown after clicking the
Auto button of Network or clicking the Add button after entering an IP address in the
IP Address box.

Page 4 of 14
PSB.2004.10.002

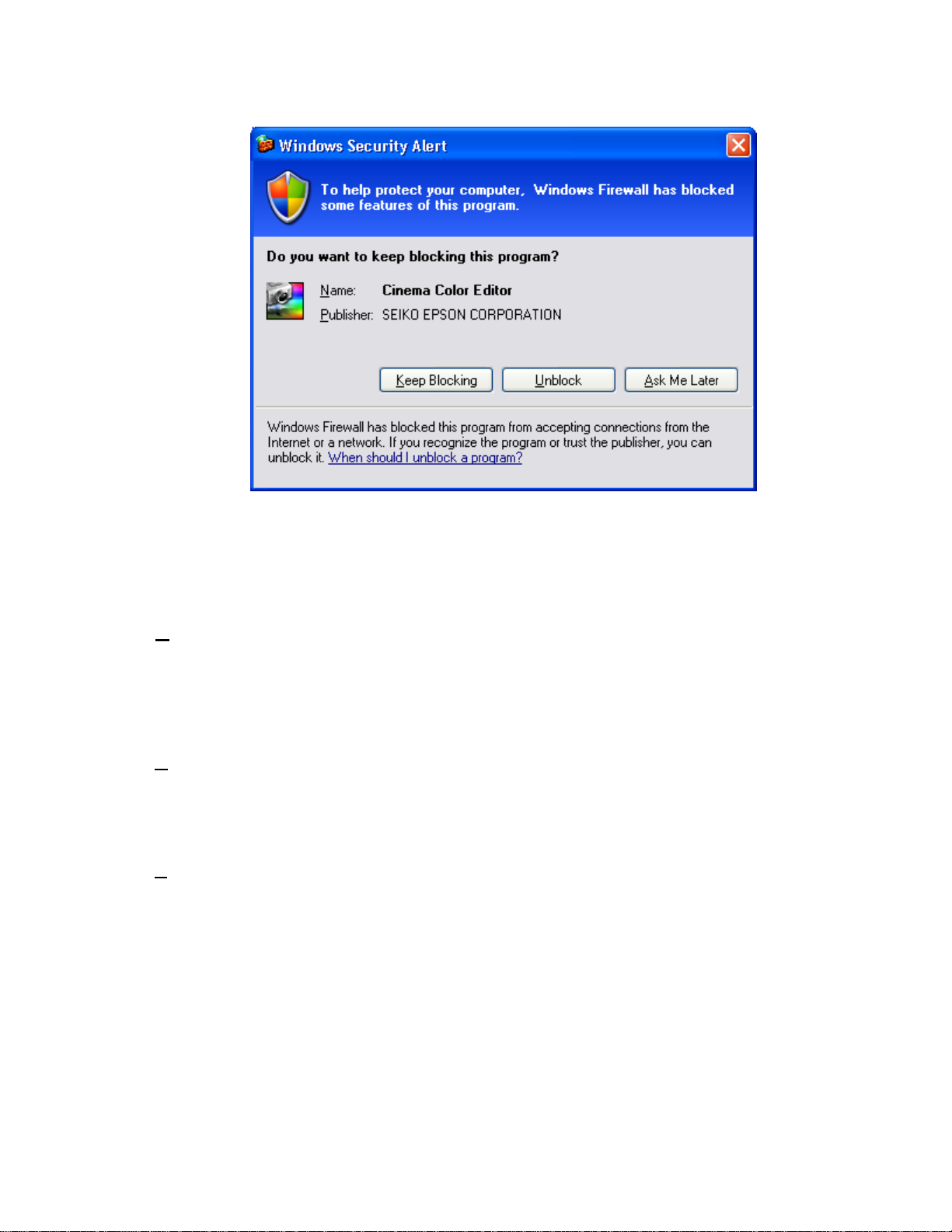

[Cinema Color Editor]
Security alert screen (Cinema Color Editor)
The functions of the three buttons displayed in the security alert screen are explained
below.
[Keep Blocking] --- Enables you to register a started application in the “Exceptions”
program of the Windows Firewall. The network port that the
application uses is blocked. By selecting this button once, this
security alert message will not be shown when starting the
application next time.
[Unblock] ------------- Enables you to register a started application in the “Exceptions”
program of the Windows Firewall and unblock the network port that
the application uses. By selecting this option once, this security alert
message will not be shown when starting the application next time.
[Ask me later]-------- When you want to select both buttons above or select either one
later, this button is selected. The started application is not registered
in the “Exceptions” program of the Windows Firewall and the
network that the application uses is not unblocked. However, when
restarting the application, the same security alert message is shown.
•PC applications will work normally on Windows XP with SP2 if the “Unblock
Item” is selected when the security alert screen is shown.
For the detail operation information of each application, please refer to the following:

Page 5 of 14
PSB.2004.10.002
Operating Status Report
When selecting the Keep Blocking button, the security alert message is closed and the
main screen of each application is displayed.
[EMP NS Connection Application]
Port 3620 is necessary for searching for projectors. If this port is blocked, projectors are not
detected.
The other applications operate normally. However, there is a case that execution of
automatic search disables automatic detection. This occurs when projectors are registered
for automatic detection in EMP Monitor before installing SP2, then the registered projectors
may not be detected again after SP2 installation. Therefore it is recommended to select
Unblock in the security alert screen.
If “Keep Blocking” has been selected when starting the application for the first
time, and the blocking needs to be removed, complete the execution of the application and
proceed with unblocking as follows:
a.) Start the Windows Security Center. Double click the icon in the shape of a shield that
is always displayed on the taskbar after the installation of SP2.

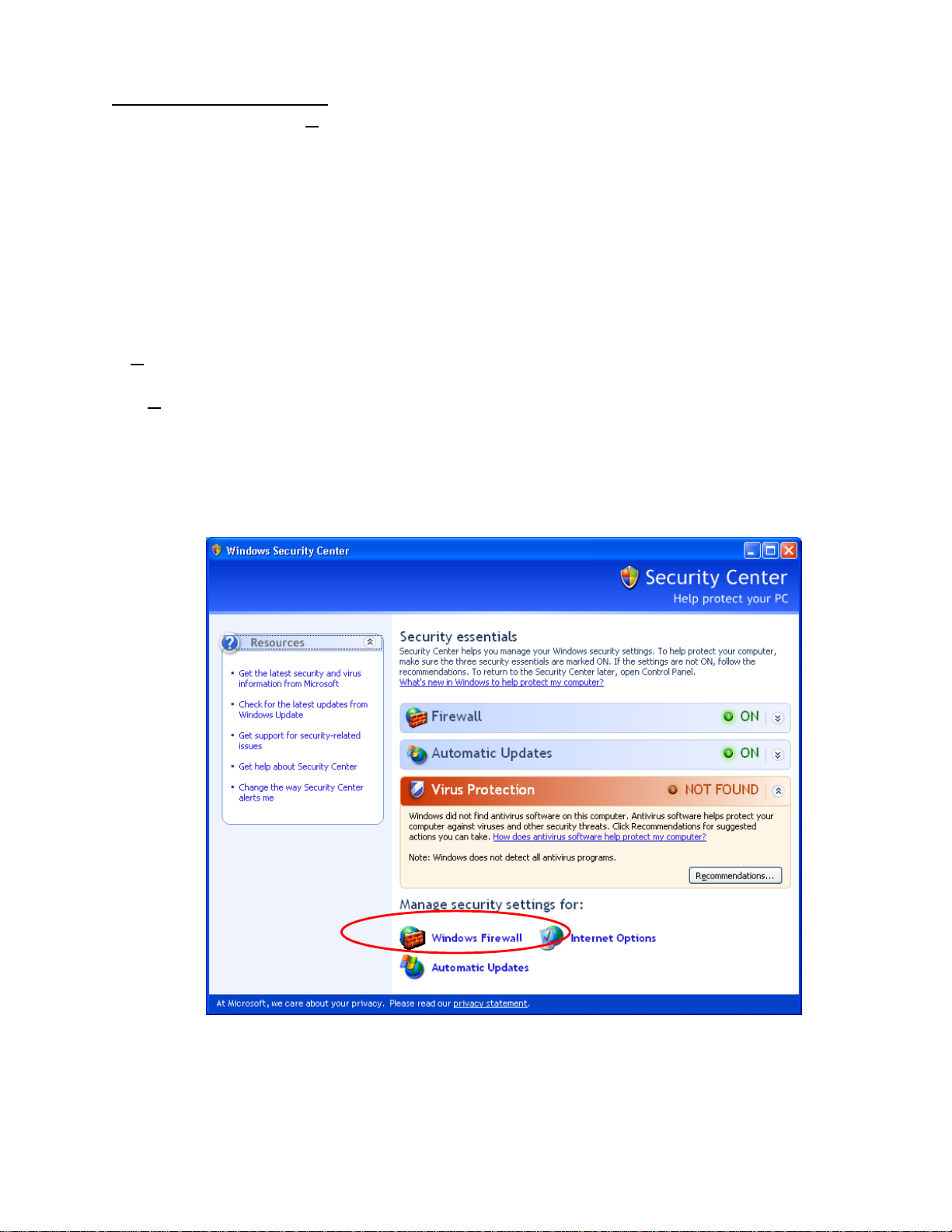

Windows Security Center screen
b.) Select and start Windows Firewall

Page 6 of 14
PSB.2004.10.002
Windows Firewall screen
[Caution]
In case the check box
for Don’t allow
exceptions
is checked (this box is
not checked at the
initial setting), a
network port for
software is not
unblocked even though
the software is checked
on Exceptions.
Make sure this option is
not selected.
