Introduction 7
Introduction
The PowerLite®Pro Cinema 1080 projector lets you enjoy theater-quality images in the
relaxing environment of your own home. Designed especially for home cinema use, it offers
these outstanding features:
■Native 1080p (1920 × 1080) resolution, 12000:1 dynamic contrast ratio, and up to 1200
lumens for incredibly rich, sharp images in any room lighting
■Auto Iris system that constantly controls the lamp intensity based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and Deepest
Blacks™
■Epson Crystal Fine 3LCD™technology for reliable picture quality, increased contrast
ratio and uniform colors
■1080Perfect™video processing for more film-like images free of noise or artifacts
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■Epson AccuCinema™color management delivered by the built-in optical Cinema Filter
blocks out excess light for an expanded, purer color range and sophisticated grayscale
tracking
■HDMI™(High Definition Multimedia Interface™) port for superior, uncompressed
digital video
■True 16:9 wide-format projection
■Flexible setup configurations, including front projection and ceiling mounted, with
vertical and horizontal offset lens shift
■Six color modes to quickly optimize viewing for different lighting environments and a
vast array of custom color adjustments

8Introduction

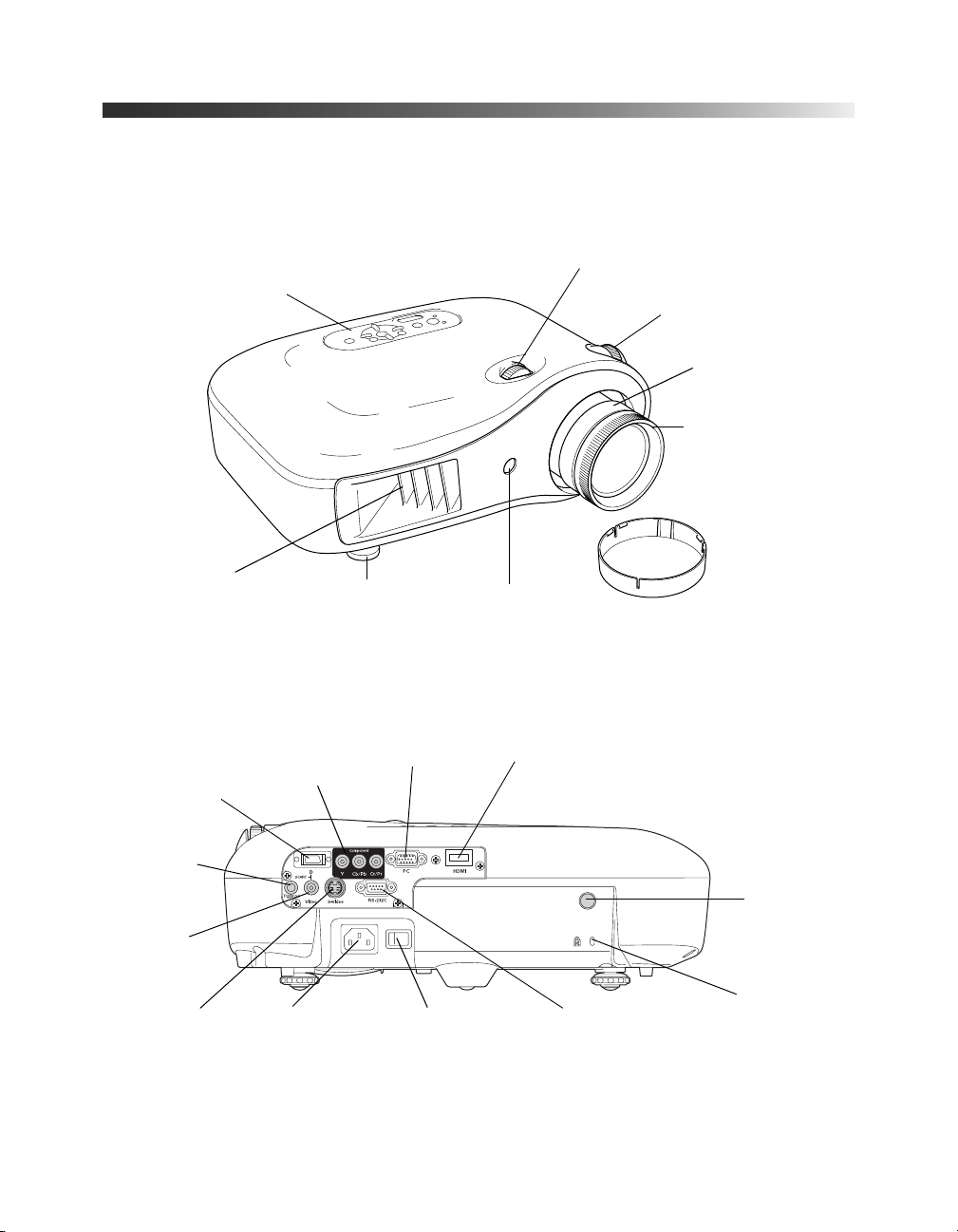

Projector Parts
Control panel
Ventilation slots
Lens cover
Vertical lens shift dial
Adjustable foot
Video port
HDMI port
Component
video ports
AC power inlet
Infrared
receiver
Kensington®
lock port
Infrared receiver
D/SCART port
(used mainly in
Japan)
Horizontal lens shift dial
S-Video port Control (RS-232C) port
Trigger out
port
PC port
Zoom ring
Focus ring
Main power switch
Front
Back

Introduction 9
Power
button
Power
light
Menu navigation
buttons
Source button
Switches the video
input source Esc button
Exits the current
menu item
Menu button
Displays the
menus
Warning
light
Lamp cover Air filter
Mounting bracket connections
Aspect button
Changes the picture’s
aspect ratio
Select button
Selects menu items or
opens the line menu
Bottom
Projector Control Panel

10 Introduction

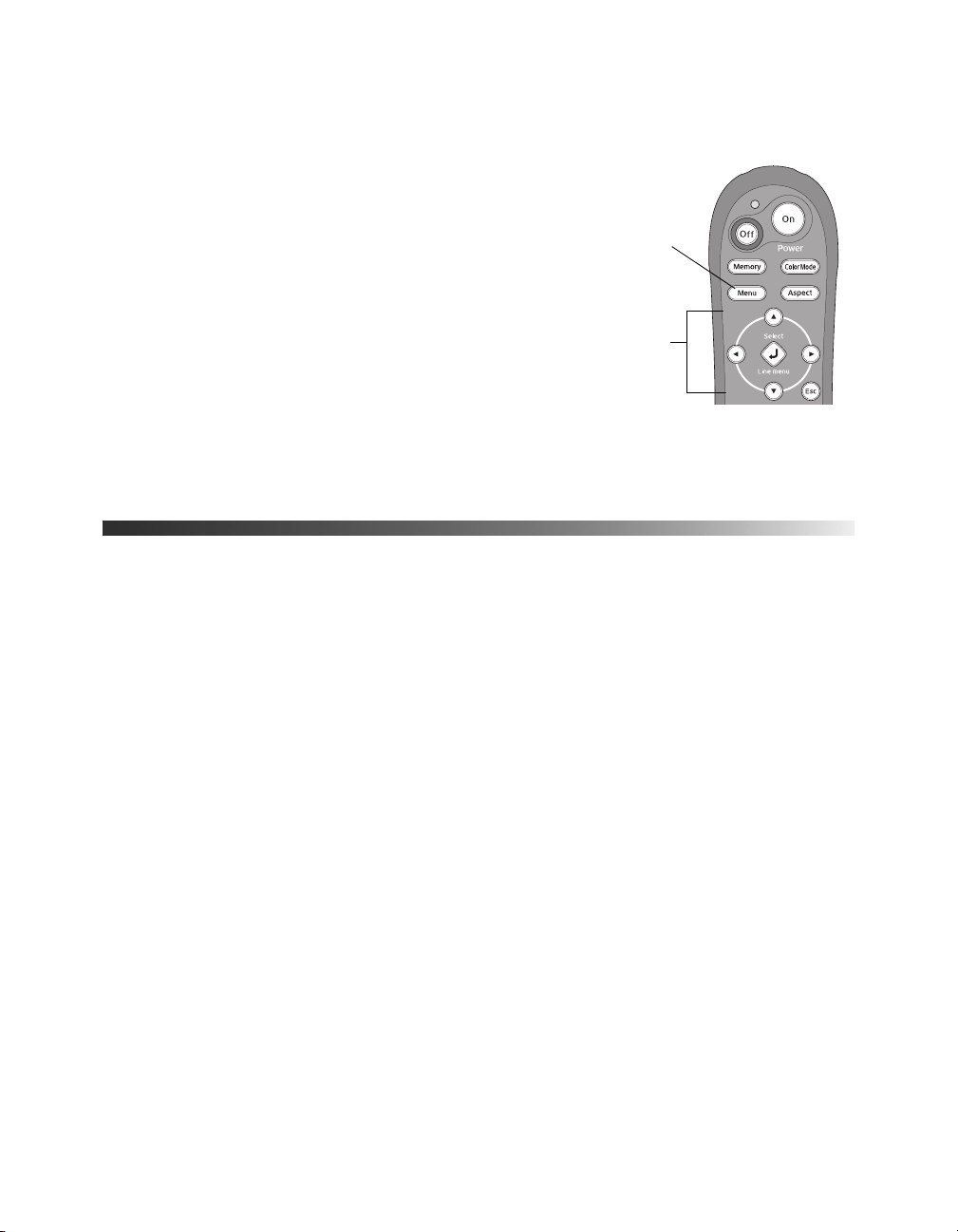

Remote Control Button Map
Source buttons
Switch between equipment
connected to the projector
Color Mode button
Optimizes viewing for
different lighting environments
On and Off
buttons
Memory button
Recalls custom picture settings
Menu navigation
buttons
Pattern button
Displays test patterns
to adjust the image
Menu button
Displays the projector’s menus Aspect button
Changes the picture’s aspect ratio
ESC button
Exits the current menu item
Blank button
Turns off the
screen image
Select/Line menu
Selects menu items or opens
the line menu
Operation light
Lights when you send
remote control commands
Gamma button
Adjusts the gamma values
of the screen display
ColorTemp. button
Changes the color temperature
of the screen display
Contrast button
Changes the contrast of
the screen display
S. Tone button
Adjusts the skin tones of people
appearing in the screen display
Illumination button
Lights the remote control
buttons for easy viewing
Component button

Introduction 11
Optional Accessories
Epson provides the following optional accessories for the projector:
You can purchase accessories from an authorized Epson reseller. To find the nearest
reseller, please call 800-GO-EPSON (800-463-7766). To purchase online, visit
www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
Registration and Warranty
The PowerLite Pro Cinema 1080 comes with a basic two-year carry-in warranty. For details,
see page 71.
In addition, for customers who register their projector, Epson offers free Extra CareSM Home
Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to
be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States or
Canada, usually via overnight delivery. See your Extra Care Home Service brochure for details.
To register, simply fill out the registration card that came with your projector and mail it to
Epson. Or you can register online at www.epson.com/webreg. Registering also lets you
receive special updates on new accessories, products, and service.
Product Part number
Replacement lamp V13H010L39 (ELPLP39)
Air filter replacement V13H134A09 (ELPAF09)
Projector mount ELPHB800
Kensington security lock (anti-theft device) ELPSL01

12 Introduction
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at epson.com/support. Use this site to view FAQs (Frequently Asked Questions) or product
information and e-mail your questions to Epson support.
If you need more help, you can use the Epson PrivateLine®Support service. Call
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.

Setting Up the Projector 13
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choosing a Location

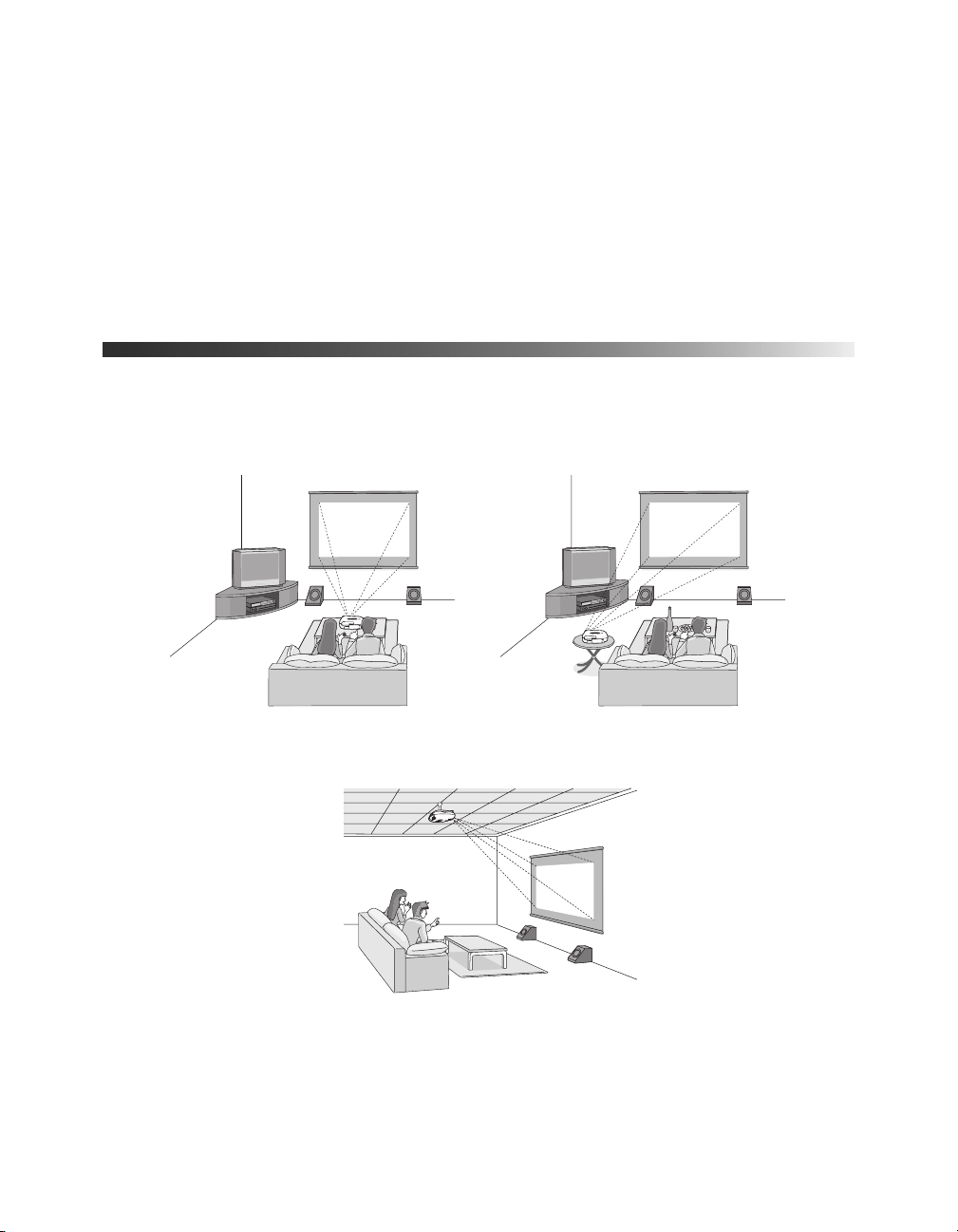

You can install the projector for various viewing setups, as shown below.
Center
Ceiling
Side

14 Setting Up the Projector
Ideally, place the projector at a height where its lens is between the top and bottom of the
screen. That way, you can keep the projector level and use the vertical lens shift dial to
position the image. This produces the best-looking picture.
Try to be as close as possible to the calculated projector position when installing the projector.
Too much lens shift can cause minor reduction in image dimensions. The image display
position cannot be moved to the maximum distance in both the vertical and horizontal
directions. For example, the image cannot be shifted vertically when it has been shifted
horizontally by the full amount. When the image has been shifted vertically by the full
amount, it can be shifted up to 9 percent of the horizontal width of the screen.
If you place the projector off to the side, aim it straight ahead (rather than at the center of the
screen), then use the horizontal lens shift dial to center the image on the screen.
Caution: Do not try to move the lens by hand, or you may damage the projector. Always use the
lens shift dials to change the lens position.
Vertical lens shift dialHorizontal lens shift dial

Setting Up the Projector 15
The maximum size of the image is determined by the distance from the projector’s lens to the
screen. Depending on your display settings and how you use the Zoom ring, the actual size
may be smaller. Use this table as a rough guide for projector placement:
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Projection
Distance Calculator. You can download this program from the Epson website at
epson.com/support.
16:9 aspect ratio
Projection distance
Maximum diagonal image
size (width × height) Offset A to Offset B
Horizontal
Offset
2.8 to 6.2 feet 30 in. (26 × 15 in.) 6.8 to –6.8 in. 0 to 13 in.
3.8 to 8.3 feet 40 in. (35 × 20 in.) 9.1 to –9.1 in. 0 to 17 in.
5.8 to 12.5 feet 60 in. (51 × 28 in.) 13.6 to –13.6 in. 0 to 26 in.
7.8 to 16.7 feet 80 in. (71 × 39 in.) 18.2 to –18.2 in. 0 to 35 in.
9.8 to 20.9 feet 100 in. (87 × 47 in.) 22.7 to –22.7 in. 0 to 44 in.
11.8 to 25.1 feet 120 in. (106 × 59 in.) 27.2 to –27.2 in. 0 to 52 in.
14.7 to 31.4 feet 150 in. (130 × 75 in.) 34 to –34 in. 0 to 65 in.
4:3 aspect ratio
Projection distance
Maximum diagonal image
size (width × height) Offset A to Offset B
Horizontal
Offset
3.5 to 7.6 feet 30 in. (24 × 18 in.) 8.3 to –8.3 in. 0 to 16 in.
4.7 to 10.1 feet 40 in. (32 × 24 in.) 11.1 to –11.1 in. 0 to 21 in.
7.1 to 15.3 feet 60 in. (47 × 35 in.) 16.7 to –16.7 in. 0 to 32 in.
9.6 to 20.4 feet 80 in. (63 × 47 in.) 22.2 to –22.2 in. 0 to 43 in.
12 to 25.5 feet 100 in. (79 × 59 in.) 27.8 to –27.8 in. 0 to 53 in.
14.4 to 30.7 feet 120 in. (94 × 71 in.) 33.3 to –33.3 in. 0 to 64 in.
18 to 38.4 feet 150 in. (118 × 91 in.) 41.7 to –41.7 in. 0 to 80 in.

16 Setting Up the Projector
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block the vents underneath.
■Make sure the projector is within 9.8 feet of a grounded electrical outlet or extension
cord.
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the table on page 15 as a guide to positioning the
projector. Note the following dimensions:
■Distance from the center of the lens to the mounting bracket holes: 2.60 inches (66 mm),
0.35 inch (8.8 mm) maximum vertical lens shift
■Distance from the center of the lens to the center of the projector: 4.33 inches (110 mm),
0.30 inch (7.7 mm) maximum horizontal lens shift

Setting Up the Projector 17
The following illustrations show the dimensions of the projector:
To install, you will need the optional projector mount designed for the projector. See page 11
for ordering information.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
Follow the instructions included with the mount to install the projector, which weighs
12.3 pounds. The wall or ceiling where you install it must be capable of supporting a weight
of 85.6 pounds.
5.63 in.
4.33 in.
15.98 in.
5.18 in.
2.60
in.
4.88
in.
0.75 in.
3.04 in.
11.81 in. 2.08 in.
6.30 in.
12.20 in.

18 Setting Up the Projector
In addition to the tools supplied with the projector mount, you will need a Phillips head
screwdriver and a drill to use on the wall or ceiling.
If you install the projector on the ceiling, you will need to
invert the picture so that it appears right side up. Follow
these steps:
1. Press the Menu button on the remote control.
2. Press the menu navigation buttons to open the
Settings menu, then select Projection.
3. Use the navigation buttons to select Front/Ceiling.
4. Press the Menu button when done.
If you are planning to use an AV controller with the projector,
refer to the table of ESC/VP21 command codes on page 65.
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to any type of video equipment, such as a VCR, DVD player,
digital tuner, cable or satellite box, video game console, camcorder, or digital camera. You can
also connect it to a desktop or laptop PC or Apple®Macintosh®system.
Menu
button
Menu
navigation
buttons

Setting Up the Projector 19
You can connect up to five pieces of video equipment at the same time, using any of the
commercially available cables shown below:
* For details on compatible video formats, see page 63.
Port name Video equipment connection* Computer connection*
HDMI Use an HDMI cable:
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports.
—
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
S-Video Use an S-video cable: —
Video Use an RCA video cable: —
Component
video ports
RGB port

20 Setting Up the Projector
For best results, connect your video equipment to the HDMI (High-Definition Multimedia
Interface) port, if possible. If your equipment doesn’t support HDMI, connect it to one of the
following ports (highest quality listed first): Component (for component video), S-Video, or
Video (for composite video).
If you connect to the Component port, be sure to select the correct Input Signal setting for
your equipment, or the image may not display properly (see page 23).
Making Other Connections
Connect the power cable and other cables described below, depending on how you plan to
use the projector.
■Plug the power cable into the projector and a grounded electrical outlet.
Connect video equipment to one
of these ports
Connect a computer to one
of these ports
