Epson V11H283020 User manual

Proven performance. Smart choice.
• Rich, full-time color — advanced 3LCD, 3-chip
optical engine
• HD-compatible — native SVGA resolution, up to
1400 x 1050
• Super bright and colorful — 2200 lumens color,
2200 lumens white light
• Easy picture adjustment — ultra exible keystone
correction and digital zoom
• Plug 'n Project™setup — no hassle, one-step
connect and project with USB
• Quick, convenient control — Sleep Mode,
Instant Off®/On, Direct Power On/Off
• Flexibility without added costs — included
carrying case and component video adapter
• Ultra long life — up to 4000-hour lamp life,
low power consumption
Product Name Product Code UPC
EX30 projector (U.S.) V11H283020 0 10343 86966 0
EX30 projector (Canada) V11H283020-F 0 10343 87140 3
Replacement lamp V13H010L41 0 10343 86410 8
Replacement air filter V13H134A13 0 10343 86412 2
Key Dates
Launch Kit September 5, 2008
Announce September 29, 2008
Product Ship September 19, 2008
Ad Embargo October 12, 2008
Multimedia Projector
EX30
Product Preview

Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specifications and terms are subject to change without notice. Epson and Instant Off are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered
trademark, Duet and Plug 'n Project are trademarks and Epson Connection is a service mark of Epson America, Inc. All other product and brand names are trademarks and/or registered trademarks of their respective
companies. Epson disclaims any and all rights in these marks. Copyright 2008 Epson America, Inc. CPD-26368 7/08 PDF
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
SPECIFICATIONS
Projection System
Epson 3LCD, 3-chip technology
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
480,000 dots (800 x 600) x 3
White Light Output**
Up to 2200 lumens (ISO 21118 Standard)
Color Light Output**
Up to 2200 lumens
Aspect Ratio
4:3
Native Resolution
800 x 600 (SVGA)
Resize
640 x 480 (VGA), 1024 x 768 (XGA),
1152 x 864 (SXGA), 1280 x 800 (WXGA),
1440 x 900 (WSXGA), 1400 x 1050 (SXGA+)
Lamp Type
170 W UHE
Lamp Life*
Up to 4000 hours (Low Light Output Mode)
Up to 3000 hours (High Light Output Mode)
Throw Ratio Range
1.5 – 2.0
Size (projected distance)
30" – 350" (0.87 – 10.5 m)
Keystone Correction Manual
Vertical: ±30 degrees
Contrast Ratio
Up to 2000:1
Color Reproduction
16.77 million colors
PROJECTION LENS
Type
Digital zoom/Manual focus
F-number
1.44
Focal Length
16.6 mm
Zoom Ratio
Digital zoom 1.0 – 1.35
OTHER
Display Performance
NTSC: 560 lines
PAL: 560 line
(Depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/
PAL60/SECAM
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type B x 1
Monitor out: D-sub 15 pin x 1
Speaker
1 W (Mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
246 W, 3 W standby
Fan Noise
35 dB (High Light Output Mode)
28 dB (Low Light Output Mode)
Security
Kensington®-style lock provision,
Password protect function
DIMENSIONS (W X D X H)
Including feet: 12.9" x 9.6" x 4.0"
Excluding feet: 12.9" x 9.6" x 3.6"
Weight: 6.0 lb/2.7 kg
REMOTE CONTROL
Features
Source search selection, power, volume,
e-zoom, A/V mute, freeze, menu, page up
and down, help, auto, mouse functions,
Operating Angle
Right/left: ± 30 degrees
Upper/lower: ± 15 degrees
Operating Distance
19' (6 m)
SUPPORT — THE EPSON CONNECTIONSM
Pre-sales support
U.S. and Canada 800-463-7766
Internet website www.epson.com
Service Programs
Two-year projector limited warranty, Epson
Road Service program, Epson PrivateLine®
dedicated toll-free support and 90-day lamp
warranty
Contents
Power cable, computer cable (VGA),
USB cable, component video adapter, soft
carrying case, projector remote control,
batteries, user manual CD, Quick Setup
Sheet, PrivateLine support card, registration
card and password protection sticker
ACCESSORY PART NUMBERS
Universal projector
ceiling mount ELPMBPJF
Component to VGA video cable ELPKC19
S-video cable ELPSV01
Swiss Gear®backpack ELPKS63
Wheeled soft case ELPKS62
Soft shoulder case for
projector and laptop ELPKS61
Molded hardshell case ELPKS58
50" portable screen ELPSC06
60" portable pop-up screen ELPSC07
80" portable pop-up screen ELPSC08
Duet™screen ELPSC80
Epson DC-10s document camera ELPDC10S
Kensington security lock ELPSL01
PACKAGING SPECIFICATIONS
EX30
Dimensions 16.8" x 14.9" x 7.2" (W x D x H)
Weight 11.7 lb
Replacement Lamp
Dimensions 6.3" x 5.5" x 5.6" (W x D x H)
Weight 0.7 lb
Master Carton
Dimensions 28.4" x 13.1" x 6.8" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
Replacement Air Filter
Dimensions 3.9" x 1.2" x 4.9" (W x D x H)
Weight 0.88 lb
Master Carton
Dimensions 12.8" x 5.3" x 4.7" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
S-video Computer/Component Video
USB (Type B)

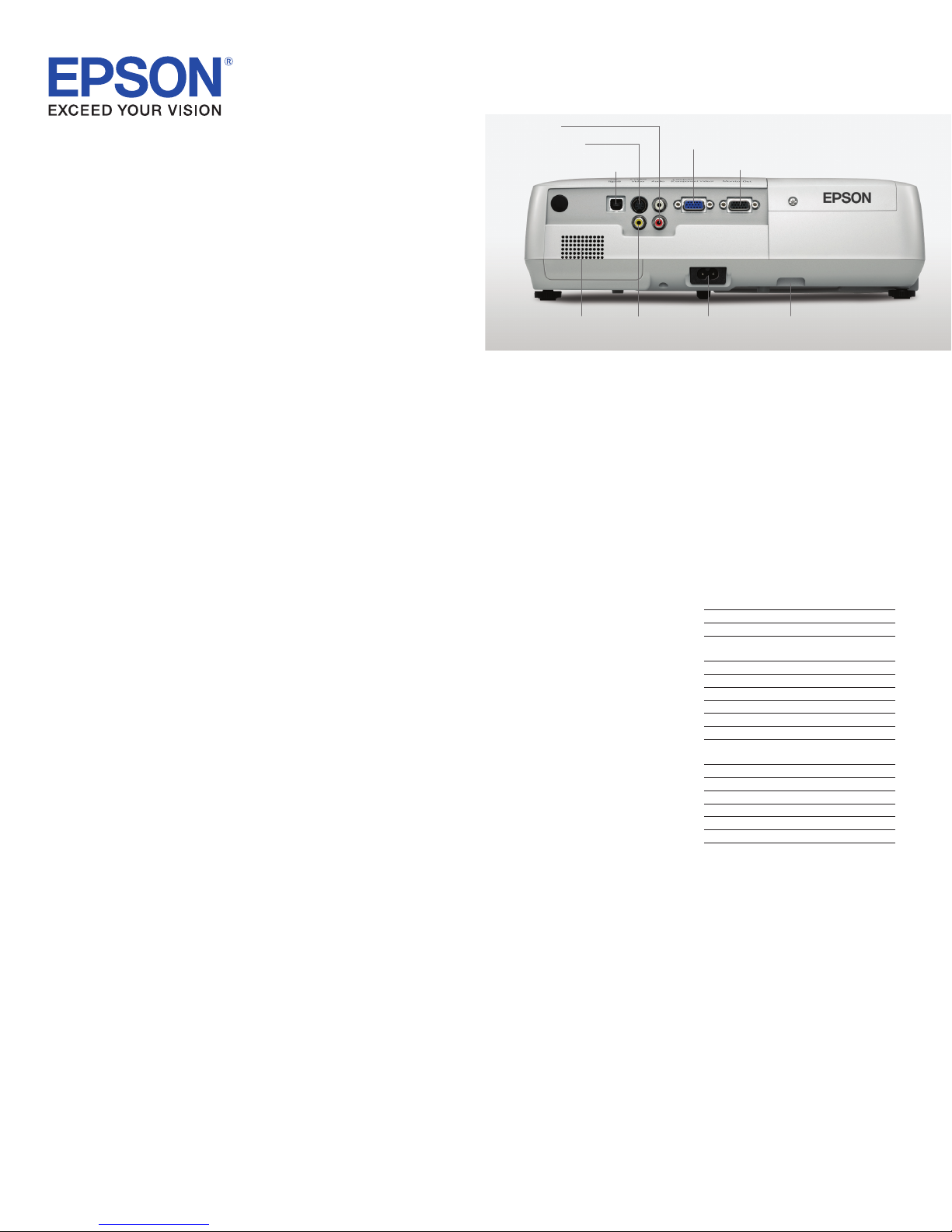

BACK PANEL
* Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
** Light output varies depending upon modes (color and white light output).
Monitor Out
Audio L/R
Composite
Video
PowerSpeaker Anchor
Bar
