QuadroCS Manual II: Administrator's Guide
QuadroCS (SW Version 3.0.x)
Edition 1, SW Release 3.0.9 and higher, August 2005

QuadroCS Manual II: Administrator's Guide
QuadroCS (SW Version 3.0.x)
Table of Contents
Manual I: see Installation Guide
Offers a Step-by-step guide to install and configure Quadro Conference Server basically.
Manual II: Administrator's Guide
About this Administrator's Guide ............................................................................................3
QuadroCS's Graphical Interface ..............................................................................................4
Administrator’s Main Page.................................................................................................................. 4
Recurrent Buttons .............................................................................................................................. 5
Recurrent Functional Buttons of the GUI ............................................................................................ 5
Entering a SIP Addresses correctly..................................................................................................... 5
Administrator’s Menus ............................................................................................................6
System Menu ...................................................................................................................................... 6
System Configuration Wizard ..................................................................................................................................6
Status ..................................................................................................................................................................8
General Information........................................................................................................................................ 8
Network Status .............................................................................................................................................. 9
Memory Status..............................................................................................................................................11
Hardware Status ...........................................................................................................................................11
SIP Registration Status ..................................................................................................................................11

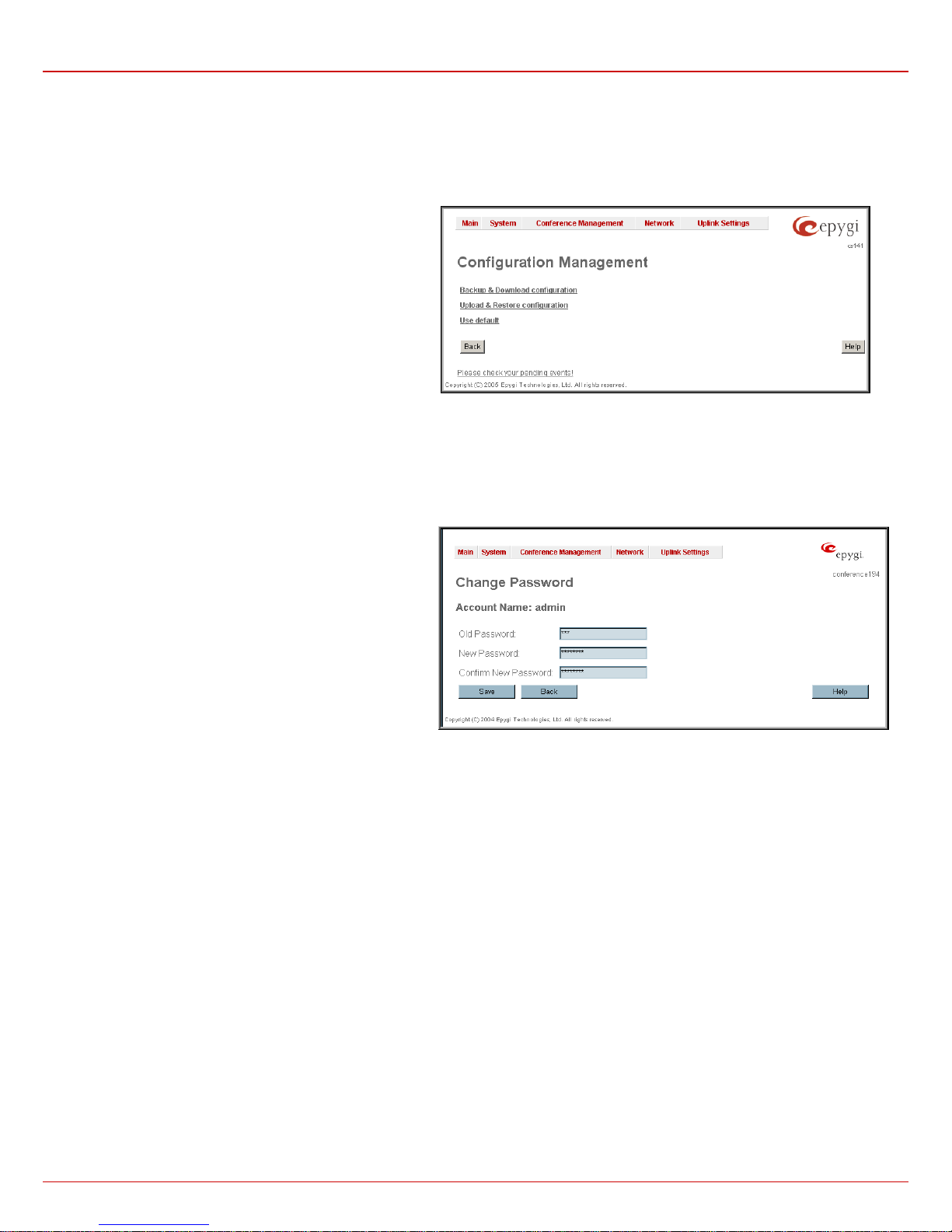

Configuration Management ...................................................................................................................................12
Change Password.................................................................................................................................................12
Events................................................................................................................................................................13
Time/Date Settings ..............................................................................................................................................15

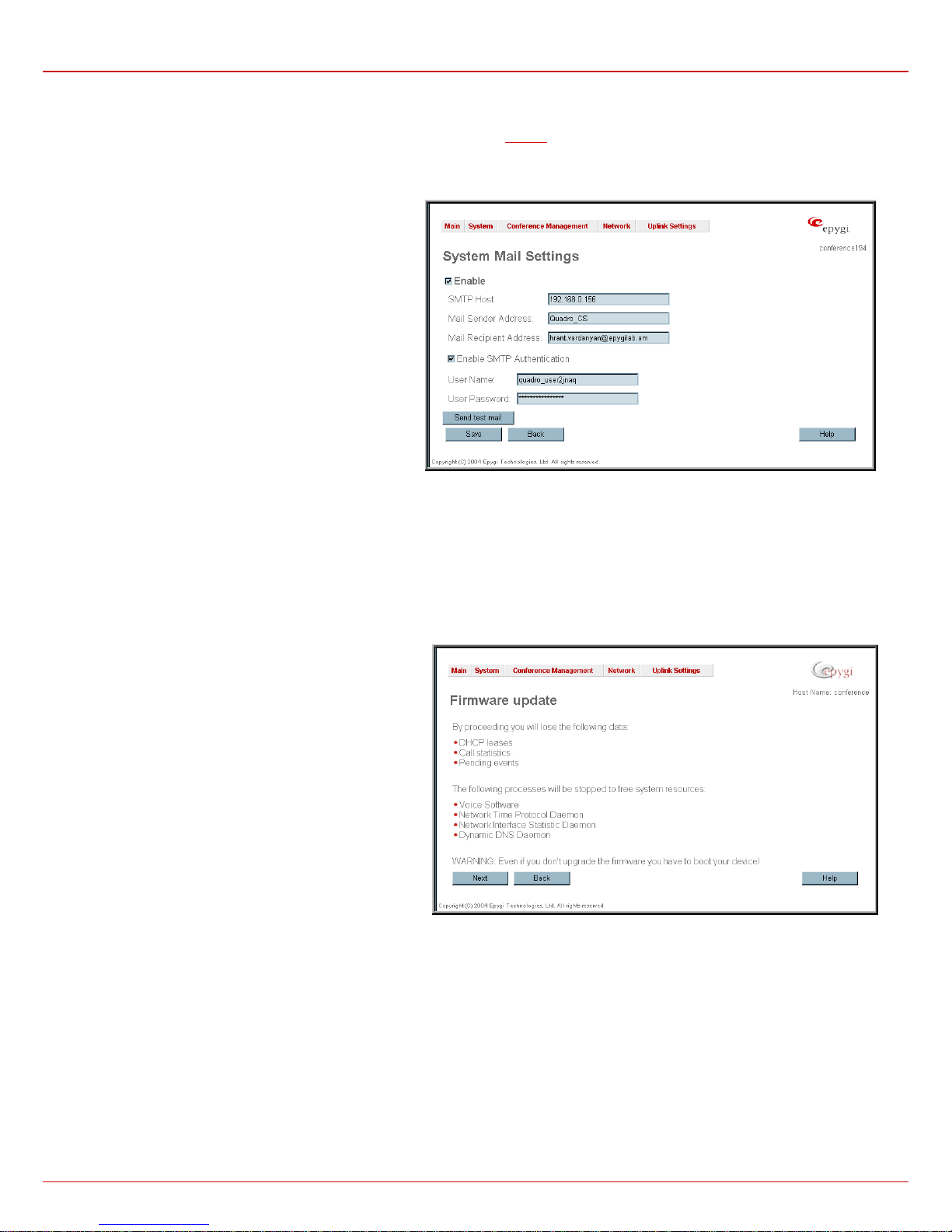

Mail Settings .......................................................................................................................................................16
Firmware Update .................................................................................................................................................16

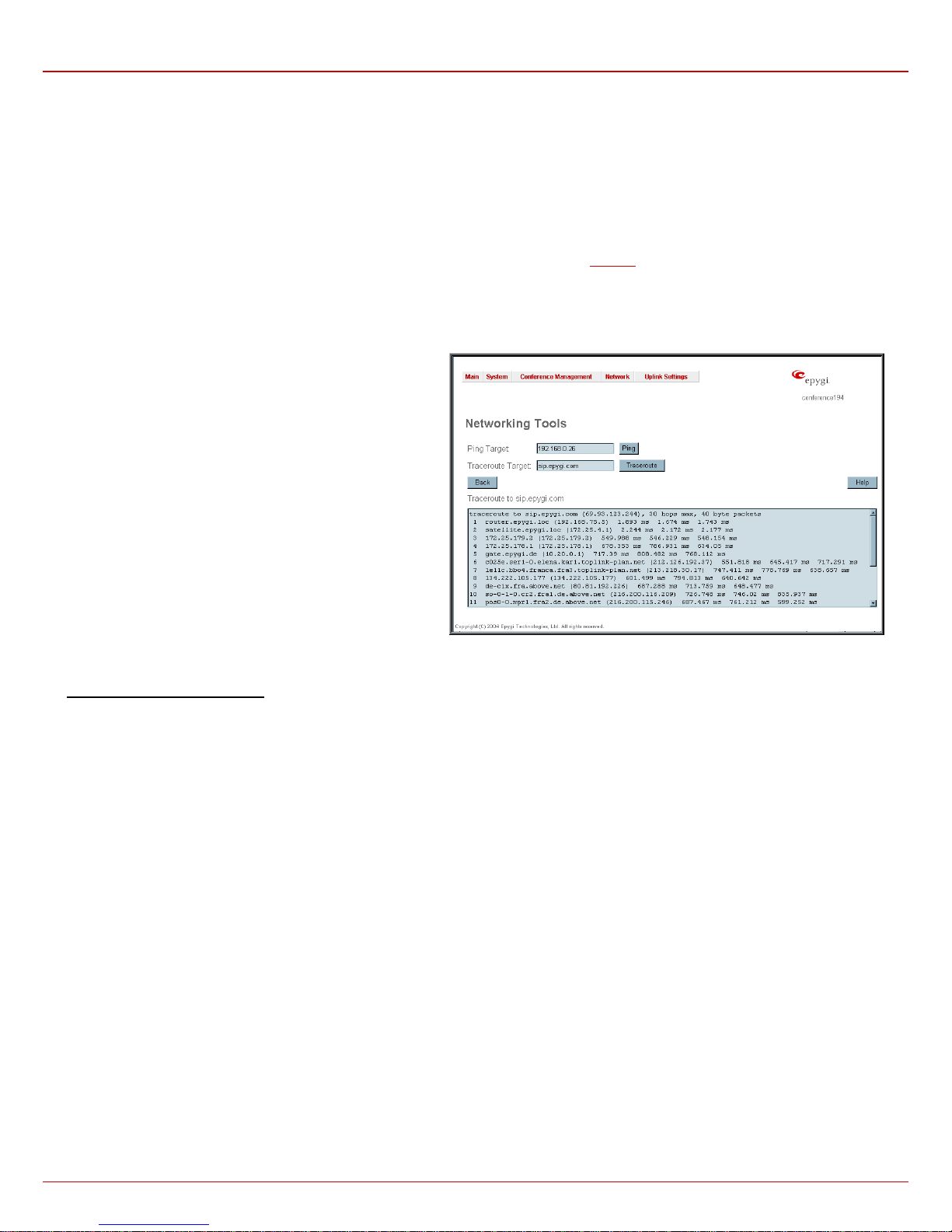

Networking Tools.................................................................................................................................................18
Diagnostics .........................................................................................................................................................19
Upload Language Pack..........................................................................................................................................19
Conference Management Menu......................................................................................................... 20
Conferences........................................................................................................................................................20
Conference Codecs ........................................................................................................................................24
SIP Settings........................................................................................................................................................25
RTP Settings .......................................................................................................................................................26
NAT Traversal Settings .........................................................................................................................................28
Statistics ............................................................................................................................................................31
Call Routing Table................................................................................................................................................33
Recording Common Settings .................................................................................................................................36
Mail Default Settings ............................................................................................................................................37
Network Menu .................................................................................................................................. 38
DNS Settings.......................................................................................................................................................38
DHCP Settings.....................................................................................................................................................38
Uplink Settings Menu........................................................................................................................ 39
Firewall ..............................................................................................................................................................40
Advanced Firewall Settings .............................................................................................................................40
Filtering Rules .....................................................................................................................................................41
Service Pool..................................................................................................................................................43
IP Pool .........................................................................................................................................................44
Dynamic DNS Settings..........................................................................................................................................46
Registration Form............................................................................................................................. 47
Logout .............................................................................................................................................. 47
Appendix: System Default Values..........................................................................................48
Appendix: Software License Agreement................................................................................50
Manual III: see Extension User's Guide
Explains all menus that can be accessed and configured by the conference users within the QuadroCS. Further, a list of all
available conference codes can be found there.

QuadroCS Manual II: Administrator's Guide About this Administrator's Guide
QuadroCS (SW Version 3.0.x) 3
About this Administrator's Guide
The QuadroCS Manual is divided into three parts:
• Manual I: Installation Guide gives step-by-step instructions to provision the Quadro Conference Server and configure the conferences with the
Epygi SIP Server. After successfully configuring the Quadro, users will be able to automatically or manually initiate the call conferences between
several IP peers, deal with the active conferences and record them if needed.
• Manual II: Administrator's Guide that explains all QuadroCS management menus available for administrators only. Further it includes a list of
all System Default Values.
• Manual III: Conference User's Guide explains all menus that can be accessed and configured by the conference users within the QuadroCS.
Further a list of all available call codes can be found here.
QuadroCS's Graphical Interface introduces to the QuadroCS's graphical user interface and explains all recurrent buttons.
Administrator’s Menus explains each of the Administrator's management pages according to the menu structure shown on the main page of the
Quadro management.
Appendix: System Default Values lists all factory defaults.
Appendix: Software License Agreement includes the contract for using QuadroCS's hardware and software.

QuadroCS Manual II: Administrator's Guide QuadroCS's Graphical Interface
QuadroCS (SW Version 3.0.x) 4
QuadroCS's Graphical Interface
Administrator’s Main Page
After logging in as an administrator, the QuadroCS Management page is displayed. Here the administrator may access the following settings and
perform the following actions:
1. System Menu
• System Configuration Wizard
• Status
• Configuration Management
• Change Password
• Events
• Time/Date Settings
• Mail Settings
• Firmware Update
• Networking Tools
• Diagnostics
• Upload Language Pack
2. Conference Management Menu
• Conferences
• SIP Settings
• RTP Settings
• NAT Traversal Settings
• Statistics
• Call Routing Table
• Recording Common Settings
• Mail Default Settings
3. Network Menu
• DNS Settings
• DHCP Settings
4. Uplink Settings Menu
• Firewall
• Filtering Rules
• Dynamic DNS Settings

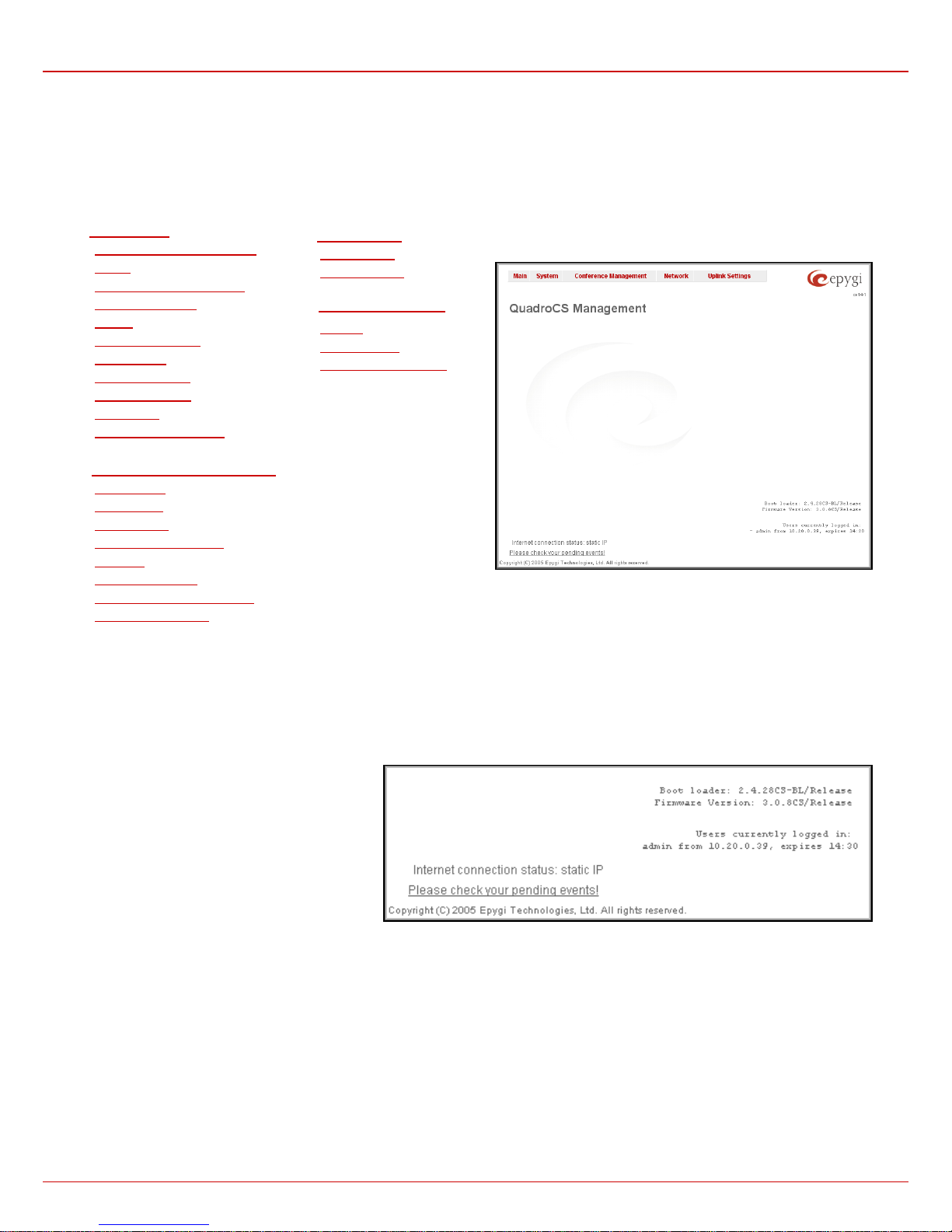

Fig. II-1: Quadro Conference Server Administrator’s page
The functional button Renew Wan IP Address appears on the administrator’s main page Quadro Conference Server Management if the Quadro
Conference Server acts as a client to a DHCP server. The button Renew WAN IP Address is used to get a new WAN IP address, i.e., the Quadro
Conference Server moves to another network.
The button Please Check Your Pending Events will be displayed on the administrator’s main menu page if any new system events exist. The link
leads to the page where these new system events are listed.
The current version of the QuadroCS's firmware and
of its boot loader is shown in the lower right corner of
the administrator’s main menu, followed by the list of
Users currently logged into the system. Information
about the IP address users accessed QuadroCS from,
the username of the logged-in user and the time until
the next automatic logout is provided here. The idle
session timeout is set to 20 minutes. If no action is
done during that time, the user automatically will be
moved to the login page and will be requested to login
again.
The Refresh link is on some pages in the lower right corner beside the field displaying the number of seconds left until the next refresh and is used
to perform a manual reload of the page.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 5
Recurrent Buttons
Button Description Button Description
This button leads back to the previous page of
a fixed sequence of pages (used mainly in
wizards).
This button leads back to the page you have been on
before.
This button leads onward to the next page of a
fixed sequence of pages (used mainly in
wizards).
This button confirms an operation you started before.
This button discards the latest, not yet
confirmed entries. This button confirms an operation you chose before.
This is the last button of a fixed sequence of
pages that completes and saves the entries of
the whole sequence. This button discards an operation you chose before.
This button has the same function like the "?"
in the left button bar. It opens the help page
belonging to the currently active QuadroCS
management page.
This button saves the settings modified on the
currently active management page.
This button opens a window where the last inserted IP
addresses are listed. It is a clipboard that helps the
user to make quick selection of an IP address in case it
has been already used in the past, thus to avoid typing
it again. The clipboard can hold up to 10 IP addresses,
a new IP address will replace the oldest one from the
list.
Recurrent Functional Buttons of the GUI
In connection with tables, the following buttons - among others - usually occur:
Functional Button Description
Add Allows adding a new record to the displayed table. A new page will be displayed to enter the new settings.
Edit Allows modifying the settings of the record selected by its checkbox. Normally only one record may be selected. A new
page will be displayed to enter the modified settings.
Delete Deletes the selected entry(s) of a table. A warning message will demand a confirmation before deleting an existing entry.
Select All Selects all table entry(s) for example for further deletion.
Inverse Selection Inverts an existing selection of table entry(s). If no entries are selected, clicking the button will select all records.
Refresh in... May occur in the lower right corner of a page. It displays the number of seconds remaining until the next refresh of the
page and may be used to reload the page manually.
Most of the tables offer the option to sort the entries in ascending or descending order by clicking the headings of the columns. A small arrow beside
the column heading will show the direction of sorting – upward or downward.
The entries of the table can be selected by the assigned checkboxes - one at a time, for the most part - in order to edit or delete them.
Entering a SIP Addresses correctly
Calls over IP are implemented based on Session Initiation Protocol (SIP) on the QuadroCS. When making a call to a destination that is somewhere
on the Internet, SIP address must be given.
SIP addresses have to be specified in one of the following formats:
“display name” <username@ipaddress:port>
“display name” <username@ipaddress>
username@ipaddress:port
username@ipaddress
username
The display name and the port number are optional parameters in the SIP address. If the port is not specified, 5060 will be set up as the default one.
The range of valid ports is between 1024 and 65536.
A flexible structure of wildcards is allowed. In comparison with a wildcard, the “?” character stands for only one unknown digit and the “*” character
stands for any number of any digits.
Particularly the following combinations can be used for your convenience:
- *@ipaddress - any user from the specified SIP server.
- username@* - a specified user from any SIP server.
- *@* - any user from any SIP server.
Please Note: Wildcards are available for caller addresses
only. No wildcard characters are allowed for called party
addresses. To use “*” and “?” themselves (as non wildcard
characters), use “\*” and “\?” correspondingly

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 6
Administrator’s Menus
System Menu

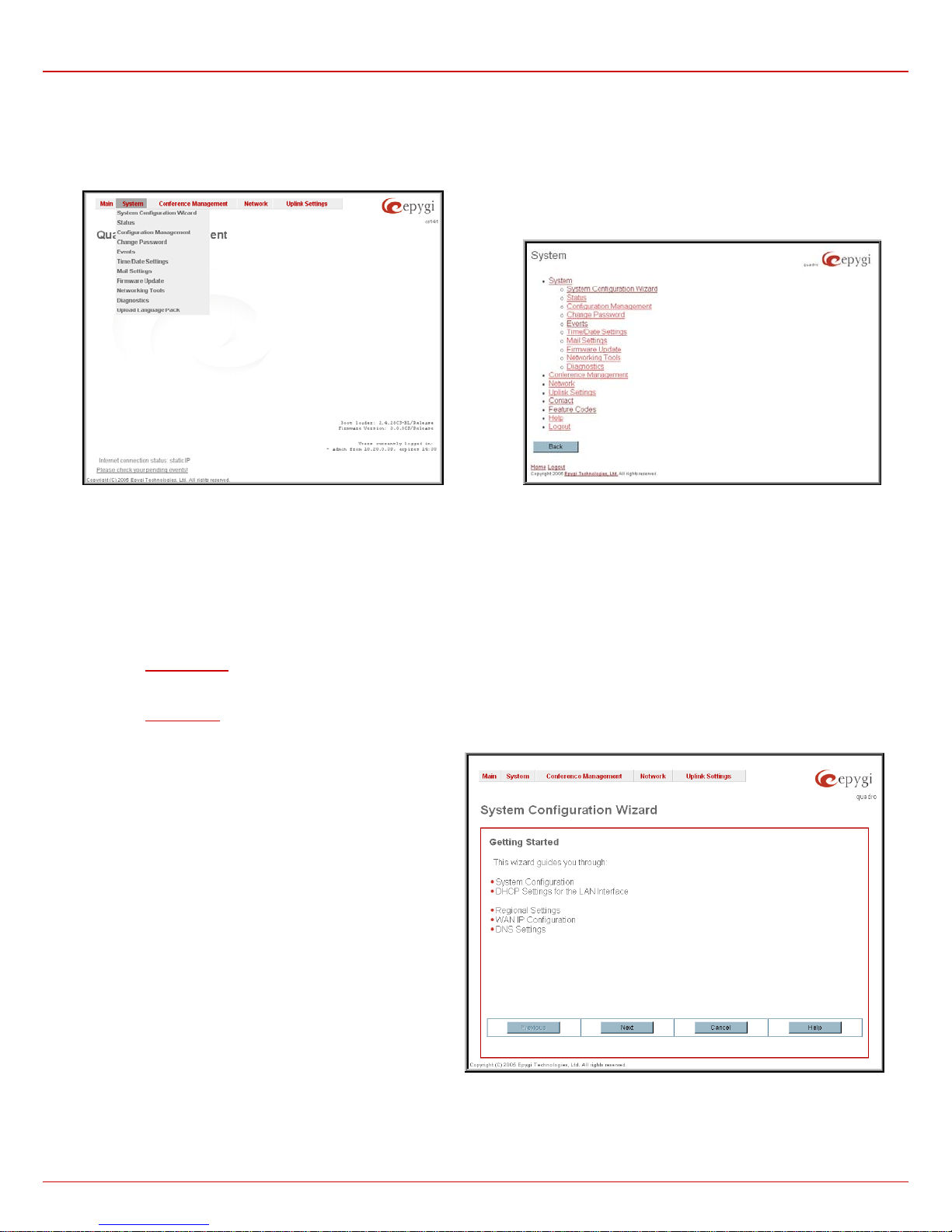

Fig. II-2: QuadroCS Management page Fig. II-3: QuadroCS Management tree
System Configuration Wizard
The System Configuration Wizard is a helpful tool for the administrator to define the Quadro Conference Server’s LAN and WAN settings, to
specify regional configuration settings and to make the Quadro operational in the global network. The System Configuration Wizard MUST be run
upon the first startup of the Quadro Conference Server. The Wizard navigates through the following basic configuration parameters and settings:
• LAN Settings
• DHCP Settings
• Regional Settings
• WAN Settings
• DNS Settings
For a step-by-step guide of different applications of the QuadroCS, refer to the Manual I - Installation Guide:
LAN DHCP Settings and DNS Settings are described in the chapters
below while LAN And WAN configuration settings and regional
settings will be described in this chapter.
Please Note: It is strongly recommended that factory default
settings are left unchanged if their meanings are not fully clear
to the administrator.
Fig.0-4: System Configuration Wizard – start page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 7
The LAN Settings page contains information about the
Quadro host name, its IP address and the subnet mask on
the LAN side. These settings make the Quadro available to
the internal network.
The System Configuration page contains of the following
components:
Host Name requires a host name for the Quadro device.
IP Address requires the Quadro host address for the LAN
interface.
Subnet Mask requires Quadro host subnet mask.
Fig.0-5: System Configuration Wizard – System Configuration page
The Regional Settings are used to select settings specific to
the location of the Quadro. This is important for the
functionality of the voice subsystem.
The Regional Settings page consists of two drop down lists
to select the Location (country) and a corresponding
Timezone and a manipulation radio button group to choose
the GUI theme of the web based configuration pages.
Fig. 1-5 System Configuration Wizard – Regional Settings page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 8
The WAN Settings page contains of the following
components:
The Assign automatically via DHCP radio button selection
switches to automatic retrieval of the WAN IP address from a
DHCP server at the ISP/uplink.
Please Note: DHCP referred to here is the one running on
the provider’s side and not the QuadroCS’s personal DHCP
server.
The Assign Manually radio button switches to the manual
adjustment of IP settings. This selection requests the
following parameters:
IP Address requires the IP address for the Quadro WAN
interface.
Subnet Mask requires the subnet mask for the Quadro
device WAN interface.
Default Gateway requires the IP address of the router all
packets are sent to, for example the IP address of the
provider's router.
Fig.0-6: System Configuration Wizard – WAN IP Configuration page
Status
The system status window displays non-editable tables providing extensive status information about QuadroCS: General Information, Network
Status, Memory Status and SIP Registration Status. The links on this page lead to device transfer statistics, user mailboxes and supplementary
services configuration pages.
The System Status page consists of several tables providing system information.
General Information
The General Information table includes the following
information:
The Uptime duration since QuadroCS's last reboot.
The Device Hostname of QuadroCS.
The Conference Server Operating System version.
The Application Software shows QuadroCS's software and
file system versions.
The Boot Loader version.
The DSP Software version and the date of build.
Fig. II-7: Quadro Status – General Information page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 9
Network Status
The Network Status table includes the following information
about Interfaces:
The Interface Name of the LAN and WAN interfaces
available on the QuadroCS
The IP Address corresponding to each network interface.
The Subnet Mask corresponding to each network interface.
The Mac Address corresponding to each network interface.
Monitor includes links to survey LAN and WAN traffic
correspondingly. The selection of these links will open a new
window with a table of network traffic statistics on the selected
interface:
• Received Bytes
• Received Packets
• Received Errors
• Received Drop Errors
• Received Overrun Errors
• Received MultiCast
Packets
• Transmitted Bytes
• Transmitted Packets
• Transmitted Errors
• Transmitted Drop Errors
• Transmitted Carrier Errors
• Transmitted Collisions
Fig. II-8: QuadroCS Status Network Status page
When opening the corresponding Interface statistics window, at first, no traffic values are displayed. Then, every one minute, traffic statistics will be
updated. These tables serve as a kind of counter.
DNS Server, Alternative DNS Server and Default Gateway - displays the QuadroCS settings corresponding to what has been configured by the
System Configuration Wizard.
Services (NTP Server and Client, DHCP Server and Client, DNS and Firewall) Status: stopped or running.
Transfer Statistics – link to the Transfer Statistics page.
The Transfer Statistics page allows the administrator to
compose a user defined statistic table depending on the
transmit/receive value (criteria), interface type and time
period. It contains the following components:
Time Range of statistic table - the drop down list includes
the periods (days) while statistics data is to be collected and
corresponding diagram charts are to be built.
Interface - the drop down list offer the values:
WAN: Wide Area Network (WAN) events only,
LAN: Local Area Network (LAN) events only.
Fig. II-9: Transfer Statistics page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 10
The area Receive Values displays the number of the
following values:
Received Bytes
Received Ethernet Packets
Received packets containing Errors
Received Drop Errors (packets that have been discarded)
Received Overrun Errors that occur when the receive
buffer is not large enough to hold all incoming packets. This
error mostly appears because of a slow receiving system
Received MultiCast Packets.
The area Transmit Values displays the number of the
following values:
Transmitted Bytes
Transmitted Ethernet Packets
Transmitted packets containing Errors
Transmitted Drop Errors (Packets that have been
discarded.)
Transmitted Carrier Errors that occur because of a
defective or lost connection on the Ethernet link
Transmitted Collisions (Transfer errors that occurred
during a simultaneous packet transmission from both sides.)
Fig. II-10: Transfer Statistics Diagram Chart
To show the Transfer Statistics Diagram Charts, select the desired criteria and click Save to create the corresponding chart.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 11

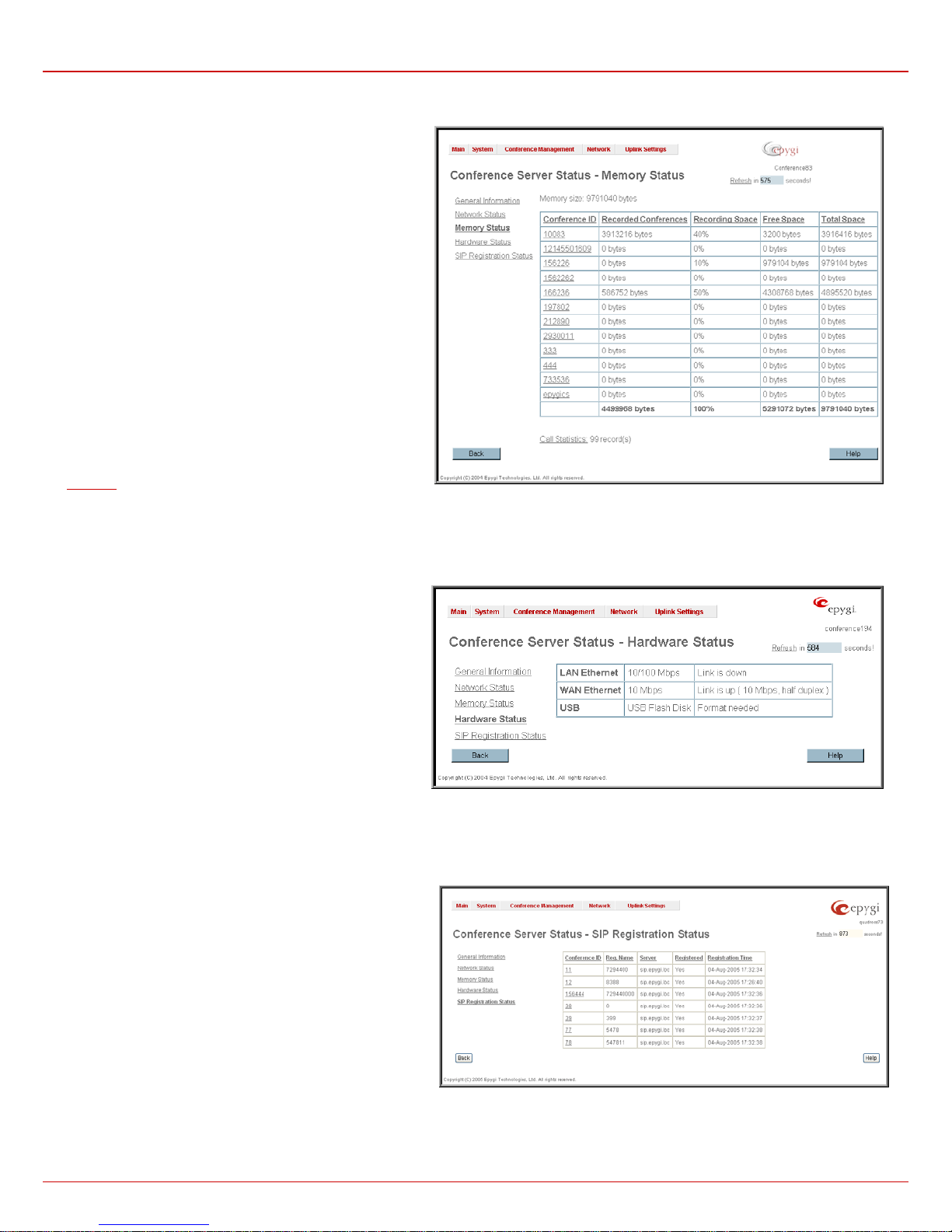

Memory Status
The Memory Status page includes a table with the available
User Space information shown separately for each conference.
The table displays the space occupied by the recording
referring to the conferences and the free and total recording
spaces (counted in minutes/seconds) for every conference. The
page includes the following information:
Memory Size shows the total memory space (counted in
minutes/seconds) available on the QuadroCS and assigned to
all the conferences.
Call Statistic shows the current number of entries in the
Statistics and links to it.
Fig.0-11 Memory Status page
Hardware Status
The Hardware Status table displays a list of the hardware
devices present and currently available on the QuadroCS's
board. The hardware device version number and additional
comments about its state are indicated here.
Fig. II-12: Hardware Status page
SIP Registration Status
The SIP registration Status is a table displaying the SIP
registration status of the conferences on the QuadroCS. The
table lists all those conferences that have SIP registration
enabled, as well as conferences ID and registration name,
information about SIP registration states (Yes or No), addresses
of SIP servers where they are registered (if so), registration date
and time.
By clicking on the row heading, the table will be sorted by the
selected column. Upon sorting (ascending or descending)
arrows will be displayed close to the column heading.
Fig. II-13: SIP Registration Status page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 12
Configuration Management
The Configuration Management allows the administrator to manage the system configuration settings, i.e., to backup and download them to a PC
and then to upload and restore back to the QuadroCS. Additionally this page gives a possibility to restore the factory default configuration settings.
The Backup & Download configuration link creates a backup
file with all the configuration settings and opens a file chooser
window for immediate download to the user PC.
The Upload & Restore configuration link opens a page with
the Browse button (that opens a file chooser to select a backed
up file) and a Configuration to Upload field requiring the file
path to upload and immediately restore the configuration.
Pressing Save will restore the selected backup file, erase all
recorded conferences and replace all configuration settings.
The Use Default functional button resets all configuration
settings and restores the board’s factory default configuration.
By restoring the default configuration you will replace your
current one, lose all recorded conferences and reboot the
device. You will not be automatically redirected to the GUI start
page. After the successful reboot you need to enter the
QuadroCS's management and login again to access the
QuadroCS's configuration. A warning message will ask you to
confirm your selection before restoring the default configuration.
Fig. II-14: Configuration Management. page
Change Password
The Change Password page provides information about the administrator account name and allows changing of the administrator password.
It contains the following components:
Old Password is where the current administrator password
needs to be entered. If the old password is inserted here
incorrectly, “Old Password is incorrect” error message is
displayed.
New Password is used to change the administrator's password;
the new password must be entered in this field.
Confirm New Password is used to verify the new password. If
the entered New Password does not correspond to the one in
the Confirm Password field, “The passwords do not match.
Please try again” error message is displayed.
Please Note: When reloading a former configuration, the admin
password specified here is still valid, as the admin password is
not saved with the configuration. Fig. II-15: Change Password page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 13
Events
The Events page consists of two tables and displays all system events that have occurred in one table and event settings in the other.
The System Events page may be accessed with Events link
from the main menu. It lists information about system events
that have occurred on QuadroCS. When a new event takes
place, a record is added to the System Event table and a
warning “Please check your pending events!” appears at the
bottom of all management pages.
The system events and the warning message are visible only for
the administrator. The warning link (that leads directly to the
System Events page) will disappear from the management
pages if the administrator has marked all new events as read.
Fig. II-16: Event warning on the main menu page
The System Events table is the list of new and read system
events. The table shows the Status of the event (new or read)
as well as the name of the application the event refers to, event
description, and the date when the event was received. For
example, if the event has occurred due to incorrect mail sending
or SIP registration, corresponding links will be seen in the
Reference column of the table. There the administrator can
view the detailed log for the event that has occurred.
The System Events page contains the following components:
Current System Time displays the local date and time on
Quadro.
Mark all as read marks all newly occurred events as read.
Disable LED switches off the Quadro’s Info LED flashing until a
new event will take place. An LED notification may appear
depending on the notification type given in the Events page
whenever a new event occurred.
Fig. II-17: System Events list

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 14
Numerous circumstances may cause a certain application on
QuadroCS to flag an event.

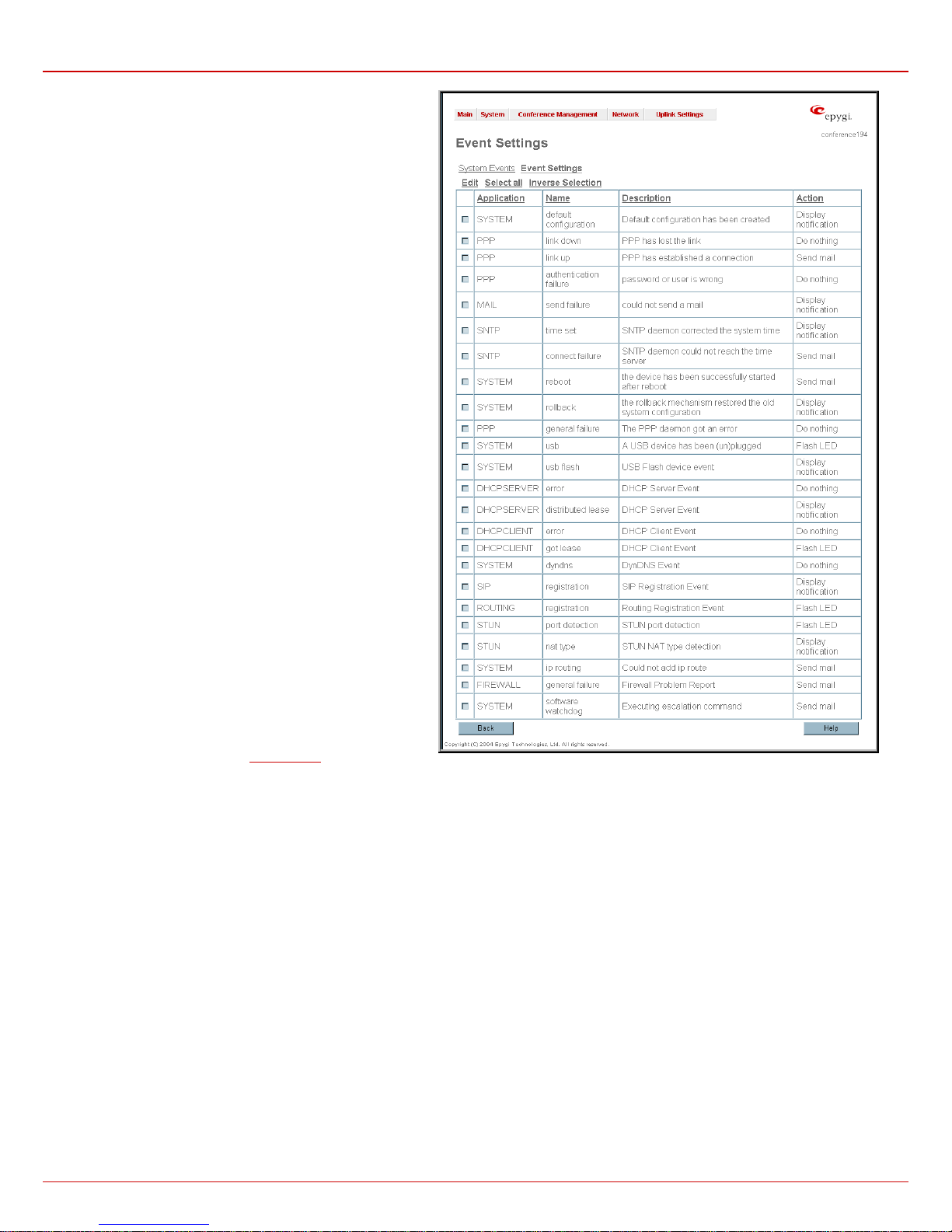

The page Event Settings lists all possible applications that
cause QuadroCS to raise events and allows configuration of
notification (action), should one of these events take place.
Each entry in the events table has its checkbox assigned to the
row. By selecting the corresponding checkboxes, operations
such as Edit may be done for one or more events.
Edit opens the page Edit Event Settings to modify the event
action.
Do Nothing - Nothing will happen when the event occurs.
Display Notification - A notification link will be displayed on
the bottom of all pages and a record is added into the Events
table. The notification is executed as the link “Please Check
you pending events!” that leads to the page System Events.
This action also will take place if an action below (Flash LED
or Send Mail) has been selected, even if not selected
explicitly.
Flash LED - the second LED (yellow) will be blinking once a
second and a notification will be displayed on the bottom of all
pages. For some events the LED will start flashing after a brief
delay.
Send Mail causes sending an e-mail with a notification about
the new event and an event description in the mail body to the
e-mail address specified in the Mail Settings page.
Fig. II-18: Event Configuration Settings page
Actions that are not allowed for the selected event (like mail notification if the link is down or the mail server has been misconfigured) are hidden. For
multiple events editing, action which does not fit at least to one of the selected events will be hidden.
If QuadroCS cannot get an IP address from the DHCP server, or cannot register an extension on the SIP or Routing servers, or cannot reach an
NTP server, it raises only one event for the entire period the action has failed, but continues to try. When the required action is finally successful,
QuadroCS raises an appropriate event.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 15

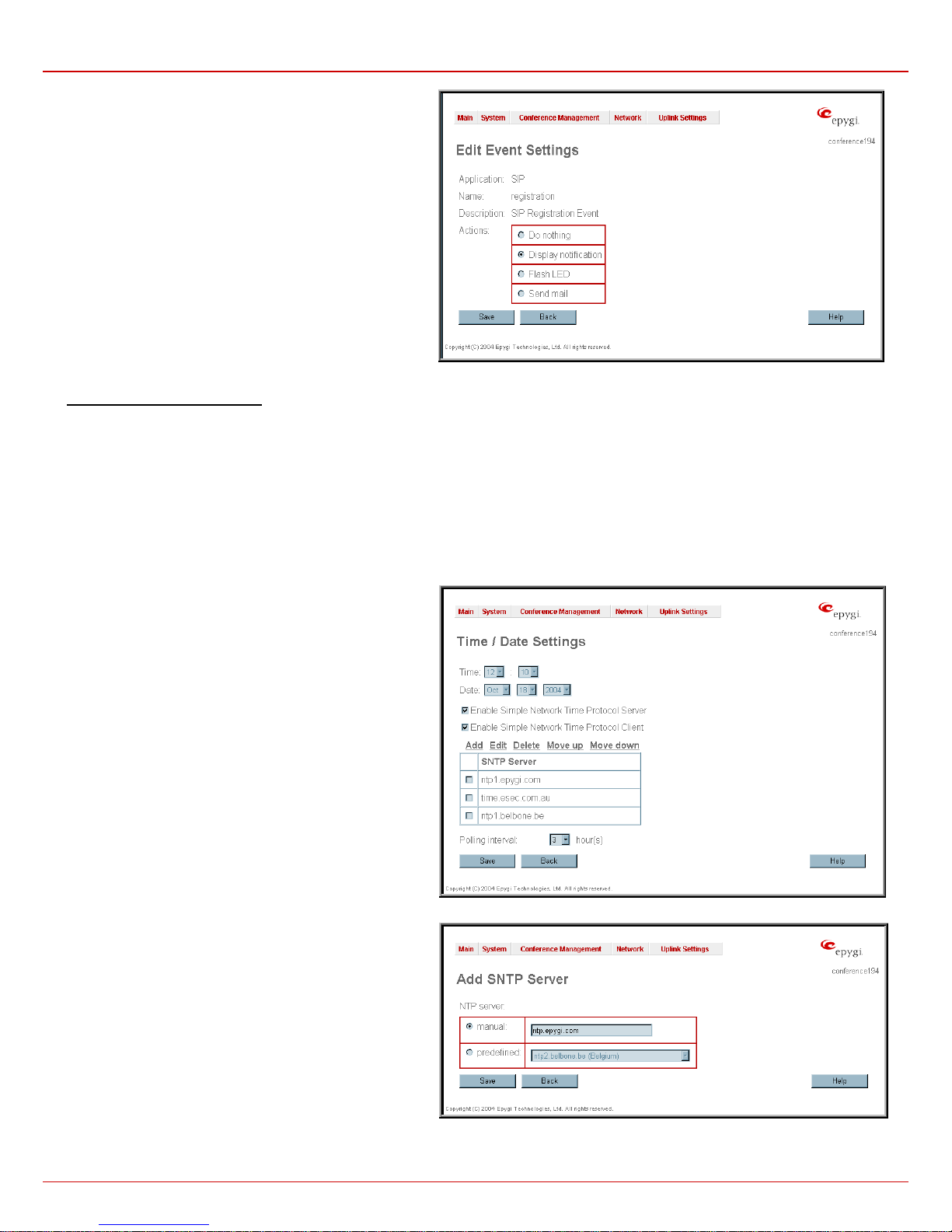

The page Edit Event Settings offers the following input options:
Application displays the application the event refers to.
Multiple is shown here, if more than one event has been
selected for the action assignment.
Name displays the name of the event. Multiple is shown here, if
more than one event has been selected for the action
assignment.
Description displays additional information about the event.
Multiple is shown here, if more than one event has been
selected for the action assignment.
Action offers radio buttons to choose one of the actions to
notify the QuadroCS's administrator whenever the selected
event(s) takes place.
Fig. II-19: Edit Event Settings page
To Assign an Action to the Event
1. Select the checkbox of one or more events to assign an action to them.
2. Press the Edit button. The Edit Event Settings page appears.
3. Select an action type from the Action radio buttons to notify the administrator about the event in the desired way.
4. Press Save to submit the changes or use Back to abort the selected action.
Time/Date Settings
Time and Date Settings provide information about the current system time and date. The settings may be updated through the international time
and date servers.
Time is used to set the local time (hour, minute).
Date is used to set the date (month, day, year).
Timezone provides a selection of world time zones and is used
to select the local country time zone. Timezones are specified
by GMT (Greenwich Mean Time) and by specific timezones for
the United States and Canada.
Enable Simple Network Time Protocol Server enables the
SNTP (Simple Network Time Protocol) server on QuadroCS,
thus QuadroCS becomes the timeserver for its LAN.
Enable Simple Network Time Protocol Client enables the
SNTP client on the QuadroCS, thus QuadroCS becomes a client
to an external timeserver. The checkbox enables the following
parameters:
The SNTP Servers table lists all defined NTP Servers.
Add opens an Add NTP Server page where new NTP server
can be defined. The page contains the NTP Server radio
buttons that are used to choose between a manual or a
predefined NTP server.
Manual requires the NTP server’s FQDN (Full Qualified
Domain Name) or its IP address.
Predefined is used to select the NTP server IP address
from the drop down list, where the most common NTP
servers are listed.
Move Up and Move Down functional buttons are used to sort
NTP servers in the order they need to be accessed. If the NTP
server on the first position in the SNTP Servers' table does not
answer, the NTP server on the next position then will try to be
reached.
Please Note: Add another NTP server to the list if you feel
defined NTP servers are not functional, i.e., the QuadroCS's
date/time is not being automatically updated.
Polling Interval indicates the time interval for the periodical
synchronization between timeserver and QuadroCS. It counts in
hours.
Fig. II-20: Time and Date Settings page
Fig. II-21: Time and Date Settings – Add Entry page
Attention: Time and Date Settings will be reset in case if QuadroCS has no battery or has lost power.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 16
Mail Settings
The System Mail Settings page gives the possibility of automatically sending warnings about the board status or other problems to the
administrator. System events that require email notification are selected on the Events page. The system mail functionality must be enabled and the
SMTP server needs to be configured for voice message transmission to the extension user’s mailing account.
Enable enables the system for sending mails and transmitting
voice messages to the extension user’s mailbox.
SMTP Host requires the SMTP host IP address or domain
name. The SMTP host needs to be configured to enable
voice message transmission.
Mail Sender Address text field requires the source address
for the Quadro notification emails. The email address defined
here should be an existing valid email address registered on
the selected SMTP server or should have permission to use
that SMTP server for emails transmission.
Mail Recipient Address requires an active email address.
The e-mail recipient here can be a Quadro administrator or
someone responsible for network and system problems.
Enable SMTP Authentication checkboxmust be selected if
the specified SMTP server requires an authentication. In this
case, authentication User Name and Password configured
on the SMTP server should be defined in the corresponding
text fields.
Send Test Mail is used to initiate a test e-mail transmission.
This button will be enabled if correct values have been
submitted and saved on this page.
Fig. II-22: System Mail Settings page
Firmware Update
This window allows the software of QuadroCS to be updated by installing new firmware. Customers registered at Epygi will get notification of new
firmware and will be able to download it from the Epygi Technical Support WEB page.
QuadroCS is provided with a battery. If the battery is low or simply absent the “There is no battery or voltage is low” warning is displayed.
Please Note: Installing new firmware will last about 3 minutes.
During this time, QuadroCS won't operate, neither telephony
nor Internet access. The firmware update will cause the loss of
the following data:
• DHCP leases
• Call Statistics
• All pending events
The following main processes will be stopped during the
firmware update and will be restarted afterward:
• Voice Software
• Network Time Protocol Daemon
• Network Interface Statistic Daemon
• Dynamic DNS Daemon
Next button will move to the second page of Firmware Update
to select the image file.
Fig. II-23: Firmware Update page 1

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 17
The second page of Firmware update consists of the Browse
button used to browse the image file, and the Specify Image
text field that will display the selected image filename.
Pressing Save will start uploading the image file to the board.
The next page will be displayed, showing the result of a
verification of the image being burned.
Fig. II-24 Firmware Update page 2
This page displays non-editable information about the image
validity. The Image Check will display invalid if the image does
not correspond to the hardware version.
The fields Current Software Version and New Software
Version show the old software version and the version of the
new image.
This page needs a confirmation to continue image updating. If
you are sure that the image version is appropriate for your
device press Save.
Fig. II-25: Firmware Check page

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 18
Networking Tools
The Networking Tools provide the capability to check the Internet connection.
Ping sends four ICMP (Internet Control Message Protocol) requests with a default size of 64 bytes to the destination (IP address or host name)
specified in the text field Ping Target. The response times are logged, and the round trip time (the time the packet needs from being sent until being
received again) is measured. The results are displayed in the lower area of the page: The minimal and maximal round trip time and its average, the
percentage of lost and of received frames.
Traceroute checks the Internet connection by triggering the routers (hops) that are passed to reach the destination specified in the text field
Traceroute Target.Trace routing gives feedback on the routers passed by packets on the way toward the destination and the round trip delay of
packets to these routers.
Attention: Traceroute is not possible if a high security Firewall has been enabled (see chapter Firewall).
For the purpose of tracerouting several IP packets are sent out. UDP (User Datagram Protocol) is used to send packets and ICMP (Internet Control
Message Protocol) to receive information about the routers. In their headers, the TTL (Time To Live) value increases from 1 to 30. When the first IP
frame is received by the first router, its IP address will be returned in its acknowledgement. The second frame delivers the IP address of the second
router and so on and so forth. The results of Traceroute are displayed on the lower area of the page.
Ping Target requires the destination (IP address or host name)
for the ICMP request.
The Ping button starts pinging the specified ping Target.
Traceroute Target is used to enter the IP address or host name
of the destination to be trace routed.
The Traceroute button is used to process the router triggering to
check the Internet connection.
Fig. II-26: Networking Tools page
To Check the Internet connection
1. Specify destination address for the ICMP request in the Ping Target text field.
2. Press the Ping button to process the ICMP request.
3. Specify the destination address to trace the route.
4. Press the Traceroute button to process the router triggering.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 19

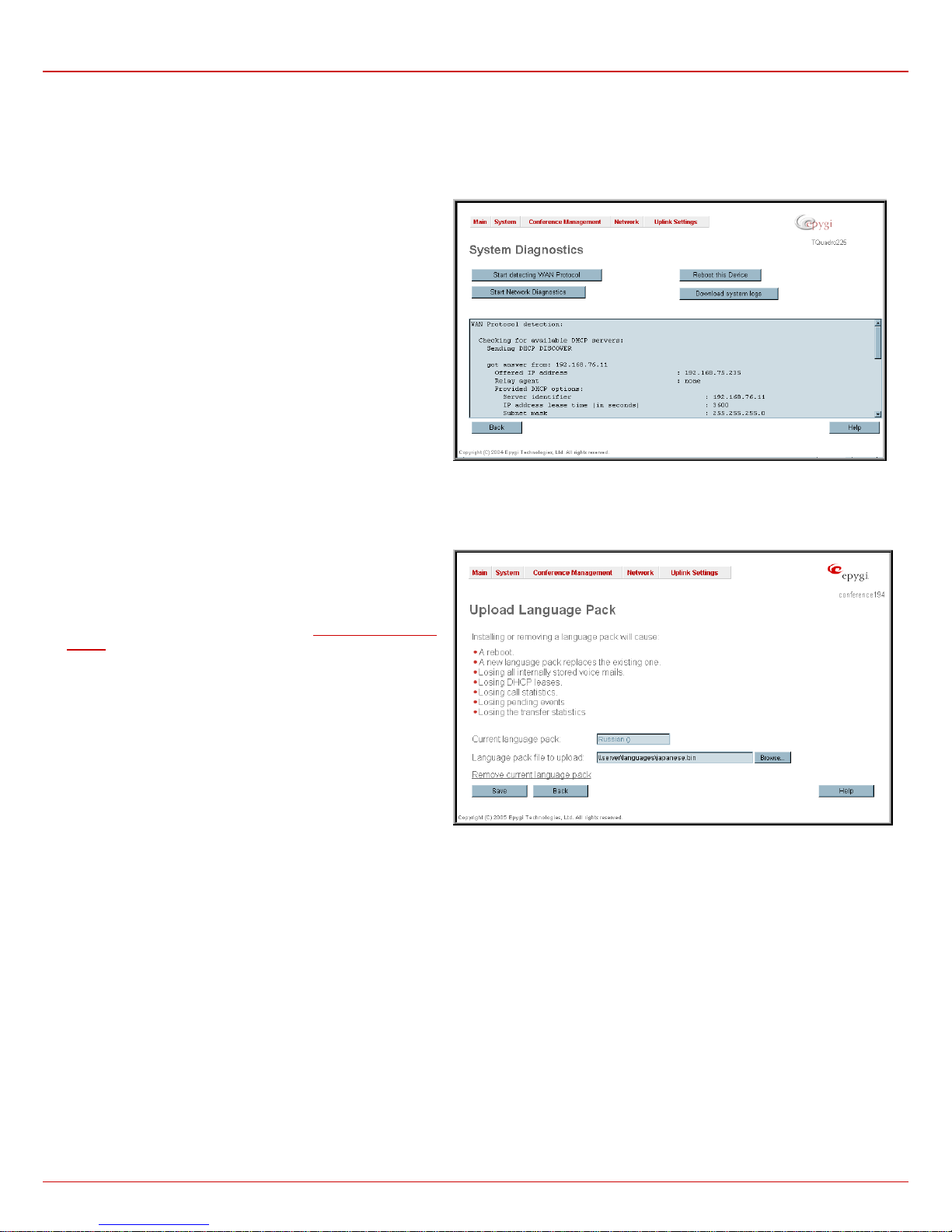

Diagnostics
The System Diagnostic page gives a possibility to run Network
and WAN protocol diagnostics, to verify QuadroCS's connectivity
and to download all system logs for possible problems recovery.
The Start Detecting WAN Protocol button is used to initiate WAN
diagnostics that will detect the WAN IP configuration: static or
through DHCP server. For static WAN IP configuration, gateway
availability is checked. When acting as a client, DHCP server’s
accessibilities are being verified.
The Start Network Diagnostics button is used to initiate network
diagnostics, i.e., to check the WAN link and IP configuration, to
verify gateway, DNS primary and secondary (if configured) servers'
accessibilities.
The field below will display the diagnostics results and the
connectivity conditions. The system should be reconfigured if
problems occur during the diagnostics.
The Reboot this Device button is used to reboot the QuadroCS.
Please note that the session with the QuadroCS will be closed, i.e.,
the QuadroCS GUI should be newly opened and a new login will
be required afterward.
The Download system logs button is used to download all logs to
the local PC as a *.tar archive file. These logs can then be used by
the Epygi Technical Support Office to determine the problem that
had occurred on your QuadroCS.
Fig. II-27: System Diagnostic page
Upload Language Pack
Upload Language Pack page allows to upload a custom language
for GUI and Voice Messages of the QuadroCS. The language of
voice messages can be switched to the custom Language Pack
language from GUI setting page at the System Configuration
Wizard. The language of the GUI session can be changed to the
custom Language Pack language from the radio buttons on the
login page.
Uploading a Language Pack will cause the loss of the following
data:
• All internally stored voice mail
• DHCP leases
• Call statistics
• Pending events
• Transfer statistics
Please Note: Only one custom Language Pack can be uploaded
at the time. Uploading a Language Pack will remove the existing
one (if existing) and will reboot the QuadroCS.
Fig. II-28: Upload Language Pack page
Current Language Pack field displays a read only information about the custom language pack uploaded. When no custom language pack is
uploaded, field indicates “unknown”.
Below, there is a Language Pack File to Upload text field which displays the selected image filename. Browse button is used to browse the
custom language pack to be uploaded.
Remove Current Language Pack link is seen only when custom language pack is uploaded and is used to remove it from the system.
Pressing Save will start uploading the custom language pack to the board. The next page will be displayed, showing the result of a verification of the
language pack being uploaded and asks for confirmation to overwrite the existing custom language pack (if any).
After final confirmation, system will upload the selected custom Language Pack and will reboot.

QuadroCS Manual II: Administrator's Guide Administrator's Menus
QuadroCS (SW Version 3.0.x) 20
Conference Management Menu

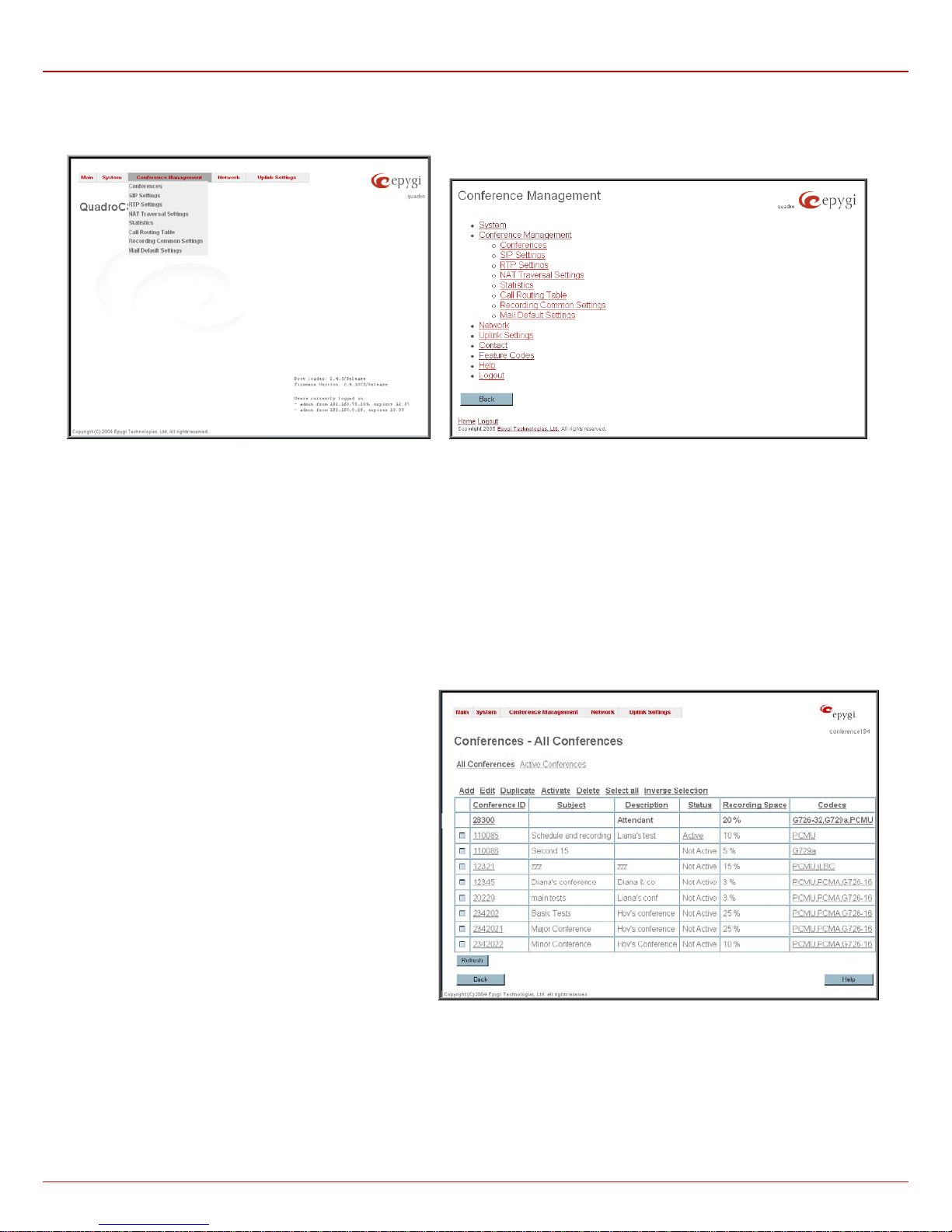

Fig. II-29: Conference Management Graphical Menu Fig. II-30: Conference Management Tree Menu
Conferences
The Conference Management page is divided into two pages: All Conferences page where new conferences can be arranged and the Active
Conferences page to preview or to terminate the active conferences.
The Active Conferences page includes a table with all active conferences on the QuadroCS and their parameters (Conference ID, Subject,
Description, Status, Recording Space and Codecs). This page allows termination of the selected conference or monitoring of the conference
progress.
The All Conferences page includes a table that lists all created
conferences and their parameters. The table displays the
Conference ID, the conference Subject, a Description, the
actual Status, the Recording Space and the corresponding
Codecs. Each column heading in the table is created as a link.
By clicking on the column heading, the table will be sorted by
the selected column. Each record in the table has a checkbox
assigned to the row. The checkbox is used to edit, activate,
duplicate and delete the corresponding record.
Please Note: There is a 40 conference-rooms limitation on the
QuadroCS, but the amount of all participants cannot exceed 25
at the same time.
Each conference in the Conferences table has its specific voice
Codecs configured, which can be accessed and modified by
clicking on the link in the Codecs column of the corresponding
conference.
Clicking on the corresponding conference ID will link you to the
Moderator’s page where the conference properties can be
configured.
Clicking on the conference status link (which appears when
conference state is Active or Waiting), displays a page with
information on the conference. This page displays a list of
conference participants and gives an option of dropping a
participant from the conference or inviting new participants. It
also allows the moderator to start/stop/resume/pause the
conference recording and to terminate the conference. Fig. II-31: Conference Management page
