ERA KP700 User manual

Wireless Keypad
KP700

CONTENTS
1. INTRODUCTION
Introduction
Package Contents
Features
2. BEFORE USE
Power On
Connecting
Installation
3. SETTINGS
Enter setup state
Exit Delay
SOS key
Keyboard Tone
RFID reader setting
Direct disarm by RFID tag
Change user code
Change admin code
Reset
4. USAGE
Arm
Disarm
Stay mode
Emergency Call
Mute Mode
5. NOTICES
& MAINTENANCE
Usage notices
Maintenance
6. FAQ
7. INSTRUCTIONS OF
WIRED CABLES
INTERFACE
8. SPECIFICATIONS
1
1
2
3
4,5
5
6
6,7
7
8
8,9
9,10
10,11
11
11
12
12,13
13
14
14
15
15
16
17
17

1.INTRODUCTION
Thank you for purchasing this wireless keypad.
This can be installed inside or outside the home and allows the user to arm,
disarm alarm after inputting passcode.
This keypad can also connect to an automatic door lock.
KIT CONTENTS
Keypad x 1
AAA 1.5V battery x 3
Screws x 4
Manual x 1
Wired cable x1
Note: RFID tags (125KHz) can be purchased separately. Max. 50 pieces are supported.
RFID Tag
1

LED indicator
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
RFID reader

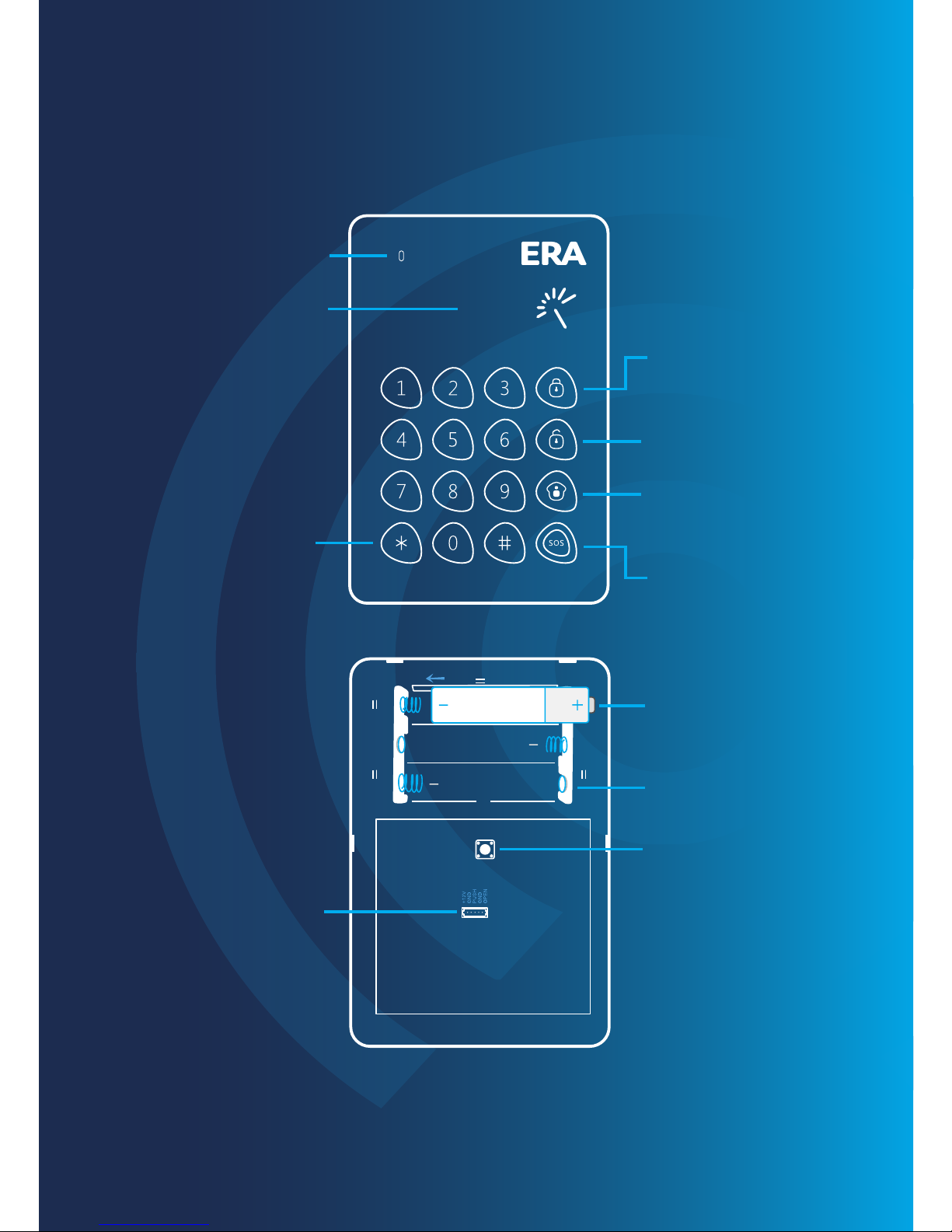

FEATURES
Positive & negative
terminals for battery
Battery compartment
Tamper switch
Wired cable
interface
+
+
AAA
Note: The keypad beeps twice every two seconds & LED indicator flashes once in case of
low battery.
2

2.BEFORE USE

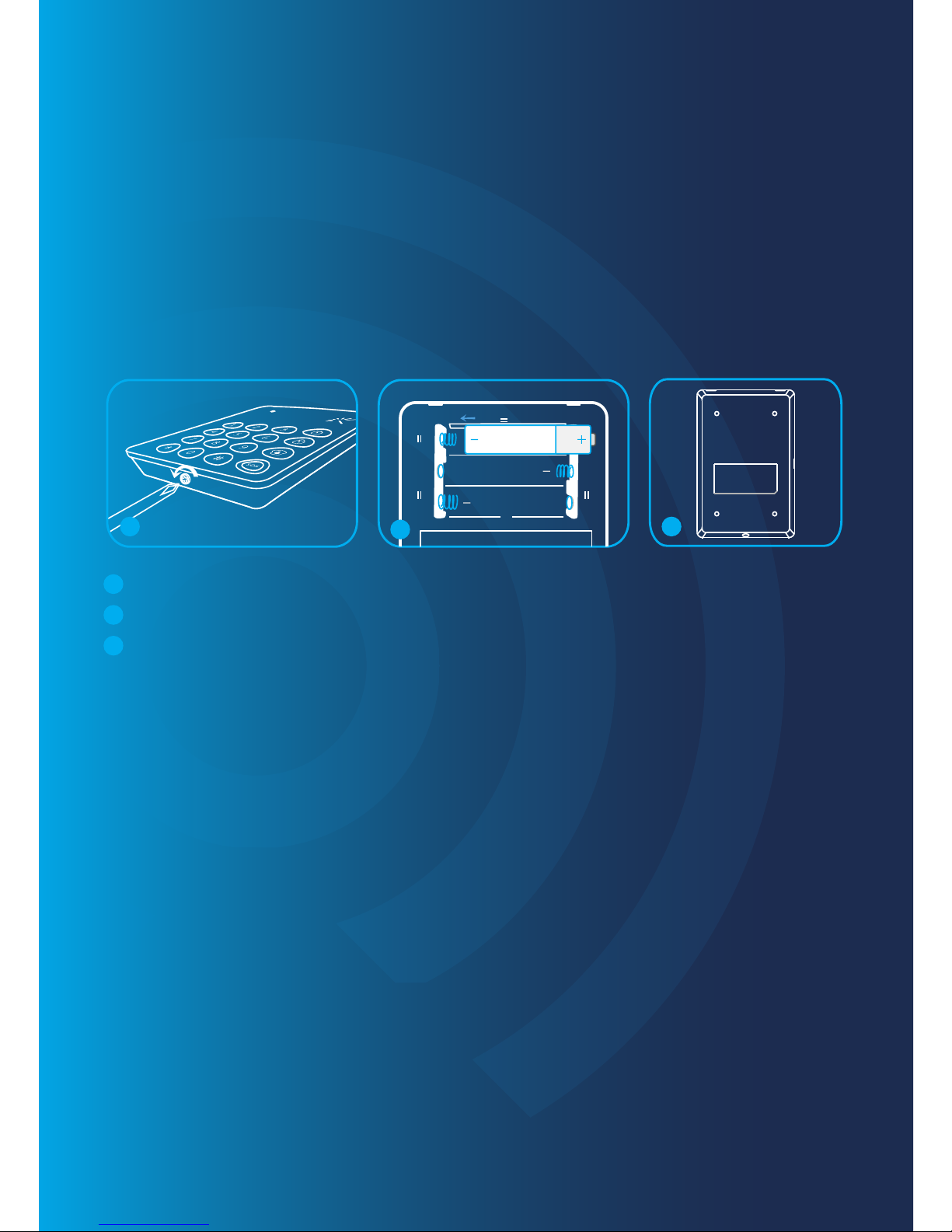

POWER ON
Remove the insulating strip for the first time.
Keypad uses 3x AAA batteries.
Loose the screw, open the case
Put batteries in according to the positive and negative signs.
Close the rear cover and screw on.
+
+
AAA
123
1
3
2
Note: Opening the rear cover of keypad will trigger the tamper switch, please dismiss the
alarm by following the disarm instruction (page 12)
When connected with electronic door lock as an access control, keypad is
suggested to use the specific power supply for access control.
To know connection steps, please refer to the instruction manual of electronic
door lock. The electronic door lock and specific power supply for access control
should be purchased respectively.
3

CONNECTING
CONNECTING KEYPAD TO CONTROL PANEL
Make sure the control panel is in connecting state, input user code or admin
code on keypad, and then press any key of [Arm] [Disarm] [Stay Mode]. The
connection succeeds after one beep.
1
2
1
2
Default User Code: 1234
Default Admin Code: 123456
User can remotely control the panel via the keypad after connection; for detailed
connection steps, please refer to the user manuals of panels.
Note: If the control panel beeps twice when connecting, it means the keypad has already
connected with the panel.

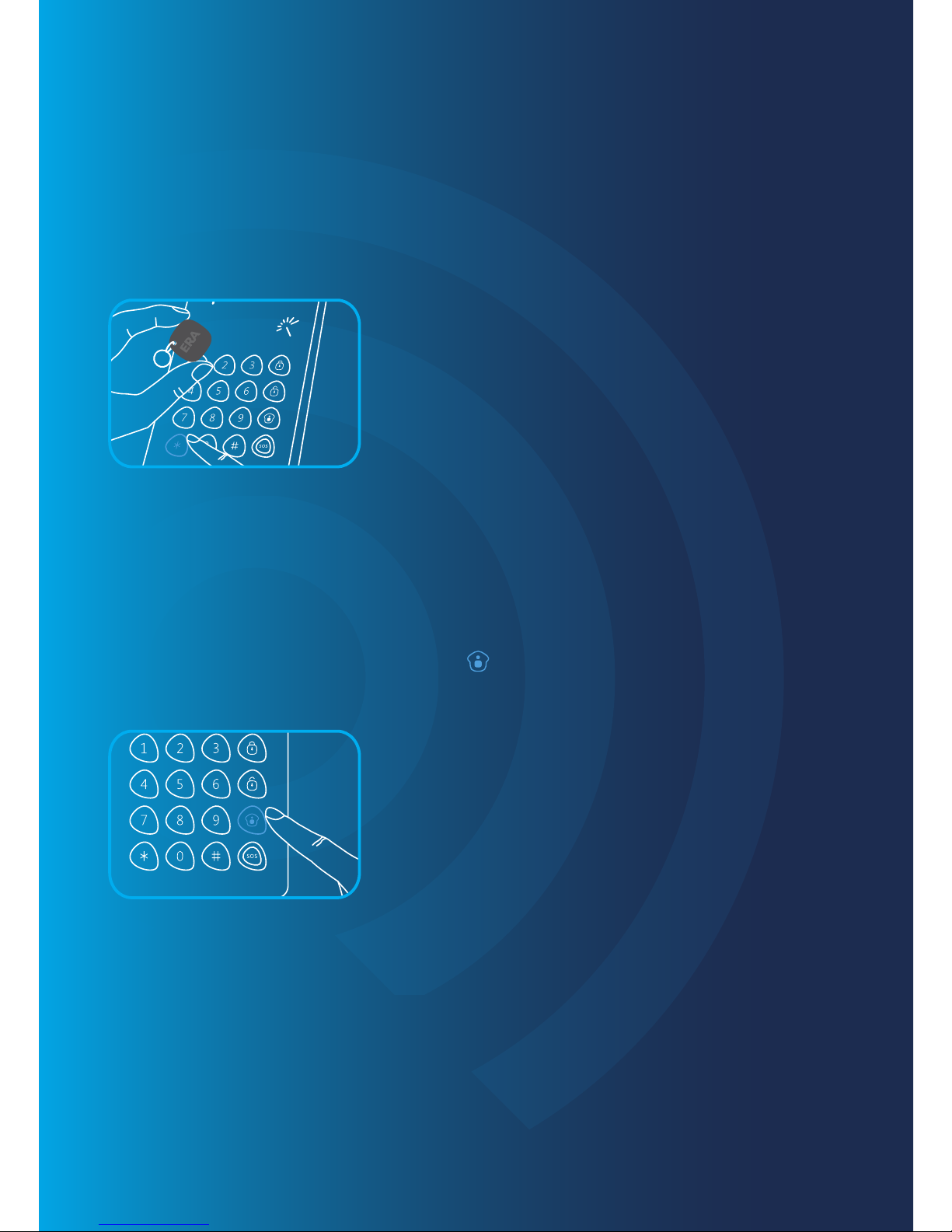

CONNECTING KEYPAD TO PERSONALISED TAG (RFID)
Press [9], one beep is heard and the LED indicator is on. Keypad enters
learning state.
Input [admin code + #] to wake up keypad.
Three beeps mean wrong input.
1
1
2
2
4

Note: Wrong input for 6 times continuously, the keypad will be locked for 20 seconds.
3
Put RFID tag close to the RFID reader, the connection succeeds after
one beep and the LED indicator goes out.
3
CONNECTING ELECTRONIC DOOR LOCK
Please refer to the instruction manual of electronic door lock.

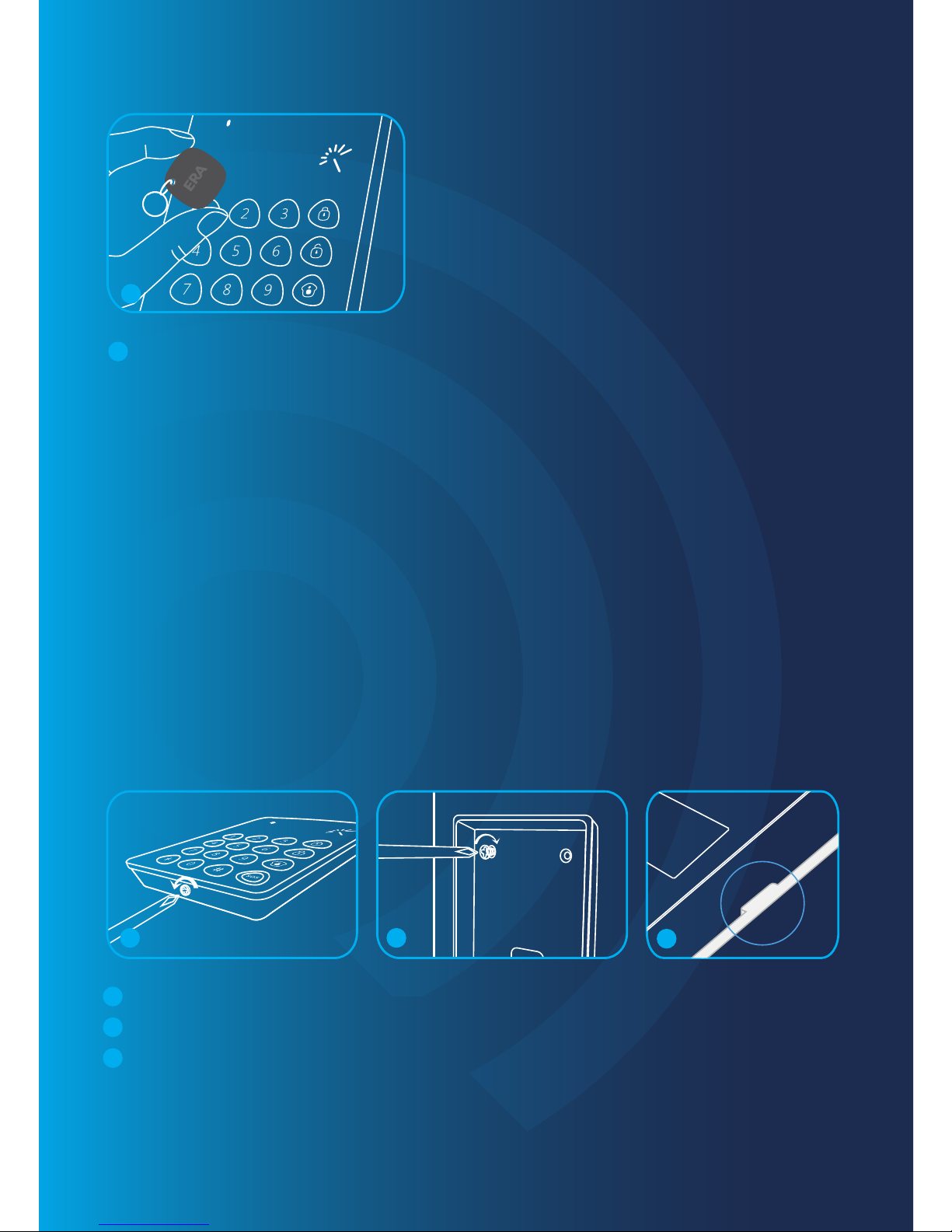

INSTALLATION
If two beeps are heard, it indicates the RFID tag has been connected before.
To clear the connection of RFID tags, input [admin code + #] to wake up the
keypad and then press down [9] for six seconds. RFID tags are all cleared after
one beep.
Fix the keypad on the door frame or the wall before use.
1 2 3
Loose the screw, open the case
Fix the rear cover on the door frame or the wall by screws
Fasten the front cover of keypad on the rear cover. Secure two covers into place
and then screw on
1
3
2
Note: Opening the rear cover of keypad will trigger tamper switch, please dismiss the alarm
by following the disarm instruction (page 12)
5

3.SETTINGS
ENTER SETUP STATE
The keypad should enter setup state before all settings.
Input [admin code + #] to wake up keypad.
Press [3] to enter setup state, the LED indicator is on.
1
1
2
Under setup state, if there is no operation within 10 seconds, the keypad will exit
setup state automatically. You can also press [#] to exit.
2
EXIT DELAY
The exit delay allows time to leave after arming the system. After the delay time, if
you are sill at home, you may trigger an alarm.
This setting does not apply to Stay Mode.
If the delay time of both control panel and keypad are set delay time respectively,
the actual delay time is the total of both times.
Enter setup state, input:
*2*delay time*
6

When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
Once the delay time is set, when you arm the keypad, it will beep once every
two seconds to remind you to leave. The reminding rhythm will speed up in
the last 15 seconds. After the delay time, the control panel enters arm state.
Note: User can input digital 0-250 which refers to 0-250 seconds.
Default setting: 0, no delay.
SOS KEY
You can choose to input code before pressing [SOS] key or not. This function
is to prevent false operation or trick.
Enter setup state, input:
*3*0*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
NOT INPUT CODE FOR SOS
Enter setup state, input:
*3*1*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
ENABLE CODE SOS
Note: Default setting: 0, Code SOS is disabled.
7

KEYBOARD TONE
Keyboard tone can be turned on or off.
If it is off, the successful setup tone will be closed too.
Enter setup state, input:
*4*0*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
TURN OFF KEYBOARD TONE
Enter setup state, input:
*4*1*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
TURN ON KEYBOARD TONE
Note: Default setting: 1, turn on the keyboard tone.
RFID READER
DISABLE RFID READER
Enter setup state, input:
*5*0*
8

When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
ENABLE RFID READER
Enter setup state, input:
*5*1*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
Press [*] on the keypad and then disaram the system by RFID tag after this
function was enabled.
DISARMING SILENTLY BY RFID TAG
The control panel and siren will hoot twice when disarming by RFID tag. If set
disarming silently by RFID tag, the control panel and siren will keep silent to
finish disarming without disturbing neighbourhood.
Enter setup state, input:
*5*2*
Note: Default setting: 1, turn on disarm by RFID tag and the siren will hoot when disarming.
When direct disarm by RFID tag is enabled, users can directly present RFID
tags to disarm the system and unlock the electrical door locks. However, the
function consumes power greatly. It is recommended to disable the function,
that is, the keypad is in sleeping state. Users need to press the [*] key before
presenting RFID tags.
DIRECT DISARM BY RFID
9

DISABLE DIRECT DISARM BY RFID TAG
Enter setup state, input:
*7*0*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
ENABLE DIRECT DISARM BY RFID TAG
Enter setup state, input:
*7*1*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
Note: Default setting: 0, disable the function of direct disarm by RFID tag.
CHANGE USER CODE
Using user code can wake up keypad, open electronic door lock, or send Arm, Disarm,
Stay Mode commands to the control panel.
To avoid passcode reveal, please change user code when first time use.
Enter setup state, input:
*8*new user code*
10

When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
Note: User code is 4 digits; default code is “1234”.
CHANGE ADMIN CODE
Using admin code can wake up keypad, send Arm, Disarm, Stay Mode commands to
the control panel, and also change any settings of the keypad.
To avoid passcode reveal, please change admin code for first time.
Enter setup state, input:
*9*new admin code*
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
Note: Admin code is 6 digits; default code is “123456”.
RESET
After reset, the user code, admin code, and other settings will restore to default
except that the connected RFID tags can still disarm and open electronic door lock.
Enter setup state, input:
*0**
When one beep is heard and the LED indicator keeps on for 10 seconds, the
setup is successful.
11

4.USAGE
ARM
Working with an alarm control panel, the keypad is more secure than the remote
control. User code or admin code should be input before the operation of Arm,
Disarm, Stay Mode, and Mute Mode.
Input user code or admin code, and press key, the LED indicator flashes once and
the keypad beeps once and sends [Arm] command to the control panel.
When the alarm panel receives the signal, the siren will beep once and the [Arm]
indicator will light on. The alarm system enters armed state.
If there is an intrusion, the alarm system will be triggered, the siren will hoot and
the control panel will send SMS and auto dial to pre-stored phone numbers to
notify users. (SMS notification is applicable only for GSM alarm systems.)
DISARM
Users can disarm alarm system by using keypad or by using RFID tags.
USING KEYPAD TO DISARM
Input user code or admin code, and press key, the LED indicator flashes once and
the keypad beeps once and sends [Disarm] command to the control panel.
12

When the alarm panel receives the signal, the siren will beep twice and the Disarm
indicator will light on, the alarm system enters disarmed state. In this state, the
sensors being triggered will not cause an alarm.
USING RFID TAG TO DISARM
If direct disarm by RFID tag is disabled, user needs to press [*] to wake up the
keypad and then put RFID tag close to the reader to disarm and unlock the door.
If direct disarm by RFID tag is enabled, user can put RFID tag close to the reader to
disarm and unlock the door directly.
STAY MODE
Input user code or admin code, and press key, the LED indicator flashes once and
the keypad beeps once and sends [Stay Mode] command to the control panel.
When the alarm panel receives the signal, the siren will beep once and the [Stay
Mode] indicator will light on, the alarm system enters stay mode state.
All the sensors in other zones are armed to prevent the intruder except that the
motion detector in Home Mode Zone is disarmed, so that people can move freely at
home.
13

EMERGENCY CALL
If not inputting code for SOS is set, user just holds the key for 3 seconds, the
LED indicator flashes once, the keypad beeps once, and the control panel alarms
immediately.
If inputting code for SOS is set, user needs to input user code or admin code before
holding the [SOS] key for 3 seconds to send an alarm.
MUTE MODE
Mute mode means that the LED indicators of control panel flash, but the siren does
not beep, to avoid disturbing the neighbourhood.
Input user code or admin code, and hold any key of [Arm] [Disarm] [Stay Mode] for
2 seconds, the LED indicator flashes once, the keypad beeps once and sends
corresponding command to the control panel.
When the alarm panel receives the signal, the LED indicator lights on or off, but the
siren does not beep.
14

5.NOTICES &
MAINTENANCE
In order to avoid any harm to the users or others during usage and prolong the
usage life, please abide by the following notices.
USAGE NOTICES
The keypad should be connected to control panel before use.
The power supply of keypad will probably impact on the transmitting distance of wireless
signal.
The keypad can be powered by 3 pcs of AAA batteries, or wired by DC 12V.
The keypad is compatible for any our alarm system.
Please remove the battery insulating strip before use.
Do not press SOS key if there's no emergency to avoid disturbing the neighbourhood.
Check the keypad regularly to ensure the system works properly in case of emergency.
The keypad is neither waterproof nor moisture-proof, please install it in a shady, cool and
dry place.
The case of keypad is made of ABS. Please keep it away from strong light to ensure the
lifetime.
The keypad is non explosion-proof. Please keep it away from fire, flame sources.
Install the keypad away from objects such as heater, air conditioner, microwave oven etc,
that produces heat or electric-magnetic.
Take the keypad for disposal of recycling according to the local regulation.
Do not take apart the product if you are not a professional technician.
GENERAL INSTRUCTION
FORBIDDANCE
FORBIDDANCE OF DECOMPOSITION
You can get most dust or fingerprint off with a dry, soft cloth or tissue. If there is
dirt on the keypad, please wipe the surface by a soft cloth with a little dilute alkaline
detergent and then wipe again with a dry cloth.
MAINTENANCE
15

6.FAQ
PROBLEM CAUSE SOLUTION
NO RESPONSE
FROM KEYPAD
KEYPAD CANNOT
CONNECT TO
CONTROL PANEL
NO RESPONSE
FROM THE
CONTROL PANEL
BY OPERATING
ON KEYPAD
CANNOT DISARM
BY RFID TAGS
KEYPAD CANNOT
BE POGRAMMED
KEYPAD CANNOT
BE ARMED,
DISARMED AND
STAY IN SAFE MODE
Low battery
The positive and negative
terminals are reversed
Keypad is locked by inputting
wrong passcode continually
more than 6 times
Please change the battery
Follow the right terminal direction
and insert the battery again
Keypad will be unlocked after
non-operation for 20 seconds
No response from alarm panel
Alarm panel beeps twice
Make sure the alarm panel is
powered on
Make sure the alarm panel
enters learning state
Keypad has been learned
Keypad is not learned to
control panel
Distance between keypad and
control panel is too far
Please connect the keypad to
the control panel by following
the instruction manuals
Please move the keypad to a
distance where the control
panel receives signal
It’s recommended to buy signal
repeater to extend the distance
The RFID tags are not learned
to keypad
Disarm by RFID tag function
is deactivated
Direct disarm by RFID tag is disabled
Please connect the RFID tag to
control panel by following the
instruction manual
Enter setup state and activate the
function of disarm by RFID tag
Disarm after pressing [*] key
Keypad is not awake
Keypad doesn’t enter setup state
Please input [admin code +#]
to wake up the keypad
Please input [admin code +#]
and press [3] to enter setup state
Haven’t input user code
before operation Please input the user code or admin code before operation
16

7.WIRED CABLES
INTERFACE (L-R)
+12V (RED WIRE): Positive of power
GND (BLACK WIRE): Negative of power
PUSH (YELLOW WIRE): Signal output for electronic lock
GND (WHITE WIRE): Negative of power
OPEN (GREEN WIRE): Signal input for exit switch
DC 12V (AAA 1.5V x 3 Pcs)
< 20uA
< 24mA
<80m (in open area)
433.92MHz (±75KHz)
ABS Plastic
Temperature: -10°C ~ +55°C
Relative Humidity: <90% (non-condensing)
135 x 90 x 15mm (L x W x H)
90g
Power Supply
Static Current:
Transmitting Current:
Transmitting distance:
Radio Frequency:
Housing Material:
Operations Condition:
Keypad Dimensions
Weight
8.SPECIFICATION
17
