ergoselect 400
Arm Ergometer
Operator’s Manual
201000160000 • Version 2020-01-14/Rev 03 • English

This manual was written with the utmost care. Should you still nd details that do not correspond with the system, please
let us know and we will correct the issue as soon as possible.
We reserve the right to modify the design and technical features of the device and are not bound by the information and
illustrations provided in this manual.
All trademarks appearing in this document are trademarks of their respective owners. Their protection is acknowledged.
No part of this manual may be reprinted, translated or reproduced without the manufacturer's written permission.
This manual is not subject to any change order service. Please contact the manufacturer for the latest document revision.
ergoline GmbH
Lindenstraße 5
72475 Bitz
Germany
Tel.: [phone] - 0
Fax: [phone] - 128
e-mail: [e-mail]
http: www.ergoline.com
Printed in Germany

- 3 -
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

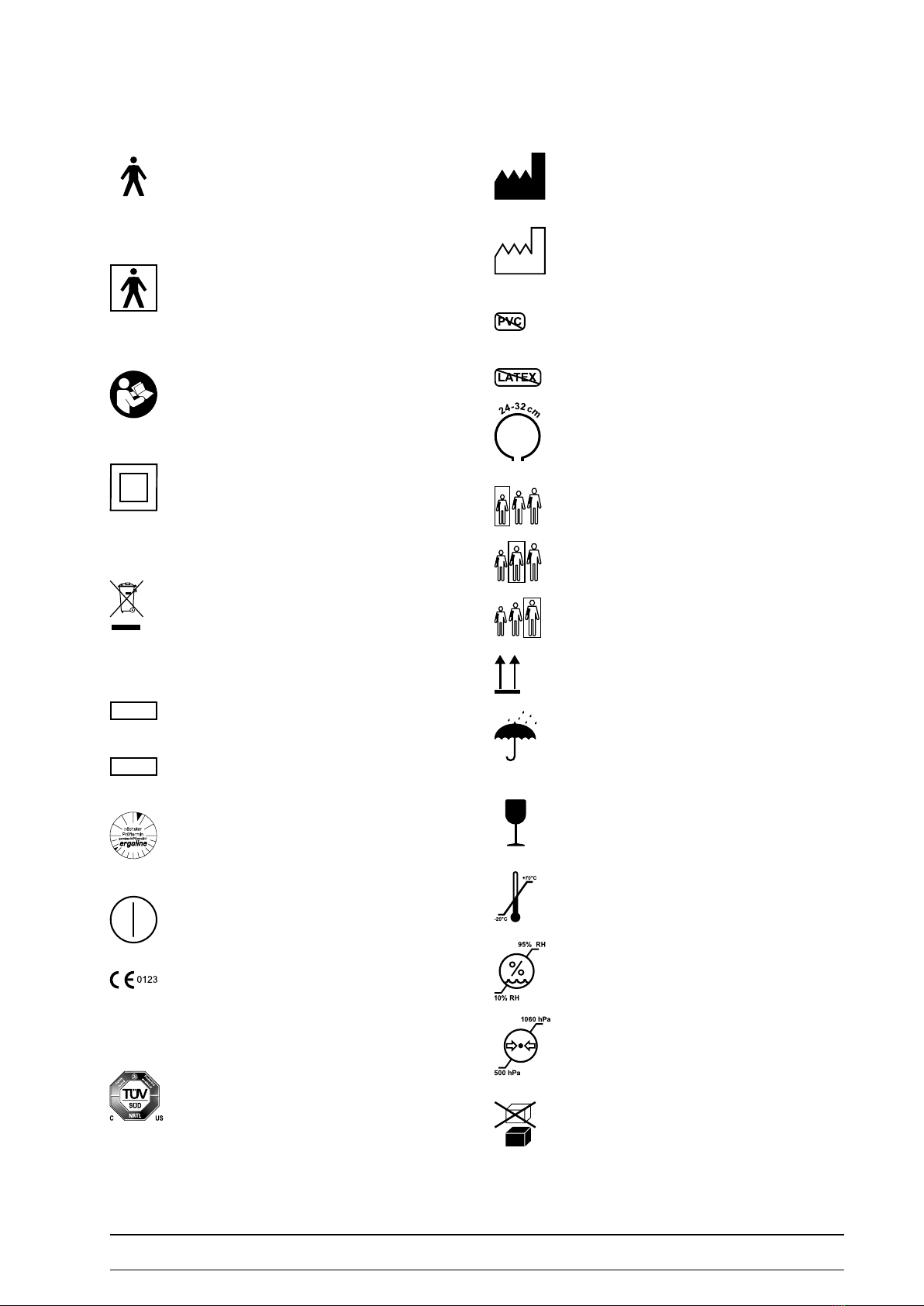

Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setup and Mains Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ergometer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Mounting the Special Chair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mounting the Wheelchair Access Ramp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connecting the Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting the ECG Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Preparing the Patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Control terminal P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Turning the System On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operating Modes with Control Terminal P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PC Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ergometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Settings with Control Terminal P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Control Terminal K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Turning the System On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operating Modes with Control Terminal K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Speed readout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PC Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Ergometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Training with Chip Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Settings for Control Terminals K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning, Maintenance, Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 43
Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Electromagnetic Compatibility EN 60601-1-2 . . . . . . . . . . . . . . . . . . . 50
- 3 -
Contents

- 4 -- 4 -

- 5 -
General InformatIon
• The product ergoselect bears the CE marking CE‑0123
(Notied Body: TÜV), indicating its compliance with the
provisions of the Council Directive 93/42/EEC about
medical devices and fullls the essential requirements
of Annex I of this directive.
The CE marking covers only the accessories listed in
the Order Information chapter.
The ergometer is an MDD class IIa product.
• The device fullls the requirements of standard
EN 60601‑1 "Medical Electrical Equipment, Part 1:
General Requirements for Safety" as well as the
interference protection requirements of standard
EN 60601‑1‑2 "Electromagnetic Compatibility –
Medical Electrical Devices".
The radio‑interference emitted by this product is with‑
in the limits specied in EN 55011, class B.
• The symbol means: protection class II
• This manual is an integral part of the equipment. It
should be available to the equipment operator at all
times. Close observance of the information given in
the manual is a prerequisite for proper device perfor‑
mance and correct operation and ensures patient and
operator safety. Please note that information pertinent
to several chapters is given only once. Therefore, read
the manual once carefully in its entirety.
• The symbols mean:
Consult accompanying documents.
They indicate points which are of particular impor‑
tance in the operation of the device.
• Observance of the safety information protects from
injuries and prevents inappropriate use of the device.
All equipment users and persons responsible for
assembly, maintenance, inspection and repair of the
device must read and understand the content of this
manual, before using or work on it.
Paragraphs with special symbols are of particular
importance.
• If unauthorized individuals open the control terminal,
damaging the calibration sticker, any warranty claim
shall become void.
• This manual reects the equipment specications
and applicable safety standards valid at the time of
printing. All rights are reserved for devices, circuits,
techniques, software programs, and names appearing
in this manual.
• On request ERGOLINE will provide a Service Manual.
• The ERGOLINE quality management system complies
with the standard EN ISO 13485: 2016.
• The safety information given in this manual is classi‑
ed as follows:
• To ensure patient safety, the specied measuring
accuracy, and interference‑free operation, we recom‑
mend using only original ERGOLINE accessories. The
user is responsible if non‑ERGOLINE accessories are
used.
• ERGOLINE is responsible for the safety, reliability, and
performance of the equipment, only if
‑ modications and repair are carried out by
ergoline GmbH or by an organization expressly
authorized by ergoline GmbH
‑ the equipment is used in accordance with the
instructions given in this operator's manual.
ergoline GmbH
Lindenstrasse 5
72475 Bitz
Germany
Phone: [phone] - 9894-0
Fax: [phone]
e-mail: [e-mail]
http: www.ergoline.com
Danger
indicates an imminent hazard. If not avoided, the hazard will
result in death or serious injury.
Caution
indicates a potential hazard. If not avoided, the hazard may
result in minor injury and/or product/property damage.
Warning
indicates a hazard. If not avoided, the hazard may result in
minor injury and/or product/property damage.

- 6 -
Danger
• Explosion Hazard •
The device is not designed for use in areas where an explosion
hazard may occur.
Explosion hazards may result from the use of ammable anest-
hetics, skin cleansing agents or disinfectants.
Warning
• Patient Hazard, Equipment Damage •
Do not expose the ergoselect to direct sunlight to prevent system
components from reaching inadmissible high temperatures.
Do NOT use the ergoselect outdoors (medical device). Further-
more the device has no additional protection against the ingress
of humidity. Humidity inside the device may cause equipment
malfunctions and increases the risk of an electric shock.
Additionally, the device should not be operated in the vicinity
of electric power plants, because they may impair equipment
functions.
The ergoselect ergometer may only be used in combination with
accessories approved by ergoline GmbH.
• Risk to Persons •
Before using the ergometer, the operator must ascertain that it is
in correct working order and operating condition. The cables and
connectors, in particular, must be checked for signs of damage.
Damaged parts must be replaced immediately, before use.
• Equipment Malfunction •
Only the special shielded cables supplied by ERGOLINE may be
used to connect the device to other pieces of equipment.
• Equipment Malfunction •
Cellular telephones may not be used in the immediate vicinity
of the ergometer, because they might interfere with the proper
functioning of the ergometer.
Electromagnetic interference most probably exists when
the watt reading is unstable. If the displayed value changes
frequently even though the speed is above 30 RPM, this may
be due to electromagnetic interference.
Warning
• Shock Hazard •
When the ergometer is connected to other equipment or if a
medical system is created, it must be ensured that the added
leakage currents do not present a hazard.
In case of questions, please contact your ERGOLINE dealer or
theergoline GmbH Service Department.
For use, the ergometer must always be connected to electric
installations that fulll the local requirements.
• Patient Hazard •
The German Medical Device Operator Ordinance (MPBetreibV,
§ 5) demands that users
• must be trained in the use of the ergometer
• must be familiar with the routines for handling and
assembly of the ergometer
• must be familiar with and observe the safety rules and regu-
lations for operation of this type of equipment
• must be informed about any other pertinent rules and regu-
lations (e.g. safety features)
• must be informed about the potential hazards arising from
the use of this type of equipment.
• make sure that no unauthorised changes are carried out.
• Patient Hazard •
Only properly trained and appropriately qualied personnel is
allowed to operate and work with the medical device.
safety InformatIon
Hint
Removing the power cord results in complete disconnection
from mains (all poles).
Danger
Additional equipment connected to medical electrical equip-
ment must comply with the respective IEC or ISO standards
(e.g. IEC 60950 for data processing equipment). Furthermore all
congurations shall comply with the requirements for medical
electrical systems (see IEC 60601-1-1 or clause 16 of the 3Ed. of
IEC 60601-1, respectively).
Anybody connecting additional equipment to medical electri-
cal equipment cong ures a medical system and is therefore
responsible that the system complies with the requirements for
medical electrical systems. Attention is drawn to the fact that
local laws take priority over the above mentioned requirements.
If in doubt, consult your local representative or the technical
service department.

- 7 -
safety InformatIon for
non‑InvasIve Blood Pressure
measurement
Warning
• Patient Hazard •
Do not take blood pressure measurements with a cu on
patients suering from sickle cell anemia or where skin lesions
are likely to occur.
The cu may cause hematomas in patients with severe blood
coagulation disease. In these instances, the user must take a
decision for or against automatic blood pressure measurements.
Caution
• Compromised Measuring Accuracy •
Arrhythmias occurring frequently during a measurement may
compromise the accuracy of the measurement.
In certain cases, a valid measurement will not be possible.
Electromagnetic elds are also capable of impairing the measu-
ring accuracy.
Note
• If the cuff pressure exceeds the maximum value of
300 mmHg during ination, the ination procedure will be
aborted and the cu deated.
As a redundant safety precaution, the cu is immediately
deated when the cu pressure exceeds 320 mmHg.
You can check the proper functioning of this safety precau-
tion by abruptly bending your arm while the cu is being
inated, causing a brief overpressure in the cu. The cu
must deate immediately.
• Measurements that did not yield a valid measurement will
not be repeated during the exercise test.
• If the ination phase takes longer than 40 seconds or if an
adequate pressure does not build up in the cu within a
reasonable period of time, the measurement will be aborted
and the cu deated.
• If a valid measurement cannot be completed within
120 seconds, the measurement will be aborted and the cu
deated.
• If the cu pressure remains constant for some time, the
measurement will also be aborted and the cu deated.
ContraIndICatIons
The following patient categories are excluded from using
the device:
• patients feeling discomfort or suering from dizziness,
nausea or pain.
• patients under the inuence of substances that may
impair vigilance (alcohol, drugs, medication).
ContraIndICatIons In exerCIse testInG
CarrIed out wIth erGometers
(source: Banerjee A et al., 2012)
Contraindications in exercise testing:
• acute myocardial infarction in the previous 4 to 6 days
• unstable angina with rest pain in the previous 48 hours
• uncontrolled heart failure
• acute myocarditis or pericarditis
• acute systemic infection
• deep vein thrombosis as it is likely to shift and cause
pulmonary embolism
• uncontrolled hypertension with systolic blood
pressure>220mmHg or diastolic blood pres‑
sure>120mmHg
• severe aortic stenosis
• severe hypertrophic obstructive cardiomyopathy
• untreated life‑threatening arrhythmia
• dissecting aneurysm
• recent aortic surgery
• abnormalities during testing include:
− abnormal ST‑segment response (horizontal, planar
or down‑sloping depression of >1mm).
− T‑wave elevation of >1mm in leads without
Q‑waves.
− T‑wave changes such as inversion and pseudo‑
normalization when an inverted T‑wave becomes
upright are non‑specic changes.
CrIterIa for stoPPInG BICyCle‑Based
exerCIse testInG
(source: Banerjee A et al., 2012).
Criteria for stopping bicycle based exercise testing include:
ECG criteria
• severe ST depression of >3mm
• ST elevation >1mm in non‑Q‑wave lead
• frequent ventricular extra systoles
• onset of ventricular tachycardia
• new atrial brillation or supraventricular tachycardia
• development of new bundle branch block
• progression of heart block to second or third degree
• cardiac arrest

- 8 -
Clinical criteria
• excessive fatigue
• severe chest pain, dyspnea, or dizziness
• > 20 mmHg reduction in systolic blood pressure
• rise in blood pressure
Intended use
The ergoselect is a computer‑controlled medical ergometer.
At pedal speeds between 30 and 130 RPM and loads
between 6 and 999 watt, the ergometer operates indepen‑
dent of the pedal speed.
The speed‑independent range is shown in the Appendix
(Technical Specications).
The ergoselect ergometer may only be used in exercise
testing as well as for rehabilitation of cardiac and cardio‑
vascular patients according to the instructions given in this
manual. If the ergometer is used for other purposes, the
manufacturer cannot be held liable for personal injuries or
property damage resulting from the unintended use of the
equipment.
Note – Applied Parts
• Applied parts are components that are directly in contact
with the human body (e.g., blood pressure measuring devices).
Note – Stability
• Ensure the stability of the ergometer. If the maximum per-
mitted patient weight is exceeded by 10%, the stability of
the ergometer can no longer be guaranteed. It may become
unstable as a result.
Intended user
Only the intended users are allowed to use the ergometer.
The group of intended users includes
• healthcare professionals thoroughly instructed on the
basis of the instructions for use
• patients of the intended patient group who have been
thoroughly instructed by trained specialists
The group of intended users does not include persons with
special needs, such as:
• impaired mental and physical abilities;
• impaired motor skills
which have an inuence on the intended use of the medi‑
cal device.
Intended PatIent GrouP
The intended patient group includes all persons
• with a maximum weight of 140 kg.
• whose body height and age makes them eligible for
exercise testing. Due to various ergonomic aspects,
itisnot possible to provide exact data for body height
andage.
• whose medical condition has been checked by a medical
specialist who judged them to be suitable for the appli‑
cation described in the intended use.
BIoComPatIBIlIty
The parts of the product described in this manual,
including all accessories that come in contact with the
patient during the intended use, fulll the biocompatibil‑
ity requirements of the applicable standards if applied as
intended.
If you have questions in this matter, please contact
ERGOLINE or a representative.
aPPlICaBle laws, reGulatIons and
dIreCtIves
• 93/42/EEC (Medical Device Directive of the EU)
• 89/336/EEC (Electromagnetic Compatibility Directive
oftheEU)
• EN 1060‑1 Non‑invasive sphygmomanometers, Part1:
General requirements
• EN 1060‑3 Non‑invasive sphygmomanometers, Part3:
Supplementary requirements for electro‑mechanical
blood pressure measuring systems

- 9 -
symBols
Symbol ’type B applied part’.
Type B applied parts have no direct contact with
patients and oer the lowest protection against
electric shock.
Symbol ’type BF applied part’.
Type BF applied parts are connected to the body
of the patient and provide a higher degree of pro-
tection against electric shock. The applied parts
are isolated.
Caution, consult accompanying documents.
Protection class II equipment.
This symbol indicates that the waste of electrical
and electronic equipment must not be disposed as
unsorted municipal waste and must be collected
separately.
Consult operating instructions.
Catalog number.
Serial number.
Scheduled date of the next inspection
(e.g., March 2020).
On/O switch for pressure actuation.
CE mark per the Medical Device Directive 93/42/EEC
of the European Union.
Notied body: TÜV SÜD Product Service GmbH,
Ridlerstr. 65, 80339 München, Germany.
Nationally Recognized Testing Laboratory
NRTL label for the USA and Canada.
REF
SN
nächster
Prüftermin
gemäss MPBetreibV
20
21
22
19
18
17
01
02
03
04
05
06
07
08
09
10
11
12
Manufacturer’s identication.
Date of manufacture.
The number found under this symbol is the date of
manufacture in the YYYY-MM-DD format.
PVC-free.
Latex-free.
Suitable for indicated arm circumference.
Small size.
Standard size.
Large size.
Transport and storage label:
top.
Transport and storage label:
keep dry.
Transport and storage label:
fragile.
Transport and storage label:
approved temperature range.
Transport and storage label:
approved humidity, non-condensing.
Transport and storage label:
approved pressure range.
Transport and storage label:
do not stack.

- 10 -
setuP and maIns ConneCtIon
Controls and IndICators
1 Control terminal (model P or model K)
2 Handgrips
3 Special chair
4 Mains connection
5 Power switch (green button)
6 Cable connections
7 Foot rests
8 Strain relief for cable
9 Adjustable feet to compensate for uneven oor
conditions
10 Fixture for special chair / wheelchair
ergoselect 400 - controls, connections and indicators

- 11 -
erGometer setuP
The ergoselect 400 is mounted on a wooden pallet for
shipment.
You need a wrench (SW 17) or a ratchet and the corre‑
sponding socket to detach the ergometer from the pallet
and for all other mounting operations described below.
mountInG the sPeCIal ChaIr
• Take the shipping box o the ergoselect 400 and
remove the packaging accessories from the box.
• Detach the chair from the pallet and remove.
• Using the fork wrench SW17, unscrew the 4 screws on
the underside of the pallet.
• Using the nut M10 (8 mm thick), screw the 4 adjust‑
able feet to the underside of the base plate, observing
an 8‑mm distance between the nut M10 and the
hexagon head of the adjustable foot.
Tighten each nut M10.
All four adjustable feet should now evenly protrude
from the base plate. (see illustration)
• Using the nut M10 (5 mm thick), screw one additional
adjustable foot into the guide tube as far as possible ‑
do not yet tighten the nut M10.
• Lift the base plate carefully from the pallet and place
it on a horizontal, level ground.
• It should now be easy to slide the chair onto the guide
tube. If necessary, the height of the guide tube with
respect to the chair can be modied with the four ad‑
justable feet. If the ground is even, all four feet must
be adjusted by the same height.
• Now unscrew the adjustable foot of the chair's guide
tube until it is ush on the oor, but make sure that
the foot does not lift the ergoselect 400 base plate o
the ground.
Tighten the nut M10 with a fork wrench SW 17.

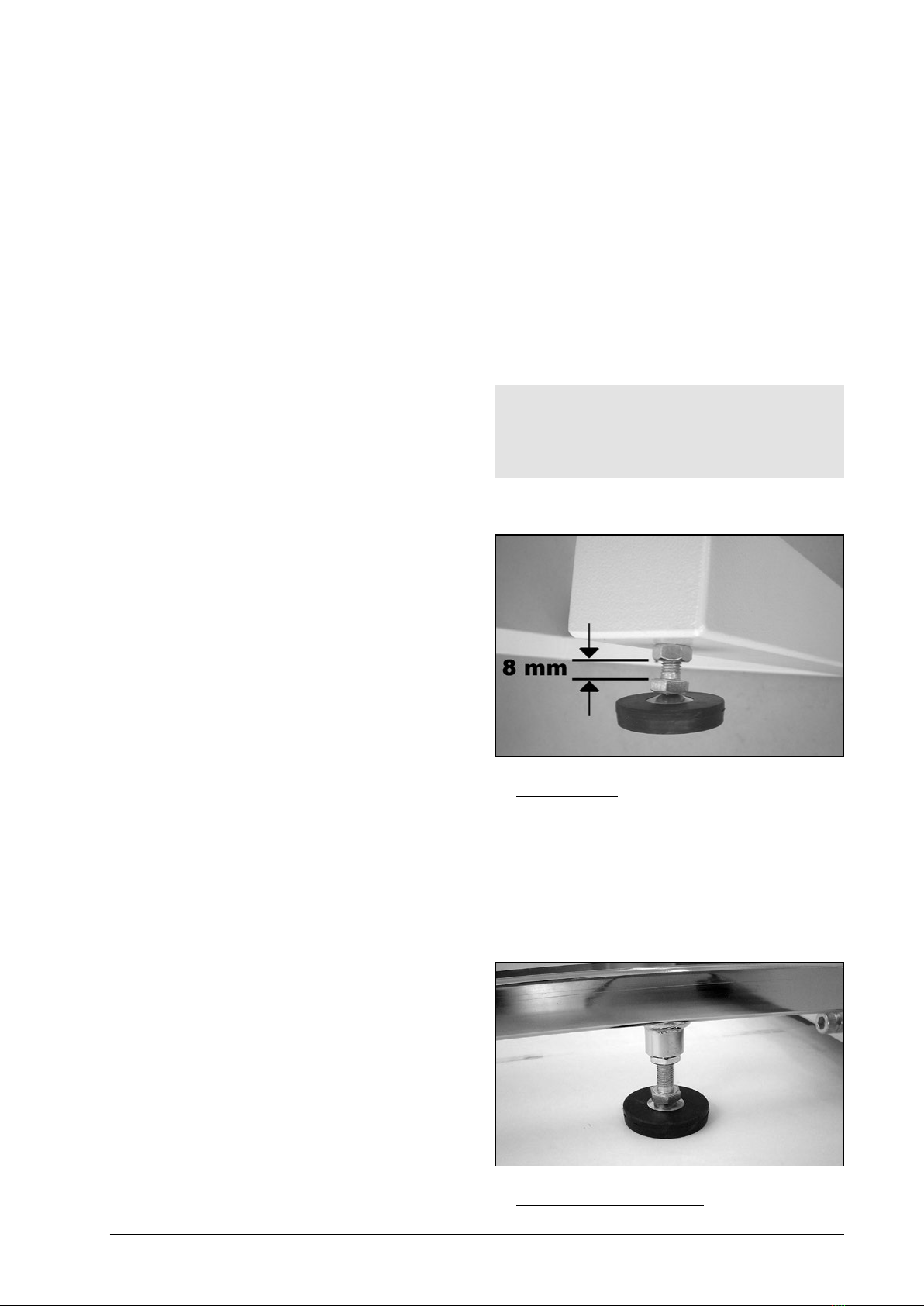

adjusting the feet
Caution
• Equipment Damage •
NEVER lift the device by the chair's guide tube!
adjustable foot of the guide tube

- 12 -
1
2

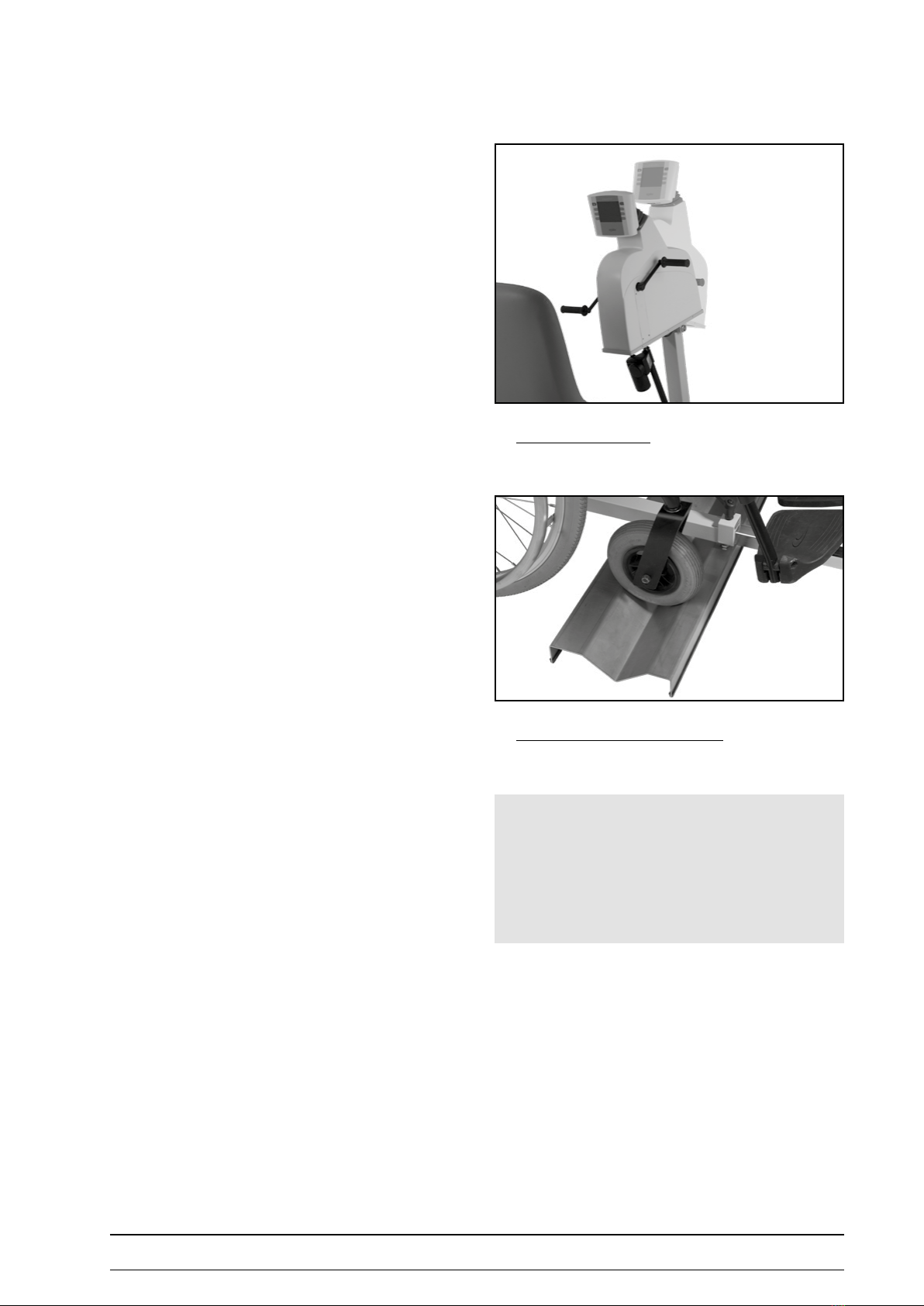

mountInG the wheelChaIr aCCess ramP
• Slide the support tubing of the wheelchair ramp onto
the guide tube on the ergoselect arm ergometer (1)
and tighten the clamping lever (2).
• Tighten the two nuts between support tubing and
ramp (3) by hand.
Before doing so, check that the ramp is at on the
oor!
• Open the clamping lever again and pull the support
tubing of the ramp (4) o the guide tube (5).
• Tighten the two nuts on the underside of the ramp
with a fork wrench (SW 17) (6).
• You can now slide the support tubing of the ramp
onto the guide tube again and the ramp is ready for
use.
aPPlICatIon
• Lift the wheelchair at the front and carefully place it
on the ramp.
• If the maneuvering range is not sucient, the ramp
can be reversed 180° before being slipped onto the
guide tube.
Mounting the wheelchair access raMp
fastening the access raMp
Caution
• Equipment Damage •
When adjusting or mounting the access ramp, be sure not to lift
the base plate.
Choose an adjustment where the guide tube will never be bent
upward or downward when the access ramp is repositioned.

- 13 -
ConneCtInG the Power Cord
• Power input, power switch and the connections for
external devices are located on the back of the drive
unit.
• Connect power cord to power input.
• Using the strain relief supplied, secure the cable to the
frame.
Caution
• Equipment Damage •
Before connecting the ergometer to the power line, check that
the line voltage corresponds to the ratings on the type plate.
The type plate is located on the back of the ergometer, at the
bottom.

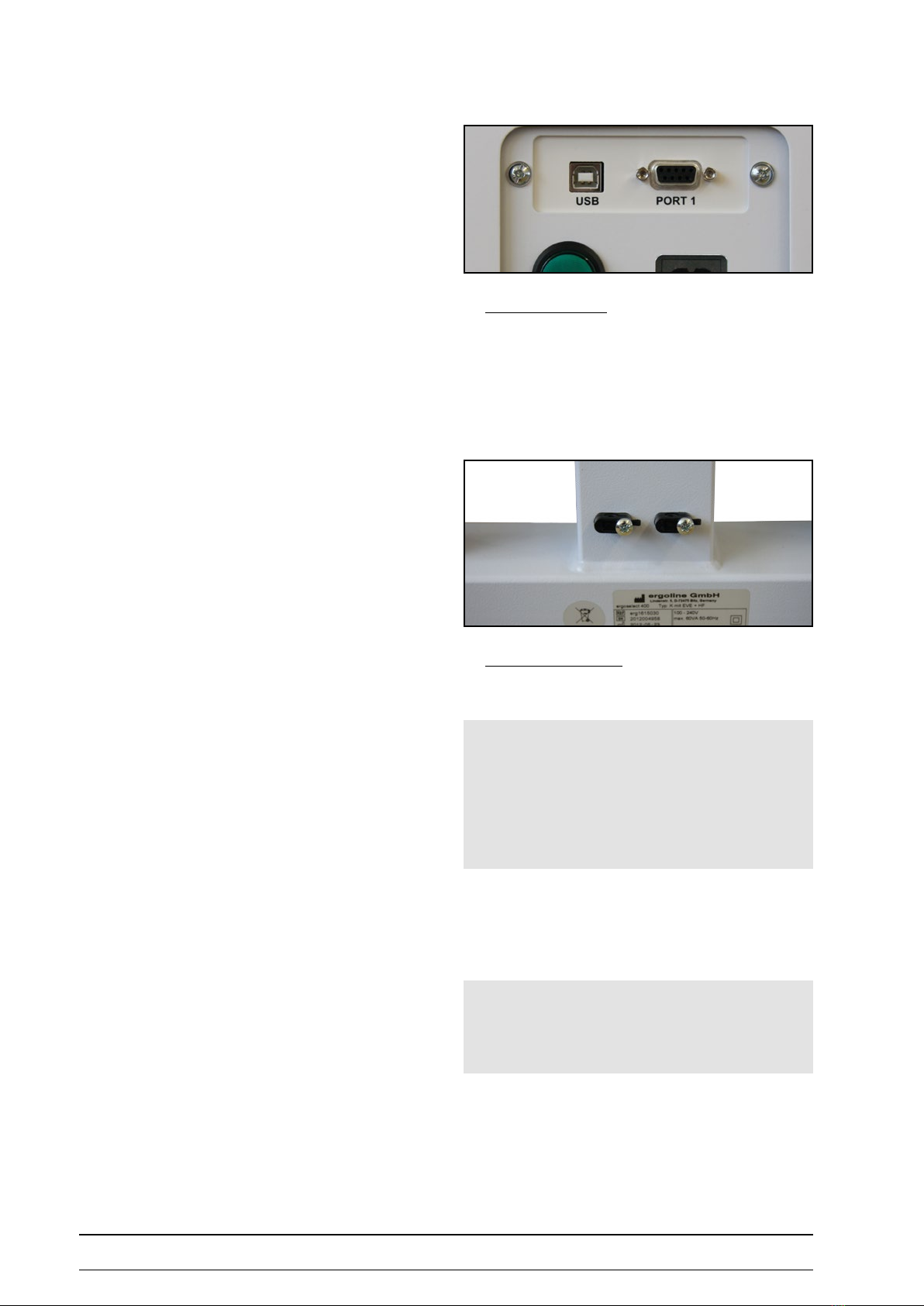

power input and power switch
Caution
• Disconnection from Power Supply •
Pressing the power switch or removing the power cord discon-
nects the device from the power supply.
Removing the power cord results in a complete disconnection
from the power supply (all poles).
Ensure that the power plug is readily accessible at all times.

- 14 -
ConneCtInG the eCG CaBle
ergoselect ergometers can be connected to electrocardio‑
graphs and PC‑based ECG systems of most manufacturers.
Dierent connection cables are available to support dierent
communication modes (digital, analog, remote start, etc.).
The appropriate cable is plugged into the corresponding
socket on the connection panel (Port 1, USB) and secured
with the strain relief.
transPort
• Disconnect the power cord and the connection cables.
• Open the clamping lever at the chair's guide tube and
take o the chair, pulling it towards the rear.
• When you have reached the new location, lower the
ergometer very carefully to avoid damage.
Caution
• Equipment Damage •
Avoid strong vibrations of the ergometer during transport.
eKg / pc connection
USB PC connection via USB (virtual COM)
PORT 1 Digital connection RS232 (remote control
by PC or ECG recorder,
strain reliefs for cables
Hint
• connecting cables •
Only use connecting cables released by ergoline.
To use the integrated USB connector, a special driver is required
- contact ergoline.

- 15 -
PreParInG the PatIent
Adjust the seat and the height of the load unit to positions
that allow the patient to reach the handgrips easily.
The height of the load unit is electrically adjustable. The
motor is operated via keys on the control terminal.
If the optional access ramp for wheelchairs is used, posi‑
tion the front wheels on the ramp and lock the wheelchair.
Check that all clamping levers are tightened.
wheelchair locKs in the access raMp
Note
• Tighten the clamping levers only as far as necessary, NOT
with maximum force.
• Lubricate the clamping lever threads quarterly at minimum,
using a suitable lubricant (e.g. OKS470).
adjusting the drive unit

- 16 -
ergoline
GmbH

oPeratIon
The ergometers of the ergoselect series are available with
two versions of the control terminal whose functionalities
dier.
The following sections describe the control and congura‑
tion of the ergometer.
Control termInal P
turnInG the system on
You turn the ergometer on by pressing the power switch ‑
the green indicator in the switch lights up.
The ergometer runs a self‑test. Subsequently, the main
menu displays.
Control terminal P Control terminal K
self-test screen
Selftest running
Main Menu
PC Mode
Ergometry
Manual
Settings
Select
The ergometer software is controlled with 5 keys:
With this key you display the main menu or return
to the previous menu level.
With this key you initiate a blood pressure measure‑
ment. A measurement in progress can be aborted with the
same key.
The functions of these three softkeys change
with the displayed menu ‑ the key label describing the
function is shown on the display. Keypad p
Note
• Instruct the patient not to pedal while the ergometer is
being turned on and during the self-test.
• Apply the blood pressure cu to the patient AFTER the
ergometer has been turned on and the self-test completed.
• The device can be congured to default to one of the
operating modes.
If this option is selected, the initial screen of the selected
operating mode (e.g. Ergometry) will be displayed instead
of the main menu. With the key, you can display
the main menu.

- 17 -
oPeratInG modes wIth Control termInal P
An ergoselect ergometer with a control terminal P supports
the following operating modes:
PC MODE
An external device (e.g. stand‑alone electrocardio‑
graph, PC‑based ECG system) controls the ergometer ‑
no intervention at all is required at the ergometer.
ERGOMETRY
The ergometer runs an automatic exercise test ‑ some
of the corresponding test protocols are user‑congu‑
rable and stored in the system (see chapter "Settings").
MANUAL
The ergometer is controlled manually, i.e., the user
performs all load changes via the keypad.
SETTINGS
Used to congure the ergometer.
sPeed readout
At the top of the control terminal, there is a speed readout
for the patient as well as three LEDs that inform the patient
of the speed: too slow, too fast or correct.
The ranges for the respective speed ratings depend on the
selected load (see "Technical Specications").
speed readout
1 speed low (patient should pedal faster)
2 correct speed
3 speed high (= patient should pedal slower)
Note
• If, during an exercise test, the speed drops below 30 RPM,
the load readout starts blinking on the display.
• To reactivate the saddle height adjustment function,
press and the arrow keys will again be displayed.
• Additional blood pressure measurements an be initiated
with .

- 18 -


2
159
mmHg 122 ♥ / min
PC Mode
Ergometry
Manual
Settings
Select
Saddle
Main Menu
initial screen
PC mode
Use the softkeys on the right and left (↑ ↓) to position the
bar cursor on PC MODE and conrm the selection with
SELECT.
The display changes ‑ the ergometer is waiting for com‑
mands from the external ECG unit.
With the arrrow keys, the saddle height can be electrically
adjusted on the ergoselect 200 (on the ergoselect 400,
these keys adjust the height of the drive unit).
As soon as the ergometer receives commands from the
controlling ECG unit or PC, the exercise test will start and
the corresponding values will be displayed.
The exercise test can only be terminated with the corre‑
sponding command from the controlling ECG unit.
Note
• All functions are locked while the ergometer is operating
in PC mode, except for the saddle height adjustment and
the blood pressure key.
• To reactivate the saddle height adjustment function,
press and the arrow keys will again be displayed.
• Additional blood pressure measurements can be initiated
with .

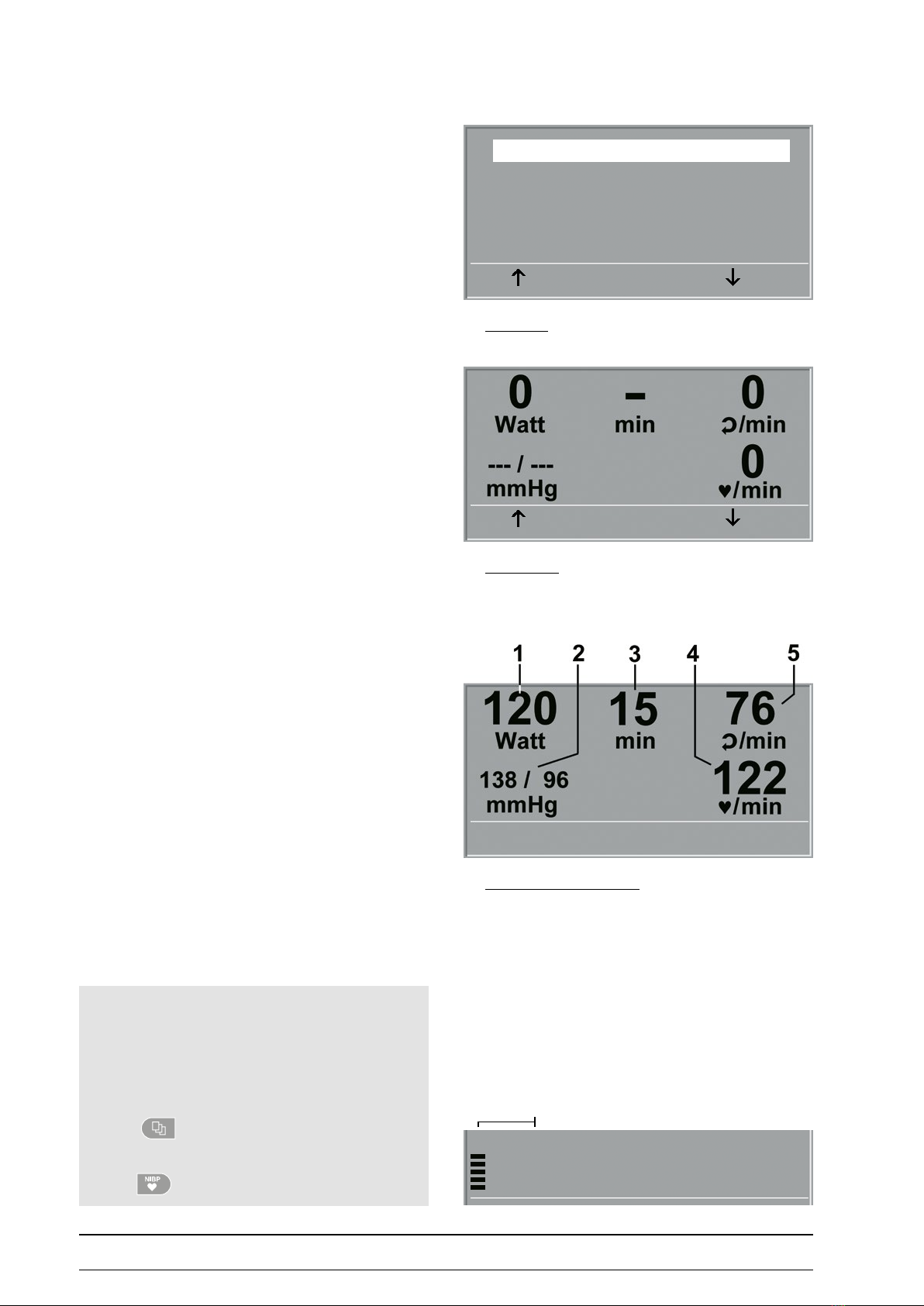

PC Mode
display during exercise test
1 current load in watts
2 most recent BP value (systolic/diastolic values) or cu
pressure during ination and bar graph indicating
microphone signal strength (see below)
3 duration of exercise test (min)
4 heart rate at the time of the BP measurement (BPM)
5 pedal speed (RPM)
159
mmHg 122 ♥ / min

- 19 -

+ 5 W - 5 W

erGometry
Use the softkeys on the right and left (↑ ↓) to position the
bar cursor on ERGOMETRY and conrm the selection with
SELECT.
The stored test protocols available for selection will be
displayed. There are ve xed protocols (protocols 1 to5,
see Appendix), whereas protocols 6 to 15 are user‑program‑
mable.
The protocol menu provides an overview of the test
phases:
e.g.: 50 W / 2 min / 25 W
means: initial (basic) load 50 watts
stage time 2 minutes
load increment 25 watts
Use the softkeys on the right and left (↑ ↓) to position
the bar cursor on one of the protocols and conrm the
selection with SELECT.
The exercise test is started with the "Start" key, a blood
pressure measurement at rest may precede the test (see
"Settings").
When the basic load appears on the display (after approx.
15 seconds or upon termination of the blood pressure
measurement) and the patient's RPM indicator blinks, the
patient should start pedalling.
The internal protocol will now control the entire exercise
test ‑ the display always indicates the current values.
With the +5 W and ‑5 W keys, the current load can be
changed at any time (in increments of +/‑1 W up to
+/‑25 W, as congured).

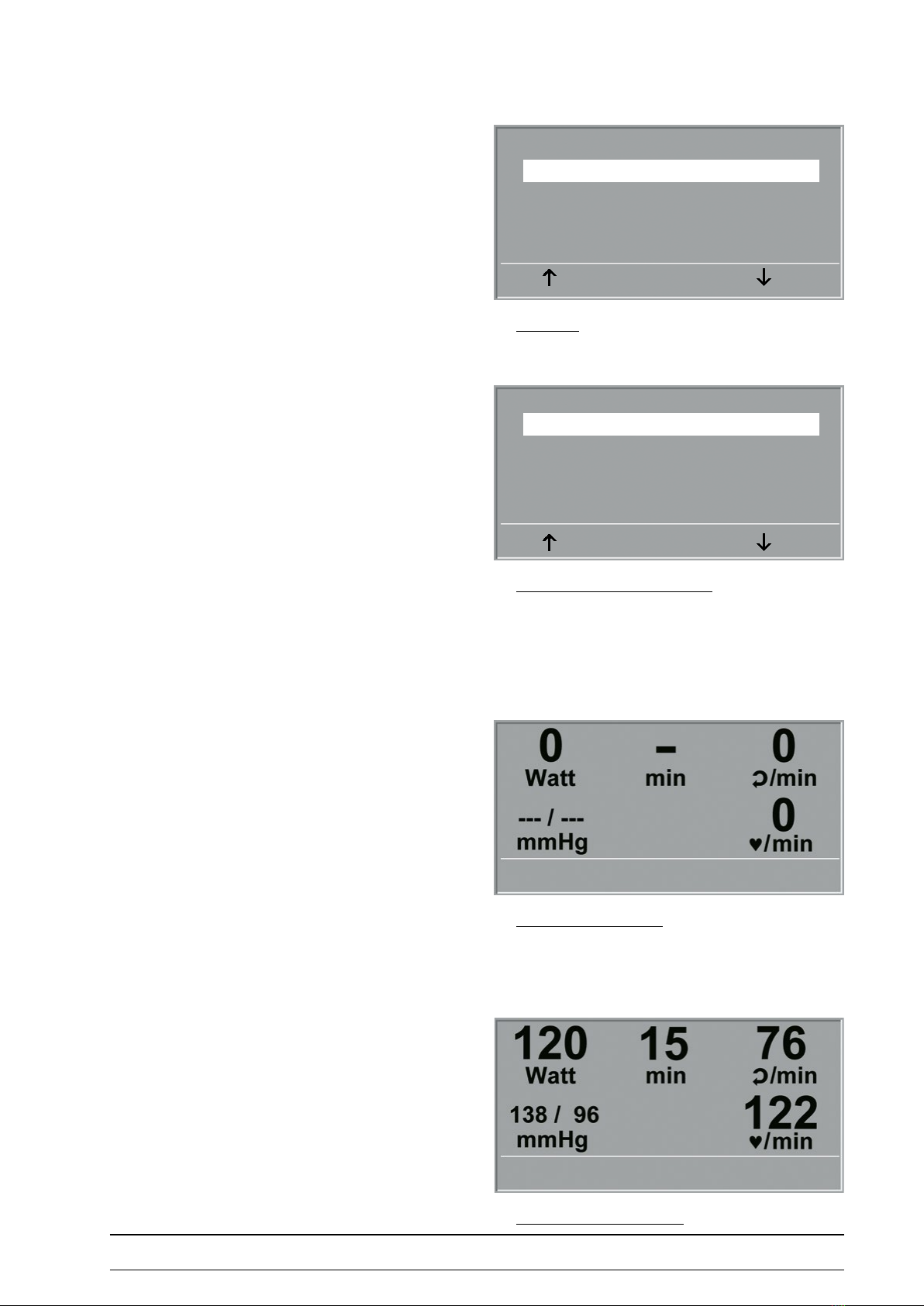

screen display during the test
PC Mode
Ergometry
Manual
Settings
Select
Protocols
1. WHO
2. BAL
3. Hollmann
4. STD. France
5. Standard
Select
Main Menu
selecting an exercise test protocol
initial exercise test screen
Start
Recovery

- 20 -
termInatInG an exerCIse test
The exercise phase can be terminated manually at any time
with the RECOVERY key.
The load will immediately be reduced to 25 watts, but a
higher or lower value can be selected manually.
It is recommended that the patient continues to pedal in
the recovery phase.
The END key in the middle will terminate the test.
Note
• The saddle height (ergoselect 200) can be changed during
an exercise test.
• To reactivate the saddle height adjustment function,
press and the arrow keys will again be displayed.
• Additional blood pressure measurements can be initiated
with .
recovery phase
+ 5 W - 5 W
End
