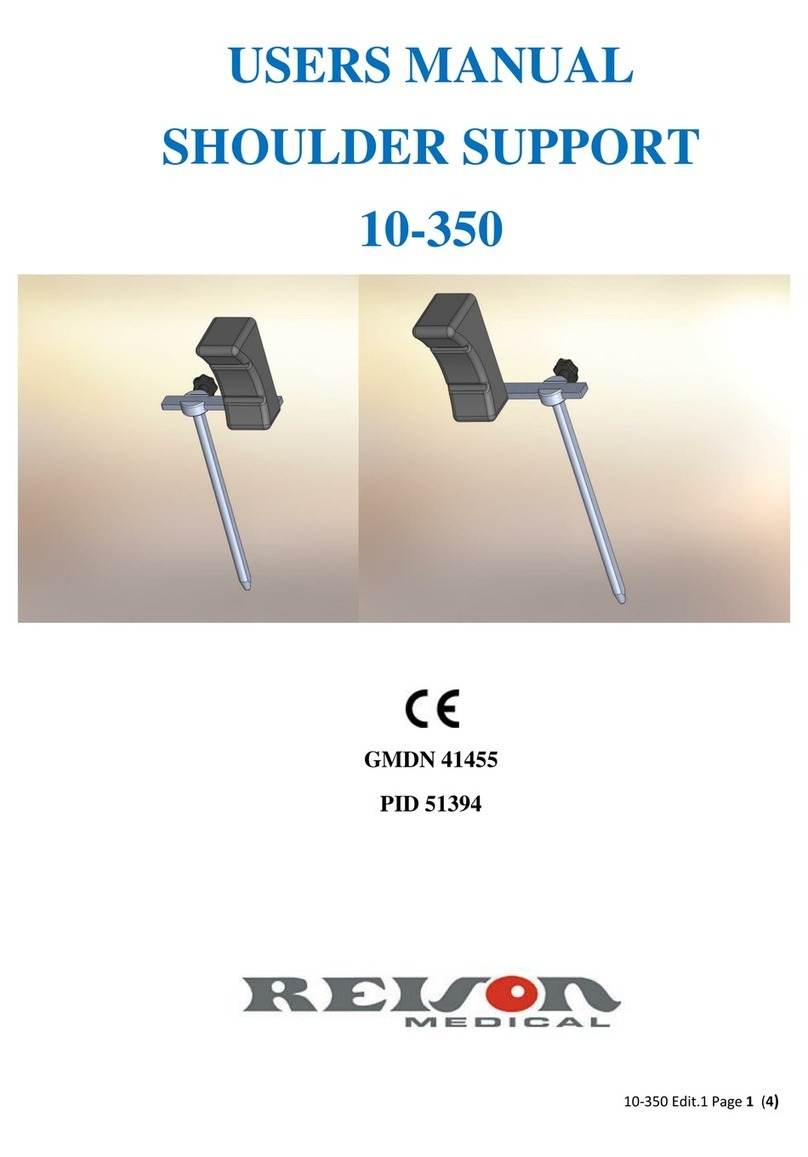

Reison 10-350 Installation instructions

1
Shoulder support 10-350 including versions
Version
Description
10-350
Including curved and flat pad
10-350-BER
Including flat pad
10-350-BER-PREM
Including curved pad
Warning! This symbol indicates important information related to safety. Follow these
instructions carefully.
Read User Manual before use! It is important to fully understand the content of the user
manual before attempting to use the equipment.
2020-10-30
Document number: M10-350EN rev.01
Shoulder support 10-350
ENGLISH

2
Intended use
Shoulder support for support and positioning of patient at the shoulders when e.g. the table is set in
the Trendelenburg position during surgery. The product is to be used by medical professionals within
a medical facility.
Safety regulation
Maximum load: 40 kg, corresponding to a patient weight of 300 kg, according to EN 60601-1 and EN
60601-2.
Before use, ensure correct function!
When loosening the lock lever to adjust the height, support underneath, to prevent the shoulder
support from uncontrolled descend into the bottom position.
Service and preventive maintenance shall be performed by authorized personnel.
MAX 40 kg (MAX 300 kg )

3
User instruction
Installation
Position adjustment
A.
A.
B.
B.
A.
B.
180o

4
Maintenance
Service, preventive maintenance, adjustment and repair shall be performed by authorized personnel
only. Altering the construction without a written consent from the manufacturer, is strictly forbidden.
Cleaning
Clean with antiseptic detergent with pH 6 –8 and warm water. Ethanol can be used on metal surfaces.
Wipe dry with soft cloth. Do not use strong acidic or alkaline detergent.
Control
Check that there are no loose parts and that there is no damage to any part. Check the lock function
of the shoulder support. Check that the pad is clean and is not damaged.
Annual service
Once a year the shoulder support shall be carefully cleaned, moving parts shall be lubricated, the
locking function shall be tested.

5
Spare parts
Version:
10-350
10-350-BER
10-350-BER-PREM
Description
Pcs
Article no.
Article no.
Article no.
1.
Post
1
10876
10876
10876
2.
Fitting
1
Right: 10418
Left: 11135
Right: 10418
Left: 11135
Right: 10418
Left: 11135
3.
Knob VCT.43-p M8x16 soft
4
-
-
-
4.
Spacer 05-8-12-3
1
-
-
-
5.
Ball
1
K20M6S
K20M6S
K20M6S
6.
Pad curved
1
10737
-
10737
7.
Pad flat
1
10894
10894
-

6
Technical specification
Maximum workload
40 kg, corresponding to a patient weight of 300 kg, according to EN 60601-1
and EN 60601-2
Weight
3,8 kg (pair)
Dimension (H x W)
385 x 230 mm
Lateral adjustment
90 mm
Material shoulder support
Stainless steel
Polyurethane
Version
UDI-DI
10-350
07350111831400
10-350-BER
07350111831417
10-350-BER-PREM
07350111831424

7
Reison Medical AB
Eriksbergsvägen 32A
734 92 Hallstahammar
SWEDEN
