Ergomotion Element Lite User manual

OWNER’S MANUAL
Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

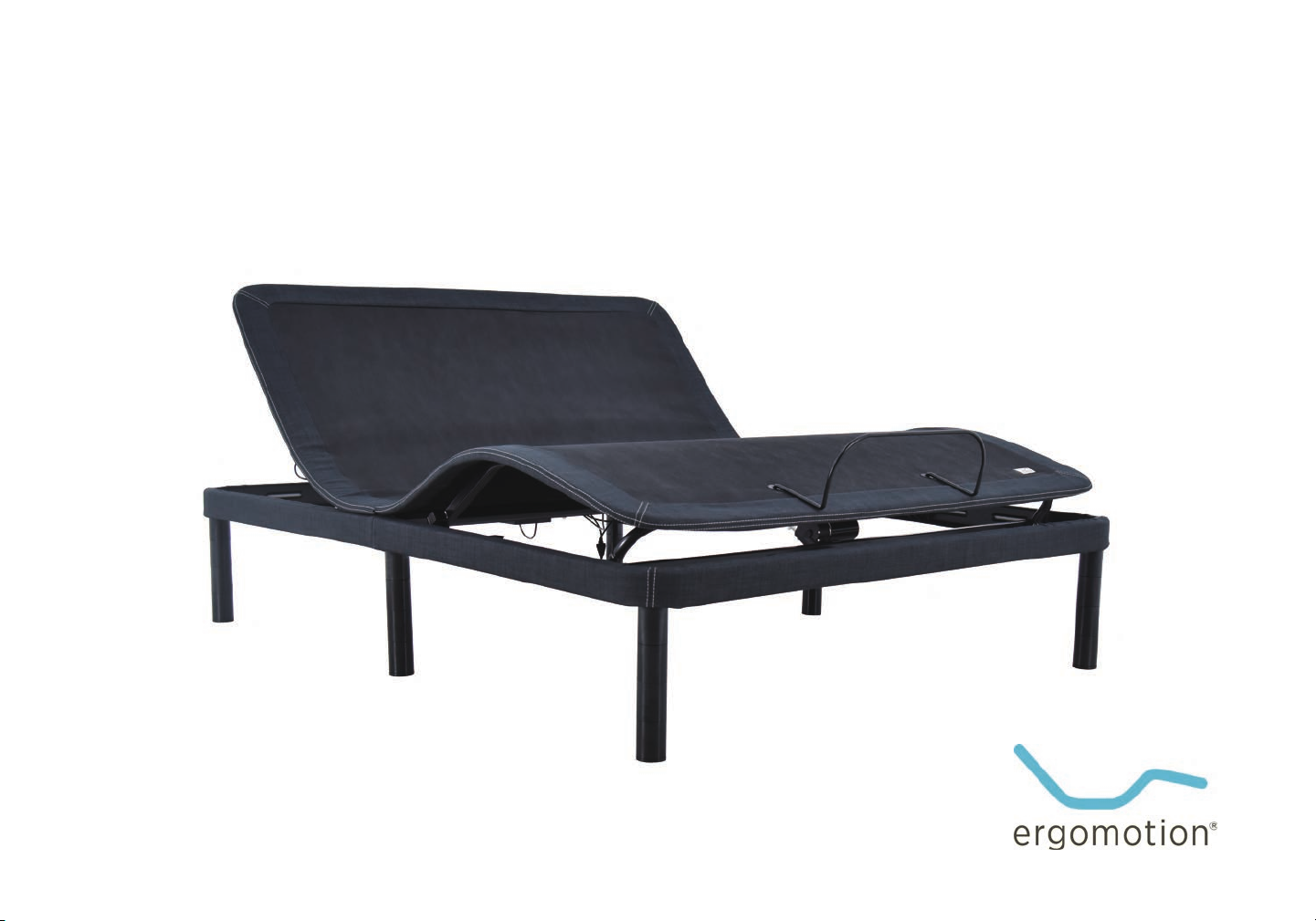

Element Lite

Table of Contents
Safety Precautions and Usage Statements . . .................................................................. . 1-4
Parts List ....... . .......................................................................................... . 5
Base and Remote Overview / Quick Reference Guide ......................................................... . . 6-7
Installation Guide . ............. . ............................................................................ 8-9
Remote Control . . . . . ...................................................................................... 10-11
Remote Control - Preset Programming........................................................................ . . 12
Remote Control Pairing . .................................. . . . . . . . . . . . . . . . . . . . . . . . ....... . ..................... 13
Syncing Two Bases . . . ..................................................................................... . . 14
Connecting Straps . . ............. . ............................ . .............................................. 15
Emergency Battery Backup Strap ............................................................................... . 16
Bluetooth® Remote Control Setup ............................... . ............................................. . 17-18
Troubleshooting ........................................................................................... . 19
Notes ........... . ... . ................................................................................... 20-21

SAFETY:
TO REDUCE THE RISK OF SHOCK, BURNS, FIRE OR INJURY:
For optimal safety and operation, plug bed base into a surge protector (not
included). The bed base should only be plugged directly into a wall outlet or
surge protector (strongly recommended). Always unplug the base from the
electrical outlet before servicing any part of the base. To reduce risk of electric
shock, unplug the base before cleaning. To safely disconnect, ensure the base
power cord away from heated surfaces. Never operate the base when the air
openings are blocked. Keep air openings free of lint, hair and the like. Do not
drop or insert any object into any opening. Discontinue use of the bed base
and contact a qualified service center if: it has a damaged cord or plug, if it
is not working properly, or it has been dropped into water. Only use this bed
base for its intended use as described in this manual. Do not use accessories/
attachments that are not recommended by the manufacturer. Close supervision
is required when the bed base is used by or near children, convalescents,
disabled persons or pets. Improper connection of the equipment can result in
the risk of electrical shock, electrical fire or faulty operation of this bed base. If
the plug does not fit your outlet, contact a qualified electrician to install a suitable
outlet. Unauthorized modification or failure to use a wall outlet or surge protector
could void the electrical portion of your warranty.
PETS AND CHILDREN:
Immediately dispose of all packing materials as it may pose a smothering risk
to small children and pets. To avoid injury, it is not advised to allow children and
small pets to play on or under the bed. Children should not operate the bed
base without adult supervision.
PACEMAKERS:
Some products contain Neodymium MAGNETS which may interfere with devices
such as pacemakers, ICD’s and any other device sensitive to magnetic fields.
It is STRONGLY recommended that owners of such medical devices consult
their physician prior to using products that contain Neodymium MAGNETS. It is
also possible that some pacemakers may falsely interpret the optional massage
feature vibrations as movement/exercise. This is a common occurrence with any
Please consult your physician before using the massage feature.
Attention: Important Safety Disclaimers
Read all instructions before using your adjustable base. Save these instructions.
Safety Precautions and Usage Statements
WARNING
• Keep bed in a flat position when not in use.
• Stay clear of moving parts while in motion.
• Before adjusting, make sure children and pets are clear of
moving parts and are not under bed base.
• Do not allow children to operate bed base without adult
supervision
WARNING
Always unplug the base from the electrical outlet before servicing any
part of the base. To reduce risk of electric shock, unplug the base before
cleaning. To safely disconnect, ensure the base is in a flat position with
1

IN-HOME USE AND HOSPITAL STANDARDS:
Ergomotion adjustable bed bases are designed solely for in-home use. This
base wasnot designed as a hospital bed and is not designed to meet hospital
standards. Donot use this basewith TENT TYPE oxygentherapy equipment or
near explosive gases.
ADDITIONAL SAFETY FEATURES
Casters (optional leg accessory) are equipped with locking wheels to prevent
unwanted movement. Even when locked and unable to roll, it is possible for
the casters to slide. Free release head and foot motors are designed to lower
the mattress by retracting only with gravity, never pulling downwards, which
minimizes pinch points.
ACOUSTICS
LIFTING/LOWERING MECHANISMS
The lift/lower feature will emit a minimal humming sound during operation. This
is normal. During operation, the lift arm wheels make contact with the platform
support of the base. This contact may result in metal on metal or metal on plastic
contact. This applies slight tension on the moving components and resonance
is reduced to a minimum level. If excessive noise or vibration is experienced,
reverse the movement action (up or down) of the base with the remote control.
This should realign the base’s activating mechanisms to the proper operational
position. In normal base operation, the wheels which allow the bed to maintain
its distance from the wall, will make contact with the steel platform supports of
the base creating a contact noise. When entering, exiting or shifting weight on
the base, this contact noise may be audible as the wheels make contact. This is
normal.
MATERIALS
Ergomotion adjustable bases are constructed from various materials including
woods, metals, plastics and fabrics. Tension, pressure or movement applied to
the frame, platform or shroud through general use may create an audible sound.
MASSAGE OPERATION AND LOCATION ENVIRONMENT
The massage feature will emit atone during operation. This is normal. As the
massage intensity level isincreased,the tone will intensify. The volume of this tone
is directly related to the location environment.For example, when demonstrated
in ashowroom, the surrounding environmental noise will cover some of the
massage noise. However, when installed in ahome setting with wooden floors,
carpeted or not,the massage volume will be more noticeable. To minimize this
resonance, place apiece of carpet,or rubber caster cups, under each leg or caster
of the base. It is possible to experience vibration or noise from the exterior bed
frame, headboard brackets, headboardsor footboards if mounting bolts are not
WARNING
For optimalsafety and operation, plug bed base into a surge protector
(not included). The bed base should only beplugged directly into a
grounded wall outlet or surge protector (strongly recommended). Improper
connection of the equipment can result in the risk of electrical shock,
electricalfire or faulty operation of this bed base. If the plug does not fit
your outlet, contacta qualified Electrician to install a suitable outlet.
2
Safety Precautions and Usage Statements

firmly tightened.
Levels 1-3 massage intensity represent the amount of electrical power delivered
to the massage transducer. Level 3 provides the max power delivered to the
transducers. Depending on the mattress material, thickness, and positioning of
massage intensity setting that suits them best.
TOLERANCE
All Ergomotion adjustable foundations, depending on make and model, are
designed and manufactured to perform and function within designated quality
control parameters. Bases are subject to meticulous and rigorous inspections
during the quality control process to ensure bases will operate within these
standards during normal operating use. Normal operating use is defined as the
following: Adjustable foundation is to be operated with a mattress and load.
Testing procedures require lifetime cycle tests with up to 120kg distributed load.

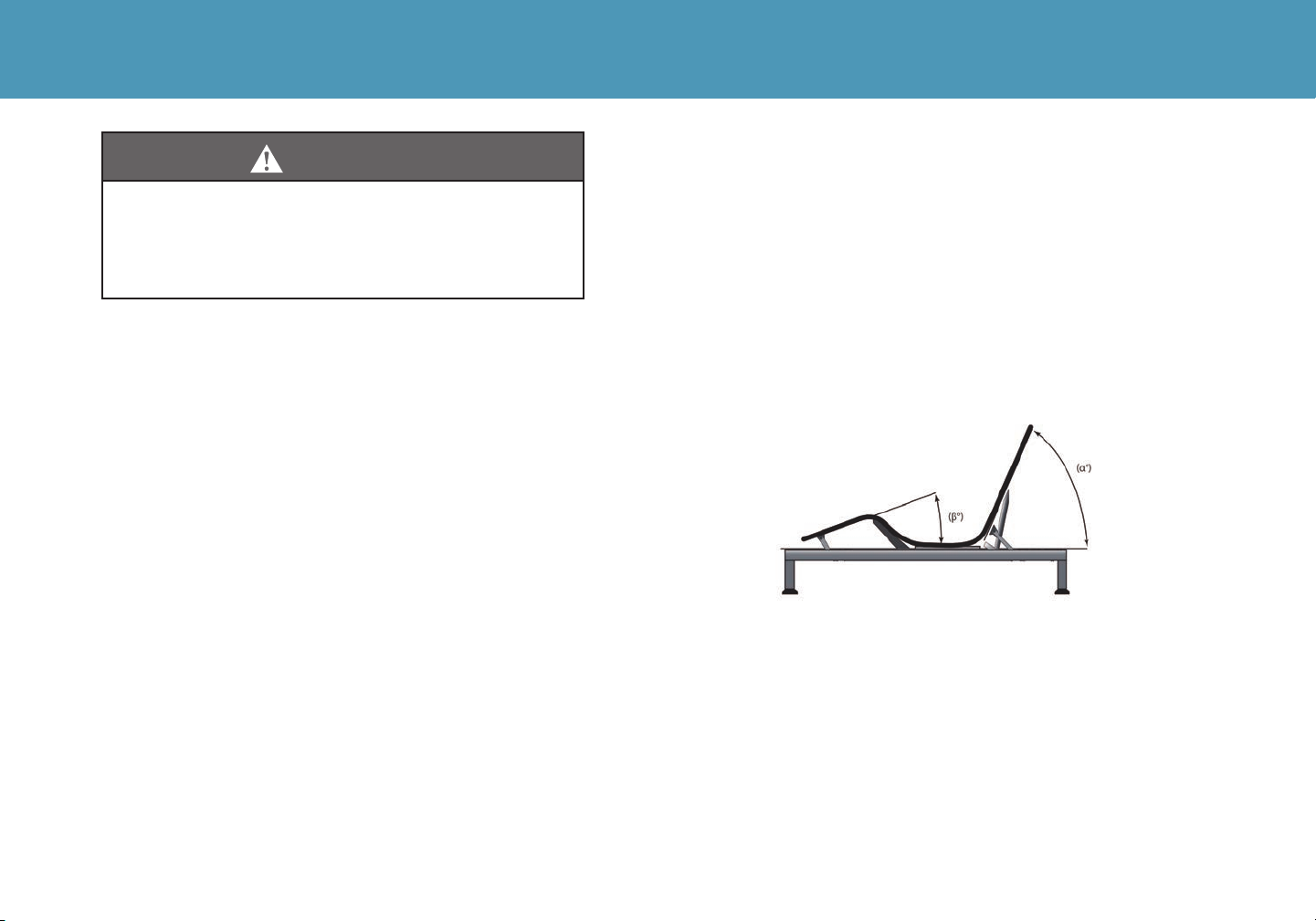

The angle (designated “a” in figure 1) between the back section and the flat
section for various configurations of the mattress support platform shall be ± 3°,
which translates to a tolerance of up to 1 ½”.
The angle (designated “b” in figure 1) between the flat section and foot section
for various configurations of the mattress support platform shall be ± 3°, which
translates to a tolerance of up to ¾”.
Any adjustable foundation deemed to be within these allocated tolerances is
considered to have met the manufacturer’s quality control standards.
THAT “NEW PRODUCT” SMELL:
Some people notice a slight odor to their new adjustable base—this can come
from our material manufacturing process. This smell is normal and usually
disappears before the product reaches you. Sometimes, however, this smell may
still be noticeable. It usually disappears after a few weeks, providing adequate
ventilation of the product and the environment.
BREAK IN PERIOD:
You can speed up the break-in period by simply spending time in the adjustable
bed through activities such as reading, watching TV or playing with the kids or
grandkids. The extra movement will help the adjustable base respond to weight
and temperature changes. Some of the materials in our adjustable bases such
as the woods, metals and plastics used in the platform, frame and components
are sensitive to moisture content and temperature and may make sounds in
colder environments.
PAIRED OPERATION:
When operating a “paired” split base setup there may be a time latency up to 1.5
seconds between each bases articulation.
WEAR AND TEAR:
Wear and tear is damage that naturally and inevitably occurs as a result of
normal use or aging.
FABRIC CARE:
To prolong the life of your fabric,protect from direct sunlight whenever possible.
For spot cleaning, wipe area with alight damp sponge or vacuum with a soft brush
attachment to remove particles. Keep at a minimum of 30cm (12 inches) away
fromdirect heat sources. For a deeper cleaning, blot liquid spills with a clean dry
cloth.Wipe with aclean cloth dampened with warm water. Do not wet excessively.
A soft bristle brush may be usedto remove ingrained soil. Avoid scratching by
gentle brushing.Wipe with a clean cloth dampened with warm water to remove
residues.Dry in shade away fromdirect heat. If persistent marks remain visible
after cleaning, seek professional advice.
PRODUCT RATINGS:
The lift motors are not designed to operate continuously for more than
[2] minutes in an [18] minute time period or approximately 10% duty cycle.
3
Safety Precautions and Usage Statements

4
Attempting to circumvent or exceed this rating will shorten the life expectancy of
the product and may void the warranty. The massage motors are not designed
to operate continuously for more than 30 minutes at a time. Please allow the
restarting.
WEIGHT LIMITS:
This product is not rated to support weights in excess of 650 pounds inclusive
of the mattress and bedding. The base will structurally support this weight,
provided it is evenly distributed across the bed base. The adjustable base is
not designed to support or lift this amount in the head or foot sections alone.
Exceeding this weight restriction could damage the bed and/or cause injury and
will void the warranty.
IMPORTANT DO’S AND DON’TS:
DO:
•Plug your adjustable base into apower surge protector.
•Evenly distribute weight when sleeping in a split setup. Uneven distribution of
weight can cause the base to raise unevenly.
•Call Customer Service for any technical issues. Do not try to force the base
down, this can damage the motors or frame.
•Usemildsoap and water to clean your adjustable base if staining occurs.
• Keep in mind that adjustable bases are recommended to be used with
adjustable friendly mattresses
• Lower to the flat (horizontal) positionafter use and in betweenpresets.
• Register your warranty as soon as your adjustable base has been delivered.
DON’T:
• Sit on corners/edges of base, this may warp the frame, struts or foam.
• Tilt the base on its side. This can damage the legs and/or leg screws.
• Stand or jump on the adjustable base at any time, this can damage the
frame and motors.
• Drag the base to move it. Dragging the base could damage the frame, strip
the nut/bolts or break the legs. Purchase castors if you plan on moving your
base routinely.
• Enter and exit the adjustable base with the head and/or foot in the
articulated position. Enter or exit your adjustable in the flat (horizontal)
position.
• Tinker with or modify base. This will void the warranty.
• Press down on the head or foot while actuated can damage frame and
motors.
FCCCompliance:
This device complies with part 15of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesiredoperation.
To comply with the FCC RF exposure requirements, no
change to the antennaor the device ispermitted. Any change
to the antenna or the device could result inthe device
exceeding the RF exposure requirement and void user’s right
to operate the device.
Radio Frequency: 2.4 GHz
SAVE THESE INSTRUCTIONS.
Safety Precautions and Usage Statements

5
Parts List
All electronics and components that need to be installed are
located in boxes under the base or attached to the frame.
(Remote varies based on model.)
Misc. Parts (not included):
Surge Protector
9 Volt Batteries
* These items are attached to the base for shipping purposes.
Carefully remove from base and set aside.
‡ Only included in Twin Long and Cal King Split bases.
Before discarding the packing materials, ensure all the parts are accounted for.
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Wireless Remote Control and (3) AAA Batteries
Legs (6) ♦
Mattress Retainer Bar *
Power Cord
Power Supply
Battery Backup Strap
Sync-Cord ‡
Connecting Strap ‡*
C Clamps (2)
Long Bolts (4), Washers (8), Nuts (4)
5 mm hex wrench (1), 13 mm wrench (1)
A) B)♦ C)*
D) E) F)
G)‡ H)‡*
I) J) K)

6

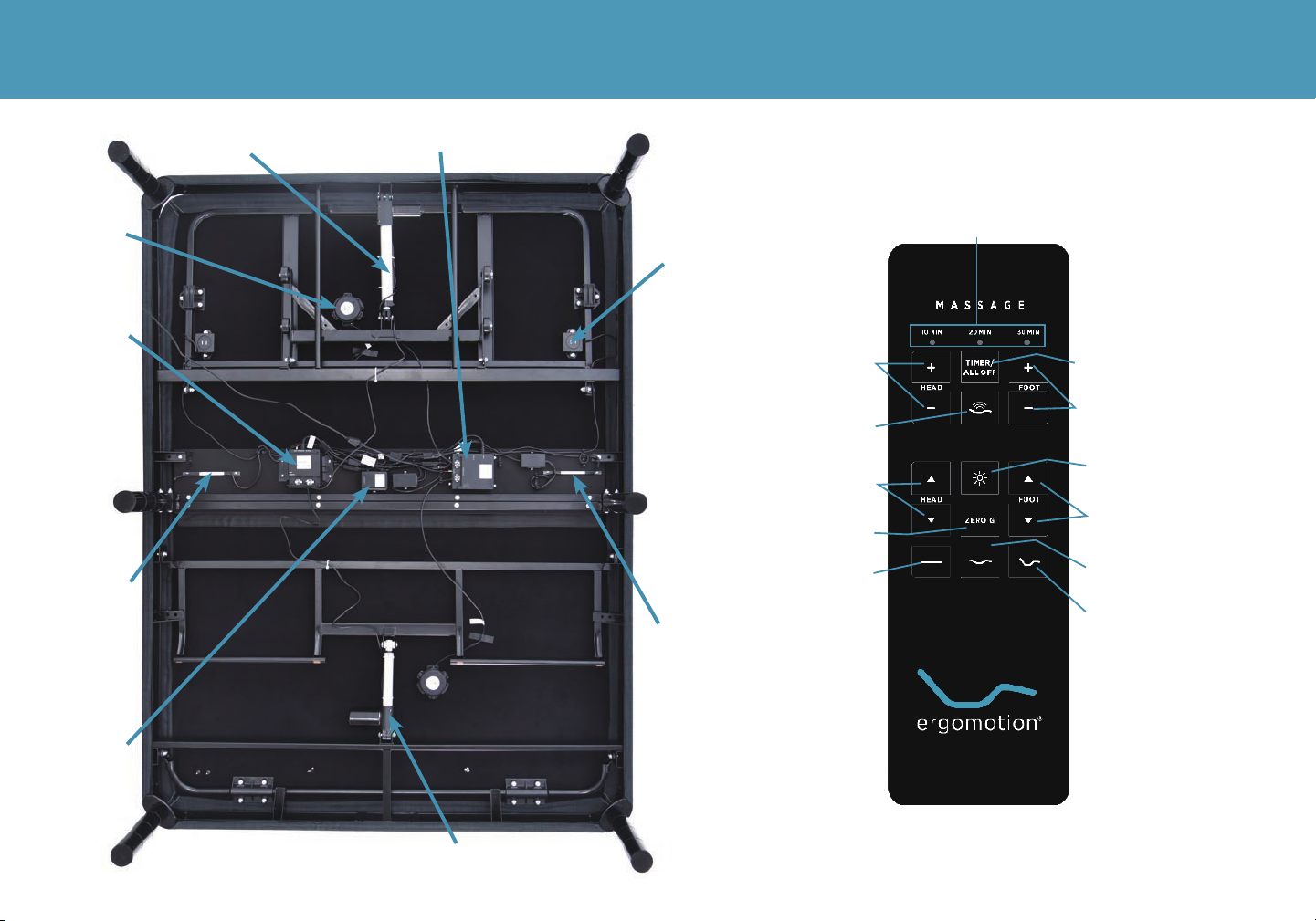

Base and Remote Overview
Head Motor
Foot Motor
Massage
Amp
LED Light
LED Light
Bluetooth
USB
Control Box
Head Massage Intensity
Turn on Head and
Foot Massage
Lifts and Lowers Head
Zero-G Preset Position
Flat Preset Position
Massage Timer
Foot Massage Intensity
Underbed Lighting On/
O
Lifts and Lowers Foot
Relax Preset Position
TV Preset Position
10, 20, 30 Minute
Massage Timer Lights
Massage
Motor

7
Quick Reference Guide
Not to scale. For illustration purposes only. Read all instructions before beginning installation.
ELECTRONICS OVERVIEWCONTROL BOX OVERVIEW
To remove control box, release
metal clip and unplug cords.
Power Down
Box Port
Input Cord
Connection
Power
LED Light
Pairing
LED Light
Reset/Pairing
Button Power Supply
Input Power
Cord
Power Cord
USB Ports
USB Charger
LED Lights
Head Motor
Foot Motor
Control Box
Massage Motor
Ports
Massage Amp
Splitter
Bluetooth
Sync Cord

8
Installation Guide
For customer support, visit www.ergomotion.com or call: 1-888-550-3746
Legs will be installed on all four corners and on each C-Clamp in
the middle (Refer to Fig D). To install the legs, thread the washer
over the screw on the leg. Next, screw the leg into the nutsert on
the frame. Do not over tighten.
STEP 1
STEP 2
STEP 3
STEP 4
Always use two people when setting up the base.
Placethe bed base box in adesiredlocation with the top of the
box facing up. Remove the binding straps and packing materials,
making sure not to puncture the box with any sharp objects.
Remove the bed base fromthe box and unfold the base,
keeping the bottom-side facing up.
To secure the frames together, slide C-clamp over the frame
connections(Refer to Fig A) in the middle of both sides of the
base.
Insert two long bolts through a washer before inserting them
through the holes on the side of the C-Clamp. Secure the
ends of the long bolts with another washer and a nut using the
provided wrenches. Repeat this step for the other side of the
base.
STEP 5 (Optional)
Fig A Fig B
Fig C Fig D

9
STEP 9
STEP 10
STEP 11
STEP 12
Carefully flip the baseover.
Important:Two people are required to move the bed base. Do
not drag across the floor. Do not rest frame on its side, excessive
pressure may damage the legs (if used).
Plug the power cord into a power source.
A surge protector is recommended.
Quickly test remote functions to verify proper setup before
placing mattress on base. Return the base to a flat position before
placing the mattress on top.
Setup is now complete! Test all functions on remote.
Install mattress retainer bars by inserting each end of the
retainer bar into the holes atthe foot of the base.
For customer support, visit www.ergomotion.com or call: 1-888-550-3746
STEP 6
STEP 7
STEP 8

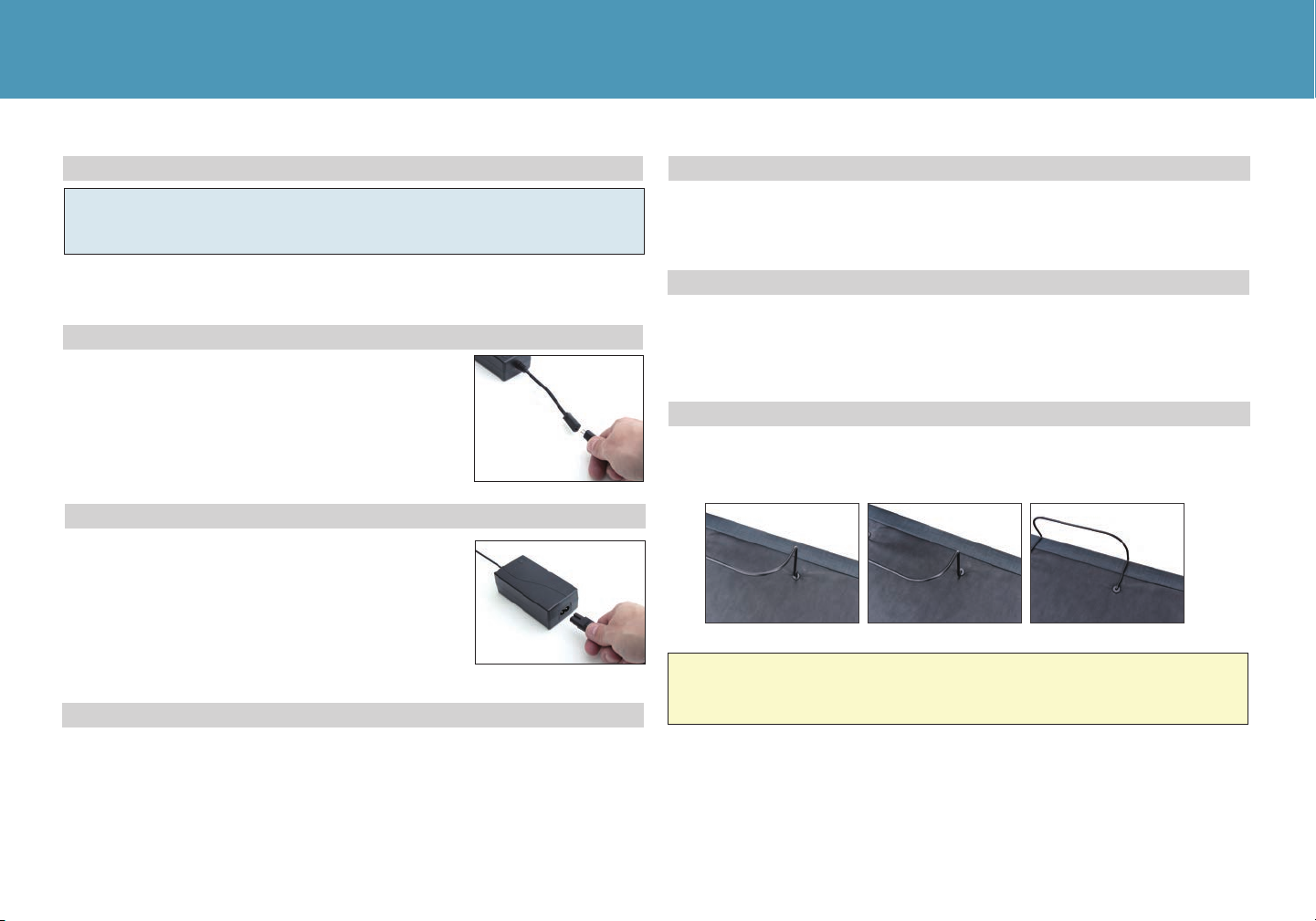

Uncoil the input Power Cord (connected
to Control Box’s power port) and plug into
Power Supply.
To sync two bases see detailed installation
instructions onpages 14-15.
Locate the power down box and set it aside. Be sure that it is
accessible after the base is set up.
Uncoil the Power Cord and connect to the
Power Supply. Place Power Supply on the
groundand extend from the base. Ensure
that the Power Supply and all attached
cords are directedtowardthe desired surge
protector.
Installation Guide

10
Remote Control
Remote Control arrives paired to the adjustable base.
Three (3) AAA batteries are required to operate the remote.
The HEAD + and - buttons
adjust the head massage
intensities. Levels 1-3.
The FOOT + and - buttons
adjust the foot massage
intensities. Levels 1-3.
The TIMER/ALL OFF button
selects a 10, 20 or 30
minute massage interval.
Pressing a fourth time will
turn o massage.
The MASSAGE button
activates head and foot
massage to level 2. A
second press turns massage
o.
The light on the top of the
remote indicates a 10, 20
or 30 minute timer setting.
Massage will automatically
the massage timer isn’t set.
shut o after 10 minutes if
MASSAGE FEATURE
Head Massage Intensity
Turn on Head and
Foot Massage
Lifts and Lowers Head
Zero-G Preset Position
Flat Preset Position
Massage Timer
Foot Massage Intensity
Underbed Lighting On/
O
Lifts and Lowers Foot
Relax Preset Position
TV Preset Position
10, 20, 30 Minute
Massage Timer Lights
2
3

11
Remote Control
The HEAD arrows lift
and lower the head section
of the base.
The FOOTarrows lift
and lower the foot section
of the base.
ADJUST
One touch LIGHT button
safety lighting feature.
activates and turns o the
One touch ZERO G®preset
position. Zero G®adjusts
your legs to a higher level
than your heart helping
to relieve pressure o the
lower back and promote
circulation.
One touch FLAT preset
position.
One touch RELAX preset
position.
One touch TV preset
position.
ONE TOUCH BUTTONS

12
Remote Control - Preset Programming
STEP 1
STEP 2
Theprogrammable feature allows you to save two custom positions.
Please read all the instructions below before setting your custom presets on the remote.
Articulate the head and foot to your desired position.
Press and hold one of the picture pre-set buttons
[] The LED lights attop of remote will flashinsuccession3 times.
Position is now saved.
To adjust the saved position, repeat steps 1 and 2 and the new position will be stored.
NOTE: To restore the preset buttons backto their original factory settings, holdFLAT and ZERO-G simultaneously for at least 5
seconds.The originalpresets will berestored.

13
Remote Control Pairing
Unplug the Power Cord from your power outlet. Wait 1 minute,
then plug it back in to your power outlet. Perform Step 2 within
10 seconds, while the control box light is flashing.
The remote is now paired to the adjustable base. Test all remote
functions. If the remote buttons do not impact the adjustable base
movements, please repeat the process again.
PAIR button
Press and hold the PAIR button on the back of the remote. The
PAIR button will illuminate and start to flash. When the PAIR
button stops flashing, the LED light on the control box will stop
flashing. Release the PAIR button.
STEP 1 STEP 3
STEP 2
Remote Pairing
The original remote that comes in the box is already paired to the adjustable base. No further action is required. In the event that the
remote is not paired with the base, follow the steps below.
Power Cord
Power Supply

The system is now linked. Pressed buttons on either remote
will control the two bases simultaneously.
14

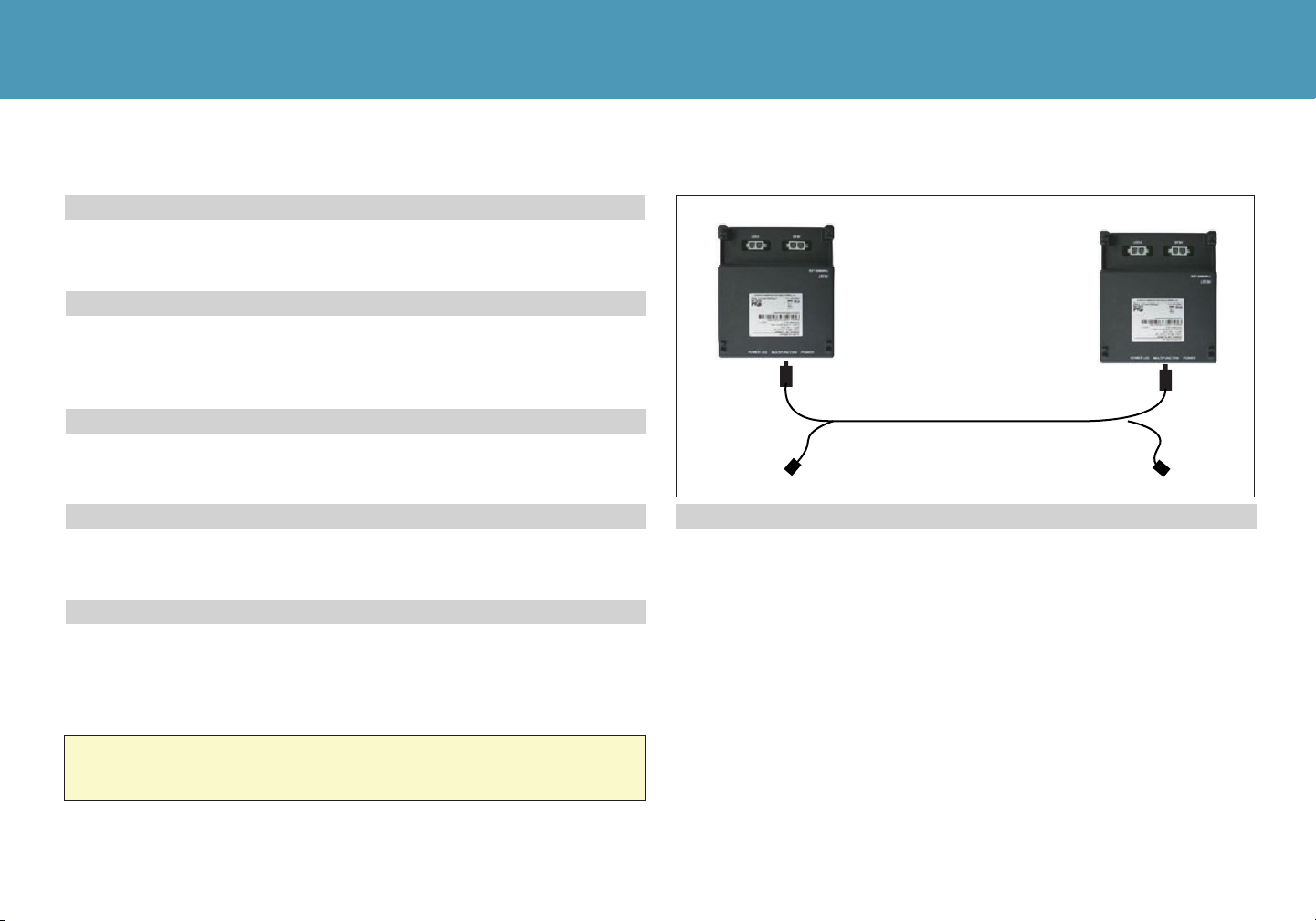

Syncing Two Cases (Optional)
A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases.
The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases.
Sync Cord
Connect the Sync Cord to the Multifunction port of each Control
Box.
If bases become mismatched, returning the bases to the flat
positions will re-sync the mechanical positions.
Unplug bases from power source.
STEP 2
Plug the bases back into the power source.
STEP 3
Double click the Reset button on the control box.
STEP 4
Press and hold the Pair button on the back of the remote until
the light stops flashing.
STEP 5
STEP 1
PERFORMANCENOTES

15

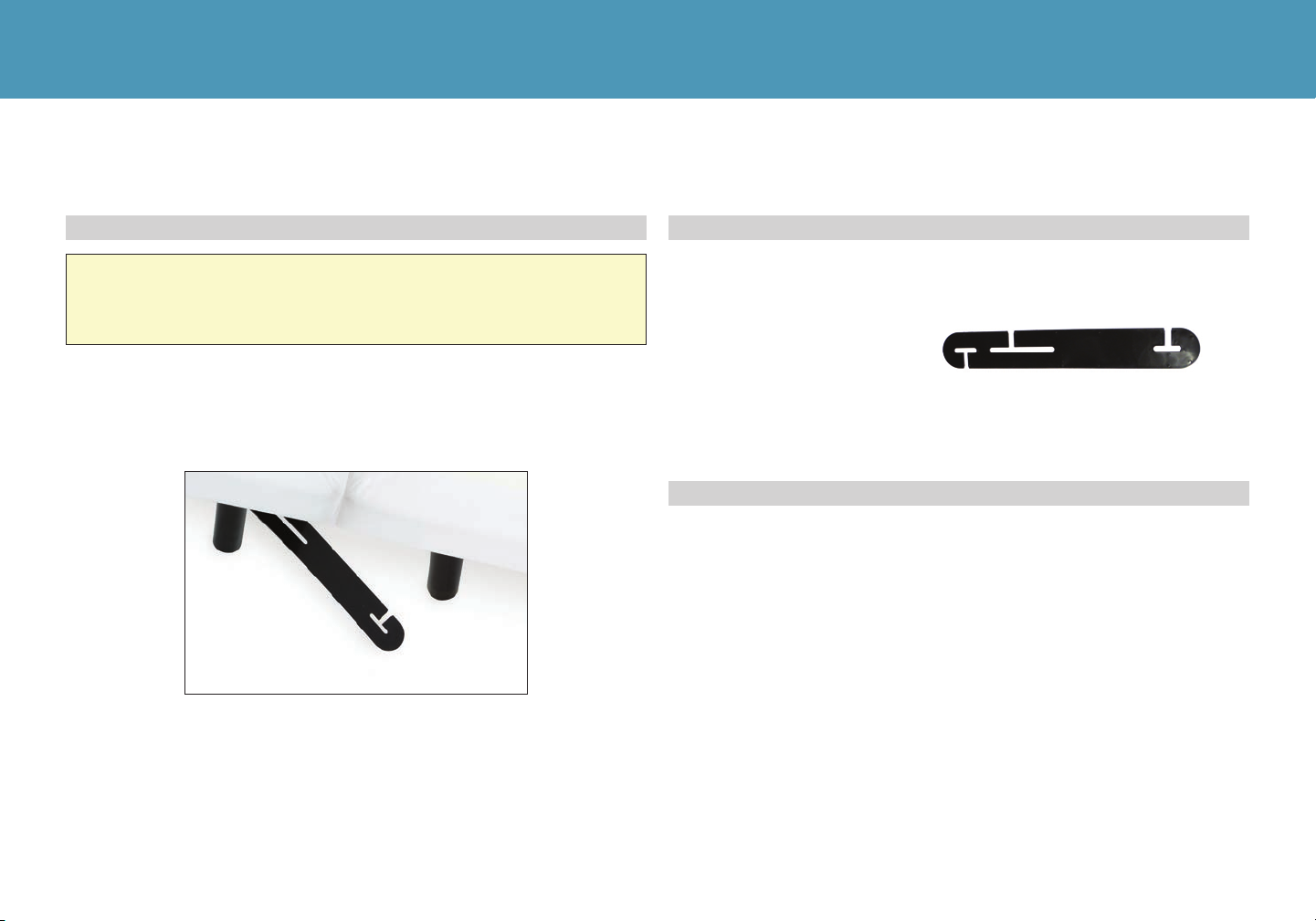

With the bases in their desired location, slightly loosen both legs
to allow the strap to fit on the leg bolt, between the leg washer
and frame.
Slide side (a) of the connecting strap onto leg bolt. Swing the
strap and connect side (b) to the leg bolt. Secure the strap by
shifting to the left.
Re-tighten legs. Do not over tighten. Use the remaining strap and
repeat on other end of the base.
STEP 2STEP 1
STEP 3
Connecting Strap (Optional)
ab
Connecting straps are secured to the base frame upon delivery.
Legs are required for the installation of the connecting straps.
Legs are required for the installation of the headboard brackets.
To purchase legs, please contact Ergomotion Customer Service
by calling 1-888-550-3746.

16

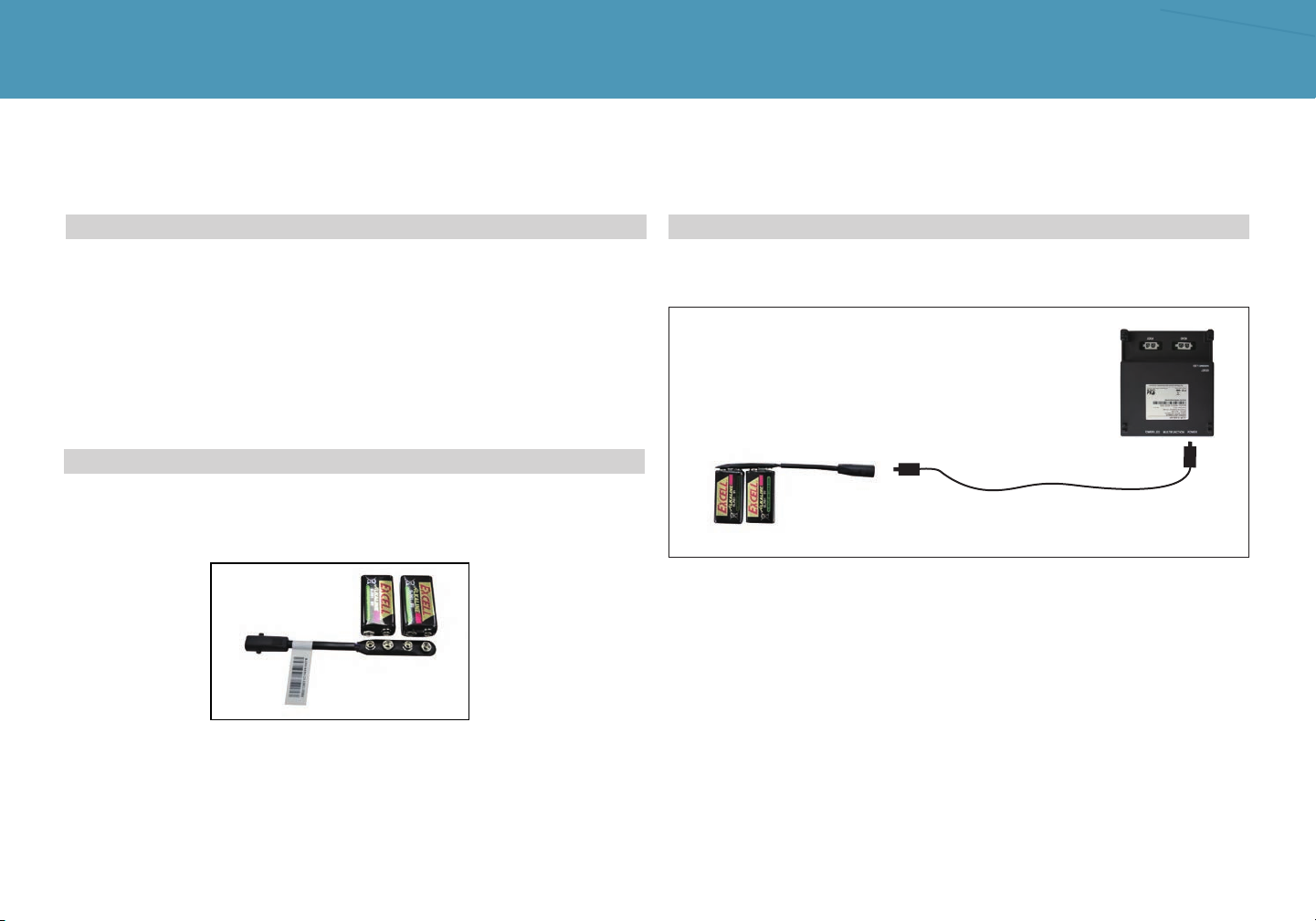

Emergency Battery Backup Strap
For emergency use only, in case of a power outage.
Disconnect the Power Supply fromthe input power cord.
Note: Detach the Battery Backup Strap after the emergency is
over, as the system will continue to draw power from the batteries
even if not in use.
Connect the end ofthe Battery Backup Strap to the input
power cord that is attached to the control box.
STEP 3STEP 1
STEP 2
Control Box
Input Cord
Battery Backup Strap
Connectthe Battery Backup Strap to the (2) Alkaline 9 Volt
batteries. Do not mix brand name Batteries.

Once in Settings, please choose V4.0 Bluetooth
version.
BEFORE YOU BEGIN THE PAIRING PROCESS,
please make sure the blue indicator light on
your Bluetooth® dongle is blinking, indicating
that it is discoverable. If the blue indicator light
is not blinking, please unplug your base from
its power source (a surge protector is
recommended) for 10 seconds and plug it back
in.

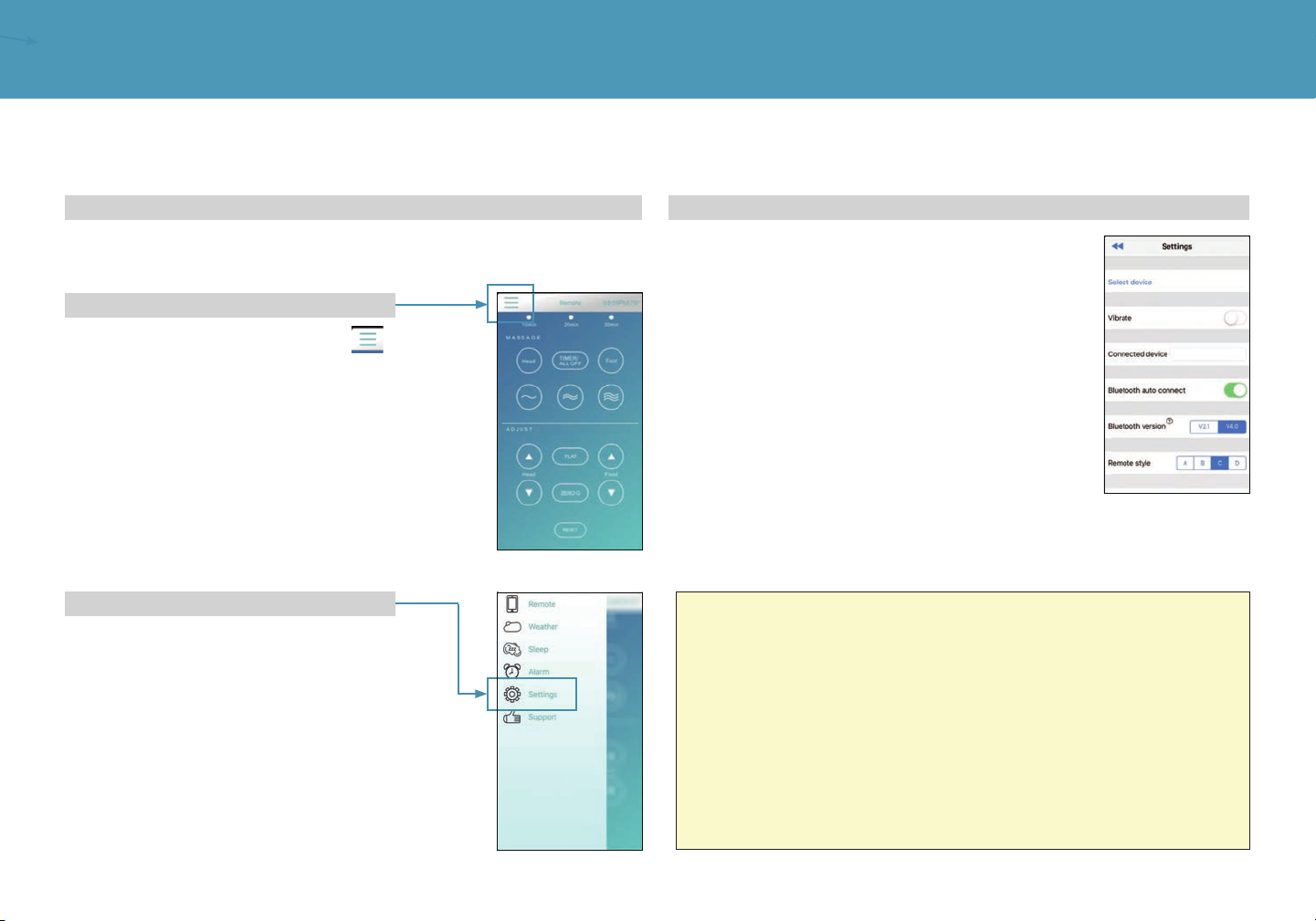

Bluetooth® V4.0 Pairing Instructions
1. Tap Select Device.
2. Select the device that begins with BASE-i4########.
3. Once you are successfully connected, you will be brought
back to the remote page and may now operate your adjustable
base.
17
Bluetooth® Remote Control Setup
To operate the base from a smart device, the “ Ergomotion ” application must be downloaded to the desired
smart device from the App Store (Apple) or Google Play Store(Android).
Plug the bed into power supply.
STEP 1
STEP 2
STEP 4
Open the menu by hitting the
button in the top left hand corner.
STEP 3
Select Settings.

Bluetooth® Remote Control Setup
You can opt to have Bluetooth auto-connect by turning Bluetooth
auto connect to the On or O position.
You can choose to turn haptic feedback on or o by turning
Vibrate to the On or O position.
NOTES:
• If operating multiple bases: the Unique ID number will be listed
on the sticker located on the adapter
• Press and hold RESET for 5 seconds to reset customized
presets back to factory default settings.
• To disconnect: Turn o the Bluetooth® function on your device.
• For assistance establishing a Bluetooth® connection please refer
to your device’s owners manual or contact the manufacturer
directly.
For assistance setting up a Bluetooth connection, refer to
your smart device's owners manual or contact the manufacturer
directly.
STEP 5STEP 7
To choose the Remote style that
most reflects the options on your
physical handset, please cycle
through options A-D.
Selecting each option will prompt
a pop up showing you an example
of each remote style option and
will give you the option to accept
that style or not.
STEP 6
Once you have chosen the correct
remote style please select the back
button “ ” to go back to the
remote screen.
button “ ” to go back to the
18
