Ericsson RBS 6401 User manual

Installing RBS
RBS 6401
INSTALLATION GUIDE
25/1531-LZA 701 6001 Uen H

Installing RBS
Required Equipment
Contents:
- RBS
- Drilling template
- Mounting bracket
- Alarm connector
RBS package Android phone
with ENIS
application
Spirit level Hammer drill Hammer drill
bit < 6mm
< 6 mm
(1/4″)
< 6 mm
(1/4″)
< 13 mm
(1/2″)
3 screws with plugs and
screwdriver
Screwdriver
Torx T20
Data cable,
optical or
Ethernet
Power cable Cable tie
tensioner and
cable ties
Optional Equipment
Ferrule end-face cleaner
- for optical cables
SFP module GPS cable Torque wrench with
18 mm fastening bit
- for installing the
external antenna.
225/1531-LZA 701 6001 Uen H | 2013-11-14

Equipment for Optional Alarm Cable
Side cutters Wire stripper 0.2 - 0.6 mm Screwdriver slot head 2.5x5.0 mm
Safety Equipment Optional Safety Equipment
Hearing protection Eye protection
- when drilling
vertically for ceiling
installation
Helmet and harness - when
working at heights
Protective
gloves -
for external
antenna
Documentation Note!
Read the following documents:
•Integrating RBSs On-Site Using ENIS
•Personal Health and Safety Information
•System Safety Information
•Transportation and Storage
Always rest the RBS lying down on the back
on a flat surface.
3
25/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
Installation
1 Unpack
Check that the delivered items correspond to
the packaging list.
Examine the box and the RBS for damage.
For more information, refer to the document
Handling Faulty Equipment.
2 Scan Barcode 3 Install SFP Module
Scan the barcode on the back of the RBS
with a smartphone using the ENIS Android
application.
If applicable, insert the SFP module in the port
marked WAN B.
4 Install Mounting Brackets
425/1531-LZA 701 6001 Uen H | 2013-11-14

1
3x
5 2
1. Protect the RBS and cables from dust by keeping them in the box when drilling.
2. Put the drilling template on the wall and ensure that it is straight by using a spirit level. Make
sure that the entire drilling template fits on the wall without it folding around any corners.
3. Drill the three holes marked on the drilling template.
4. Attach the two upper screws in positions to hang the mounting bracket.
5. Attach and fasten the mounting bracket to the wall using a screwdriver.
The RBS can be installed horizontally on ceilings, see Appendix A for more information.
The RBS can be installed with the external antenna adapter, see Appendix C for
more information.
5
25/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
5 Attach RBS to Bracket
12click
click
3TX20
4
1. Close the cable strain relief
2. Hang the RBS loosely on the mounting bracket hooks.
3. Attach the RBS to the bracket by gently pushing the bottom of the RBS toward the bracket
until it locks.
4. Fasten the RBS to the mounting bracket, by tightening the screws to 2.0 Nm.
625/1531-LZA 701 6001 Uen H | 2013-11-14

6 Connect Cables
POWER
1. Use one of the three connection options:
• WAN A – Connect the RJ-45 cable for Ethernet transmission.
• DSL – Connect the RJ-45 cable for VDSL2 transmission.
• WAN B – Connect the Ethernet optical cable.
2. Connect the external antenna cables on top of the RBS; see step 7 in
Appendix C for more information.
3. Connect the external alarm cable to the port marked EXT ALARM; see
Appendix B for more information.
4. Connect the GPS cable to the round socket in the middle marked with
a circle.
5. Connect the AC power cable to the AC power connector. Attach the
cable strain relief. Only connect the power cable when all other cables
have been connected.
DANGER
Equipment must be connected
to an earthed mains socket
outlet. Failure to do so could
result in death or injury.
WARNING
Never look directly into the end
of a fiber optic cable or other
laser source as it can cause
eye damage.
NOTE
Always clean optical cable connectors before connecting them.
7
25/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
7 Route Cables
Route all cables through the cable holders on the left hand side of the RBS.
Group the cables with cable ties where needed.
8 Verify 9 Clean Up
Confirm that the green operational
indicator is on and that no alarms are
active. In case of error, refer to the
document Handling Faults On-Site.
Remove the drilling
template.
Dispose of waste according
to local regulations.
825/1531-LZA 701 6001 Uen H | 2013-11-14

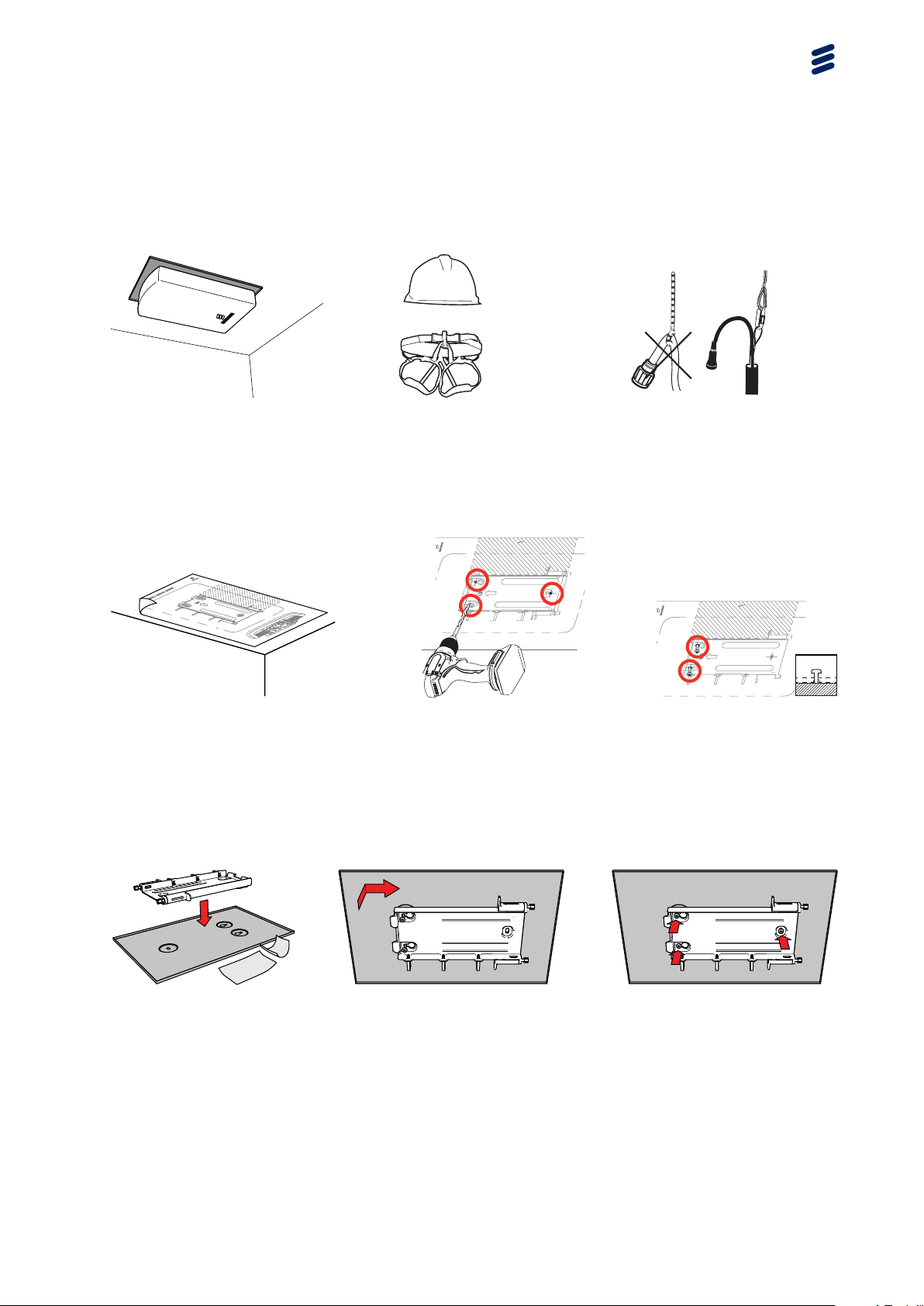

Appendix A – Ceiling Installation and Working at Heights
When installing the RBS
horizontally on a ceiling,
the ceiling plate must be
installed between the ceiling
and the mounting bracket.
Use appropriate safety
equipment, such as helmet
and harness.
Optical cables are fragile so lift with
care. Do not attach a pulling wire
directly to the optical cable, rather;
attach the pulling wire to a loop and
use the loop to lift the cable.
12 3
1. Put the drilling template on the ceiling and ensure that it is straight. Make sure that the entire
drilling template fits on the ceiling without it folding around any corners.
2. Drill the three holes marked on the drilling template.
3. Attach the two upper screws in positions to hang the ceiling plate and the mounting bracket.
456
4. Remove the adhesive paper strips from the ceiling plate and attach the mounting bracket.
5. Hang the ceiling plate and the mounting bracket on the two screws.
6. Attach the third screw and tighten all the screws using a screwdriver.
9
25/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
Appendix B – Install Alarm Cable
2
3
4
1
100
5
25
(mm)
1. Strip the insulation from the alarm cable and twin the wires in pairs, as shown in the illustration
above.
2. Connect each wire to the 6x2 pole alarm connector. The illustration shows how the wire-pairs
connect to the alarm connector.
3. Connect the alarm connector to the RBS.
4. Fasten the screws with a slot headed screwdriver 2.5x5.0 mm.
10 25/1531-LZA 701 6001 Uen H | 2013-11-14

Appendix C – Install External Antenna
1 23
1. Remove the front cover by pulling one side upward. Use protective gloves when removing
the front cover.
2. Remove the two black pieces of tape at the top edge inside the RBS, and, with a screwdriver,
break the two aluminium knock outs.
3. Insert two external antenna adapter cables through the holes, and attach the adapter to the
top edge of the RBS by gently pushing it toward the RBS.
4
56
4. Connect the two external antenna adapter cables to the connectors inside the RBS.
5. Place the unused internal antenna cables as shown in illustration 5.
6. Attach the front cover to the RBS by gently pushing it toward the RBS.
11
25/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
7
7. When connecting the cables in section 6. Use the torque wrench with the fastening bit to
connect the external antenna cables to the N connectors at the top of the RBS. Tighten to 1.7 Nm.
12 25/1531-LZA 701 6001 Uen H | 2013-11-14

1325/1531-LZA 701 6001 Uen H | 2013-11-14

Installing RBS
Ericsson AB
© Ericsson AB 2013. All rights reserved. No part of this
document may be reproduced in any form without the written
permission of the copyright owner.
The contents of this document are subject to revision without
notice due to continued progress in methodology, design and
manufacturing. Ericsson shall have no liability for any error or
damage of any kind resulting from the use of this document.
25/1531-LZA 701 6001 Uen H
