F5521gw Technical Description
DESCRIPTION
1/1550-KRD 131 18 Uen Rev C

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
2 (23
)
© Ericsson AB 2010
All rights reserved. The information in this document is the property of
Ericsson. Except as specifically authorized in writing by Ericsson, the
receiver of this document shall keep the information contained herein
confidential and shall protect the same in whole or in part from disclosure
and dissemination to third parties. Disclosure and disseminations to the
receiver's employees shall only be made on a strict need to know basis. The
information in this document is subject to change without notice and
Ericsson assumes no responsibility for factual inaccuracies or typographical
errors.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
3 (23
)
Abstract
This document presents the technical specifications, operational and regulatory
information as well as environmental declaration of the F5521gw mobile broadband
module from Ericsson.
Trademark and Acknowledgements
Android and Chromium are trademarks of Google Inc. Use of this trademark is
subject to Google Permissions.
Intel is a registered trademark of Intel Corporation in the U.S. and other countries.
Linux is a registered trademark of Linus Torvalds.
MeeGo is a registered trademark of The Linux Foundation.
Microsoft, Windows, Windows XP, Windows Vista and Windows 7 are registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries.
PGPS is a trademark of Rx Networks Inc.
Ubuntu is a registered trademark of Canonical Ltd.
Ericsson is a trademark of Telefonaktiebolaget LM Ericsson.
All trademarks are the property of their respective owners. All other product or
service names mentioned in this document are trademarks of their respective
companies.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
4 (23
)
Contents
1 Technical Specifications....................................................................... 5
1.1 General....................................................................................................5
1.1.1 Exterior Description .................................................................................6
1.1.2 Environment ............................................................................................6
1.1.3 Electrical Interfaces .................................................................................7
1.1.4 Power Supply ..........................................................................................7
1.1.5 Host Specification....................................................................................7
1.2 UMTS Technical Data .............................................................................8
1.2.1 WCDMA Technical Data..........................................................................8
1.2.2 HSPA Technical Data..............................................................................8
1.2.3 HSPA Evolution Technical Data ..............................................................9
1.3 GSM Technical Data ...............................................................................9
1.3.1 GPRS Technical Data .............................................................................9
1.3.2 GPRS Maximum Data Rates.................................................................10
1.3.3 EDGE Technical Data ...........................................................................10
1.3.4 EDGE Maximum Data Rates.................................................................11
1.4 Features ................................................................................................12
1.4.1 SMS Technical Data..............................................................................12
1.4.2 GPS Technical Data ..............................................................................12
1.4.3 SIM-Based Features..............................................................................13
1.5 Host Software ........................................................................................13
1.5.1 Operating Systems ................................................................................13
1.5.2 Languages for Windows!.....................................................................14
1.5.3 Communication Interfaces.....................................................................15
2 Operational and Regulatory information........................................... 15
2.1 Operational Information .........................................................................15
2.1.1 Wireless Interoperability ........................................................................15
2.1.2 Safety ....................................................................................................15
2.1.3 Recommendations.................................................................................16
2.1.4 Children .................................................................................................17
2.1.5 Disposal of old electrical & electronic equipment ..................................17
2.1.6 Emergency calls ....................................................................................17
2.2 Regulatory Information ..........................................................................17
2.2.1 European Union, EU Declaration of Conformity ....................................17
2.2.2 United States, FCC Notices...................................................................18
3 Environmental Declaration ................................................................. 19
4 Terminology and Abbreviations......................................................... 20

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
5 (23
)
1 Technical Specifications
1.1 General
Attribute Data
Standard variant

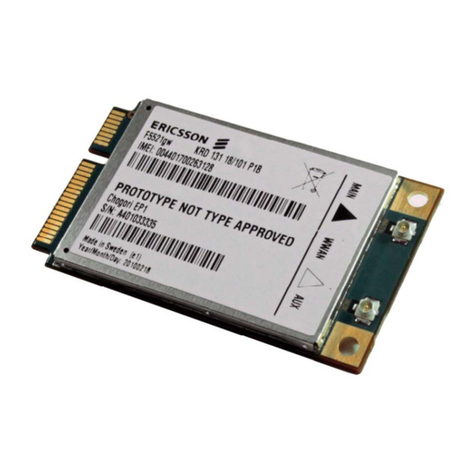

Product name F5521gw
Card type PCI Express Full-Mini Card type F2
System GSM 850
E-GSM 900
GSM 1800
GSM 1900
UMTS 800
UMTS 850
UMTS 900
UMTS 1900
UMTS 2100
GPS
Services supported GSM: Packet-Switched data GPRS/EDGE, SMS,
UMTS: Packet-Switched data, HSPA, HSPA Evolution,
SMS,
GPS: Stand alone, PGPSTM, A-GPS SUPL 1.0,
GPS data output format NMEA-0183 4.0, Windows®7
Microsoft Sensor Class
SIM Card USIM, GPRS-aware and Regular (non-GPRS-aware)
supported
3 V and 1.8 V type
Certification and
Type Approval
CE
R&TTE
FCC
IC
PTCRB
GCF
UL
Microsoft WHQL
Speech services Speech services are not supported

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
6 (23
)
Attribute Data
Standard variant
Modes PDP type IP
IP Allocation Dynamic
Type Number KRD 131 18/1
FCC ID VV7-MBMF5521GW1
IC 287AG-MBMF5521GW1
1.1.1 Exterior Description
Attribute Data
Size PCI Express Full Mini Card type F2
Weight <12 g
System connector 52-pin card edge type connector
Antenna connector U.FL connectors, 50 ohm nominal
impedance
Main: Main TX/RX GSM/UMTS antenna
connector
Aux: GPS and UMTS RX diversity
antenna connector
1.1.2 Environment
Attribute Data
Ambient Temperature: Operating -10°C to 65°C
Ambient Temperature: Storage -30°C to 85°C
Directives WEEE (Waste Electrical and Electronic
Equipment Directive)
RoHS (Restriction of use of certain
Hazardous Substances)

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
7 (23
)
1.1.3 Electrical Interfaces
Attribute Data
Main communication and data USB 2.0
Auxiliary communication SMBus 2.0
Radio status LED
Radio control Wireless Disable
UICC interface User Identity Module (UIM) – SIM
1.1.4 Power Supply
Attribute Data
Supported Voltage Range 3.0 V – 3.6 V (3.3 V ± 9%)
Nominal Operating Voltage 3.3 V
Average Standby Power (Radio off) < 10 mW
Average Idle Power (Attached to
network)
< 10 mW
1.1.5 Host Specification
Attribute Data
Minimum Host Specification CPU & Memory as recommended by
operating system
PCI Express Mini Card compatible slot
(USB) with GSM/UMTS/GPS two-port
antenna system
UICC reader

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
8 (23
)
1.2 UMTS Technical Data
Attribute Data
Power Class Class 3 (24dBm)
Frequency bands Band V
(850)
Band VI
(800)
Band VIII
(900)
Band II
(1900)
Band I
(2100)
Frequency Range
(MHz)
TX:
824-849
RX:
869-894
TX:
830-840
RX:
875-885
TX:
880 - 915
RX:
925 - 960
TX:
1850-1910
RX:
1930-1990
TX:
1920-1980
RX:
2110-2170
Duplex spacing 45 MHz 45 MHz 45 MHz 80 MHz 190 MHz
Advanced
Receiver
Type I, Type II, Type III, Type 3i
Features Inter-Mode Handover (UMTS/EDGE/GPRS)
Inter-Mode Reselection (UMTS/EDGE/GPRS)
Quality Of
Service
UMTS classes supported via AT Command
(Wireless Manager selects default)
1.2.1 WCDMA Technical Data
Attribute Data
Maximum Downlink speed1384 kbps (Packet-Switched)
Maximum Uplink speed1384 kbps (Packet-Switched)
1.2.2 HSPA Technical Data
Attribute Data
Maximum Downlink Speed214.4 Mbps
Maximum Uplink Speed25.76 Mbps
HSDPA Categories Categories up to 14.4 Mbps (Category 1-12)
HSUPA Categories Categories up to 5.76 Mbps (Category 1-6)
1Speed achieved depends on the UMTS Network providing the service. The speed in the table includes header
and data.
2Speed achieved depends on the UMTS Network providing the service. The speed in the table includes header
and data.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
9 (23
)
1.2.3 HSPA Evolution Technical Data
Attribute Data
Maximum Downlink Speed221 Mbps
HSDPA Categories Categories up to 21 Mbps (Category 13-14)
1.3 GSM Technical Data
Attribute Data
Frequency Bands GSM 850 E-GSM 900 GSM 1800 GSM 1900
Frequency range
(MHz)
TX:
824-849
RX:
869-894
TX:
880-914
RX:
925-959
TX:
1710-1785
RX:
1805-1880
TX:
1850-1910
RX:
1930-1990
Duplex spacing 45 MHz 45 MHz 95 MHz 80 MHz
Channel Spacing 200kHz 200kHz 200kHz 200kHz
Number of
channels
123 Carriers x
8 (TDMA)
175 Carriers x
8 (TDMA)
374 Carriers x
8 (TDMA)
299 Carriers x
8 (TDMA)
Modulation GMSK 8-PSK GMSK 8-PSK GMSK 8-PSK GMSK 8-PSK
Power Class
GSM/GPRS;
EGPRS
MCS1-4 (GMSK)
Class 4
2 W
33 dBm
Class 4
2 W
33 dBm
Class 1
1 W
30 dBm
Class 1
1 W
30 dBm
Power Class
EGPRS
MCS5-9
(8-PSK)
Class E2
0.5 W
27 dBm
Class E2
0.5 W
27 dBm
Class E2
0.4 W
26 dBm
Class E2
0.4 W
26 dBm
1.3.1 GPRS Technical Data
Attribute Data
Device Class GPRS Multi-slot class 12 supported (see table
below for data rates): (Maximum 4 slots uplink,
maximum 4 slots downlink, maximum 5 slots
concurrent)
Modulation Coding Schemes CS-1 to CS-4
Mode of Operation Class B (attaches to both GSM and GPRS at the
same time

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
10 (23
)
1.3.2 GPRS Maximum Data Rates3
4 + 1 3 + 2Coding
Scheme
Data Rate
per slot Rx Tx Rx Tx
CS-1 9.05 36.2 9.05 27.15 18.1
CS-2 13.4 53.6 13.4 40.2 26.8
CS-3 15.6 62.4 15.6 46.8 31.2
CS-4 21.4 85.6 21.4 64.2 42.8
2 + 3 1 + 4Coding
Scheme
Data Rate
per slot Rx Tx Rx Tx
CS-1 9.05 18.1 27.15 9.05 36.2
CS-2 13.4 26.8 40.2 13.4 53.6
CS-3 15.6 31.2 46.8 15.6 62.4
CS-4 21.4 42.8 64.2 21.4 85.6
1.3.3 EDGE Technical Data
Attribute Data
Device Class EDGE Multi-slot Class 12 (see table below for data
rates): (Maximum 4 slots uplink, maximum 4 slots
downlink, maximum 5 slots concurrent)
Modulation Coding Schemes MCS-1 to MCS-9
EDGE features Link Adaptation
Incremental Redundancy
Extended Uplink TBF
Network Assisted Cell Change (NACC)
3Speed achieved depends on the Coding Scheme supported by the GSM Network. Data rate is the payload per
slot, headers plus data.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
11 (23
)
1.3.4 EDGE Maximum Data Rates4
4 + 1 3 + 2Coding
Scheme
Type of
coding
Data Rate
per slot Rx Tx Rx Tx
MCS-1 GMSK 10.60 42.40 10.60 31.80 21.20
MCS-2 GMSK 13.00 52.00 13.00 39.00 26.00
MCS-3 GMSK 16.60 66.40 16.60 49.80 33.20
MCS-4 GMSK 19.40 77.60 19.40 58.20 38.80
MCS-5 8-PSK 24.05 96.20 24.05 72.15 48.10
MCS-6 8-PSK 31.25 125.00 31.25 93.75 62.50
MCS-7 8-PSK 47.45 189.80 47.45 142.35 94.90
MCS-8 8-PSK 57.05 228.20 57.05 171.15 114.10
MCS-9 8-PSK 61.85 247.40 61.85 185.55 123.70
2 + 3 1 + 4Coding
Scheme
Type of
coding
Data Rate
per slot Rx Tx Rx Tx
MCS-1 GMSK 10.60 21.20 31.80 10.60 42.40
MCS-2 GMSK 13.00 26.00 39.00 13.00 52.00
MCS-3 GMSK 16.60 33.20 49.80 16.60 66.40
MCS-4 GMSK 19.40 38.80 58.20 19.40 77.60
MCS-5 8-PSK 24.05 48.10 72.15 24.05 96.20
MCS-6 8-PSK 31.25 62.50 93.75 31.25 125.00
MCS-7 8-PSK 47.45 94.90 142.35 47.45 189.80
MCS-8 8-PSK 57.05 114.10 171.15 57.05 228.20
MCS-9 8-PSK 61.85 123.70 185.55 61.85 247.40
4Speed achieved depends on the Coding Schemes supported by the GSM/EDGE Network. Data rate is the
payload per slot (headers plus data).

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
12 (23
)
1.4 Features
Attribute Data
Start-up USB Quick Enumeration
Always on Attached to the network if the host provides power to
the module in S3 and S4 states
Anti-Theft Compatible with Intel® Anti-Theft Technology (Intel®
AT)for S0 and S3 states
Power Management USB selective suspend (Windows® OS) and USB
autosuspend (Linux®)
Continuous Packet Connectivity (network feature)
Over-temperature
protection
GPS and PA Thermal Throttling
1.4.1 SMS Technical Data
Attribute Data
SMS over GPRS Mobile Originated and Mobile Terminated
Concatenated SMS Yes, up to 10 messages
SMS Cell Broadcast Supported by AT Command
SMS Immediate Display Supported in Wireless Manager and by AT Command
1.4.2 GPS Technical Data
Attribute Data
Receiver Sensitivity -143 dBm (Acquisition standalone)
-147 dBm (Acquisition assisted)
-160 dBm (Tracking)
Cold TTFF
at -130 dBm
< 40 seconds (Standalone)
< 20 seconds (Assisted)
Hot TTFF
at -130 dBm
< 2 seconds
Accuracy (Tracking)
at -130 dBm
< 10 meters (CEP95)

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
13 (23
)
1.4.3 SIM-Based Features
Attribute Data
SIM Personalization
Locks
Supports restricting SIM/USIM card use according to
3GPP standard TS 22.022 v8.0.0
SIM Application Toolkit
USIM Application Toolkit
Supported by AT commands (Release 5)
Supported by AT commands (Release 5)
USSD Supported by AT commands (Release 7)
Secure Logical Channels Supported by AT commands (Release 7)
Smartcard Authentication EAP-SIM supported by AT commands or the
smartcard driver. The smartcard driver is available for
Windows® OS only
SIM Hot Swap Automated firmware solution
Network Dependent
Firmware Update
Automated firmware solution that can be customized
by AT commands as well as in production
1.5 Host Software
1.5.1 Operating Systems
Attribute Data
Microsoft Windows!Products Windows!7
(32-bit and 64-bit)
Windows!VistaTM (SP1)
(32-bit and 64-bit)
Windows!XP (SP2)
(32-bit and 64-bit)
Open Source Projects5Linux!Vanilla kernel
Ubuntu!(10.04)
(32-bit and 64-bit)
ChromiumTM
MeeGo!
AndroidTM (1.6, 2.0 and 2.1)
5Support for Linux®, Ubuntu!, AndroidTM, ChromiumTM and MeeGo!is provided by the open source
community

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
14 (23
)
1.5.2 Languages for Windows!
Products Languages
Wireless Manager
SMS Utility
GPS Utility
Help files
Arabic
Chinese Simplified
Chinese Traditional
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hebrew
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese-Portugal
Portuguese-Brazil
Romanian
Russian
Slovakian
Slovenian
Spanish
Swedish
Thai
Turkish

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
15 (23
)
1.5.3 Communication Interfaces
Attribute Data
Ericsson Mobile
Broadband C++ API
C++ Application Programming Interface designed by
Ericsson for third party applications for Windows® OS
Microsoft Mobile
Broadband API
C++ Application Programming Interface designed by
Microsoft for third party applications for Windows® 7
Wireless Modem Serial modem interface that can be used to
send/receive AT commands or establish internet
connection through dial-up. Port type ACM available in
Windows® and open source OS
Device Management Port Serial interface that can be used to send/receive AT
commands. Port type WDM available in Windows®
and open source OS
2 Operational and Regulatory information
Please read this information before using your Wireless Mobile Broadband Module.
2.1 Operational Information
2.1.1 Wireless Interoperability
The Wireless Mobile Broadband Module is designed to be interoperable with the
specific wireless service providers and their roaming partners.
2.1.2 Safety
The Mobile Broadband Module, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this device, however, is less
than the electromagnetic energy emitted by other wireless devices such as mobile
phones. The Mobile Broadband module operates within the guidelines found in
radio frequency safety and recommendations. These standards and
recommendations reflect the consensus of the scientific community and result from
deliberations of panels and committees of scientists who continually review and
interpret the extensive research literature. In some situations or environments, the
use of the Mobile Broadband module may be restricted by the proprietor of the
building or responsible representatives of the applicable organization.
Examples of such situations include the following:
"Using the Mobile Broadband equipment on board airplanes, or

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
16 (23
)
"Using the Mobile Broadband equipment in any other environment where the risk
of interference with other devices or services is perceived or identified as being
harmful.
If you are uncertain of the policy that applies to the use of wireless devices in a
specific organization or environment (an airport, for example), you are encouraged
to ask for authorization to use the Mobile Broadband device before you turn it on.
WARNING: Explosive Device Proximity Warning – Do not operate a portable
transmitter (such as a wireless network device) near unshielded blasting caps or in
an explosive environment unless the device has been modified to be qualified for
such use.
CAUTION: Use on Aircraft – Regulations of the FCC and FAA prohibit airborne
operation of radio-frequency wireless devices because their signals could interfere
with critical aircraft instruments.
2.1.3 Recommendations
"Always treat your product with care and keep it in a clean and dust-free place.
"Do not expose your product to liquid, moisture or humidity.
"Do not expose your product to extreme high or low temperatures.
"Do not expose your product to open flames or lit tobacco products.
"Do not drop, throw or try to bend your product.
"Do not paint your product.
"Do not use your product near medical equipment without requesting permission
from your treating physician or authorized medical staff.
"Do not use your product when in or around aircraft or in areas displaying a “turn
off two-way radio” sign.
"Do not use your product in an area where a potentially explosive atmosphere
exists.
"Do not place your product or install wireless equipment in the area above your
car’s airbag.
"Do not attempt to disassemble your product. Only authorized personnel should
perform service.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
17 (23
)
2.1.4 Children
Do not allow children to play with your Module Broadband Module. They could hurt
themselves or others, or could accidentally damage the Mobile Broadband Module.
Your Mobile Broadband Module may contain small parts that could be detached and
create a choking hazard.
2.1.5 Disposal of old electrical & electronic equipment
All electrical and electronic equipment included should not be treated as household
waste. It should instead be left at the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about the recycling of this product, please
contact your local city office, your household waste disposal service or the store
where you purchased your Mobile Broadband Module.
2.1.6 Emergency calls
This Mobile Broadband Modules do not support voice calls or serviced, nor
emergency calls and should not be relied upon for essential communications.
2.2 Regulatory Information
The Mobile Broadband module must be installed and used in strict accordance with
the manufacturer's instructions as described in the user documentation that comes
with the product The device manufacturer is not responsible for any radio or
television interference caused by unauthorized modification of the devices included
with the Mobile Broadband, or the substitution or attachment of connecting cables
and equipment other than that specified by the device manufacturer. The correction
of interference caused by such unauthorized modification, substitution or
attachment is the responsibility of the user. The device manufacturer and its
authorized resellers or distributors are not liable for any damage or violation of
government regulations that may arise from the user failing to comply with these
guidelines.
2.2.1 European Union, EU Declaration of Conformity
European Union, R&TTE Compliance Statement
Hereby, the device manufacturer declares that this Mobile Broadband device is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
18 (23
)
2.2.2 United States, FCC Notices
Instructions to the user:
If using a permanently affixed label, the modular transmitter must be labeled with its
own FCC identification number, and, if the FCC identification number is not visible
when the module is installed inside another device, then the outside of the device
into which the module is installed must also display a label referring to the enclosed
module. This exterior label can use wording such as the following: “Contains
Transmitter Module FCC ID: VV7-MBMF5521GW1” or “Contains FCC ID: VV7-
MBMF5521GW1.” Any similar wording that expresses the same meaning may be
used.
FCC Radiation Exposure Statement:
CAUTION: The radiated output power of the Wireless Mobile Broadband module is
far below the FCC radio frequency exposure limits. Nevertheless, the Wireless
Mobile Broadband module should be used in such a manner that the potential for
human contact during normal operation is minimized. Details of the authorized
configurations can be found at
https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm by entering the FCC ID
number on the device.
CAUTION: This device has been evaluated for and shown compliant with the FCC
RF exposure limits under portable exposure conditions (antennas are within 20 cm
of a person's body) when installed in certain specific OEM configurations. This
device has also been evaluated and shown compliant with the FCC RF Exposure
limits under mobile exposure conditions (antennas are further than 20cm from a
person's body). Details of the authorized configurations can be found at
https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm by entering the FCC ID
number on the device.
Interference Statement:
This device complies with Part 15 of the Federal Communications Commission
(FCC) Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested to, and found to be within the acceptable limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential environment. This equipment generates radio
frequency energy and is designed for use in accordance with the manufacturer's
user manual. However, there is no guarantee that interference will not occur in any
particular installation. If this equipment causes harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
you are encouraged to try to correct the interference by one or more of the following
measures:
"Reorient or relocate the receiving antenna

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
19 (23
)
"Increase the separation between the equipment and the receiver
"Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
"Consult the dealer or an experienced radio/television technician for help
Note: This Mobile Broadband device must be installed and used in strict accordance
with the manufacturer's instructions as described in the user documentation that
comes with the product. Any other installation or use will violate FCC Part 15
regulations. Modifications not expressly approved by the device manufacturer could
void your authority to operate the equipment.
3 Environmental Declaration
Ericsson has a responsibility to the community to provide products which are safe to
use and which have minimal impact upon the environment. The Ericsson Design for
Environment program is designed to meet legislative and market requirements in
the countries where Ericsson sells F5521gw.
The Ericsson Design for Environment program lists chemical substances that are
banned or restricted for use in Ericsson products and manufacturing operations.
Ericsson works with its suppliers to eliminate such substances in procured material.
Restrictions on the use of substances in Ericsson products are divided into two
categories; banned substances and restricted substances.
Banned substances are prohibited for use in specified applications in Ericsson
products in accordance with relevant legislation.
Restricted substances may only be used where no technically and/or economically
acceptable alternatives exist and will be replaced as soon as possible.
The ban or restriction does not apply where the presence of a substance is
unintentional and in the form very small concentrations derived from natural
impurities.
Note: Legislation regulating the use of banned substances includes exemptions
allowing limited use where no technically acceptable alternatives exist. Ericsson
makes use of some of these exemptions in order to maintain product quality.

F5521gw Technical Description
1/1550-KRD 131 18 Uen Rev C 2010-07-19 Ericsson AB 2010
Commercial in confidence
20 (23
)
4 Terminology and Abbreviations
3GPP The 3rd Generation Partnership Project
ACM Abstract Control Model USB communications device class
A-GPS Assisted GPS
API Application programming interface
AT Attention Command
CCelsius
CE Conformité Européenne
CEP95 Circular Error Probability 95%
CPU Central Processing Unit
CS-1 to CS-4 Coding Scheme, it determines the data rate per timeslot in
GPRS.
E-GSM Extended GSM
EAP Extensible Authentication Protocol
EDGE Enhanced Data Rates for Global Evolution.
ES Engineering Sample
EU European Union
FAA Federal Aviation Administration
FCC Federal Communications Commission
GCF Global Certification Forum
GMSK Gaussian Minimum Shift Keying
GPRS General Packet Radio Services
GPS Global Positioning System
GSM Global System for Mobile Communications
GSM 850 GSM network operating in the 850MHz band, used in the
USA.
