Baseband Description
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11

1 Product Overview
This document describes the 19-inch baseband units for Ericsson Radio Systems.
1.1 Main Features
This section describes the main features of the baseband.
Not all features are supported by all equipment congurations. For a description
of the current equipment congurations, see RBS Congurations.
The main features of the baseband are the following:
—NR
—LTE (FDD and TDD), WCDMA, GSM
—NB-IoT
—Elastic RAN
—Mixed Mode
—Backhaul cascading
—Baseband 6630 supports multibaseband congurations
1.2 Purpose
Baseband 6620 and Baseband 6630 provide switching, trafc management,
timing, baseband processing, and radio interfacing. The baseband units in the
19-inch format, with 15 Common Public Radio Interface (CPRI) ports, enable
increased connectivity for radio units.
1.3 Variants
The 19-inch baseband units are available in the following variants:
—Baseband 6620
—Baseband 6630
Baseband 6620 is supported from software L17.Q2.2, W17.Q2.2, and G17.Q2.2.
Baseband 6630 is supported from software L17.Q2.2, W17.Q2.2, and G17.Q2.2.
Product Overview
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 1

For information about supported congurations and capacity, refer to RBS
Congurations
1.4 Overview

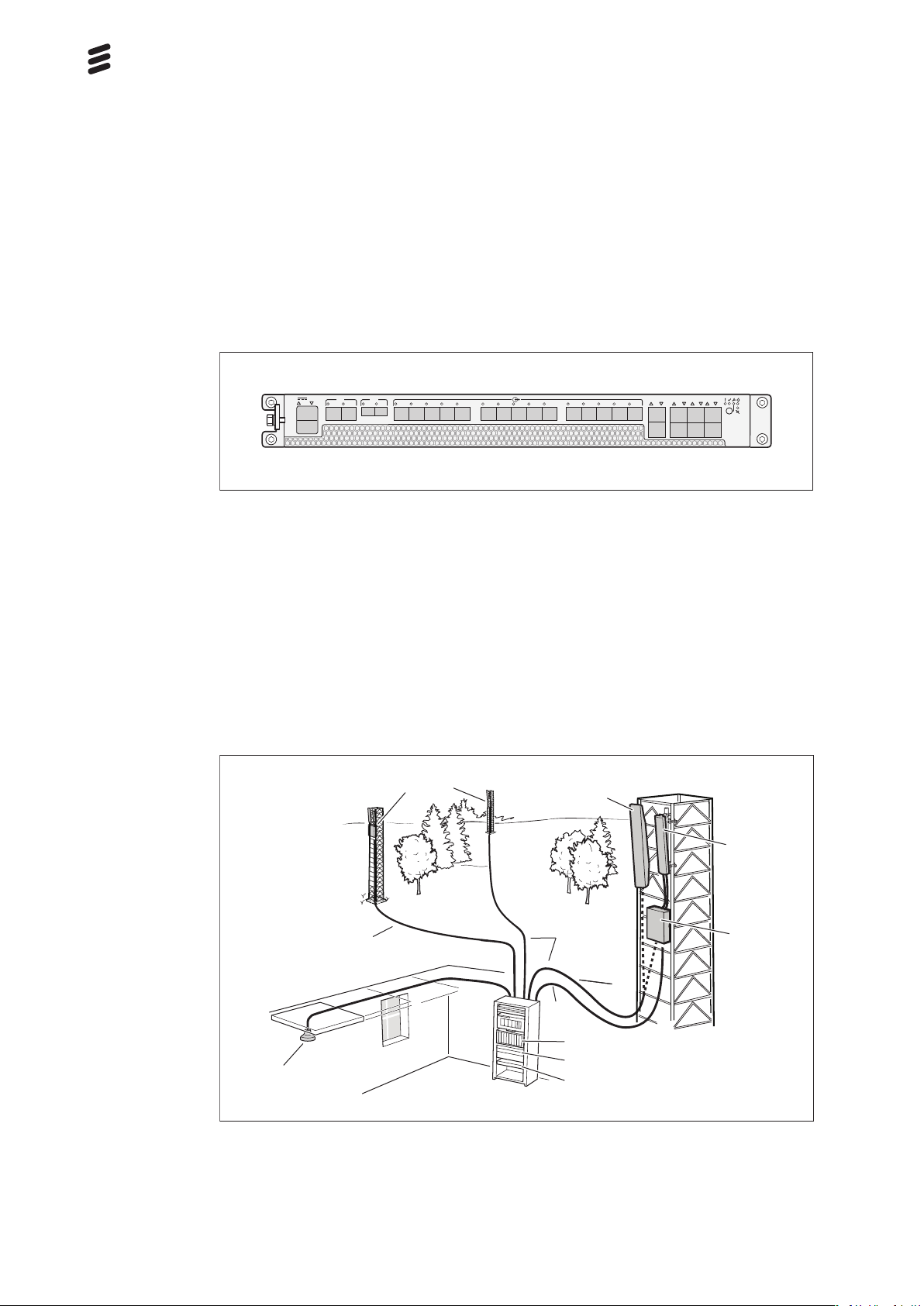

This section provides an overview of the 19-inch baseband units, see Figure 1.
Ge12148A
TN
A B
-48V MAX 6A
ABIDL
A B
TN C TN D SYNC SAU LMT EC ALARM
1 2
Baseband 6630
A B C D E F G H J K L M N P Q
Figure 1 Overview Baseband 6620 and Baseband 6630
Baseband 6620 and Baseband 6630 are self-maintained 19-inch units with an
easily removable fan tray unit. each unit can be installed standalone in any 19-
inch rack or cabinet or in an RBS.
Baseband 6620 and Baseband 6630 facilitate a scalable, modular system with
one or more indoor 19-inch baseband units and a number of external radios.
Figure 2 shows the 19-inch Baseband installed in a rack and connected to
external radios.
For information about 19-inch baseband unit placement in an RBS, refer to RBS
Description.
AIR / RRU
Ge12529A
Optical
cable
Optical
cable
Power
cable
AIR
Radio
Antenna
Baseband 6630/6620
Power
IRU
RD
Figure 2 19-Inch Baseband Connected to External Radios
Baseband Description
281/1551-LZA 701 6001/1 Uen AC | 2019-04-11

1.5 Warranty Seal
The product is equipped with a warranty seal sticker.
Note: Seals that have been implemented by Ericsson must not be broken or
removed, as it otherwise voids warranty.
Product Overview
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 3

2 Function Description
The Baseband has the following functions:
—Timing function
—Loadable software
—Downlink (DL) baseband processing
—Uplink (UL) baseband processing
—IP trafc management
—Radio interface
—Backhaul handling
—External synchronization
For the block diagram of the Baseband, see Figure 3.
Ge0376B
Baseband
Processing
Transmission
Timing
Radio
interface
Baseband
Figure 3 Baseband Block Diagram
For more information about the external synchronization, see the following
documents:
—GNSS Receiver System Description
—GNSS Receiver System User Guide
—Manage Network Synchronization
—Manage Node Group Synchronization
Baseband Description
481/1551-LZA 701 6001/1 Uen AC | 2019-04-11

—Manage LTE RAN Synchronization
Function Description
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 5

3 Technical Data
Technical data for the 19-inch Baseband unit is listed in Table 1, and Table 2.
For information about power consumption, refer to Power Consumption
Calculations.
Table 1 Dimensions and Weight
Baseband Height Width Depth Weight
Baseband 6620 1 U
(44.45 mm) 19-inch 350 mm < 6.5 kg
Baseband 6630
Table 2 Technical Data
Baseband Radio Interface Line Rate
CPRI eCPRI
Baseband 6620 2.5 Gbps, 4.9 Gbps(1), 9.8 Gbps(1),
and 10.1 Gbps(1)
Not supported
Baseband 6630 2.5 Gbps, 4.9 Gbps(1), 9.8 Gbps(1),
and 10.1 Gbps(1)
10.3 Gbps(1)
(1) Depending on the Software Package
For more information about capacity data, refer to RBS Congurations and
Supported Capacity and Congurations.
3.1 Environmental Characteristics
Values for the normal operating environment of the baseband unit are shown in
Table 3.
Table 3 Environmental Data
Description Value
Temperature 0 to +55°C
Relative humidity 5–95%
Absolute humidity 1–29 g/m3
Maximum temperature change 0.5°C/min
Baseband Description
681/1551-LZA 701 6001/1 Uen AC | 2019-04-11

Note: The operating environment of the unit must be a temperature-controlled
enclosed location suitable for sensitive data and telecommunication
equipment, with very low levels of airborne particles. For example
Network Telecommunication Facilities or inside an Outside Plant (OSP)
cabinet.
3.1.1 Acoustic Noise
The baseband unit may emit low levels of acoustic noise when operating.
The acoustic noise is ambient temperature dependent.
Table 4 Sound Power Level
Temperature (°C) Baseband Sound Power Level (dB)
+20 <53
+25 <53
+30 <53
+40 <53
+45 <59
+55 <64
3.2 Power Characteristics
The power supply voltage for the baseband unit is −48 V DC. The power supply
requirements are shown in Table 5.
Table 5 DC Power Supply Requirements
Condition Value
Nominal voltage −48 V DC
Operating voltage range −38.0 to −58.5 V DC
Non-destructive range 0 to −60 V DC
Fuse and Circuit Breaker Recommendations
The external fuse and circuit breaker recommendation for the baseband unit is
shown in Table 6.
The recommendations in this section are based on peak power consumption and
give no information on power consumption during normal operation.
The recommended melting fuse type is gG-gL-gD in accordance with
IEC 60269-1. Circuit breakers must comply with at least Curve 3 tripping
characteristics in accordance with IEC 60934.
Technical Data
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 7

Table 6 Fuse and Circuit Breaker Recommendations
DC Power Minimum Fuse Rating for
Reliable Operation (A)(1)
Maximum Fuse Rating
(A)(2)
Baseband unit 10 20
(1) The recommended fuse rating corresponds to peak load and depends on the conguration.
(2) This value is the internal maximum fuse rating for the unit. General fuse dimensioning have to
take all external factors into account, such as local regulations and cable dimensioning.
3.2.1 Power Consumption
The power consumption values are presented as typical and maximum values,
for a unit with fan. The typical values are based on an air temperature of 20 °C
for the air entering the unit and a typical trafc load. The maximum values are
based on an air temperature of 55 °C for the air entering the unit and a maximum
trafc load.
Note: The power consumption for SFPs, SAU, or GPS is not included.
Table 7 Power Consumption
Unit Typical Maximum
Baseband 6620 90 W 140 W
Baseband 6630 120 W 180 W
Baseband Description
881/1551-LZA 701 6001/1 Uen AC | 2019-04-11

4 Hardware Architecture
This section contains an overview of the hardware units of the 19-inch baseband
unit.
Baseband
Ge12554B
A1
A
A2
A2
Figure 4 19-Inch Baseband Hardware Units Location
Table 8 19-Inch Baseband Hardware Units
Position Name of Units Number of Units
A 19-inch baseband unit 1
A1 Fan module 1
A2 Movable Brackets 2
Hardware Architecture
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 9

5 Baseband Interfaces
The interfaces for the baseband units are described in Table 9.
Table 9 Baseband 6620 and Baseband 6630 Interfaces
Marking Connector Description Optical Indicator(1)
A
B
ET20 A(2)(3)(4) −48 V DC
Power
Yes
TN A and TN B(5) (6)
(7)
SFP+(8) 1 Gbps/10 Gbps
Ethernet transmission
External interface;
electrical/optical
Yes
TN C and TN D (5)(6) RJ-45 100 Mbps/1 Gbps
Ethernet transmission
External interface;
electrical
Yes
IDL A Xcede IDLe, Elastic RAN
connection,
multibaseband
connection(9)
Baseband to Baseband
interface
Yes
IDL B Xcede IDLe, Elastic RAN
connection,
multibaseband
connection(9)
Baseband to Baseband
interface
Yes
(10) SFP+(11) Radio interface × 15
Internal interface
between baseband and
internal radios, electrical
External interface
between baseband and
external radios, optical
Ports A-F support eCPRI
Yes
Baseband Description
10 81/1551-LZA 701 6001/1 Uen AC | 2019-04-11

Marking Connector Description Optical Indicator(1)
SYNC RJ-45 Synchronization
interface for connection
of a GNSS receiver unit,
for example, GPS 03 01
External interface
Yes
SAU RJ-50 Interface for connection
of a Support Alarm Unit
(SAU)
Yes
LMT RJ-45 LMT A interface(12)(13)
LMT B Interface(13)(14)
Synchronization test
interface(15)(16)
Internal and external
interfaces
Yes(17)
EC RJ-45 Enclosure Control Bus
(ECB)
Internal interface
Yes
ALARM RJ-45 External alarm interface.
The unit supports eight
external alarms, four per
port.
- Fault
Optical indicator, red
Yes
- Operation
Optical indicator, green
Yes
- Maintenance
Optical indicator, blue
For information about
the maintenance button,
refer to Indicators,
Buttons, and Switches.
Yes
- Status
Optical indicator, yellow
Yes
- Fan unit fault
Optical indicator, yellow
Yes
(1) For more information about optical indicators, refer to Indicators, Buttons, and Switches
(2) The 19-inch Baseband units have a built-in 10 ms hold-up function.
(3) The unit supports power redundancy. Connect power sources to both power ports. If the power to one port goes
down, a failover will occur automatically to the other power source.
Baseband Interfaces
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 11

(4) The unit supports 3-wire (DC-I) power feed. It can also support 2-wire (DC-C) power feed by making a jumper
connection in the power cable. Refer to Install 19-Inch Baseband for more information about the power cable pin out,
and Power Cables 2- and 3-Wire.
(5) Supports synchronization over the transport network.
(6) Hardware Activation Codes are required for use of multiple TN ports simultaneously.
(7) Hardware Activation Codes are required for use of 10 Gbps transmission.
(8) SFP+ is needed for transmission rates higher than 2.5 Gbps.
(9) Multibaseband connection is only supported by Baseband 6630.
(10) Hardware Activation Codes are required for use of more than 6 CPRI ports.
(11) SFP+ is needed for CPRI rates higher than 2.5 Gbps.
(12) RS-232 interface. Accessed with the LMT splitter cable.
(13) For more information about the LMT interfaces, see Connect Client.
(14) 100 Mbps electrical Ethernet interface.
(15) Compliant with 1PPS 50 Ω phase synchronization measurement interface. Accessed with an adapter.
(16) For more information about the sync test interface, see Manage Network Synchronization.
(17) The optical indicator indicates the status of the LMT B interface.
Do not remove dust plugs from unused ports. Always insert dust plugs into ports
that are not in use by a cable connector.
RJ-45/RJ-50 SFP Xcede
Ge15215A
Figure 5 Dust Plugs for RJ-45/RJ-50, SFP, and Xcede Interfaces
Baseband Description
12 81/1551-LZA 701 6001/1 Uen AC | 2019-04-11

6 Standards and Regulations
This section presents a brief overview of standards, regulatory product approval,
and declaration of conformity.
Declaration of Conformity
"
Hereby, Ericsson AB, declares that this Product is in compliance with the
essential requirements and other relevant provisions of Directive 2014/53/EU
and 2011/65/EU. "
6.1 Regulatory Approval
The product complies with the following market requirements:
—European Community (EC) market requirements, Radio Equipment Directive
2014/53/EU and Directive 2011/65/EU.
—Restriction of Hazardous Substances in Electrical and Electronic Equipment
(RoHS) Directive (2011/65/EU).
—North American market requirements.
—Products containing Radio Equipment outside North America and in
countries not recognizing the CE-mark may be labeled according to national
requirements or standards.
6.1.1 Environmental Standards Compliance
The product complies with the following environmental standard:
Europe
—EN 50581 (RoHS)
6.1.2 Safety Standards Compliance
In accordance with market requirements, the product complies with the following
product safety standards and directives:
International
—IEC 60 529 (IP20)
Standards and Regulations
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 13

—IEC 62368-1
Europe
—EN 60 529 (IP20)
—EN 62368-1
North America
—UL/CSA 62368-1
6.1.3 EMC Standards Compliance
The product complies with the following Electromagnetic Compatibility (EMC)
standards:
International
—3GPP TS37.113
Europe
—ETSI EN 301 489-1
—ETSI EN 301 489-50
North America
—FCC CFR 47 Part 15 B
—IC ICES-003 B
6.1.4 Radio Standards Compliance
The product complies with the following radio standards:
International
—3GPP TS37.141
Europe
—ETSI EN 301 908-1
—ETSI EN 301 908-18
Baseband Description
14 81/1551-LZA 701 6001/1 Uen AC | 2019-04-11

6.1.5 Marking
To show compliance with legal requirements the product is marked with the
following labels:
Europe
—CE mark
—WEEE
North America
—usETL/cETL
—FCC CFR 47 Part 15 Statement
—IC ICES-003 Statement
China
—Logo2 marking (according to the Ericsson marking instruction 102 01-3086)
6.2 Preventive Maintenance
The product is designed for a technical lifetime of 10 years (24-hour operation).
The following preventive maintenance conditions must be fullled to guarantee
the availability:
—Fans
Ericsson recommends replacing the fans every 5 years.
—Air Intake
The air intake must be inspected (and cleaned if necessary) every year.
6.3 Spare Parts
The product adheres to the Ericsson Serviceability and Spare Part Strategy.
Standards and Regulations
81/1551-LZA 701 6001/1 Uen AC | 2019-04-11 15

6.4 Transportation and Storage
For information about transportation and storage of the product, see
Transportation and Storage.
Baseband Description
16 81/1551-LZA 701 6001/1 Uen AC | 2019-04-11
