Ericsson Marconi OMS 870 User manual

Marconi OMS 870
Quick Reference Guide
R3.0

Copyright
© Ericsson - All rights reserved
Disclaimer
No part of this document may be reproduced in any form without the written
permission of the copyright owner.
The contents of this document is subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use of
this document.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Contents
1INSTALLATION
1.1 PRE-INSTALLATION PROCEDURES 1
1.1.1 Shipment verification 1
1.1.2 Preliminary inventory check 1
1.1.3 Reporting damage 2
1.2 SITE PREPARATION 2
1.3 UNPACKING 3
1.3.1 Introduction 3
1.3.2 Unpack the OMS 870 base unit 3
1.3.3 Unpack the OMS 870 service modules 4
1.4 INSTALLATION 5
1.4.1 Installation Overview 5
1.4.2 Installation Planning 6
1.4.3 Installation Guidelines 7
1.4.4 Power Considerations 8
1.5 OMS 870 INSTALLATION 8
1.5.1 Mount in a 19” rack 9
1.5.2 Mount in a 600 mm rack with ETSI brackets 9
1.5.3 Installation in Restricted Access Location (RAL) 10
1.6 INSTALLATION OF POWER MODULES 12
1.6.1 Install the OMS 870 – 48 VDC Power Module 12

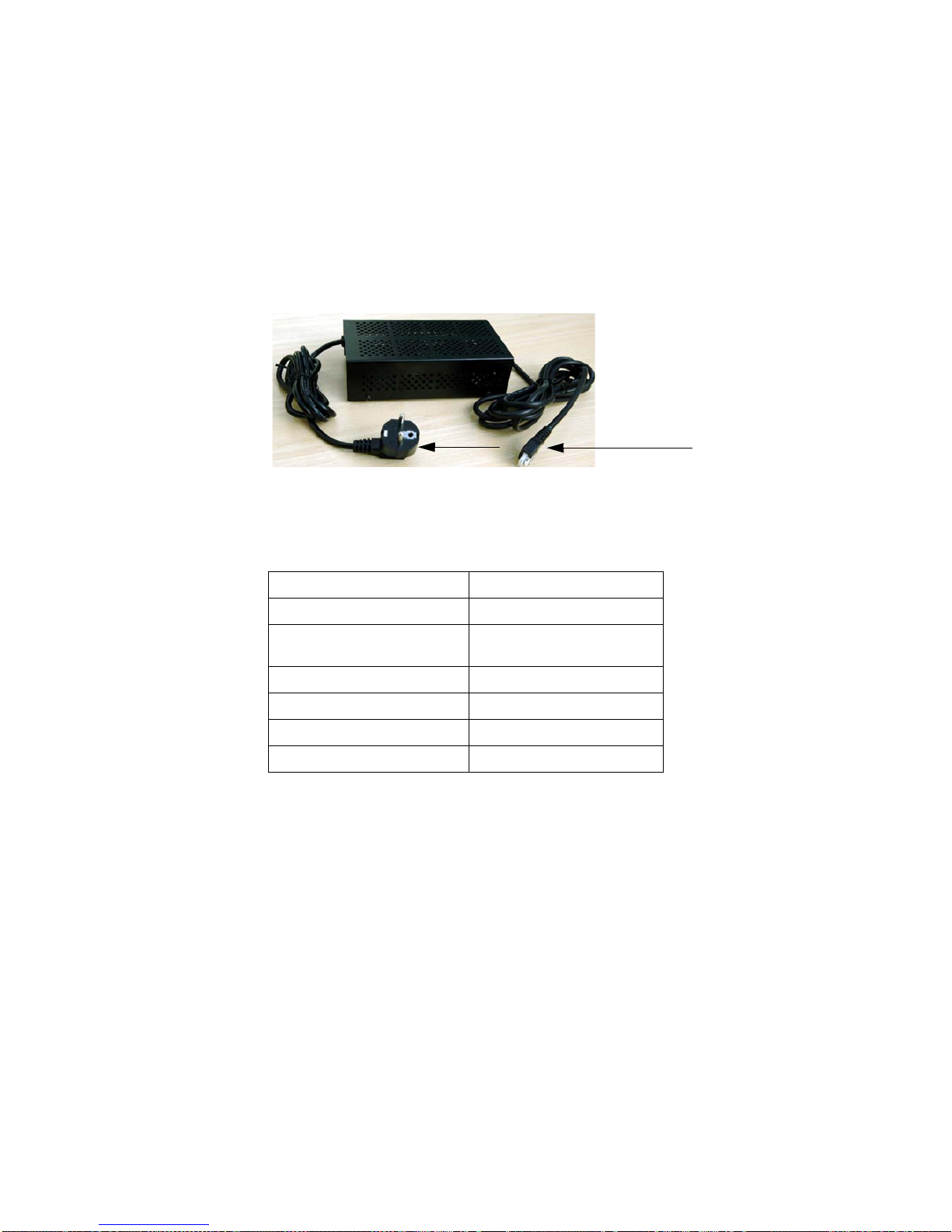

1.6.2 External 230VAC - 48VDC Converter 14
1.7 INSTALLATION OF SERVICE MODULES 15
1.7.1 General 15
1.7.2 LEDs 16
1.7.3 Hot insertion and removal 17

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1.8 INTERCONNECTIONS AND CABLE HANDLING 19
1.8.1 Power cables 19
1.8.2 Alarm cable 19
1.8.3 VT-100 cable 20
1.8.4 LAN cables 20
1.8.5 E1 cables 20
1.8.6 E3/T3 20
1.8.7 Management cable 20
1.8.8 Synchronization cable 20
1.8.9 AUX Port cable 21
1.8.10 Fibre cables 21
1.8.11 Fiber Cleaning 22
1.8.12 Install the OMS 870 Fiber Cable 23
1.8.13 Install the OMS 870 Electrical Cable 24
1.8.14 LFH cables 25
1.9 SFP MODULES 26
1.9.1 Introduction 26
1.9.2 DISCLAIMER 26
1.9.3 Installation of SFP Modules 27
1.9.4 Installing and removing SFP modules 28
1.9.5 Removing SFP modules 30
2 CONFIGURATION OF OMS 870
2.1 INITIAL CONFIGURATION 33
2.1.1 Commissioning of IP address via VT100 Interface 33
2.1.2 Configure User Management (UMA) 36
2.1.3 Assign an IP-address to the OMS 870 38
2.2 FURTHER CONFIGURATION 40
2.2.1 IMPORTANT - System mode from IP to IP un-numbered 40
2.2.2 Further reading 42

1-1
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
1 Installation 1
1.1 Pre-Installation Procedures
This chapter provides pre-installation procedures for the OMS 870.
1.1.1 Shipment verification
When the OMS 870 equipment is received, please verify that the
shipment is according to order.
NOTE! Ship equipment from one site to another in the original
packing including the antistatic bags.
NOTE! Keep the OMS 870 system equipment in the original
shipping containers if storage is required. Storage for more
than 12 months is not recommended. The equipment should
be stored in a ventilated and static-safe location.
1.1.2 Preliminary inventory check
Verify that the packing list information is equal to the information
provided on the shipping labels. Please notify contact resource if
any discrepancies must be reported.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-2
1.1.3 Reporting damage
Damage to shipped articles must be reported to contact resource.
1.2 Site Preparation
Verify that the installation site meets the following criteria:
• The site conforms to all environmental specifications
• The floor or mounting area where you will install the equipment
can support the equipment.
NOTE! The following tables are based on typical OMS 870 system
configurations and may vary in specific customer
configurations.
1. Power supply for the OMS 870 equipment must be available as
described in Table 2
2. Power consumption for the OMS 870 equipment must be
supported as described in Table 2
3. Circuit breakers for the OMS 870 equipment must be according
to Table 2
4. Recommended clearance for accessing the OMS 870 equipment
during and after installation must be as described in Table 1 :
Table 1 Recommended Access Clearance
Table 2 Electrical specifications of DC module
Item Recommended Clearance
Bay access needed for
maintenance Front access only, 500 mm (19.7 in.)
Back clearance to bays (if
necessary)) 500 mm (19.7 in.)
Parameter Limit
Input power dissipation Less than 120W
Fuse 4A
Battery voltage range -40,5 to -72V
Output power 105W

1-3
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
1.3 Unpacking
1.3.1 Introduction
When unpacking and storing OMS 870 equipment:
• Leave equipment packed until it is needed for immediate
installation.
• Store packed equipment in a ventilated and static-safe location
• Store the packaging material in case the equipment must be re-
shipped.
• If the packaging and/ or equipment is damaged, preserve as
much of the packaging as possible for shipment and damage
analysis.
• Report damage to shipped articles to dedicated contact resource
1.3.2 Unpack the OMS 870 base unit
This section contain specific instructions for unpacking OMS 870
system equipment.
Caution!
When opening a subrack container, use caution to avoid
damaging the contents.
Caution!
Wear a grounding wrist strap while unpacking, handling and
interconnecting the OMS 870 equipment modules, to discharge
any static buildup.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-4
Procedure: Unpack the OMS 870 base unit
1. Open the top of the cardboard shipping container.
2. Take the box containing the OMS 870 accessory kit out of the
shipping container.
3. Lift the OMS 870 out of the packaging box and remove the anti-
static bag and foam inserts.
1.3.3 Unpack the OMS 870 service modules
Caution!
When opening a module container, use caution to avoid
damaging the contents.
Caution!
Wear a grounding wrist strap while unpacking,handling and
interconnecting the OMS 870 equipment modules, to discharge
any static buildup.
Procedure: UNPACK THE OMS 870 SERVICE MODULES
1. Open the container and remove the module(s) and packing
material.
2. Carefully remove anti-static bag from the module(s).
3. If any optical adapters are included in the container, remove them
and save them for use while installing the module front-panel
optical fiber jumper cables.

1-5
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
1.4 Installation
This section provides instructions before installing OMS 870 unit.
NOTE! The instructions in this section primarily address the
installation of the OMS 870, and modules supplied by
Ericsson . Codes and regulations for installing racks,
electrical wiring, raceways, and other equipment are not
covered in this manual,
Caution!
Wear a grounding wrist strap while unpacking, handling and
interconnecting the OMS 870 equipment modules to discharge
any static buildup.
1.4.1 Installation Overview
You should be thoroughly familiar with the instructions in this
manual before starting any work. Use the following general order of
work when installing a site:
1. Read and observe all safety cautions and warnings in Chapter 1,
“Safety Summary.”
2. When you arrive at the site, first verify the OMS 870 equipment
according to the procedures in “Pre-Installation Procedures” on
page 1-1. If there is a problem with the equipment, use the
dedicated contact resources for your support
3. If you do not install the equipment when it arrives, store as
specified in “Unpacking” on page 1-3
4. Unpack equipment only after preparing the site as described in
“Site Preparation” on page 1-2
5. When installing equipment at a site, follow the procedures in this
chapter in the order presented.
6. Make connections using the information in “Interconnections and
cable handling” on page 1-19

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-6
1.4.2 Installation Planning
Based on the system to be installed, determine the size, number
and location of racks, the OMS 870 requires. The OMS 870 will fit in
485 mm (19-in.) equipment racks, and can be adapted for 600 mm
ETSI (23.6-in.) racks. The racks must be accessible from the front
and rear for equipment installation.
NOTE! You need 500 mm (19.6-in.) space of rear access for
installation of the equipment.
NOTE! The interfaces cables (especially E1 interfaces) must not run
in the same pipes as the power cables
Warning!
If mains AC power feeding is employed, the socket outlet shall
have protective earth and be installed near the equipment and
be easily accessible.
Plan rack and unit installation based on the following
considerations:
• Install the lowest unit in a rack first.
• Determine wire size based on cable length and local engineering
standards and practices.
• Plan the power cable from the power distribution panel (PDP) to
units, proceeding down along the right side of the equipment
rack.
• Plan grounding cable runs from the ground window down along
the right side of the rack to the units.
• Plan to route the electrical cables to and from the units along the
right side of the rack to the overhead cable transport tray.
• Plan to route the optical cables to and fromthe units along the left
side of the rack to the overhead cable transport tray.

1-7
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
Recommended items
To install an OMS 870 system, customary installation and electrical
tools are required. The following items are also recommended:
• Multimeter
• Phillips screwdriver (PH3) to attach the OMS 870 to the rack, and
Phillips screwdriver (PH1) to attach the brackets to the OMS 870,
• Pozidrive (PZ3, PZ1) as an alternative screwdriver
• Allen wrench
• Yellow green flexible ground cable (1.25 - 2.50 sqmm, 16 - 14
AWG)
• Cletop cleaning cassette (type A for SC connectors)
• Video fiber connector inspection instrument
• Caps for optical connectors
• Plugs for optical adapters
•Tiewraps
1.4.3 Installation Guidelines
When installing OMS 870 equipment into racks, follow these
guidelines:
• Consider the effect of additional electronic equipment and its
generated heat on the OMS 870 system equipment.
• Make sure the equipment rack is properly bolted to the ground
and, if required, to the ceiling.
• Ensure that the weight of the equipment does not make the rack
unstable.
• When mounting the equipment between two posts or rails,
ensure that the minimum clearance between the sides is 485 mm
(19 in.).
• Maintain a minimum clearance of 500 mm (19.7 in.) in front of the
equipment and 500mm (19.7 in.) at the back of the equipment.
Grounding Considerations for 48 V
It is vital that the OMS 870 is properly grounded. The OMS 870 can
be connected to ground in the power connector.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-8

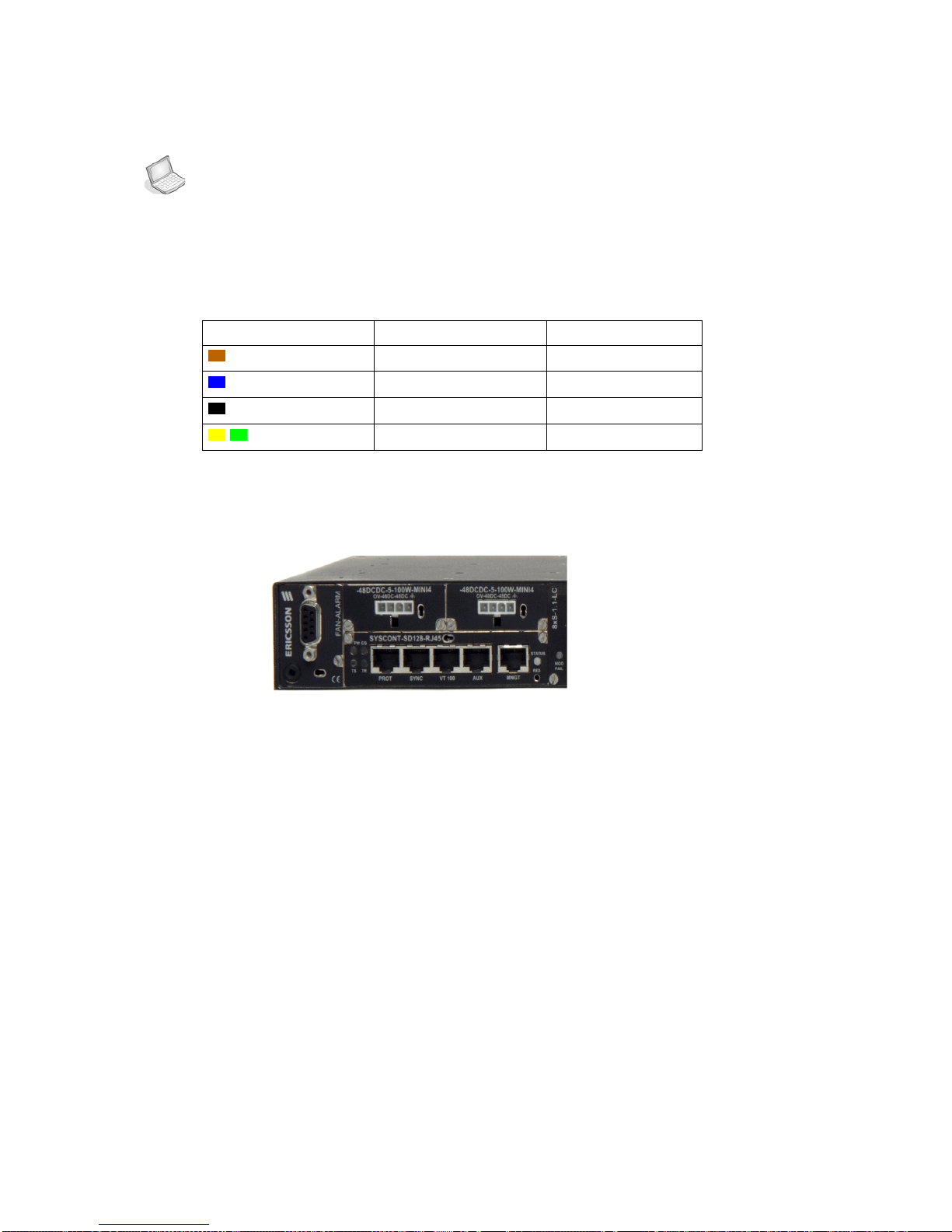

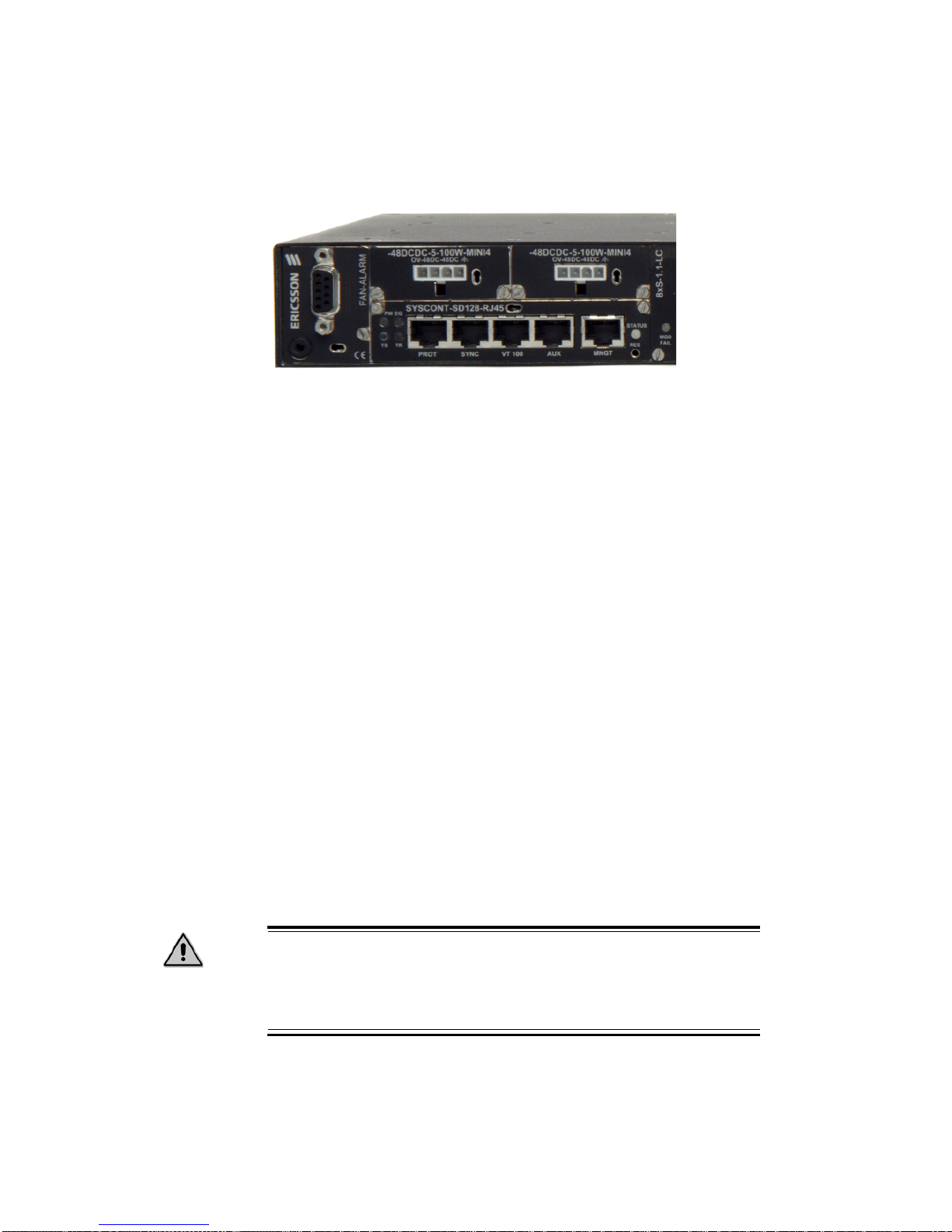

For location of the power connector on the OMS 870, see Figure 1
Figure 1 Location of the power connector on the OMS 870
1.4.4 Power Considerations
The OMS 870 can be powered using a regular telecommunication
power supply of –48 VDC with a VDC return. Two independent
power supplies can be attached to the OMS 870 equipment. If two
different supplies are used, they should be independently powered.
1.5 OMS 870 Installation
Use the following procedures to install The OMS 870 in an
equipment rack, verify that at least 3 RU of space is available.
When installing the OMS 870, you can also use the extension
brackets, included in the OMS 870 accessory kit, to convert a 485-
mm (19-inch) rack to a 600-mm (23.6-inch) rack.
TIP! 1 RU is 44.45 mm.
Caution!
Wear a grounding wrist strap while unpacking,handling and
interconnecting the OMS 870 equipment modules, to discharge
any static buildup.

1-9
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
1.5.1 Mount in a 19” rack
Decide which side do you want to use as the front side. You can use
the side with the connectors or the Ericsson branded side as the
front side if you have rear access.See Figure 2 and Figure 3
Figure 2 Ericsson branded side of the OMS 870
Figure 3 Connector side of OMS 870
PROCEDURE: MOUNT THE OMS 870 IN A 19” RACK
1. Remove the two phillips screws on the left and right and install
the brackets with longer phillips screws that are also in the plastic
bag.
2. Move the OMS 870 to the desired rack position
3. Align four M6 cage nuts in the equipment rack with the mounting
holes on the front of the OMS 870.
4. Align the OMS 870 with the equipment rack and cage nuts.
5. Insert the OMS 870 into the equipment rack.
6. Connect the OMS 870 to the equipment rack with four M6
screws.
1.5.2 Mount in a 600 mm rack with ETSI brackets
The shelf assembly is also possible to install in a 600-mm (23.6-in.)
rack, for this installation you can use extension brackets. You will
need two 1 RU extension brackets for this procedure.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-10
Decide which side do you want to use as the front side (you can use
the side with the connectors or the Ericsson branded side as the
front side) depends on if you have back access
1. Remove the two phillips screws on the left and right and install
the extension brackets with longer phillips screws that are also in
the plastic bag.
2. Follow step 2-6 in “Mount in a 19” rack” on page 1-9.
1.5.3 Installation in Restricted Access Location (RAL)
The OMS 870 can be installed in a restricted access location (RAL)
or outside of an RAL.
After installation in a RAL, such as in a telecommunication centre,
the OMS 870 must be properly installed in a rack with brackets or in
other ways properly connected to a safety ground.
The OMS 870 48V DC must not be powered from a source external
to the RAL. All communication interfaces used must be limited to
SELV. E1 interface used should be limited to SELV.
1.5.3.1 Installation outside a Restricted Access Location
After installation, the OMS 870 48V power and all communication
ports used must be connected to SELV circuits, for example a port
on a personal computer or 10/100 Mbit Ethernet hub/router or other
Information Technology (IT) equipment.
The 48V DC power must not exceed 60 VDC and must be powered
from an certified external power supply unit (PSU) or a battery unit
(no connection to -48 V telecom voltage).
The optical ports (if present) have no limitations regarding safety
recommendations.
1.5.3.2 Definitions
Restricted Access Location (RAL)
A location for equipment where both of the following paragraphs
apply:
• Access can only be gained by service persons or by users who
have been instructed about the reasons for the restrictions

1-11
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
applied to the location and about any precautions that shall be
taken; and
• Access is through the use of a tool or lock and key, or other
means of security, and is controlled by the authority responsible
for the location.
1.5.3.3 SELV Circuits
SELV Circuits are ports that have maximum DC working voltage
level less than 60Volt (42.4 VAC). In addition, the ports must not be
connected to telecommunication networks in the EN 60950 meaning
of the term (see CEI/ IEC 60950-1 2001-10 standard clause
1.2.13.8).
In practice, the electrical cables shall not exit the building. In
addition, the electrical cables shall connect to equipment that either:
• is installed in RAL or
• shall not have electrical cables that exits the building unless
those ports are TNV circuits or
• shall have a written consent or in other ways evident that its
connecting port towards the SELV circuit port is not a
telecommunication network.
1.5.3.4 Telecommunication Network
A metallically terminated transmission medium intended for
communication between equipment that may be located in separate
buildings, excluding:
• the mains system for supply, transmission and distribution of
electrical power, if used as a telecommunication transmission
medium;
• Cable Distribution System;
• SELV Circuits connecting units of information technology
equipment.
TNV Circuit
A circuit which is in the equipment and to which the accessible area
of contact is limited and that is so designed and protected that,
under normal operating conditions and single fault conditions (see
CEI/IEC 60950-1 2001-10 standard clause 1.4.14), the voltages do
not exceed specified limit values.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-12
1.6 Installation of Power modules
This section consists of procedures to explain how to install OMS
870 power connections.
Please follow the safety precautions when installing or removing
any of the power modules.
Common safety precautions
Caution!
Static electricity can damage electronic equipment. While
unpacking and handling electronic modules, wear a grounding
wrist strap to discharge the static buildup. Grounding wrist
straps are designed to prevent equipment damage caused by
static electricity. Before making the necessary interconnections,
connect the grounding wrist strap.
NOTE! To prevent equipment damage and injury, do not reverse the
polarity of the OMS 870 power connections.
Warning!
The plug-socket combination must be accessible at all times,
because it serves as the main disconnecting device.
1.6.1 Install the OMS 870 – 48 VDC Power Module
Please follow “Common safety precautions” on page 1-12 when
installing or removing a power module.
Warning!
Before performing any of the following procedures, ensure that
power is removed from the DC circuit.

1-13
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
Procedure: OMS 870 POWER CONNECTION
1. Insert the wires into the desired connector and fix the wire on the
connector. The following colour-coding applies:
Table 3 Power cable - wire colour coding
2. Connect the OMS 870 power cable (with the ground) to power
connector on the back of the OMS 870 as shown in Figure 4
Figure 4 Location of power connector of the back of the OMS 870
NOTE! Be sure that the power cable is connected and verify the
correct polarity. Check if it is properly fused (7-A
recommended)
NOTE! The power supply has been connected correctly when the
green LED is lit.
Wire colour coding Wire carrying
Brown wire O V
Blue wire - 48 VDC
Black wire - 48 VDC
Green/yellow wire GND

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-14
1.6.2 External 230VAC - 48VDC Converter
1.6.2.1 Description
The external power converter supplies a fixed output voltage of
48VDC for a single OMS 870. This configuration is normally used
when you have only one, or few units at hand.
Figure 5 230VAC - 48VDC Converter
1.6.2.2 Technical Data
1.6.2.3 Installation
The external power converter can supply one OMS 870 with
48VDC, and is connected between Mains and the 48VDC socket on
the OMS 870. See “Location of the power connector on the OMS
870” on page 1-8.
NOTE! Green LED The power supply has been connected correctly
when the is lit.
Ordering info
Part No: 50004-94AA
Part Name: PWR ADAPT 230VAC-48VDC 135W FIXED CRD-C
Mounting brackets are also available on request.
Input voltage 230V +/- 10% (207-253V)
Output Power 135W
Max Output Current (at
230VAC) 2,5A
Mains frequency support 50 and 60 Hz
Dimensions(LxWxHx) 19x11x5 cm
Weight including cables 1,1 Kg
CE Approved Yes
To OMS 870
To Mains

1-15
1/1531-CRA 119 0513/30 Uen A 2007-11-15
Marconi OMS 870 R3.0 Quick Reference Guide
1.7 Installation of Service modules
This chapter describes installation procedures that are common to,
and independent of, the Service module type.
The Service Modules have dedicated descriptions, see Table 4 for
hyperlinks.
Interconnections and cabling are descibed in “Interconnections and
cable handling” on page 1-19.
1.7.1 General
It is possible to freely mix the four interface modules. There are no
fixed positions for specific modules.
NOTE! Insertion or removal of new modules does not affect the
other modules. No manual configuration is needed if a module is
replaced with a module of the same type.
It is possible to protect a module by adding a redundant module in
the chassis.
All modules store inventory data in non-volatile memory. The
inventory data is accessible from the system controller and the
management system.
All modules contain a LED that indicates the status of the module.
The LED is green when the module is active. The LED is red if the
module is failed. The LED is extinguished when the module is
deactivated.
All modules supports hot insertion and removal. When a module
shall be replaced the switch shall be activated and the user must
wait for the LED to extinguish before the module is removed. It is
also possible to deactivate the module from the AXX 9820 CRAFT
terminal. A special tool, the Card Extraction Tool is needed to
activate this switch.

Marconi OMS 870 R3.0 Quick Reference Guide
1/1531-CRA 119 0513/30 Uen A 2007-11-15
1-16
1.7.1.1 Available service modules for OMS 870
Table 4 List of available service modules for OMS 870
1.7.2 LEDs
There is one status LED indicator on the front of a Service module.
The following indications can be given:
RED
Red indication has several purposes:
- Indicate fault condition. Investigate alarm
conditions for more details.
- Given during power-up.
- Given if System Controller is reset (software
reset) for modules with Ethernet-ports (LAN(x)-
and/or WAN(x)-ports).
- Module-fail. Faulty module. Module can be
removed.
Red indication is also given during power-up or
re-booting of System controller.
GREEN
Module In-Service.
GREEN FLASHING
OMS 870 Service modules
Octal STM-1 Module 8xSTM-1-SFP
STM-4 Module 4xSTM-4-SFP
1xSTM-16 Module 1xSTM-16-SFP
Dual GE module w/ mapper 2xGE-2xSMAP-SFP
Octal LAN 10/100Base-TX Mapper 8xFE-16xSMAP-RJ45
Octal LAN 100Base-X Module 8xFE-SFP
Octal E1 Tributary Module 8xE1-RJ45
Tri E3/T3 Tributary Module 21xE1+3xE3/T3-1.0/2.3
High Density 63xE1 Module 63xE1-LFH
Hex E3/T3 Tributary Module 6xE3/T3-1.0/2.3
