Introduction
1 Introduction
MINI-LINK 6351 is a complete all-outdoor microwave packet radio with the
capability of handling Ethernet traffic using frequencies in the 59–62 GHz range.
17252
MINI-LINK 6351

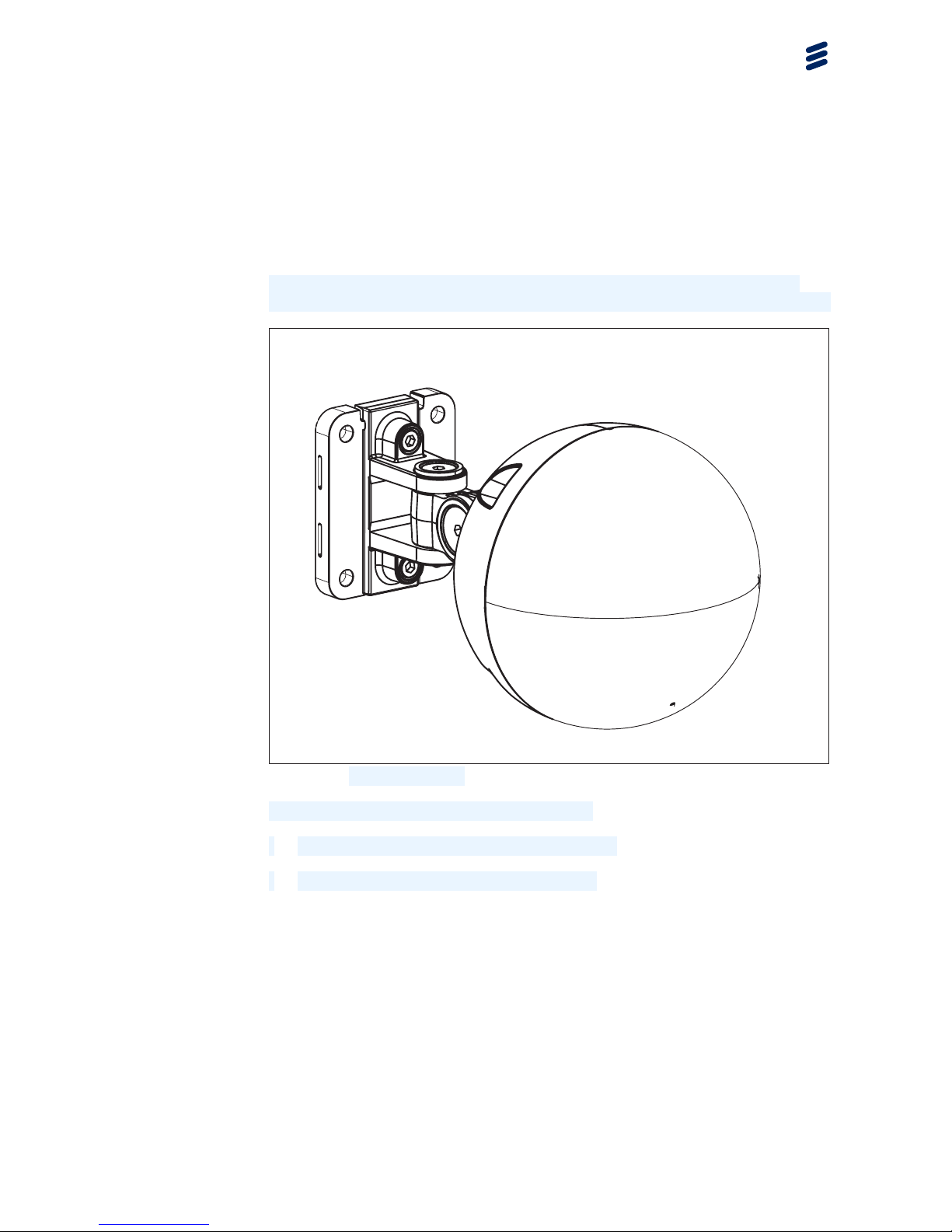

Figure 1 MINI-LINK 6351
The packet radio has the following interfaces:
•One interface for Power over Ethernet (1GE)
• One RJ45 interface for local management
The hardware is described in Section 6 on page 33.
Some functions described in this document are subject to license handling, that
is, a soft key is required to enable a specific function.
1
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
21/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Scenarios
2 Scenarios
DC-48V2A MAX
+ DC:2- + DC:1-
ERICSSON
MINI-LINKSP110 Fault
Power
Oper
Sync
USBO&M O&M SYNC2
USERI/O SYNC1
1 1 2 3 4 TR:1A-1B TR:2A-2B TR:3A-3B TR:4A-4B3
2
10/100/1000Base-T/ 100/1000 Base-X
4
10/100/1000Base-T
E1/DS1
DC-48V2A MAX
+ DC:2 - + DC:1 -
ERICSSON
MINI-LINKSP110 Fault
Power
Oper
Sync
USBO&M O&M SYNC2
USERI/O SYNC1
1 1 2 3 4 TR:1A-1B TR:2A-2B TR:3A-3B TR:4A-4B3
2
10/100/1000Base-T/ 100/1000 Base-X
4
10/100/1000Base-T
E1/DS1
17258
PCU1
TRX
CBN
Air guide plate
FAU1
TN
FAU1
Cable shelf
Micro RBS
Microwave
Multiple RBSs
Multi standard
RBS6000/TCU
4G
3G
4G
2G
3G
2G
4G
Packet Terminal
Packet Terminal
Packet Terminal
Ericsson SP
MINI-LINK LH
Packet Terminal
Towards
HRAN/Metro
MINI-LINK TN
Packet Terminal
Packet Terminal
Ericsson SP Enterprise
Packet Terminal
Figure 2 Network Scenario Overview
Using the MINI-LINK product portfolio to build an Ethernet network means that
there is a broad range of alternatives to choose from. There is support for
high-capacity Ethernet transport with different bandwidth and capacity options
over both radio and fixed connections.
The products offer the size and capacity to meet the needs of both last mile
access and first aggregation point, in a mobile backhaul network.
3
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
41/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Radio Link Functions
3 Radio Link Functions
The packet radio operates within the 59–62 GHz frequency range, using 4, 16,
32, 64, 128, or 256 QAM, also supporting Adaptive Coding and Modulation
(ACM).
3.1 Adaptive Coding and Modulation
Adaptive Coding and Modulation (ACM) enables automatic hitless switching
between different ACM profiles, depending on radio channel conditions. Hitless
ACM makes it possible to increase the available capacity over the same
frequency channel during periods of normal propagation conditions.
Code rate and modulation (and thereby capacity) are high during normal radio
channel conditions and lower during less favorable channel conditions, for
example, when affected by rain or snow. ACM profile switches are hitless, that
is, error free. In situations where traffic interruption normally would occur, it is
possible to maintain parts of the traffic by switching to a lower ACM profile,
using hitless ACM.
Figure 3 shows how the capacity changes when the received input signal
crosses the receiver threshold for each ACM profile.
5
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description

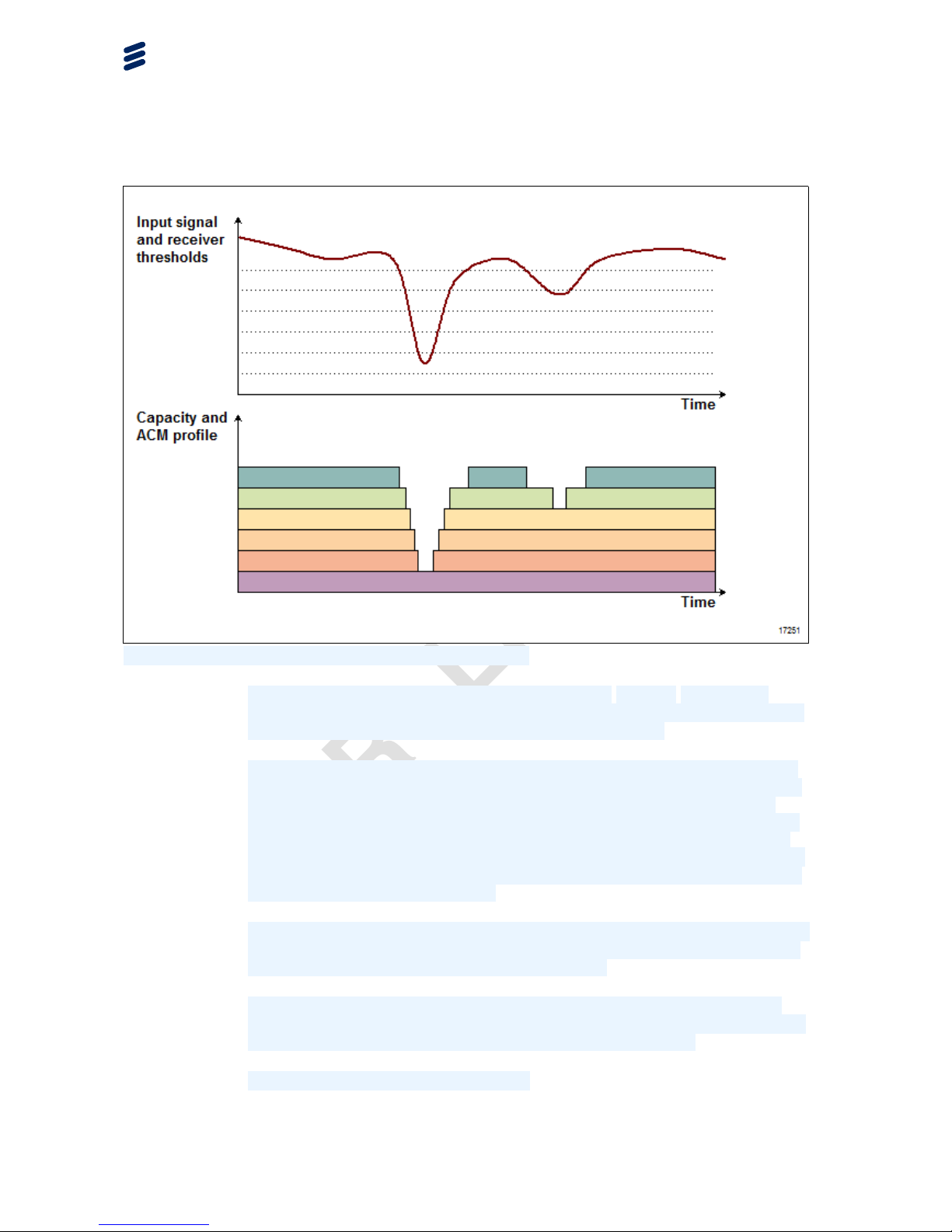

Figure 3 Principles of Adaptive Coding and Modulation
When using only Adaptive Modulation, the steps in Figure 3 only differ in
terms of modulation. When using ACM, the steps can differ in both coding and
modulation, which increases the number of possible steps.
In order to handle channel variations, the channel conditions are continuously
monitored on the Rx side by measurement of Signal to Noise and Interference
Ratio (SNIR). When the receiver, based on this data, detects that channel
conditions imply a change to the next higher or lower ACM profile, a message
is sent to the transmitter on the other side requesting a higher or lower ACM
profile. Upon receipt of such request the transmitter starts transmitting with the
new ACM profile. Each direction is independent. At demodulation the receiver
follows the ACM profile as a slave.
The ACM profile can also be configured with the maximum ACM profile equal to
the minimum ACM profile, and thereby achieving a mode comparable to static
mode, where the ACM profile remains unchanged.
Hitless ACM is compatible with Automatic Transmit Power Control (ATPC),
which is working in a closed loop only in the highest configured ACM profile. In
lower ACM profiles the output power is set as high as possible.
Note: Hitless ACM requires a license.
61/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Radio Link Functions
Buffering
ACM can influence the design of the buffer dimensioning. In case packet
aging is not used, the maximum delay variation time will increase due to that
the buffer is configured in bytes and that data will travel at a slower speed
during lower ACM profile steps. When packet aging is enabled, the maximum
delay variation time will be kept regardless of ACM profile level. This will also
ensure that there is no old data in lower priority queues when the ACM profile
is increased after a fading situation.
ACM can influence the position of the narrowest congestion point in the network,
with too small buffers this can have a strong negative impact on utilization
and end user TCP performance. To ensure high link utilization and high TCP
performance, buffers for TCP traffic should be dimensioned in the area above
average Round Trip Time (RTT), which is typically in the area of 100–200 ms.
3.2 Transmit Power Control
The radio transmit power can be controlled in Automatic Transmit Power
Control (ATPC) mode, including setting of associated parameters. In Automatic
Transmit Power Control (ATPC) mode the transmit power can be increased
rapidly during fading conditions and allows the transmitter to operate at less
than the maximum power during normal path conditions. The normally low
transmit power allows more efficient use of the available spectrum while the
high transmit power can be used as input to path reliability calculations, such
as fading margin and carrier-to-interference ratio.
The transmitter can be turned on or off from the management system.
P
out
P
Transmit power
min
P
max
16707
ATPC mode

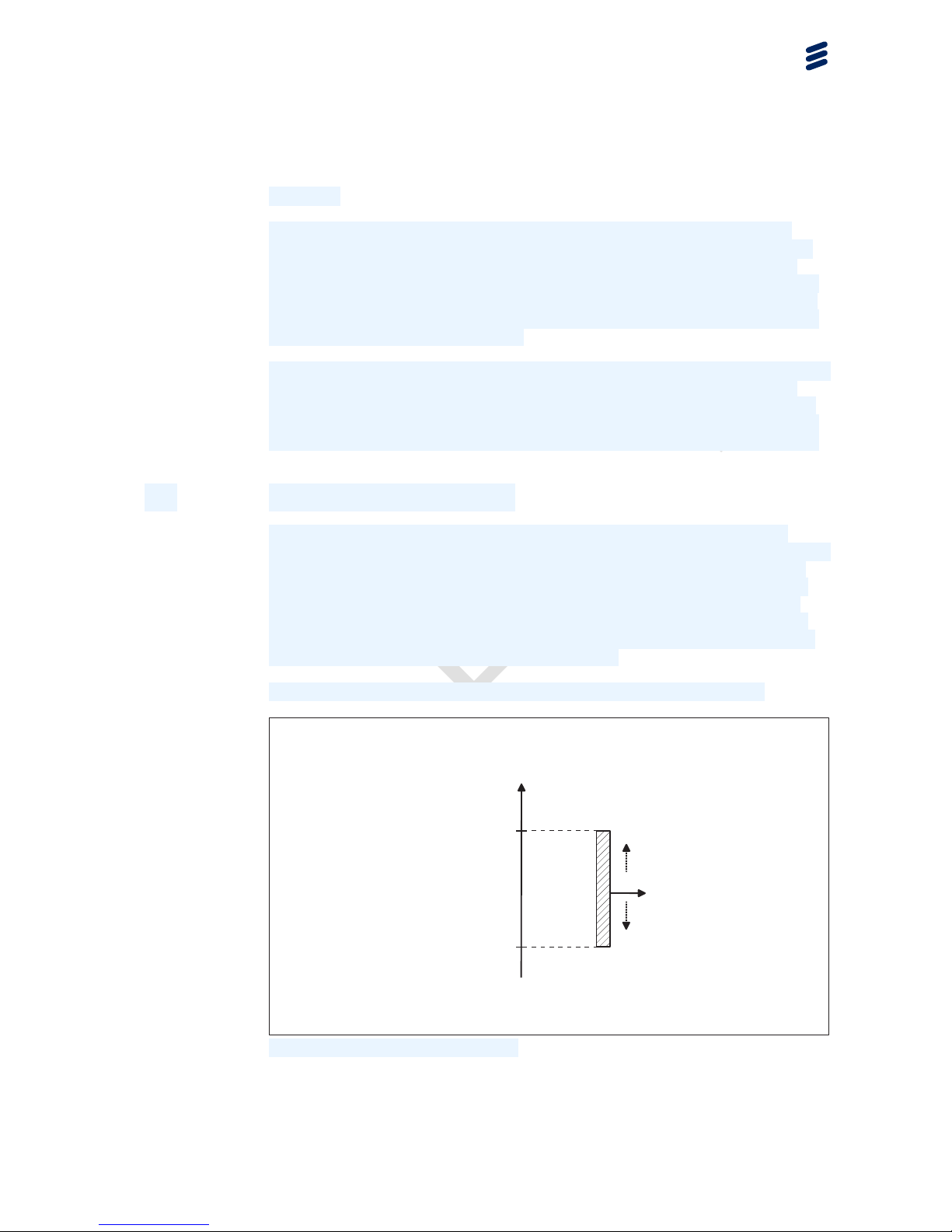

Figure 4 Transmit Power Control
7
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
ATPC is used to automatically adjust the transmit power Pout in order to maintain
the received input level at the far-end radio at a target value. The received input
level is compared with the target value, a deviation is calculated and sent to the
near-end to be used as input for possible adjustment of the transmit power.
In ATPC mode, the transmit power Pout varies between a selected maximum
level Pmax and a minimum level Pmin.
ECO mode is supported, and when ATPC mode is configured it is possible to
achieve a power consumption reduction with maintained performance.
3.3 Maximizing Radio Link Throughput
The maximum bit rate of incoming traffic on the LAN interface can be
significantly higher than the maximum bit rate over the radio link. For the radio
link to match the frame rate on the LAN interface, it is necessary to increase
the throughput on the radio link. This is done by stripping the IFG (interframe
gap) and preamble, and optionally by using multilayer header compression on
the Ethernet frames.
16782
Layer Preamble
Start of frame
delimiter
MAC
destination
MAC
source
802.1Q tag
(optional)
Ethertype Payload
Frame check
sequence
IFG
Layer 2 Ethernet
frame
Layer 1 Ethernet
packet
Figure 5 Ethernet Packet and Frame Structure
Stripping the Preamble, SFD, and IFG
On the LAN side, the Layer 2 Ethernet data is encapsulated by a Layer 1
header consisting of an Preamble sequence, an SFD and an IFG. The IFG,
preamble and SFD are not needed in the traffic sent over the radio link. The
IFG and preamble are stripped from the packet, leaving only the Ethernet Layer
2 frame. A small overhead is added to the frame before it is sent over the
radio link. This way the traffic over the radio link consists almost entirely of the
payload, making it possible for the radio link to keep the same frame rate as
the LAN interface, even though the bit rate is lower.
81/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Radio Link Functions
Multi-Layer Header Compression
To further increase the frame rate over the radio link, Multi-Layer Header
Compression (MLHC) is used on the Ethernet frame. Fields in the header are
converted to a hash number, potentially resulting in a significant reduction in
the size of the frames sent over the radio link.
The MLHC algorithm inspects the header for Ethernet, IPv4, IPv6, UDP, MPLS
(up to three MPLS labels) and MPLS pseudowire information. See Table 1 for
examples of traffic throughput gain (in percent) for different frame types and
frame sizes when using MLHC:
Table 1 Traffic Throughput Gain for Different Frame Types when using MLHC
Frame Size (Bytes)
Frame Type
64 128 512 1500
Eth+S-tag+C
-tag
42% 18% 4% 1%
Eth+S-tag+C
-tag+IPv4+U
DP
143% 43% 8% 3%
Eth+S-tag+C
-tag+IPv6+U
DP
N/A 88% 13% 4%
Eth+ MPLS+I
Pv4
89% 32% 7% 2%
Eth+C-tag+S
-tag+3*MPLS
+L2 PW
278% 61% 10% 3%
Eth+C-tag+S
-tag+3*MPLS
+L3 PW
N/A 100% 14% 4%
3.4 Radio Link Compatibility
MINI-LINK 6351 is only hop compatible with another MINI-LINK 6351.
9
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
10 1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Ethernet Functions
4 Ethernet Functions
The packet radio is targeting multiple applications and network environments
with the embedded Ethernet capabilities. For information about the supported
Ethernet services, see Section 4.3 on page 13.
In addition to the Ethernet functions described in the following sections, the
following related functions are also available:
•Synchronous Ethernet, see Section 5.2 on page 31.
•Ethernet Performance Counters, see Section 7.5.3 on page 43.
4.1 Ethernet in Microwave Networks
Compared to other transmission technologies, a microwave link can be
characterized as a limited bandwidth connection. This implies that microwave
equipment must be designed to enable maximum packet payload throughput
in the available bandwidth over the radio interface. The following features
improve the link efficiency:
Quality of Service
For connections with limited bandwidth it is important to prioritize high priority
packets when a connection is congested.
Adaptive Modulation
Adaptive modulation seeks continuously to use the modulation alternatives that
will maximize throughput under different conditions.
Low Residual BER
Microwave links operate with large fade margins and forward error correction
resulting in low residual BER level, typically 10-12.
Header Compression
The maximum bit rate of incoming traffic on the LAN interface can be
significantly higher than the maximum bit rate over the radio link. To maximize
the throughput on the radio link, parts of the Ethernet frame is removed and the
remaining headers are compressed before it is sent over the radio link.
11
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
Ethernet WAN Buffer
The WAN port buffer has been designed to handle burst and congestion in
order to provide a high link utilization and goodput for high-speed data traffic.
Since extensive buffering has a negative impact on frame delay variation, it is
important to have the possibility to configure buffer/queue size for different
traffic classes independently.
This means that queues configured to handle delay variation sensitive traffic
such as synchronization traffic, shall be configured to be very short.
In contrast, for traffic queues for less delay variation sensitive traffic the
Transmission Control Protocol/Internet Protocol (TCP/IP) has a congestion
avoidance mechanism that is based on buffer utilization. In order to provide a
high link utilization and high TCP goodput, queues configured to handle this
type of traffic needs to be in the area of hundreds of milliseconds at the smallest
congestion point, equivalent to the network end-to-end Round-Trip time.
LAN port buffers are designed to be very small in order to keep delay variation
as small as possible, whereas WAN port buffers are larger, to enable handling
of congestion at the WAN port. Congestion at the WAN port can occur when
the WAN port link speed is lower than the LAN port link speed.
4.2 Ethernet Capacity
The ethernet capacity depends on the configuration of the NE.
Table 2 Ethernet Capacity
ACM Profile
CS (MHz) ACM
Layer 1 Line Capacity (Mbps)
64 QAM 1000
32 QAM 1000
16 QAM 981
250
4 QAM 490
128 QAM 1000
64 QAM 1000
32 QAM 980
16 QAM 784
200
4 QAM 391
12 1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Ethernet Functions
ACM Profile
CS (MHz) ACM
Layer 1 Line Capacity (Mbps)
128 QAM 1000
64 QAM 869
32 QAM 724
16 QAM 579
150
4 QAM 289
256 QAM 770
128 QAM 673
64 QAM 578
32 QAM 481
16 QAM 385
100
4 QAM 191
256 QAM 382
128 QAM 334
64 QAM 286
32 QAM 238
16 QAM 190
50
4 QAM 95
4.3 Ethernet Services
Ethernet services according to MEF (Metro Ethernet Forum) specifications are
supported. Figure 6 shows a basic model for Ethernet services. The Ethernet
service is provided by Metro Ethernet Network (MEN) provider. The Customer
Edge (CE) and MEN exchange service frames across the User Network
Interface (UNI).
13
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
Metro
Ethernet
Network
User network interface
UNI
User network
interface
UNI
Customer
Edge
Customer
Edge
12530

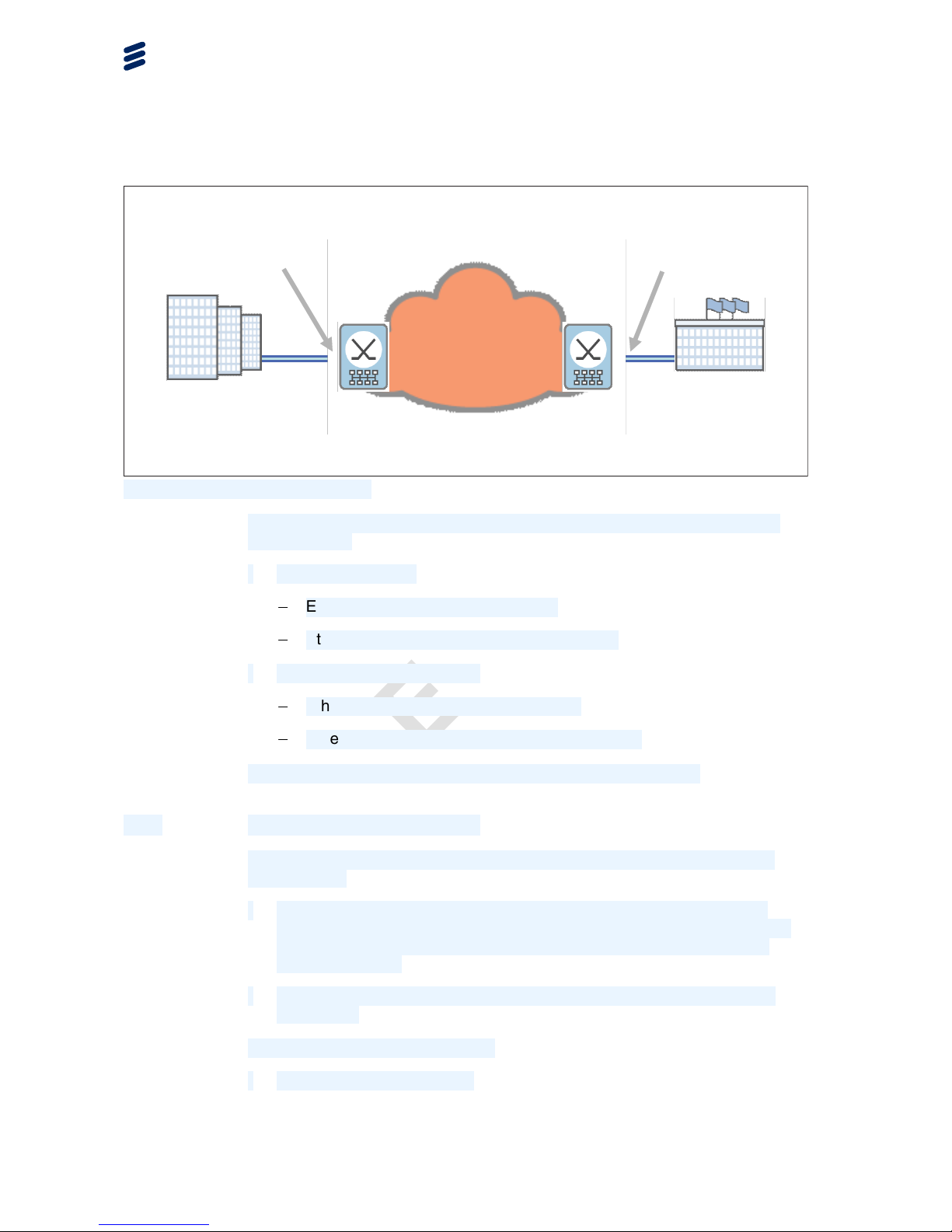

Figure 6 Ethernet Service Model
Based on Ethernet Virtual Connections (EVCs), the following service types
are supported:
• Point-to-Point EVC:
0 Ethernet Private Line (EPL) service
0
Ethernet Virtual Private Line (EVPL) service
•Multipoint-to-Multipoint EVC:
0 Ethernet Private LAN (EPLAN) service
0 Ethernet Virtual Private LAN (EVPLAN) service
The LAN port can be used as a UNI, supporting up to 16 EVCs.
4.3.1 Ethernet Virtual Connection
An EVC is an instance of an association of two or more UNIs. It performs
two functions:
• Connects two or more customer sites (UNIs) enabling the transfer of
Ethernet service frames between them. The rules under which a service
frame is delivered to the destination UNI are specific to the particular
service definition.
• Prevents data transfer between customer sites that are not part of the
same EVC.
Two types of EVCs are supported:
•Point-to-Point EVC (E-Line)
14 1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Ethernet Functions
• Multipoint-to-Multipoint EVC (E-LAN)
Point-to-Point EVC (E-Line)
In a Point-to-Point EVC, also known as E-Line, exactly two UNIs are associated
with one another through the EVC. Service frames are transferred between
them. Figure 7 illustrates two Point-to-Point EVCs.
Metro
Ethernet
Network
EVC1
Customer
Edge
Customer
Edge
EVC2
Customer
Edge
12566
Figure 7 Point to Point EVC
Multipoint-to-Multipoint EVC (E-LAN)
In a Multipoint-to-Multipoint EVC, also known as E-LAN, two or more UNIs are
associated with one another through the EVC. It allows unicast, broadcast and
multicast service frames to be transferred from one ingress UNI to one or more
egress UNIs. Figure 8 illustrates a Multipoint-to-Multipoint EVC.
Metro
Ethernet
Network
Customer
Edge
Customer
Edge
Customer
Edge
12567
Figure 8 Multipoint to Multipoint EVC
15
1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04

PRELIMINARY
Technical Description
4.3.2 Ethernet Private Line
The EPL is a type of Ethernet service based on a Point-to-Point EVC. It is
a point-to-point connection between the packet radio and a remote network
element, as shown in Figure 9. All Ethernet traffic ingress the UNI is mapped
into a single EVC and transported through the Metro Ethernet Network.
Metro
Ethernet
Network
Customer
Edge
Customer
Edge
12531
Figure 9 EPL
EPL is a port level service so there is no need for the customer and provider to
negotiate things like VLAN to be used. All ingress frames from one UNI will be
delivered to the other UNI without any modification to the packet. The following
functions are supported to implement EPL:
• Basic error checking of the Ethernet frames is performed (for example,
checking FCS, wrong Ethernet format, undersized packets or oversized
packets).
• Rate limiting is used to police the ingress Ethernet traffic from the
different subscribers to make it possible to meet the agreed Service Level
Agreements (SLA).
• Drop non-conforming traffic or remark them with lower priority.
• Priority is used to make it possible for high priority packets to bypass low
priority packets in buffers.
4.3.3 Ethernet Virtual Private Line
The EVPL is an Ethernet service similar to the EPL, but EVPL allows service
multiplexing at the UNI. This means that multiple EVCs can be accessed by the
subscriber from the UNI. Furthermore, the different EVCs one can access at a
particular UNI can be routed to different part of the network independently.
16 1/22102-HRA 901 17/9 Uen PU1 | 2016-07-04
