ESAB Origo Tig 4300iw AC/DC User manual

Origo™
Instruction manual
0460 157 301 GB 20181217 Valid for: 950-xxx-xxxx
Tig 4300iw AC/DC

TABLE OF CONTENTS
0460 157 301 © ESAB AB 2018
1SAFETY ....................................................................................................... 4
1.1 Meaning of symbols ............................................................................... 4
1.2 Safety precautions ................................................................................. 4
2INTRODUCTION.......................................................................................... 7
2.1 Equipment ............................................................................................... 7
2.2 The control panel.................................................................................... 7
3TECHNICAL DATA ...................................................................................... 8
4INSTALLATION............................................................................................ 10
4.1 Lifting instructions ................................................................................. 10
4.2 Positioning of the power source........................................................... 10

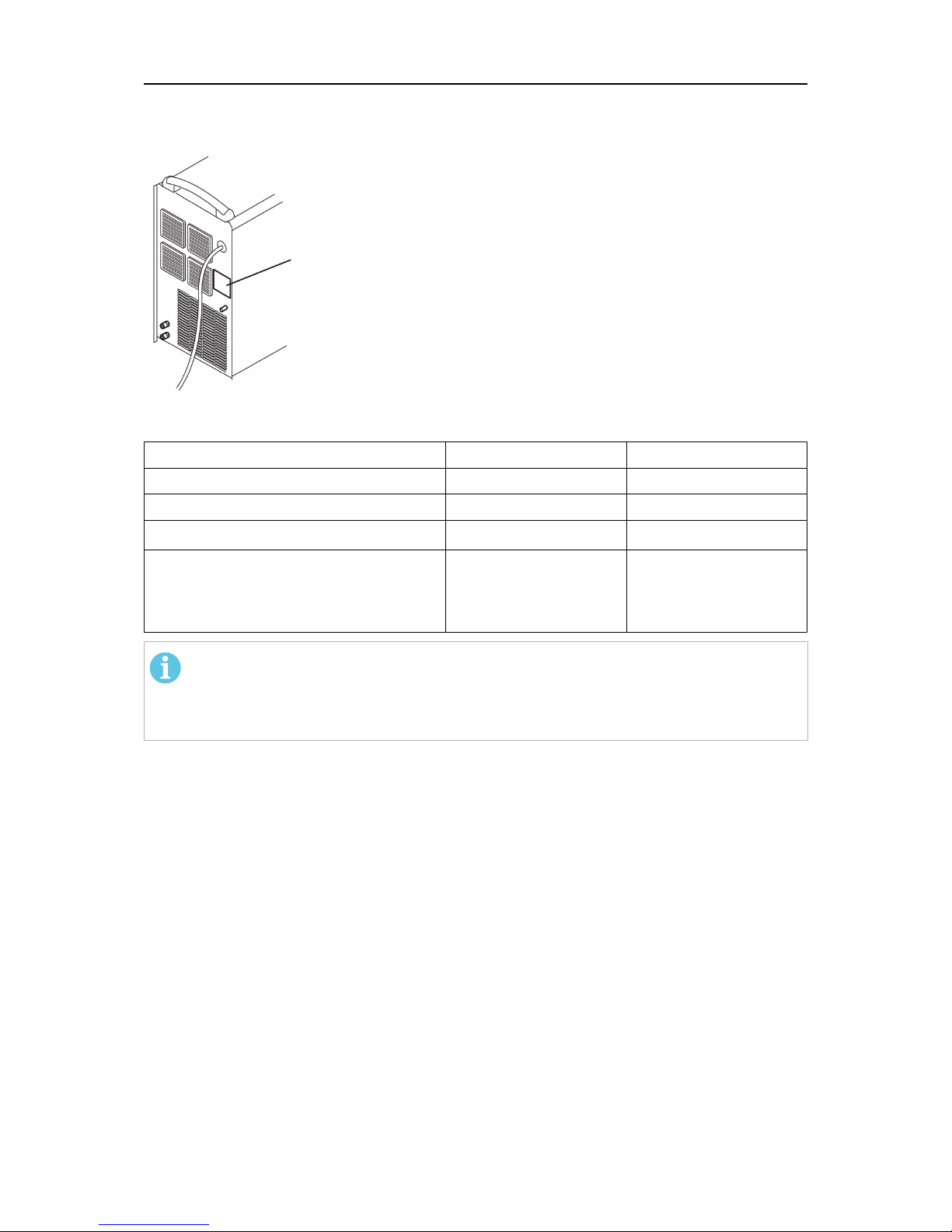

4.3 Mains power supply ............................................................................... 11
5OPERATION ................................................................................................ 12

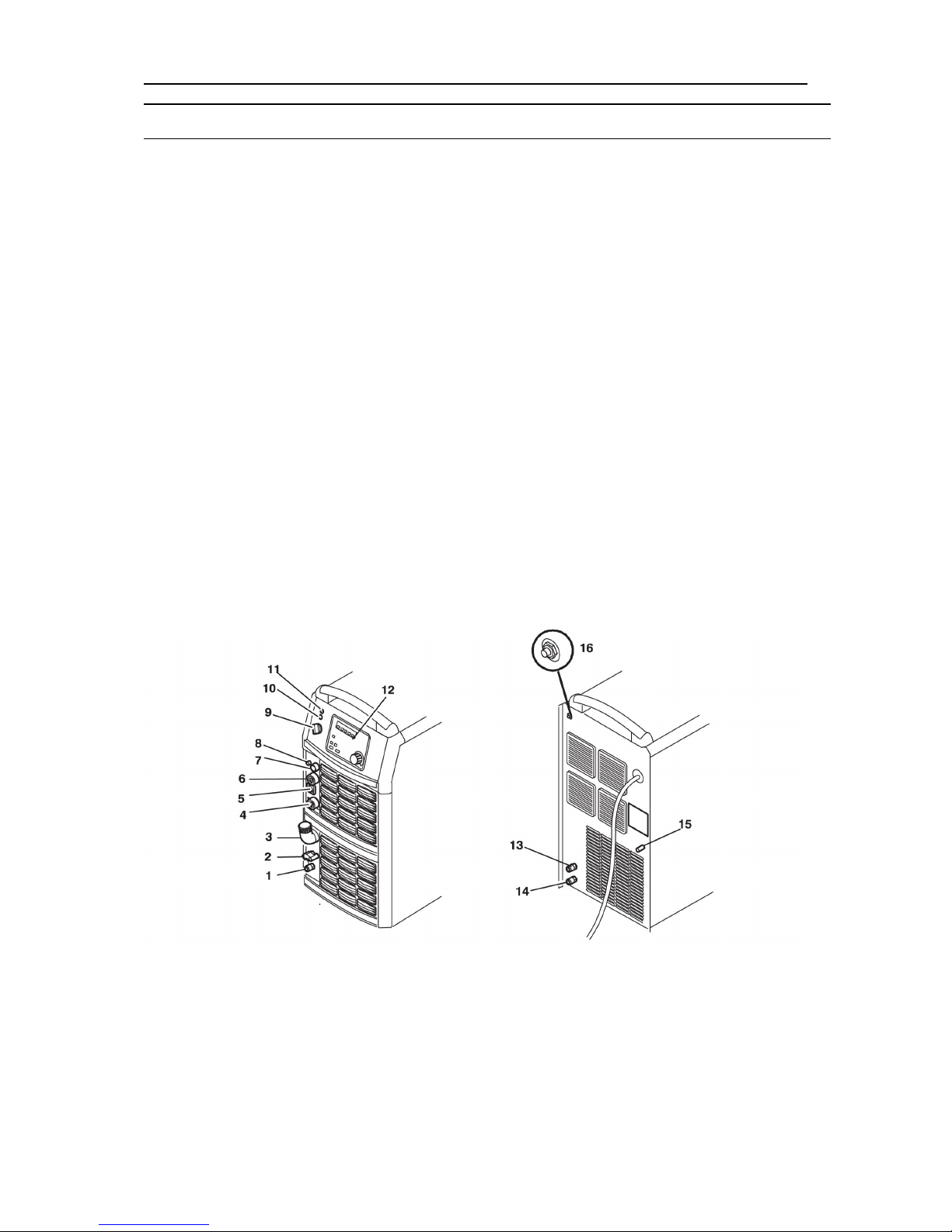

5.1 Connections and control devices ......................................................... 12
5.2 Key to symbols....................................................................................... 13
5.3 Turning on the power source ................................................................ 13
5.4 Fan control .............................................................................................. 13
5.5 Overheating protection .......................................................................... 13
5.6 Cooling unit............................................................................................. 13
6MAINTENANCE........................................................................................... 15

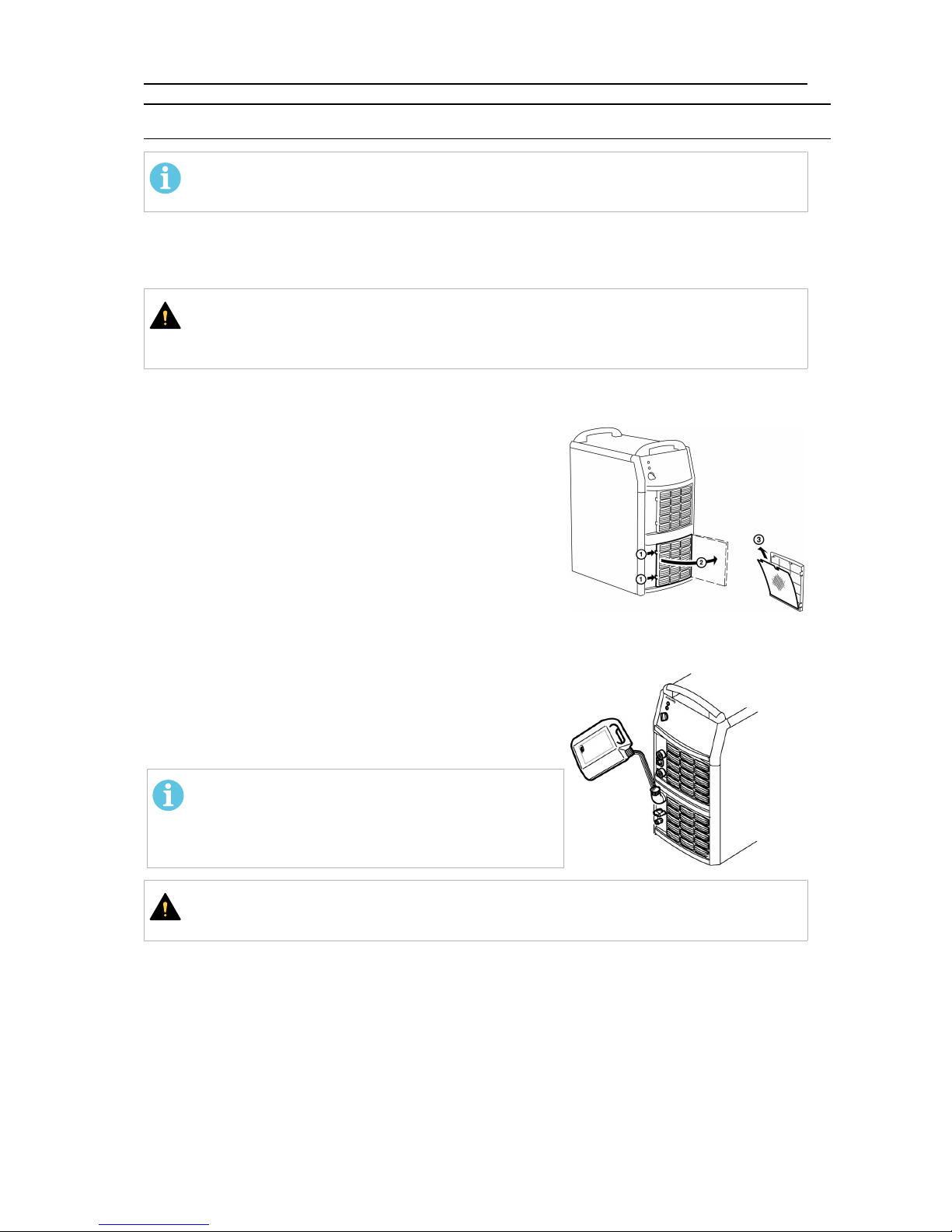

6.1 Cleaning the filter ................................................................................... 15
6.2 Topping up the coolant .......................................................................... 15
7TROUBLESHOOTING ................................................................................. 16
8ORDERING SPARE PARTS ........................................................................ 17

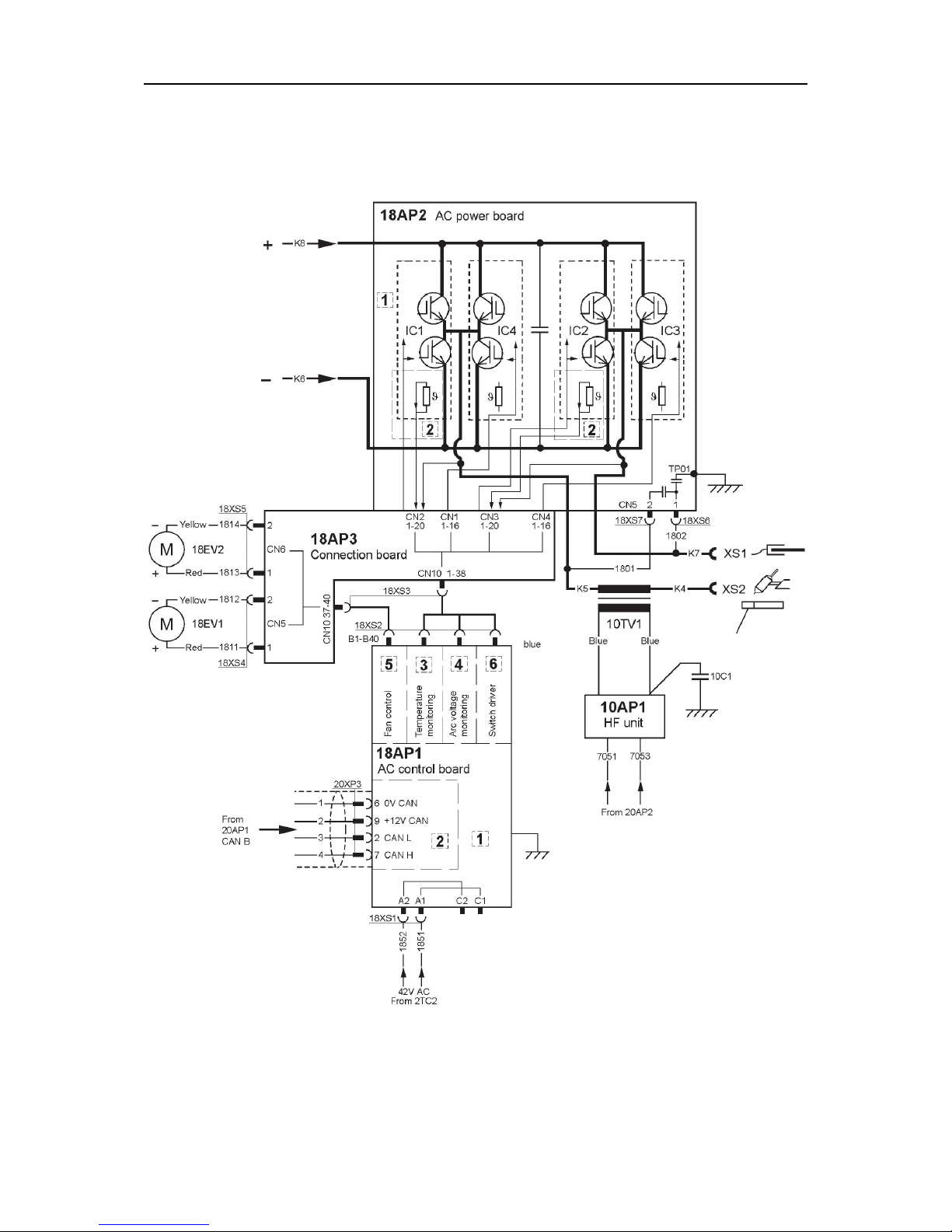

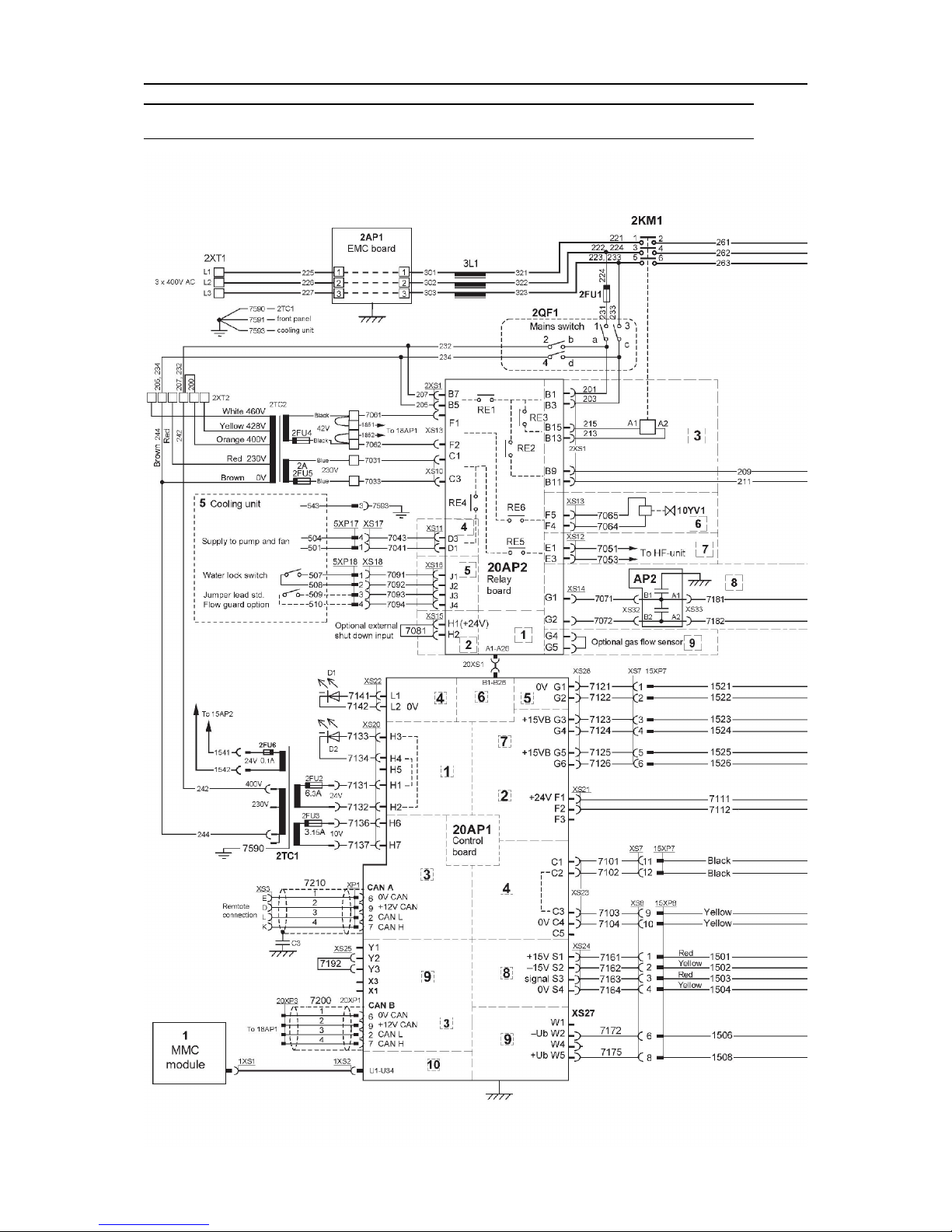

DIAGRAM ............................................................................................................ 18
ORDERING NUMBERS....................................................................................... 22
SPARE PARTS LIST............................................................................................ 23
ACCESSORIES ................................................................................................... 24
Rights reserved to alter specifications without notice.

1 SAFETY
0460 157 301 -4- © ESAB AB 2018
1 SAFETY
1.1 Meaning of symbols
As used throughout this manual: Means Attention! Be Alert!
DANGER!
Means immediate hazards which, if not avoided, will result in
immediate, serious personal injury or loss of life.
WARNING!
Means potential hazards which could result in personal injury or loss
of life.
CAUTION!
Means hazards which could result in minor personal injury.
WARNING!
Before use, read and understand the instruction manual
and follow all labels, employer´s safety practices and
Safety Data Sheets (SDSs).
1.2 Safety precautions
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety
precautions must meet the requirements that apply to this type of equipment. The following
recommendations should be observed in addition to the standard regulations that apply to
the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the
equipment. Incorrect operation of the equipment may lead to hazardous situations which can
result in injury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
○ its operation
○ location of emergency stops
○ its function
○ relevant safety precautions
○ welding and cutting or other applicable operation of the equipment
2. The operator must ensure that:
○ no unauthorised person is stationed within the working area of the equipment
when it is started up
○ no-one is unprotected when the arc is struck or work is started with the
equipment
3. The workplace must:
○ be suitable for the purpose
○ be free from drafts

1 SAFETY
0460 157 301 -5- © ESAB AB 2018
4. Personal safety equipment:
○ Always wear recommended personal safety equipment, such as safety glasses,
flame-proof clothing, safety gloves
○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which
could become trapped or cause burns
5. General precautions:
○ Make sure the return cable is connected securely
○ Work on high voltage equipment may only be carried out by a qualified
electrician
○ Appropriate fire extinguishing equipment must be clearly marked and close at
hand
○ Lubrication and maintenance must not be carried out on the equipment during
operation
WARNING!
Arc welding and cutting can be injurious to yourself and others. Take precautions
when welding and cutting.
ELECTRIC SHOCK - Can kill
• Install and ground the unit in accordance with instruction manual.
• Do not touch live electrical parts or electrodes with bare skin, wet gloves or
wet clothing.
• Insulate yourself from work and ground.
• Ensure your working position is safe
ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health
• Welders having pacemakers should consult their physician before welding.
EMF may interfere with some pacemakers.
• Exposure to EMF may have other health effects which are unknown.
• Welders should use the following procedures to minimize exposure to
EMF:
○ Route the electrode and work cables together on the same side of
your body. Secure them with tape when possible. Do not place your
body between the torch and work cables. Never coil the torch or work
cable around your body. Keep welding power source and cables as
far away from your body as possible.
○ Connect the work cable to the workpiece as close as possible to the
area being welded.
FUMES AND GASES - Can be dangerous to health
• Keep your head out of the fumes.
• Use ventilation, extraction at the arc, or both, to take fumes and gases
away from your breathing zone and the general area.
ARC RAYS - Can injure eyes and burn skin
• Protect your eyes and body. Use the correct welding screen and filter lens
and wear protective clothing.
• Protect bystanders with suitable screens or curtains.
NOISE - Excessive noise can damage hearing
Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY
0460 157 301 -6- © ESAB AB 2018
MOVING PARTS - Can cause injuries
• Keep all doors, panels and covers closed and securely in place. Have only
qualified people remove covers for maintenance and troubleshooting as
necessary. Reinstall panels or covers and close doors when service is
finished and before starting engine.
• Stop engine before installing or connecting unit.
• Keep hands, hair, loose clothing and tools away from moving parts.
FIRE HAZARD
• Sparks (spatter) can cause fire. Make sure that there are no inflammable
materials nearby.
• Do not use on closed containers.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
CAUTION!
This product is solely intended for arc welding.
WARNING!
Do not use the power source for thawing frozen pipes.
CAUTION!
Class A equipment is not intended for use in residential
locations where the electrical power is provided by the
public low-voltage supply system. There may be
potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations,
due to conducted as well as radiated disturbances.
NOTE!
Dispose of electronic equipment at the recycling
facility!
In observance of European Directive 2012/19/EC on
Waste Electrical and Electronic Equipment and its
implementation in accordance with national law,
electrical and/or electronic equipment that has reached
the end of its life must be disposed of at a recycling
facility.
As the person responsible for the equipment, it is your
responsibility to obtain information on approved
collection stations.
For further information contact the nearest ESAB dealer.
ESAB has an assortment of welding accessories and personal protection equipment
for purchase. For ordering information contact your local ESAB dealer or visit us on
our website.

2 INTRODUCTION
0460 157 301 -7- © ESAB AB 2018
2 INTRODUCTION
The Tig 4300iw AC/DC is a TIG welding power source, which can also be used for MMA
welding. The power welding source can be used with alternating current (AC) or direct
current (DC).
ESAB accessories for the product can be found in the "ACCESSORIES" chapter of
this manual.
2.1 Equipment
The power source is delivered with 5m (16.4ft) mains cable including the plug, 5m (16.4ft)
return cable, instruction manuals for power source and for the control panel.
Instruction manuals in other languages can be downloaded from the Internet: www.esab.com
2.2 The control panel
TA24 AC/DC
See the separate instructions for detailed descriptions of the control panel.

3 TECHNICAL DATA
0460 157 301 -8- © ESAB AB 2018
3 TECHNICAL DATA
Tig 4300iw AC/DC
Mains voltage 400V ±10%, 3~ 50Hz
Mains supply
Ssc min 2.6MVA
Zmax 0.24Ohm
Primary current
Imax TIG 25A
Imax MMA 32A
No-load power in energy-saving mode 6.5 min.
after welding
75W
Voltage/current range
TIG AC*/DC 4–430A
MMA 16–430A
Permissible load at TIG
40 % duty cycle 430A / 27.2V
60 % duty cycle 400A / 26.0V
100 % duty cycle 315A / 22.6V
Permissible load at MMA
40 % duty cycle 430A / 37.2V
60 % duty cycle 400A / 36.0V
100 % duty cycle 315A / 32.6V
Power factor at maximum current
TIG 0.89
MMA 0.89
Efficiency at maximum current
TIG 76%
MMA 80%
Open-circuit voltage U0max
without VRD function 1) 83V
U0L "Live TIG" , VRD function deactivated 2) 60V
MMA, VRD function deactivated 2) 60V
VRD function activated 2) <35V
Operating temperature range -10 to +40°C (+14 to +104°F)
Transportation temperature -20 to +55°C (-4 to +131°F)
Dimensions l × w × h 625×394×776mm
(24.6×15.5×30.5in.)
Continual sound pressure at no-load <70db(A)
Weight 95kg (209.4lb)
Insulation class H

3 TECHNICAL DATA
0460 157 301 -9- © ESAB AB 2018
Tig 4300iw AC/DC
Enclosure class IP23
Application class
*) The minimum current during AC welding depends on the alloy used for the aluminium
plates and their surface cleanliness.
1) Valid for power sources without VRD specification on the rating plate.
2) Valid for power sources with VRD specification on the rating plate. The VRD function is
explained in the instruction manual for the control panel if the panel has that function.
Cooling unit
Cooling power 2.0kW at 40°C (104°F) temperature
difference and flow 1.0l/min (0.26gpm)
Coolant ESAB ready mixed coolant
Liquid quantity 5.5l (1.45gal)
Maximum water flow 2.0l/min (0.53gpm)
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or
cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects or water.
Equipment marked IP23 is intended for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
Mains supply, Ssc min
Minimum short circuit power on the network in accordance with IEC 61000-3-12.
Mains supply, Zmax
Maximum permissible line impedance of the network in accordance with IEC 61000-3-11.

4 INSTALLATION
0460 157 301 - 10 - © ESAB AB 2018
4 INSTALLATION
The installation must be carried out by a professional.
NOTE!
Mains supply requirements
This equipment complies with IEC 61000-3-12 provided that the short-circuit power is
greater than or equal to Sscmin at the interface point between the user's supply and
the public system. It is the responsibility of the installer or user of the equipment to
ensure, by consultation with the distribution network operator if necessary, that the
equipment is connected only to a supply with a short-circuit power greater than or
equal to Sscmin. Refer to the technical data in the TECHNICAL DATA chapter.
4.1 Lifting instructions
With power source With trolley and power source
4.2 Positioning of the power source
Position the welding power source in such a way that its cooling air inlets and outlets are not
obstructed.

4 INSTALLATION
0460 157 301 - 11 - © ESAB AB 2018
4.3 Mains power supply
Check that the unit is connected to the correct mains power supply
voltage, and that it is protected by the correct fuse sizes.
A protective earth connection must be made, in accordance with
regulations.
Rating plate with supply connection data.
Recommended fuse sizes and minimum cable areas
Tig 4300iw AC/DC TIG MMA
Mains voltage 400V 3~ 50Hz 400V 3~ 50Hz
Mains cable area, mm24G4 4G4
Phase current, I1eff 16.9A 21.9A
Fuse
Anti-surge
Type C MCB

20A
20A

20A
25A
NOTE!
The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. For other regions, supply cables must be suitable for the
application and meet local and national regulations.

5 OPERATION
0460 157 301 - 12 - © ESAB AB 2018
5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY"
chapter of this manual. Read it through before you start using the equipment!
5.1 Connections and control devices
1Connection for cooling water from the
torch - RED
9Main power supply switch, 0 / 1 / START
2Connection with ELP* for cooling water to
the torch - BLUE
10 White indicating lamp - Power supply ON
3Cooling water filler 11 Orange indicating lamp - Overheating
4Connection for return cable (+) 12 Control panel (see the respective
instructions)
5Connection for remote control 13 Connection for cooling water. Not used on
this model.
6Connection for welding cable (-) 14 Connection for cooling water. Not used on
this model.
7Connection for start signal from the
welding torch
15 Connection for gas hose
8Connection for gas to the TIG torch 16 Fuse 42V (from serial number
950-xxx-xxx only)
*ELP = ESAB Logic Pump, see "Cooling unit" section.

5 OPERATION
0460 157 301 - 13 - © ESAB AB 2018
5.2 Key to symbols
MMA TIG Return clamp
5.3 Turning on the power source
Turn on the mains power by turning switch (9) to the "START" position. Release the switch,
and it will return to the "1" position.
If the mains power supply should be interrupted while welding is in progress, and then be
restored, the power source will remain de-energised until the switch is again turned manually
to the "START" position.
Turn the unit off by turning the switch to the "0" position
Whether in the event of a loss of power supply or of turning the power source off in the
normal manner, welding data will be stored so that it is available next time the unit is started.
5.4 Fan control
The power source fans continue to run for 6.5 minutes after welding has stopped, and the
unit switches to energy-saving mode. They start again when welding restarts.
The fans run at reduced speed for welding currents up to 144A, and at full speed for higher
currents.
5.5 Overheating protection
The power source has two thermal overload trips which operate if the internal temperature
becomes too high, interrupting the welding current and lighting the orange indicating lamp on
the front of the unit and a fault code is shown in the control panel. They reset automatically
when the temperature has fallen.
5.6 Cooling unit
Water lock
The cooling unit is equipped with a detection system ELP (ESAB Logic Pump) which checks
whether the water hoses are connected.

5 OPERATION
0460 157 301 - 14 - © ESAB AB 2018
The power source On/Off switch must be in the "0" position (Off) when connecting a
water-cooled TIG torch.
If a water-cooled TIG torch is connected, the water pump starts automatically when the main
On/Off switch is turned to "START" and/or when welding starts. After welding, the pump
continues to run for 6.5 minutes, and then switches to the energy-saving mode.
Function when welding
To start welding, the welder presses the torch trigger switch. The power source energises the
torch and starts wire feed and the cooling water pump.
To stop welding, the welder releases the torch trigger switch. The welding current is
interrupted, but the cooling water pump continues to run for 6.5 minutes, after which the unit
switches to energy-saving mode.
Water flow guard
The water flow guard interrupts the welding current in the event of loss of coolant, and
displays an error message on the control panel. The water flow guard is an accessory, see
"ACCESSORIES" chapter.

6 MAINTENANCE
0460 157 301 - 15 - © ESAB AB 2018
6 MAINTENANCE
NOTE!
Regular maintenance is important for safe and reliable operation.
Only those persons who have appropriate electrical knowledge (authorised personnel) may
remove the safety plates to connect or carry out service, maintenance or repair work on
welding equipment.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer attempts
any work to rectify any faults in the product during the warranty period.
6.1 Cleaning the filter
• Remove the front grille with the filter (1).
• Swing out the front grille (2).
• Remove the filter (3).
• Blow the filter clean with compressed air (reduced
pressure).
• Replace the filter with the finer mesh on the side
against the front grille (2).
• Replace the front grille with the filter.
6.2 Topping up the coolant
Top up with coolant until it is up to the level of the filling
hole.
ESAB ready mixed coolant is recommended for use, see
"ACCESSORIES" chapter.
NOTE!
Coolant must be topped up if connecting a
welding torch or connection cables that are 5m
(16.4ft) in length or longer.
CAUTION!
The coolant must be handled as chemical waste.

7 TROUBLESHOOTING
0460 157 301 - 16 - © ESAB AB 2018
7 TROUBLESHOOTING
Try these recommended checks and inspections before sending for an authorised service
technician.
Type of fault Action
No arc • Check that the mains power supply switch is turned on.
• Check that the welding current supply and return cables
are correctly connected.
• Check that the correct current value is set.
• Check start method (HF/Liftarc™).
• Check the coolant flow (if the flow guard is mounted).
• Check the coolant level.
The welding current is
interrupted during welding.
• Check whether the thermal cut-outs have tripped
(indicated by the orange lamp on the front panel) and a
fault code is shown in the panel.
• Check the coolant flow.
• Check the main power supply fuses.
The thermal cut-out trips
operate frequently.
• Check to see whether the air filters are clogged.
• Make sure that you are not exceeding the rated data for
the power source (i.e. that the unit is not being
overloaded).
Poor welding performance • Check that the welding current supply and return cables
are correctly connected.
• Check that the correct current value is set.
• Check that the correct electrode / wire is used.
• Check that the correct welding gas is being used.
• Check the gas flow.
• Check the main power supply fuses.

8 ORDERING SPARE PARTS
0460 157 301 - 17 - © ESAB AB 2018
8 ORDERING SPARE PARTS
CAUTION!
Repair and electrical work should be performed by an authorised ESAB service
technician. Use only ESAB original spare and wear parts.
Tig 4300iw AC/DC is designed and tested in accordance with the international and
European standards IEC-/EN 60974-1, /-2, /-3 and IEC-/EN 60974-10. It is the obligation of
the service unit which has carried out the service or repair work to make sure that the
product still conforms to the mentioned standards.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see
esab.com. When ordering, please state product type, serial number, designation and spare
part number in accordance with the spare parts list. This facilitates dispatch and ensures
correct delivery.

DIAGRAM
0460 157 301 - 18 - © ESAB AB 2018
DIAGRAM

DIAGRAM
0460 157 301 - 19 - © ESAB AB 2018

DIAGRAM
0460 157 301 - 20 - © ESAB AB 2018
