ENGLISH
−47 −
TOCe
1 DIRECTIVE 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 SAFETY 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 INTRODUCTION 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Equipment 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 TECHNICAL DATA 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 ESABMig C280 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 ESABMig C340 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 INSTALLATION 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Placing 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Assembly of components 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Electrical installation 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Mains power supply 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 OPERATION 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Connection and control devices 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Function explanation 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 MAINTENANCE 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Inspection and cleaning 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 FAULT TRACING 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 ORDERING OF SPARE PARTS 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIAGRAM 168. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WEAR COMPONENTS 173. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACCESSORIES 176. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−48 −
2834e
1 DIRECTIVE
DECLARATION OF CONFORMITY
ESAB Welding Equipment AB, S−695 81 Laxå, Sweden, gives its unreserved guarantee that welding
power source ESABMig C280 & ESABMig C340 from serial number 225, 224 complies with standard
IEC/EN 60974−1, in accordance with the requirements of directive (73/23/EEC) and addendum
(93/68/EEC) and with standard EN 50199 in accordance with the requirements of directive
(89/336/EEC) and addendum (93/68/EEC).
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−
Henry Selenius
Vice President
ESAB Welding Equipment AB
695 81 LAXÅ
SWEDEN Tel: + 46 584 81000 Fax: + 46 584 411924
Laxå 2003−03−10
2 SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety precautions
must meet the requirements that apply to this type of welding equipment. The following recommen-
dations should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well−acquainted with the operation of the welding
equipment. Incorrect operation of the equipment may lead to hazardous situations which can result
in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
Sits operation
Slocation of emergency stops
Sits function
Srelevant safety precautions
Swelding
2. The operator must ensure that:
Sno unauthorised person is stationed within the working area of the equipment when it is
started up.
Sno−one is unprotected when the arc is struck
3. The workplace must:
Sbe suitable for the purpose
Sbe free from draughts
4. Personal safety equipment
SAlways wear recommended personal safety equipment, such as safety glasses, flame−proof
clothing, safety gloves.
SDo not wear loose−fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
SMake sure the return cable is connected securely.
SWork on high voltage equipment may only be carried out by a qualified electrician.
SAppropriate fire extinquishing equipment must be clearly marked and close at hand.
SLubrication and maintenance must not be carried out on the equipment during operation.
GB

−49 −
2834e
WARNING
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.
ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU-
TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE
BASED ON MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK −Can kill
SInstall and earth the welding unit in accordance with applicable standards.
SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
SInsulate yourself from earth and the workpiece.
SEnsure your working stance is safe.
FUMES AND GASES −Can be dangerous to health
SKeep your head out of the fumes.
SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS −Can injure eyes and burn skin.
SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
SProtect bystanders with suitable screens or curtains.
FIRE HAZARD
SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE −Excessive noise can damage hearing
SProtect your ears. Use earmuffs or other hearing protection.
SWarn bystanders of the risk.
MALFUNCTION −Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
WARNING!
Read and understand the instruction manual
before installing or operating.
Do not use the power source for thawing frozen pipes.
WARNING!
This product is solely intended for arc welding.
GB

−50 −
2834e
3 INTRODUCTION
ESABMig C280 & ESABMig C340 are step controlled power sources in a compact
design, intended for welding with solid steel, stainless steel or aluminium wire as well
as tubular wire with or without shielding gas.
The possibility of welding with homogeneous wire/shielding gas and welding with
gasless tubular wire is obtained by switching the + and −connections on the
switching terminal above the wire feed unit.
ESAB’s accessories for the product can be found on page 176.
3.1 Equipment
3.1.1 ESABMig C280
The power source is supplied with:
SWelding gun PSF 250 −3m (ESABMig C280 4WD −4,5m)
SReturn cable 3,5m with return clamp (ESABMig C280 4WD −5m)
SShelf for gas cylinder
SInstruction manual
3.1.2 ESABMig C340
The power source is supplied with:
SWelding gun PSF 305 −3m (ESABMig C340 4WD −4,5m)
SReturn cable 3,5m with return clamp (ESABMig C340 4WD −5m)
SShelf for gas cylinder
SInstruction manual
4 TECHNICAL DATA
4.1 ESABMig C280
Voltage 400−415 V, 3∼50/60 Hz 230/400−415/500V3∼50Hz
230/440−460V, 3∼60Hz
Permissible load at
100% duty cycle 150 A/22 V 150 A/22 V
60 % duty cycle 190 A/24 V 190 A/24 V
30 % duty cycle 280 A/28 V 280 A/28 V
Setting range (DC) 30A/15V−280A/28V 30A/15V−280A/28V
Open circuit voltage 15−38 V 15−38 V
Open circuit power 190 W 190 W
Efficiency 69% 69%
Power factor 0.97 0.97
Control voltage 42 V, 50/60 Hz 42 V, 50/60 Hz
Wire feed speed 1,9 −19m/min 1,9 −19m/min
GB

−51 −
2834e
Burnback time 0 −0,25s 0 −0,25s
Spot welding 0,2 −2,5s 0,2 −2,5s
Welding gun connection EURO EURO
Dimensions lxwxh 840x425x830 840x425x830
Weight 91 kg 91 kg
Operating temperature −10 to +40oC−10 to +40oC
Enclosure class IP 23 IP 23
Application classification
4.2 ESABMig C340
Voltage 400−415 V, 3∼50/60 Hz 230/400−415/500V3∼50Hz
230/440−460V, 3∼60Hz
Permissible load at
100% duty cycle 195 A/24 V 195 A/24 V
60 % duty cycle 250 A/27 V 250 A/27 V
30 % duty cycle 340 A/31 V 340 A/31 V
Setting range (DC) 40A/16V−340A/31V 40A/16V−340A/31V
Open circuit voltage 16−40 V 16−40 V
Open circuit power 240 W 240 W
Efficiency 77% 77%
Power factor 0.95 0.95
Control voltage 42 V, 50/60 Hz 42 V, 50/60 Hz
Wire feed speed 1,9 −20m/min 1,9 −20m/min
Burnback time 0 −0,5s 0 −0,5s
Creep start OFF / ON OFF / ON
2/4 stroke 2 / 4 2 / 4
Welding gun connection EURO EURO
Dimensions lxwxh 840x425x830 840x425x830
Weight 114 kg 114 kg
Operating temperature −10 to +40oC−10 to +40oC
Enclosure class IP 23 IP 23
Application classification
Duty cycle
The duty cycle refers to the time as a percentage of a ten−minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
GB

−52 −
2834e
5 INSTALLATION
The installation must be executed by a professional.
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’s responsibility to take adequate precautions.
5.1 Placing
Position the welding power source such way that its cooling air inlets and outlets are
not obstructed.

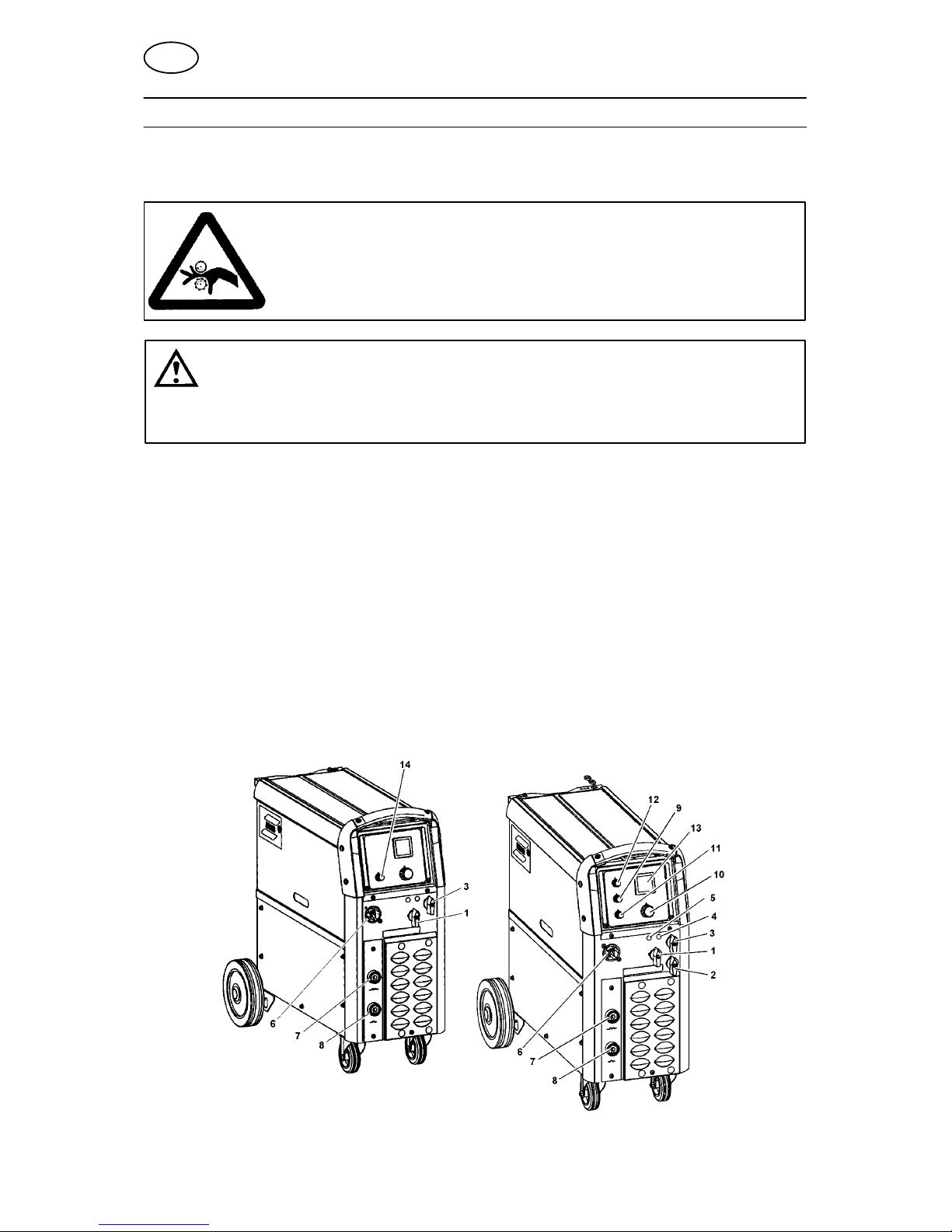

5.2 Assembly of components
During transport, the rear wheels of the power source are in their forward position.
Before use, place the wheels in their rear position.
WARNING!
GB

−53 −
2834e
5.3 Electrical installation
GB

−54 −
2834e

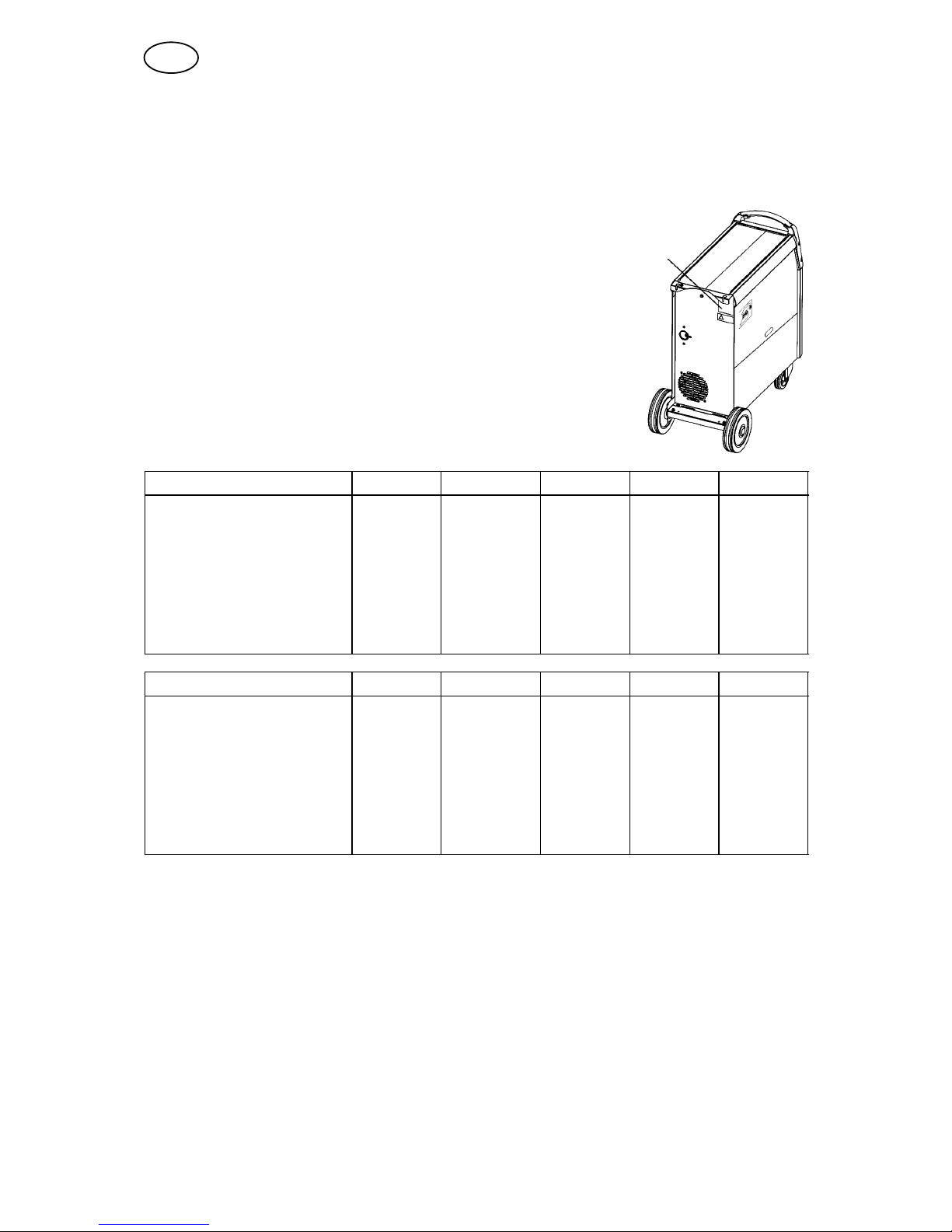

5.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
ESABMig C280 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz
Voltage V 230 400/415 500 230 440−460
Current A
at 100% duty cycle 13 7 5 11 7
at 60% duty cycle 18 10 8 18 10
at 30% duty cycle 27 18 13 27 17
Cable area mm24 x 2.5 4 x 1.5 4 x 1.5 4 x 2.5 4 x 1.5
Fuse slow A 20 16 16 20 16
ESABMig C340 3∼ 50 Hz 3∼ 50/60 Hz 3∼ 50 Hz 3∼ 60 Hz 3∼ 60 Hz
Voltage V 230 400/415 500 230 440−460
Current A
at 100% duty cycle 16 9 7 16 8
at 60% duty cycle 24 14 11 23 12
at 30% duty cycle 35 21 17 34 18
Cable area mm24 x 4 4 x 2.5 4 x 2.5 4 x 4 4 x 2.5
Fuse slow A 20 16 16 20 16
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
GB

−55 −
2834e
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 48. Read through before you start using the equipment!
WARNING!
Rotating parts can cause injury, take great care.
WARNING −TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10o. In that case appropriate securing has to be provided !
6.1 Connection and control devices
1Mains supply switch 8Connection for return cable (−), low induc-
tance
2Switch, coarse control 9Knob for selecting −creep start −ON/OFF
3Switch, precise control 10 Knob for wire speed setting
4Indicating lamp, power supply ON 11 Knob for selecting 2/4−stroke control mode
5Orange indicating lamp, overheating 12 Knob for burn−back time setting
6EURO −connector (for welding gun) 13 Digital instrument −V / A
(option,see page 176)
7Connection for return cable (−), high induc-
tance 14 Knob for spot welding −ON/OFF and time setting
GB

−56 −
2834e
6.2 Function explanation
6.2.1 Overheating protection
A thermal overload cutout protects against overheating. The cutout resets automatically
when the unit has cooled.
6.2.2 Inductance connection
Higher inductance produces a more flowing weld and fewer spatters. Lower inductance
produces a harsher sound and a stable, concentrated arc.
7 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Note!
All guarantee undertakings from the supplier cease to apply if the customer himself
attempts any work in the product during the guarantee period in order to rectify any
faults.
7.1 Inspection and cleaning
Check regularly that the power source is free from dirt.
The power source should be regularly blown clean using dry compressed air at reduced
pressure. More frequently in dirty environments.
Otherwise the air inlet/outlet may become blocked and cause overheating. To avoid
this you can use an airfilter.
The airfilter is an accessory. Ordering number can be found on page 176.
Welding gun
SCleaning and replacement of the welding gun’s wear parts should take place at
regular intervals in order to achieve trouble−free wire feed. Blow the wire guide
clean regularly and clean the contact tip.

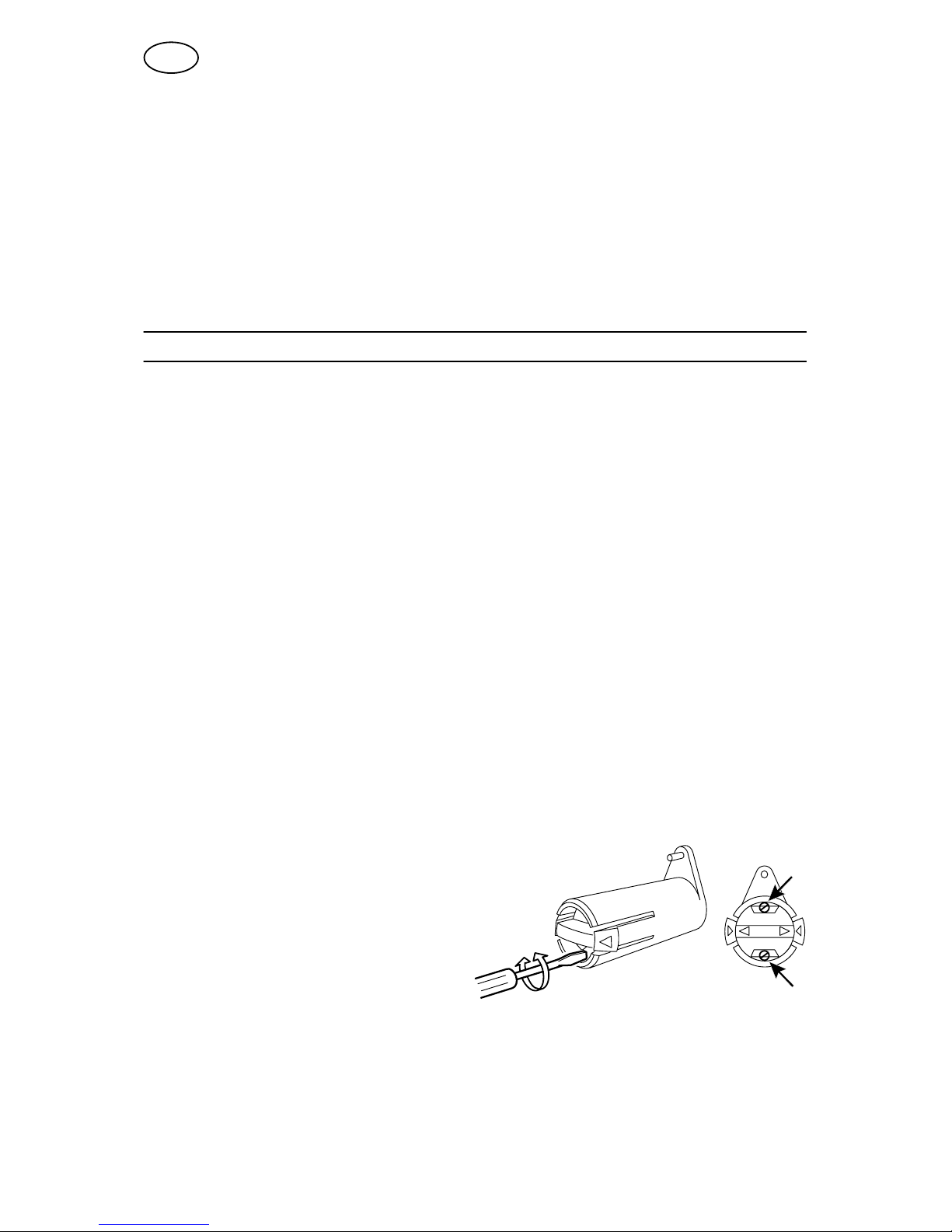

The brake hub
The hub is adjusted when delivered, if
readjustment is required, follow the instructions
below. Adjust the brake hub so that wire is slightly
slack when wire feed stops.
SAdjusting the braking torque:
STurn the red handle to the locked position.
SInsert a screwdriver into the springs in the hub.
Turn the springs clockwise to reduce the braking torque
Turn the springs anticlockwise to increase the braking torque. NB: Turn both
springs through the same amount.
GB

−57 −
2834e
8 FAULT TRACING
Try these recommended checks and inspections before sending for an authorised service technican.
Type of fault Actions
No arc SCheck that the mains power supply switch is turned on.
SCheck that the welding current supply and return cables are
correctly connected.
SCheck that correct current value is set.
Welding current is interrupted
during welding
SCheck whether the thermal overload trip has operated
(indicated by the orange lamp on the front).
SCheck the main power supply fuses.
Thermal overload trips
operate frequently
SCheck to see whether the air filters are clogged.
SMake sure that you are not exceeding the rated data for the
power source (i.e. that the unit is not being overloaded).
Poor welding performance SCheck that the welding current supply and return cables are
correctly connected.
SCheck that the correct current value is set.
SCheck that the correct welding wires are being used.
SCheck the main power supply fuses.
SCheck the wire feed unit −if proper rolls are applied and
properly set the pressure of the wire feeder’s pressure rollers
9 ORDERING OF SPARE PARTS
ESABMig C280 & ESABMig C340 is designed and tested in accordance with the inter-
national and European standards IEC/EN 60974−1 and EN 50199. It is the obligation of
the service unit which has carried out the service or repair work to make sure that the
product still conforms to the said standard.
Spare parts may be ordered through your nearest ESAB dealer, see the last page of
this publication.
GB

Schema Skema Skjema Johdotuskaavio Diagram Schaltplan Schéma
Schema Esquema Schema Esquema 41 A0 &L9G
&L9G   )%!
dC2834 −168 −
ESABMig C280, 400−415V

dC2834 −169 −
ESABMig C280, 230−500V

dC2834 −170 −
ESABMig C340, 400−415V

dC2834 −171 −
ESABMig C340, 230−500V

ESABMig C280, ESABMig C340
Edition 040721
oC2834 −172 −
Valid for serial no. 225, 224−XXX−XXXX
Ordering numbers
0349 302 889 ESABMig C280 400−415V 3~50Hz
0349 302 844 ESABMig C280 230/400−415/500V 3~50Hz; 230/440−460V 3~60Hz
0349 302 890 ESABMig C280 4WD 400−415V 3~50Hz
0349 302 612 ESABMig C280 4WD 230/400−415/500V 3~50Hz; 230/440−460V 3~60Hz
0349 302 452 ESABMig C340 400−415V 3~50Hz
0349 302 483 ESABMig C340 230/400−415/500V 3~50Hz; 230/440−460V 3~60Hz
0349 302 484 ESABMig C340 4WD 400−415V 3~50Hz
0349 302 485 ESABMig C340 4WD 230/400−415/500V 3~50Hz; 230/440−460V 3~60Hz

ESABMig C280
Edition 040721
wC280 −173 −

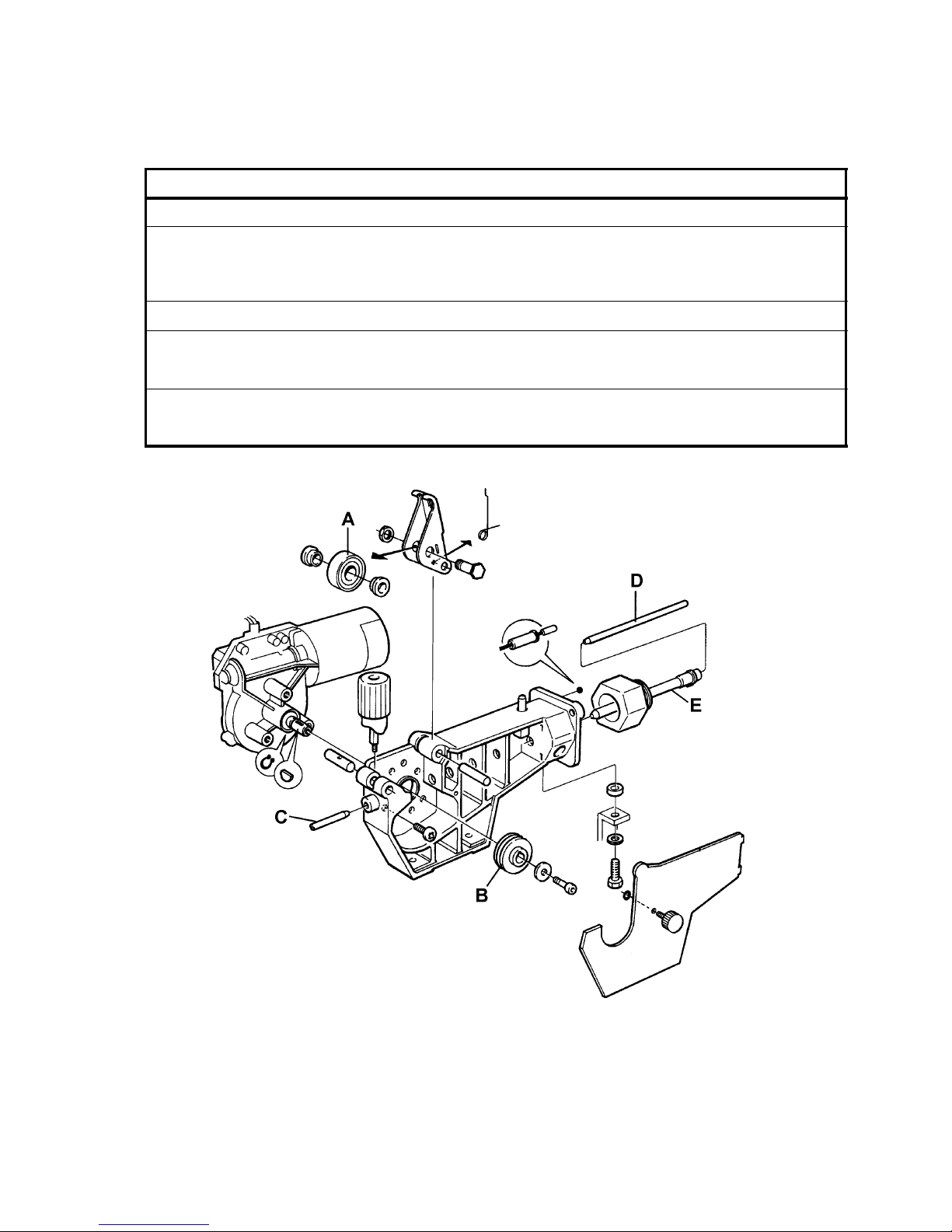

Wear components
(W. F. Mechanism 0455 890 882)
Item Denomination Ordering no. Notes
APressure roller 0455 907 001
BFeed roller
0367 556 001
0367 556 002
0367 556 006
0367 556 004
Ø 0.6−0.8mm Fe, Ss, cored wire.
Ø 0.8−1.0mm Fe, Ss, cored wire.
Ø 1.0−1.2mm cored wire.
Ø 1.0−1.2mm Al wire.
CInlet nozzle 0466 074 001
DInsert tube 0455 894 001
0455 889 001
Plastic, must be used together with item 0455 885 001,
for welding with Al wire.
Steel, must be used together with item 0455 886 001.
EOutlet nozzle 0455 885 001
0455 886 001
Must be used together with item 0455 894 001,
for welding with Al wire.
Must be used together with item 0455 889 001.
The rollers are marked with wire dimension in mm, some are also marked with inch.
Welding with aluminium wires.
In order to weld with aluminium wires, proper rollers, nozzles and liners for
aluminium wires MUST be used. It is recommended to use 3m long welding gun for
aluminium wires, equipped with appropriate wear parts.

ESABMig C340
Edition 040721
wC340 −174 −

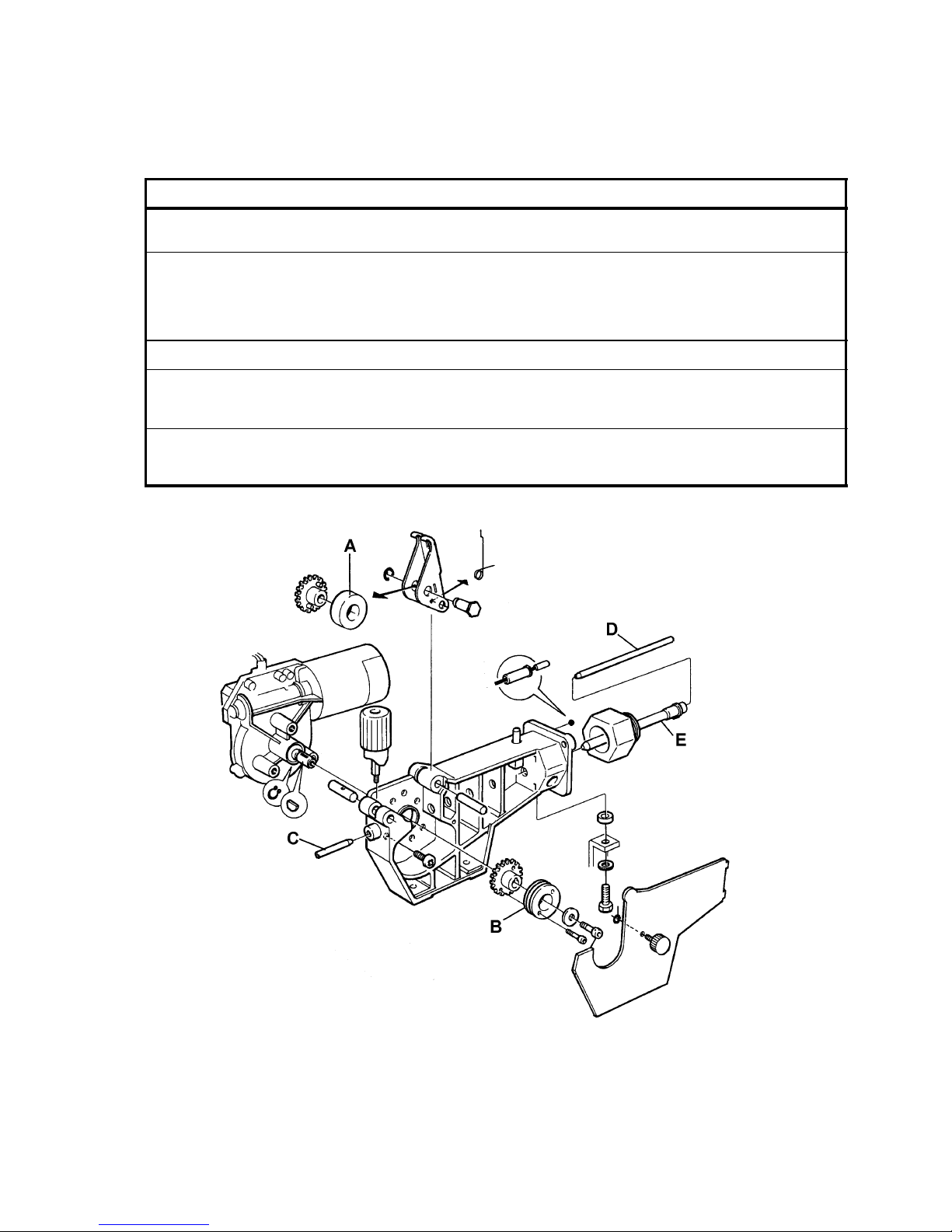

Wear components
(W. F. Mechanism 0455 890 881)
Item Denomination Ordering no. Notes
APressure roller 0369 728 001
0466 262 001 Knurled
BFeed roller
0369 557 001
0369 557 002
0369 557 003
0369 557 004
0369 557 006
Ø 0.6−0.8mm Fe, Ss, cored wire.
Ø 0.8−1.0mm Fe, Ss, cored wire.
Ø 1.0−1.2mm Fe, Ss, cored wire.
Ø 1.0−1.2mm cored wire, knurled.
Ø 1.0−1.2mm Al wire.
CInlet nozzle 0466 074 001
DInsert tube 0455 894 001
0455 889 001
Plastic, must be used together with item 0455 885 001,
for welding with Al wire.
Steel, must be used together with item 0455 886 001.
EOutlet nozzle 0455 885 001
0455 886 001
Must be used together with item 0455 894 001,
for welding with Al wire.
Must be used together with item 0455 889 001.
The rollers are marked with wire dimension in mm, some are also marked with inch.
Welding with aluminium wires.
In order to weld with aluminium wires, proper rollers, nozzles and liners for
aluminium wires MUST be used. It is recommended to use 3m long welding gun for
aluminium wires, equipped with appropriate wear parts.
