The Miggytrac™B501 and Miggytrac™B5001 are designed for MIG/MAG welding of plates
and beams.
The Miggytrac™B501 and Miggytrac™B5001 are compact tractors on which a welding
torch can be fitted. Both tractors can be powered with 18VDC from a lithium-ion battery. The
Miggytrac™B5001 can also be powered with 42VAC from a welding power source. The
tractors are equipped with four wheel drive for good traction and a high torque stepper motor
for stable welding speed. The Miggytrac™ is intended for welding with 4-stroke control mode.
As an option there is an easy fit magnet kit. The magnet kit can be attached at the bottom of

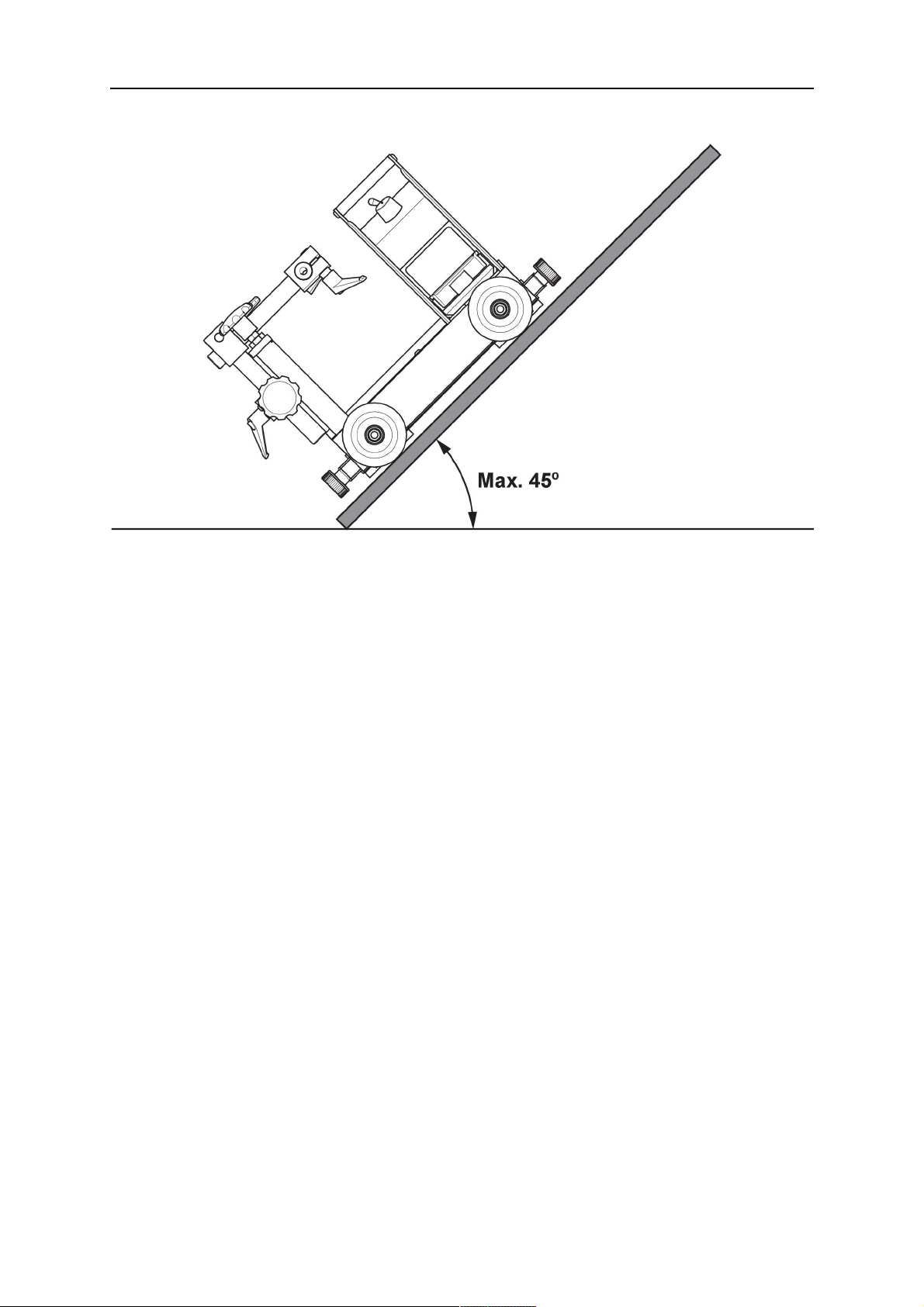

the tractor to further stabilize the movement when welding slopes up to 45°.
A battery and a battery charger are not included in the delivery, refer to the "ACCESSORIES"
chapter in this manual.
ESAB accessories for the product can be found in the "ACCESSORIES" chapter of
this manual.

3 TECHNICAL DATA
0463 404 101 - 10 - © ESAB AB 2018
3 TECHNICAL DATA
Miggytrac™ B501 and Miggytrac™ B5001, from serial no. 1847xxxx
Miggytrac™ B501 Miggytrac™ B5001
Battery voltage (lithium-ion) 18 V DC
External supply voltage –20–50 V AC
24–70 V DC
Battery operating time 6–8 hours 4–6 hours
Motor type Stepper motor
Welding speed 10–130cm/min
(4–51in./min)
2–170cm/min
(1–66in./min)
Travel speed step welding –250cm/min
(99in./min)
Length step welding –1–99cm
(0.1–19.9in.)
Crater pause – 0–5.0 s
Backfill – 0–50mm (0–2.0in.)
Preheat – 0–5.0s
Remote volt and wire feed speed – 10–95%
Mechanical adjustments:
Horizontal slide ±32 mm (±1.3in.)
Vertical slide ±40mm (±1.6in.)
Guide wheel arms ±40mm (±1.6in.)
Maximum operating temperature:
Battery +60°C (140°F)
Carriage +80°C (176°F)
Drive wheels +150°C (302°F)
Horizontal tensile force:
Without magnets 12kg (26lb)
With magnets 25kg (55lb)
Vertical tensile force at 45° with magnet 11kg (24lb)
Maximum drive angle with magnet kit 45°
Dimensions (l×w×h) 310×290×250mm
(12.2×11.4×9.84in.)
310×290×340mm
(12.2×11.4×13.4in.)
Weight 12kg (26lb) 13kg (29lb)

4 INSTALLATION
0463 404 101 - 11 - © ESAB AB 2018
4 INSTALLATION
The installation must be carried out by a professional.
NOTE!
The graphics in this chapter show the Miggytrac™ B501 tractor. However all
installation and adjustments are performed in the same way on the Miggytrac™
B5001 tractor, unless others are stated.
4.1 Assembly
1. Knob, horizontal adjustment 6. Handle
2. Adjustable arm 7. Control panel
3. Support wheel 8. Battery
4. Knob, vertical adjustment 9. Driving wheels
5. Connection welding torch
4.2 Adjust the front arm

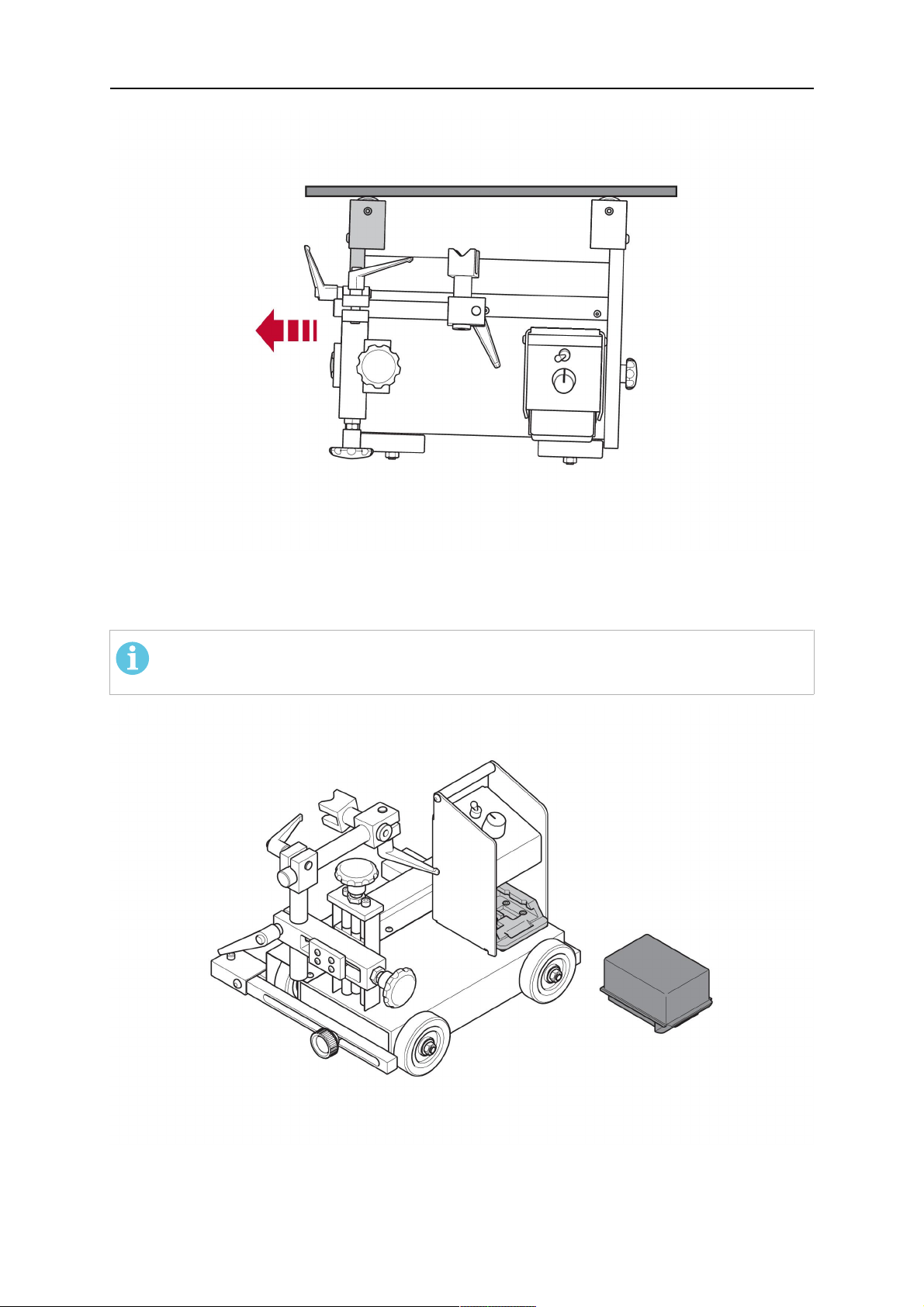

Adjust the front arm to be 10 mm shorter than the rear arm, in order to make the Miggytrac™
go diagonally along the plate. This provides positive traction against the guiding structure
and the tractor maintains the desired path.

4 INSTALLATION
0463 404 101 - 12 - © ESAB AB 2018
4.3 Install the battery
The Miggytrac™ is designed for an 18 V battery with a capacity of 4 Ah or 5 Ah.
NOTE!
Charge the battery with an approved battery charger before use.

4 INSTALLATION
0463 404 101 - 13 - © ESAB AB 2018
4.4 Torch mounting

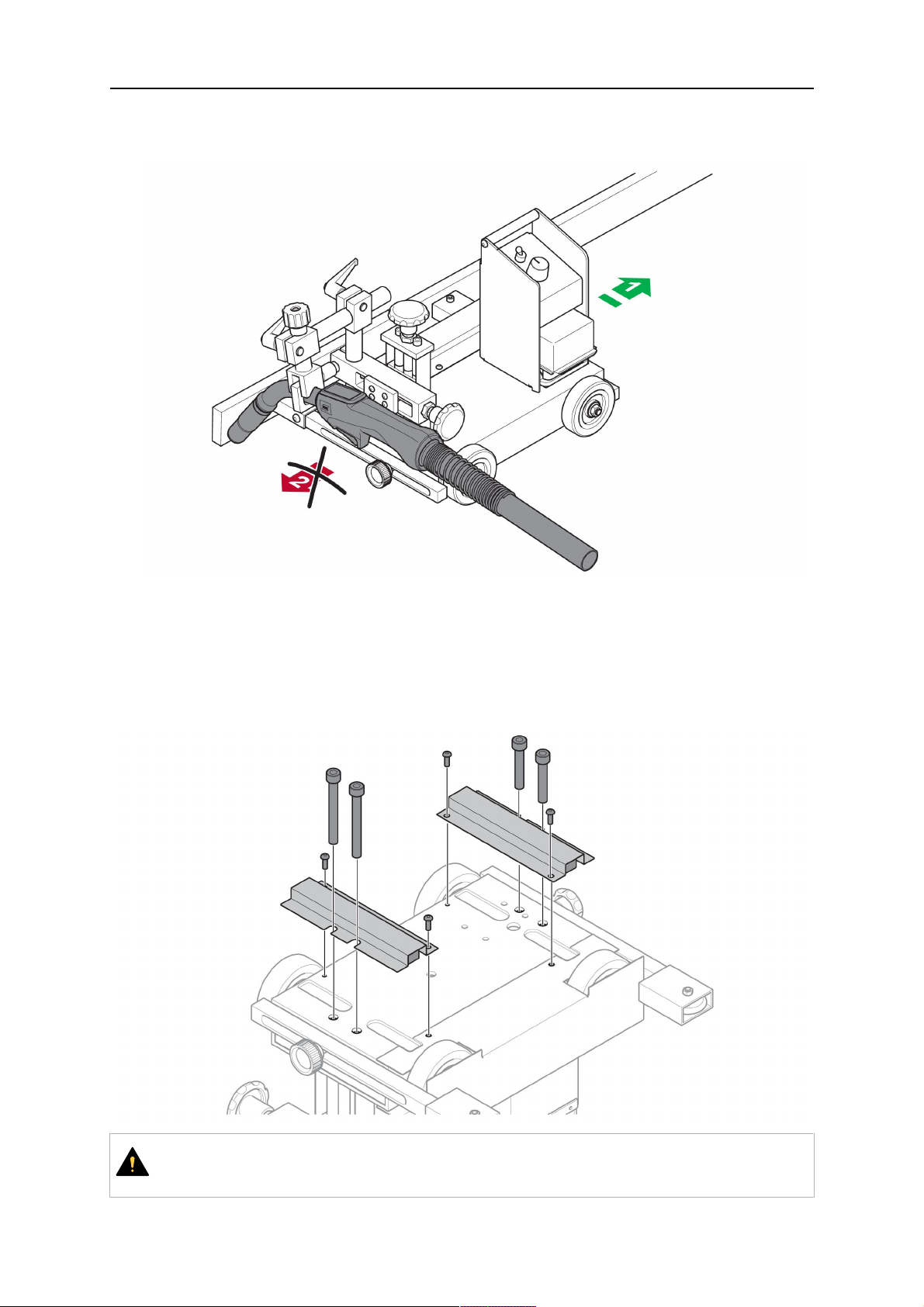

• Fit the welding torch to the tractor according to the graphic below.
1. Correct drive direction in combination
with the current torch position
2. Wrong drive direction in combination
with the current torch position
4.5 Install the magnet kit (optional)
A magnet kit can be installed at the bottom of the tractor to further stabilize the movement
and increase the friction between the drive wheels and the foundation.
CAUTION!
The maximum slope of the foundation is set to 45° for safety reasons.

4 INSTALLATION
0463 404 101 - 14 - © ESAB AB 2018

5 OPERATION
0463 404 101 - 15 - © ESAB AB 2018
5 OPERATION
5.1 Weld operation
The tractor shall be used for welding with 4-stroke control mode.
Refer to the applicable documentation for the equipment you intend to connect.
5.2 Start and stop of the Miggytrac™ B501 tractor
Start and stop the tractor with the switch (1).
Adjust the tractor travel speed with the travel speed knob (2).
The LED (3) indicates the battery charge level:
Indication Charge level
Green light 100%
Yellow light 60%
Yellow blinking light 30%
Red light 15%
Red blinking light 7%
Red rapidly blinking light 0%
NOTE!
Charge the battery after each working day.
NOTE!
Make sure to have at least two charged batteries as back-up if welding in two
shifts.

5 OPERATION
0463 404 101 - 16 - © ESAB AB 2018
5.3 Operation of the Miggytrac™ B5001 tractor
5.3.1 Connections and control devices
1. Menu based setting panel consisting of a
graphical colour display and push buttons
2. 12-pin connector for connection to the
remote control outlet of the wire feeder.
For installation of remote adapters, see the
instruction manual for the wire feeder in
question.
5.3.2 Setting panel including colour display
1 Colour
display
Graphical and digital information
2 Menu
Button is
locked 10 s
after it was
depressed
latest.
Before start: Selections for programming
of all parameters
After start: Selections for programming of
certain parameters
A LED indicates the selected parameter.
3 Start left One click: Start left without welding
Double-click: Start left welding
One click after start: Reducing the speed
In the menu: Reducing the value
4 Stop Stop tractor/welding
In the menu: Locks the menu
5 Start right One click: Start right without welding
Double-click: Start right welding
One click after start: Increasing the speed
In the menu: Increasing the value

5 OPERATION
0463 404 101 - 17 - © ESAB AB 2018
5.3.3 Menu selection
Stop Run with step Run without step
Welding speed X X X
Step welding off/on X
Weld length X X
Distance between welds X X
Crater time1) X X
Backfill length2) X X
Preheat3) X X X
Voltage %4) X X
Wire feed speed %4) X X
1) Pause time when the tractor stands still at the end of a step weld for power sources
equipped with crater functionality
2) Reverses at the end of a step weld to fill up a crater
3) Delayed start of the tractor compared to welding start
4) Remote control of voltage or wire feed speed respectively, if an ESAB wire feeder with
adapter is connected. These parameters are not available when the tractor is powered
from a battery.

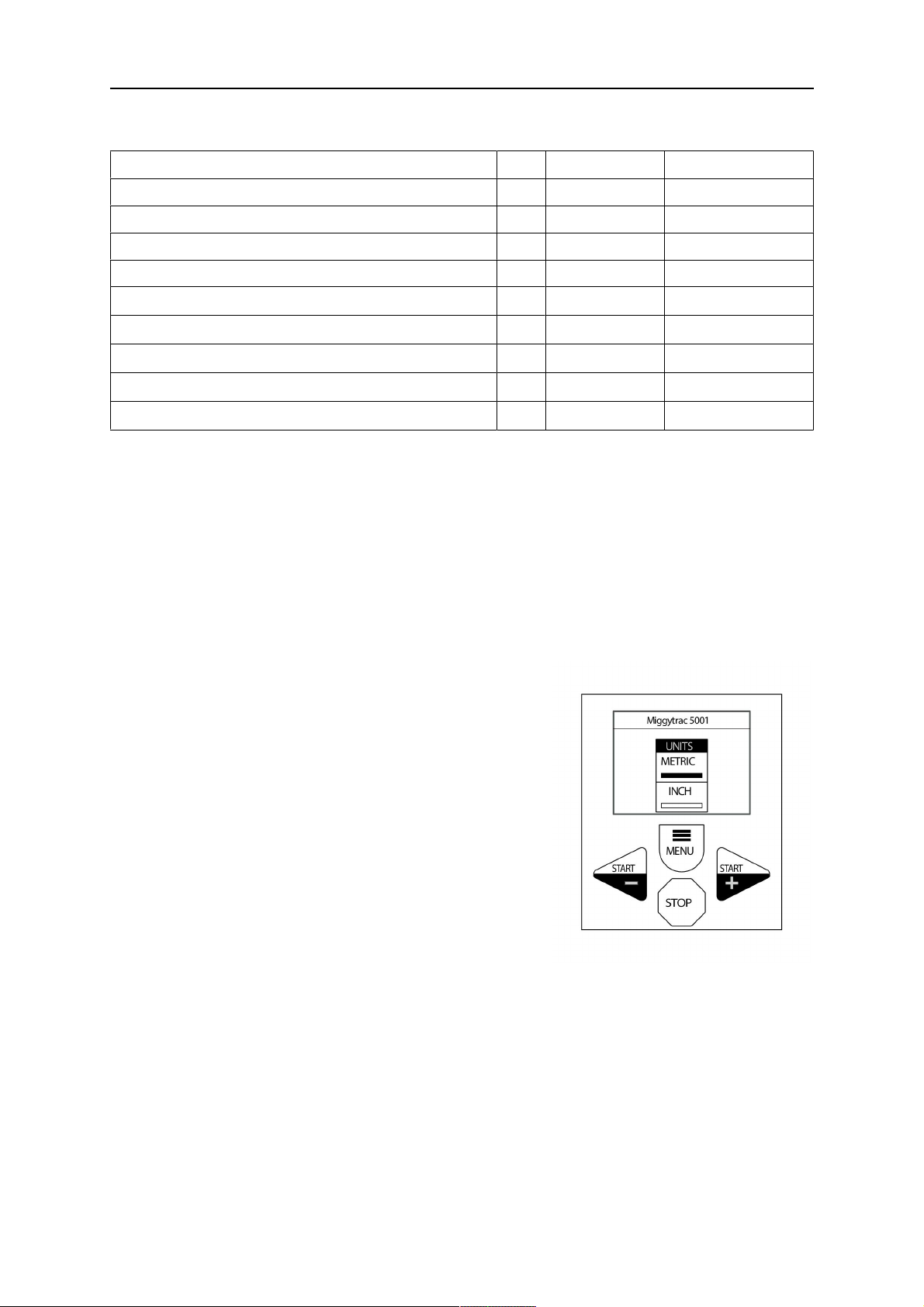

5.3.4 Selection of units of measure
On Miggytrac™ B5001 there is an option to select metric
(mm and cm) or imperial/US (inch) units of measure.
The selection is made in the UNITS menu, by first
holding the Menu button depressed for 4 seconds, then
selecting the preferred units by clicking the Menu button
repeatedly.
A LED for "METRIC" or "INCH" respectively in the
display indicates the current selection.
The menu is automatically locked after 10 seconds.

5 OPERATION
0463 404 101 - 18 - © ESAB AB 2018

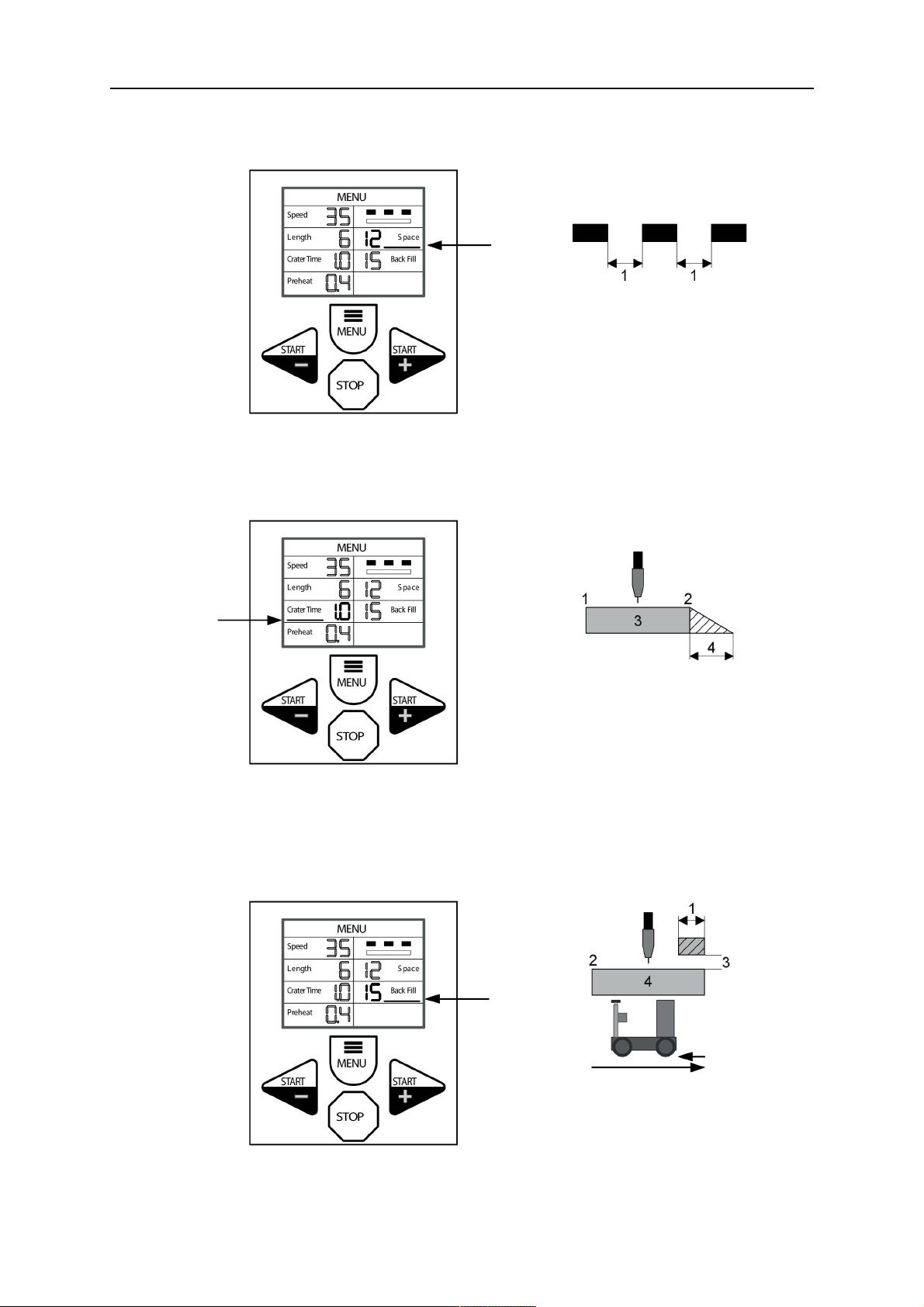

5.3.5 Setting of functions
Speed
Welding speed carriage
cm or inch per minute
Stitch welding
On/Off
Stitch on
Stitch off
Off On
Length
Bead length when stitch welding
1. Length (cm)

5 OPERATION
0463 404 101 - 19 - © ESAB AB 2018
Space
Space between each weld when stitch welding
1. Space (cm)
Crater time
The time the carriage is stationary for the power source to perform a crater function
Can also be used as a cooling time before a "backfill"
1. On
2. Off
3. Welding
4. Crater time (seconds)
Backfill
An alternative if the used power source is without crater function
Reverses at the end of the weld to fill in a crater
You can add a cooling time before the reversal, welding off, by using the crater time.
1. Backfill (mm)
2. On
3. Crater time (seconds) =>
Welding off
4. Welding

5 OPERATION
0463 404 101 - 20 - © ESAB AB 2018
Preheat
Delayed start of carriage
1. Start
2. Welding
3. Carriage
4. Preheat
5.3.6 Installation of wire feeder
The installation must be carried out by a professional.
Miggytrac™ B5001 can be connected to one of the following wire feed units: Origo™ Feed
304, Origo™ Feed 484 or Warrior™ Feed 304
For necessary adaptation between Miggytrac™ B5001 and the used wire feed unit (including
choice of control cable), see the "ORDERING NUMBERS" appendix to this manual.
Universal feeder connection
For the operation of Miggytrac™ B5001 from other wire feeders (none ESAB), use
transformer unit and control cable according to the "ORDERING NUMBERS" appendix.
