ESAB Migmaster 280 Pro User manual

Valid for serial no. 016, 0180349 301 165 101118

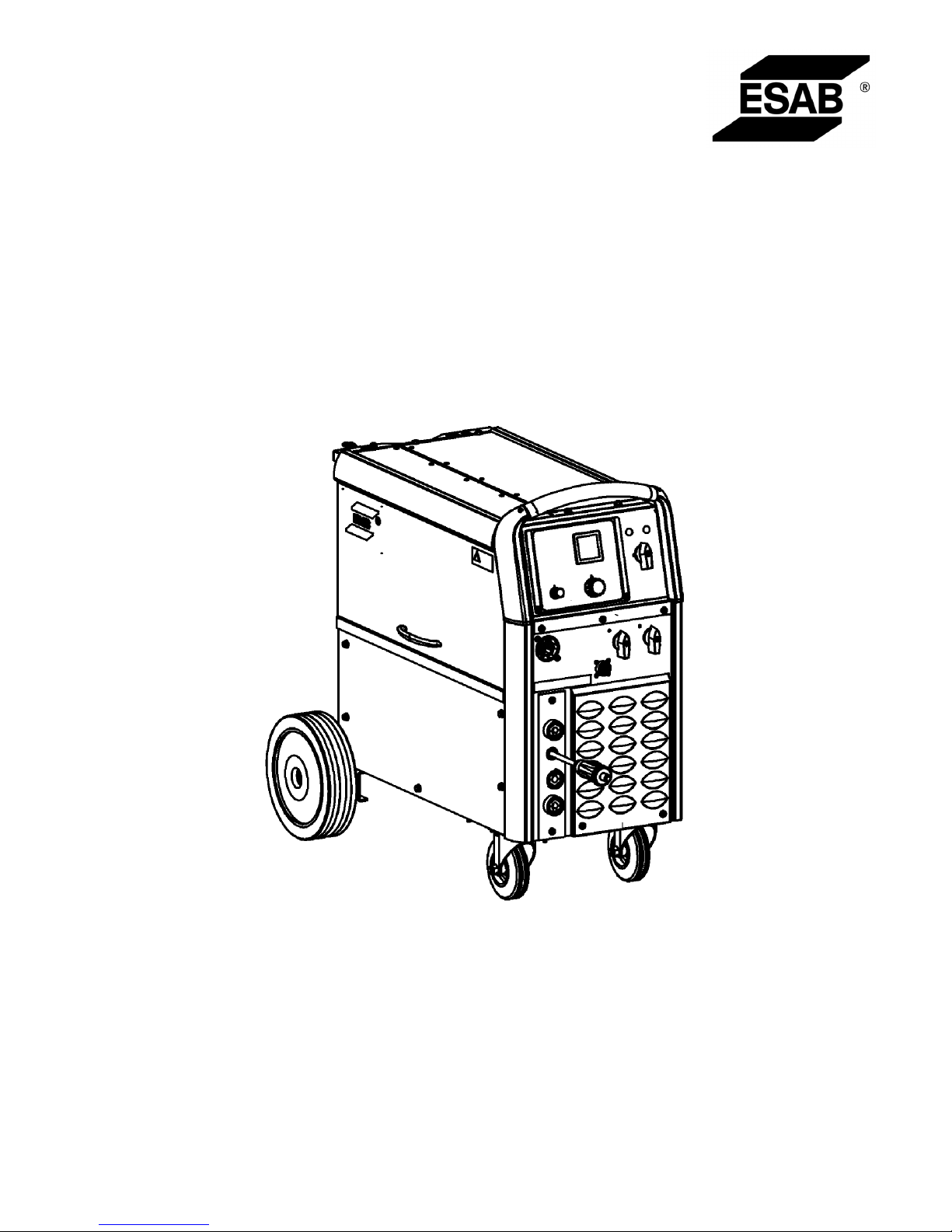

Migmasterr280 Pro
Instruction manual
Manuel d’instructions Instrucciones de uso

-- 2 --
Rights reserved to alter specifications without notice.
Sous réserve de modifications sans avis préalable.
Reservado el derecho de cambiar las especificaciones sin previo aviso.
ENGLISH 3..............................................
RANÇAIS 15.............................................
ESPAÑOL 27..............................................

ENGLISH
-- 3 --
TOCe
1 DI ECTIVE 4........................................................
2 SAFETY 4...........................................................
3 INT ODUCTION 6...................................................
3.1 Equipment 6................................................................
4 TECHNICALDATA 6.................................................
5 INSTALLATION 7....................................................
5.1 Placing 7...................................................................
5.2 Electricalinstallation 7.......................................................
5.3 Weldingvoltagepolarity 8....................................................
5.4 Mainspowersupply 8........................................................
6 OPE ATION 9.......................................................
6.1 Connectionandcontroldevices 9.............................................
6.2 Switching--on and overheating protection 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 Operation 10................................................................
6.4 Replacingandinsertingwire 10................................................
6.5 Wirefeedpressure 11........................................................
6.6 MIGprocessset--upguide 11..................................................
7 MAINTENANCE 13....................................................
7.1 Inspectionandcleaning 13....................................................
8 FAULTT ACING 14...................................................
9 O DE INGOFSPA EPA TS 14......................................
DIAG AM 40............................................................
WEA COMPONENTS 45.................................................
ACCESSO IES 46.......................................................

-- 4 --
MMP280e
1 DI ECTIVE
DECLA ATION OF CONFO MITY
ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld-
ing power source Migmasterr280 Pro from serial number 016, 018 complies with standard IEC/EN
60974--1, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC)
and with standard IEC/EN 60974--10 in accordance with the requirements of directive (89/336/EEC)
and addendum (93/68/EEC).
--------------------------------------------------------------------------------------------------------------------------------------
Kent Eimbrodt
Global Director Equipment and Automation
ESAB AB
695 81 LAXÅ
SWEDEN Tel: + 46 584 81000 ax: + 46 584 411924
Laxå 2010--04--01
2 SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety precautions
must meet the requirements that apply to this type of welding equipment. The following recommen-
dations should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well--acquainted with the operation of the welding
equipment. Incorrect operation of the equipment may lead to hazardous situations which can result
in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
Sits operation
Slocation of emergency stops
Sits function
Srelevant safety precautions
Swelding
2. The operator must ensure that:
Sno unauthorised person is stationed within the working area of the equipment when it is
started up.
Sno--one is unprotected when the arc is struck
3. The workplace must:
Sbe suitable for the purpose
Sbe free from draughts
4. Personal safety equipment
SAlways wear recommended personal safety equipment, such as safety glasses, flame--proof
clothing, safety gloves.
SDo not wear loose--fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
SMake sure the return cable is connected securely.
SWork on high voltage equipment may only be carried out by a qualified electrician.
SAppropriate fire extinquishing equipment must be clearly marked and close at hand.
SLubrication and maintenance must not be carried out on the equipment during operation.
GB

-- 5 --
MMP280e
WA NING
EAD AND UNDE STAND THE INST UCTION MANUAL BEFO E INSTALLING O OPE ATING.
A C WELDING AND CUTTING CAN BE INJU IOUS TO YOU SELF AND OTHE S. TAKE P ECAU-
TIONS WHEN WELDING. ASK FO YOU EMPLOYE ’S SAFETY P ACTICES WHICH SHOULD BE
BASED ON MANUFACTU E S’ HAZA D DATA.
ELECT IC SHOCK -- Can kill
SInstall and earth the welding unit in accordance with applicable standards.
SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
SInsulate yourself from earth and the workpiece.
SEnsure your working stance is safe.
FUMES AND GASES -- Can be dangerous to health
SKeep your head out of the fumes.
SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
A C AYS -- Can injure eyes and burn skin.
SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
SProtect bystanders with suitable screens or curtains.
FI E HAZA D
SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE -- Excessive noise can damage hearing
SProtect your ears. Use earmuffs or other hearing protection.
SWarn bystanders of the risk.
MALFUNCTION -- Call for expert assistance in the event of malfunction.
P OTECT YOU SELF AND OTHE S!
WA NING!
Read and understand the instruction manual
before installing or operating.
Do not use the power source for thawing frozen pipes.
WA NING!
This product is solely intended for arc welding.
Do not dispose of electrical equipment together with normal waste!
In observance of European Directive 2002/96/EC on Waste Electrical and Electronic
Equipment and its implementation in accordance with national law, electrical equipment
that has reached the end of its life must be collected separately and returned to an
environmentally compatible recycling facility. As the owner of the equipment, you should
get information on approved collection systems from our local representative.
By applying this European Directive you will improve the environment and human health!
GB

-- 6 --
MMP280e
3 INT ODUCTION
Migmasterr
rr
r280 Pro is step controlled power source in a compact design, intended for welding with
solid steel, stainless steel or aluminium wire as well as flux--cored wire with or without shielding gas.
The machine is equipped with facilities for connection of the MIG ”spool--on” gun torch (type:
MT--250SG, ST23A+Adapter KIT ST--23A).
ESAB’s accessories for the product can be found on page 46.
3.1 Equipment
The power source is supplied with:
SReturn cable with clamp
SShelf for gas cylinder
SInstruction manual
4 TECHNICAL DATA
Migmasterr
rr
r280 Pro Migmasterr
rr
r280 Pro
Voltage 208V/230V, 1∼50/60Hz 208/230/460/575V, 1∼50/60Hz
Permissible load at
100% duty cycle 194A 194A
60 % duty cycle 250A 250A
Setting range (DC) 40A/16.0V--300A/29.0V 40A/16.0V--300A/29.0V
Open circuit voltage 16,8--57,0V 16,8--57,0V
Open circuit power 450W 450W
Power factor at max load 0.84 0.84
Control voltage 42V, 50/60Hz 42V, 50/60Hz
Wire feed speed 55--750ipm (1.4--19m/min) 55--750ipm (1.4--19m/min)
Burnback time 0.03--0.5s 0.03--0.5s
Spot welding 0.5--3.5s 0.5--3.5s
Creep start O / ON (85%) O / ON (85%)
Welding gun connection EURO EURO
Wire dimension range
e
Al
CW
CuSi
.030--.047” (0.8--1.2mm)
.040--.047” (1.0--1.2mm)
.030--.047” (0.8--1.2mm)
.030--.039” (0.8--1.0mm)
.030--.047” (0.8--1.2mm)
.040--.047” (1.0--1.2mm)
.030--.047” (0.8--1.2mm)
.030--.039” (0.8--1.0mm)
Max diameter/weight
of wire bobin 12” (300mm)/33lb (15kg) 12” (300mm)/33lb (15kg)
Dimensions lxwxh 32x21.7x34.3”
(812x552x870mm) 32x21.7x34.3” (812x552x870mm)
Weight 341lb (155kg) 350lb (159kg)
Operating temperature 14÷104 (--10 ÷+40
o
C) 14÷104 (--10 ÷+40
o
C)
Enclosure class IP 23 IP 23
Application classification
GB

-- 7 --
MMP280e
Duty cycle
The duty cycle refers to the time as a percentage of a ten--minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
5 INSTALLATION
The installation must be executed by a professional.
WA NING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’s responsibility to take adequate precautions.
5.1 Placing
Position the welding power source such way that its cooling air inlets and outlets are
not obstructed.
5.2 Electrical installation
Mains voltage
All machines are factory configured for highest rated voltage and are fitted with appropriate marking
tape on the mains cable.
GB

-- 8 --
MMP280e
Mains voltage selection
Migmasterr280 Pro is delivered in versions configurable for following mains voltages:
S208/230V and
S208/230/460/575V
actory configuration is set for 230V and 575V respectively.
In order to adapt the machines for the other voltages, it is necessary to reconnect the main
transformer TM1 and control transformer TC1 as shown and described on the schematic diagrams.
5.3 Welding voltage polarity

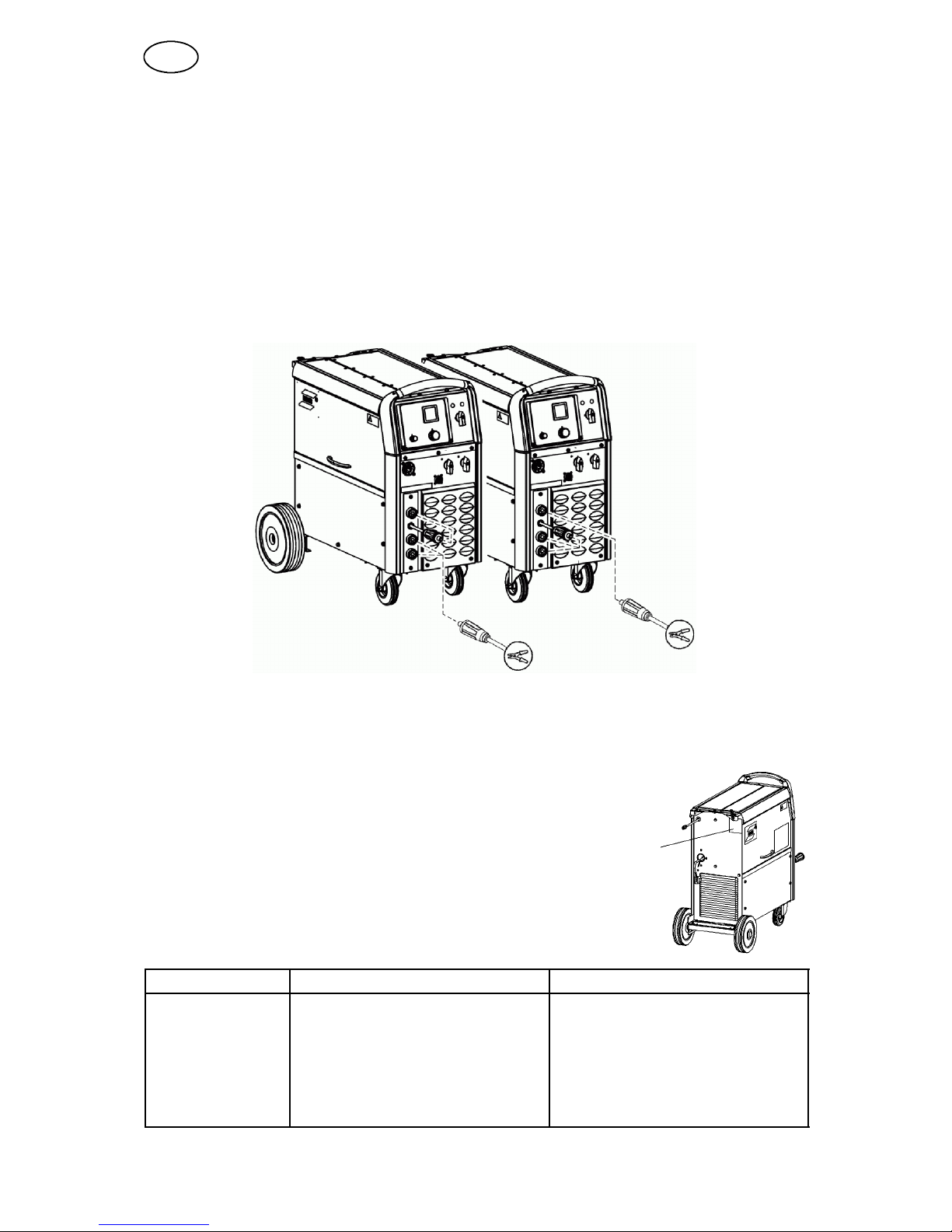

Welding voltage polarity may be changed as shown below.
5.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that it is protected by
the correct fuse size. A protective earth connection must be made, in accordance with regulations.
Rating plate with supply connection data
Migmasterr
rr
r280 Pro Migmasterr
rr
r280 Pro
Voltage 208/230V, 1∼50/60Hz 208/230/460/575V, 1∼50/60Hz
Current A
at 100% duty cycle 40/36 40/36/24/15
at 60% duty cycle 57/51 57/51/30/21
Cable area AWG 3x6 3x6
Fuse slow A50 50
GB

-- 9 --
MMP280e
6 OPE ATION
General safety regulations for the handling of the equipment can be found on
page 4. Read through before you start using the equipment
WA NING!
Rotating parts can cause injury, take great care.
WA NING -- TIPPING ISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10
o
. In that case appropriate securing has to be provided !
6.1 Connection and control devices

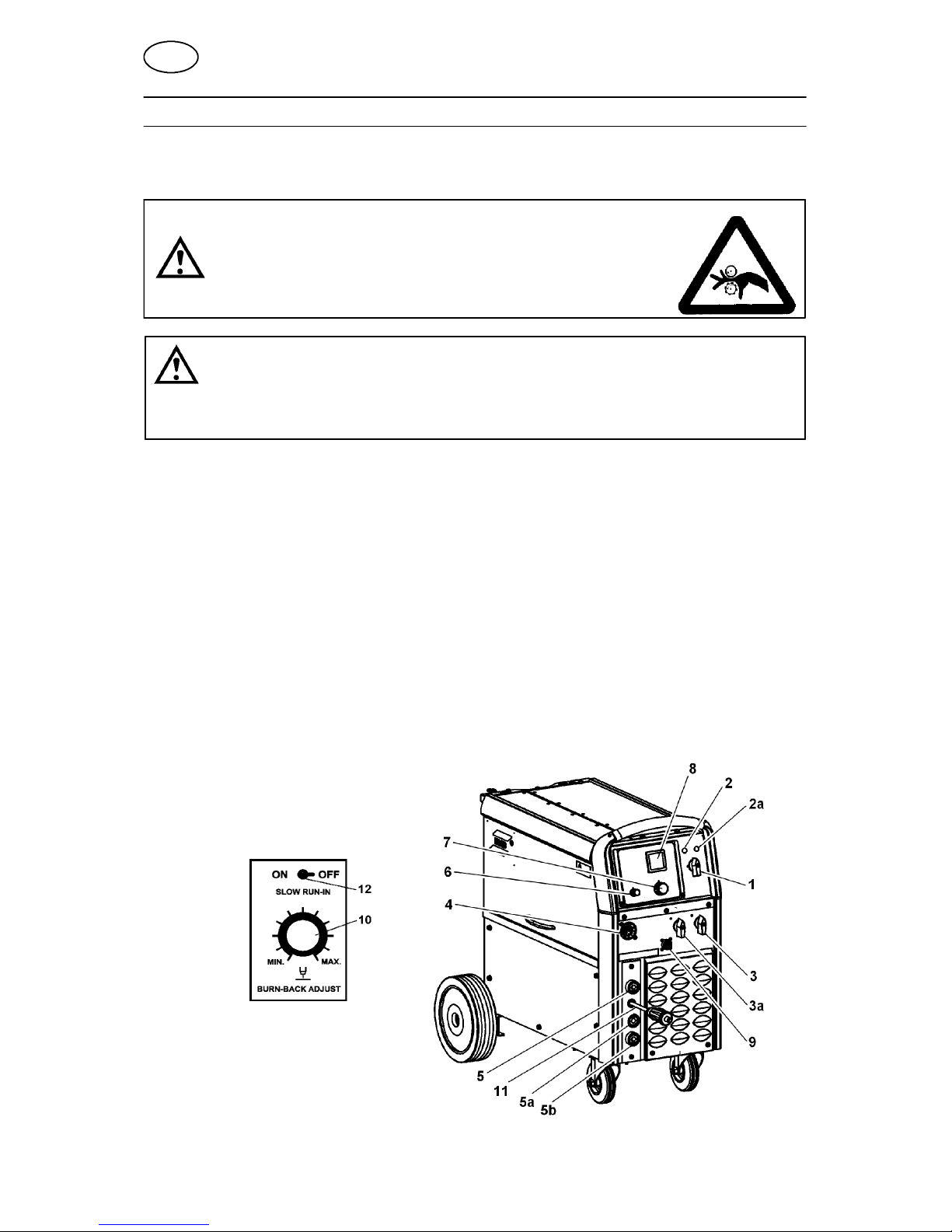

1Mains supply switch 5b Connector [--], low inductance, for welding gun or
return cable (welding polarity change--over)
2Orange indicating lamp, overheating 6Knob for spot welding -- ON/O and time setting
2a White indicating lamp “ON” 7Knob for wire speed setting
3Welding voltage switch (fine) 8Digital instrument -- V/A
3a Welding voltage switch (coarse) 9Connector for ”spool--on gun” (control wire)
4EURO -- connector for welding gun 10 Knob for burn--back time setting
(located in wire feeder compartment)
5Connector [+] for “electrode” or return cable
(welding polarity change--over) 11 ”Electrode” cable with plug, connected to the weld- ing gun connector (welding polarity change--over)
5a Connector [--], high inductance, for welding gun
or return cable (welding polarity change--over) 12 Creep start switch (located in wire feeder compartment)
GB

-- 10 --
MMP280e
6.2 Switching--on and overheating protection
When machine is switched on with switch [1], the indicating lamp “ON” is lit. If the ma-
chine is not overheated (lamp [2] is off) it is ready to work. If the internal temperature
during welding becomes too high, the welding is interrupted and disabled. This state is
indicated by permanent lighting of the orange indicating lamp [2] on the front of the unit.
It resets automatically when the temperature falls down.
6.3 Operation
Operator can manually select and set welding parameters as follows:
Srequired welding voltage (and thus welding current) with knob [3], [3a]
Warning: Operating the knobs [3], [3a] during the welding process (loaded
power source) can cause heavy damage to the unit !!!
Sappropriate wire feed speed with knob [7]
Sinitial wire speed (”creep start”) with selector [12] (wire feeder compartment)
Sburn--back time with knob [10] (wire feeder compartment)
Sspot welding (optional), activated by turning the knob [6] clockwise, spot welding
time increases while turning the knob [6] clockwise; set knob [6] in the left utmost
position in order to return to the continuous welding.
If the welding gun is used, welding process starts after its trigger is pressed and the wire
speed is controlled with potentiometer [7] on the front panel.
If the spool--on gun is used, welding process starts after its trigger is pressed, the spool--
on gun motor starts and wire speed is controlled with the potentiometer in the spool--on
gun grip.
Note: or spool--on gun current cable connection it is necessary to use the OKC ”T”
adapter or Adapter KIT ST--23A, depending on used spool gun (see Accessories on
page 46).
Machine is fitted with V/A digital instrument [8] (with ”hold” function i.e. memorising of
the last values of welding voltage and current).
6.4 eplacing and inserting wire
SOpen the side panel.
SPlace the spool on the hub and secure it with the lock.
SDisconnect the pressure sensor by folding it backwards, the pressure rollers
slide up.
SStraighten out the new wire 10--20 cm. ile away burrs and sharp edges from the
end of the wire before inserting it into the wire feed unit.
SMake sure that the wire goes properly into the feed roller track and into the outlet
nozzle and the wire guide.
SSecure the pressure sensor.
SClose the side panel.
GB

-- 11 --
MMP280e
6.5 Wire feed pressure
Start by making sure that the wire moves smoothly through the wire guide. Then
set the pressure of the wire feeder’s pressure rollers. It is important that the
pressure is not too great.
Fig 1 Fig 2
To check that the feed pressure is set correctly, you can feed out the wire against
an insolated object, e.g. a piece of wood.
When you hold the gun approx. 5 mm from the piece of wood (fig. 1) the feed
rollers should slip.
If you hold the gun approx. 50 mm from the piece of wood, the wire should be
fed out and bend (fig. 2).
6.6 MIG process set--up guide
In the following table recommended welding settings are shown, depending on the
joint type, workpiece thickness and filler wire diameter.
To set machine for welding:
Sfind the plate thickness (T) and type of joint,
Sfind the diameter (d) of the filler wire,
Sin the column corresponding to the appropriate material and shielding gas find
the suggested arc voltage and wire feed setting; for spot welding find additionally
recommended time setting,
Sset arc voltage with knobs [3], [3a] and wire feed speed with knob [7].
NOTE: The given recommendations only serve as rough guide for the operator, optimal
set--up may differ from the one in table. It depends on mains voltage deviation, precision of
the wire speed setting, applied welding techniques, welding position, shielding gas etc.
If needed, some corrections of the arc voltage and wire speed may be tried out for
satisfactory results.
GB

-- 12 --
MMP280e
GB

-- 13 --
MMP280e
7 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Note
All guarantee undertakings from the supplier cease to apply if the customer himself
attempts any work in the product during the guarantee period in order to rectify any
faults.
7.1 Inspection and cleaning
Check regularly that the power source is free from dirt.
The power source should be regularly blown clean using dry compressed air at reduced
pressure. More frequently in dirty environments. Otherwise the air inlet/outlet may be-
come blocked and cause overheating.
Welding gun
SCleaning and replacement of the welding gun’s wear parts should take place at
regular intervals in order to achieve trouble--free wire feed. Blow the wire guide
clean regularly and clean the contact tip.

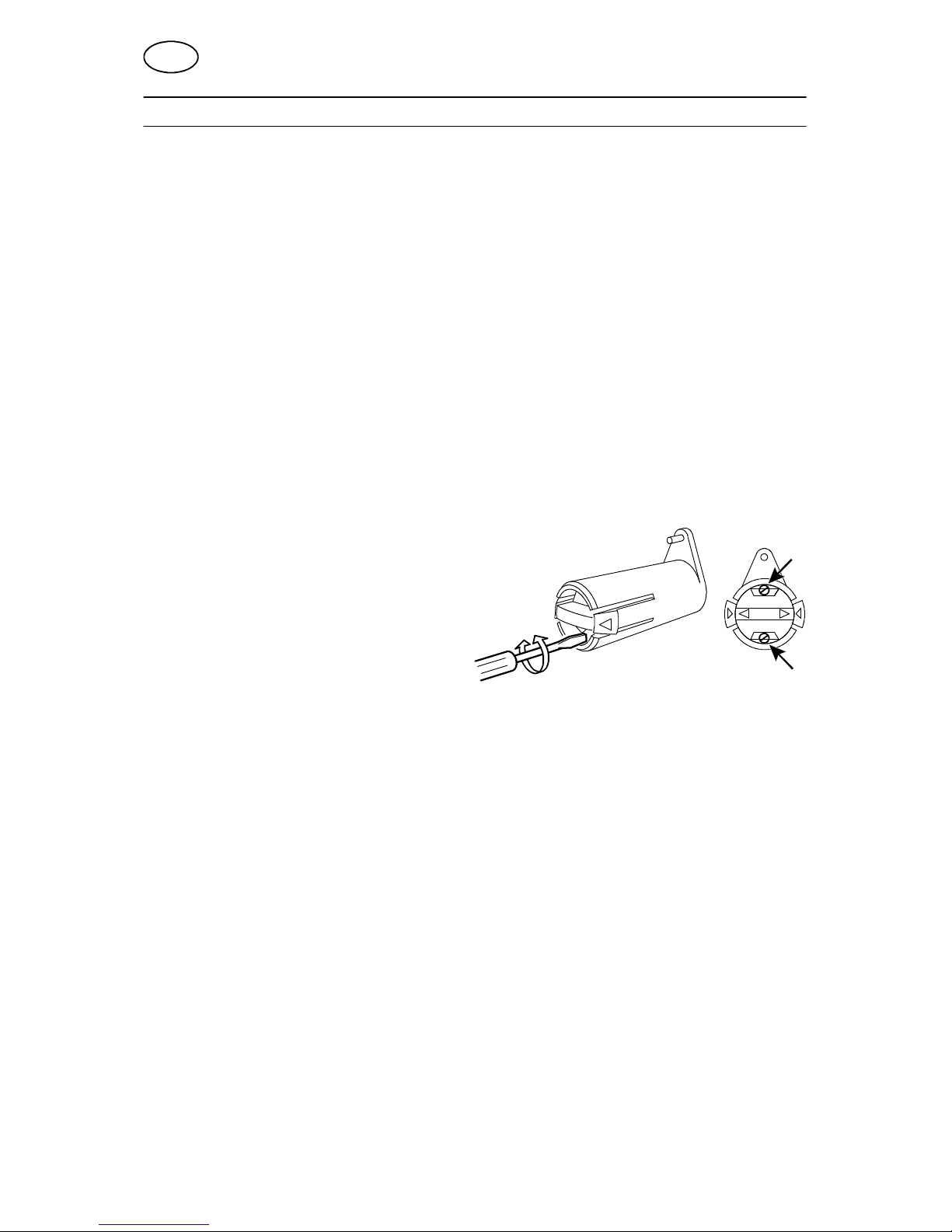

The brake hub
The hub is adjusted when delivered, if
readjustment is required, follow the instructions
below. Adjust the brake hub so that wire is slightly
slack when wire feed stops.
SAdjusting the braking torque:
STurn the red handle to the locked position.
SInsert a screwdriver into the springs in the hub.
Turn the springs clockwise to reduce the braking torque
Turn the springs anticlockwise to increase the braking torque. NB: Turn both
springs through the same amount.
GB

-- 14 --
MMP280e
8 FAULT T ACING
Try these recommended checks and inspections before sending for an authorised service technican.
Type of fault Actions
No arc SCheck that the mains power supply switch is turned on.
SCheck that the welding current supply and return cables are
correctly connected.
SCheck that correct current value is set.
Welding current is interrupted
during welding
SCheck whether the thermal overload trip has operated
(indicated by the orange lamp on the front).
SCheck the main power supply fuses.
Thermal overload trips
operate frequently
SCheck to see whether the air inlets/outlets are clogged.
SMake sure that you are not exceeding the rated data for the
power source (i.e. that the unit is not being overloaded).
Poor welding performance SCheck that the welding current supply and return cables are
correctly connected.
SCheck that the correct current value is set.
SCheck that the correct welding wires are being used.
SCheck the main power supply fuses.
SCheck the wire feed unit -- if proper rolls are applied and
properly set the pressure of the wire feeder’s pressure rollers
9 O DE ING OF SPA E PA TS
Migmasterr
rr
r280 Pro is designed and tested in accordance with the international and
European standards IEC/EN 60974--1 and EN 60974--10. It is the obligation of the servi-
ce unit which has carried out the service or repair work to make sure that the product
still conforms to the said standard.
Spare parts may be ordered through your nearest ESAB dealer, see the last page of
this publication.
GB

RANÇAIS
-- 15 --
TOCf
1 DI ECTIVES 16.......................................................
2 SÉCU ITÉ 16.........................................................
3 INT ODUCTION 18...................................................
3.1 Équipement 18...............................................................
4 CA ACTÉ ISTIQUES TECHNIQUES 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 INSTALLATION 19....................................................
5.1 Placement 19................................................................
5.2 Installationélectrique 20.......................................................
5.3 Polaritéduvoltagedesoudage 20..............................................
5.4 Alimentationsecteur 20.......................................................
6 MISEENMA CHE 21.................................................
6.1 Appareilsdecontrôleetconnexion 21...........................................
6.2 Mise en marche du groupe et protection contre la surchauffe 22. . . . . . . . . . . . . . . . . . . .
6.3 Opération 22................................................................
6.4 Remplacementdufil 23.......................................................
6.5 Pressiondedévidage 23......................................................
6.6 GuidederéglagepourprocédéMIG 23.........................................
7 MAINTENANCE 25....................................................
7.1 Inspectionetnettoyage 25.....................................................
8 ECHE CHEDEPANNE 26...........................................
9 COMMANDE DE PIÈCES DE ECHANGE 26. . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCHÉMA 40.............................................................
ACCESSOI ES 46.......................................................

-- 16 --
MMP280f
1 DI ECTIVES
CE TIFICAT DE CONFO MITÉ
ESAB AB, Welding Equipment, SE--695 81 Laxå Suède, certifie que la source de courant de soudage
Migmasterr280 Pro à partir du numéro de série 016, 018 est conforme à la norme IEC/EN 60974--1
selon les cinditions de la directive (73/23/CEE) avec additif (93/68/CEE) et à la norme IEC/EN
60974--10 selon les conditions de la directive (89/336/CEE) avec additif (93/68/CEE).
--------------------------------------------------------------------------------------------------------------------------------------
Kent Eimbrodt
Global Director Equipment and Automation
ESAB AB
695 81 LAXÅ
SWEDEN Tel: + 46 584 81000 ax: + 46 584 411924
Laxå 2010--04--01
2 SÉCU ITÉ
Il incombe à l’utilisateur d’un équipement de soudage ESAB de prendre toutes les mesures
nécessaires pour garantir la sécurité du personnel utilisant le système de soudage ou se trou-
vant à proximité. Les mesures de sécurité doivent répondre aux normes correspondant à ce
type d’appareil. Le contenu de ces recommandations peut être considéré comme un complé-
ment à la réglementation ordinaire relative à la sécurité sur le lieu de travail.
L’utilisation de l’appareil doit être conforme au mode d’emploi et exclusivement réservée à des
opérateurs habilités. Toute utilisation incorrecte risque de créer une situation anormale pou-
vant soit blesser l’opérateur, soit endommager le matériel.
1. Toute personne utilisant la machine de soudage devra bien connaître:
Ssa mise en service
Sl’emplacement de l’arrêt d’urgence
Sson fonctionnement
Sles règles de sécurité en vigueur
Sle processus de soudage
2. L’opérateur doit s’assurer:
Sque personne ne se trouve dans la zone de travail de l’équipement au moment de sa mise en
service.
Sque personne n’est sans lorsque l’arc est amorcé.
3. Le poste de travail doit être:
Sconforme au type de travail
Snon soumis à des courants d’air.
4. Protection personnelle
SToujours utiliser l’équipement recommandé de protection personnelle, tel que lunettes protec-
trices, vêtements ignifuges, gants protecteurs.
SEviter de porter des vêtements trop larges ou par exemple une ceinture, un bracelet,
etc. pouvant s’accrocher en cours d’opération ou occasionner des brûlures.
5. Divers
SS’assurer que les câbles sont bien raccordés.
SSeul du personnel spécialement qualifié est habilité à intervenir sur le système
électrique.
SUn équipement de lutte contre l’incendie doit se trouver à proximité et clairement signalé.
SNe pas effectuer de graissage ou d’entretien en cours de marche.
F

-- 17 --
MMP280f
AVE TISSEMENT
LI E ATTENTIVEMENT LE MODE D’EMPLOI AVANT D’INSTALLE LA MACHINE ET DE L’UTILISE .
LE SOUDAGE ET LE COUPAGE À L’A C PEUVENT ÊT E DANGE EUX POU VOUS COMME
POU AUT UI. SOYEZ DONC T ÈS P UDENT EN UTILISANT LA MACHINE À SOUDE . OB-
SE VEZ LES ÈGLES DE SÉCU ITÉ DE VOT E EMPLOYEU , QUI DOIVENT ÊT E BASÉES
SU LES TEXTES D’AVE TISSEMENT DU FAB ICANT
DÉCHA GE ÉLECT IQUE -- Danger de mort
SInstaller et mettre à la terre l’équipement de soudage en suivant les normes en vigueur.
SNe pas toucher les parties conductrices. Ne pas toucher les électrodes avec les mains nues ou
des gants de protection humides.
SS’isoler du sol et de la pièce à souder
SS’assurer que la position de travail adoptée est sûre.
FUMÉES ET GAZ -- Peuvent nuire à la santé
SÉloigner le visage des fumées de soudage.
SVentiler et aspirer les fumées de soudage pour assurer un environnement de travail sain.
ADIATIONS LUMINEUSES DE L’A C -- Peuvent abîmer les yeux et brûler la peau
SSe protéger les yeux et la peau. Utiliser un écran soudeur et porter des gants et des vêtements
de protection.
SProtéger les personnes voisines des effets dangereux de l’arc par des rideaux ou des écrans
protecteurs.
ISQUES D’INCENDIE
SLes étincelles (ou ”puces” de soudage) peuvent causer un incendie. S’assurer qu’aucun objet
inflammable ne se trouve à proximité du lieu de soudage.
B UIT -- Un niveau élevé de bruit peut réduire les facultés auditives
SSe protéger. Utiliser des protecteurs d’oreilles ou toute autre protection auditive.
SAvertir des risques encourus les personnes se trouvant à proximité.
EN CAS DE MAUVAIS FONCTIONNEMENT -- Faire appel à un technicien qualifié.
P OTÉGEZ--VOUS ET P OTÉGEZ LES AUT ES!
ATTENTION!
Lire attentivement le mode d’emploi avant
d’installer la machine et de l’utiliser.
Ne pas utiliser le générateur pour dégeler des canalisations.
ATTENTION!
Ce produit est uniquement destiné au soudage à l’arc.
F

-- 18 --
MMP280f
Ne pas jeter les appareils électriques avec les déchets ordinaires !
Conformément à la Directive Européenne 2002/96/EC relative aux déchets d’équipements
électriques ou électroniques (DEEE), et à sa transposition dans la législation nationale,
les appareils électriques doivent être collectés à part et être soumis à un recyclage
respectueux de l’environnement. En tant que propriétaire de l’équipement, vous devriez
vous informer sur les systèmes de collecte approuvés auprès nos représentants locaux.
Appliquer cette Directive Européenne améliorera l’environnement et la santé !
3 INT ODUCTION
Migmasterr280 Pro sont des sources de courant de soudage de formes compactes avec
commutateur pas a pas, destinées au soudage avec fil solide en acier, en acier inoxydable et en
aluminium ainsi qu’au soudage avec fils tibulaires avec ou sans gaz de protection.
Les machines MM203 / 253 sont conçues avec la facilité de brancher un pistolet de soudage a bobine
(spool--on gun, type : MT--250SG, ST23A+Adapter KIT ST--23A).
Voir les accessoires ESAB en page 46.
3.1 Équipement
La source d’énergie est fournie avec :
SCâble de retour 3m avec la bride de retour
SSupport porte bouteille
SManuel d’instruction
4 CA ACTÉ ISTIQUES TECHNIQUES
Migmasterr
rr
r280 Pro Migmasterr
rr
r280 Pro
Tension 208V/230V, 1∼50/60Hz 208/230/460/575V, 1∼
50/60Hz
Charge autorisée
100% intermittence 194A 194A
60 % intermittence 250A 250A
Plage de réglage (CC) 40A/16.0V--300A/29.0V 40A/16.0V--300A/29.0V
Tension à vide 16,8--57,0V 16,8--57,0V
Puissance à vide 450W 450W
Facteur de puissance 0.84 0.84
Tension de commande 42V, 50/60Hz 42V, 50/60Hz
Vitesse de dévidage 55--750ipm (1.4--19m/min) 55--750ipm (1.4--19m/min)
Burn--back 0.03--0.5s 0.03--0.5s
Soudage à l’arc par points 0.5--3.5s 0.5--3.5s
Démarrage progressif O / ON (85%) O / ON (85%)
Connexion pistolet de soudage EURO EURO
F

-- 19 --
MMP280f
Section du fil
e
Al
CW
CuSi
.030--.047” (0.8--1.2mm)
.040--.047” (1.0--1.2mm)
.030--.047” (0.8--1.2mm)
.030--.039” (0.8--1.0mm)
.030--.047” (0.8--1.2mm)
.040--.047” (1.0--1.2mm)
.030--.047” (0.8--1.2mm)
.030--.039” (0.8--1.0mm)
Diamètre max. de la bobine de fil 12” (300mm)/33lb (15kg) 12” (300mm)/33lb (15kg)
Dimensions Lxlxh 32x21.7x34.3”
(812x552x870mm) 32x21.7x34.3” (812x552x870mm)
Poids 341lb (155kg) 350lb (159kg)
Température de service 14÷104 (--10 ÷+40
o
C) 14÷104 (--10 ÷+40
o
C)
Classe de gainage IP 23 IP 23
Classe d’utilisation
Facteur de marche
Le facteur d’intermittence est le temps, exprimé en pourcentage d’une période de 10 minutes, pen-
dant lequel il est possible de souder à une charge déterminée.
Classe de protection
Le code IP indique la classe de protection, c’est--à--dire le degré d’étanchéité à l’eau et aux
particules solides. Les machines marquées IP 23 sont utilisables à l’intérieur et à l’extérieur.
Classe d’utilisation
Le symbole signifie quele générateur est conçu est conçue pour une utilisation dans des
environnements où il existe un danger électrique.
5 INSTALLATION
L’installation doit être assurée par un technicien qualifié.
ATTENTION!
Ce produit est destiné à un usage industriel. Dans des environnements domestiques ce produit
peut provoquer des interférences parasitaires. C’est la responsabilité de l’utilisateur de prendre
les précautions adéquates.
5.1 Placement
Placez le générateur de soudage de telle manière que les tuyères d’entrée et de
sortie de l’air de refroidissement ne soient pas obstruées.
F

-- 20 --
MMP280f
5.2 Installation électrique
Voltage primaire
Les machines sont préréglées a l’usine a une tension assignée plus élevée et elles sont dotées d’une
bande de marquage appropriée sur le câble primaire.
Sélection voltage primaire
Les machine Migmasterr280 Pro se caractérisent par une capacité de courant de:
S208/230V et
S208/230/460/575V
5.3 Polarité du voltage de soudage
La polarité du voltage de soudage peut etre changée tel que décrit ci--dessous.
5.4 Alimentation secteur
Vérifiez que la tension d’alimentation est correcte et que l’installation est protégée par un fusible de
calibre approprié. L’installation doit être reliée à la terre, conformément aux réglementations en
vigueur.
F
