ESAB Origo Mig C170 3ph User manual

Origo™
Instruction manual
0463 344 101 GB 20220103 Valid for: serial no. 626-xxx-xxxx
MigC1703ph, MigC2003ph,
MigC2503ph

TABLE OF CONTENTS
0463 344 101 © ESAB AB 2022
1SAFETY ....................................................................................................... 4
1.1 Meaning of symbols ............................................................................... 4
1.2 Safety precautions ................................................................................. 4
2INTRODUCTION.......................................................................................... 7
2.1 Equipment ............................................................................................... 7
3TECHNICAL DATA ...................................................................................... 8
4INSTALLATION............................................................................................ 9
4.1 Location................................................................................................... 9
4.2 Assembly of components...................................................................... 9
4.3 Electrical installation ............................................................................. 10
4.4 Mains power supply ............................................................................... 10
5OPERATION ................................................................................................ 12
5.1 Connection and control devices ........................................................... 13
5.2 Welding without gas............................................................................... 13
5.3 Wire feed pressure ................................................................................. 14
5.4 Replacing and inserting wire................................................................. 14
5.5 Overheating protection .......................................................................... 14
6MAINTENANCE........................................................................................... 15
6.1 Inspection and cleaning......................................................................... 15
7TROUBLESHOOTING ................................................................................. 16
8ORDERING SPARE PARTS ........................................................................ 17
DIAGRAM ............................................................................................................ 18
ORDERING NUMBERS....................................................................................... 22
WEAR PARTS...................................................................................................... 23
ACCESSORIES ................................................................................................... 24
Rights reserved to alter specifications without notice.

1 SAFETY
0463 344 101 -4- © ESAB AB 2022
1 SAFETY
1.1 Meaning of symbols
As used throughout this manual: Means Attention! Be Alert!
DANGER!
Means immediate hazards which, if not avoided, will result in immediate,
serious personal injury or loss of life.
WARNING!
Means potential hazards which could result in personal injury or loss of life.
CAUTION!
Means hazards which could result in minor personal injury.
WARNING!
Before use, read and understand the instruction manual
and follow all labels, employer´s safety practices and
Safety Data Sheets (SDSs).
1.2 Safety precautions
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety
precautions must meet the requirements that apply to this type of equipment. The following
recommendations should be observed in addition to the standard regulations that apply to
the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the
equipment. Incorrect operation of the equipment may lead to hazardous situations which can
result in injury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
○ its operation
○ location of emergency stops
○ its function
○ relevant safety precautions
○ welding and cutting or other applicable operation of the equipment
2. The operator must ensure that:
○ no unauthorised person is stationed within the working area of the equipment
when it is started up
○ no-one is unprotected when the arc is struck or work is started with the
equipment
3. The workplace must:
○ be suitable for the purpose
○ be free from drafts

1 SAFETY
0463 344 101 -5- © ESAB AB 2022
4. Personal safety equipment:
○ Always wear recommended personal safety equipment, such as safety glasses,
flame-proof clothing, safety gloves
○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which
could become trapped or cause burns
5. General precautions:
○ Make sure the return cable is connected securely
○ Work on high voltage equipment may only be carried out by a qualified
electrician
○ Appropriate fire extinguishing equipment must be clearly marked and close at
hand
○ Lubrication and maintenance must not be carried out on the equipment during
operation

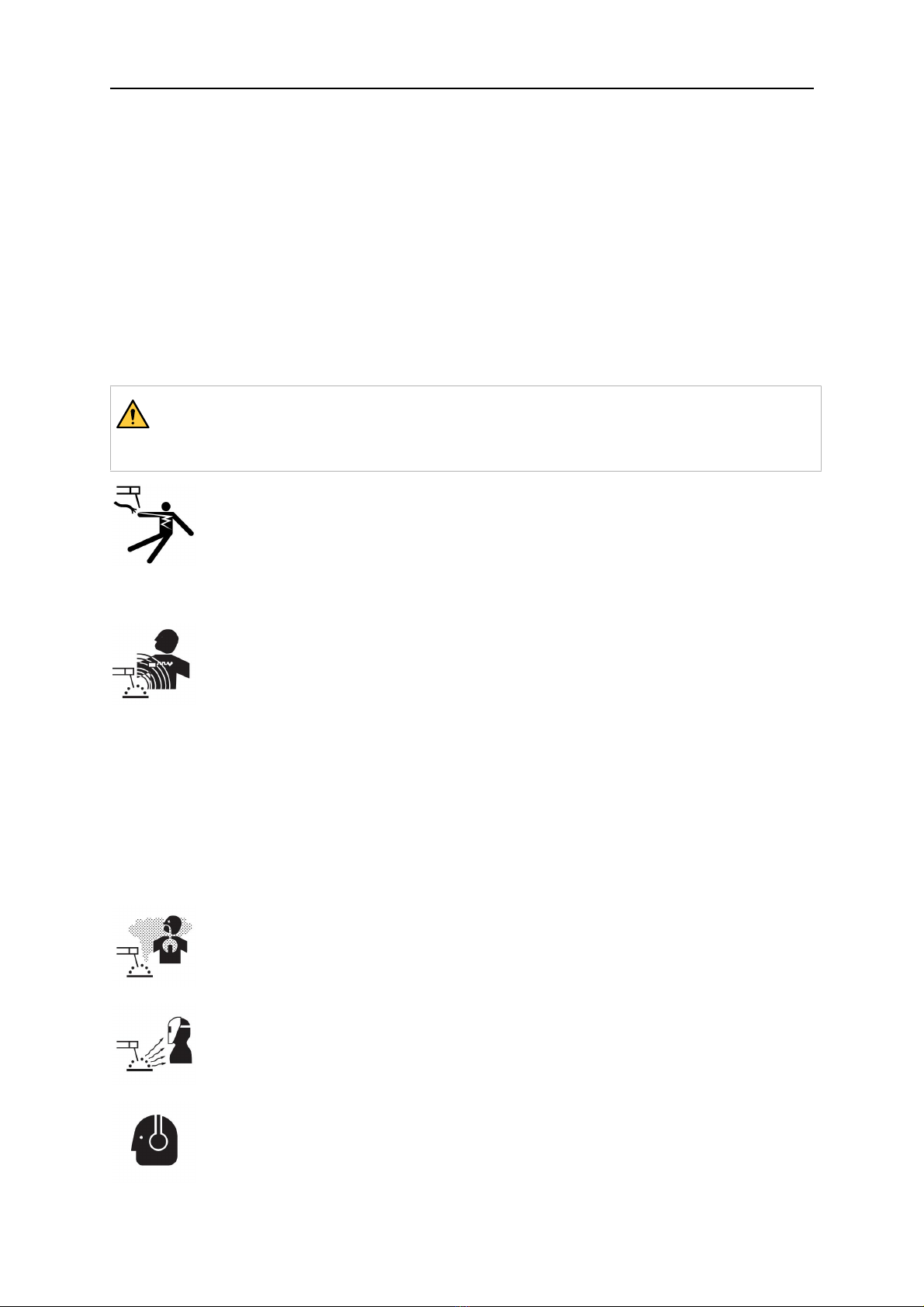

WARNING!
Arc welding and cutting can be injurious to yourself and others. Take precautions
when welding and cutting.
ELECTRIC SHOCK - Can kill
• Install and ground the unit in accordance with instruction manual.
• Do not touch live electrical parts or electrodes with bare skin, wet gloves or
wet clothing.
• Insulate yourself from work and ground.
• Ensure your working position is safe
ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health
• Welders having pacemakers should consult their physician before welding.
EMF may interfere with some pacemakers.
• Exposure to EMF may have other health effects which are unknown.
• Welders should use the following procedures to minimize exposure to
EMF:
○ Route the electrode and work cables together on the same side of
your body. Secure them with tape when possible. Do not place your
body between the torch and work cables. Never coil the torch or work
cable around your body. Keep welding power source and cables as
far away from your body as possible.
○ Connect the work cable to the workpiece as close as possible to the
area being welded.
FUMES AND GASES - Can be dangerous to health
• Keep your head out of the fumes.
• Use ventilation, extraction at the arc, or both, to take fumes and gases
away from your breathing zone and the general area.
ARC RAYS - Can injure eyes and burn skin
• Protect your eyes and body. Use the correct welding screen and filter lens
and wear protective clothing.
• Protect bystanders with suitable screens or curtains.
NOISE - Excessive noise can damage hearing
Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY
0463 344 101 -6- © ESAB AB 2022
MOVING PARTS - Can cause injuries
• Keep all doors, panels and covers closed and securely in place. Have only
qualified people remove covers for maintenance and troubleshooting as
necessary. Reinstall panels or covers and close doors when service is
finished and before starting engine.
• Stop engine before installing or connecting unit.
• Keep hands, hair, loose clothing and tools away from moving parts.
FIRE HAZARD
• Sparks (spatter) can cause fire. Make sure that there are no inflammable
materials nearby.
• Do not use on closed containers.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
CAUTION!
This product is solely intended for arc welding.
WARNING!
Do not use the power source for thawing frozen pipes.
CAUTION!
Class A equipment is not intended for use in residential
locations where the electrical power is provided by the
public low-voltage supply system. There may be
potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations,
due to conducted as well as radiated disturbances.
NOTE!
Dispose of electronic equipment at the recycling
facility!
In observance of European Directive 2012/19/EC on
Waste Electrical and Electronic Equipment and its
implementation in accordance with national law,
electrical and/or electronic equipment that has reached
the end of its life must be disposed of at a recycling
facility.
As the person responsible for the equipment, it is your
responsibility to obtain information on approved
collection stations.
For further information contact the nearest ESAB dealer.
ESAB has an assortment of welding accessories and personal protection equipment
for purchase. For ordering information contact your local ESAB dealer or visit us on
our website.

2 INTRODUCTION
0463 344 101 -7- © ESAB AB 2022
2 INTRODUCTION
Mig C170 3ph, Mig C200 3ph and Mig C250 3ph are step controlled power sources of a
compact design, intended for welding with solid steel, stainless steel or aluminium wire as
well as tubular wire with or without shielding gas. It is possible to weld with homogeneous
wire/shielding gas and weld with gasless tubular wire by switching the + and - connections on
the switching terminal by the wire feed unit.
ESAB accessories for the product can be found in the "ACCESSORIES" chapter of
this manual.
2.1 Equipment
The power source is supplied with:
• Welding torch
• Return cable with return clamp
• Shelf for gas cylinder
• Instruction manual

3 TECHNICAL DATA
0463 344 101 -8- © ESAB AB 2022
3 TECHNICAL DATA
Mig C170 3ph Mig C200 3ph Mig C250 3ph
Voltage 400–415 V,
3~50/60Hz
400–415 V,
3~50/60Hz
230/400–415 V,
3~50/60Hz
Permissible load at
100 % duty cycle 100 A 120 A 150 A
60 % duty cycle 130 A 150 A 190 A
35 % duty cycle 170 A 200 A 250 A
Setting range (DC) 30–170 A 30–200 A 40–280 A
Open circuit voltage 18.0–34.8 V 16.0–31.8 V 15.0–37.0 V
Open circuit power 310 W 210 W 340 W
Power factor at max load 0.97 0.97 0.94
Control voltage 42 V, 50/60 Hz 42 V, 50/60 Hz 42 V, 50/60 Hz
Wire feed speed 1.0–17 m/min 1.0–17 m/min 1.0–17 m/min
Burnback time 0.02–0.25 s 0.02–0.25 s 0.02–0.25 s
Spot welding 0.2–2.5 s 0.2–2.5 s 0.2–2.5 s
Welding torch connection EURO EURO EURO
Wire dimension range 0.6–0.8(Fe, SS) 0.6–1.0(Fe, SS) 0.6–1.2(Fe, SS)
1.0(Al) 1.0(Al) 1.0–1.2(Al)
0.8(FCW) 0.8–1.0(FCW) 0.8–1.2(FCW)
0.8–1.0(CuSi) 0.8–1.0(CuSi) 0.8–1.0(CuSi)
Max diameter/weight of
wire bobbin
300 mm/15 kg 300 mm/15 kg 300 mm/15 kg
Dimensions l×w×h 860x420x730 mm 860x420x730 mm 860×420×730 mm
Weight 67.5 kg 72.5 kg 82 kg
Operating temperature -10 to +40 °C -10 to +40 °C -10 to +40 °C
Transportation
temperature
-20 to +55 °C -20 to +55 °C -20 to +55 °C
Enclosure class IP 21 IP21 IP21
Application classification
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or
cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects or water.
Equipment marked IP21 is intended for indoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.

4 INSTALLATION
0463 344 101 -9- © ESAB AB 2022
4 INSTALLATION
The installation must be carried out by a professional.
NOTE!
Connect the power source to the electricity mains with a network impedance of
0.268 (C250 3ph) ohm or lower. If the network impedance is higher, there is a risk of
flicker in the illuminators.
CAUTION!
This product is intended for industrial use. In a domestic environment this product
may cause radio interference. It is the user's responsibility to take adequate
precautions.
4.1 Location
Position the welding power source in such way that its cooling air inlets and outlets are not
obstructed.
4.2 Assembly of components
WARNING!
For packing and shipment of the power source the wheels are detached from
the unit.
Before use attach the wheels according to instruction.

4 INSTALLATION
0463 344 101 - 10 - © ESAB AB 2022
4.3 Electrical installation
4.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that it is
protected by the correct fuse size. A protective earth connection must be made, in
accordance with regulations.
Rating plate with supply connection data
Recommended fuse sizes and minimum cable area
Mig C170 3ph Mig C200 3ph Mig C250 3ph
Voltage V 400-415 V,
3~50/60 Hz
400-415 V,
3~50/60 Hz
230/ 400-415 V,
3~50/60 Hz
Current A
at 100% duty cycle 4.0 4.83 12.1/6.06
at 60% duty cycle 6.1 7.3 17.6/9.99
at 35% duty cycle 8.9 10.87 25.3/15.21

4 INSTALLATION
0463 344 101 - 11 - © ESAB AB 2022
Mig C170 3ph Mig C200 3ph Mig C250 3ph
Mains cable area mm24 x 1.5 4 x 1.5 4 x 2.5 / 4 x 1.5
Fuse slow A 10 16 25/16
NOTE!
The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. For other regions, supply cables must be suitable for the
application and meet local and national regulations.

5 OPERATION
0463 344 101 - 12 - © ESAB AB 2022
5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY"
chapter of this manual. Read it through before you start using the equipment!
WARNING!
Rotating parts can cause injury, take great care.
WARNING!
To prevent the reel from sliding off
the hub: Lock the reel in place by
turning the red knob as shown on
the warning label attached next to
the hub.
WARNING!
Secure the equipment - particularly
if the ground is uneven or sloping.

5 OPERATION
0463 344 101 - 13 - © ESAB AB 2022
5.1 Connection and control devices
1. Mains supply switch 7. Connection for return cable (-), low
inductance
2. Indicator lamp, power ON/OFF 8. Knob for spot welding - ON/OFF and time
setting
3. Orange indicator lamp, overheating 9. Knob for wire speed setting
4. Welding voltage switch 10. Digital instrument - V/A (option,see in
"ACCESSORIES" chapter)
5. EURO-connector for welding torch 11. Return cable with return clamp
6. Connection for return cable (-), high
inductance
12. Knob for burn-back time setting
(locatedoncontrolboard)
5.2 Welding without gas

5 OPERATION
0463 344 101 - 14 - © ESAB AB 2022
5.3 Wire feed pressure
Start by making sure that the wire moves smoothly through the wire guide. Then set the
pressure of the wire feeder's pressure rollers. It is important that the pressure is not too high.
Figure A Figure B
To check that the feed pressure is set correctly, you can feed out the wire against an
insulated object, e.g. a piece of wood.
When you hold the welding torch approx. 5 mm from the piece of wood (figure A) the feed
rollers should slip.
If you hold the welding torch approx. 50 mm from the piece of wood, the wire should be fed
out and bend (figure B).
5.4 Replacing and inserting wire
• Open the side panel.
• Disconnect the pressure sensor by folding it backwards, the pressure rollers slide up.
• Straighten the new wire for 10-20 cm. File away burrs and sharp edges from the end of
the wire before inserting it into the wire feed unit.
• Make sure that the wire goes properly into the feed roller track and into the outlet
nozzle and the wire guide.
• Secure the pressure sensor.
• Close the side panel.
5.5 Overheating protection
When the power source is switched on with the mains switch [1], indicator lamp [2] is on and
lamp [3] off - the equipment is ready to operate. If the internal temperature becomes too high,
the welding is interrupted and disabled. This state is indicated by lighting of the orange
indicator lamp [3] on the front of the power source. It resets automatically when the
temperature has fallen.

6 MAINTENANCE
0463 344 101 - 15 - © ESAB AB 2022
6 MAINTENANCE
NOTE!
Regular maintenance is important for safe and reliable operation.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer attempts
any work to rectify any faults in the product during the warranty period.
6.1 Inspection and cleaning
Wire feed unit
Check regularly that the wire feed unit is not clogged with dirt.
• Cleaning and replacement of the wire feed unit mechanism's worn parts should take
place at regular intervals in order to achieve trouble-free wire feed. Note that if
pre-tensioning is set too hard, this can result in abnormal wear on the pressure roller,
feed roller and wire guide.
The brake hub
The hub is adjusted when delivered, if readjustment is required, follow the instructions below.
Adjust the brake hub so that wire is slightly slack when wire feed stops.
•Adjusting the braking torque:
○ Turn the red handle to the locked
position.
○ Insert a screwdriver into the
springs in the hub.
Turn the springs clockwise to reduce
the braking torque.
Turn the springs counter-clockwise to
increase the braking torque.
Note: Make sure you turn both springs
the same amount.
Welding torch
• Cleaning and replacement of the welding torch's wear parts should take place at
regular intervals in order to achieve trouble-free wire feed. Blow the wire guide clean
regularly and clean the contact tip.

7 TROUBLESHOOTING
0463 344 101 - 16 - © ESAB AB 2022
7 TROUBLESHOOTING
Try these recommended checks and inspections before sending for an authorised service
technican.
Type of fault Actions
No arc • Check that the mains power supply switch is turned on.
• Check that the welding current supply and return cables
are correctly connected.
• Check that correct current value is set.
Welding current is
interrupted during welding
• Check whether the thermal overload trip has operated
(indicated by the orange lamp on the front).
• Check the main power supply fuses.
Thermal overload trips
operate frequently
• Check to see whether the air inlets/outlets are clogged.
• Make sure that you are not exceeding the rated data for
the power source (i.e. that the unit is not being
overloaded).
Poor welding performance • Check that the welding current supply and return cables
are correctly connected.
• Check that the correct current value is set.
• Check that the correct welding wires are being used.
• Check the main power supply fuses.
• Check the wire feed unit - if proper rolls are applied and
properly set the pressure of the wire feeder's pressure
rollers.

8 ORDERING SPARE PARTS
0463 344 101 - 17 - © ESAB AB 2022
8 ORDERING SPARE PARTS
CAUTION!
Repair and electrical work should be performed by an authorised ESAB service
technician. Use only ESAB original spare and wear parts.
Mig C170 3ph, Mig C200 3ph, Mig C250 3ph is designed and tested in accordance with
the international and European standards IEC-/ EN 60974-1, IEC-/ EN 60974-10. It is the
obliga tion of the service unit which has carried out the service or repair work to make sure
that the product still conforms to the said standard.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see
esab.com. When ordering, please state product type, serial number, designation and spare
part number in accordance with the spare parts list. This facilitates dispatch and ensures
correct delivery.

DIAGRAM
0463 344 101 - 18 - © ESAB AB 2022
DIAGRAM
Mig C170 3ph, 400-415 V

DIAGRAM
0463 344 101 - 19 - © ESAB AB 2022
Mig C200 3ph, 400-415 V

DIAGRAM
0463 344 101 - 20 - © ESAB AB 2022
Mig C250 3ph, 400-415 V
