ESAB Origo Tig 3001i User manual

Origo™
Instruction manual
0460 742 001 GB 20170310 Valid for: serial no. 840-xxx-xxxx, 950-xxx-xxxx, 039-xxx-xxxx
Tig3001i, Tig3001iw

TABLE OF CONTENTS
0460 742 001 © ESAB AB 2017
1SAFETY ......................................................................................................... 4
1.1 Meaning of symbols ................................................................................. 4
1.2 Safety precautions ................................................................................... 4
2INTRODUCTION............................................................................................ 7
2.1 Equipment ................................................................................................. 7
2.2 Control panels TA23 and TA24................................................................ 7
3TECHNICAL DATA ........................................................................................ 8
4INSTALLATION.............................................................................................. 10
4.1 Lifting instructions ................................................................................... 10
4.2 Location..................................................................................................... 10
4.3 Mains supply............................................................................................. 11
5OPERATION .................................................................................................. 12
5.1 Connections and control devices ........................................................... 13
5.2 Connection of welding and return cable ................................................ 13
5.3 Fan control ................................................................................................ 13
5.4 Overheating Protection............................................................................ 14
5.5 TIG welding ............................................................................................... 14
5.6 MMA welding............................................................................................. 14
6MAINTENANCE............................................................................................. 15
6.1 Power unit ................................................................................................. 15
6.2 Welding torch............................................................................................ 15
7FAULT TRACING........................................................................................... 16
8ORDERING SPARE PARTS .......................................................................... 17
DIAGRAM ............................................................................................................. 18
ORDERING NUMBERS........................................................................................ 20
ACCESSORIES .................................................................................................... 21
Rights reserved to alter specifications without notice.

1 SAFETY
0460 742 001 -4- © ESAB AB 2017
1 SAFETY
1.1 Meaning of symbols
As used throughout this manual: Means Attention! Be Alert!
DANGER!
Means immediate hazards which, if not avoided, will result in immediate,
serious personal injury or loss of life.
WARNING!
Means potential hazards which could result in personal injury or loss of
life.
CAUTION!
Means hazards which could result in minor personal injury.
WARNING!
Before use, read and understand the instruction manual
and follow all labels, employer´s safety practices and Safety
Data Sheets (SDSs).
1.2 Safety precautions
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety
precautions must meet the requirements that apply to this type of equipment. The following
recommendations should be observed in addition to the standard regulations that apply to
the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the
equipment. Incorrect operation of the equipment may lead to hazardous situations which can
result in injury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
○ its operation
○ location of emergency stops
○ its function
○ relevant safety precautions
○ welding and cutting or other applicable operation of the equipment
2. The operator must ensure that:
○ no unauthorised person is stationed within the working area of the equipment
when it is started up
○ no-one is unprotected when the arc is struck or work is started with the
equipment
3. The workplace must:
○ be suitable for the purpose
○ be free from drafts

1 SAFETY
0460 742 001 -5- © ESAB AB 2017
4. Personal safety equipment:
○ Always wear recommended personal safety equipment, such as safety glasses,
flame-proof clothing, safety gloves
○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which
could become trapped or cause burns
5. General precautions:
○ Make sure the return cable is connected securely
○ Work on high voltage equipment may only be carried out by a qualified
electrician
○ Appropriate fire extinguishing equipment must be clearly marked and close at
hand
○ Lubrication and maintenance must not be carried out on the equipment during
operation
WARNING!
Arc welding and cutting can be injurious to yourself and others. Take precautions
when welding and cutting.
ELECTRIC SHOCK - Can kill
• Install and ground the unit in accordance with instruction manual.
• Do not touch live electrical parts or electrodes with bare skin, wet gloves or
wet clothing.
• Insulate yourself from work and ground.
• Ensure your working position is safe
ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health
• Welders having pacemakers should consult their physician before welding.
EMF may interfere with some pacemakers.
• Exposure to EMF may have other health effects which are unknown.
• Welders should use the following procedures to minimize exposure to
EMF:
○ Route the electrode and work cables together on the same side of
your body. Secure them with tape when possible. Do not place your
body between the torch and work cables. Never coil the torch or
work cable around your body. Keep welding power source and
cables as far away from your body as possible.
○ Connect the work cable to the workpiece as close as possible to the
area being welded.
FUMES AND GASES - Can be dangerous to health
• Keep your head out of the fumes.
• Use ventilation, extraction at the arc, or both, to take fumes and gases
away from your breathing zone and the general area.
ARC RAYS - Can injure eyes and burn skin
• Protect your eyes and body. Use the correct welding screen and filter lens
and wear protective clothing.
• Protect bystanders with suitable screens or curtains.
NOISE - Excessive noise can damage hearing
Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY
0460 742 001 -6- © ESAB AB 2017

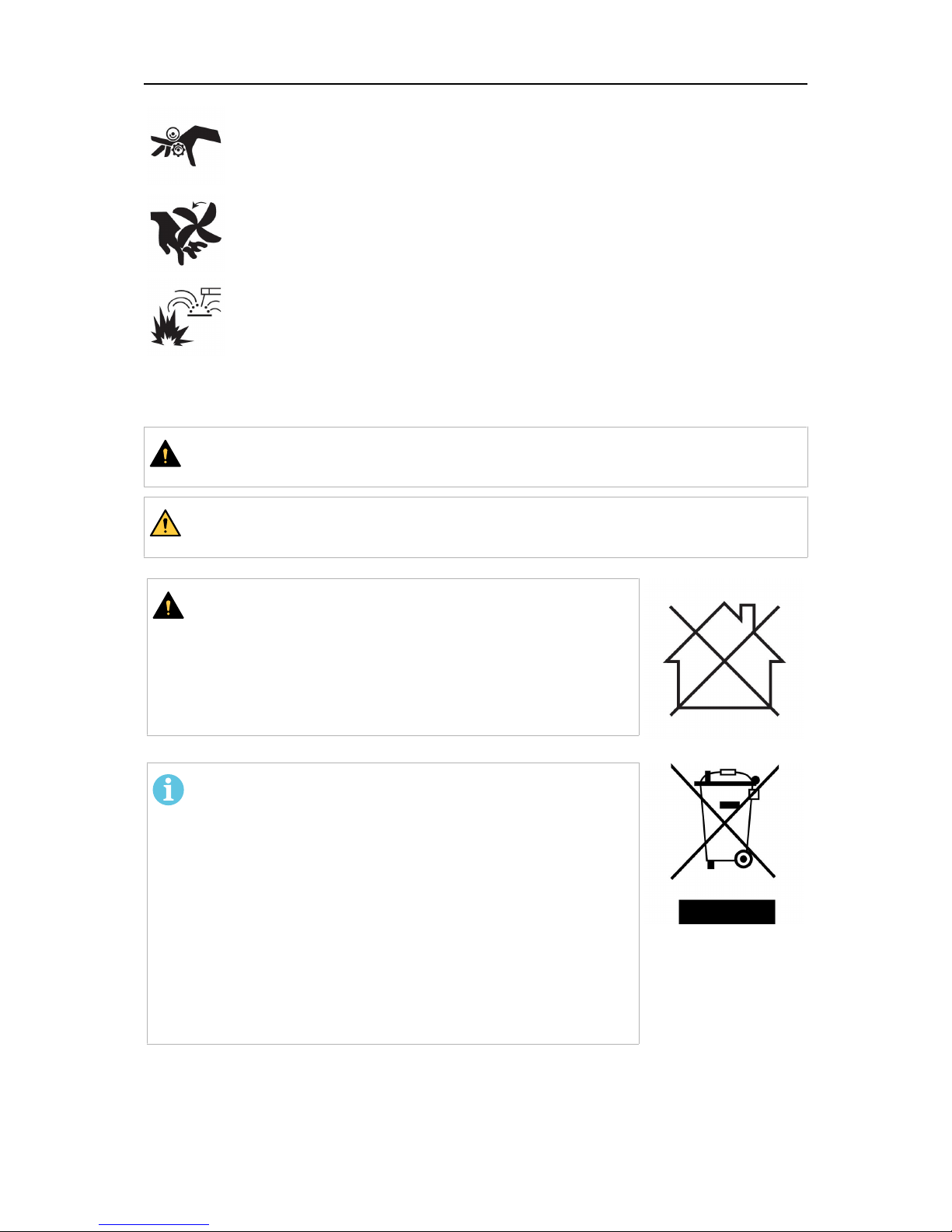

MOVING PARTS - Can cause injuries
• Keep all doors, panels and covers closed and securely in place. Have only
qualified people remove covers for maintenance and troubleshooting as
necessary. Reinstall panels or covers and close doors when service is
finished and before starting engine.
• Stop engine before installing or connecting unit.
• Keep hands, hair, loose clothing and tools away from moving parts.
FIRE HAZARD
• Sparks (spatter) can cause fire. Make sure that there are no inflammable
materials nearby.
• Do not use on closed containers.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
CAUTION!
This product is solely intended for arc welding.
WARNING!
Do not use the power source for thawing frozen pipes.
CAUTION!
Class A equipment is not intended for use in residential
locations where the electrical power is provided by the
public low-voltage supply system. There may be potential
difficulties in ensuring electromagnetic compatibility of class
A equipment in those locations, due to conducted as well
as radiated disturbances.
NOTE!
Dispose of electronic equipment at the recycling
facility!
In observance of European Directive 2012/19/EC on Waste
Electrical and Electronic Equipment and its implementation
in accordance with national law, electrical and/or electronic
equipment that has reached the end of its life must be
disposed of at a recycling facility.
As the person responsible for the equipment, it is your
responsibility to obtain information on approved collection
stations.
For further information contact the nearest ESAB dealer.
ESAB has an assortment of welding accessories and personal protection equipment
for purchase. For ordering information contact your local ESAB dealer or visit us on
our website.

2 INTRODUCTION
0460 742 001 -7- © ESAB AB 2017
2 INTRODUCTION
Tig 3001i is a TIG welding power source, which can also be used for MMA welding.
ESAB accessories for the product can be found in the "ACCESSORIES" chapter of
this manual.
2.1 Equipment
Tig 3001i can be supplied with or without cooling unit.
The power source is supplied with:
• 4.5 m return cable with contact clamp
• instruction manual for the welding power source
• instruction manual for the control panel
• instruction manual for the cooling unit (if applicable)
Instruction manuals in other languages can be downloaded from the Internet: www.esab.com

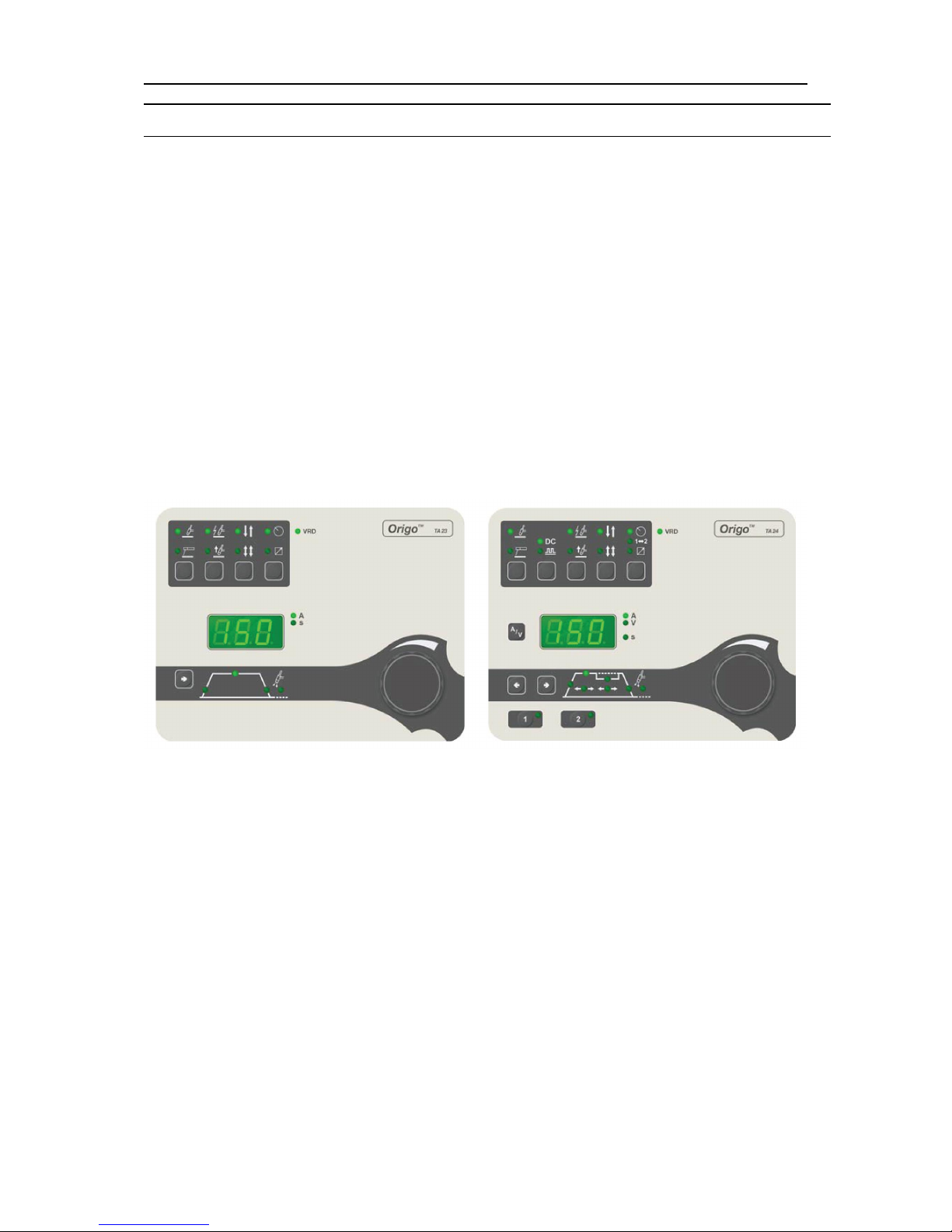

2.2 Control panels TA23 and TA24
The power source is supplied with one of the following control panels:
Welding process parameters are controlled via the control panel. See the separate
instruction manual for a detailed description of the panels.

3 TECHNICAL DATA
0460 742 001 -8- © ESAB AB 2017
3 TECHNICAL DATA
Tig 3001i, Tig 3001iw
Mains voltage 400 V ±10 %,
3~ 50 / 60 Hz
Mains supply Sscmin 3.9 MVA
Primary current I max
TIG 14 A
MMA 19 A
No-load power demand when in the
energy-saving mode, 6.5 min. after welding 30 W
Setting range
TIG 4 - 300 A
MMA 16 - 300 A
Permissible load at TIG
35 % duty cycle 300 A / 22 V
60 % duty cycle 240 A / 19.6 V
100 % duty cycle 200 A / 18 V
Permissible load at MMA
30 % duty cycle 300 A / 32 V
60 % duty cycle 230 A / 29.2 V
100 % duty cycle 190 A / 27.6 V
Power factor at maximum current
TIG 0.9
MMA 0.91
Efficiency at maximum current
TIG 77 %
MMA 84 %
Open-circuit voltage U0max
MMA, VRD function deactivated 60 V
VRD function activated 28 V
Upk 11.7 kV
Operating temperature -10 to +40 °C
Transportation temperature -20 to +55 °C
Constant sound pressure at no-load < 70 db (A)
Dimensions l × w × h 625 × 249 × 423 mm
with cooling unit 714 × 249 × 693 mm
Weight 33.5 kg
with cooling unit 54 kg
Insulation class transformer H

3 TECHNICAL DATA
0460 742 001 -9- © ESAB AB 2017
Tig 3001i, Tig 3001iw
Enclosure class IP 23
Application class
Mains supply, Ssc min
Minimum short circuit power on the network in accordance with IEC 61000-3-12.
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or
cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects or water.
Equipment marked IP23 is intended for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
Tig 3001iw only (cooling unit specific)
Cooling power of cooler Power at flow Max pressure
at 50 Hz 0.82 kW 1 l/min 0.39 MPa
at 60 Hz 0.76 kW 1 l/min 0.44 MPa
Coolant ESABs ready mixed coolant. See the
"ACCESSORIES" chapter of this manual.

4 INSTALLATION
0460 742 001 - 10 - © ESAB AB 2017
4 INSTALLATION
The installation must be carried out by a professional.

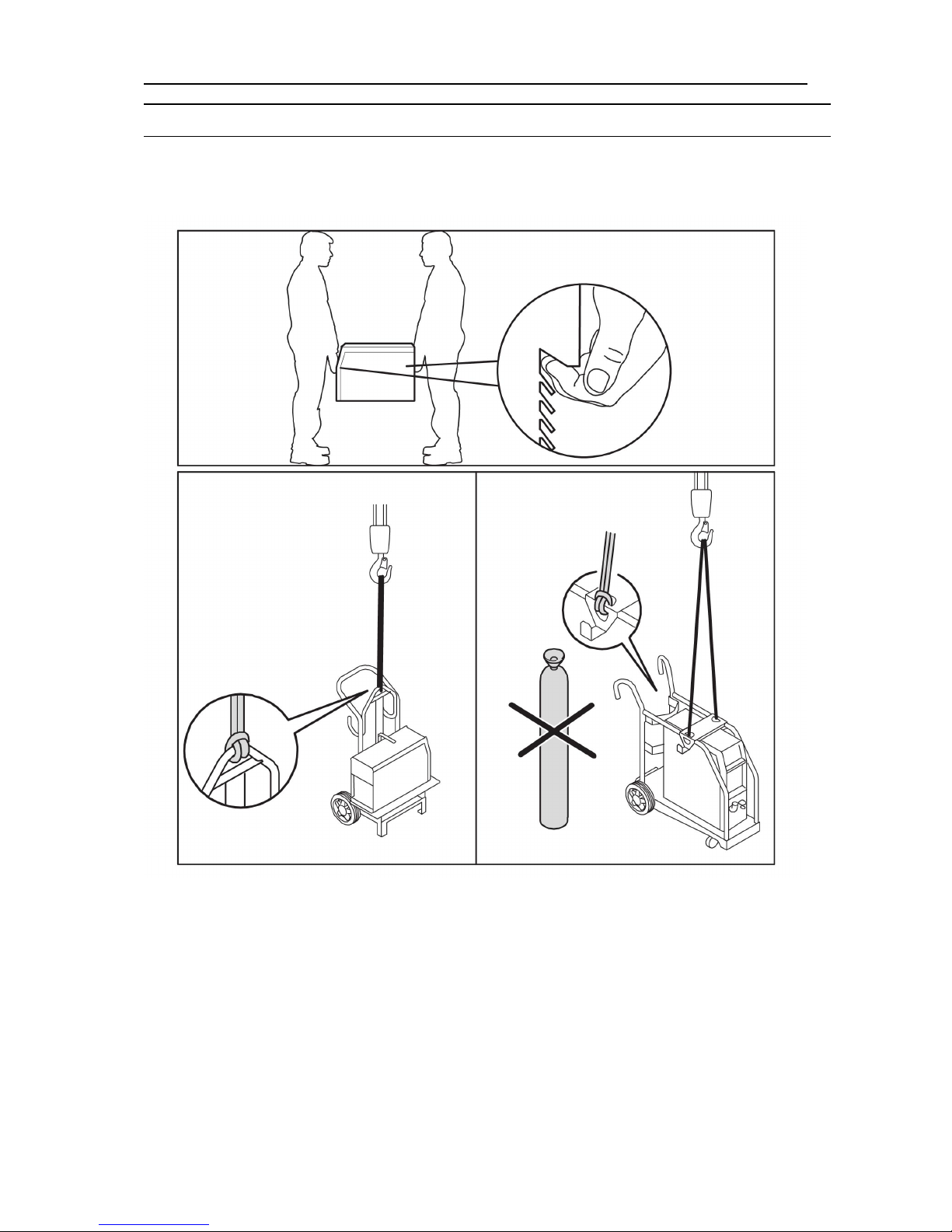

4.1 Lifting instructions
4.2 Location
Position the welding power source such that its cooling air inlets and outlets are not
obstructed.

4 INSTALLATION
0460 742 001 - 11 - © ESAB AB 2017

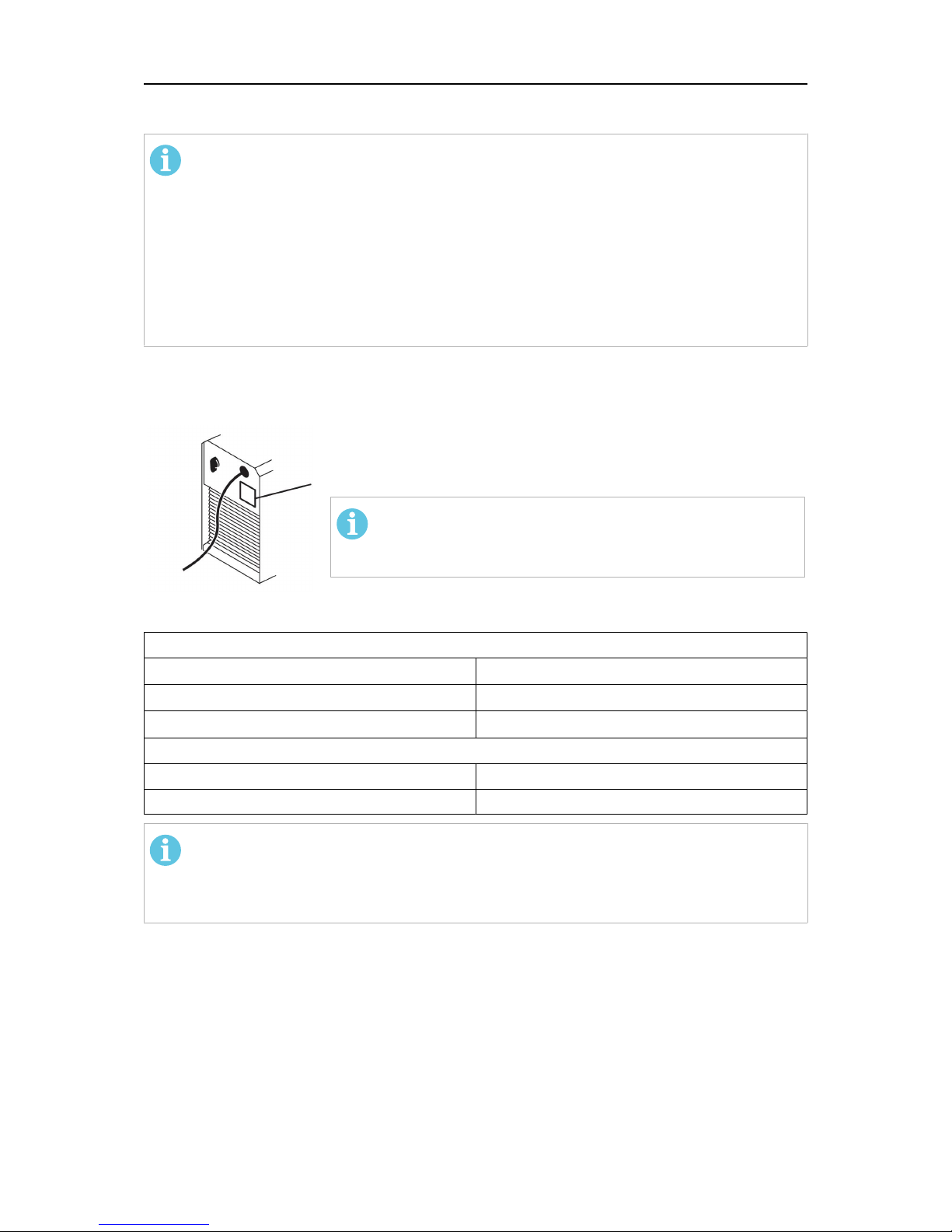

4.3 Mains supply
NOTE!
Mains supply requirements
This equipment complies with IEC 61000-3-12 provided that the short-circuit
power is greater than or equal to Sscmin at the interface point between the user's
supply and the public system. It is the responsibility of the installer or user of the
equipment to ensure, by consultation with the distribution network operator if
necessary, that the equipment is connected only to a supply with a short-circuit
power greater than or equal to Sscmin. Refer to the technical data in the
TECHNICAL DATA chapter.
Make sure that the welding power source is connected to the correct supply voltage and that
it is protected by the correct fuse rating. A protective earth connection must be made in
accordance with regulations.
Rating plate with supply connection data
NOTE!
The welding power source is designed for connection to
a 400 volt system with four conductors.
Recommended fuse sizes and minimum cable area
Tig 3001i, Tig3001iw
Mains voltage 400 V 3~ 50 Hz
Mains cable area mm24G4 mm2
Phase current Ieff 10 A
Fuse
Anti-surge 16 A
Type C MCB 16 A
NOTE!
The mains cable areas and fuse sizes as shown above are in accordance with
Swedish regulations. They may not be applicable in other countries: make sure
that the cable area and fuse sizes comply with the relevant national regulations.

5 OPERATION
0460 742 001 - 12 - © ESAB AB 2017
5 OPERATION
General safety regulations for handling the equipment can be found in chapter "SAFETY".
Read through before you start using the equipment!

5 OPERATION
0460 742 001 - 13 - © ESAB AB 2017
5.1 Connections and control devices
1. Control panel, see separate instruction
manual
5. Connection (-) TIG: Welding torch MMA:
Welding cable or return cable
2. Connection for remote control unit 6. Connection (+) TIG: Return cable MMA:
Return cable or welding cable
3. Connection for start signal from the
welding torch
7. Mains voltage switch
4. Connection for gas to the torch 8. Connection for shielding gas
5.2 Connection of welding and return cable
The power source has two outputs, a positive terminal (+) and a negative terminal (-), for
connecting welding and return cables. The output to which the welding cable is connected
depends on the welding method or type of electrode used.
Connect the return cable to the other output on the power source. Secure the return cable's
contact clamp to the work piece and ensure that there is good contact between the work
piece and the output for the return cable on the power source.
For MMA welding, the welding cable can be connected to the positive terminal (+) or
negative terminal (-) depending on the type of electrode used. The connecting polarity is
stated on the electrode packaging.
5.3 Fan control
The power source has a time control that means that the fans continue to run for 6.5 minutes
after welding has stopped, and the unit switches to energy-saving mode. The fans start again
when welding restarts.
The fans run at reduced speed for welding currents up to 110 A, and at full speed for higher
currents.

5 OPERATION
0460 742 001 - 14 - © ESAB AB 2017
5.4 Overheating Protection
The welding power source has overheating protection that operates if the temperature
becomes too high. When this occurs the welding current is interrupted and a fault code is
displayed on the control panel.
The overheating protection resets automatically when the temperature has fallen.
5.5 TIG welding
TIG welding melts the metal of the workpiece, using an arc struck from a tungsten electrode,
which does not itself melt. The weld pool and the electrode are protected by shielding gas.
For TIG welding, the welding power source is supplemented with:
• TIG torch, see chapter "ACCESSORIES"
• an argon gas cylinder
• an argon gas regulator
• tungsten electrode
5.6 MMA welding
For MMA welding, the power source is supplemented with:
• welding cable with electrode clamp, see chapter "ACCESSORIES"

6 MAINTENANCE
0460 742 001 - 15 - © ESAB AB 2017
6 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Only those persons who have appropriate electrical knowledge (authorised personnel) may
remove the safety plates to connect or carry out service, maintenance or repair work on
welding equipment.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer
attempts any work to rectify any faults in the product during the warranty period.
6.1 Power unit
Check regularly that the welding power source is not clogged with dirt.
How often and which cleaning methods apply depend on: the welding process, arc times,
placement, and the surrounding environment. It is normally sufficient to blow the power
source clean with dry compressed air (reduced pressure) once a year. Clogged or blocked
air inlets and outlets otherwise result in overheating.
6.2 Welding torch
Wear parts should be cleaned and replaced at regular intervals in order to achieve
trouble-free welding.

7 FAULT TRACING
0460 742 001 - 16 - © ESAB AB 2017
7 FAULT TRACING
Try these recommended checks and inspections before sending for an authorized service
technician.
Type of fault Action
No arc. • Check that the mains power supply
switch is turned on.
• Check that the welding and return cables
are correctly connected.
• Check that the correct current value is
set.
• Check the mains power supply fuses.
Welding current is interrupted during welding. • Check whether the overloading protection
has deployed (indicated in the control
panel).
• Check the main power supply fuses.
The overheating protection trips frequently. • Make sure that you are not exceeding the
rated data for the welding power source
(i.e. that the unit is not being overloaded).
• Check that the air inlets and outlets are
not obstructed or blocked.
Poor welding performance. • Check that the welding and return cables
are correctly connected.
• Check that the correct current value is
set.
• Check that the correct electrodes are
being used.
• Check the main power supply fuses.
• Check gas flow and gas quality.

8 ORDERING SPARE PARTS
0460 742 001 - 17 - © ESAB AB 2017
8 ORDERING SPARE PARTS
Tig 3001i and Tig 3001iw are designed and tested in accordance with the international and
European standards IEC/EN60974-1,IEC/EN60974-2,IEC/EN60974-3 and
IEC/EN60974-10. It is the obligation of the service unit which has carried out the service or
repair work to make sure that the product still conforms to the mentioned standards.
CAUTION!
Repair and electrical work should be performed by an authorised ESAB service
technician. Use only ESAB original spare and wear parts.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back
cover of this document. When ordering, please state product type, serial number, designation
and spare part number in accordance with the spare parts list. This facilitates dispatch and
ensures correct delivery.

DIAGRAM
0460 742 001 - 18 - © ESAB AB 2017
DIAGRAM

DIAGRAM
0460 742 001 - 19 - © ESAB AB 2017

ORDERING NUMBERS
0460 742 001 - 20 - © ESAB AB 2017
ORDERING NUMBERS
Ordering no. Denomination Type Notes
0459 745 883 Welding power source OrigoTM Tig 3001i TA23 with control panel TA23
0459 745 884 Welding power source OrigoTM Tig 3001iw TA23 with control panel TA23
and cooling unit
CoolMidi 1000
0459 745 885 Welding power source OrigoTM Tig 3001i TA24 with control panel TA24
0459 745 886 Welding power source OrigoTM Tig 3001i wTA24 with control panel TA24
and cooling unit
CoolMidi 1000
0459 839 033 Spare parts list OrigoTM Tig 3001i
0460 032 1 Instruction manual Control panel OrigoTM TA23
0459 945 1 Instruction manual Control panel OrigoTM TA24
