ESAB SR-B 9 User manual

Instruction manual 0GGCAGH*ccgjgc+
0463 697 001 GB 20210113
SR-B9, SR-B17, SR-B26,
SR-B26-HD, SR-B18, SR-B20,
SR-B21, SR-B400, XCT-B400W

TABLE OF CONTENTS
0463 697 001 © ESAB AB 2021
1SAFETY ....................................................................................................... 4
2INTRODUCTION.......................................................................................... 8
2.1 Overview ................................................................................................. 8
3TECHNICAL DATA ...................................................................................... 9
4OPERATION ................................................................................................ 11
4.1 General .................................................................................................... 11
4.2 Connections............................................................................................ 11
4.3 Choice of electrode ................................................................................ 11
4.4 Grinding................................................................................................... 12
4.5 Bending of the flexible torch ................................................................. 12
4.6 Valve torches .......................................................................................... 12
5MAINTENANCE........................................................................................... 13
5.1 Daily......................................................................................................... 13
6TROUBLESHOOTING ................................................................................. 14
7ORDERING SPARE PARTS ........................................................................ 15
ORDERING NUMBERS....................................................................................... 16
WEAR PARTS...................................................................................................... 18
Rights reserved to alter specifications without notice.

1 SAFETY
0463 697 001 -4- © ESAB AB 2021
1 SAFETY
As used throughout this manual: Means Attention! Be Alert!
DANGER!
Means immediate hazards which, if not avoided, will result in immediate,
serious personal injury or loss of life.
WARNING!
Means potential hazards which could result in personal injury or loss of life.
CAUTION!
Means hazards which could result in minor personal injury.
WARNING!
Before use, read and understand the instruction manual
and follow all labels, employer´s safety practices and
Safety Data Sheets (SDSs).
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety
precautions must meet the requirements that apply to this type of equipment. The following
recommendations should be observed in addition to the standard regulations that apply to
the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the
equipment. Incorrect operation of the equipment may lead to hazardous situations which can
result in injury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
○ its operation
○ location of emergency stops
○ its function
○ relevant safety precautions
○ welding and cutting or other applicable operation of the equipment
2. The operator must ensure that:
○ no unauthorised person is stationed within the working area of the equipment
when it is started up
○ no-one is unprotected when the arc is struck or work is started with the
equipment
3. The workplace must:
○ be suitable for the purpose
○ be free from drafts

1 SAFETY
0463 697 001 -5- © ESAB AB 2021
4. Personal safety equipment:
○ Always wear recommended personal safety equipment, such as safety glasses,
flame-proof clothing, safety gloves
○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which
could become trapped or cause burns
5. General precautions:
○ Make sure the return cable is connected securely
○ Work on high voltage equipment may only be carried out by a qualified
electrician
○ Appropriate fire extinguishing equipment must be clearly marked and close at
hand
○ Lubrication and maintenance must not be carried out on the equipment during
operation

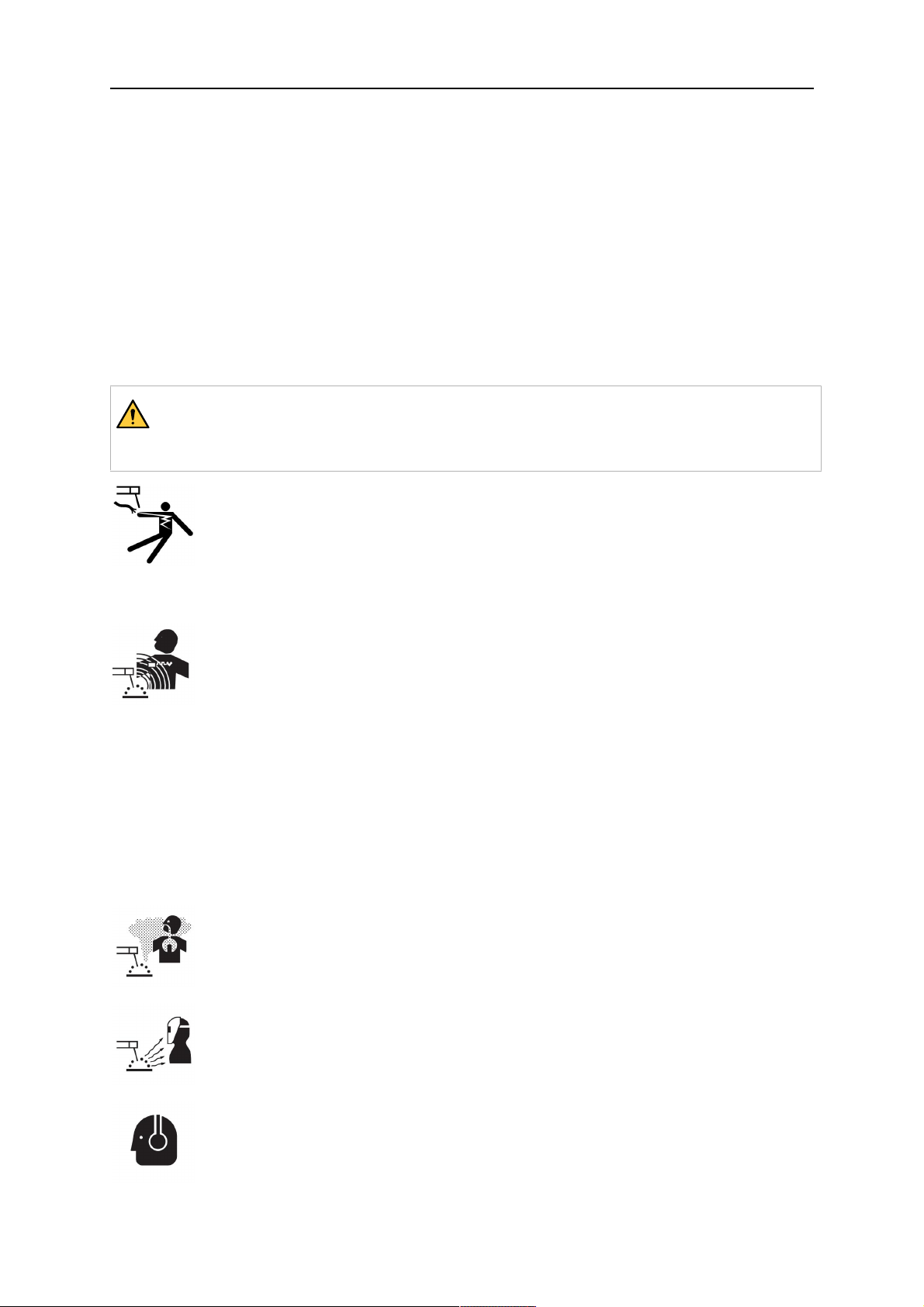

WARNING!
Arc welding and cutting can be injurious to yourself and others. Take precautions
when welding and cutting.
ELECTRIC SHOCK - Can kill
• Install and ground the unit in accordance with instruction manual.
• Do not touch live electrical parts or electrodes with bare skin, wet gloves or
wet clothing.
• Insulate yourself from work and ground.
• Ensure your working position is safe
ELECTRIC AND MAGNETIC FIELDS - Can be dangerous to health
• Welders having pacemakers should consult their physician before welding.
EMF may interfere with some pacemakers.
• Exposure to EMF may have other health effects which are unknown.
• Welders should use the following procedures to minimize exposure to
EMF:
○ Route the electrode and work cables together on the same side of
your body. Secure them with tape when possible. Do not place your
body between the torch and work cables. Never coil the torch or work
cable around your body. Keep welding power source and cables as
far away from your body as possible.
○ Connect the work cable to the workpiece as close as possible to the
area being welded.
FUMES AND GASES - Can be dangerous to health
• Keep your head out of the fumes.
• Use ventilation, extraction at the arc, or both, to take fumes and gases
away from your breathing zone and the general area.
ARC RAYS - Can injure eyes and burn skin
• Protect your eyes and body. Use the correct welding screen and filter lens
and wear protective clothing.
• Protect bystanders with suitable screens or curtains.
NOISE - Excessive noise can damage hearing
Protect your ears. Use earmuffs or other hearing protection.

1 SAFETY
0463 697 001 -6- © ESAB AB 2021
MOVING PARTS - Can cause injuries
• Keep all doors, panels and covers closed and securely in place. Have only
qualified people remove covers for maintenance and troubleshooting as
necessary. Reinstall panels or covers and close doors when service is
finished and before starting engine.
• Stop engine before installing or connecting unit.
• Keep hands, hair, loose clothing and tools away from moving parts.
FIRE HAZARD
• Sparks (spatter) can cause fire. Make sure that there are no inflammable
materials nearby.
• Do not use on closed containers.
HOT SURFACE - Parts can burn
• Do not touch parts bare handed.
• Allow cooling period before working on equipment.
• To handle hot parts, use proper tools and/or insulated welding gloves to
prevent burns.
MALFUNCTION - Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
CAUTION!
This product is solely intended for arc welding.
WARNING!
Do not use the power source for thawing frozen pipes.
CAUTION!
Class A equipment is not intended for use in residential
locations where the electrical power is provided by the
public low-voltage supply system. There may be
potential difficulties in ensuring electromagnetic
compatibility of class A equipment in those locations,
due to conducted as well as radiated disturbances.

1 SAFETY
0463 697 001 -7- © ESAB AB 2021
NOTE!
Dispose of electronic equipment at the recycling
facility!
In observance of European Directive 2012/19/EC on
Waste Electrical and Electronic Equipment and its
implementation in accordance with national law,
electrical and/or electronic equipment that has reached
the end of its life must be disposed of at a recycling
facility.
As the person responsible for the equipment, it is your
responsibility to obtain information on approved
collection stations.
For further information contact the nearest ESAB dealer.
ESAB has an assortment of welding accessories and personal protection equipment
for purchase. For ordering information contact your local ESAB dealer or visit us on
our website.

2 INTRODUCTION
0463 697 001 -8- © ESAB AB 2021
2 INTRODUCTION
2.1 Overview
TIG torches SR-B9, SR-B17, SR-B26, SR-B26-HD, SR-B18, SR-B20, SR-B21,
SR-B400 and XCT-B400W are intended for manual TIG welding and available with water or
air cooled versions.
Certain models are available with flex heads for unlimited movement in confined spaces.
Accessories for the product can be found in the "ACCESSORIES" chapter of this
manual.
The TIG torch is supplied with:
• wear parts (except electrodes):
○ Ø 1.6mm (0.063in.) SR-B9
○ Ø 2.4mm (0.094in.) SR-B17
○ Ø 2.4mm (0.094in.) SR-B26
○ Ø 2.4mm (0.094in.) SR-B26-HD
○ Ø 2.4mm (0.094in.) SR-B20
○ Ø 2.4mm (0.094in.) SR-B21
○ Ø 2.4mm (0.094in.) SR-B400
○ Ø 2.4mm (0.094in.) XCT-B400W
• instruction manual

3 TECHNICAL DATA
0463 697 001 -9- © ESAB AB 2021
3 TECHNICAL DATA
Operating temperature range: -10 to +40°C (+14 to +104°F)
Transportation temperature range: -20 to +55°C (+4 to +131°F)
SR-B
9
9FX
SR-B
9V
SR-B
17
17FX
SR-B
17V
SR-B
26
26FX
SR-B
26V
AC [A] / %
DC [A] / %
80/60
110/60
100/60
140/60
140/60
200/60
0.5–1.6mm
(0.02– 0.063in.)
0.5–2.4mm
(0.02– 0.094in.)
0.5–4.0mm
(0.02– 0.157in.)
Ar
Ar/He
4 & 8m
(13 & 26ft)
X - X - X -
12kV
113V
SR-B
26-HD
26FX-HD
SR-B
26V-HD
SR-B
18
18FX
SR-B
20
20FX
SR-B
21
21FX
SR-B
400
XCT-B
400W
- - X X X X X
-70°C
(158 °F)
AC [A] / %
DC [A] / %
160/60
230/60
225/100
320/100
160/100
220/100
240/100
340/100
315/100
450/100
0.5–4.0mm
(0.02– 0.157in.)
0.5–3.2
(0.02– 0.126in.)
1.0–4.8
(0.039–
0.189in.)
1.6–4.0
(0.063–
0.157in.)
Ar
Ar/He
4 & 8m
(13 & 26ft)
X - X X X X X

3 TECHNICAL DATA
0463 697 001 - 10 - © ESAB AB 2021
12kV
113V
Specification of the torch cooling circuit
(for water cooled torches only)
• min. water pressure: 2.5bar
• max. water pressure: 4.0bar
The necessary cooling power is dependent of the application, the welding parameters and
the length of the torch. Sufficiency of available cooling power can be verified by measuring
the return temperature of the cooling fluid. If the return temperature is above 60°C (140°F),
the cooling power should be increased or the welding current should be reduced.
Recommended minimum values for cooling power and coolant flow rate
Welding current /
Torch length
Up to 300ADC /
210AAC
Up to 450ADC /
315AAC
Up to 500ADC /
350AAC
4m 1.0kW / 1.0l/min 1.2kW / 1.2l/min 1.6kW / 1.4l/min
8m 1.6kW / 1.2l/min 2.0kW / 1.4l/min 2.5kW / 1.7l/min
For other application parameters or longer cables, refer to additional documents that may
have been included with your torch.
CAUTION!
Return temperatures of more than 60°C can cause damage or destruction of the
torch. The cooler must always be filled with sufficient cooling liquid, refer the user
manual of the cooling unit. In case of a high thermal load on the torch, use a cooler
with sufficient capacity. Use only special cooling fluid containing corrosion inhibitors
for welding torches. We recommend using ESAB CoolingFluid.
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or
cut at a certain load without overloading. The duty cycle is valid for 40°C (104°F), or below.
Protection class
The torches protection class machine side (EN 60 529) IP3X
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects of 2.5 mm Ø and greater. Omitting second characteristic numeral.

4 OPERATION
0463 697 001 - 11 - © ESAB AB 2021
4 OPERATION
4.1 General
General safety regulations for handling the equipment can be found in the "SAFETY"
chapter of this manual. Read it through before you start using the equipment!
Read the operating instructions for the welding components, e.g. power source and connect
accordingly.
4.2 Connections
Tighten the connections for the torch carefully to avoid overheating the connection,
connection interference, mechanical damage or leakage of liquid or gas.
Connect water connections to the torch so that the red terminal is always connected to the
corresponding red terminal and the blue terminals are always connected to the
corresponding blue terminals.

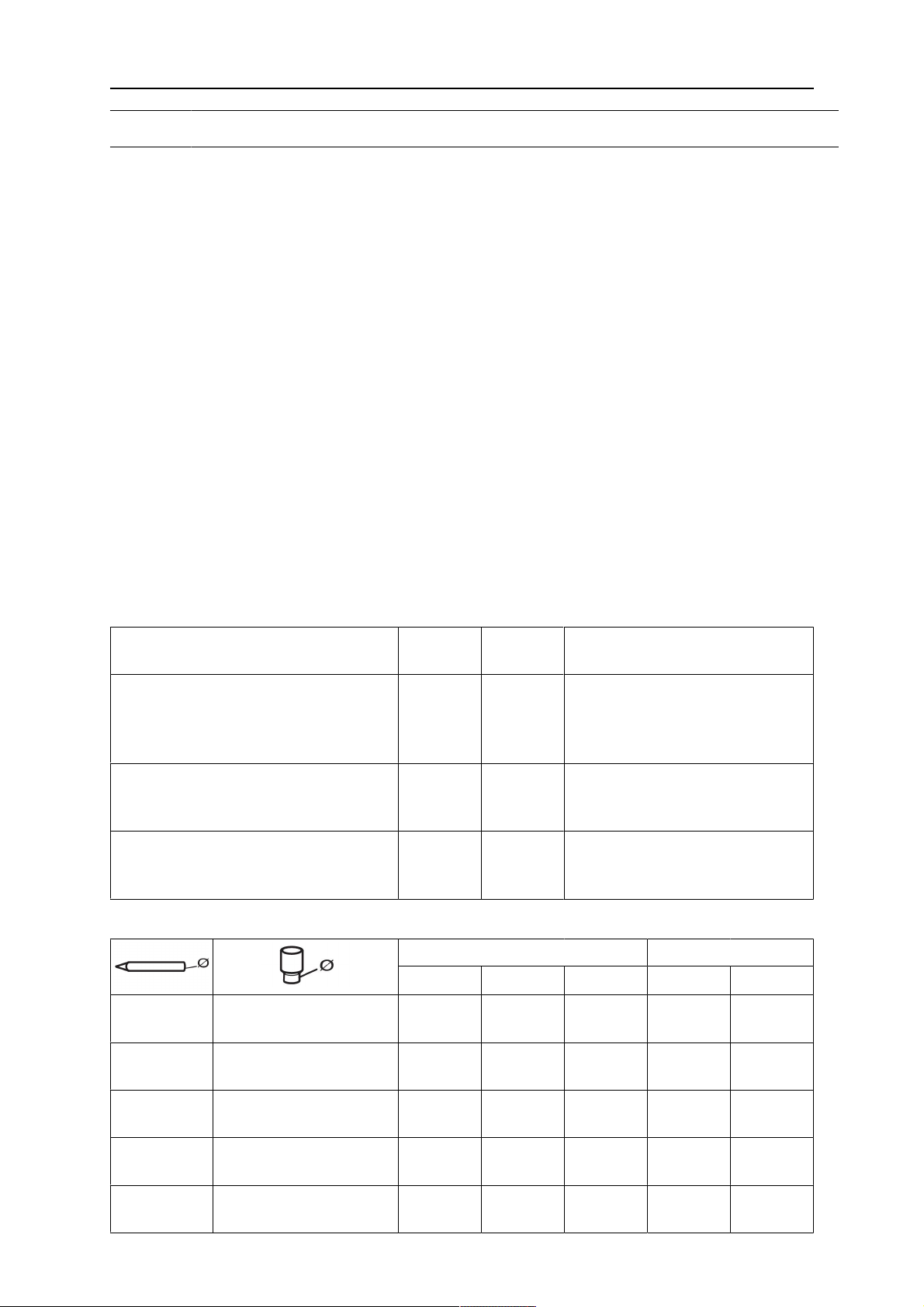

4.3 Choice of electrode
By alloying the tungsten electrode with 1% to 2% lanthanum or cerium the electron discharge
is increased, which gives better striking and restriking and therefore increased arc stability.
Alloyed tungsten electrodes have a longer service life, tolerate higher currents and are less
likely to leave tungsten residue in the weld.
Pure tungsten electrode (AC) Green WP Used for welding light metal
alloys.
Cerium alloyed tungsten electrode
(AC/DC)
Grey WC20 Used for welding light metals
such as aluminium and
magnesium. Electrode tip must
be rounded when welding.
Lanthanum alloyed tungsten
electrode (DC)
Gold WL15 Usually used for welding
stainless steel, steel, copper,
titanium etc.
Lanthanum alloyed tungsten
electrode (AC/DC)
Black WL10 Used for welding light metal
alloys, stainless steel, steel,
copper, titanium etc.
Selection table
A / AC A / DC
W CeO2 La2O3 CeO2 La2O3
1.0 mm
(0.039in.)
6.4/8.0 mm
(0.252/0.315in.)
10–60 - 15–100 70–80 20–100
1.6 mm
(0.063in.)
6.4/8.0/9.8 mm
(0.252/0.315/0.386in.)
50–100 60–90 70–160 80–140 80–160
2.4 mm
(0.094in.)
9.8/11.2/12.7 mm
(0.386/0.441/0.500in.)
100–160 90–130 110–200 150–210 120–230
3.2 mm
(0.126in.)
11.2/12.7 mm
(0.441/0.500in.)
130–180 140–190 150–205 220–320 200–305
4.0 mm
(0.157in.)
12.7 mm (0.500in.) 180–230 200–250 180–270 330–420 250–420

4 OPERATION
0463 697 001 - 12 - © ESAB AB 2021
4.4 Grinding
Grind tungsten electrodes according to the following table:
NOTE!
Tungsten electrodes must be grounded lengthways. If they are incorrectly grounded,
the arc may be unstable. When the welding current is increased, the angle must
also be increased.
When welding with alternating current (AC), the electrode end must be gently rounded.
Grinding the electrode is then unnecessary. Light grading of the edge is sufficient. The
electrode forms itself if it is carefully overloaded. If the tip becomes ball shaped while welding
using alternating current, this is a sign that the current is too high for the diameter of
electrode being used.
Welding current Electrode angle
20 A 30°
20–100 A 30°–90°
100–200 A 90°–120°
over 200 A 120°
4.5 Bending of the flexible torch
The life of the flexible torch is limited. The
maximum bending angle should be
45degrees.
The life of the torch head can be prolonged by
proper technique.
Always make sure that the torch head is
supported by the thumb when you bend. This
prevents damages at sharp bendings.
4.6 Valve torches
CAUTION!
Do not operate TIG torches with an integrated valve in the torch neck on welding
systems equipped with an ignition and stabilization device.

5 MAINTENANCE
0463 697 001 - 13 - © ESAB AB 2021
5 MAINTENANCE
NOTE!
Regular maintenance is important for safe and reliable operation.
WARNING!
The mains supply must be disconnected before cleaning.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer attempts
any work to rectify any faults in the product during the warranty period.
5.1 Daily
• Check that all cables and hoses are undamaged and that there are no kinks in them.
• Check that the gas nozzle is free from defects and suitable for the work in question.
• Check that the shielding gas flows evenly and without restriction.
• Check that the electrode is undamaged and that the electrode has been ground to the
correct angle.
• Check the water flow at the unit's return line.

6 TROUBLESHOOTING
0463 697 001 - 14 - © ESAB AB 2021
6 TROUBLESHOOTING
Read the operating instructions for the welding components, e.g. power source.
If the measures described below are not successful, consult your dealer or the manufacturer.
Problem Cause Solution
The arc does not
strike
• Cable or contact is poor.
• Torch electrode is badly
oxidised.
• There are impurities in the
shielding gas (moisture, air).
• The electrode used is too
large or stubby at low current.
• Check the cable and contact.
• Regrind along the length of
the electrode.
• Flush clean with gas.

• Replace with a smaller
electrode.
No trigger function • Control cable
interrupted/faulty.
• Check/repair.
Gas shielding is
poor
• There are impurities in the
shielding gas (moisture, air).
• There are impurities in the
base material (rust, lubricant).
• Insufficient or total lack of
shielding
gas.
• It is too draughty at the
welding site.
• Welding spray has fastened
on the gas lens or the gas
hood.
• Flush clean with
gas.
• Clean the base
material.
• Check contents of the gas
bottle/hoses and the pressure
setting.
• Shield the welding area with
protective screens.
• Clean or replace.

7 ORDERING SPARE PARTS
0463 697 001 - 15 - © ESAB AB 2021
7 ORDERING SPARE PARTS
CAUTION!
Repair and electrical work should be performed by an authorised service technician.
Use only original spare and wear parts.
SR-B9, SR-B17, SR-B26, SR-B26-HD, SR-B18, SR-B20, SR-B21, SR-B400,
XCT-B400W is designed and tested in accordance with the international and European
standards IEC-/ EN 60974-7. On completion of service or repair work, it is the responsibility
of the person(s) performing the work to ensure that the product still complies with the
requirements of the above standard.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see
esab.com. When ordering, please state product type, serial number, designation and spare
part number in accordance with the spare parts list. This facilitates dispatch and ensures
correct delivery.

ORDERING NUMBERS
0463 697 001 - 16 - © ESAB AB 2021
ORDERING NUMBERS
FX = flexible body, V = valve, HD = heavy duty, W = water cooled
Ordering no. Type Torch head TSB1025 TSB3550 W
Switch Valve F head 4m
13ft
8m
26ft
4m
13ft
8m
26ft
12m
39ft
16m
52ft
0700025500 SR-B9 X X
0700025501 SR-B9 X X
0700025502 SR-B9 X X
0700025503 SR-B9 X X
0700025504 SR-B9V X X
0700025505 SR-B9V X X
0700025506 SR-B9FX X X X
0700025507 SR-B9FX X X X
0700025508 SR-B17 X X
0700025509 SR-B17 X X
0700025510 SR-B17 X X
0700025511 SR-B17 X X
0700025512 SR-B17V X X
0700025513 SR-B17V X X
0700025514 SR-B17V X X
0700025515 SR-B17V X X
0700025516 SR-B17FX X X X
0700025517 SR-B17FX X X X
0700025518 SR-B26 X X
0700025519 SR-B26 X X
0700025520 SR-B26 X X
0700025521 SR-B26 X X
0700025522 SR-B26V X X
0700025523 SR-B26V X X
0700025524 SR-B26FX X X X
0700025525 SR-B26FX X X X
0700025526 SR-B26-HD X X
0700025527 SR-B26-HD X X
0700025528 SR-B26-HD X X
0700025529 SR-B26-HD X X
0700025530 SR-B26V-HD X X
0700025531 SR-B26V-HD X X
0700025532 SR-B26FX-
HD X X X

ORDERING NUMBERS
0463 697 001 - 17 - © ESAB AB 2021
0700025533 SR-B26FX-
HD X X X
0700025550 SR-B18 X X X
0700025551 SR-B18 X X X
0700025552 SR-B18 X X X
0700025553 SR-B18 X X X
0700025554 SR-B18FX X X X X
0700025555 SR-B18FX X X X X
0700025534 SR-B20 X X X
0700025535 SR-B20 X X X
0700025536 SR-B20FX X X X X
0700025537 SR-B20FX X X X X
0700025544 SR-B21 X X X
0700025545 SR-B21 X X X
0700025546 SR-B21 X X X
0700025547 SR-B21 X X X
0700025548 SR-B21FX X X X X
0700025549 SR-B21FX X X X X
0700025538 SR-B400 X X X
0700025539 SR-B400 X X X
0700025540 XCT-B400W X X X
0700025541 XCT-B400W X X X
0700025542 XCT-B400W X X X
0700025543 XCT-B400W X X X
0463698001 Spare parts list
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see
esab.com. When ordering, please state product type, serial number, designation and spare
part number in accordance with the spare parts list. This facilitates dispatch and ensures
correct delivery.
CAUTION!
Repair and electrical work should be performed by an authorised ESAB service
technician. Use only ESAB original spare and wear parts.
Technical documentation is available on the Internet at www.esab.com.

WEAR PARTS
0463 697 001 - 18 - © ESAB AB 2021
WEAR PARTS
Tungsten electrodes Eco
Ordering no.
150 mm
Ordering no.
175 mm
Tungsten
electrodes Eco
Diameter Colour Code Current
-
0151 574 245
0151 574 210
0151 574 211
-
0151 574 009
-
0151 574 010
0151 574 011
0151 574 012
Wolfram, pure
Wolfram, pure
Wolfram, pure
Wolfram, pure
Wolfram, pure
Ø 1.6
Ø 2.0
Ø 2.4
Ø 3.2
Ø 4.0
Green
Green
Green
Green
Green
WP
WP
WP
WP
WP
AC
AC
AC
AC
AC
0151 574 237
0151 574 242
0151 574 238
0151 574 239
0151 574 240
0151 574 037
-
0151 574 038
0151 574 039
0151 574 040
Cerium 2%
Cerium 2%
Cerium 2%
Cerium 2%
Cerium 2%
Ø 1.6
Ø 2.0
Ø 2.4
Ø 3.2
Ø 4.0
Grey
Grey
Grey
Grey
Grey
WC20
WC20
WC20
WC20
WC20
AC/DC
AC/DC
AC/DC
AC/DC
AC/DC
0151 574 230
0151 574 231
0151 574 243
0151 574 232
0151 574 233
0151 574 234
0151 574 235
0151 574 050
0151 574 051
0151 574 246
0151 574 052
0151 574 053
0151 574 054
0151 574 055
Lanthanum 1.5%
Lanthanum 1.5%
Lanthanum 1.5%
Lanthanum 1.5%
Lanthanum 1.5%
Lanthanum 1.5%
Lanthanum 1.5%
Ø 1.0
Ø 1.6
Ø 2.0
Ø 2.4
Ø 3.2
Ø 4.0
Ø 4.8
Gold
Gold
Gold
Gold
Gold
Gold
Gold
WL15
WL15
WL15
WL15
WL15
WL15
WL15
AC/DC
AC/DC
AC/DC
AC/DC
AC/DC
AC/DC
AC/DC
SR-B 9, SR-B20, SR-B21
Nozzles, collets, collet bodies and gas lenses:
Bold = standard delivery
Item Size Description Ordering no.
1Long
Medium
Short
Back cap 0365 310 051
0365 310 050
0365 310 049
2Heat shield 0366 960 017
3Adaptor Jumbo gas lens 0157 123 026
4Ø 0.5
Ø 1.0
Ø 1.6
Ø 2.0
Ø 2.4
Ø 3.0
Ø 3.2
Collet standard

Std. for SR-B9

Std. for SR-B20/21
0365 310 027
0365 310 028
0365 310 029
0700 025 662
0365 310 030
0700 025 663
0365 310 091

WEAR PARTS
0463 697 001 - 19 - © ESAB AB 2021
5Ø 1.0
Ø 1.6
Ø 2.4
Ø 3.2
Collet body standard
Std. for SR-B 9
Std. for SR-B 20/21
0365 310 037
0365 310 038
0365 310 039
0365 310 090
6Ø 1.0
Ø 1.6
Ø 2.4
Ø 3.2
Collet body with gas lens 0157 121 016
0157 121 017
0157 121 018
0157 121 041
7Ø 6.4 (No. 4)
Ø 8.0 (No. 5)
Ø 9.8 (No. 6)
Ø 11.2 (No.7)
Ø 12.7 (No. 8)
Ø 15.9 (No. 10)
Gas nozzle standard
L=30mm
Std. for SR-B9
Std. for SR-B20/21
0365 310 044
0365 310 045
0365 310 046
0365 310 047
0365 310 048
0588 000 440
not illustrated Ø 5.0 (No. 3)
Ø 6.4 (No. 4)
Ø 8.0 (No. 5)
Ø 9.5 (No. 6)
Ø 6.5 (No. 4)
Ø 8.0 (No. 5)
Ø 9.5 (No. 6)
Ø 6.5 (No. 4)
Gas nozzle standard
L=48mm


L=63mm


L=89mm
0700 025 664
0700 025 665
0700 025 666
0700 025 667
0700 025 668
0700 025 669
0700 025 670
0700 025 671
8Ø 6.4 (No.4)
Ø 8.0 (No.5)
Ø 9.8 (No.6)
Ø 11.2 (No.7)
Ø 12.7 (No.8)
Ø 16.0 (No. 10)
Gas nozzle for gas lens
L=25.5mm
0157 121 032
0157 121 033
0157 121 034
0157 121 039
0157 121 040
0700 025 698
not illustrated Ø 6.4 (No. 4)
Ø 8.0 (No. 5)
Ø 9.8 (No. 6)
Ø 11.2 (No.7)
Ø 16.0 (No. 10)
Gas nozzle for gas lens
L=35mm
0700 025 658
0700 025 659
0700 025 660
0700 025 661
0700 025 699
9Ø 1.0
Ø 1.6
Ø 2.4
Ø 3.2
Collet for Jumbo gas lens 0700 025 672
0700 025 673
0700 025 674
0700 025 675

WEAR PARTS
0463 697 001 - 20 - © ESAB AB 2021
10 Ø 1.0-1.6
Ø 2.4
Ø 3.2
Gas lens, Jumbo 0700 025 676
0700 025 677
0700 025 678
11 Ø 9.8 (No. 6)
Ø 12.7 (No. 8)
Ø 15.9 (No. 10)
Ø 19.0 (No. 12)
Ø 24.0
Ø 24.0
Gas nozzle for Jumbo gas lens

L=48mm


L=34mm
0157 123 088
0157 123 089
0588 000 438
0157 123 098
0588 000 437
0700 025 679
