ESAB WeldCloud Mobile User manual

Instruction manual
0464 547 001 GB 20171106 Valid for: Serial no: 648-xxx-xxxx
WeldCloud™ Mobile

TABLE OF CONTENTS
0464 547 001 © ESAB AB 2017
1SAFETY ....................................................................................................... 4
1.1 Meaning of symbols ............................................................................... 4
1.2 Safety precautions ................................................................................. 4
2INTRODUCTION.......................................................................................... 6
2.1 Equipment ............................................................................................... 6
3TECHNICAL DATA ...................................................................................... 7
4INSTALLATION............................................................................................ 8
5OPERATION ................................................................................................ 10
5.1 Connections and control devices ......................................................... 10
5.2 Startup sequence ................................................................................... 11
6MAINTENANCE........................................................................................... 12
6.1 Inspection and cleaning......................................................................... 12
7ORDERING SPARE PARTS ........................................................................ 13
DIAGRAM ............................................................................................................. 14
ORDERING NUMBERS........................................................................................ 15
ACCESSORIES .................................................................................................... 16
Rights reserved to alter specifications without notice.

1 SAFETY
0464 547 001 -4- © ESAB AB 2017
1 SAFETY
1.1 Meaning of symbols
As used throughout this manual: Means Attention! Be Alert!
DANGER!
Means immediate hazards which, if not avoided, will result in immediate,
serious personal injury or loss of life.
WARNING!
Means potential hazards which could result in personal injury or loss of
life.
CAUTION!
Means hazards which could result in minor personal injury.
WARNING!
Before use, read and understand the instruction manual
and follow all labels, employer´s safety practices and Safety
Data Sheets (SDSs).
1.2 Safety precautions
Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety
precautions must meet the requirements that apply to this type of equipment. The following
recommendations should be observed in addition to the standard regulations that apply to
the workplace.
All work must be carried out by trained personnel well-acquainted with the operation of the
equipment. Incorrect operation of the equipment may lead to hazardous situations which can
result in injury to the operator and damage to the equipment.
1. Anyone who uses the equipment must be familiar with:
○ its operation
○ location of emergency stops
○ its function
○ relevant safety precautions
○ welding and cutting or other applicable operation of the equipment
2. The operator must ensure that:
○ no unauthorised person is stationed within the working area of the equipment
when it is started up
○ no-one is unprotected when the arc is struck or work is started with the
equipment
3. The workplace must:
○ be suitable for the purpose
○ be free from drafts

1 SAFETY
0464 547 001 -5- © ESAB AB 2017
4. Personal safety equipment:
○ Always wear recommended personal safety equipment, such as safety glasses,
flame-proof clothing, safety gloves
○ Do not wear loose-fitting items, such as scarves, bracelets, rings, etc., which
could become trapped or cause burns
5. General precautions:
○ Make sure the return cable is connected securely
○ Work on high voltage equipment may only be carried out by a qualified
electrician
○ Appropriate fire extinguishing equipment must be clearly marked and close at
hand
○ Lubrication and maintenance must not be carried out on the equipment during
operation
CAUTION!
Class A equipment is not intended for use in residential
locations where the electrical power is provided by the
public low-voltage supply system. There may be potential
difficulties in ensuring electromagnetic compatibility of class
A equipment in those locations, due to conducted as well
as radiated disturbances.
NOTE!
Dispose of electronic equipment at the recycling
facility!
In observance of European Directive 2012/19/EC on Waste
Electrical and Electronic Equipment and its implementation
in accordance with national law, electrical and/or electronic
equipment that has reached the end of its life must be
disposed of at a recycling facility.
As the person responsible for the equipment, it is your
responsibility to obtain information on approved collection
stations.
For further information contact the nearest ESAB dealer.
ESAB has an assortment of welding accessories and personal protection equipment
for purchase. For ordering information contact your local ESAB dealer or visit us on
our website.

2 INTRODUCTION
0464 547 001 -6- © ESAB AB 2017
2 INTRODUCTION
WeldCloud™ Mobile enables two-way communication between the welding power source
and a remote WeldCloud™ server, either through Wi-Fi, Wired LAN or 3G. The
WeldCloud™ Mobile incorporates a GPS functionality to track the location of the welding
power source. There is also a Bluetooth interface to enable connection to a Bluetooth
device, for example a Bluetooth enabled bar code scanner.
WeldCloud™ Mobile can be used with power sources that are fitted with a W82control unit
or a PEK control panel.
2.1 Equipment
WeldCloud™ Mobile is supplied with:
• An instruction manual
• A control cable for connection to a W82control unit or to a PEK control panel
• Two Ethernet cables for connection to LAN and W82control unit or PEK control panel
Instruction manuals in other languages can be downloaded from the Internet:
www.esab.com

3 TECHNICAL DATA
0464 547 001 -7- © ESAB AB 2017
3 TECHNICAL DATA
WeldCloud™ Mobile
Supply voltage from power source through W8232-50 V AC, 50-60 Hz
Weight 2.15 kg (4.74lb)
Dimensions (l × w × h) 205 × 135 × 189 mm
(8.07×5.31×7.44in.)
Enclosure class IP23
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects or water.

4 INSTALLATION
0464 547 001 -8- © ESAB AB 2017
4 INSTALLATION
WeldCloud™ Mobile can be used with all power sources that are fitted with a W82control
unit or PEK control panel.
Install the WeldCloud™ Mobile on the W82
1. Clean the top of the W82control unit
using alcohol before assembling the
WeldCloud™ Mobile on top of it.
2. Remove the protection cover on the Dual
Lock fastener.
3. Attach the WeldCloud™ Mobile centered
on the W82control unit as indicated by
the grey area in the illustration.
Connect the WeldCloud™ Mobile
1. Make sure that all the involved equipment
is powered down.
2. Connect the control cable from the
Internal CAN on the W82control unit to
the CAN connector on the WeldCloud™
Mobile.
3. Connect the Ethernet cable from the W82
control unit to LAN port 1 on the
WeldCloud™ Mobile.
4. Optional, if not using Wi-Fi or 3G:
Connect an Ethernet cable from the LAN
connector 2 on the WeldCloud™ Mobile
to external LAN. Make sure not to clamp
the Ethernet cable with power cables or
welding cables.
For connections on WeldCloud™ Mobile,
see section OPERATION.
CAUTION!
When using WeldCloud™ Mobile on a tractor, do not use wired LAN for data
transfer. Risk for personal injury or damaged equipment.
Make sure the antenna on the WeldCloud™ Mobile is not covered or blocked.
NOTE!
The Dual Lock adhesive bonds with the surface of the W82control unit for 24
hours to gain full strength.

4 INSTALLATION
0464 547 001 -9- © ESAB AB 2017

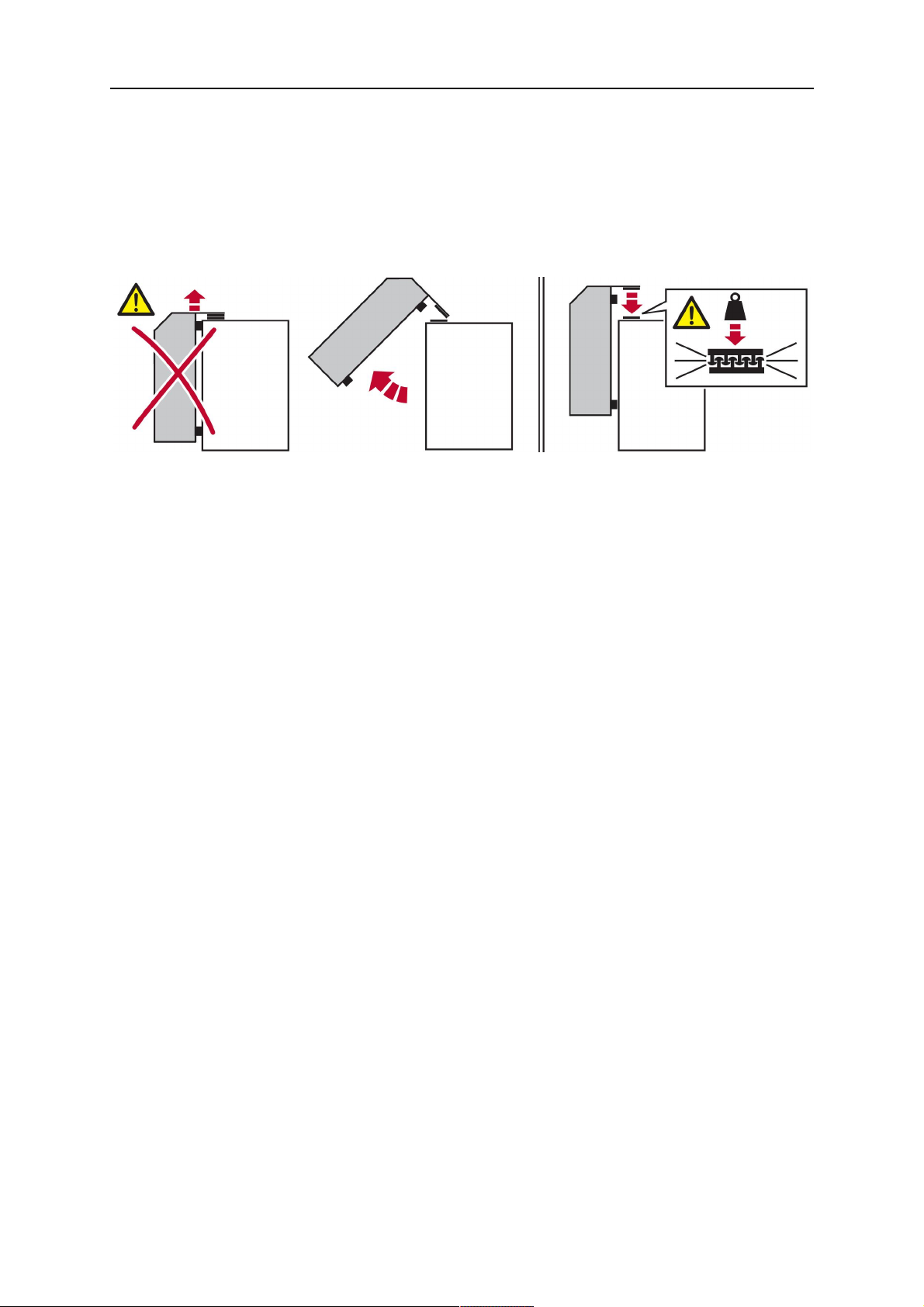

Remove and attach the WeldCloud™ Mobile on the W82
To remove: Grab the bottom of the WeldCloud™ Mobile and pull it slowly outwards from the
W82control unit, as shown to the left in the illustration below.
To attach: Put the WeldCloud™ Mobile straight down on the W82control unit, as shown to
the right in the illustration below. Make sure that the Dual Lock fastener stems are
completely fitted.
Install WeldCloud™ Mobile with PEK
Contact your service center for guidance for the specific system configuration.

5 OPERATION
0464 547 001 - 10 - © ESAB AB 2017
5 OPERATION

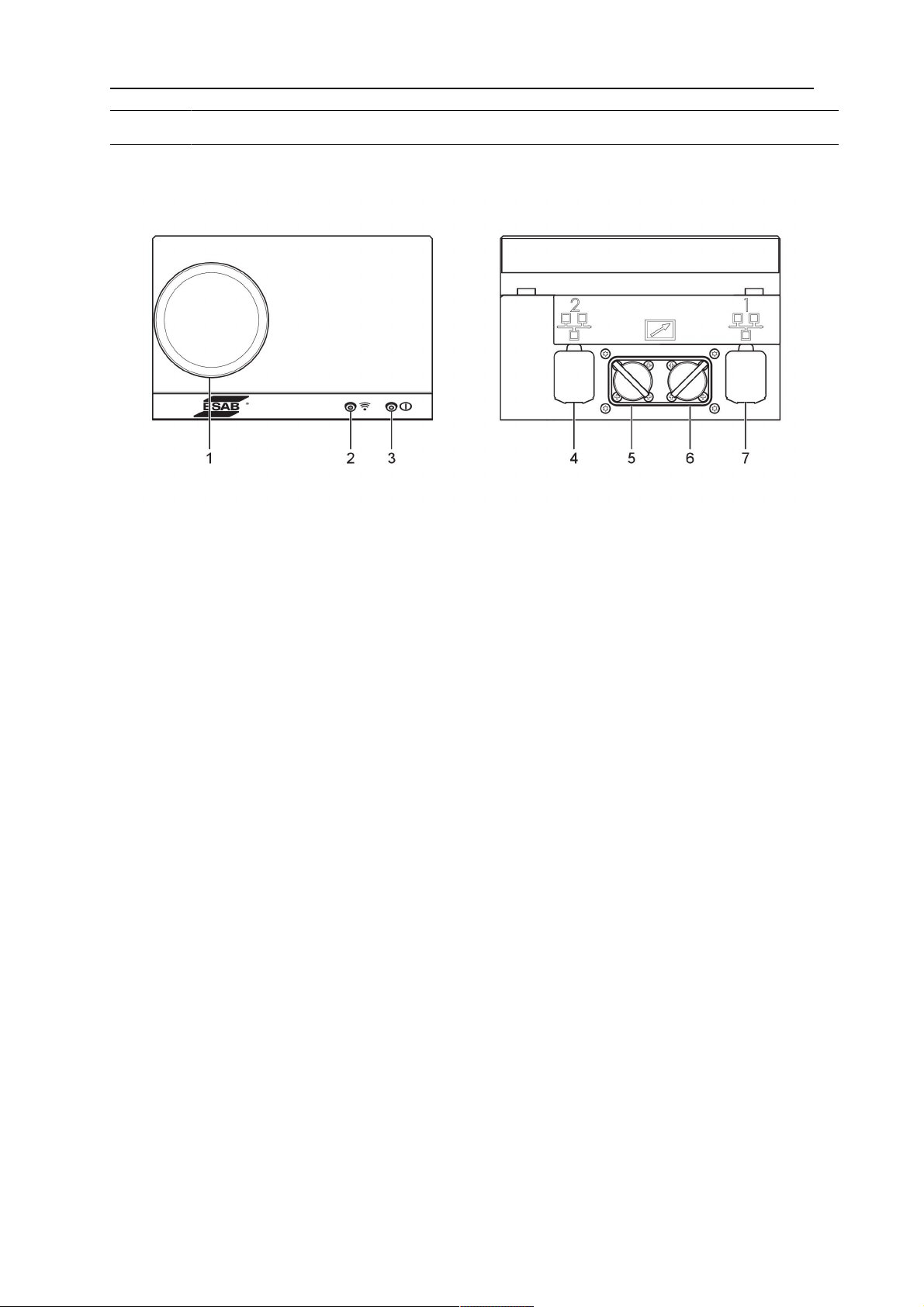

5.1 Connections and control devices
1. Antenna
Combined Wi-Fi, 3G and GPS antenna to provide wireless connectivity
2. Status indicating LED
Indicates the status of WeldCloud™ Mobile
3. Power on LED
Indicates that there is power to the WeldCloud™ Mobile
4. LAN connector 2
Ethernet port 2 used for external connections
5. CAN connector, male
Used to provide power supply to WeldCloud™ Mobile and to connect the control
cable to the W82control unit or to the PEK control panel
6. CAN connector, female
Used for communication with ESAB wire feed unit
7. LAN connector 1
Ethernet port 1 used to connect to W82control unit or to PEK control panel

5 OPERATION
0464 547 001 - 11 - © ESAB AB 2017
5.2 Startup sequence
The WeldCloud™ Mobile starts when it receives power from the W82or PEK through the
control cable connected to W82or PEK. Data communication between the WeldCloud™
Mobile and W82or PEK goes through the Ethernet cable.

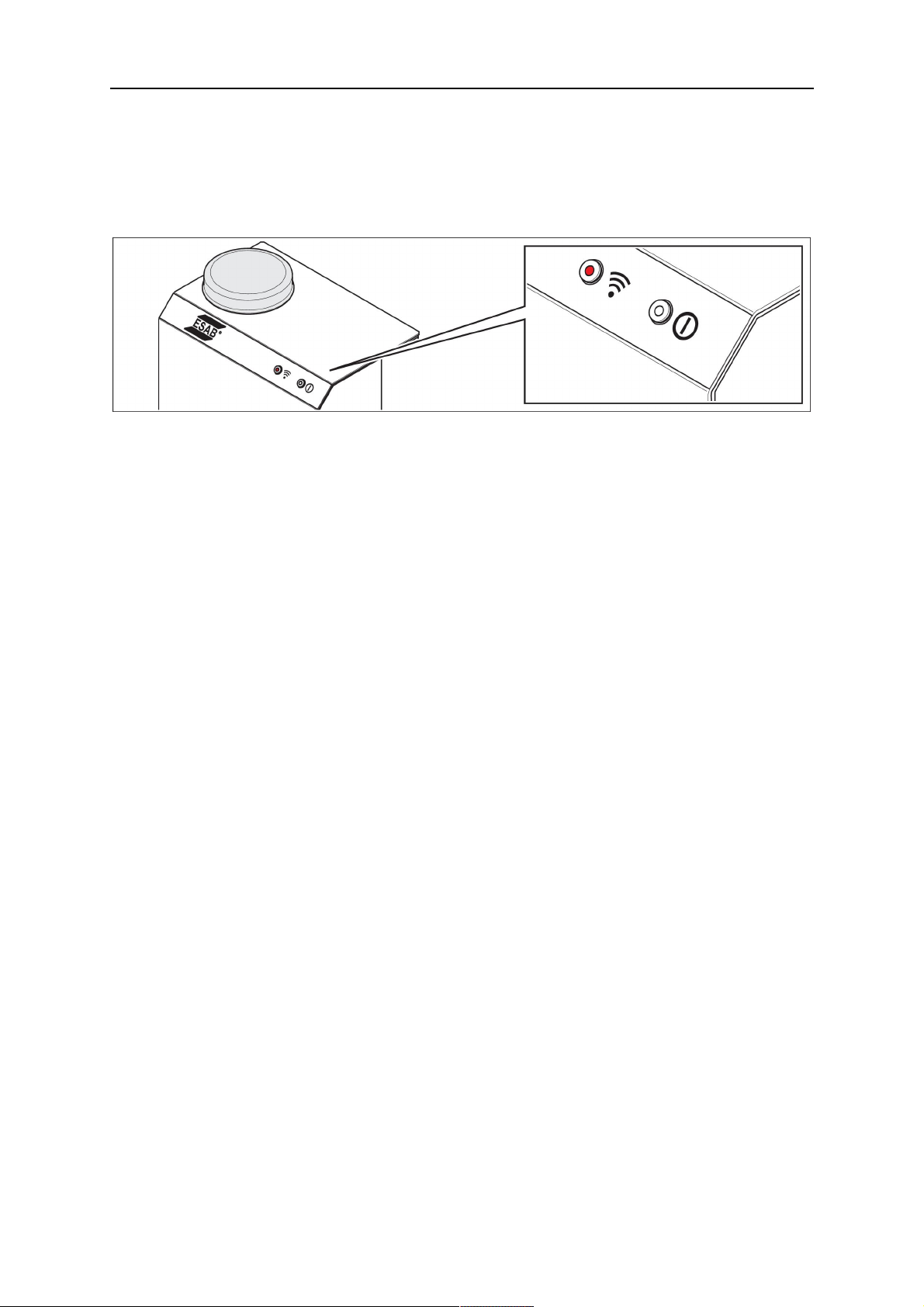

A – The white LED
The white LED on the WeldCloud™ Mobile indicates that the WeldCloud™ Mobile has
power.
B – The red LED
The red LED on the WeldCloud™ Mobile indicates the status of the unit.
At startup of WeldCloud™ Mobile, the red LED lights up for up to 2 minutes to indicate that
the startup is complete and that no error is found.
When the red LED is off after startup, there are no detected problems.
A steady lit red LED after start up sequence indicates that the configuration file is corrupt or
that there is an error on the equipment or network parameter.
Red LED blinking:
• short-short signal indicates no connection to WeldCloud™
• short-long-long signal indicates no connection with W82or PEK
Combination of both blinking is possible.
C – Wi-Fi operation
The Wi-Fi is enabled after power up of the welding power source.
It will start up as a hotspot with a default hotspot name. This hotspot appears as an
available Wi-Fi network. After establishing connection, it is possible to access the web
interface of the power source. For more information about the WeldCloud™ unit and
features, see the instruction manual for WeldCloud™.
Instruction manuals and the spare parts list are available on the Internet at: www.esab.com

6 MAINTENANCE
0464 547 001 - 12 - © ESAB AB 2017
6 MAINTENANCE
NOTE!
Regular maintenance is important for safe and reliable operation.
CAUTION!
Only persons with the appropriate electrical knowledge (authorised personnel)
may remove the safety plates.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer
attempts any work to rectify any faults in the product during the warranty period.
6.1 Inspection and cleaning
Regularly check that the control unit is in electrical contact with the power source and that
the connections are fault-free and correctly connected.

7 ORDERING SPARE PARTS
0464 547 001 - 13 - © ESAB AB 2017
7 ORDERING SPARE PARTS
WeldCloud™ Mobile is designed and tested in accordance with the European standards EN
60950-1:2012 and EN 60974-10:2014. It is the obligation of the service unit which has
carried out the service or repair work to make sure that the product still conforms to the
mentioned standards.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back
cover of this document. When ordering, please state product type, serial number, designation
and spare part number in accordance with the spare parts list. This facilitates dispatch and
ensures correct delivery.

DIAGRAM
0464 547 001 - 14 - © ESAB AB 2017
DIAGRAM

ORDERING NUMBERS
0464 547 001 - 15 - © ESAB AB 2017
ORDERING NUMBERS
Ordering no. Denomination Notes
0464 550 880 WeldCloud™ Mobile Wi-Fi/Wired
LAN/3G/Bluetooth
communication, GPS
functionality
0463 450 *01 Instruction manual WeldCloud™ WeldCloud™ software
0463 391 001 Spare parts list WeldCloud™ Mobile
0740 800 203 Service manual W82, Retrofit Mig 4004i
WeldCloud™, WeldCloud™ Mobile
Instruction manuals and the spare parts list are available on the Internet at: www.esab.com

ACCESSORIES
0464 547 001 - 16 - © ESAB AB 2017
ACCESSORIES
0456 527 885 Control cable (connectors included)
0.45 m, 12 poles
0465 816 001 Ethernet cable (connectors included)
0.5 m industrial

ACCESSORIES
0464 547 001 - 17 - © ESAB AB 2017

ESAB subsidiaries and representative offices
www.esab.com
Europe
AUSTRIA
ESAB Ges.m.b.H
Vienna-Liesing
Tel: [phone]
Fax: [phone]
BELGIUM
S.A. ESAB N.V.
Heist-op-den-Berg
Tel: [phone]
Fax: [phone]
BULGARIA
ESAB Kft Representative Office
Sofia
Tel: [phone]
Fax: [phone]
THE CZECH REPUBLIC
ESAB VAMBERK s.r.o.
Vamberk
Tel: [phone]
Fax: [phone]
DENMARK
Aktieselskabet ESAB
Herlev
Tel: [phone]
Fax: [phone]
FINLAND
ESAB Oy
Helsinki
Tel: [phone]
Fax: [phone]
GREAT BRITAIN
ESAB Group (UK) Ltd
Waltham Cross
Tel: [phone]
Fax: [phone]
ESAB Automation Ltd
Andover
Tel: [phone]
Fax: [phone]
FRANCE
ESAB France S.A.
Cergy Pontoise
Tel: [phone]
Fax: [phone]
GERMANY
ESAB Welding & Cutting GmbH
Langenfeld
Tel: [phone]
Fax: [phone]
HUNGARY
ESAB Kft
Budapest
Tel: [phone]
Fax: [phone]
ITALY
ESAB Saldatura S.p.A.
Bareggio (Mi)
Tel: [phone]
Fax: [phone]
THE NETHERLANDS
ESAB Nederland B.V.
Amersfoort
Tel: [phone]
Fax: [phone]
NORWAY
AS ESAB
Larvik
Tel: [phone]
Fax: [phone]
POLAND
ESAB Sp.zo.o.
Katowice
Tel: [phone]
Fax: [phone]
PORTUGAL
ESAB Lda
Lisbon
Tel: [phone]
Fax: [phone]
ROMANIA
ESAB Romania Trading SRL
Bucharest
Tel: [phone]
Fax: [phone]
RUSSIA
LLC ESAB
Moscow
Tel: [phone]
Fax: [phone]
SLOVAKIA
ESAB Slovakia s.r.o.
Bratislava
Tel: [phone]
Fax: [phone]
SPAIN
ESAB Ibérica S.A.
San Fernando de Henares
(MADRID)
Tel: [phone]
Fax: [phone]
SWEDEN
ESAB Sverige AB
Gothenburg
Tel: [phone]
Fax: [phone]
ESAB International AB
Gothenburg
Tel: [phone]
Fax: [phone]
SWITZERLAND
ESAB Europe GmbH
Baar
Tel: [phone]
Fax: [phone]
UKRAINE
ESAB Ukraine LLC
Kiev
Tel: [phone]
Fax: [phone]
North and South America
ARGENTINA
CONARCO
Buenos Aires
Tel: [phone]
Fax: [phone]
BRAZIL
ESAB S.A.
Contagem-MG
Tel: [phone]
Fax: [phone]
CANADA
ESAB Group Canada Inc.
Missisauga, Ontario
Tel: [phone]
Fax: [phone]
MEXICO
ESAB Mexico S.A.
Monterrey
Tel: [phone]
Fax: [phone]
USA
ESAB Welding & Cutting
Products
Florence, SC
Tel: [phone]
Fax: [phone]
Asia/Pacific
AUSTRALIA
ESAB South Pacific
Archerfield BC QLD 4108
Tel: [phone]
Fax: [phone]
CHINA
Shanghai ESAB A/P
Shanghai
Tel: [phone]
Fax: [phone]
INDIA
ESAB India Ltd
Calcutta
Tel: [phone]
Fax: [phone]
INDONESIA
P.T. ESABindo Pratama
Jakarta
Tel: [phone]
Fax: [phone]
JAPAN
ESAB Japan
Tokyo
Tel: [phone]
Fax: [phone]
MALAYSIA
ESAB (Malaysia) Snd Bhd
USJ
Tel: [phone]
Fax: [phone]
SINGAPORE
ESAB Asia/Pacific Pte Ltd
Singapore
Tel: [phone]
Fax: [phone]
SOUTH KOREA
ESAB SeAH Corporation
Kyungnam
Tel: [phone]
Fax: [phone]
UNITED ARAB EMIRATES
ESAB Middle East FZE
Dubai
Tel: [phone]
Fax: [phone]
Africa
EGYPT
ESAB Egypt
Dokki-Cairo
Tel: [phone]
Fax: [phone]
SOUTH AFRICA
ESAB Africa Welding & Cutting
Ltd
Durbanvill 7570 - Cape Town
Tel: [phone]
Distributors
For addresses and phone
numbers to our distributors in
other countries, please visit our
home page
www.esab.com
