2 INTRODUCTION
The wire feed unit YardFeed 2000 with control panel U6 or MA23, is intended for MIG/MAG
welding together with Aristo / Origo welding power sources.
It comes in different variants, see chapter "ORDERING NUMBERS".
The wire feed unit contains a four-wheel drive wire feed mechanism as well as control
electronics.
ESAB accessories for the product can be found in the "ACCESSORIES" chapter of
this manual.
2.1 Equipment
The wire feed unit is supplied with:
• Instruction manual for the wire feed unit
• Instruction manual for the control panel
Instruction manuals in other languages can be downloaded from the website,
www.esab.com.
• Decal with recommended wear parts
• Gas flow meter
2.2 Control panel
U6
With knobs for setting the voltage and wire feed speed /
current. Other settings by pushbuttons, with text indication on
the display panel.
MA23 Knobs for setting the voltage and the wire feed speed / current.
Other settings with push buttons.
See the separate instruction manual for a detailed description of the control panel.

3 TECHNICAL DATA
0459 936 301 -9- © ESAB AB 2017
3 TECHNICAL DATA
YardFeed 2000
Mains voltage 42 V 50-60 Hz
Power requirement 180 VA
Motor current Imax 3.5 A
Wire feed speed 0.8 -25.0 m/min
Torch connection EURO
Max. diameter wire bobbin 200 mm
Wire dimension
Fe
Ss
Al
Cored wire

0.6 - 1.2 mm
0.6 - 1.2 mm
1.0 - 1.2 mm
0.8 - 1.2 mm
Operating temperature -10 to + 40° C
Weight 11.3 kg
Dimensions (l x w x h) 593 x 210 x 302 mm
Shielding gas
max pressure
All types intended for MIG/MAG welding
5 bar
Type of cooling
max pressure
50% water / 50% mono-ethylene glycol
5 bar
Maximum permissible load at
60% duty cycle

365 A
Enclosure class IP23
Duty cycle
The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or
cut at a certain load without overloading. The duty cycle is valid for 40°C/104°F, or below.
Enclosure class
The IP code indicates the enclosure class, i.e. the degree of protection against penetration
by solid objects or water.
Equipment marked IP23 is intended for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.

4 INSTALLATION
0459 936 301 - 10 - © ESAB AB 2017
4 INSTALLATION
The installation must be carried out by a professional.
NOTE!
Mains supply requirements
This equipment complies with IEC 61000-3-12 provided that the short-circuit
power is greater than or equal to Sscmin at the interface point between the user's
supply and the public system. It is the responsibility of the installer or user of the
equipment to ensure, by consultation with the distribution network operator if
necessary, that the equipment is connected only to a supply with a short-circuit
power greater than or equal to Sscmin. Refer to the technical data in the
TECHNICAL DATA chapter.

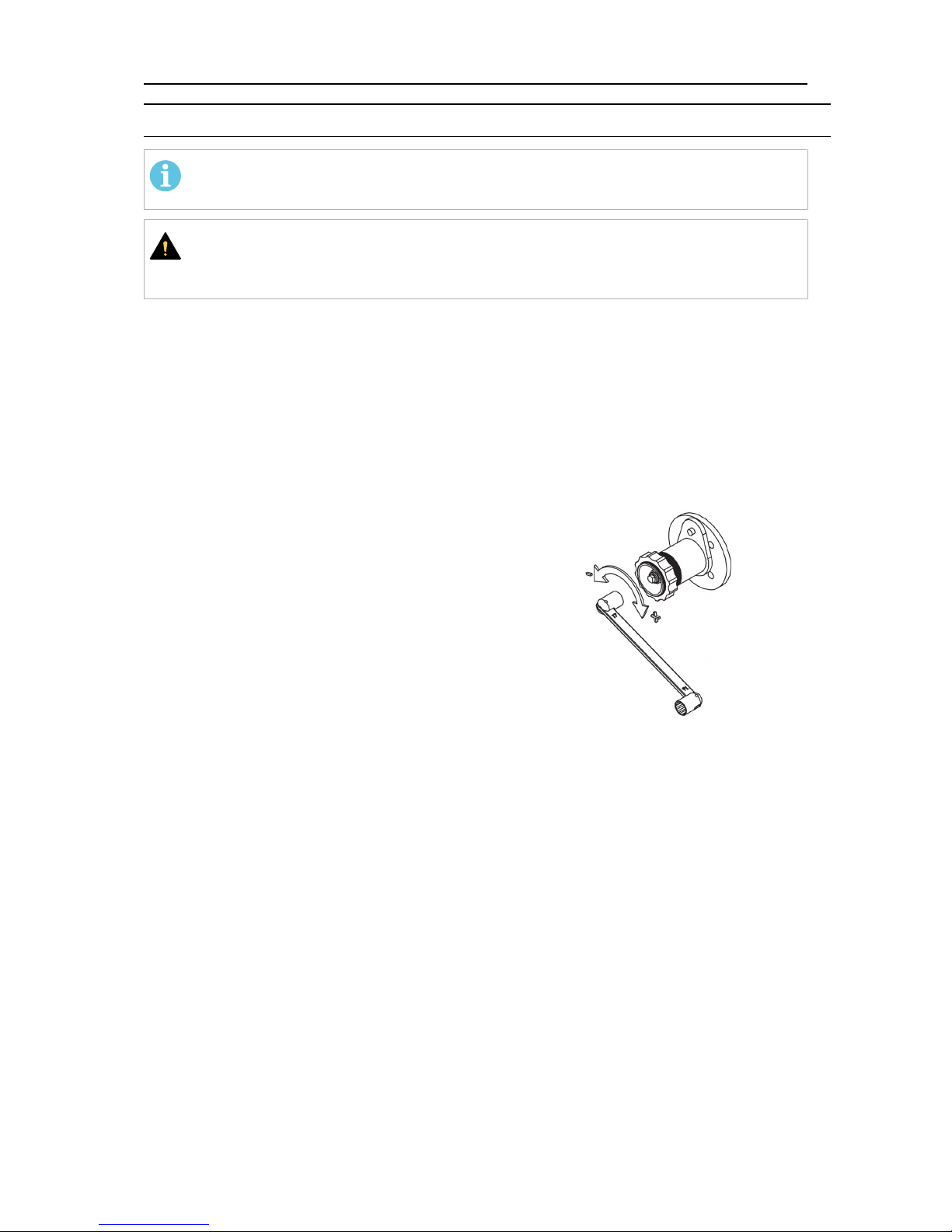

WARNING!
When welding in an environment with increased electrical danger, only power
sources intended for this environment may be used. These power sources are
marked with the symbol .

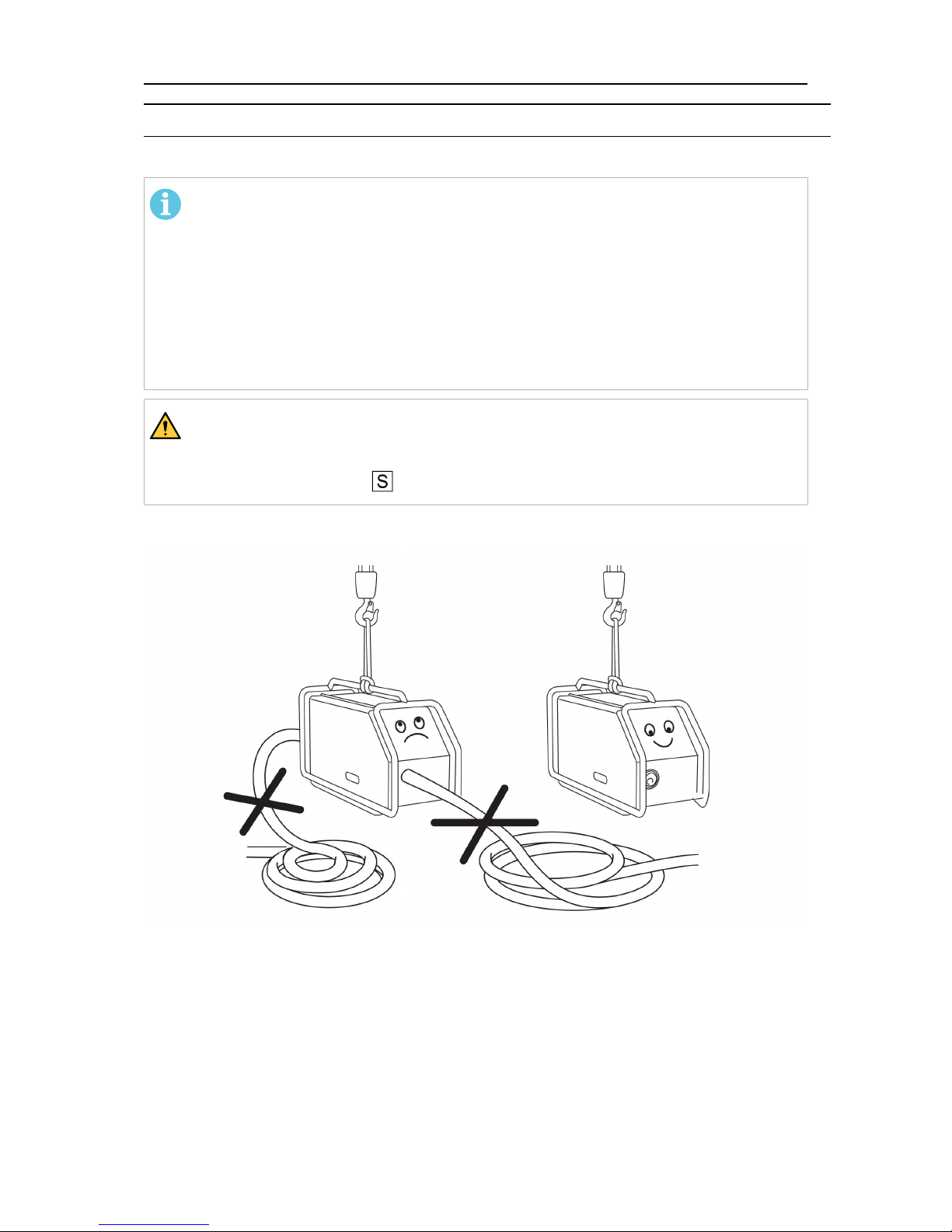

4.1 Lifting instructions

5 OPERATION
0459 936 301 - 11 - © ESAB AB 2017
5 OPERATION
General safety regulations for handling the equipment can be found in the "SAFETY"
chapter of this manual. Read it through before you start using the equipment!

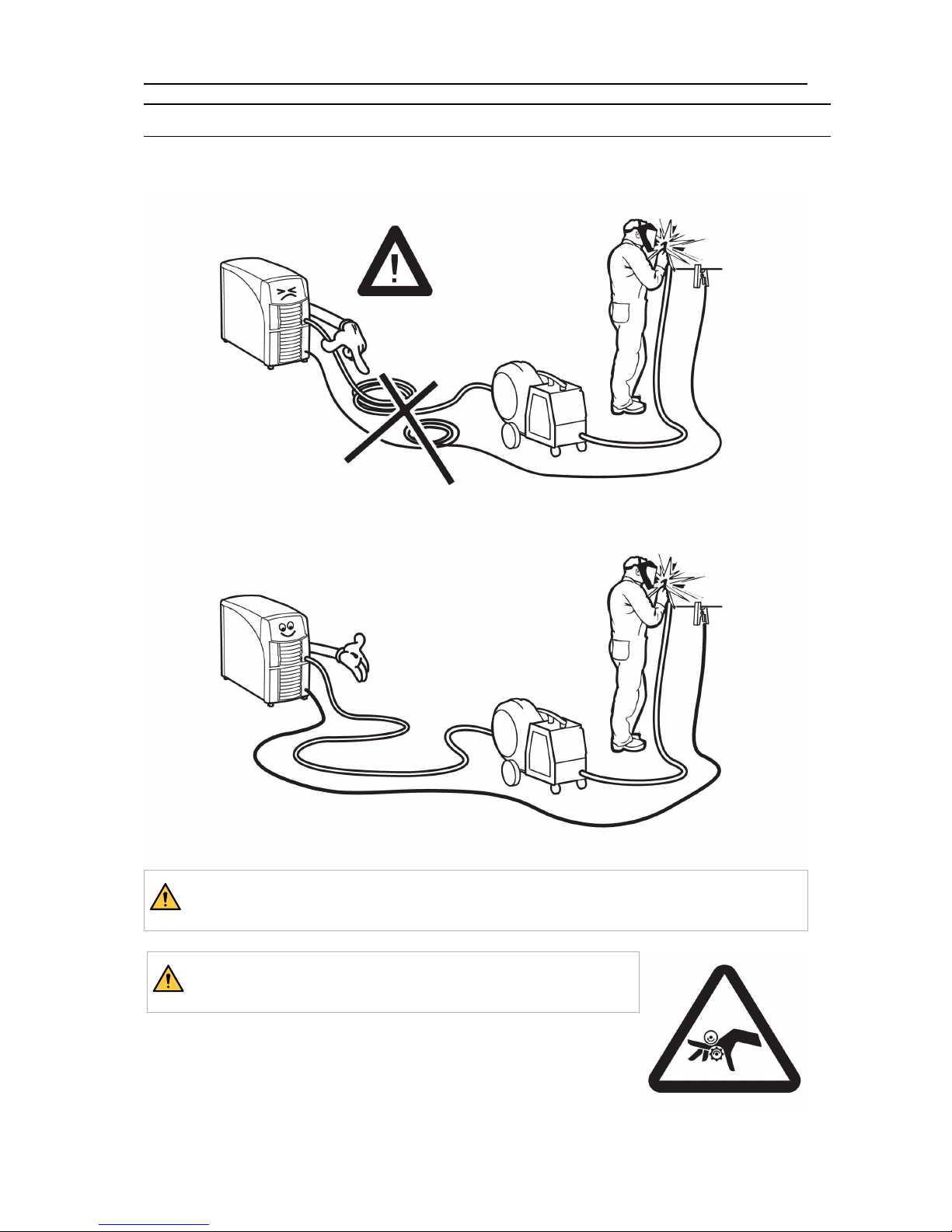

WARNING!
Assure that the side panels are closed during operation.
WARNING!
Rotating parts can cause injury, take great care.

5 OPERATION
0459 936 301 - 12 - © ESAB AB 2017
WARNING!
Risk of crushing when replacing the wire bobbin!
Do not use safety gloves when inserting the welding
wire between the feed rollers.

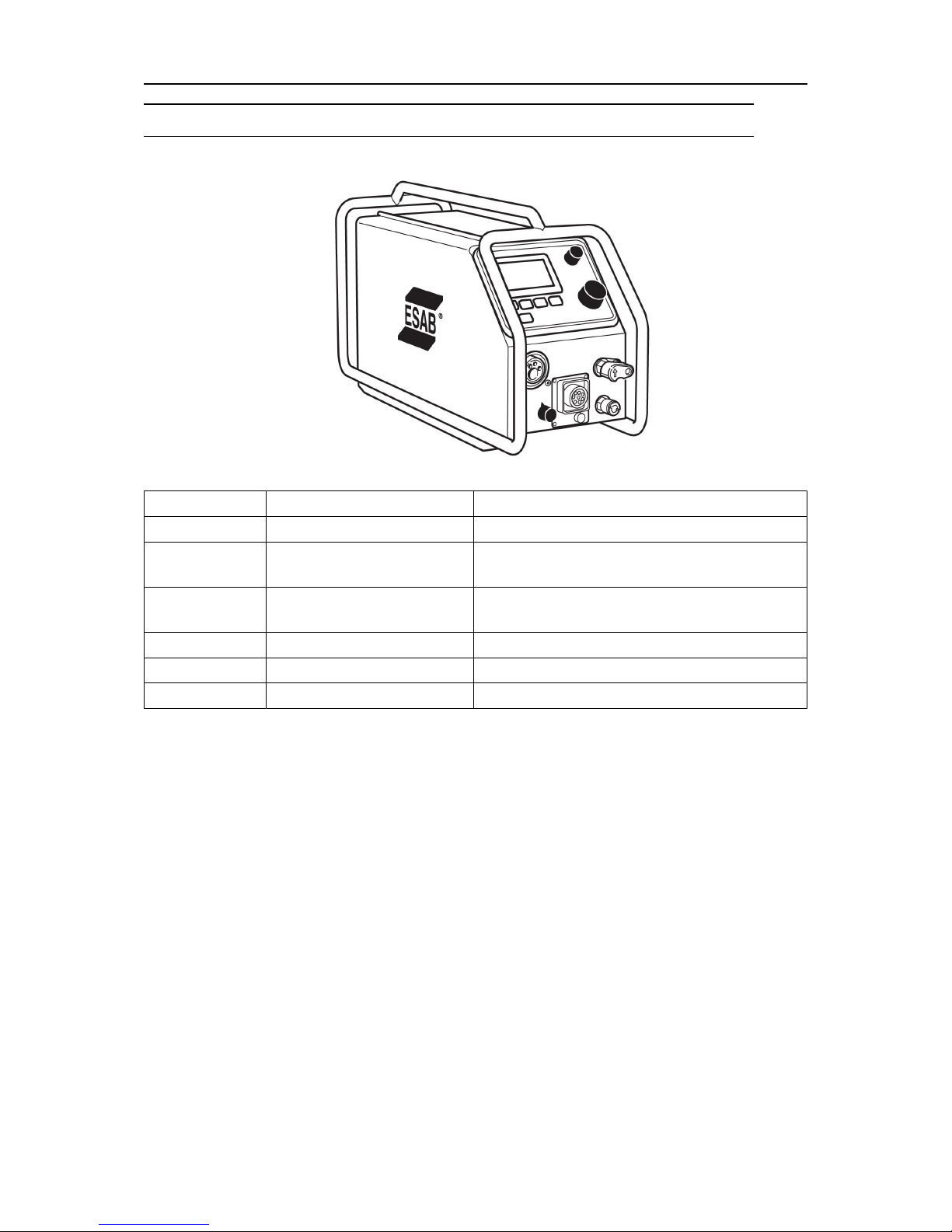

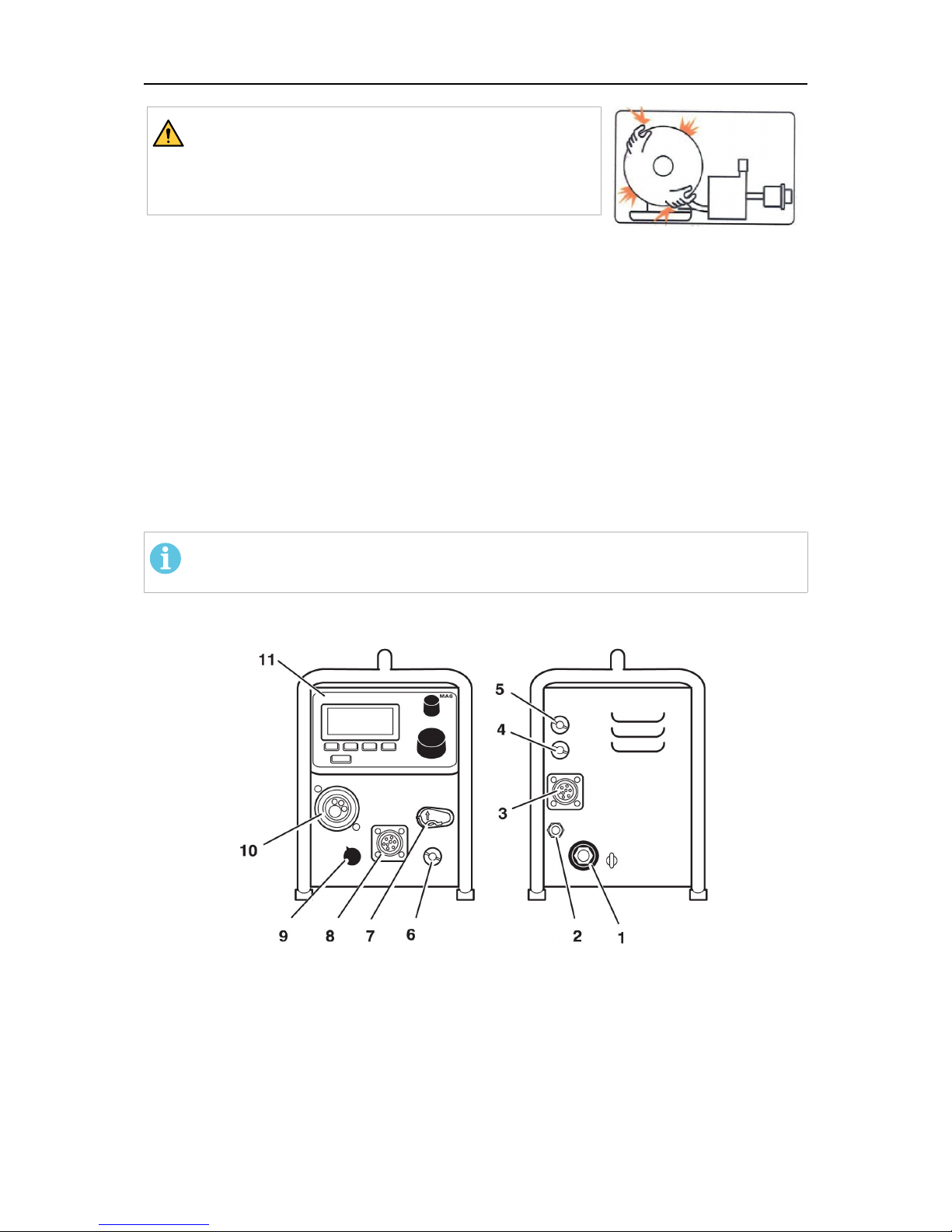

5.1 Connections and control devices
1Connection for welding current from
power source, (OKC)
7Connection BLUE, with ELP* for coolant
to the welding torch
2Connection for shielding gas 8Connection for remote control unit
3Connection for control cable from power
source
9Safety contact switch
4Connection RED, for coolant to power
source (cooling unit)
10 Connection for welding torch
5Connection BLUE, for coolant from power
source (cooling unit)
11 Control panel, (see separate instruction
manual)
6Connection RED, for coolant from welding
torch
NOTE!
Coolant connections only available on certain models.
* ELP = ESAB Logic Pump, see "Functional explanations" section.
5.2 Function explanations
Water connection
The wire feed unit with water connection is equipped with a detection system ELP (ESAB
Logic Pump) which checks that the water hoses are connected. When connecting a
water-cooled welding torch, the water pump starts.
Detection only works with power sources that are equipped with ELP.

5 OPERATION
0459 936 301 - 13 - © ESAB AB 2017
Strain relief
Hook the strain relief onto the hook on the rear side of the feeder unit and the connection
cable.
Safety contact switch
0Welding OFF
1Welding ON
Heat ON (accessory) and welding OFF
The bobbin area is heated so that the welding
wire is not damp when welding.
Gasflow control
A= Controlling gas flow.
B= Gas flow meter

5 OPERATION
0459 936 301 - 14 - © ESAB AB 2017
5.3 Setting the wire feed pressure
Illustration A Illustration B
Start by making sure that the wire moves smoothly through the wire guide. Then set the
pressure of the wire feeder's pressure rollers. It is important that the pressure is not too
high.
To check that the feed pressure is set correctly, you can feed out the wire against an
insulated object, e.g. a piece of wood.
When you hold the welding torch approximately 6mm (¼in.) from the piece of wood
(illustration A), the feed rollers should slip.
If you hold the welding torch approximately 50 mm (2in.) from the piece of wood, the wire
should be fed out and bend (Illustration B).
5.4 Replacing and inserting wire
• Open the side panel.
• Disconnect the pressure sensor by folding it backwards, the pressure rollers slide up.
• Straighten out the new wire 10-20 cm. File away burrs and sharp edges from the end
of the wire before inserting it into the wire feed unit.
• Make sure that the wire goes properly into the feed roller's track and into the outflow
nozzle or wire guide.
• Secure the pressure sensor.
• Close the side panel.
5.5 Changing feed rollers
• Open the side panel.
• Disconnect the pressure sensor (1) by folding it
backwards, the pressure rollers slide up.
• Disconnect the pressure rollers (2) by turning the
axle (3) 1/4 turn clockwise and pulling out the axle.
The pressure rollers disconnect.
• Disconnect the feed rollers (4) by unscrewing the
nuts (5) and pulling out the rollers.
During installation, repeat the above in reverse order.
Choice of track in the feed rollers
Turn the feed roller with the dimensioning mark for the required track towards you.

6 MAINTENANCE
0459 936 301 - 15 - © ESAB AB 2017
6 MAINTENANCE
NOTE!
Regular maintenance is important for safe and reliable operation.
CAUTION!
All warranty undertakings from the supplier cease to apply if the customer
attempts any work to rectify any faults in the product during the warranty period.
6.1 Inspection and cleaning
Wire feed unit
Check regularly that the wire feed unit is not clogged with dirt.
• Cleaning and replacement of the wire feed unit mechanism's worn parts should take
place at regular intervals in order to achieve trouble-free wire feed. Note that if
pre-tensioning is set too hard, this can result in abnormal wear on the pressure roller,
feed roller and wire guide.
The brake hub
The hub is adjusted when delivered.
• Adjust the brake hub so that wire is slightly slack
when wire feed stops.
Welding torch
• The welding torch's wear parts should be cleaned and replaced at regular intervals in
order to achieve trouble-free wire feed. Blow the wire guide clean regularly and clean
the contact tip.

7 ORDERING SPARE PARTS
0459 936 301 - 16 - © ESAB AB 2017
7 ORDERING SPARE PARTS
YardFeed 2000 is designed and tested in accordance with the international and
European standards 60974-5 and 60974-10. It is the obligation of the service unit
which has carried out the service or repair work to make sure that the product still
conforms to the said standard.
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back
cover of this document. When ordering, please state product type, serial number, designation
and spare part number in accordance with the spare parts list. This facilitates dispatch and
ensures correct delivery.

DIAGRAM
0459 936 301 - 17 - © ESAB AB 2017
DIAGRAM

DIAGRAM
0459 936 301 - 18 - © ESAB AB 2017

ORDERING NUMBERS
0459 936 301 - 19 - © ESAB AB 2017
ORDERING NUMBERS
Ordering no. Denomination Type
0459 906 887 Wire feed unit Origo™ YardFeed 2000, MA23
0459 906 897 Wire feed unit Origo™ YardFeed 2000, MA23, with water
cooling
0459 906 896 Wire feed unit Aristo® YardFeed 2000, U6, with water
cooling
0459 839 005 Spare parts list YardFeed 2000
0460 454 Instruction manual Control panel Origo™ MA23
0459 287 Instruction manual Control panel Aristo® U6
Instruction manuals and the spare parts list are available on the Internet at: www.esab.com

WEAR PARTS
0459 936 301 - 20 - © ESAB AB 2017
WEAR PARTS
Item Ordering no. Denomination Wire type Wire dimensions
HI 1 0455 072 002 Intermediate nozzle Fe, Ss & cored
0456 615 001 Intermediate nozzle Al
HI 2 0469 837 880 Outlet nozzle Fe, Ss & cored Ø 2.0 mm steel for 0.6-1.2 mm
0469 837 881 Outlet nozzle Al Ø 2.0 mm plastic for 0.8-1.2 mm
HI 3 0191 496 114 Key
HI 4 0215 701 007 Locking washer
HI 5a 0459 440 001 Motor gear euro
Item Ordering no. Denomination Wire
type
Wire dimen-
sions (mm)
Groove
type
Roller
markings
HI 5b 0459 052 001 Feed/pressure rollers Fe, Ss
& cored
Ø 0.6 & 0.8 mm V 0.6 S2 & 0.8
S2
0459 052 002 Feed/pressure rollers Fe, Ss
& cored
Ø 0.8 & 0.9/1.0
mm
V 0.8 S2 & 1.0
S2
0459 052 003 Feed/pressure rollers Fe, Ss
& cored
Ø 0.9/1.0 & 1.2
mm
V 0.9/1.0 S2 &
1.2 S2
0458 825 001 Feed/pressure rollers Cored Ø 0.9/1.0 & 1.2
mm
V-
Knurled
1.0 R2 & 1.2
R2
0458 824 001 Feed/pressure rollers Al Ø 0.8 & 0.9/1.0
mm
U 0.8 A2 & 1.0
A2
0458 824 002 Feed/pressure rollers Al Ø 1.0 & 1.2 mm U 1.0 A2 & 1.2
A2
0458 824 003 Feed/pressure rollers Al Ø 1.2 mm U 1.2 A2
Only use pressure and feed rollers marked A2,R2 or S2.
The rollers are marked with wire dimension in mm, some are also marked with inch.
Item Ordering no. Denomination Notes
HI 6 Washer Ø 16/5x1
HI 7 Screw M4x12
HI 8 Screw M6x12
HI 9 Washer Ø 16/8.4x1.5
HI 10 0469 838 001 Cover
HI 11 0458 722 880 Axle and Nut
HI 12 0459 441 880 Gear adapter
HI 13 0455 049 001 Inlet nozzle For Fe, Ss, Al and cored wire
0460 007 001 Inlet nozzle Long-life for Fe, Ss, Al and cored wire
HI 14 0458 999 001 Shaft
Welding with aluminium wire
In order to weld with aluminium wire, proper rollers, nozzles and liners for aluminium wire
MUST be used. It is recommended to use 3 m long welding torch for aluminium wire,
equipped with appropriate wear parts.
