Escooter H102 User manual

H102 OWNER’S MANUAL
English | Français | Nederlands
Page 2 Page 26 Page 50

CONTENTS
1. Product & Parts .................................................................................... 6
2. Function Guide.......................................................................................7
3. Assembly and Set-up ........................................................................... 9
4. Charger Connecting..............................................................................10
5. Riding Study .........................................................................................11
6. Safety Reminder..................................................................................12
7. Folding and Carry.................................................................................16
8. Repair and Maintain ............................................................................ 17
9. Parameter Table...................................................................................19
10. Hazardous Substance.......................................................................... 21
11. Warranty ............................................................................................. 22
12. Performance Fault List........................................................................ 23
13. Warnings ............................................................................................. 24
14. CECerticate ...................................................................................... 25
Owner’s Manual

Caution
Before using your eScooter, it is imperative to read and follow
all instructions and warnings in the operating instructions:
Precautions for use
Duringtherstuse,usethescooterinaplaceclearofanyobstacle,inorderto
familiarize yourself with the acceleration, braking, turning ...
DuringtherstusepleaseusetheH102eScooteratlowspeed,andwhenyouare
condent,graduallyincreaseyourspeed.
Do not use the scooter with one hand,
 Donotturnothescooterwhiledriving.
Use H102 eScooter only on a smooth surface, without bumps or holes more than 2 cm
high / deep. In case of hole / hump more than 2 cm, the scooter could crash, causing the
user to fall.
Before use, check the braking system. In case of brake failure, do not use by scooter and
contact your dealer.
3
Owner’s Manual

Regulations
Please follow the local regulations in the country of use in relation to use
on the road, Cycle paths or foot paths. The regulations are changing constantly,
and it is the responsibility of the user to familiarize him/herself with the regulations
in force and adhere to them. eScooter/4S Services sprl declines all responsibility for
improper use or any contravention of regulation.
Wearing a helmet is strongly recommended as well as wearing elbow pads, knee
pads, gloves,
The use is forbidden to people under 12,
Use in rainy weather is strongly discouraged,
 Useinareasatriskofreorexplosionsuchasfueldispensingstationsis
prohibited,
 Theuseoftwopeopleeven,ifwithinthemaximumweightisprohibited.
Always be sure to adjust your speed according to the weather conditions or
environment you are in.
Vibrations and shocks
Theuseofelectricscooterscancausesignicantvibrationsandshocksdependingon
the surface on which it is used. Reduce your speed when riding on uneven surfaces.
Do not use your scooter too long, and in case of vibration disturbance, immediately stop
using it.
4
Owner’s Manual

Electrical Risk
Chargers are subject to high voltages. It is therefore strictly forbidden
to disassemble the charger, as well as the battery pack of the eScooter H102.
Lighting
Although the scooter is equipped with LED lights, it is imperative in case of night use to
wearappropriateuorescentvests/clothestobeclearlyvisible/seen.
This product must be used in accordance with regulation.
Responsibility
The company 4S Services sprl - eScooter declines any responsibility in case of improper
use of the H102 eScooter to the applicable legislation in the country in force.
When purchasing a product of the eScooter H102 ESCOOTER, users or their
representatives acknowledge having read the terms of use and cannot in any case turn
against eScooter / 4S Services SPRL.
5
Owner’s Manual

Parts:
1. Product & Parts
Electrical Scooter Owner’s Manual Legal Notice
Please check the package carefully whether the goods are in good condition, if any
lost or damaged please email:[e-mail] or log onto your account via our
website www.my-eScooter.com

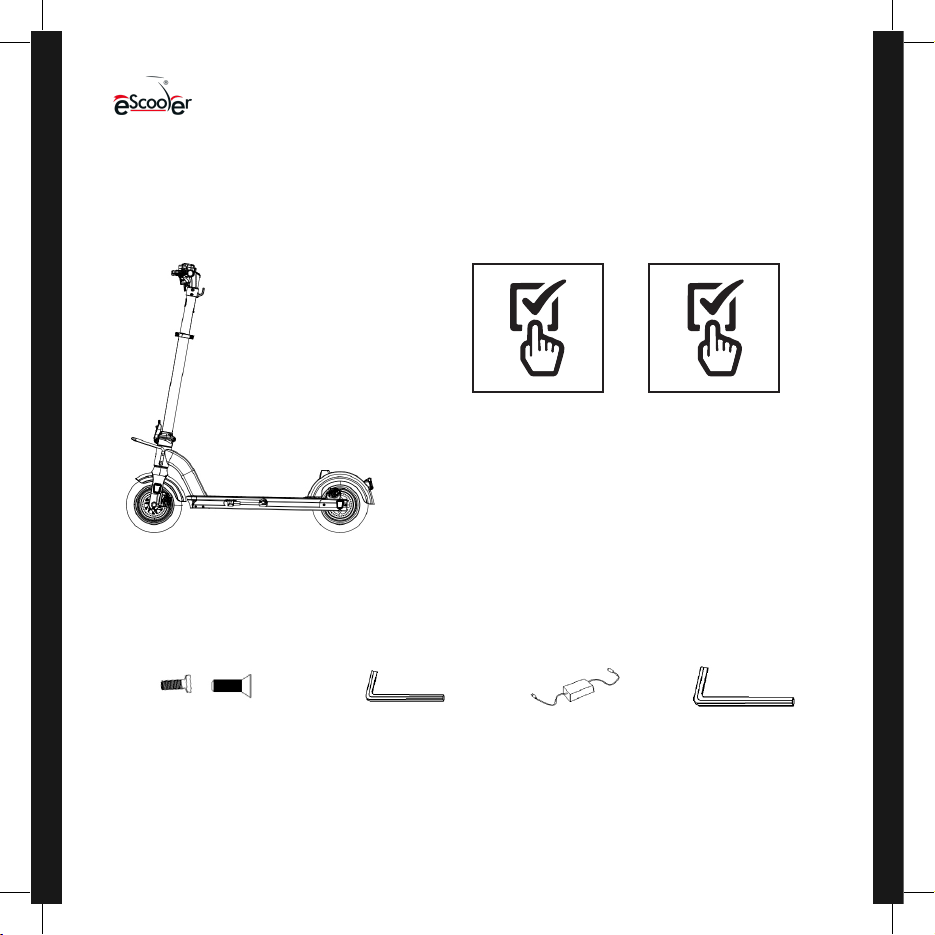

Screwx8 3MM Allen Wrench Charger 4MM Allen Wrench
6
Owner’s Manual

2. Function Guide

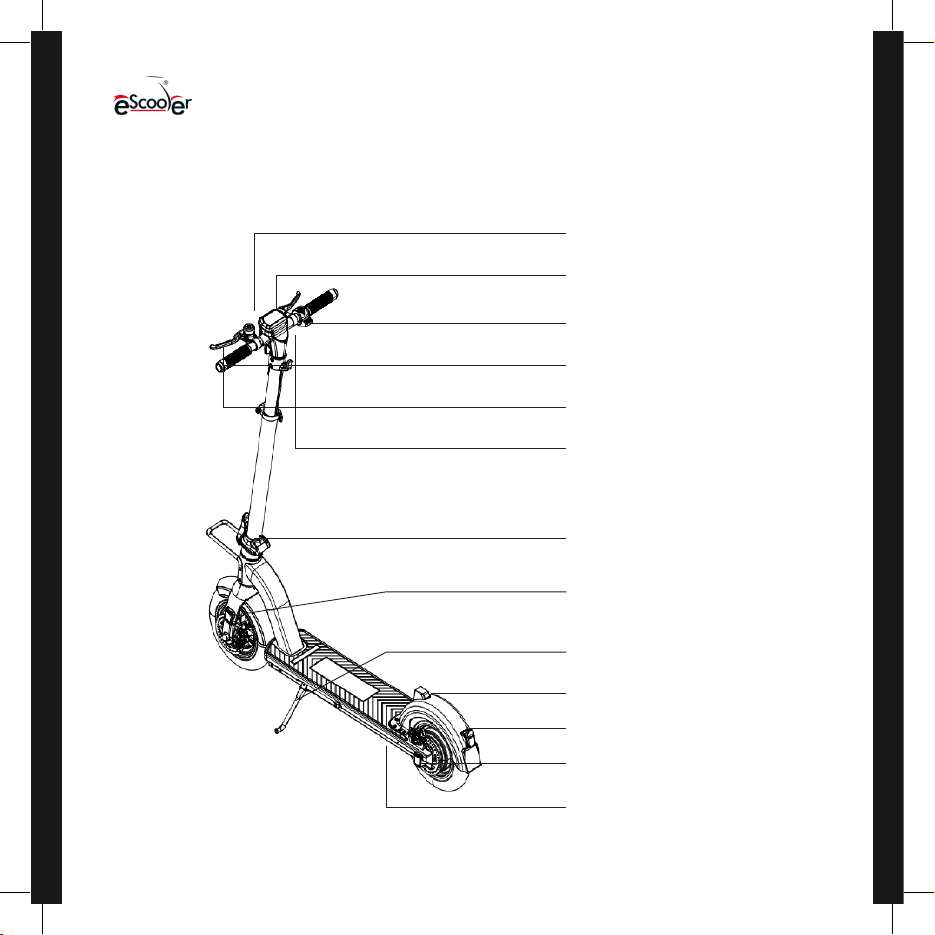

Front Light
Display
Throttle
Turning Light
Brake Handle with Bell
Folding System
Side Reector
Kick Stand
Buckle
Tail Light
Driven Hub
Disc Brake
Hook
7
Owner’s Manual

Display
Display shows speed; ODO; battery
capacity; under voltage; lights; cruise
control and error code.
There are two speed range for this
system.Themaximumspeedlimitis
25KM/h;Aerridingataconstantspeed
for 8 seconds, it will automatically enter
a constant speed cruise mode and the
cruise control light up, if any operation
will cancel this mode automatically.
Locking and unlocking may only be done via the key.
In the event of the eScooter not being used for some time, it goes into security mode.
Any movement from the eScooter will trigger the alarm.To unlock when in security
mode, Press the Lock button and then the power on button.
Power OFF
Power ON/ Unlock
Lock when power ON
8
Owner’s Manual

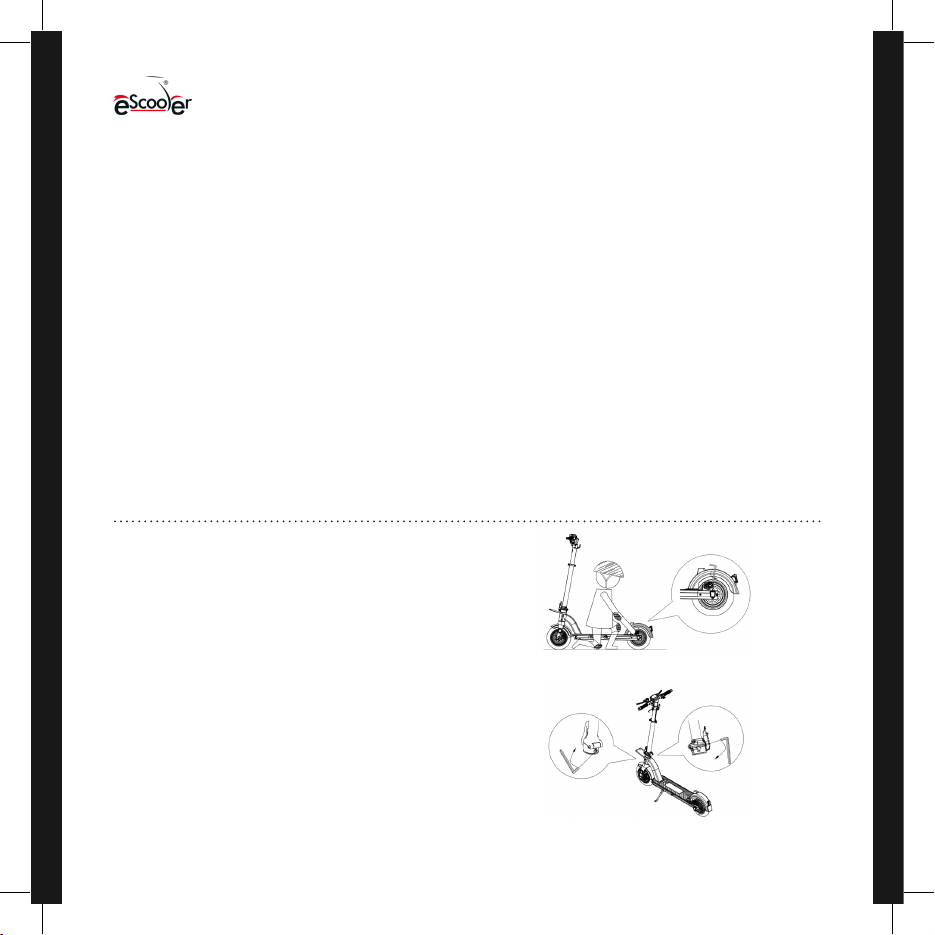

3. Assembly and Setup

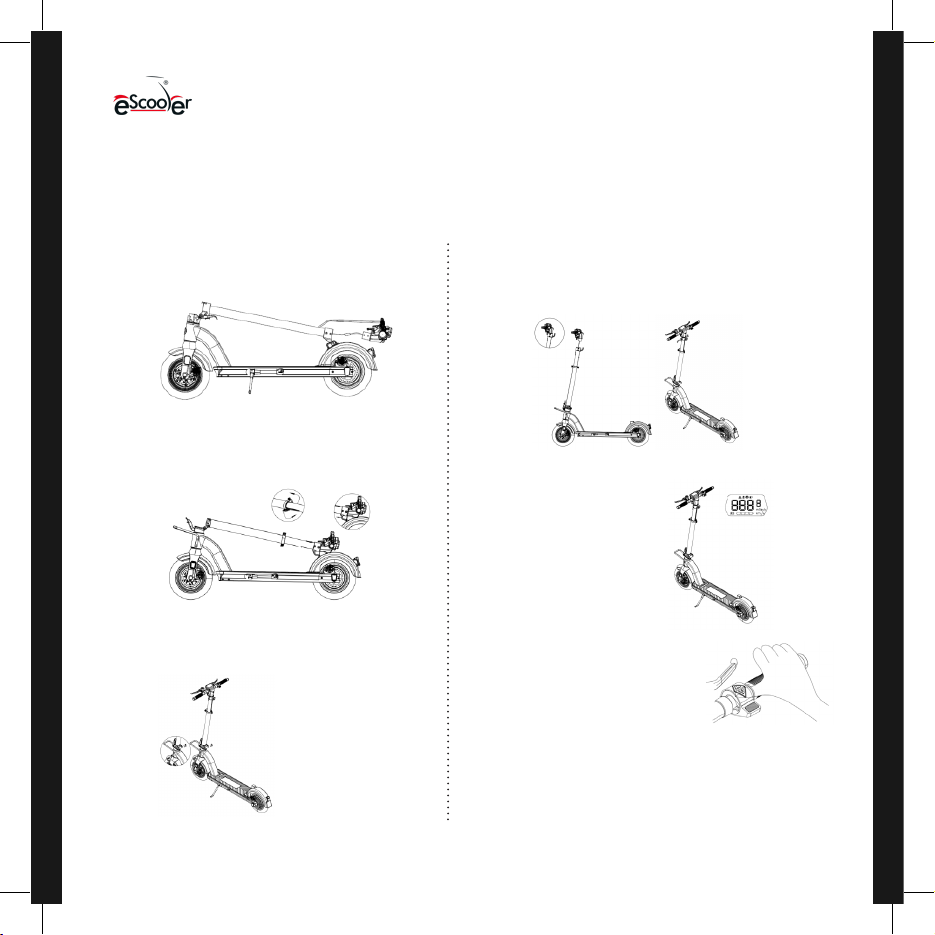

Open the package and take out the product, and follow the instructions
carefully.
Set the folding tube upright
Press the folding wrench
upward to lock
Assemble the handle
Insert the wire harness and
headpiece into the folding tube
and locked by screws.
Test function
aerassembly
ClicktheLbuttontoturnonthele
turning light, click the R button to turn
on the right turning light; click again the
ashedsignalbuttontoturno.
Turning light using
1.
2.
3.
4.
5.
6.
7.
9
Owner’s Manual

4. Charger Connecting
AerCharging:

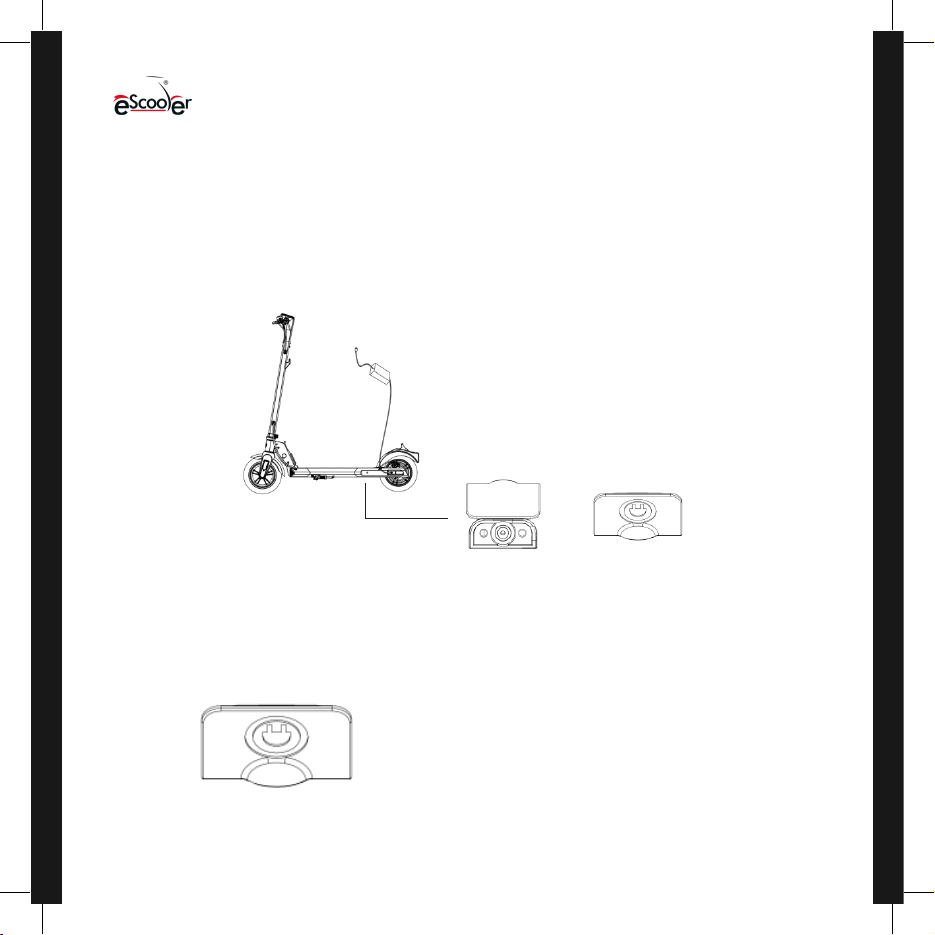

Open Rubber Insert charger
Cover the rubber charger protection
aerchargingandsecureproperly.This
prevents dirt and water from entering
and eventually causing damage or short-
circuiting the system.
10
Owner’s Manual

5. Riding Training
The beginner has the risk of falling and injury, please wear a helmet and protective gear
alltheway,asshowningure.
Before starting: Stand one foot on
the pedal board and the other is on
the ground.
When the scooter is starting up
to 3.km/h, the other foot is on the
pedal board and stable, press the
throttle.
When turning, you need to lean
slightly toward the steering, and turn
the throttle slowly.
Press the brake throttle to slow down,
both the front wheel electronic brake
and the rear wheel mechanical will
eect.
1.
2. 4.
3.
11
Owner’s Manual

6. Safety Reminder

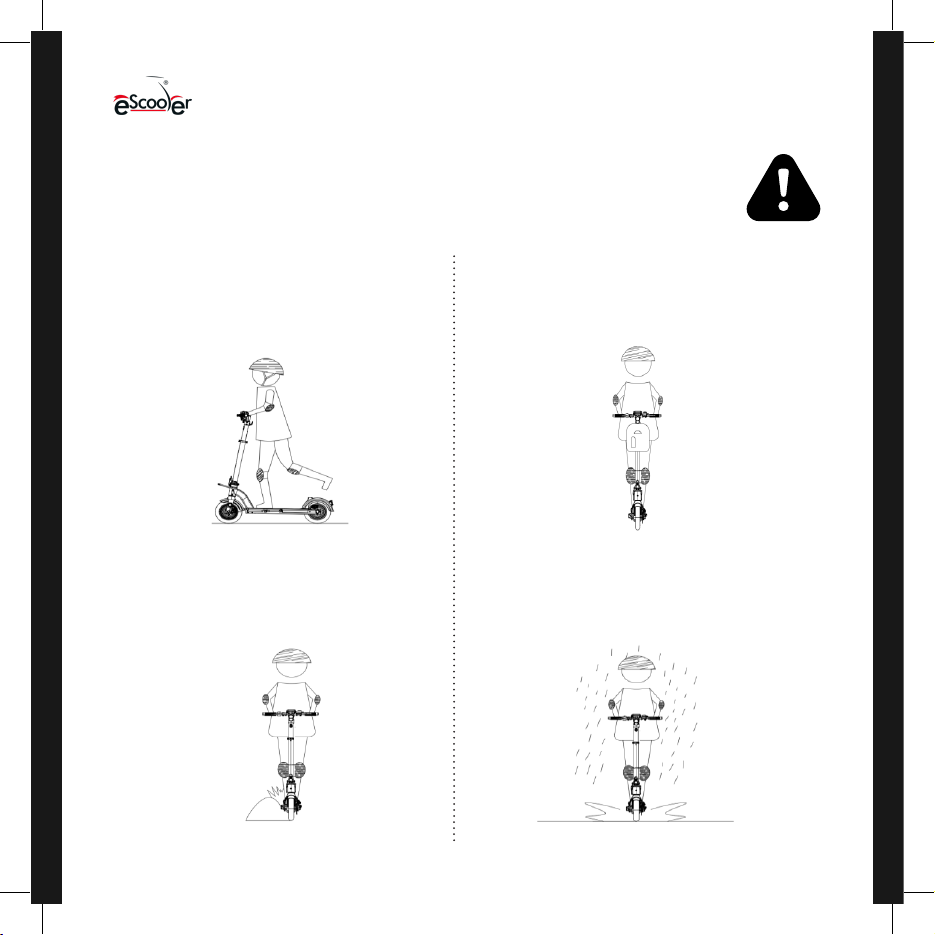

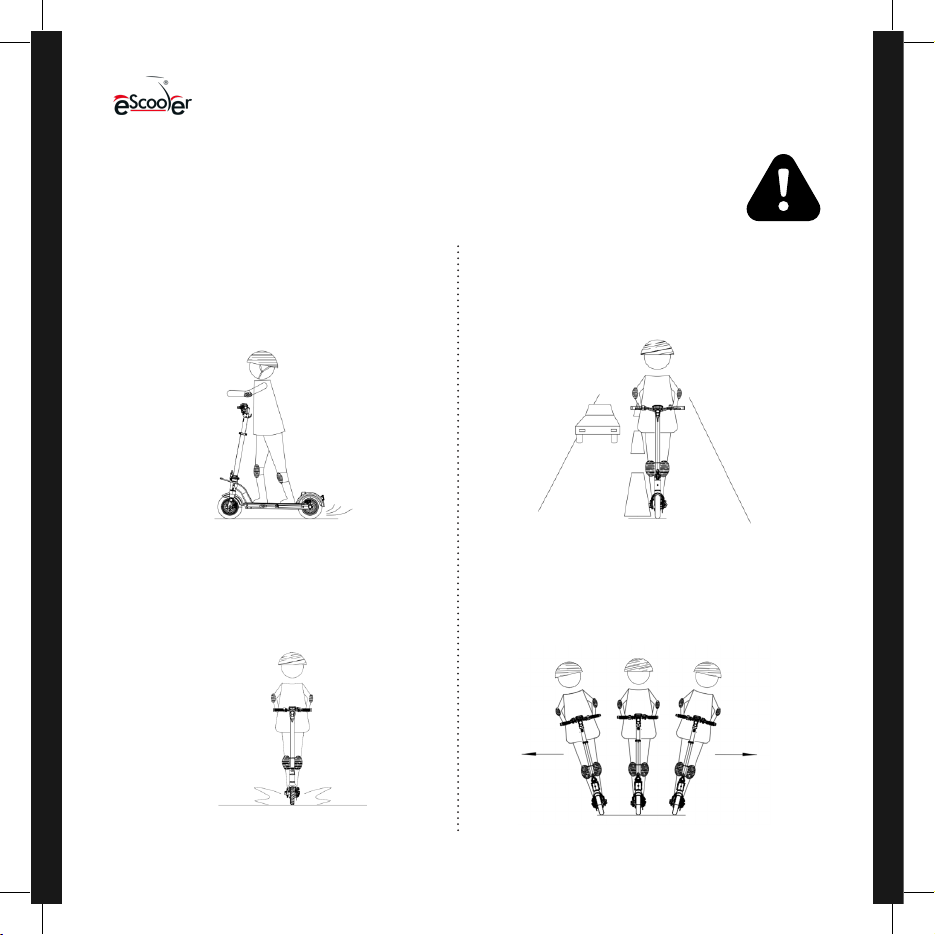

Please avoid safety hazards
Do not ride with one foot or other
positions on the pedal board or
ground
Please steer clear of obstacles Please avoid riding in the heavy rain
Do not hang bag or any other things
on the handlebar
1.
2. 4.
3.
12
Owner’s Manual

Do not press the throttle when
pushing the eScooter
Do not accelerate on the descent Do not ride at a high speed across
the irregular terrain. Adapt your
speed.
Avoid bumping the high obstacles
indoor/outdoor
5.
6. 8.
7.
6. Safety Reminder
13
Owner’s Manual

Don’t attempt dangerous motion or gestures
6. Safety Reminder
Do not riding with one hand or both
handsothehandlebar
Do not ride in more than 2cm
water. Do not turning large margin with
high speed
Do not ride on the road and residential
district
1.
2. 4.
3.
14
Owner’s Manual

Can’t carry the other people at the
same time.
Do not tread on the rear fender Do not riding jump Steps or
obstacle
Do not touch the disc brakes front or
back.
5.
6. 8.
7.
6. Safety Reminder
15
Owner’s Manual

Folding
Conrmthattheelectricscooteristurnedo,pushupthefoldinglockandpulldown
the folding wrench, lower the folding tube on the back fender and then slide the hook
into the buckle from the side.
Carrying
Carry on the vertical tube by one hand or both hands.
Transporting with Front Handle
Use the front handle to move the eScooter by rolling it
much like a suitcase. Be careful of your surroundings.
Thefronthandlemayalsobeusedtohelplithe
eScooter.
7. Folding and Carrying
16
Owner’s Manual

Electric scooter clean and storage
If the electric scooter surface dirty, use
asoclothanddipitinasmallamount
ofwatertowipe.Ifthesurfaceisdicult
to clean, apply mild detergent and use a
sobrushtocleanrepeatedly,thenusea
wet cloth to clean the plastic body.
Tip: do not use alcohol, gasoline,
kerosene or other corrosive chemical
solvents, otherwise it will seriously
damage the body’s appearance and
internal structure. Prohibit the use of
High Pressure water jets, and ensure the
electricscooterwasturnedo,andhave
already pulled out charging cable and
the rubber cover for the charging port is
xedsecurely,otherwiseyoumaygetan
electric shock or due to internal water
cause serious trouble.
Store electric scooters in a dry, cool place
in the room, avoid long outdoor storage
whennotuse.Sunexposure/overheated
can accelerate the appearance of electric
scooters and the aging of tires and
reduce the life of electric scooters and
their battery packs.
Battery Maintenance
Do not use other mode or brand battery,
otherwise has the risk of safety.
Do not touch the battery connector,
disassemble or puncture the shell avoid
metal objects contact cause short circuit
battery , Otherwise may cause cell
damage or casualties, Can only use the
original charger, otherwise has the risk of
damageorre.
Improper disposal of used batteries may
seriously pollute the environment .Please
comply with local regulations when using
this battery pack. Please do not discard
this battery pack to protect the natural
environment.Aereachuse,please
recharge the battery and store it, which
will help to prolong the battery life.
Don’t place the battery in the above 40C
orbelow–2Cenvironment(forexample,
do not put electric scooter or the battery
pack into the car under the summer
sun), forbid to throw battery into the
re,otherwisemaycausethebattery
failure,overheating,evenwithare
8. Maintain and Repair
17
Owner’s Manual

risk. If not used for more than 30 days,
please recharge, store it in a cool and
dry place, otherwise it may damage the
battery, and this damage is not covered
by warranty.
Avoid full battery drain recharging,
as far as possible with charge, which
can greatly prolong the battery life. In
addition, the battery pack can play a
higher range and performance at room
temperature. And if below 0C to use, the
battery life and performance will decline.
Typically, in – 4°C environment, half range
may only when the normal temperature
or lower. When temperature rises, the
battery’s range will recover. Battery
performance is impacted by colder
weather and will decline.
Tip: Scooters run out of battery power
aer120to180dayswhichfullof
electricity. A smart chip records the
battery charge and discharge, Long time
without charging damage will not be
able to recharge, if not timely charge,
leadtoexcessivedischargethebattery
is damaged, the damage is irreversible,
and unable to enjoy free warranty.(note:
non-professionals are not allowed to
disassemble the battery pack at will,
otherwise it may cause serious safety
accidents due to shock or short circuit.)
Adjust Disc
If the brake too tight, use 4MM Allen wrench
lose the screw anticlockwise, push the brake
wire to shorten and lock the screw; If the
brake too loose, loosen the screw, pull the
brakewiretoextendthewireandlockthe
screw.
Tiller waggles adjust
If the vertical tube waggles in riding, open the
plastic cover ,use the Allen wrench to tight
thescrewasthegureshown.
18
Owner’s Manual

9. Parameter Table
Performance Item Parameters
Product size
LxWxH1(mm) 1130*500*1228
Aerfolding:
LxWxH(mm) 1076*500*599
Product
Weight Weight(kg) Approximately17.20
Riding
Requirement
MaxLoad(kg) 120
Consumer(Years) 16-50
Height(cm) 120-200
Main
Parameter
Maxspeed(Km/h) Approximately25
Maxdistance2(Km) Approximately25
Maxclimbing(%) Approximately14
Terrain
Cement,asphaltpavement,atearthpave-
ment, trench not higher than 1 cm step, not
more than 3 cm wide
Work temperature(°C) -10 to 40
Store temperature(°C) 0 - 45
Ingress Protection IPX6
19
Owner’s Manual

Battery
Parameter
Rated voltage(VDC) 48V
Maxcharger
voltage(VDC) 54.6V
Rated capacity (AH) 7.8
BMS
Short circuit / under-voltage automatic
dormancy/ow/doubleovercharge/double
over-discharge protection
Motor
Parameter
Rated power(W) 450
Maxpower(W) 750
Charger
Parameter
Rated power(W) 109.2
Rated input
voltage(VAC) 100-240~
Rated output
voltage(VDC) 48V
Rated current(A) 2A
Certicate CE, ROHS, UL
Charging time (h) Approximately4.5
9. Parameter Table
1. Height: From ground to the highest point of the scooter
2. Riding range: full charging, 75kg loading, 25°C even pavement windless, energy
savingmode15km/hconstantriding,actualrangemightdierencefortheactorschange
above.
20
Owner’s Manual
