ESPRIT EL155 User manual

ESP0027
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW ELLIPTICAL!
Z100 / Z300 Z500 Z700
OWNER’S MANUAL

EL155 Elliptical
1
Product Registration…………………………………………………………………………..2
Important Safety Instructions………………………………………………………………… 3
Important Electrical Information……………………………………………………………… 4
Important Operation Instructions…………………………………………………………….. 4
Assembly Instructions…………………………………………………………………………. 5
Features……………………………………………………………………………………….. 12
Operation of Your New Elliptical…………………………………………………………….. 13
Maintenance……………………...…………………………………………………………… 18
Parts List and Explode Drawing.…………………………………………………………… 19
Manufacturer’s Limited Warranty……………………………………………………………. 23
Table of Contents

EL155 Elliptical
2
Thank you for your purchase of this quality elliptical trainer. Your new elliptical was
manufactured by one of the leading fitness manufacturers in the world and is backed by
one of the most comprehensive warranties available.
Please take a moment at this time to record the name of the dealer and the date of
purchase below to make any future, needed contact easy. We appreciate your support
and we will always remember that you are the reason that we are in business.
Yours in Health,
BOYLES FITNESS Equipment Pty Ltd.
Name of Dealer______________________________________
Purchase Date_______________________________________
EL155/ESP0027_Ver.B
CONGRATULATIONS ON YOUR
NEW ELLIPTICAL AND WELCOME
TO THE SPIRIT FAMILY!

EL155 Elliptical
3
WARNING - Read all instructions before using this appliance.
■ Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet and
elliptical may result.
■ Keep children away from the elliptical. There are obvious pinch points and other caution
areas that can cause harm.
■ Keep hands away from all moving parts.
■ Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
■ Keep the cord away from heated surfaces.
■ Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
■ Never drop or insert any object into any openings.
■ Do not use outdoors.
■ To disconnect, turn all controls to the off position, then remove the plug from the outlet.
■ Do not attempt to use your elliptical for any purpose other than for the purpose it is intended.
■ The hand pulse sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
■ Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

EL155 Elliptical
4
WARNING!
●NEVER remove any cover without first disconnecting AC power supply.
●If A.C. voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage
is low, contact your local power company or a licensed electrician for proper testing.
●NEVER expose this elliptical to rain or moisture. This product is NOT designed for Use
outdoors, near a pool or spa, or in any other high humidity environment. Maximum
environmental ratings are 40-120 degrees Fahrenheit, 95% humidity non-condensing (no
water droplets forming on surfaces).
●NEVER operate this elliptical without reading and completely understanding the results of
any operational change you request from the computer.
●Understand that changes in resistance do not occur immediately. Set your desired level on
the computer console and release the adjustment key. The computer will obey the command
gradually.
●NEVER use your elliptical during an electrical storm. Surges may occur in your household
power supply that could damage elliptical components.
●Use caution while participating in other activities while using your elliptical such as watching
television, reading, etc. These distractions may cause you to lose balance, resulting in
serious injury.
●Always hold on to a handrail or hand bar while making control changes.
Do not use excessive pressure on console control keys. They are precision set to properly
function with little finger pressure. Pushing harder is not going to make the unit go faster or
slower. If you feel the buttons are not functioning properly with normal pressure, contact your
dealer.
Important Electrical Information
Important Operation Instructions

EL155 Elliptical
5
ASSEMBLY PACK CHECK LIST
Step 1
Assembly Instructions ( EL155 )
#110. 3/8" × 2T
Split Washer (4pcs)
#104. Ø8.5× 26 × 2.0T
Flat Washer (2pcs)
#112. 3/8" × 23 × 1.5T
Curved Washer (2pcs)
#102. 3/8" × 25 × 2T
Flat Washer (4pcs)
#84. M5 × 10m/m
Phillips Head Screw (2pcs)
#81. 3/8" × 3/4"
Button Head Socket Bolt (4pcs)
#74. 5/16" × 15m/m
Hex Head Bolt (2pcs)
#96. 3/8"
Cap Nut (2pcs)
#82. M5 × 15m/m
Phillips Head Screw (1pcs)
#77. 3/8" × 3"
Carriage Bolt (2pcs)

EL155 Elliptical
6
Step 2
Step 3
#105. 5/16" × 20 ×1.5T
Flat Washer (4pcs)
#113. 5/16" × 23 × 1.5T
Curved Washer (2pcs)
#80. 5/16" × 15m/m
Button Head Socket Bolt (6pcs)
#111. 5/16" × 1.5T
Split Washer (6pcs)
#84. M5 × 10m/m
Phillips Head Screw (4pcs)
#82. M5 × 15m/m
Phillips Head Screw (4pcs)
#105. 5/16" × 20 ×1.5T
Flat Washer (2pcs)
#104. Ø8.5× 26 × 2.0T
Flat Washer (2pcs)
#91. 5/16" × 7T
Nyloc Nut (2pcs)
#82. M5 × 15m/m
Phillips Head Screw (4pcs)
#74. 5/16" × 15m/m
Hex Head Bolt (2pcs)
#75. 5/16" × 1-1/4"
Hex Head Bolt (2pcs)

EL155 Elliptical
7

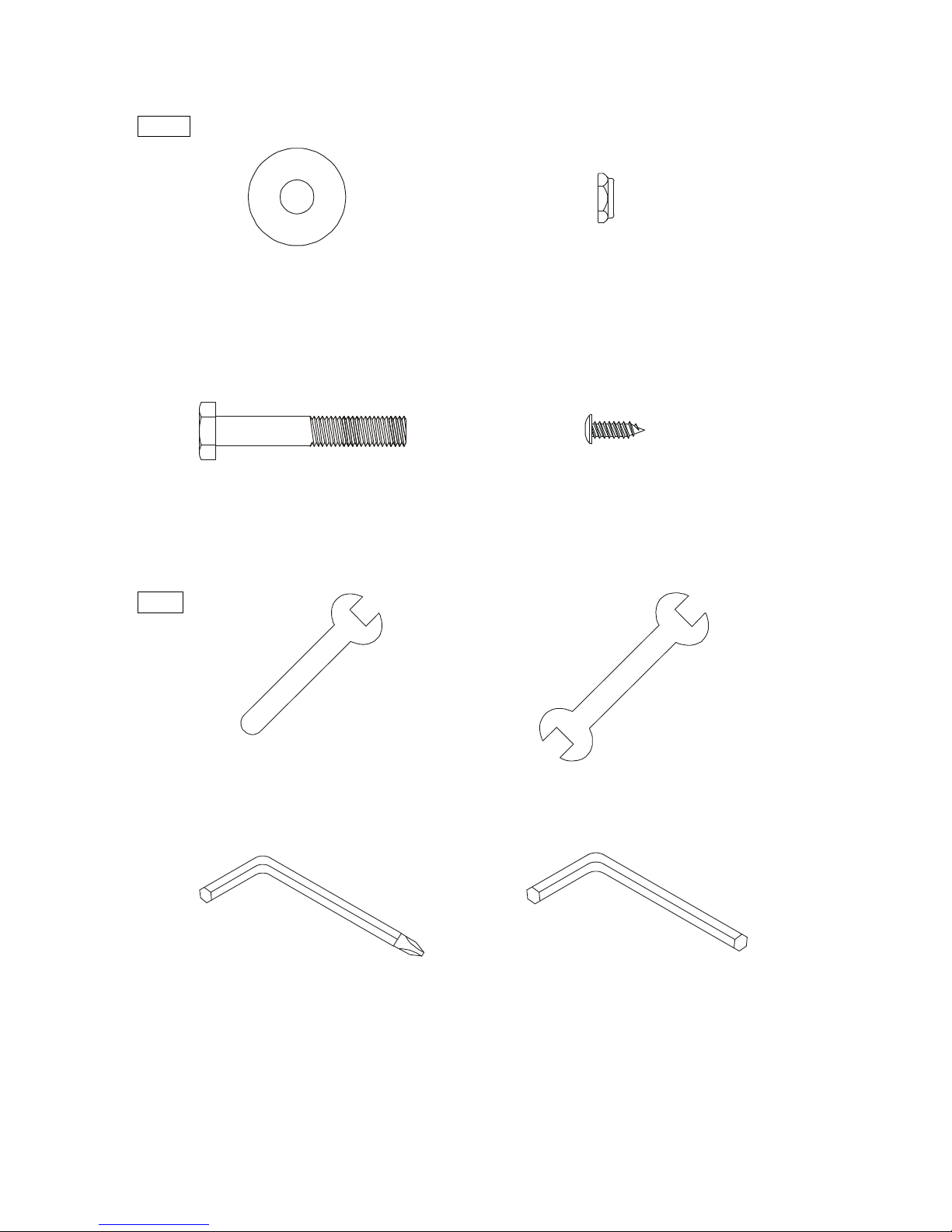

Step 4
Tools
#76. 5/16" × 1-3/4"
Hex Head Bolt (6pcs)
#113. 5/16" × 23 ×1.5T
Curved Washer (4pcs)
#91. 5/16" × 7T
Nyloc Nut (6pcs)
#87. Ø3.5 × 12m/m
Sheet Metal Screw (6pcs)
#118. Combination M5 Allen Wrench
& Phillips Head Screw Driver (1pcs)
#116. 12 mm Wrench (1pcs)
#115. 13&14 mm Wrench (1pcs)
#117. M6 Allen Wrench (1pcs)

EL155 Elliptical
8
Step 1. Stabilizer Assembly
1. Install the Front Stabilizer (14) on the front stabilizer holding plate at the bottom of the main frame with the
transportation wheels facing forward and secure them with 2pcs of 3/8" ×3" Carriage Bolts (77), 2pcs of 3/8"
×23 ×1.5T Curved Washers (112) and 2pcs of 3/8" Cap Nuts (96) by using 13&14m/m Wrench (115).
2. Connect the Rear Rail Assembly(2) to the beam of main frame and secure with 4pcs of 3/8" ×3/4" Button
Head Socket Bolts (81), 4pcs of 3/8" ×2T Split Washers (110) and 4pcs of 3/8" ×25 ×2T Flat Washers(102)
by using M6 Allen Wrench(117).
3. Connect the Pedal Arm (L) to the left Crank Arm Assembly and connect the Pedal Arm (R) to the right
Crank Arm Assembly, and secure them with 2pcs of 5/16" ×15m/m Hex Head Bolts (74) and 2pcs of Ø8.5
×26 ×2.0T Flat Washers (104) by using 12 m/m Wrench (116).
4. Install the Pedal Arm Cover (L) and (R) (61&62) respectively on the left and right Pedal Arm, and secure
them with 2pcs of M5 ×10m/m Phillips Head Screws (84) by using Combination M5 Allen Wrench & Phillips
Head Screw Driver (118). Secure the Middle Stabilizer Cover (71) on the Rear Rail Assembly with 1pc of M5
×15m/m Phillips Head Screw (82) by using Combination M5 Allen Wrench & Phillips Head Screw Driver
(118).

EL155 Elliptical
9
Step 2. Console Mast Assembly
1. Use cable tie to guide the 1150m/m Computer Cable(36) through Console Mast(11) and then pull out of
the console holding plate, and Insert the console mast into main frame and secure with 6pcs of 5/16" ×
15m/m Button Head Socket Bolts (80), 6pcs of 5/16" ×1.5T Split Washers (111), 4pcs of 5/16" ×20 ×1.5T
Flat Washers (105) and 2pcs of 5/16" ×23 ×1.5T Curved Washers (113) by using Combination M5 Allen
Wrench & Phillips Head Screw Driver (118).
2. Take off the cable tie which ties the 1150m/m Computer Cable (36) and plug in the connectors of the
Computer cable and the two 800m/m Handpulse W/Cable Assemblies (40) on the Console. Secure the
Console on the Console Assembly (35) with 4pcs of M5 ×10m/m Phillips Head Screws (84) by using
Combination M5 Allen Wrench & Phillips Head Screw Driver (118). Pay attention to Avoiding scratching the
cables.
3. Install the two Slide Wheel Covers (65) respectively upon the left Slide Wheel and right Slide Wheel, and
secure with 4pcs of M5 ×15m/m Phillips Head Screws (82) by using Combination M5 Allen Wrench &
Phillips Head Screw Driver (118).

EL155 Elliptical
10
Step 3. Handle Bar Assembly
1. Install the Lower Handle Bar (L) (9) in the left shaft of Console Mast (11) and the Lower Handle Bar (R)
(10) in the right shaft of Console Mast (11), and secure them with 2pcs of 5/16" ×15m/m Hex Head Bolts (74)
and 2pcs of Ø8.5 ×26 ×2.0 T Flat Washers (104) by using 12m/m Wrench (116).
2. Take off the cable tie which ties the Ø11.9 ×Ø8.5 ×15m/m Rod End Sleeve (17) to the M12 ×P1.75 Rod
End Bearing (26). Connect the Rod End matching plate, which at the end of Lower Handle Bar, to the M12 ×
P1.75 Rod End Bearing (26), and secure them with 1pc of 5/16" ×1-1/4" Hex Head Bolt (75), 1pc of 5/16" ×
20 ×1.5T Flat Washer (105) and 1pc of 5/16" ×7T Nyloc Nut (91) by using 12m/m Wrench (116) 13&14m/m
Wrench (115).
3. Put one of two Connecting Arm Covers (L) (66) and one of two Connecting Arm Covers (R) (67) together
on each side of Rod End Bearing, and secure them with 4pcs of M5 ×15m/m Phillips Head Screws (82) by
using Combination M5 Allen Wrench & Phillips Head Screw Driver (118).

EL155 Elliptical
11

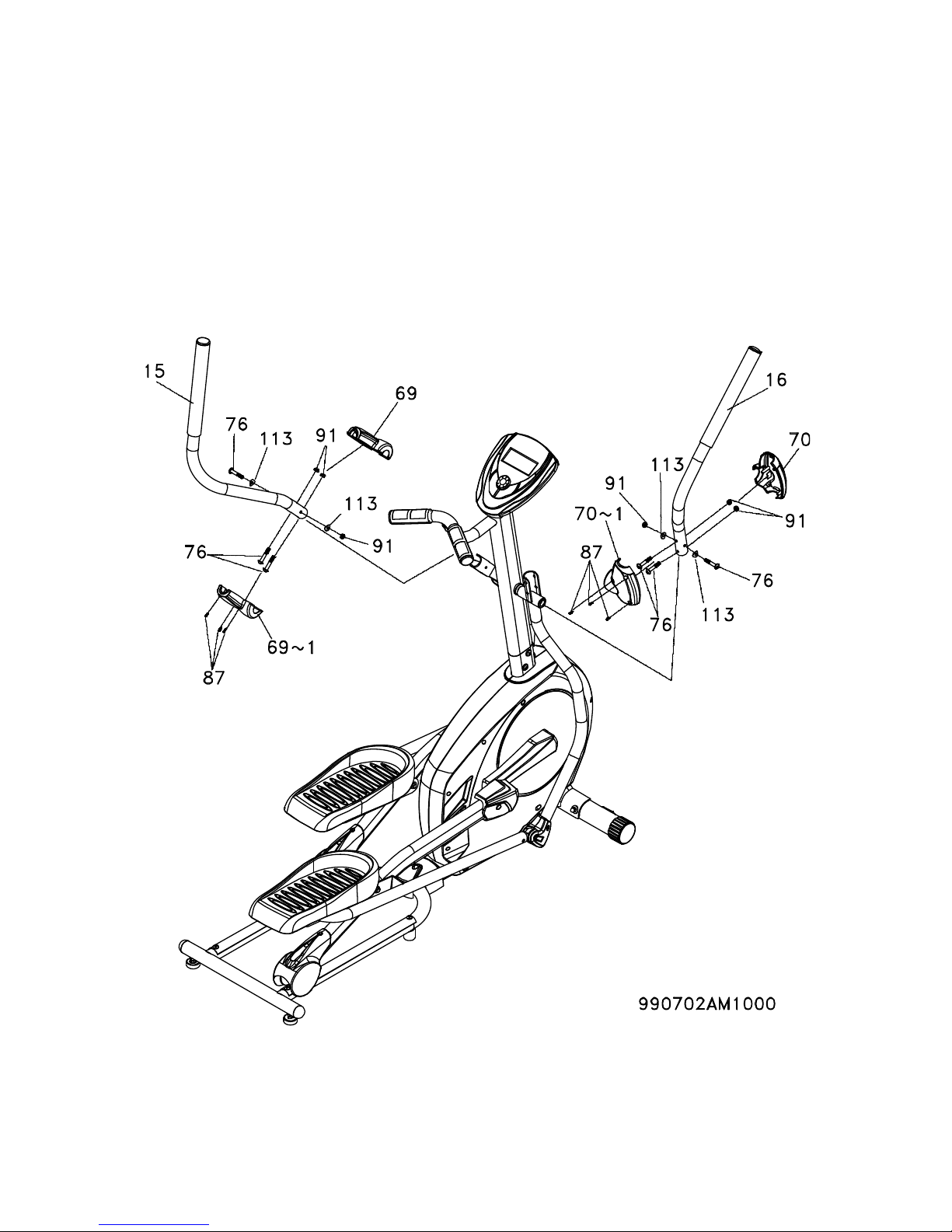

Step 4. Connecting Arm Assembly
1. Connect the Swing Arm (L) (15) to the left Lower Handle Bar and connect the Swing Arm (R) (16) to the
right Lower Handle Bar, and secure them with 6pcs of 5/16" ×1-3/4" Hex Head Bolts (76), 4pcs of 5/16" ×23
×1.5T Curved Washers (113) and 6pcs of 5/16" ×7T Nyloc Nuts (91) by using 12m/m Wrench (116)
13&14m/m Wrench (115).
2. Put the Front Handle Bar Cover (L) (69) and the Rear Handle Bar Cover (L) (69~1) together on the left
Handle Bar and secure with 3pcs of Ø3.5 ×12m/m Sheet Metal Screws (87) by using Combination M5 Allen
Wrench & Phillips Head Screw Driver (118). Repeat the same procedure for the right side.

EL155 Elliptical
12
Correctly aligned orthopedic foot pads
Through research performed with a leading sports scientist and physical rehabilitation expert,
engineering has developed a breakthrough in pedal design. No other elliptical, at any price, offers
these unique features. The history of elliptical use over the past few years tells us that many users
suffer from numb toes while working out on elliptical trainers. Many other users complain of ankle,
Achilles tendon, knee and/or hip pain. While researching a solution to these common problems the
engineers consulted Richard DeKok, P.T., M.T.C., of St. Bernard’s Industrial Rehabilitation Center
in Jonesboro Arkansas.
Together we identified the inherent problem in elliptical designs and developed solutions to solve
the problems. What we found is that when you use an elliptical you tend to push outward during the
power stroke and not just straight back. This causes stress on the outer part of the foot and throws
off the natural alignment of the joints. The solution was to add a 2-degree inward angle to the
footpads. This might sound simple but what it does is straighten the user’s joints back into a neutral
alignment. This eases the over stressing of the ankles, knees and hips.

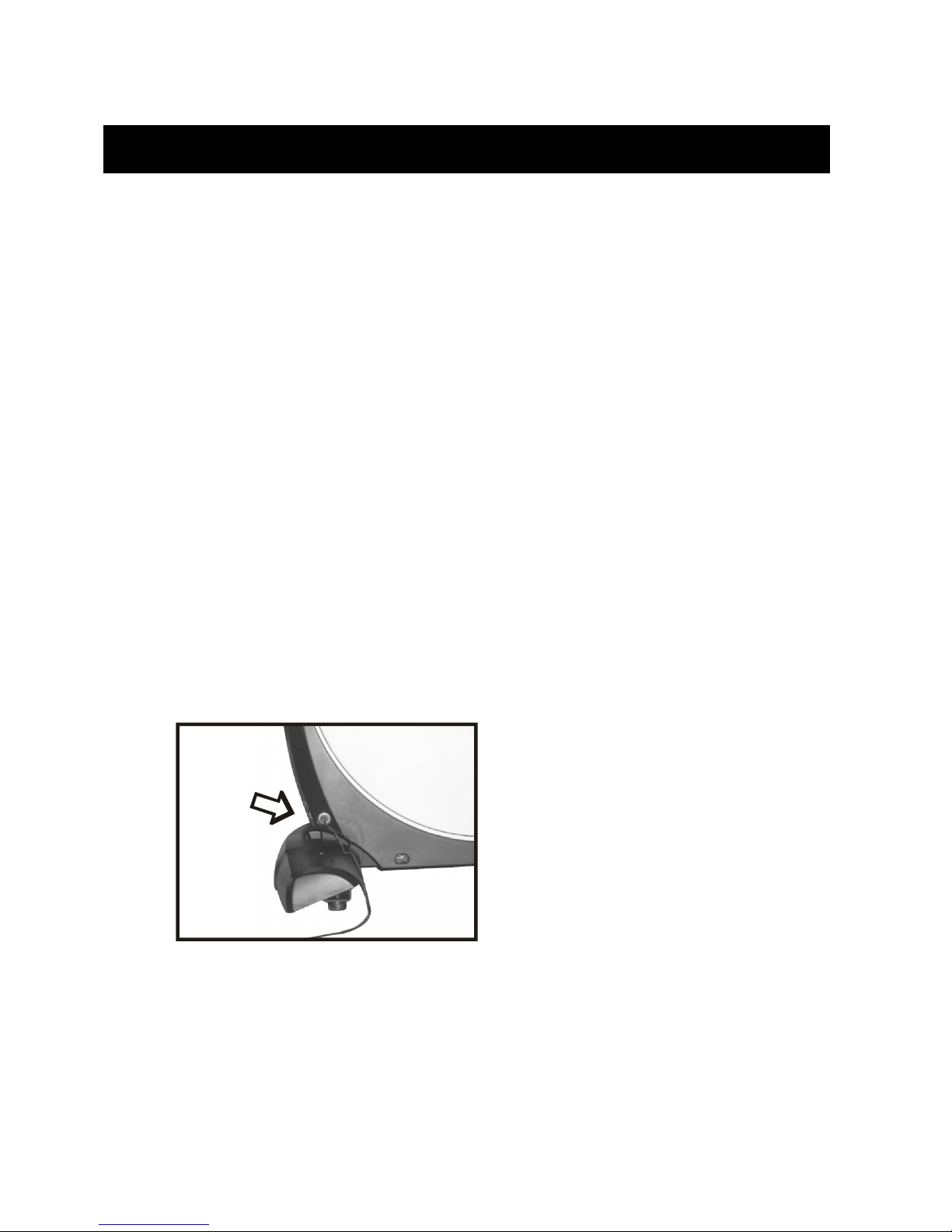

Transportation
The elliptical is equipped with two transport wheels, which are engaged when the rear of the
Elliptical is lifted.
POWER CONNECTOR LOCATED ON
FRONT, LEFT HAND SIDE OF UNIT.
Features

EL155 Elliptical
13

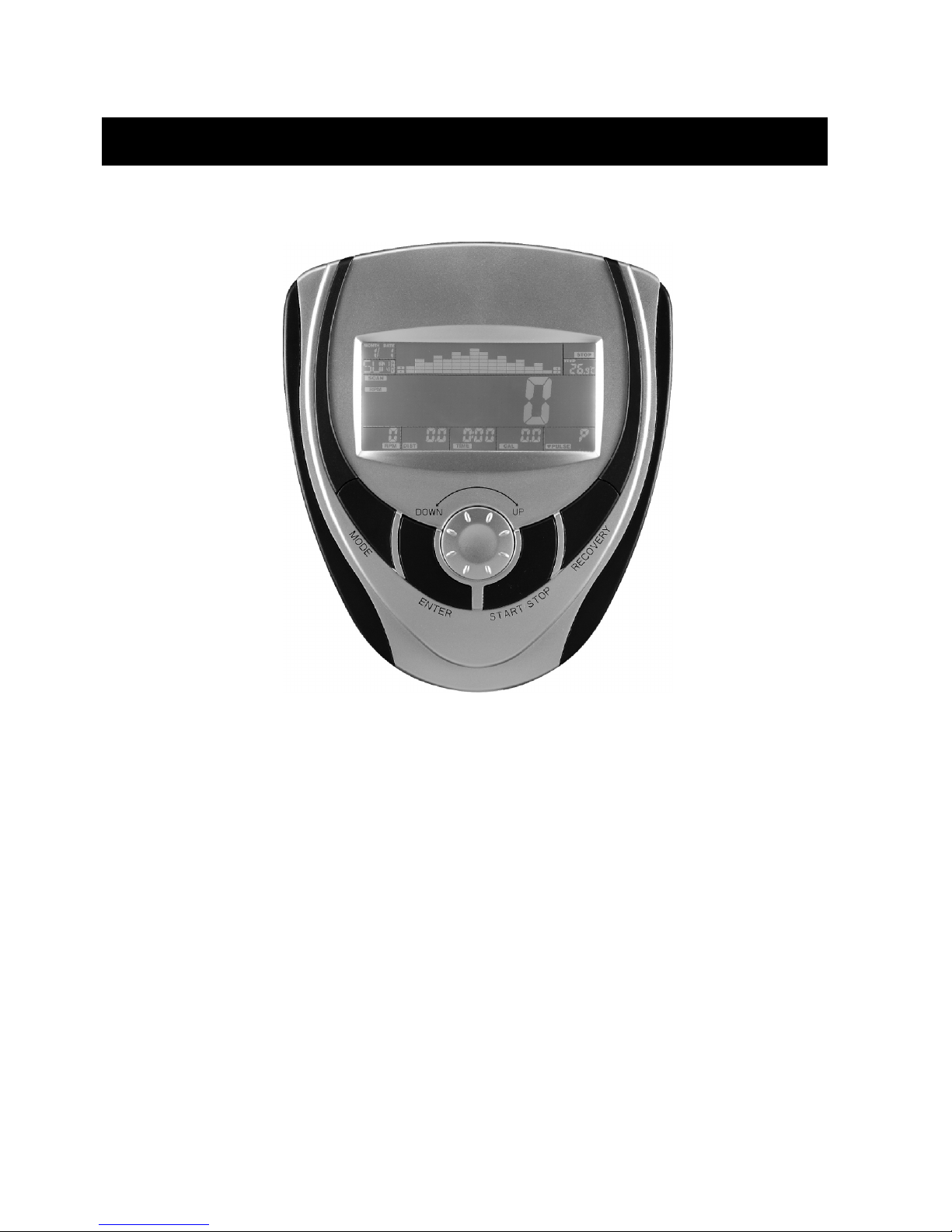

Getting familiar with the control panel
■EL155 Console
Key Functions:
ENTER: 1. Press this button to confirm the setting value of Year- Month- Date- Hour-Minute and
alarm.
2. Press this button to select functions of Distance, Time, Calories, T.H.R, Gender, Age,
Height, Weight and heart Rate% to be preset, the chosen function will be blinking. Please
note that not all functions can be selected in each program.
3. Hold this button down two seconds to reset all of the value (Distance- Time- Calorie-
T.H.R) to zero.
4. Select the function and display on the main screen during exercise. (Speed- RPM-
Distance- Time- Calorie-Watt- Pulse)
START/STOP: Start or Stop exercising for the chosen program.
UP (Turn the knob to right)
1. Increase the setting value of functions during setting mode. ( The monitor has to be in
stop condition.)
2. Increase the level of loading.
3. Select the program form Manual, Preset programs of P1~ P12, Body Fat program,
Target Heart Rate program, Heart Rate control program and user programs of U1~U4
during stop condition.
Operation of Your Elliptical

EL155 Elliptical
14
DOWN (Turn the knob to left)
1. Decrease the setting value during setting mode. (The monitor has to be in stop
condition.)
2. Decrease the level of loading.
3. Select the program form Manual , Preset programs of P1~ P12, Body Fat program,
Target Heart Rate program, Heart Rate Control program and 4 users programs of U1~U4
during stop condition.
MODE: Press this button to select the function value to display on the main screen
PULSE RECOVERY: Press this button to check your pulse recovery condition during stop
condition.
** KM/MILE SWITCH: During the stop situation, press ENTER and Recovery key and hold 2
seconds then can change from Km to Mile or from Mile to Km
automatically.
** CALENDAR SETTING: During the stop situation, press MODE and Recovery keys and hold 2
seconds then can enter setting mode of Calendar.
Functions
1. Calendar: Display the month, date and week.
2. Temperature: Display current room temperature from 10 ℃ to 60 ℃ .
3. Clock: Display the current time.
4. Alarm: The monitor has the alarm function.
5. Scan: Display all functions value from SPEED- RPM- DIST-TIME-CAL-WATT-PULSE.
6. Speed: Display current training speed. Maximum speed is 99.9 KM/H or MILE/H.
7. RPM: Display current rotation per minute.
8. DIST: Accumulate the total distance form 0.00 up to 999.9 KM or Km or Mile. Or users can
preset the target distance they want to reach.
9. Time: Accumulate the workout time from 00:00 to 99:59. Or users can preset the target time
they want.
10. CAL: Accumulate the calories consumption from 0 to 9999. Or users can preset the target
Calories they want to consume.
11. WATT: Display current watt.
12. Pulse: Display the current heart rate in beats per minute.
13. T.H.R.: Users can preset their Target Heart Rate.
14. Body Fat Measurement: Display body fat ratio, body type and BMI.
15. Pulse Recovery: Check the condition of pulse recovery when stop exercising.
16. Programs: There are 20 different programs of Manual, Preset Programs of P1-12, Body Fat
program, Target Heart Rate program, Heart Rate Control and 4 users programs to choose for
training.
Each program has 16 columns of loading bars and 8 bars in each column. Each column
represents 1 minute work out (without the change of time value) and each bar represents 2
levels loading.

EL155 Elliptical
15
Operation Instructions:
1. The full LCD display will be shown with beep sound at the same time after the monitor is power
on. After that the ODO and wheel size will be shown 2 seconds on the lower display.
2. Set up Calendar & Clock
Turn the knob to right or left to set the value while the number of year, month, date and time is
blinking then press Enter key to confirm each setting value.
(If users did not enter any value over 20 seconds, the display will proceed with next step. At this
time you can press START and ENTER keys for 2 seconds to enter setting of Calendar & Clock
again.) Calendar, room temperature and time will show out while stop exercising and without
pressing key over 256 seconds, and reset all the function value to be zero.
Alarm Turn the knob to right or left to set the value while the number of hour and minute for
alarm is blinking, press ENTER key to confirm each setting value. After that turn the knob to
right or left to have the alarm signal showing on the display then press ENTER key to confirm it.
Once the alarm is ringing, press any key to stop it.
3. Program selection and Operation Turn the knob to right or left to select the program after
confirming of Calendar and Time.
There are total 20 programs of Manual, Preset programs of P1~ P12, Body Fat program, Heart
Rate Control program and 4 user programs of U1~U4 to choose for training.
Preset DIST/ TIME/ CAL/T.H.R.
After choosing desire program, users can preset their specific request of Distance, Time,
Calories and THR in Manual, Preset programs of P1~P12, Target Heart Rate program and User
programs of U1~U4. )
Press Enter key to enter setting mode in stop condition.
Use Up or Down key to set the target value while the number is blinking then press Enter key to
confirm it.
a. DIST:
The monitor will count up the distance from 0.0 ~ 999.9 Km or Mile without setting the
value.
User can set the target value from 0.5 to 999.5 Km or Mile then the monitor will count down
from the setting value.
Once reach the setting value, the monitor will alarm then stop. If user would like to continue
exercise, press Start key then the value will count up from 0.0.
b. TIME:
The monitor will count up the time from 00:00 to 99:59 without setting the value.
User can set the target value from 1:00 to 99:00 then the monitor will count down form the
setting value.
Once reach the setting value, the monitor will alarm then stop. If user would like to continue
exercise, press Start key then the value will count up from 00:00.
c. CAL:
The monitor will count up the calories form 0.0 to 9999 without setting the value.
User can set the target value from 10 to 9990 then the monitor will count down form the
setting value.
Once reach the setting value, the monitor will alarm then stop. If user would like to continue
exercise, press Start key then the value will count up from 0.0.

EL155 Elliptical
16
d. T.H.R. (Target Heart Rate)
User can preset the target heart rate from 60 to 220.
Place your palms on the both of the contact pads appropriately and the monitor will show
up your heart rate in beat per minute on the lower LCD display.
Once your heart rate reach your setting value (T. H.R.), the value of pulse rate will be
blinking until your heart rate under your T.H.R.
Press START key to start the chosen program after finished your target values.
*Manual program:
Users can follow up above steps to set up their requests for target Distance, Time, Cal and
T.H.R, then press START/STOP key to exercise.
Or users may just press START key to exercise directly without presetting any specific
requirements of Distance, Time, Calories and T.H.R.
The default level of lading is level 6, user can change the level by turning the knob to right or
left during workout.
*Preset programs of P1~P12
Users can follow up above steps to set up their requests for target Distance, Time, Cal and
T.H.R, then press START/STOP key to exercise.
Or users may just press START key to exercise directly without presetting any specific
requirements of Distance, Time, Calories and T.H.R.
Users can exercise with different level of loading in different intervals as the profile on the
display, and can change the level of loading by turning the knob to right or left during
workout.
*Body Fat Measurement program
Press ENTER key to enter setting your personal date of Gender, age, height and weight.
Turn the knob to right or left to select and set up your data and press ENTER key to confirm
each data.
(The default values for each data are Gender- Male, Age- 30, Height- 175 cm and
weight-70 kgs.)
After that press START/STOP key to calculate the body fat and also place your palms on
the both of contact pads appropriately.
The display will show out Body type, Body Fat ratio and BMI.
Press any key to return the main display.
Body Types: There are 5 body types divided according to the Fat% calculated.
Type 1 is Ultra Slim type (body fat 5% ~ 9%). Type 2 is Slim type (body fat 10% ~
19%).
Type 3 is Ideal-healthy type (body fat 20% ~ 29%). Type 4 is Fat type (body fat 30% ~ 39%).
Type 5 is Ultra body fate type (40% ~50%)
BMI: Body Mass Index Calculate from your personal data to show the value from 1.0 ~
99.99.
Body Fat%: Calculate from your personal data to show the value from 5 ~ 50%.

EL155 Elliptical
17
* Target heart rate program
Press ENTER key to enter setting mode to set up Distance, Time, Calories and T.H.R.
Turn the knob to right or left to adjust the value and then press ENTER key to confirm each
value.
After pressing START key to exercise and place your palms on the both contact pads
appropriately. The monitor will adjust the level of lading according to your heart rate
detected for user to exercise to make the heart rate to close the T.H.R.
*Hear Rate Control Program
Press ENTER key to enter setting mode to set up Distance, Time, Calories and Age.
Turn the knob to right or left to adjust the value and then press ENTER key to confirm each
value.
After that there are 10 kind of Heart Rate % - 50%, 55%, 60%, 65%, 70%, 75%, 80%, 85%,
90% & 95% can be selected by turning the knob to right or left and press ENTER key to
confirm your choice. Then the Target Heart Rate will show out on the lower display.
Press START key to start exercise and place your palms on the both of contact pads
appropriately. The monitor will adjust the level of loading according to the heart rate
detected for user to exercise to make the heart rate to close the T.H.R.
*User programs of U1~U4
Press ENTER key to enter setting mode to set up Distance, Time, Calories and T.H.R.
Turn the knob to right or left to adjust the value and then press ENTER key to confirm
each value.
After that the first column will be flashing, user can adjust the level of loading by turning
the knob to right or left then press ENTER key to confirm. User can adjust the column
from 1 to 16 depends on their requirement. The monitor will store the profile for users.
Users can change the level of lading by turning the knob to right or left during workout,
but these changes will not memory in the monitor.
Pulse Recovery:
Check the condition of pulse recovery after exercising for a period of time. Press
Recovery key and also apply the heart rate detector appropriately while stop exercising.
The test will last 1 minute and Time will count down from 1:00 to 0:00 also shown on the
LCD display. After that the result will show out on the LCD from F1.0 to F6.0, the
increment is 0.1. F1.0 means the best, and F6.0 means the worst. Press any key to return
to the main display.

EL155 Elliptical
18
Maintenance:
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two
reasons:
i. The hardware was not sufficiently tightened during assembly. All bolts that were
installed during assembly need to be tightened as much as possible. It may be
necessary to use a larger wrench than the one provided if you cannot tighten the bolts
sufficiently.
ii. Dirt build-up on the rear rails and polyurethane wheels are also a source of noise.
Clean the rails and wheels with a lint free cloth and rubbing alcohol. Stubborn build-up
can be removed with your thumbnail or a non-metallic scraper, like the back edge of a
plastic knife. After cleaning, apply a small amount of lubricant on the rails with your
fingers or a lint free cloth. You only need a thin coat of lubrication, wipe off any
excess.
3. If squeaks or other noises persist, check that the unit is properly leveled before calling the
service department.
Maintenance Menu in console software:
The console has built in maintenance/diagnostic software. The software will allow you to change
the console settings from English to Metric and turn off the beeping of the speaker when a key is
pressed for example. To enter the Maintenance menu (may be called Engineering mode,
depending on version) press and hold down the Start, Stop and Enter keys. Keep holding the keys
down for about 5 seconds and the message window will display “Engineering mode”. Press the
enter button to access the menu below. Press the up and down keys to navigate the menu.
a. Key test (will allow you to test all the keys to make sure they are functioning)
b. Display test (tests all the display functions)
c. Functions (Press enter to access settings, use up/dn keys to scroll)
i. ODO reset (reset the odometer)
ii. Units (Set to English or Metric display readings)
iii. Sleep mode (Turn on to have the console power down automatically after
20 minutes of inactivity)
iv. Motor test (continually runs the tensioning gear motor)
v. Manual (Allows stepping of the gear motor)
vi. Key tone (Turn on or off the beep when a key is pressed)
d. Security (Allows you to lock the keypad so no unauthorized use is allowed)

EL155 Elliptical
19
ESP0027 –EL155 Parts List
NO. DESCRIPTION O'TY
1 Main Frame 1
2 Rear Rail Assembly 1
3 Crank Arm Assembly 2
4 Bushing Housing, Pedal Arm 2
5 Pedal Arm (L) 1
6 Pedal Arm (R) 1
7 Connecting Arm (L) 1
8 Connecting Arm (R) 1
9 Lower Handle Bar (L) 1
10 Lower Handle Bar (R) 1
11 Console Mast 1
12 Idler Wheel Assembly 1
13 Crank Axle 1
14 Front Stabilizer 1
15 Swing Arm (L) 1
16 Swing Arm (R) 1
17 Rod End Sleeve 3
18 Axle for Pedal 2
19 Axle for Slide Wheel 2
22 Aluminum Track 2
23 6005_Bearing 2
24 6003_Bearing 4
25 6203_Bearing 2
26 Rod End Bearing 2
27 Drive Belt 1
28 Flywheel 1
29 Magnet 1
30 Handgrip Foam 2
31 Steel Cable 1
35 Console Assembly 1
36 1150m/m_Computer Cable 1
37 350m/m_DC Power Cable 1
38 Gear Motor 1
39 300m/m_Sensor W/Cable 1
40 800m/m_Handpulse W/Cable Assembly 2
41 Power Adaptor 1
43 Ø31 × Ø25.5 × Ø19 × 16+3T_Bushing 4
44 Ø60_Transportation Wheel 2
46 Round End Cap 2
47 Ø78_Slide Wheel , Urethane 2
48 Adjustment Foot Pad 2
49 WFM-1719-12_Bushing 4
50 J4FM-1719-09_Bushing 4
51 Drive Pulley 1
52 Ø32(1.8T)_Button Head Plug 4
53 32 × 2.5T_Round Cap 2
