Bodyworx EXT600 User manual

EKX6TQGGDH-92
PRE-ASSEMBLY CHECK LIST
ITEM# DESCRIPTION QTY
1. Frame 1
39. Upper Frame Cover 1
62. Upright 1
63 Grab handle cover 2
70 Rear stabilizer assembly 2
71 Handle assembly 1
75 Rocker left 1
76 Rocker right 1
93 Left pedal assembly 1
94 Right pedal assembly 1
102 Handle assembly left 1
103 Handle assembly right 1
108 Computer 1
114 Frame rear cover 1
115 Plastic pedal set left 1
116 Plastic pedal set right 1
117 Grab handle cover-left front 1
118 Grab handle cover-left rear 1
119 Grab handle cover-right front 1
120 Grab handle cover-right rear 1
121 Glide rail cover 2
122 Joint Pole Cover -left 2
123 Joint Pole Cover -right 2
124 Glide rail connecting rod 2
125 Glide rail connecting rod 2
126. Adapter 1
148 SILICON 1
1

2

3

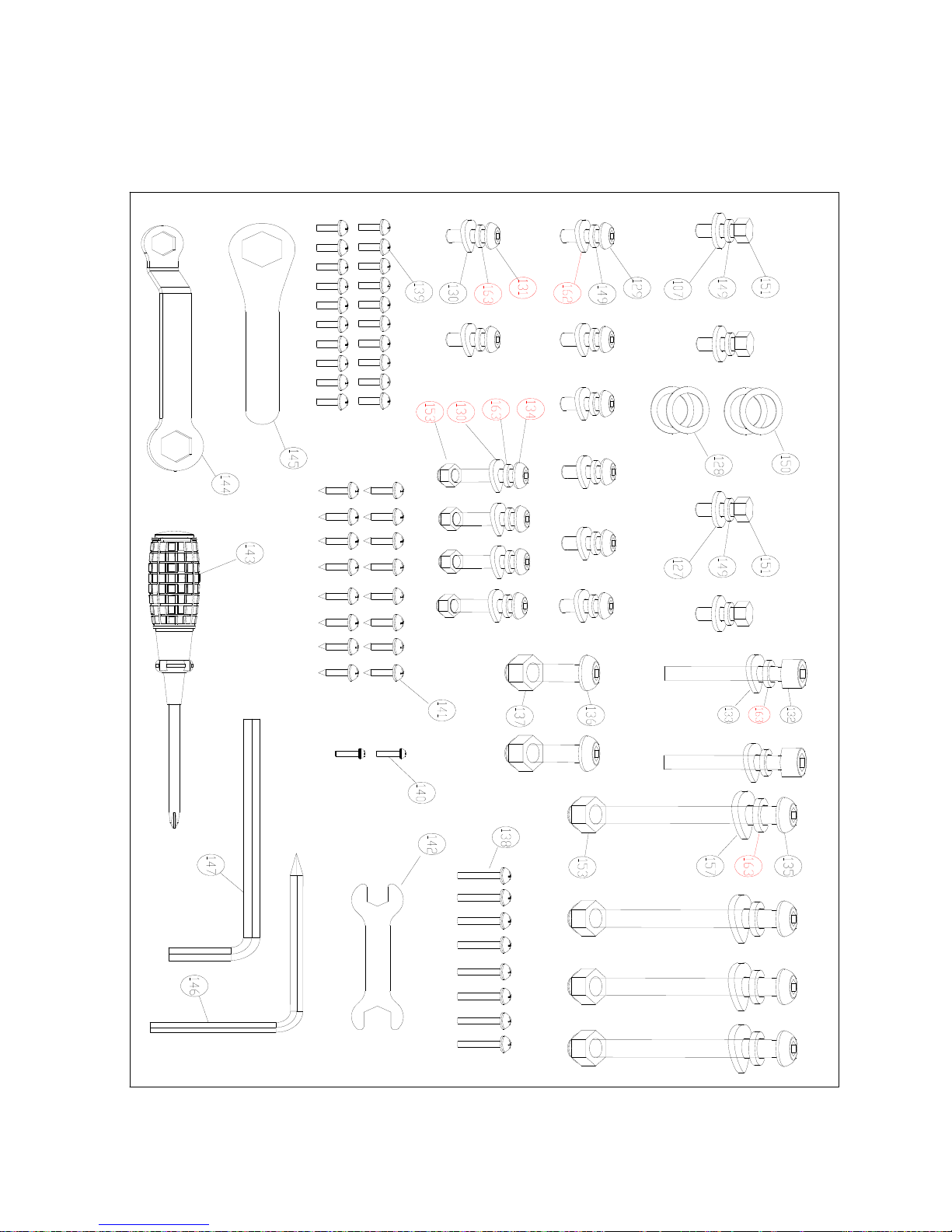

Assembly Screws
ITEM# DESCRIPTION QTY
107 Washer Ø22xØ9x2t 2
127 Washer Ø25xØ9x2t 2
128 Wave Washer Ø17.5xØ26x0.3t 2
129 Truss hex screw M8x20(SAE82046) 6
130 Arc Washer SCB2085 6
131 Truss hex screw M8X20 2
132 Cylinder hex screw M8X58 2
133 Washer Ø25X Ø 8.5x2t 2
134 Truss hex screw M8X45 4
135 Truss hex screw M8X95 4
136 Truss hex scrw M12xP1.75x35 15 2
137 Nylon Nut M12xP1.75，19 2
138 Round head Philips screw M6X20 8
139 Truss Philips screw M4X12 20
140 Truss Philips screw M 4X16 2
141 Truss Philips screw ST4X16 16
142 Wrench SEA1013 1
143 Screwdriver(Plastic handle )SEB5182 1
144 Cinquefoil wrench SEG1317 1
145 Cinquefoil wrench SEG19 1
146 Hex wrench + Plus screwdriver 6MM
50MMX105MM 1
147 Hex wrench 8mm(40X120) 1
149 Spring washer M8x2.0t 10
150 Wave washerØ17.5xØ26x0.3t 2
151 Allen hex scrw M8x20(13 Blue nylok) 4
153 Nylon nut M8 8
157 Acr spring Ø25X Ø 8.5x2t 4
162 Acr spring SCB2085 6
163 Acr spring M8x2.0t 12

1

ASSEMBLY INSTRUCTIONS
1. Assemble Rear Stabilizer (#70) to Frame (#1) with Screw (#132),Spring washer(#163) Washers
(#133) first and then tight the truss hex screw(#135),Spring washer(#163),Arc
washer(#157),Nut(#153) on Rear Stabilizer (#70) and Frame (#1) .
±±¨î½u
±±¨î½u
Control wire
Control wire
2. Set Upper Frame Cover (#39) on Upright (#62) and connect Upper Controller Wire with Lower
Controller Wire. At the first, please tighten left side the Screw (#129) and Washers (#149, 162) on the
Upright (62) and Frame(1) ,then can tighten the right side screw, at the last set the Upper Frame Cover
(#39) on Frame(#1)
2

ASSEMBLY INSTRUCTIONS
¤â´¤¤ß¸õ·PÀ³½u
±±¨î½u¤¤¬q
Handle pulse sensor wire
Middle Control wire

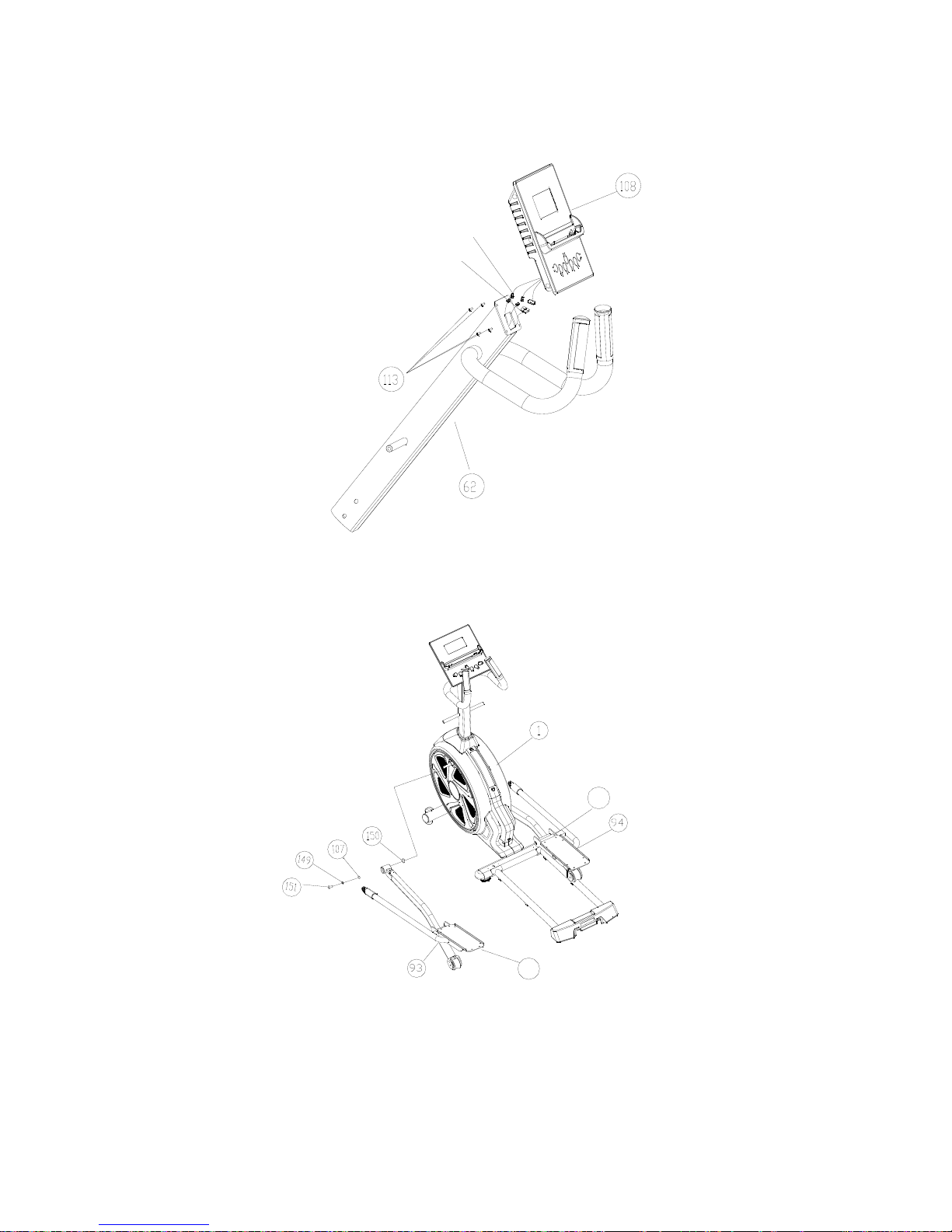

3. Connecting the wire that from upright with upper control wire that from(#108), and then tight the
fixed the computer(#108) on the upright(#62) with truss Philips screw(#113).
L
R
4. First Set the Wave Washer (#150) on the Frame (#1). Then attach left and right Pedal Assembly
(#93,94)to Frame with Screw (#151) and Washers (#149, 107). When assembly, pay attention to the L”
and ”R” tabs on pedal assembly.
3

ASSEMBLY INSTRUCTIONS

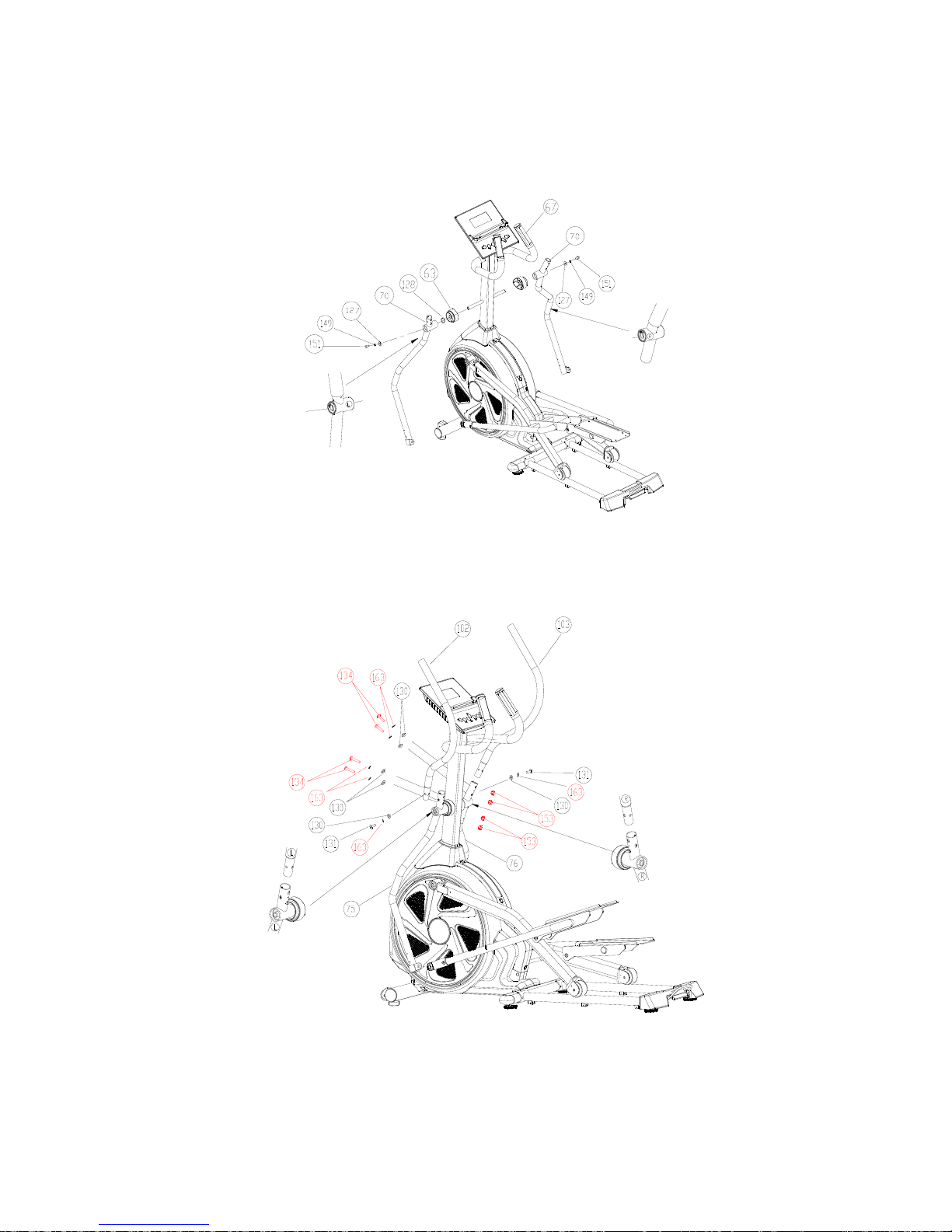

5. Set Grab handle cover (#63) and Wave Washer (#128) on the Upright. Assemble left and right Rocker
(#75,76) to Upright with Screw (#151) and Washers (#149, 127). When assembly, pay attention to the
“L” and “R” tabs on the Handrails.
6. Aim at the “L” and “R” tabs on Handrail and Rocker and then tight the left & right Handrail (102,
103)and left & right rockers (75, 76) with Screw (131), Truss hex screw(134),Washers (163,130) and
Nylon Nut (153)..
4

ASSEMBLY INSTRUCTIONS
5. Set Grab handle cover (#63) and Wave Washer (#128) on the Upright. Assemble left and right Rocker
(#75,76) to Upright with Screw (#151) and Washers (#149, 127). When assembly, pay attention to the
“L” and “R” tabs on the Handrails.
1

6. Aim at the “L” and “R” tabs on Handrail and Rocker and then tight the left & right Handrail (102,
103)and left & right rockers (75, 76) with Screw (131), Truss hex screw(134),Washers (163,130) and
Nylon Nut (153)..
ASSEMBLY INSTRUCTIONS
7. Assemble left and right Rockers (#75, 76) and left and right Pedal Assembly (#93, 94) with Screw
(#136) and Nylon Nut (#137).
2

8. Assemble Pedal(L&R) (#115,116) to left and right Pedal Assembly (#93,94) with Screw (#138).
ASSEMBLY INSTRUCTIONS
Á³¥À
½Õ¾ã¸}¹Ô
Nut
Adjust foot pad

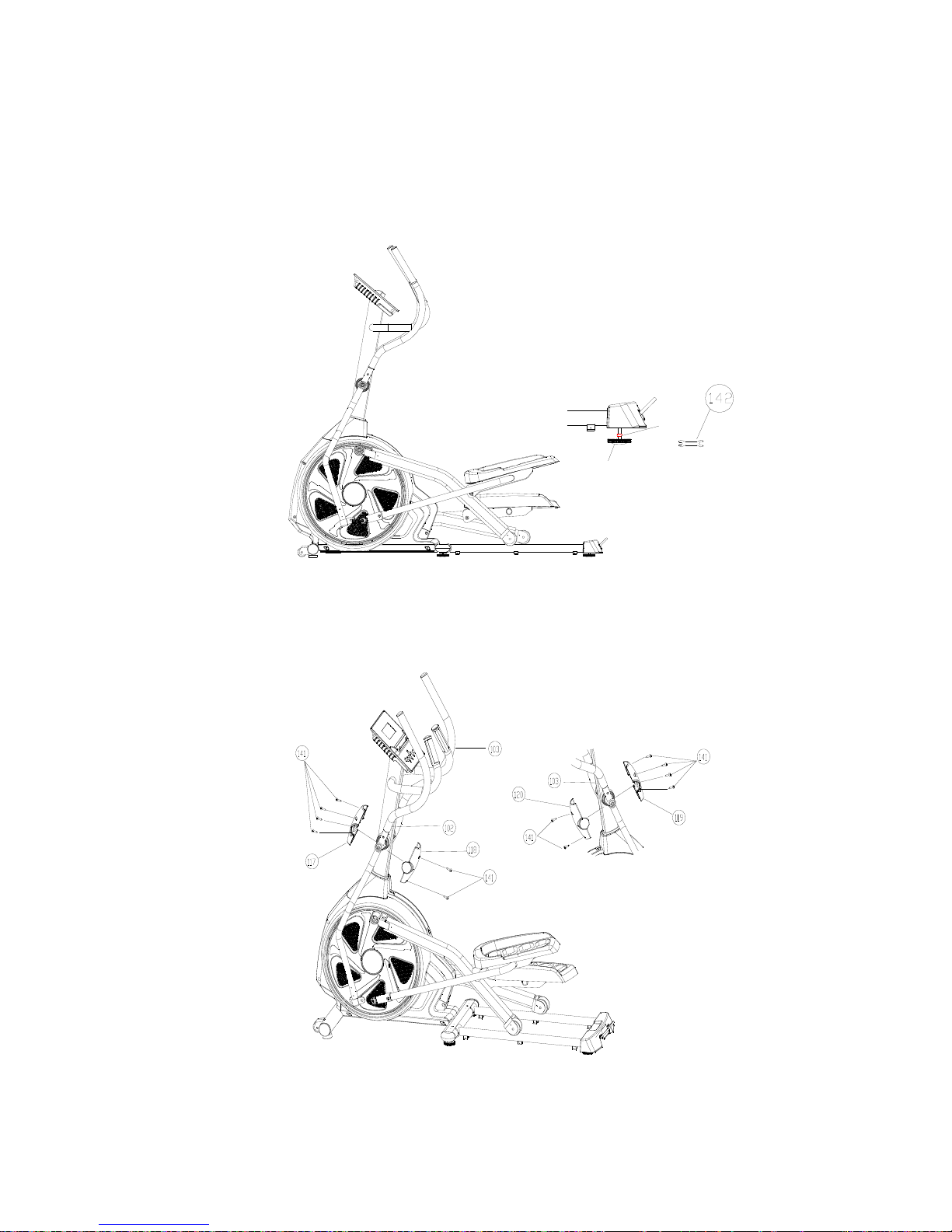

9. Adjust frame’s level, let middle adjustment foot pad higher to the frame hang in the air. Then adjust
rear adjustment foot pad of the frame to let frame be level and adjust middle adjustment foot pad to floor.
and tighten with (142)adjustment foot pad.

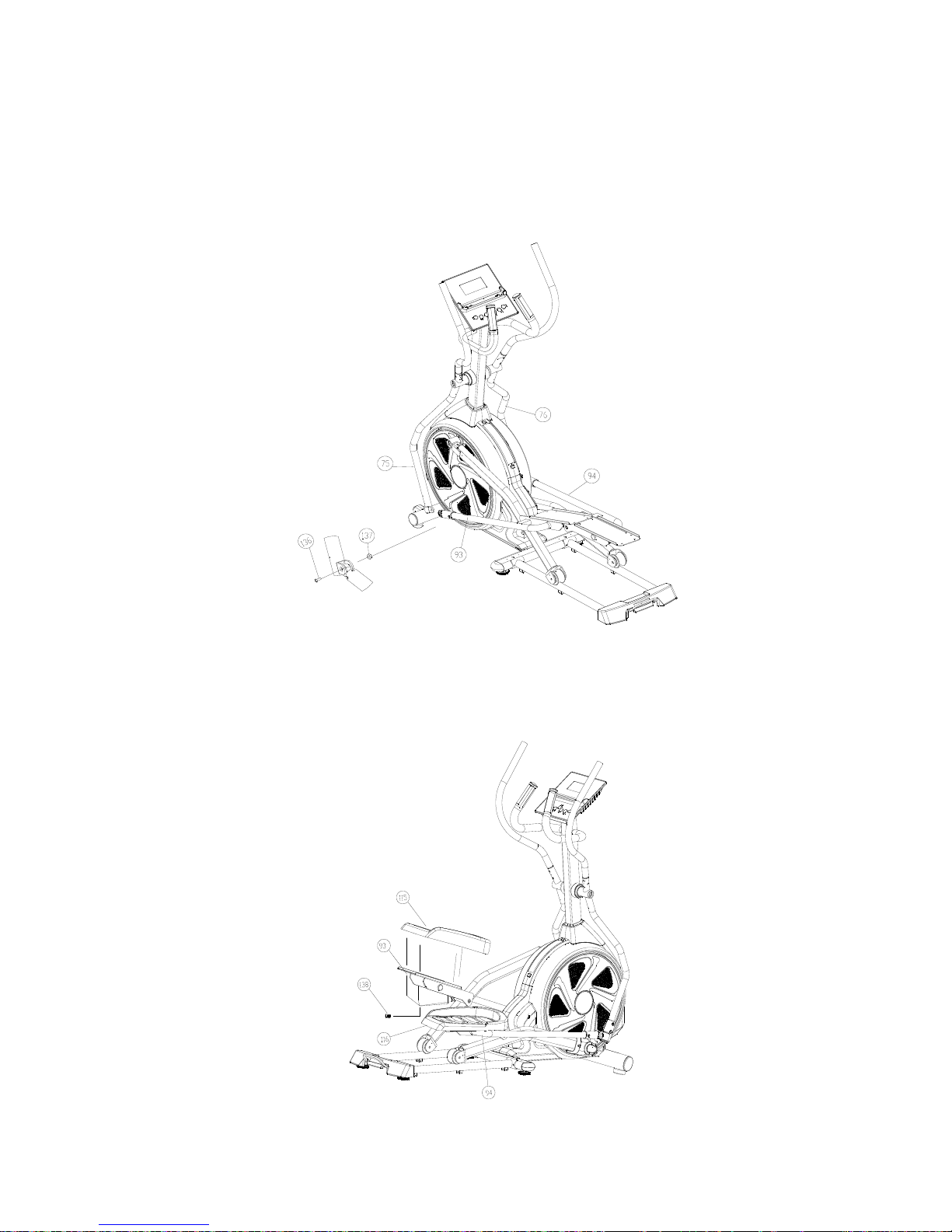

10.Assembly the Grab handle cover(117,118,119,120) on the Handle assembly(102,103) with
3

ASSEMBLY INSTRUCTIONS
Glide rail
11. Assembly the Joint Pole Cover（122,123）on the left and right Rocker with Philips screw(139), Then
assembly glide rail cover（121）with truss Philips screw（140）in glide rail, Can be appropriately lay
on the Silicon（148）on the glide rail.
1

12.Assembly glide rail connecting rod cover(124,125) on the Rear stabilizer assembly(70) with Philips
screw(139), and the tighten the glide rail connecting rod cover(124,125) with Philips screw(141)
ASSEMBLY INSTRUCTIONS
13. Insert Adapter (#126) into power plug of Frame (#1). Be sure to check the Adapter’s parameters
before plug (such as input and output voltage). Assembly is now completed.
2

Operation Instruction
I. Power Mode:
1. Boot mode: after open the power, the buzzer long call and display all screen (Figure
1 , and after 2 seconds entering the user settings screen (Figure 2 .
2. Dormancy model: When no any operation or no RMP signal input after 4 minutes,
The meter will enter the dormancy model, can be sport or press any key to awaken the
meter.
Figure 1 Figure 2
II. USER SETTING:
Under the original state, Press ▲ or ▼ key to select setting the USER:”U0”,”U1”,
“U2”, “U3”, “U4”
1. Press ENTER key to confirm the select, enter the SEX setting: flashing display
“SEX” on the right of the screen, Press ▲ or ▼ key to select female and male.
2. Press ENTER key to confirm the SEX, enter the AGE setting: flashing display
“AGE” on the right of the screen, Press ▲ or ▼ key to setting the age.
3. Press ENTER key to confirm the age and enter the H.t setting: flashing display
“H.t” on the right of the screen, Press ▲ or ▼ key to setting the Height.;
4. Press ENTER key to confirm the Height and enter the Weight setting: flashing
display “W.t” on the right of the screen, Press ▲ or ▼ key to setting the weight.
5. Press ENTER key to confirm the weight enter the sports program mode to select
picture.
SEX AGE H. . W. .

III. Program mode se ing:
Under the sports program mode, press ▲ or ▼ key to cyclic selection the sport mode
as below..
MANUAL→PROGRAM→FITNESS→WATT→PERSONAL→H.R.C.→RAND
OM
1. MANUAL Mode
If Press ENTER key to confirm select the MANUAL Mode, Enter the resistance
LEVEL setting: press ▲ or ▼ key to setting the resistance level
Press ENTER key to confirm the resistance level and enter the target TIME setting:
press ▲ or ▼ key to setting the target time
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
2. PROGRAM Mode：
If press ENTER key to confirm select the PROGRAM mode, enter to select P1-P12
setting: press ▲ or ▼ key can setting the sport figure.
Press ENTER key to confirm the sport figure and enter the resistance LEVEL
setting: press ▲ or ▼ key to setting the resistance level
Press ENTER key to confirm the resistance level and enter the target TIME setting:
press ▲ or ▼ key to setting the target time
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
3. FITNESS Mode
If press ENTER key to confirm select FITNESS mode, enter the FITNESS test
mode, press START/STOP key to start the test.
This test mode time is countdown 8 minutes, the display result as below:
Display resul S a us
F1 Very good
F2 Good
F3 Normal
F4 Poor
F5 Very Poor
4. WATT Mode
If press ENTER key to confirm select WATT mode enter the target TIME setting:
Press ▲ or ▼ key can setting the target time.
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.

5. PERSONAL Mode
If press ENTER key to confirm select PERSONAL mode to enter the resistance
LEVEL setting:
Press ▲ or ▼ key can setting the resistance level of the first line, Press ENTER key
to confirm and enter to next resistance level setting.
Long press ENTER 3seconds to save the personal figure and enter the target time
setting, press ▲ or ▼ key can setting the target time.
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
6. H.R.C. Mode
If press ENTER key to confirm select H.R.C program, then can enter the target pulse
selection H.R.C. (55%, 75%, 90%, Tag setting: Press ▲ or ▼ key can to setting
target pulse grade.
(1. If select the 55%, 75%, 90% :
Press ENTER key to confirm select the target pulse and enter the target Time setting:
press ▲ or ▼ key can setting the target time.
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
(2. If select the Tag :
Pres ENTER key to confirm select TAG and enter the target PULSE setting, Press ▲
or ▼ key can setting the target pulse value.
Press ENTER key to confirm select the target pulse and enter the target Time setting:
press ▲ or ▼ key can setting the target time.
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
7. RANDOM Mode:
If press ENTER key to confirm select RANDOM mode and enter the target TIME
setting: press▲ or ▼ key can setting target time.
Press ENTER key to confirm the target time and enter the target DISTANCE
setting: Press ▲ or ▼ key to setting the target distance value.
Press ENTER key to confirm target distance and enter the CALORIES setting: Press
▲ or ▼ key to setting the calories value.
IV. Recovery Tes :
Under the anyone sports mode, Press RECOVERY key can enter the recovery test,
and start to countdown 10 seconds to detection the pulse value.
(1 . If not detection any pulse value within 10 seconds then will auto exit the pulse
recovery test mode.
(2 . If detection the pulse value within 10 seconds ,then start to countdown 60 seconds
test, the test result as below:
● In testing:

Display resul S a us
F1 Wonderful
F2 Very good
F3 Good
F4 Normal
F5 Poor
F6 Very Poor
● Test result
V. Key func ion ins ruc ion:
1. START/STOP Key:
Under anyone sport mode, press this key can be start the motion directly.
Under the motion mode, press this key can stop the motion, press this key again can
continue the motion. 2. ENTER Key:
Press this key to do the confirm and into the next setting step.
3. ▲ and ▼ key:
Can adjust the SEX, AGE, H.t, W.t, TIME, DISTANCE, CALORIES, TARGET
H.R.C and LEVEL value.
4. RECOVERY Key:
Press this key to enter the pulse recovery test mode.
5. RESET Key:
(1 . Under the USER setting mode, press this key can recovery to USER select mode.
(2 . Under the set motion mode or pause status, press this key can recovery to original
sport program select mode.
(3 . Long press this key 3 seconds, meter return to standby status.
6. QUICK START Key:
After the boot press this key into the MANUAL mode directly and start to motion, the
preset motion time is 0:00, distance 0:00, calories is 0.
VI. Func ion Overview:
Par Display window Display range Pre-Se Save
1SEX MALE/ FEM Male Yes
2AGE 10 - 100 30 Yes
3WEIGHT 20 - 330(Lb
10 - 150(KG
150 Yes
4HEIGHT 36 - 84(INCH
90 – 210(CM
175 Yes
5TIME 0:00 - 99:59 0: 00 No

6DISTANCE 0.0 - 99.99 0.0 No
7CALORIES 0 - 999 0 No
8SPEED 0.0 - 99.9 0.0 No
9PULSE 30 - 200 bpm 0 No
10 RPM 0 - 250 rpm 0 No
11 USER U0-U4 U0 Yes
12 BRAKE RESISTANCE LEVEL L1 - L24 L1 No
VII. Figure Ins ruci on:
1. Program mode figure:
● MANUAL ● PROGRAM ● FITNESS
● WATT ● PERSONAL ● H.R.C.
● RANDOM
2. P1~P12
● P1 ● P2 ● P3
