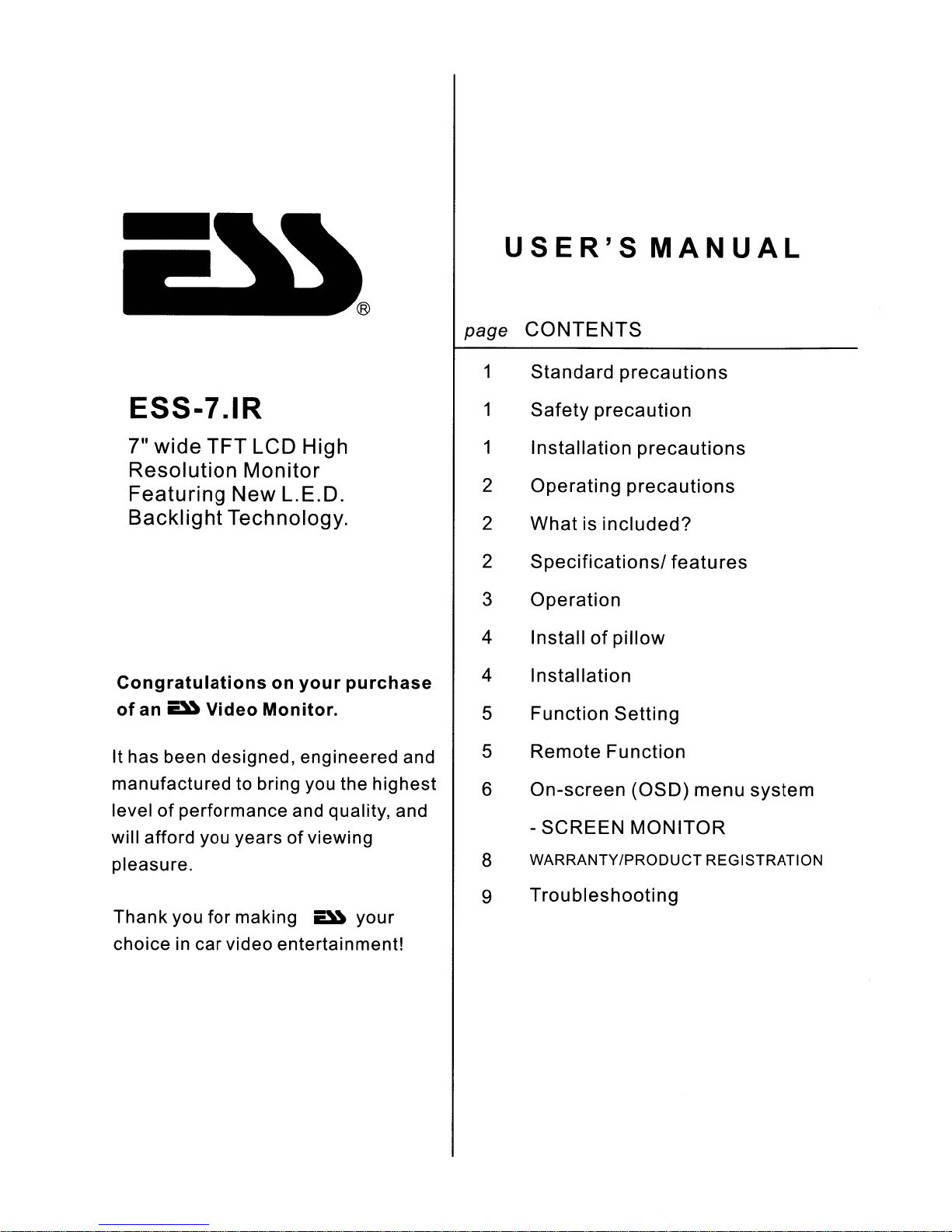

ESS ESS-7.IR User manual

ESS-7.IR
7" wide TFT LCD High
Resolution Monitor
Featuring New L.E.D.
Backlight Technology.
Congratulations on your purchase
of an ii» Video Monitor.
It has been designed, engineered and
manufactured to bring you the highest
level
of performance and quality, and
will afford you years
of viewing
pleasure.
Thank you for making
ii» your
choice
in car video entertainment!
USER'S MANUAL
page
CONTENTS
1 Standard precautions
1
Safety precaution
1
Installation precautions
2
Operating precautions
2
What is included?
2
Specifications! features
3
Operation
4 Install of pillow
4
Installation
5 Function Setting
5 Remote Function
6 On-screen (OSO) menu system
- SCREEN MONITOR
8
WARRANTY/PRODUCT REGISTRATION
9
Troubleshooting

Standard Precautions
Please read this manual carefully prior to the installation of your ~ mobile
entertainment system aM.E.C.P. CERTIFIED INSTALLER IS RECOMMENDED.
The location of this unit should not be visible to the driver in any way. This is for rear
seat entertainment only.~ assumes no liability for failure to follow the proper
installation recommendations.
Please keep this manual in a safe place for future reference.
Safety Precaution
• In most countries it is against the law to watch TV(video)while driving it is
recommended to check with your local police for the law.
•Safe driving should always be your priority.
•Do not attempt to modify or repair this unit it will void your ~ warranty.
• If any repairs are needed, please contact ~ for a repair station near you.
•It is recommended when D.I.Y installation is done, disconnect the negative
battery terminal.
• After installation is complete, check all connections prior to final assembly.
•No modifications to the unit or mounting hardware are permitted.
Installation
• If this installation requires modification to the vehicle, go to aM.E.C.P. CERTIFIED
INSTALLER.
• First choose alocation that will not obstruct the drivers view.
•The power source is 12V negative ground only.
•Be sure not to install where the unit can get wet or high heat always after entering
a hot or extremely cold vehicle.
•Wait for inside temperature to be comfortable before turning on the unit.
• Carefully check the clearance in headliner to make sure there are no obstructions.
• Route cables carefully, make sure they are free from sharp metal.
• When mounting unit always use same tightness on all mounting hardware not to
deform housing.
page 1

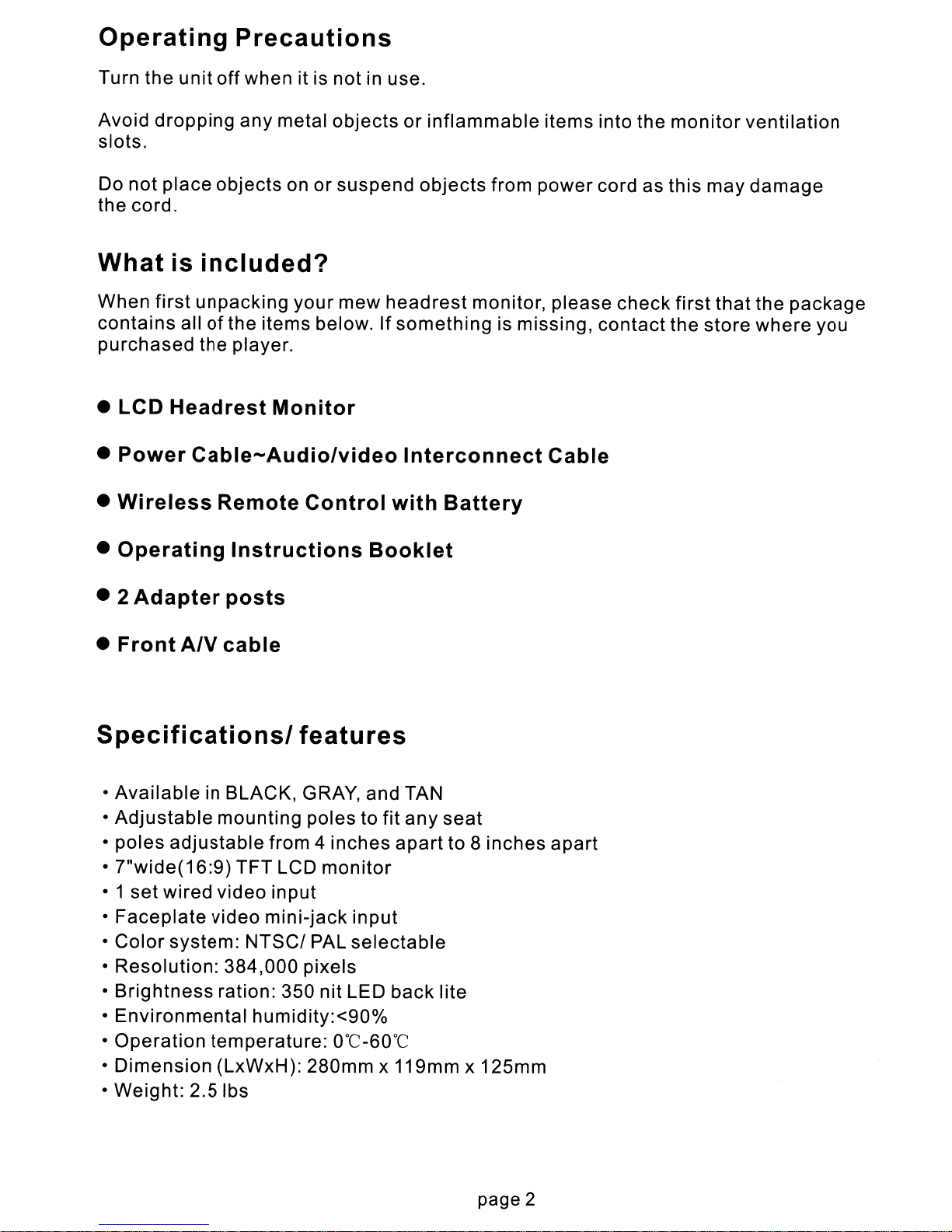

Operating Precautions
Turn the unit off when it is not in use.
Avoid dropping any metal objects or inflammable items into the monitor ventilation
slots.
Do not place objects on or suspend objects from power cord as this may damage
the cord.
What is included?
When first unpacking your mew headrest monitor, please check first that the package
contains all of the items below. If something is missing, contact the store where you
purchased the player.
•LCD Headrest Monitor
• Power Cable-Audio/video Interconnect Cable
•
Wireless Remote Control with Battery
• Operating Instructions Booklet
•2 Adapter posts
•
Front A/V cable
Specificationsl features
• Available in BLACK, GRAY, and TAN
• Adjustable mounting poles to fit any seat
•poles adjustable from 4 inches apart to 8inches apart
• 7"wide(16:9) TFT LCD monitor
• 1 set wired video input
• Faceplate video mini-jack input
• Color system: NTSC/ PAL selectable
•Resolution: 384,000 pixels
• Brightness ration: 350 nit LED back lite
• Environmental humidity:<90%
• Operation temperature: 0°C-60°C
• Dimension (LxWxH): 280mm x119mm x125mm
•Weight: 2.51bs
page 2

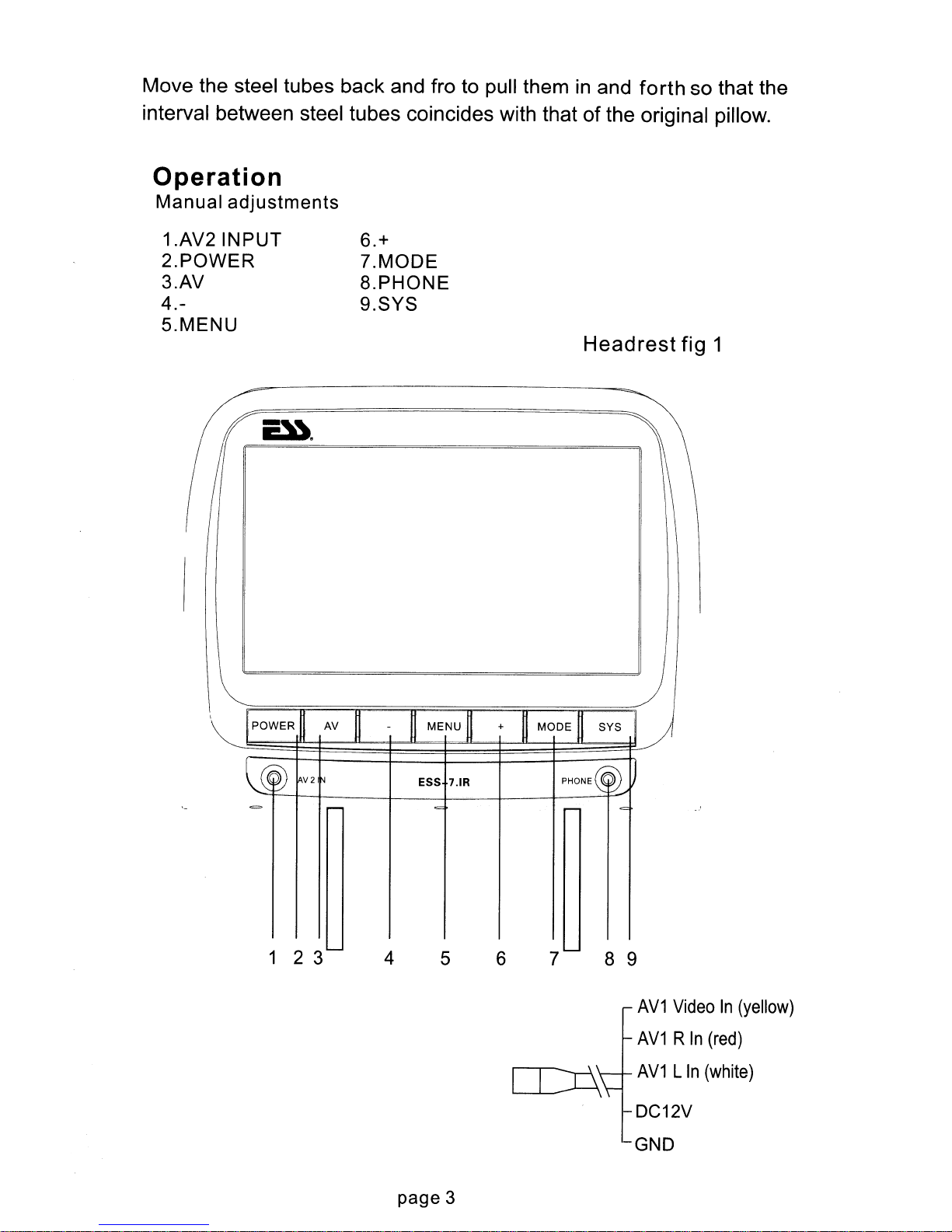

Move the steel tubes back and fro to pull them in and forth so that the
interval between steel tubes coincides with that of the original pillow.
Operation
Manual adjustments
1.AV2INPUT
2.POWER
3.AV
4.-
5.MENU
6.+
7.MODE
8.PHONE
9.SYS
Headrest fig 1
1 2 3 456789
AV1 Video In (yellow)
AV1 R In (red)
~
AV1 L In (white)
DC12V
GND
page 3

Install the pillow
Sound system
VCD/DVD
Red line (+12V)
Black line (ground)
Yellow line (signal)
Headrest fig 2
The
circuit connection of the headrest monitor is very simple.
As shown in Fig.
Connect the +12V power of the
sound
system(red line to + ,black line to ground),and then
connect the A/V input. Hide the connection in the base of seat.
Installation
1. Remove the original headrest in the car.
2. Install the headrest monitor. Adjust the steel tube in or out
(max. interval:
8inch;min interval:4 inch) according to the
interval between
pillow holes so that the interval between steel
tubes
of the pillow monitor coincides with that between steel
tubes of the original pillow headrest.
Headrest fig 3
You can
adjust the posts
by pulling
or pushing
inword
or outward see Fig 3
page 4

Function Setting
Menu instruction
The following menus will appear when pressing "SEL" button,press "+"
"-" to select the one you want.
OBRIGHT 20
111I111I111I11111I11111I1························ I
U TINT 20
1111I1111111111I11I1111I1························ 1
~ CONTRAST 20
111I1111I11I11111111111I1· ...... · ..··.. ·········· I
...... VOLUME 20
111111111I11I11111I11I11I .. · · I
Gl COLOR 20
1111I11I111111I1111I111I1· ..·· ... ····· ..··.. · .... 1
I MODE
1 SOURCE
I LANGUAGE ENGLISH 1
IIR
1 RESET
I TCON
LD 1
Remote Function
1.Power/on/off
5.Menu
6.Adjustment- ----tf-II
~-tt-- 2.INputVideo Switch
+------til---- 3.Adjustment+
~~~1114.Exit OSD Display
1. Power On/off
2.AV1 ,AV2 Switch
3.Adj ustment+
4.Exit
5.Menu
6.Adjustment-
page 5

On-screen (050) menu system - SCREEN MONITOR
1.Press the "POWER" key on monitor or remote controller to turn on the monitor.
2.Press the "MENU" key on monitor or remote unit, the OSD
(ON SCREEN DISPLAY) menu will be shown on the
display as below.
BRIGHT
CONTRAST
COLOR
TINT
VOLUME
MODE
SOURCE
IR
TCON
LANGUAGE
RESET
3.Press "MENU" key on monitor or remote unit to select the adjustment
item. Then press" + " or" - " key to adjust the new setting value.
Each
adjustment item is shown as below:
*BRIGHT Adjustment
Pressing U+" key, the screen color gets more bright.
Pressing U." key, the screen color gets less bright.
*CONTRAST Adjustment
Pressing "+" key, the screen gets high intensity.
Pressing U." key, the screen gets lower intensity.
*COLOR Adjustment
Pressing "+" key, the screen color gets richer.
Pressing "." key, the screen color gets lighter.
*TINT Adjustment
Pressing "+" key, the screen gets greenish.
Pressing "." key, the screen gets reddish.
*VOLUME Adjustment
Pressing "+" key, the volume gets strong.
Pressing U." key, the volume gets small.
*MODE Adjustment
Press "+" or "." key to select the picture image to 16:9 or 4:3 display.
*SOURCE Adjustment
Press "+" or "." key to change to AV1 or AV2.
*IR
Adjustment
Press "+" or "·"key to select the IR channel to "A" or "B".
*TCON Adjustment
Reverses the displayed image (useful with rear camera systems)
*LANGUAGE Adjustment
Press "+" or "." key to select the different OSD language.
*RESET Adjustment
Press "+" or "." key to return all setting to factor values.
page 6

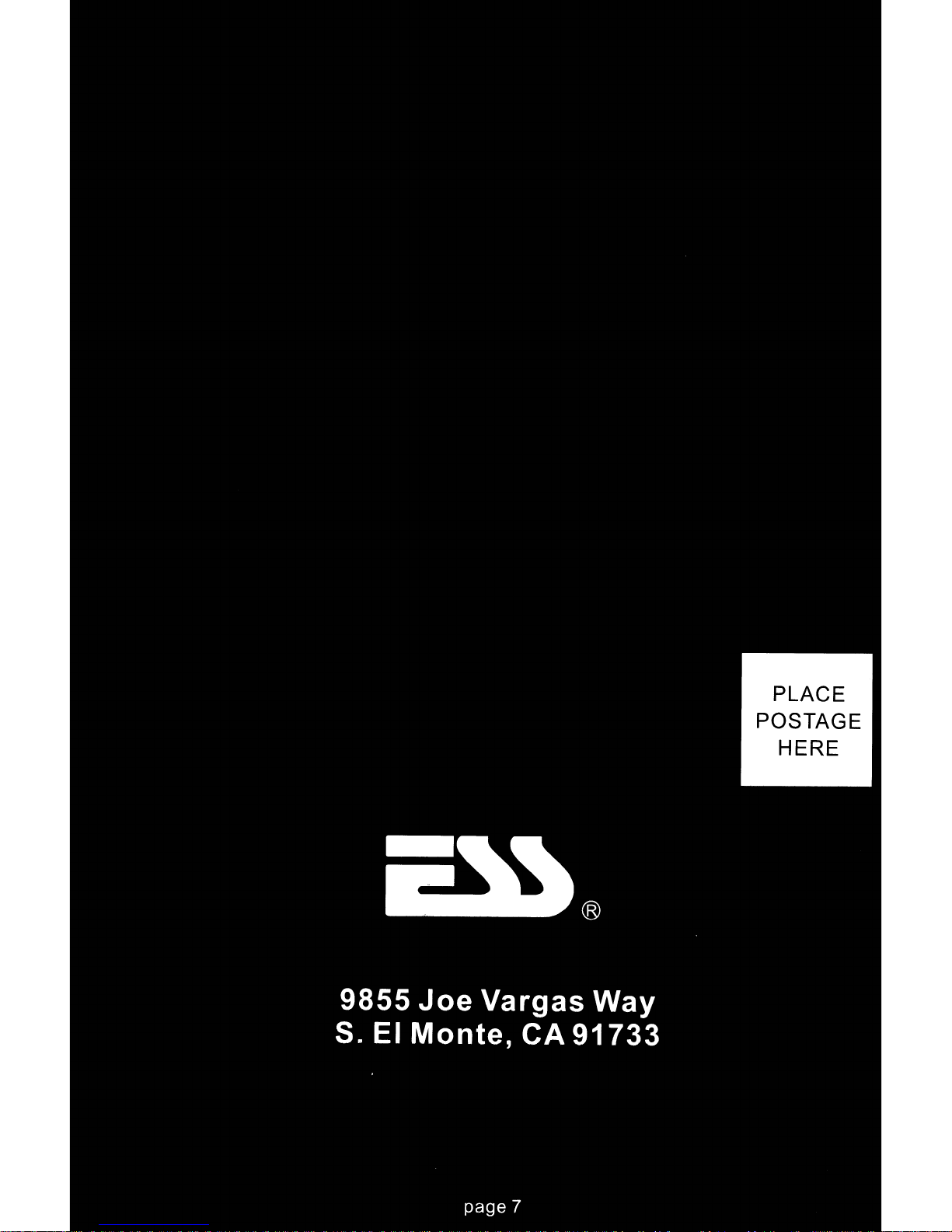

PLACE
POSTAGE
HERE

9855 Joe Vargas Way
S. EI Monte,
CA 91733
Office:626-443-8324
Toll-Free: 1-888-377 -8720

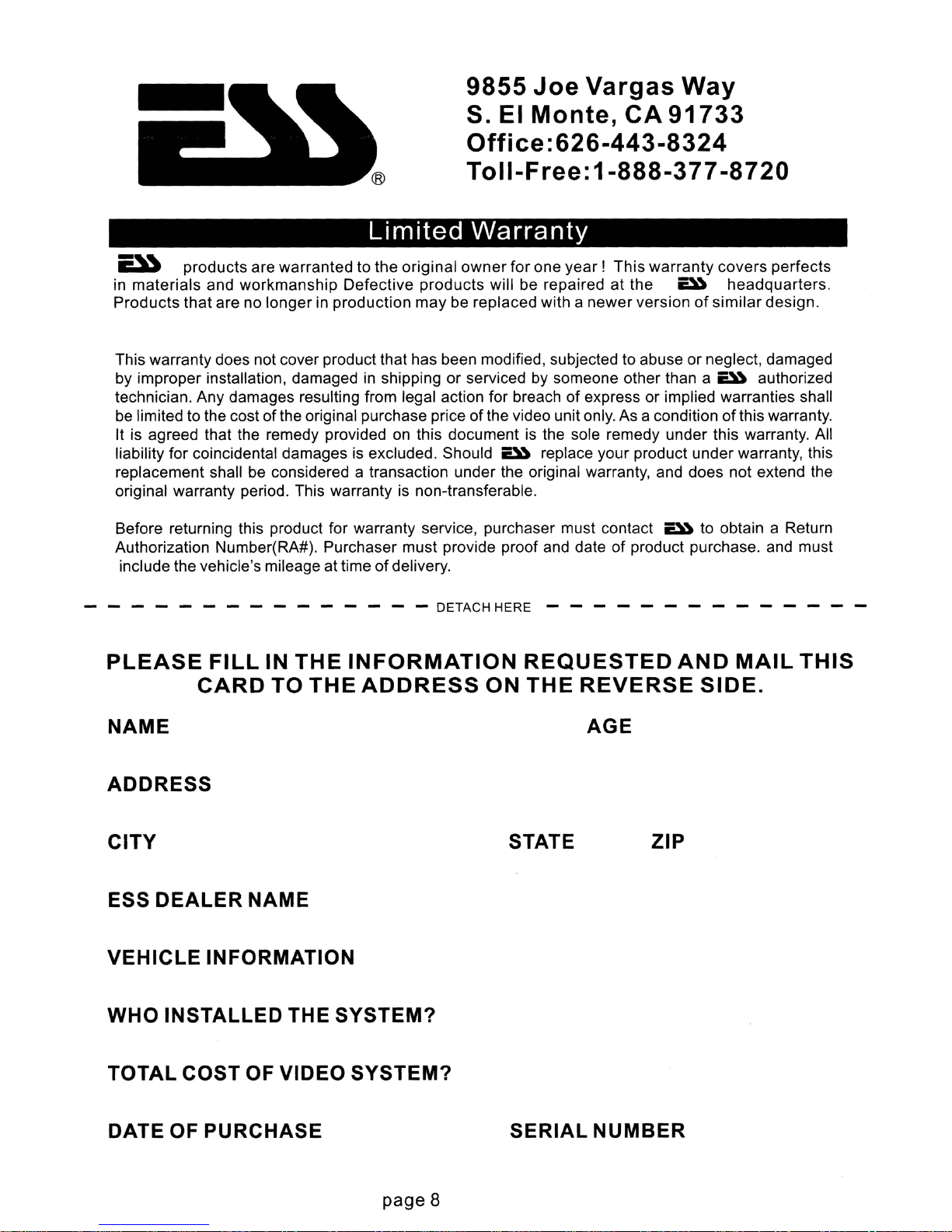

Limited Warranty
iii» products are warranted to the original owner for one year! This warranty covers perfects
in materials and workmanship Defective products will be repaired at the
~ headquarters.
Products that are no longer in production may be replaced with anewer version
of similar design.
This warranty does not cover product that has been modified, subjected to abuse or neglect, damaged
by improper installation, damaged
in shipping or serviced by someone other than a ~ authorized
technician. Any damages resulting from legal action for breach of express or implied warranties shall
be limited to the cost ofthe original purchase price of the video unit only. As acondition of this warranty.
It is agreed that the remedy provided on this document is the sole remedy under this warranty. All
liability for coincidental damages is excluded. Should
~ replace your product under warranty, this
replacement shall be considered atransaction under the original warranty, and does not extend the
original warranty period. This warranty is non-transferable.
Before returning this product for warranty service, purchaser must contact
~ to obtain aReturn
Authorization Number(RA#). Purchaser must provide proof and date of product purchase. and must
include the vehicle's mileage at time
of delivery.
- - - - - - - - - - - - - - DETACH HERE
PLEASE FILL IN THE INFORMATION REQUESTED AND MAIL THIS
CARD TO THE ADDRESS ON THE REVERSE SIDE.
NAME
ADDRESS
CITY
ESS DEALER NAME
VEHICLE INFORMATION
WHO INSTALLED THE SYSTEM?
TOTAL COST OF VIDEO SYSTEM?
STATE
AGE
ZIP
DATE OF PURCHASE
page 8
SERIAL NUMBER

Troubleshooting
If you experience operation or performance problems with this product,
compare your installation with the electrical wiring diagram on P6.4.
If problems persist, read the following troubleshooting tips which may
help eliminate the problems.
SYMPTOM
No picture or
sound.
CAUSE
Power cord is not
properly connected.
A/V input cables not
properly connected.
AlVinput source is not
operating properly.
REMEDY
Check that power connections
are properlymade andallfuses
are
in functioning condition.
Check allcables.
Replace
or repair AN source
(OVO player, video game, etc.)
No picture.
A/V signal not present. Check allcables. If necessary,
repair
or replace AN source.
Remote control
does notfunction
properly.
Contrast and/or
brightness is set
improperly.
Battery is dead.
Remote is not being
used in
direct line-of-
sight with the player
or remote IR sensor.
Transmission is best
within 6
feet/35°angle
of IR sensor on the
monitor.
page 9
Adjustcontrast andbrightness
levels
to see if picture appears.
Replace battery.
Be sure when being used, the
remote is beingpointeddirectly
toward the player
or remote IR
sensor
