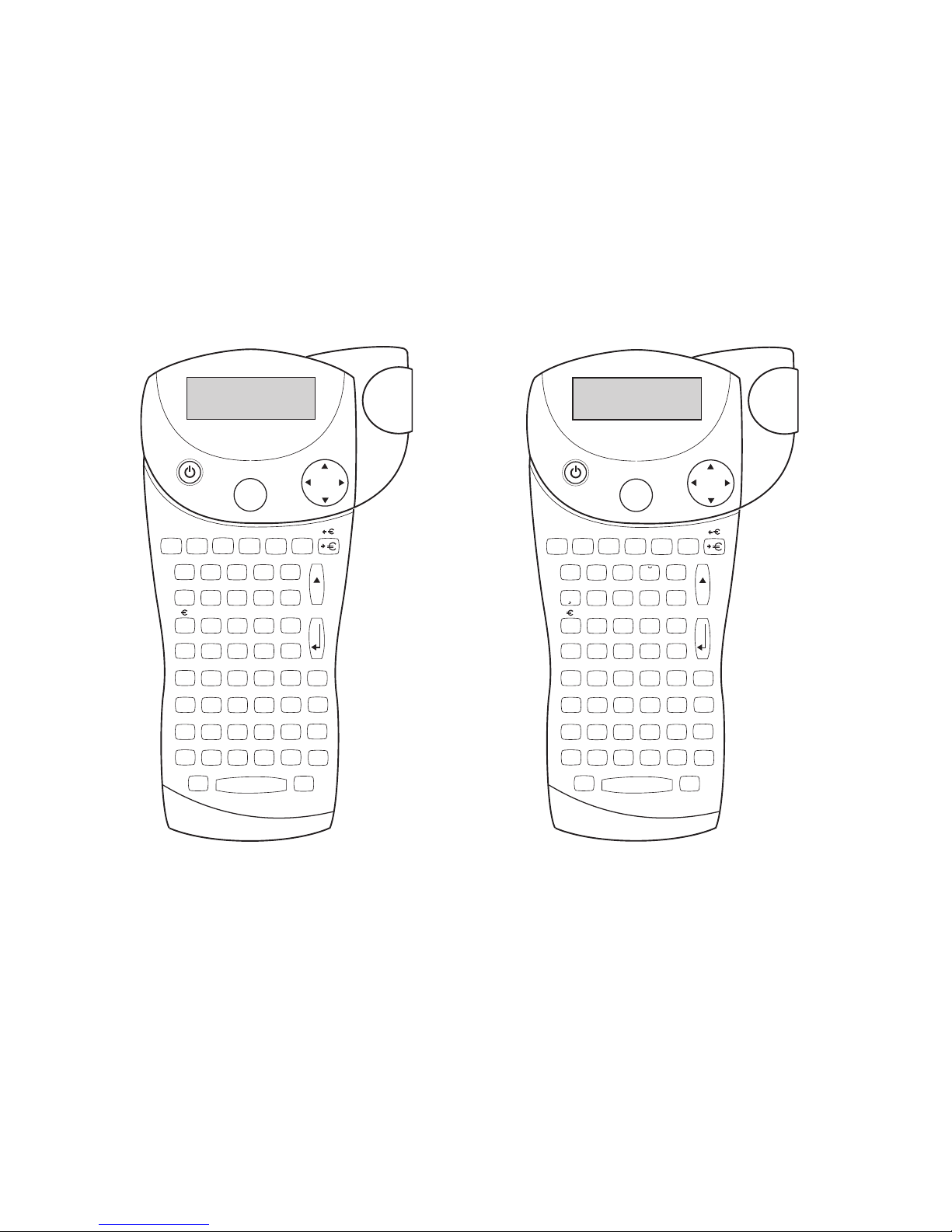

The Dymo Labelpoint LP300 enables you to create a wide
variety of high quality self-adhesive labels of up to 90
characters.
The Labelpoint uses 6mm (1/4"), 9mm (3/8"), 12mm (1/2") or
19mm (3/4") wide tape cassettes in a number of label
colours. Labels are back slit for easy removal from the
backing tape. Text can be printed horizontally or vertically
in a variety of sizes and styles and can be left-justified,
right-justified or centred on the label.
Visit www.dymo.com for information on obtaining tapes
and accessories for your LP300.
Warranty Registration
Please complete the warranty registration card and return
it to the relevant address, within seven days– see the
warranty booklet for details.
Power Supply
BATTERIES

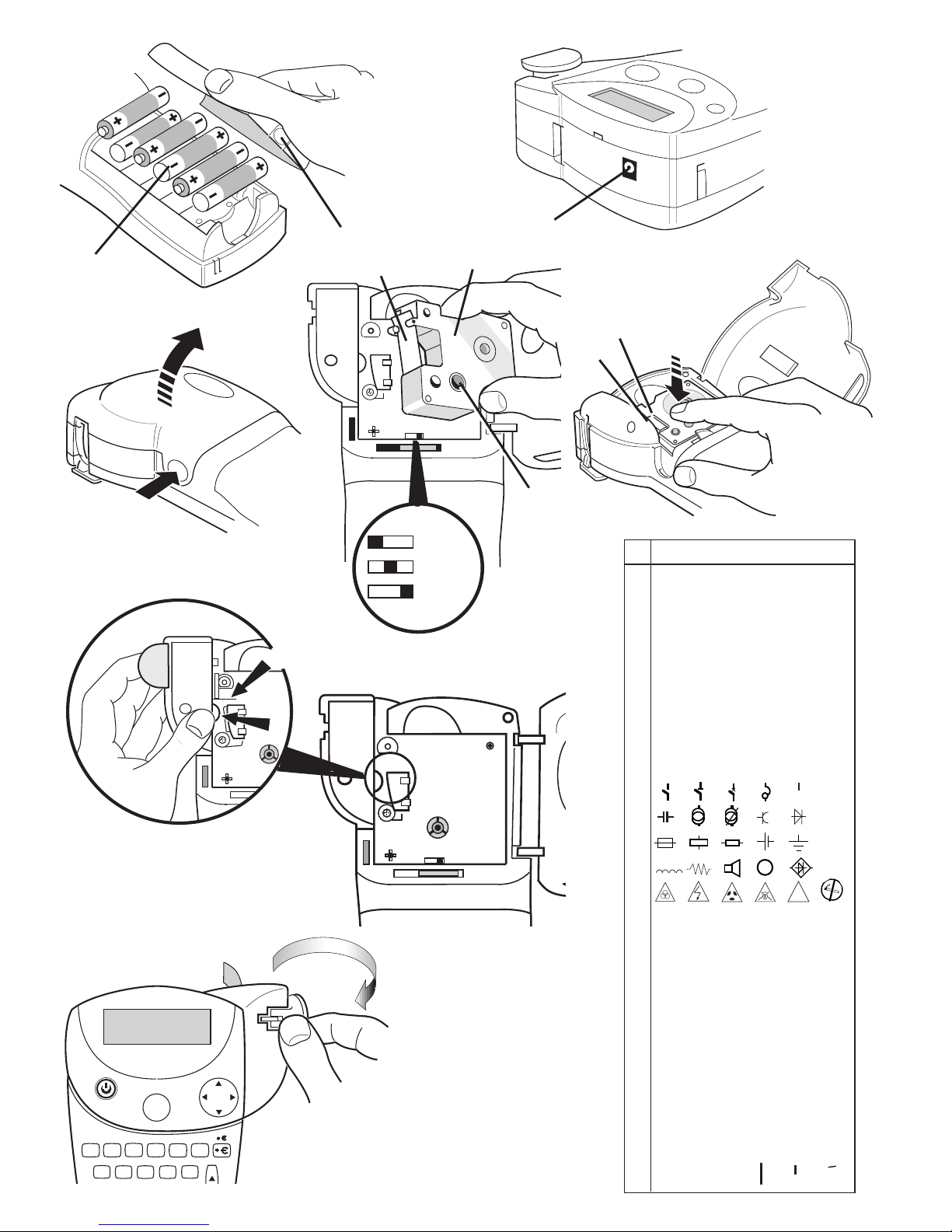

•Apply pressure to thumb catch then open and lift away
battery compartment cover – see fig A➊, page 2.
•Insert six size AA alkaline or re-chargeable Nickel-
cadmium batteries, observing the polarity markings
A➋, and close cover.
•Remove batteries if the Labelpoint is to be unused for
some time.
AC ADAPTOR (optional)
•Connect the AC adaptor to socket A➌. Inserting the
adaptor plug disconnects the supply from the batteries.
•Unplug the AC adaptor from the Labelpoint before
disconnecting the mains power to the adaptor,
otherwise last label memory settings will be lost (see
also ON/OFF).
Changing the cassette
•Press catch in and open hinged access doorB➊.
•Hold as shown, then lift cassette B➋straight up and
out.
•Ensure tape and ribbon B➌are taut across mouth of
cassette and tape passes between guideposts before
installing as shown. If necessary, turn spool B❹
clockwise to tighten ribbon.
•Check that cassette switch B❺ is set for the cassette type
– see page 2. A notch in the cassette will fit over the
switch when it is set correctly.
•Insert cassette with tape and ribbon positioned as
shown between print head C➊and pinch rollerC➋.
•Push
firmly C➌until cassette clicks into place. Ensure
tape and ribbon are positioned correctly.
•Close door B➊ until it clicks shut.
GB
DYMO
1
Cursor flashing
DYMO
1
Creating your first label
You will no doubt be anxious to see what your
new Labelpoint LP300 can do. Before we go on to explore
the many advanced features of the LP300, follow these
simple steps to create your first label:
1. Fit the batteries, or connect the AC adaptor, plug in and
switch on at the wall socket - ‘Power Supply’.
2. Open the cassette compartment lid and check that the
tape cassette is fitted correctly – see page 2 and
‘Changing the Casette’.
3. Close the lid, then press to switch the power on.
The display should look like this:
4. Use the keyboard to type in your full name.
Each character you enter will appear on the display, for
example:
•For an UPPER CASE character, press once followed
by the character required.
•Press
CAPS
for all subsequent characters in UPPER
CASE.
•Press the space bar once for the space between each
name.
If you make a mistake, press
DEL
to delete the error,
then type in the correction.
5. When you have finished, press
PRINT
. A label will be
printed and will emerge from the slot in the top of the
machine. Wait until the mechanism has stopped, then
press down the cutter lever E to cut off the label and
remove it from the machine.
You should now have a high quality printed name label —
don’t waste it! If this is your personal machine, why not
fix the label to the underside to identify its owner? You
have just found the first of many uses for your DYMO
labels.

4
CLEAR TEXT +
DEL
CLEAR
•Press to clear all the current text and cancel any fixed
length setting, but leave the text size and other settings
unchanged. Also use to exit or clear certain function
key operations.
CURSOR KEY
•Press or to move the cursor along the text, one
character at a time.
•Press and hold to scan through the text.
•Press + or to move the cursor to the beginning
or end of the line of text.
•When used in conjunction with certain function keys,
use or to select options.
•To insert characters into the text, use or to position
the cursor under the character to the right of the insertion
point, then type in the characters required.
•Press or to move the cursor to the start of the
previous or next line of a multi-line label.
•Press + or to move the cursor to the
beginning or end of the label.
PRINTING
PRINT
•Press
PRINT
to print the label.
•Use cutter lever E to release the label – see page 2.
•If the display shows ↕↕↕↕↕↕↕↕↕↕, the tape cassette
installed in the machine is too narrow for the label to be
printed; change the cassette to a wider tape.
PREVIEW
Allows you to preview your label before printing it.
•Press +
CAPS
PREVIEW
and the entire text will scroll across
the display.
On labels with 2 or more lines, the message will be
previewed as a single line message.
SPACE KEY
•Press to insert a space into the text.
SYMBOLS +
•Press to select a symbol character – see SYMBOLS
AND SPECIAL CHARACTERS and the symbols table on
page 2.
TEXT SIZE
SIZE
•The display shows the current selection of text print
size:
Height Condensed Normal Extended
small
medium
large

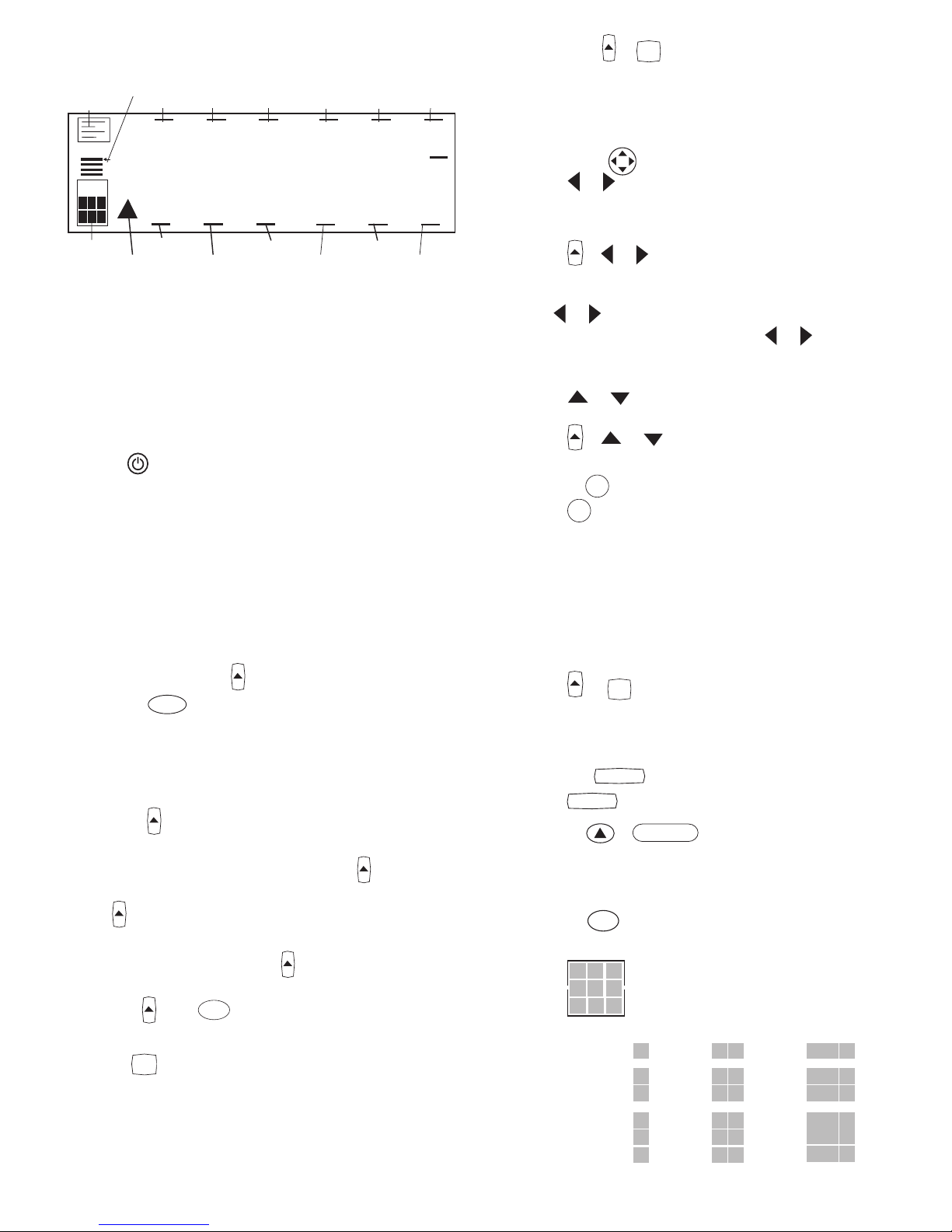

The Display
The display shows:
•Up to two rows of 15 characters, plus the cursor,
at one time.
•Function indicators –as shown above.
•The display will flash if you press an incorrect key in a
function sequence.
Shift on
CAPS on
ABCDEFGHIJKLMN
1
2
3
4
BIG font on Vertical text
Mirror on Copies on
Italic Outline
Barcode on
Shadow BoxUnderline Background
pattern
Size
Line indicator
Justify
Function keys
ON/OFF
Switches the power on and off.
•Switches off automatically after two minutes if no keys are
pressed. The last label created will be retained and
displayed when next turned on. Any stored label and
settings will be retained.
Note: If the batteries are removed for more than a few
seconds, all text and settings will be lost.
When power is restored, the display will show a flashing
cursor (no text) and the settings will be full height
standard width text with and all other settings off.
CAPITALS
CAPS
•Press for all subsequent characters in UPPER CASE
(CAPITALS), as confirmed by the CAPS indicator in the
display.
•Press again to cancel and return to lower case.
SHIFT KEY
Dual action - either press and hold down or press and
release to remain in “shift”position. Press again to
return to normal state.
•Use before pressing an alphabet key to produce an
UPPER CASE (CAPS) character.
•For dual-purpose keys, press first to produce the
legend above the key.
•Pressing while
CAPS
is set will give a lower case
character.
DELETE
DEL
•Press to delete the character to the left of the cursor, or to
exit certain function key operations.

5
•Large height is available on 19mm labels only.
Medium height is available on all except 6mm labels.
Small height is available on all labels.
•Press
SIZE
to select the size menu:
B
Use to select the size symbol required, then press
to confirm the selection.
The "B"(BIG FONT) mode will produce highly visible
labels using the entire print height. In “B”mode, all text
will be printed as capitals (without accents).
•To create a label in "B" mode use or to move the
cursor under "B" and press (
BFONT lights in display).
•When "B" is selected, all other options are not available.
JUSTIFY
JUST
Labels are normally printed with the text left-justified. On
multi-line labels, press
JUST
to select left-justified, right-
justified or centred text, as shown in the display. See
also LABEL LENGTH.
VERTICAL TEXT
VERT
•Rotates the text through 90°so that the label is printed
, as confirmed by the
VERT
indicator in the display.
•Press again to cancel and return to horizontal text.
Note: Vertical text is not available on multi-line labels.
MULTI-LINE PRINTING
•Press to start the next line of text on a multi-line
label, e.g.
This is a two line label in the display will be
printed as:
This is a two and the display will
line label indicate 2 lines:
Labels can be created as follows:
6mm 1 line small text
9mm Up to 2 lines
small text
9mm 1 line medium text
12mm Up to 2 lines
small text
12mm 1 line medium text
The line indicator in the display will confirm the number
of lines in the label.

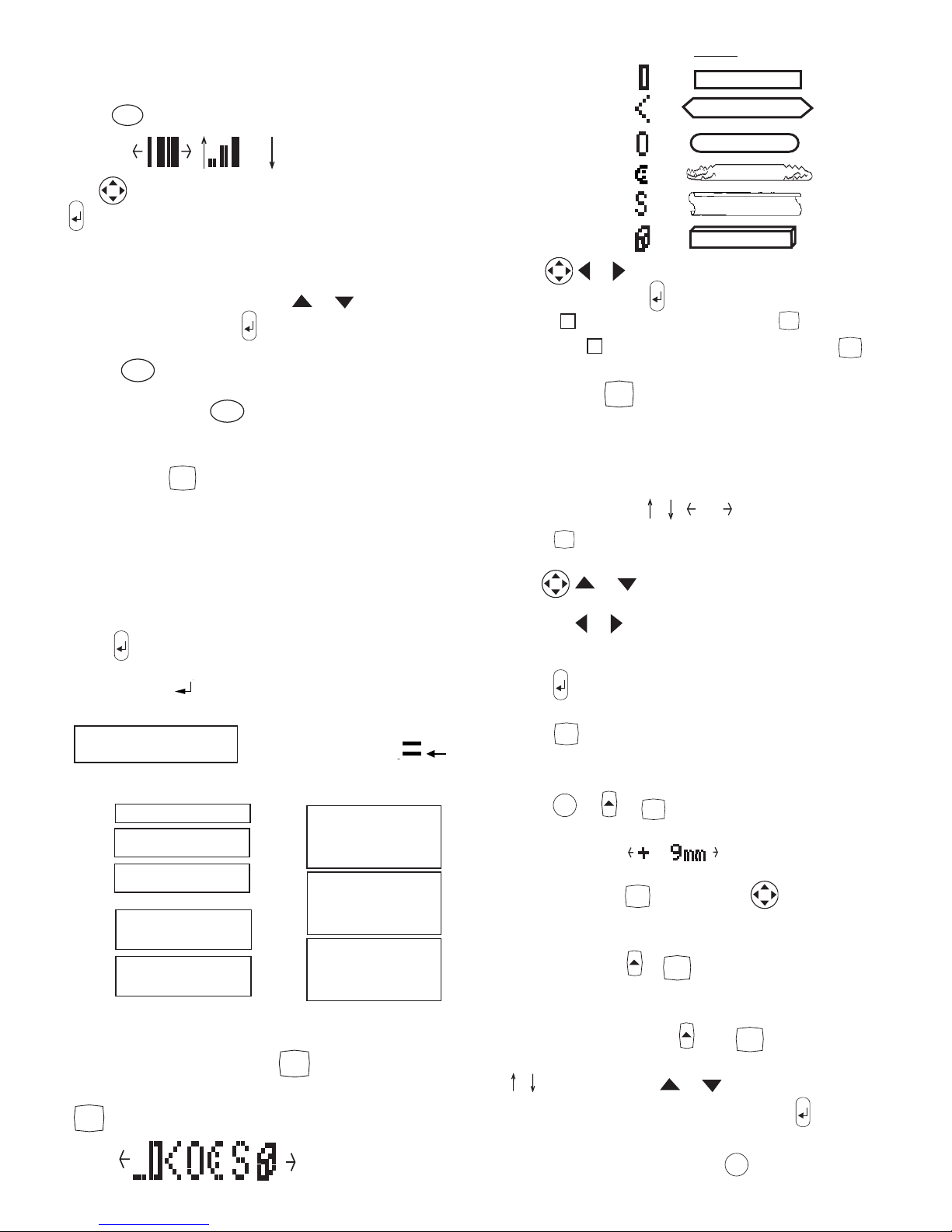

BOXED/UNDERLINED PRINTING
BOXES
UL
•If no Box/Underline option has been selected, pressing
BOXES
UL
once will display the menu below:
v
e
r
t
i
c
a
l
l
y
19mm Up to
4 lines
small
text
19mm Up to 2 lines
medium text
19mm 1 line large text
1
2
3
Underlined - —= DYMO
Square Box - =
Pointed Box - =
Round Corners - =
Crocodile Box - =
Scroll Box - =
3-D Box - =
•Use or to move the cursor under the desired
option. Either press to select the option (confirmed
by the or —indicator displayed), or
DEL
to exit .
•When the or —indicator is displayed, press
BOXES
UL
to
cancel the Box/Underline option.
LABEL LENGTH
LTH
The length is normally calculated automatically, according
to the length of the text on the label.
The label length function displays the last used fixed label
length, eg:
40mm 10
1
•Press
DEL
to exit the length function without changing
the length, or:
•Use or to increase (5000mm / 196.85
inches max.) or decrease the length in 1mm / 0.04 inch
steps, or or to increase or decrease the length in
10mm / 0.4 inch steps. The minimum fixed label length
is 45mm / 1.8 inch.
•Press to fix the length for all subsequent labels,
confirmed by the
LTH SET indicator in the display.
•Press
LTH
to cancel the fixed length and restore the
automatic length.
•If the fixed length is too short for the text, when you
press
PRINT
or +
CAPS
PREVIEW
the display will show how
much longer the label is than the fixed length, eg:
and it will not print. Either cancel the fixed length (see
above), or press
LTH
twice and use to increase the
length; the label is now long enough and can be
printed.

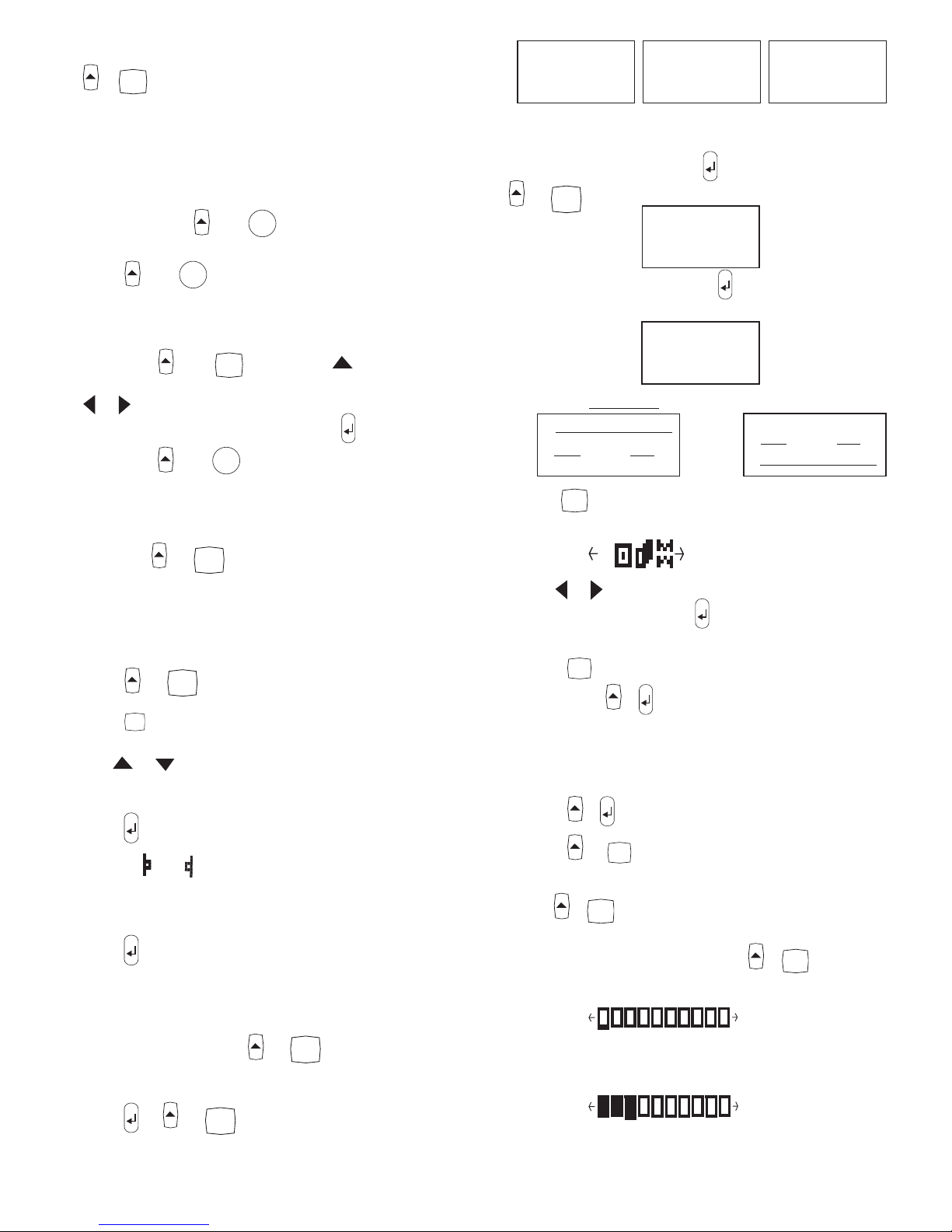

MULTIPLE COPIES +
STYLE
COPIES
•Your Labelpoint can provide multiple copies within the
range 1-99.
•To use this facility press then
STYLE
COPIES
to show the last
number of copies set on the display, for example
# = 03
. Use or to increase or decrease
the number of copies required, then press to
confirm (
COPIES indicator lights in the display). To
print the desired quantity press
PRINT
.

6
•To cancel an existing multiple copies setting, press
+
STYLE
COPIES
.
Note: A row of vertical dots will print between each label
as a cutting guide.
INCREMENTAL NUMBERING
Labels can be printed in increments of 1 automatically.
•Key in your starting number as the right most digit on
the label. Press then
PRINT
1
,
2,
3.
.
.
n
the display will
automatically move up a digit to the next number.
Press then
PRINT
1
,
2,
3.
.
.
n
to continue the sequence.
•It is also possible to include automatic incremental
numbering when printing multiple copies.
•Key in your starting number, eg. LABEL 1A .
•Next press then
STYLE
COPIES
followed by until the
desired number of copies are displayed, eg.10, or use
or to move the cursor under the number digits
and key in the number required. Press to confirm.
Now press then
PRINT
1
,
2,
3.
.
.
n
. This will print ten labels -
LABEL 1A to LABEL 10A. While using fixed length
setting, the Labelpoint will stop printing when the label
exceeds the fixed length.
BARCODES +
JUSTIFY
BARCODE
Barcodes can be printed on 19mm wide labels only and
can be either full height or mixed with text on one or two
lines.
To create a bar code:
•Press +
JUSTIFY
BARCODE
to display the barcode type
previously selected.
•Press
DEL
to cancel and return to the current
label, or
•Use or to step through the barcode types
available: EAN-13, EAN-8, UPC-A, UPC-E, CODE-39 and
CODE-128.
•Press to select the barcode type displayed. The
barcode indicator will light in the display and the
symbols and will appear at each end of the space
allocated for barcode characters.
•Enter the characters which will become the barcode,
eg: 1234567.
•Press to return to the label.
Note that the barcode indicator will appear in the display
whenever the cursor is positioned under barcode
characters.
•To edit a barcode, press +
JUSTIFY
BARCODE
; the barcode
characters only will be displayed and the barcode
indicator will light in the display.
•Press or +
JUSTIFY
BARCODE
again to return to the label.
On a single line label, a bar code can be mixed with text
which is small, medium or large size:
A two-line label always has small size text when it is
mixed with a barcode.
Text entered before pressing followed by
+
JUSTIFY
BARCODE
, will result in text above the barcode:
Entering the text after pressing at the end of a barcode
will produce text below the barcode:
Text can be underlined, eg:
or
STYLE
STYLE
•Press to display the style menu:
Z
Use or to select italic ,outline, shadow shadowor
mirrored text, then press to confirm. The
STYLE
indicator will light in the display.
•Press
STYLE
again to cancel and return to normal text.
PAGE BREAK +
You can divide your label into 'pages' or blocks of text,
each with its own text size and style settings. The number
of lines which can be created in each page will depend on
the label width.
•Press + to insert a page break.
•Press +
CAPS
PREVIEW
to preview the label; each page break
is identified by the symbol •||•.
SAVE +
SIZE
SAVE
You can save up to 10 labels in the memory.
•To save your current label, press +
SIZE
SAVE
to display
the memory locations. If there are no labels saved, the
display will show:
with the cursor under the first location.
The boxes are full if they contain a label and the cursor
will be under the last changed label, eg:
Contents of lab
ABC
123 123
ABC
1 2 3 1 2 3
123
1 2 3
ABC
ABC
1 2 3
ABC
1 2 3
ABC
ABC
ABC 123
1 2 3
DEF
DYMO LABELPOINT
ABC 123
1 2 3
DEF
DYMO LABELPOINT

7
In this example, there are three saved labels, the cursor
is under the one which was last changed and the
contents of that label is displayed on the second line.
You can press +
CAPS
PREVIEW
to preview the entire
contents of the label if required.
•Use or to move the cursor under an empty
location, then press to save your label and return to
the label, or
DEL
to exit and return to the label.
•To delete the contents of a memory location, use
or to move the cursor under the location, then
press +
DEL
CLEAR
.
RECALL +
BOXES
UL
RECALL
•Press +
BOXES
UL
RECALL
to display the memory locations of
saved labels - as shown in ‘SAVE’above.
To recall a saved label, use or to move the cursor
under each full location, until the label you require is
displayed.
You can press +
CAPS
PREVIEW
to preview the entire
contents of the label if required.
•Press to select the label required, or
DEL
to exit and
return to the current label.
•To delete the contents of a memory location, use
or to move the cursor under the location, then
press +
DEL
CLEAR
.
PATTERN +
VERT
PATTERN
Background patterns or text cannot be printed on 6mm
wide labels, or with Mirror, Vertical or BIG text.
•If a pattern is already in use (the
PATTERN indicator is
lit in the display), pressing +
VERT
PATTERN
will cancel the
pattern.
•Press +
VERT
PATTERN
to display the pattern menu:
•Use or to move the cursor under the pattern
required.
•Press to select the pattern required (the
PATTERN
indicator will light in the display), or
DEL
to exit and
return to the current label.
A label previously saved in one of the ten memory
locations can be used as background text on another
label. For example, a label already saved containing the
name
DYMO can be printed in the background of a label
with has LP300 as the forground text:
woodgrain
bricks
tint
check
tartan
diamonds
weave
text
Note that background text is always printed in BIG font,
(regardless of the size selected for the original label)
and the amount of backgound text printed is
determined by the length of the foreground label.
•For background text, select ‘A’. The display will show
the saved labels locations:
Contents of lab
Use or to move the cursor under the label location
required.
•Press to select the label required (the
PATTERN
indicator is lit in the display) and return to the current
label which will be the foreground text.
•Press
PRINT
to print the label.
LAST LABEL MEMORY
•The unit will store the last label text and settings when
turned off. Upon power-up, these will be restored and
displayed. Removal of the batteries for more than a few
seconds may cause this information to be lost.
ALIGNMENT +
LTH
ALIGN
•If a fixed label length is set, each press of +
LTH
ALIGN
will
align the image to the left, the center or the right of the
label, as shown in the display.
EURO CONVERSION
C
or +
C
C
The Labelpoint can be set to convert a chosen currency
into
C
or out of +
C
C
Euros. When this is selected,
the label is scanned from right to left for a valid number.
The first occurence of a comma (,) or a full stop (.),
reading from right to left, will be read as a decimal point.
For example:
•If set to convert between Euros and Belgian Francs
(see ‘Euro Set-up’below), pressing +
C
C
will
convert the number on the label into Belgian Francs and
add the BF value to the end of the label:
‘Sale 10.00/’becomes ‘Sale 10.00/BF403.40’
If the original number is at the end of the label, it will
be replaced by the BF value:
‘Sale 10.00’becomes ‘Sale BF403.40’
•Pressing
C
will convert the number on the label into
Euros and add the Euro value to the end of the label:
‘Sale 10.00/’becomes ‘Sale 10.00/e0.24’
If the original number is at the end of the label, it will
be replaced by the Euro value:
‘Sale 10.00’becomes ‘Sale e0.24’
Note that values are rounded to the nearest one hundreth
of a unit.
DYMO
LP300

8
Symbols and special characters
INTERNATIONAL CHARACTERS
To add a diacritical (accent) to create an international
character, enter the character first, followed immediately
by the diacritical, e.g. press
E
followed by
/
to
get é.
To add a diacritical to an existing character, use or
to place the cursor under the character to the right of the
character to be changed, then press the appropriate
diacritical key.
SYMBOLS +
SYMBOLS
•Press to show symbols and special characters, some of
which are not available direct from the keyboard. The
display will show the last used symbol character, for
example:
A1
with a line of symbols above
it. Each letter selects a line of symbol characters,
numbered 1 to 6, as shown in the table on page 2.
•Press
DEL
to cancel, or
•Press a letter key ‘A’to ‘Z’until you find the line of
symbols required. You can then press a number key ‘1’
to ‘6’to select the symbol required.
Alternatively, use or to step through the rows A
to Z, then use or to move the cursor under the
symbol required.
Press to place the symbol in the label.
Cleaning
•Clean the cutter blade regularly: Press and hold down
cutter lever Eto expose cutter blade D➊, then use a
cotton bud and alcohol to clean both sides of the blade.
Release cutter lever E.
•Check and clean print head face D➋regularly using a
cotton bud and alcohol ONLY.
Troubleshooting
No display
•check machine is on
•replace discharged batteries
•check AC adaptor.
No printing or poor text
•replace discharged batteries
•check tape cassette installed correctly
•clean the print head
•replace the tape cassette.
Poor print quality with white ink
•When using a White on Black or a White on Clear
cassette, it may be necessary to use the darkest
contrast setting in order to obtain good print quality.
To change the contrast setting via the keyboard, read
and follow the instructions as described in the
paragraph “Print Contrast”.
Tape jammed
•lift out tape cassette carefully
•remove/release jammed tape
•DO NOT cut the ink ribbon –turn spool B➎ to tighten
•cut off excess label tape
•refit/replace the tape cassette.
Poor cutter performance
•clean the cutter blade regularly
No response to print key
•!!!!!!!!!!!!!!! in the display indicates a printer jam.
Press any key to return to normal display. Open the
cassette compartment and free the jam.
•flashing in the display
indicates discharged batteries. Press any key to return
to normal display. Replace the batteries.
No success?
•Call the DYMO customer service hotline telephone
number in your country –see the warranty booklet.
EURO SET-UP
To set the currency for conversion to Euros:
•Press + and then
C
. The display will
showthe previously selected currency and its
conversion rate into Euros, eg:
BEF  BF40,3399
•Use or to step through the currencies available:
Austria: 13,7603 öS
Belgium: BF 40,3399
Germany: DM 1,95583
Spain: 166,386 Pts
Finland: 5,94573 mk
France: 6,55957 Fr
Ireland: £ 0.78756
Italy: L1936,27
Luxembourg: LF 40,3399
e1 = _
Press to confirm the selection.
•The next time that you press
C
or +
C
C
, the
conversion will be between Euros and the chosen
currency.
The line showing e1 = _ is user-definable. You can enter
a currency symbol and rate for your currency against the
Euro, eg $US. Note that for currencies larger than the
Euro, you must enter ‘0’before the decimal point of the
value.
PRINT CONTRAST —may be adjusted by pressing
+
SYMBOLS
followed by
PRINT
to display the contrast
symbols .
•Use or to select lighter or darker print.
•Press to confirm the setting. The contrast level will
revert to the mid-setting when the Labelpoint is turned
off and on again.
Note: This function enables you to adjust the print
quality under extreme temperature conditions.
