Estate Swing E-S 300 User manual

USER DRIVEN MANUAL*
Any feedback, changes, or advice, we are
glad to hear it. Please contact us at
[e-mail]
—WARNING —
Read all instructions before beginning
installation or use of this gate opener.
This operator exerts a high level of force.
Exercise caution at all times and stay
clear of the system during operation.
LOOK INSIDE
For QR codes you can scan
with your smartphone to view
supplementary videos
E-S 300 / 302 Classic Series
INSTRUCTION MANUAL
*Estate Swing’s unique user driven manuals are constantly updated by installers and homeowners like yourself. We improve by
hearing and applying your feedback.
EstateSwing.com

E-S 300 / 302 Classic Series Instruction Manual
Estate Swing Summary of Functions
The Estate Swing is only to be used for vehicular swing gates in a Class I setting.
A vehicular gate opener (or system) intended for use in a home of one-to-four
single family dwelling, or a garage or parking area associated therewith.
The Estate Swing automated system was designed and built for controlling vehicle access. Do
not use for any other purpose.
The external automation with an electro-mechanical non-reversing linear arm automates resi-
dential swing-leaf gates with leaves of up to 12’ in length. It consists of an irreversible electro-
mechanical operator with built in opening and closing limits and utilizes a worm screw system.
The irreversible system ensures the gate is mechanical locked when the motor is not operat-
ing. A lock still needs to be installed if security or high winds are a concern. A manual release
makes it possible to move the gate in the event of a power-cut or fault.
CLASS I:
For Your Assistance
Keep this manual safely stored after installation
Serial Number
Date of Purchase
Place of Purchase
Have this information on hand while handling all service and warranty
issues.

E-S 300 / 302 Classic Series Instruction Manual
Table of Contents
The table of contents are listed to assist you locating a desired section. We do however strongly
suggest studying every page of the instruction manual before attempting installation.
Section 1: Review of Specifications, Warnings, and Tools
Specifications of the Estate Swing and Components 1.1
Parts List 1.2
System Overview & Preliminary Checks 1.3
Tools Needed for Installation 1.4
Section 2: Installation of Mounting Brackets
Manual Operation, Restoring Automation 2.1
Pull to Open Illustration 2.2
IMPORTANT: Determining Setback—Pull to Open 2.3
Installation of Operator—Pull to Open 2.4-5
Push to Open Illustration 2.6
IMPORTANT: Determining Setback—Push to Open 2.7
Installation of Operator—Push to Open 2.8-9
Section 3: Gate Operator Mounting, Wiring Motors and Power
Mounting Gate Operator(s) 3.1
Check Usage of Stroke 3.2
Control Box & Running Wires 3.3
Easy Wiring Under Driveway 3.4
Removing Terminal Strips for Wiring 3.5
Wiring the Operator Arms(s) (Pull & Push to Open) 3.6-7
Temporary Safety Jumpers & Dip Switch Settings 3.8
Power 3.9
Section 4: Start Up and Operation
Find Limit Positions 4.1
First Run 4.2
Determine Run Time 4.3
Operating Parameters Customization 4.4
433 Plug-In Receiver 4.5-.6
Section 5: Maintenance, Troubleshooting, and Accessories
Maintenance 5.1
Troubleshooting 5.2-.4
Control Board Overview 5.5-.8
Accessories 5.9-.10

E-S 300 / 302 Classic Series Instruction Manual
SECTION 1:
Review of Specifications, Warnings,
and Tools

E-S 300 / 302 Classic Series Instruction Manual
Specifications
MODEL Estate Swing E-S 300 / 302
Power Supply 24V AC, 50VA to 120 VA
Backup Battery Voltage 24V DC
Current (A) 3
Travel (in.) 12
Cycles per hour 50% Duty Cycle / Aprox. 35
Operating Ambient Temperature -20 to 130 F
Protection Class IP44
Gate leaf max length (ft.) Up to 12
Gate leaf max weight (lbs.) Up to 600
Operator Type Screw Drive
Operator Weight 14 lbs
Gate Weight / Length Ratio 6’ 8’ 10’ 12’
100 lbs X X X X
200 lbs X X X X
300 lbs X X X X
400 lbs X X
500 lbs X X
600 lbs X
The above chart represents the maximum weight and length combinations that
this gate opener can handle. The lengths and weights are either for a single
gate or for a single leaf of a dual gate.
1.1

E-S 300 / 302 Classic Series Instruction Manual
Estate Swing Parts List
1.2
A. Control Box with Control Board
B. Operator Arm with 42” of Wire
C. Key
D. Connector Pins and C Rings
E. Transformer
F. Post Mounting Brackets
G. Gate Mounting Bracket
Not Shown:
•Mounting Hardware
1 - 3/8”x1 3/8” Hex bolts, washer, nut
1 - 5/16”x 1 3/8” Hex bolt, washer, nut
2 - 3/8”x 2” Carriage bolt, washers, nut
1 - 1/4” x 2” Hex bolt, washers, nut
Master or Single Operator Slave Operator (if applicable)
A. N/A
B. Operator Arm with 42” of Wire
C. Key
D. Connector Pins and C Rings
E. N/A
F. Post Mounting Brackets
G. Gate Mounting Bracket
Not Shown:
•Additional Wire
•Mounting Hardware
1 - 3/8”x1 3/8” Hex bolts, washer, nut
1 - 5/16”x 1 3/8” Hex bolt, washer, nut
2 - 3/8”x 2” Carriage bolt, washers, nut
1 - 1/4” x 2” Hex bolt, washers, nut

E-S 300 / 302 Classic Series Instruction Manual
Standard System Overview and Safety Zone
1.3
The system displayed below is a recommended standard system. Other approved accessories
can be installed. Photo sensors and a flashing light indicating gate movement is recommend-
ed for safety purposes.
1,2 Estate Swing Operator • 3 Photocells (not included) • 4 Control board • 5 N/A 6 Push but-
ton opening device (not included) • 7 Receiver extension (not included) • 8 24Vdc flashing
lamp (not included) • 9 Positive stop (not included) • 10 AC transformer
Notes: 1) When laying electrical cables, use appropriate rigid and/or flexible tube
2) Do not run any wires in the same conduit as 110 AC power that may be in
the area. This will cause danger of electrocution.
IMPORTANT: Preliminary Checks
To ensure safety and an efficiently operating automated system, make sure the follow-
ing conditions are observed.
• The gate and post must be suitable for being automated. Check that the structure is
sufficiently strong and rigid, and its dimensions and weights conform to those Indicated
on page 1.
• Make sure the gates move smoothly without any irregular friction during entire travel.
• Make sure the hinges are in good condition. Ball bearing hinges are necessary for
gates weighing over 200 lbs. or over 10’ in length.
• Make sure the gate is plumb and level.
• The gate post must be secured in the ground with concrete. This will prevent alteration
of alignments and leveling during installation and during cycles.

E-S 300 / 302 Classic Series Instruction Manual

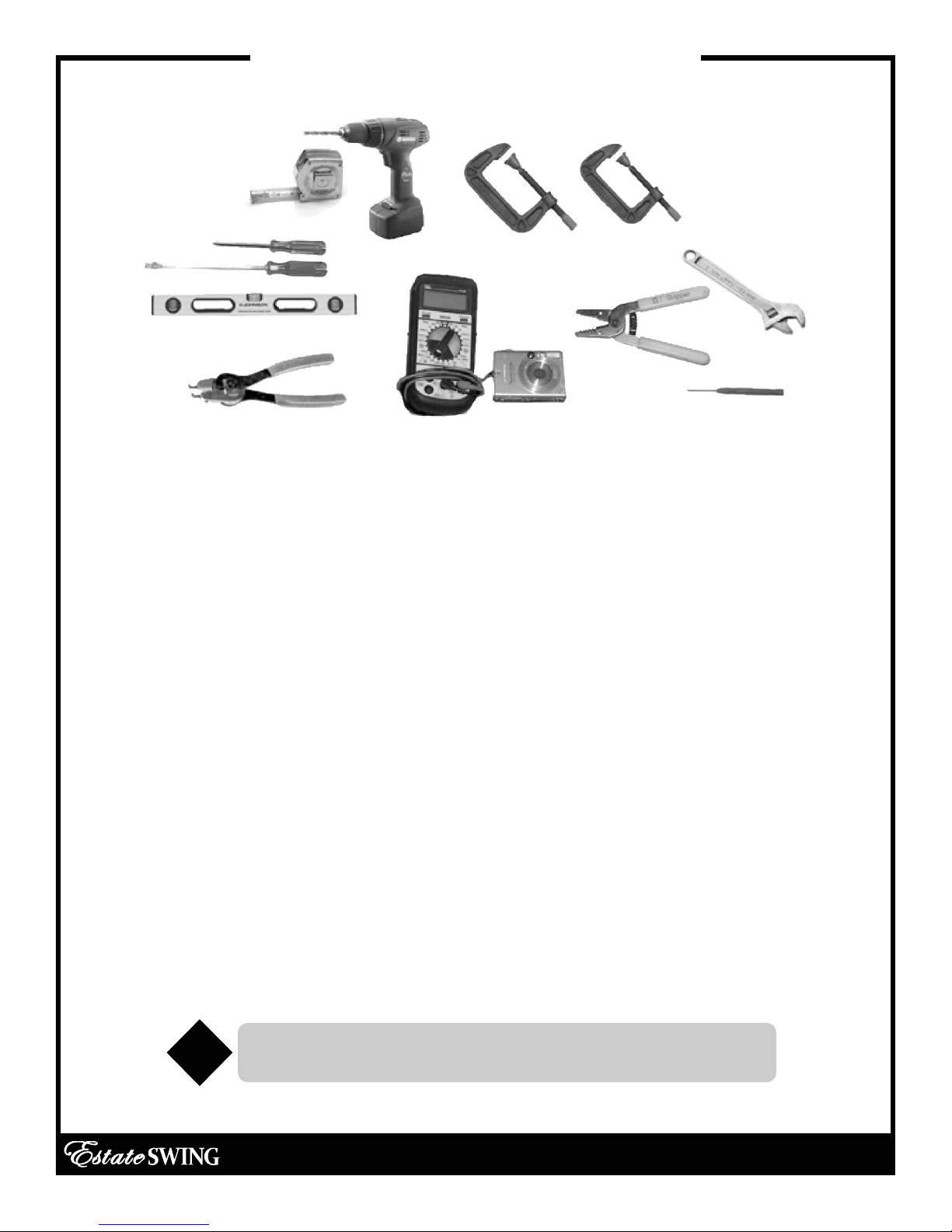

Tools Needed for Installation
1.4
• Power Drill
• Crescent Wrench
• Flat Head Screwdriver
• Hacksaw/Sawzall
• Phillips Head Screwdriver
• Small Flathead Screwdriver
• C-Ring Pliers
• Tape Measure
• Level
• Wire Strippers
• C-clamps
• 3/8”, 1/4”, 5/16” Drill Bits
Other items may be needed prior to commencing installation. BOLDED items are necessary
to all applications.
• Positive post, bracket or door stop. Although the Estate Swing 300 / 302 features built in limit
switches it is highly recommended to have positive stops.
• 16 gauge, 2 conductor stranded direct burial low voltage wire will be required to run pow-
er to your operator. Length is determined by distance between transformer or solar power
supply and the control box.
• 4 - 3/8” Carriage Bolts will be needed to connect the 2 “L” shaped brackets to the post.
Length will be determined by the size of your posts.
• A metal support bracket may be needed to achieve the appropriate desired setback. The
metal support bracket will be bolted or welded to your post to give a larger amount of
space to mount the provided mounting bracket.
• A voltage meter and digital camera may be necessary to run diagnostic checks.
• If your transformer is going to be plugged into an outdoor outlet you will need to weather-
proof that outlet and transformer. Electrical boxes or plug covers can be obtained from a
local hardware store to accommodate both the plug and transformer.
• Hardware to attach the control box to a post or fence.
Protect all ingoing and outgoing wires with a surge suppressor.
Consult your local dealer for more information.
!

E-S 300 / 302 Classic Series Instruction Manual
SECTION 2:
Installation of Mounting Brackets

E-S 300 / 302 Classic Series Instruction Manual
Manual Operation
2.1
1) Lift lock cover cap off.
2) Insert and turn provided key.
3) The operator can now be pull or push
open.
4) Replace lock cover to protect lock
from water and debris.
To exit manual mode, repeat the
above steps.

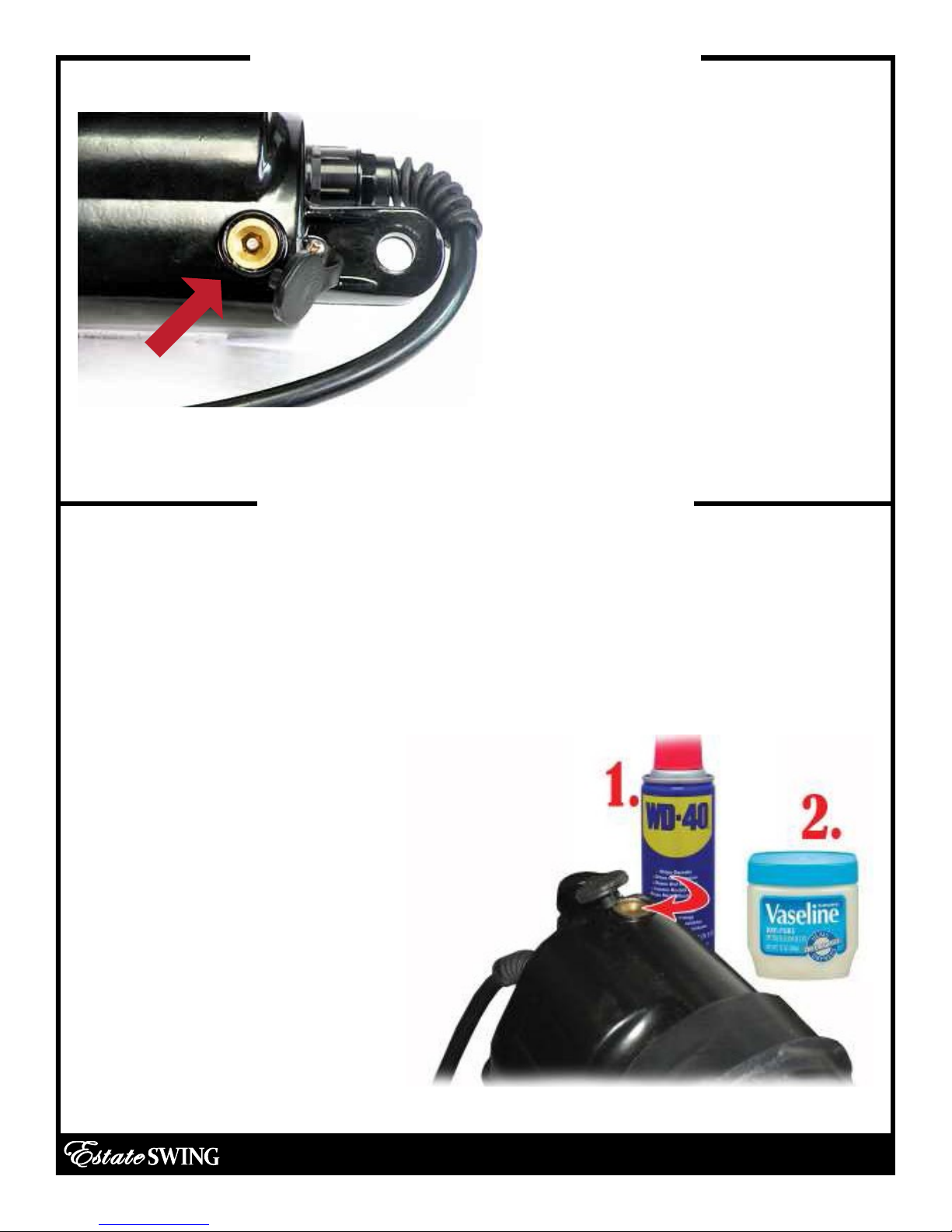

Restoring Automation
To maintain the proper performance of your emergency release -
please perform the following service for your motor once per year.
1. Remove the emergency release cap
2. Spray some WD-40 or other spray lubricant into the release lock.
3. Allow the lubricant to soak in.
4. Apply a liberal dab of petroleum
based jelly or wheel bearing
grease to coat the release lock.
5. Put the cap securely back in
place.

E-S 300 / 302 Classic Series Instruction Manual
IMPORTANT: Pull to Open Operation
2.2
This means the gate operator is mounted on the inside of the property
and pulls your gate in towards the property. If you are going to use push
to open operation “X” out the next 3 pages and use the push to open
section instructions.

E-S 300 / 302 Classic Series Instruction Manual
IMPORTANT: Pull to Open Operation
2.3

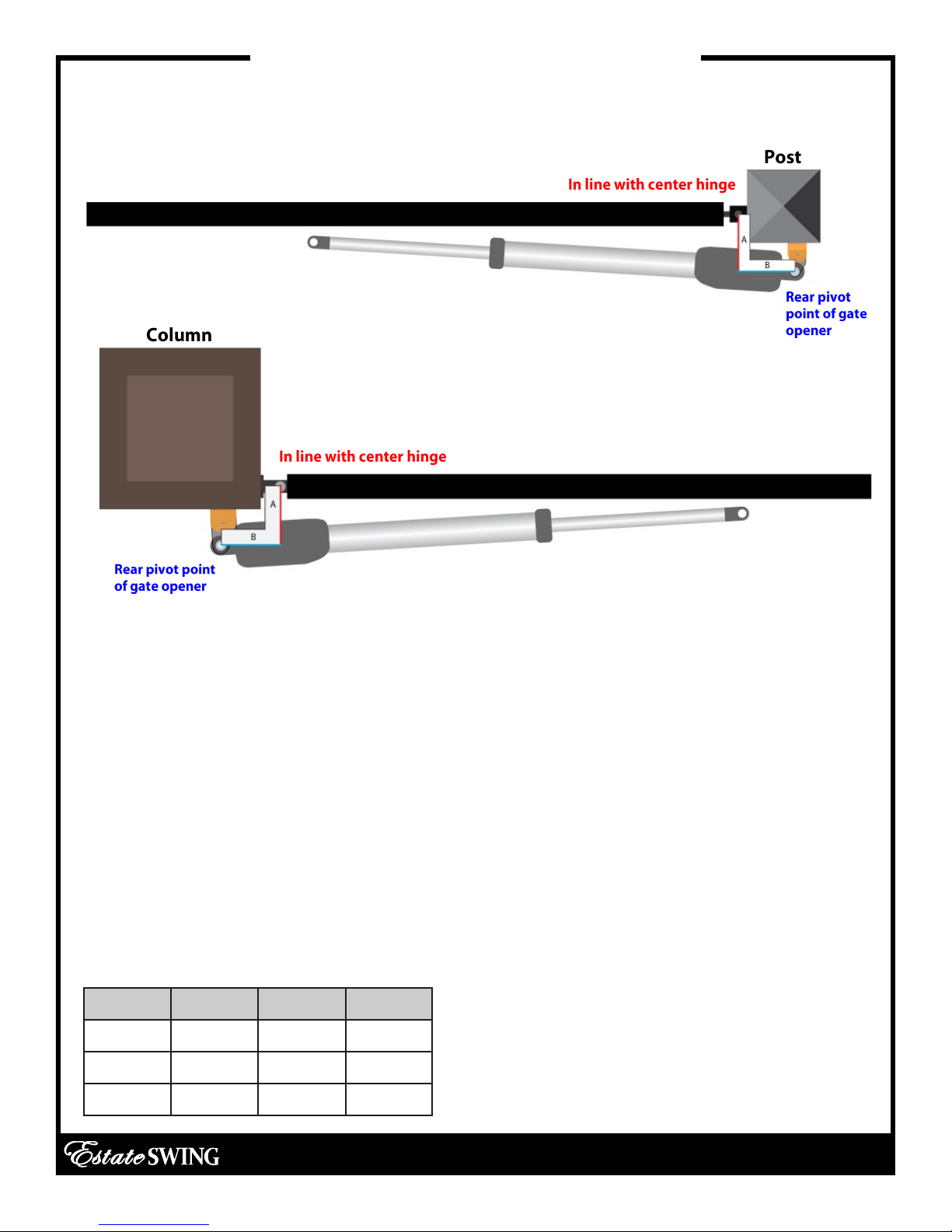

Below are 2 common examples of setback mountings.
These are not the only options for mounting.
A B Sum a
4 ¾" 5 ¼" 10 110°
5 ¼" 5 ¼" 10 ½ 100°
5 ½" 5 ½" 11 90°
Use one of the rows below:
There are 4 factors to keep in mind when finding the setback mounting:
1) The (A) measurement is perpendicular from the gate in the CLOSED position.
2) There must be clearance for your gate opener to attach to the gate in the closed position. This is most
commonly an issue on columns. Re-positioning of the hinges or Push-To-Open operation may be required
to achieve clearance.
3) The brackets do not and must not move after installation.
4) The "L" shape brackets can be mounted anywhere on the post or column. They can be mounted on a
separate post or fence as well. The only factor of importance is that when mounting of the brackets is
done the hole in the boomerang bracket that the gate opener mounts on matches the setback on this
page.
It is best to C-Clamp brackets on and test arm movement clearance before permanently attaching
them.
Variations to the ideal setback can be made, so long as the total is less than the combined measure-
ments for the desired opening arc and the motor body is more than 2 inches away from the gate in both
the open and closed position. (setback variations significantly reduces the length and weight capacity of
the operator)
To determine the position of the gate mounting
bracket (above is for the post mounting brack-
et) refer to step 13 in the section “Installation of
Operator”

E-S 300 / 302 Classic Series Instruction Manual
Installation of Operator —Pull-to-Open
2.4

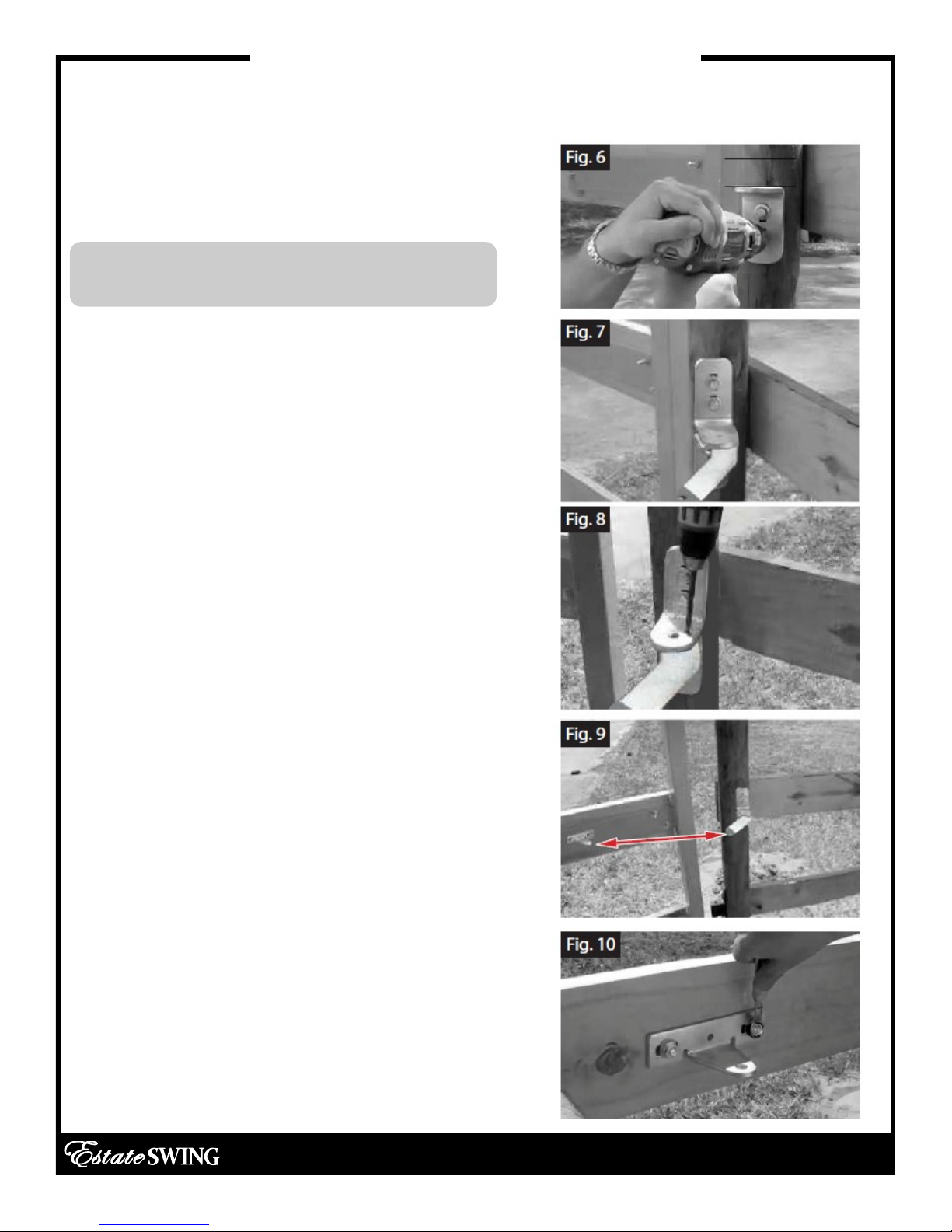

1. Locate the set back and boomerang bracket
templates found in the box to determine the
proper setback.
2. Find the proper setback for your operator (from
previous page). Hold the lower “L” shaped
bracket along with the boomerang bracket tem-
plate against the post near the hinge. [See Fig. 1]
Mark how much of the boomerang bracket you
will trim off on the template. The hole on the end
of the boomerang bracket should be in the set-
back position.
3. Trim boomerang bracket template, then dou-
ble check setback positioning. Using the tem-
plate, mark the boomerang bracket for cutting.
[See Fig. 2]
4. Cut off the excess length (if any) of the boom-
erang bracket using a sawzall or hacksaw.
CAUTION: Observe all safety precau-
tions recommended by manufacturer
of the cutting tool.
5. Using a measuring tape, measure vertically to
find the center of the horizontal mount on the
gate, then place a mark. [See Fig. 3]
6. Utilizing a level, measure from the center of the
horizontal mount of the gate to the post to the
get bracket position. Place a mark on the post at
this point. [See Fig. 4]
7. Temporarily position the gate bracket on the
post. Align the top of the gate bracket with the
marking created in the previous step. Make an
additional mark at the bottom of the gate brack-
et. This will mark the position for the top of the
lower “L” shaped bracket. [See Fig. 5]
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5 Original Line

E-S 300 / 302 Classic Series Instruction Manual
Installation of Operator —Pull-to-Open
2.5
BEFORE PERMANENTLY ATTACHING ANY BRACKETS, BE SURE TO TEST ARM MOTION AND
CLEARANCE.

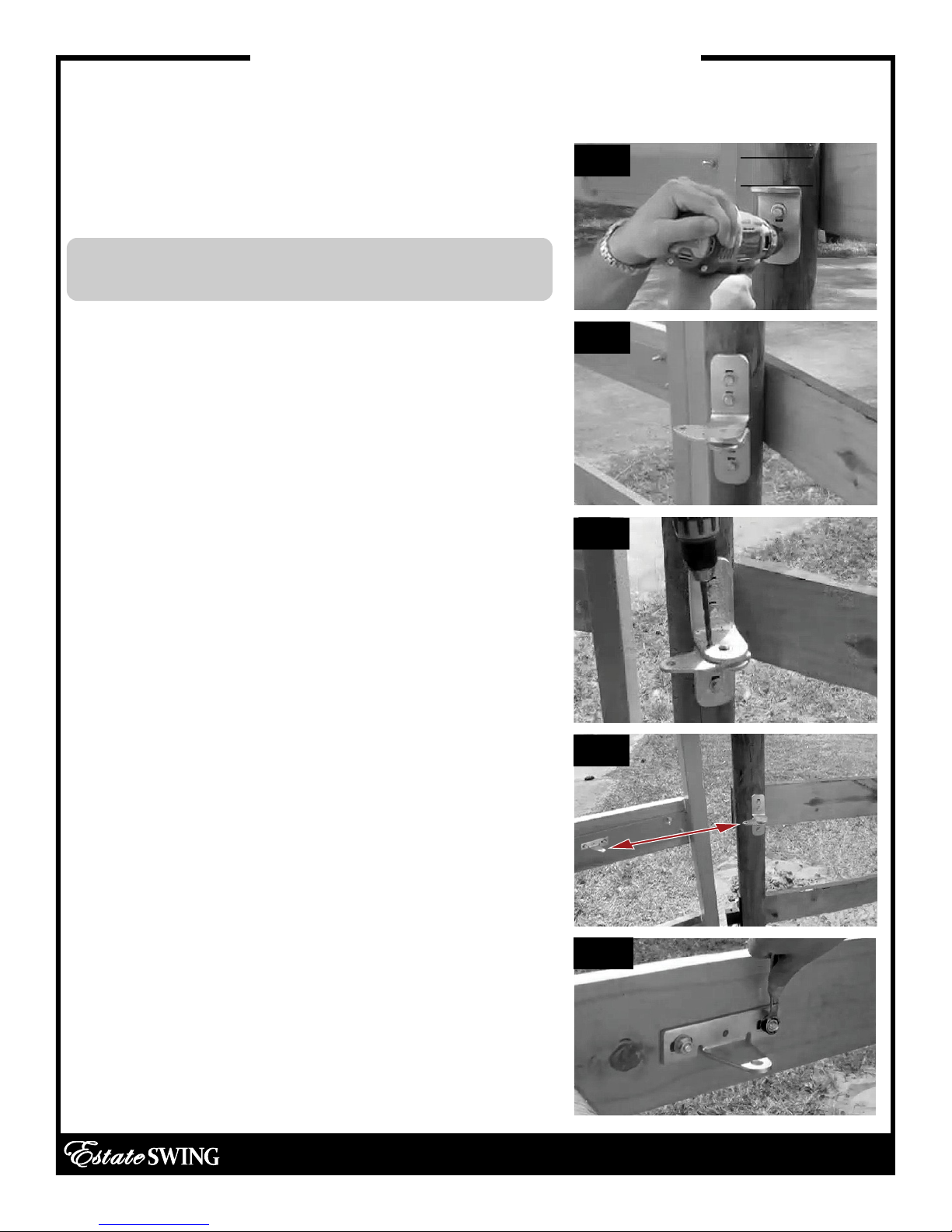

8. Place the lower “L” shaped bracket so the top of the
bracket is aligned with the bottom marking on the post.
Mark then drill and attach the bracket using 3/8” car-
riage bolts. [See Fig. 6]
Check “L” shaped bracket for levelness before putting
in the second bolt.
9. Place the upper “L” shaped bracket and the boom-
erang bracket on the lower “L” shaped bracket. Posi-
tion the brackets in the setback that is being used.
10. With the 3 brackets clamped together, mark then
drill the upper “L” shaped bracket in place and attach
it using 3/8” carriage bolts. [See Fig. 7]
11. Drill through the center hole of the “L” shaped set to
penetrate the boomerang bracket. Double check the
setback on the boomerang bracket.
12. Drill the set hole through all 3 brackets using a 5/16”
drill bit in an area behind the first hole. Secure the hole
with a 5/16” bolt and the provided nuts and lock wash-
ers. [See Fig. 8]
13. WITH THE GATE IN THE CLOSED POSITION measure 38”
from the center of the hole on the boomerang bracket
to the center of the hole on the gate bracket - this
should be the position of the gate bracket on the
closed gate. [See Fig. 9]
14. Additionally measure and mark the gate mounting
bracket so that it is vertically centered on the horizontal
bar.
15. To ensure that the gate mounting bracket is leveled,
secure one side of the bracket, check for levelness, and
secure the other side with provided carriage bolts, nuts,
and washers. [See Fig. 10]
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10

E-S 300 / 302 Classic Series Instruction Manual
IMPORTANT: Push-to-Open Operation
2.6
This operation is commonly used if your driveway slopes up after the gate, preventing
it from swinging in. This means the gate operator is mounted on the inside of the prop-
erty and pushes your gate out away from the property.

E-S 300 / 302 Classic Series Instruction Manual
IMPORTANT: Determining Correct Setback
2.7
Below are 2 common examples of setback mountings. These are not the only options for
mounting.
There are 4 factors to keep in mind when finding the setback mounting:
1) The (A) measurement is perpendicular from the gate in the CLOSED position.
2) There must be clearance for your gate opener to attach to the gate in the closed position. This is
most commonly an issue on columns. Re-positioning of the hinges or Push-To-Open operation may be
required to achieve clearance.
3) The brackets do not and must not move after installation.
4) The "L" shape brackets can be mounted anywhere on the post or column. They can be mounted on
a separate post or fence as well. The only factor of importance is that when mounting of the brackets is
done the hole in the boomerang bracket that the gate opener mounts on matches the setback on this
page.
It is best to C-Clamp brackets on and test arm movement clearance before permanently attaching
them.
To determine the position of the gate mounting bracket (above is for the post mounting bracket) refer
to step 13 in the section “Installation of operator - PTO”
A B Sum a
4 ¾" 5 ¼" 10 110°
5 ¼" 5 ¼" 10 ½ 100°
5 ½" 5 ½" 11 90°
Use one of the rows below:
Variations to the ideal setback can be made, so long
as the total is less than the combined measurements for
the desired opening arc and the motor body is more
than 2 inches away from the gate in both the open and
closed position. (variations significantly reduces the
length and weight capacity of the operator)

E-S 300 / 302 Classic Series Instruction Manual
Installation of Operator —Push-to-Open
2.8
1. Locate the set back and the boomerang
bracket templates found in the box to determine
the proper setback.
2. Find the proper setback for your operator (from
previous page). Hold the lower “L” shaped
bracket along with the boomerang bracket tem-
plate against the post near the hinge. [See Fig. 1]
Mark how much of the boomerang bracket you
will trim off on the template. The hole on the end
of the boomerang bracket should be in the set-
back position.
3. Trim boomerang bracket template, then dou-
ble check setback positioning. Using the tem-
plate, mark the boomerang bracket for cutting.
[See Fig. 2]
4. Cut off the excess length (if any) of the boom-
erang bracket using a sawzall or hacksaw.
Caution: Observe all safety precautions
recommended by manufacturer of the
cutting tool.
5. Using a measuring tape, measure vertically to
find the center of the horizontal mount on the
gate, then place a mark. [See Fig. 3]
6. Utilizing a level, measure from the center of the
horizontal mount of the gate to the post to the
get bracket position. Place a mark on the post at
this point. [See Fig. 4]
7. Temporarily position the gate bracket on the
post. Align the top of the gate bracket with the
marking created in the previous step. Make an
additional mark at the bottom of the gate brack-
et. This will mark the position for the top of the
lower “L” shaped bracket. [See Fig. 5]
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5 Original Line

E-S 300 / 302 Classic Series Instruction Manual
Installation of Operator —Push-to-Open
2.9
BEFORE PERMANENTLY ATTACHING ANY BRACKETS, BE SURE TO TEST ARM MOTION AND
CLEARANCE.
8. Place the lower “L” shaped bracket so the top
of the bracket is aligned with the bottom marking
on the post. Mark then drill and attach the brack-
et using 3/8” carriage bolts. [See Fig.6]
Check “L” shaped bracket for levelness before
putting in the second bolt.
9. Place the upper “L” shaped bracket and the
boomerang bracket on the lower “L” shaped
bracket. Position the brackets in the setback that
is being used.
10. With the 3 brackets clamped together, mark
then drill the upper “L” shaped bracket in place
and attach it using 3/8” carriage bolts. [See Fig.
7]
11. Drill through the center hole of the “L” shaped
set to penetrate the boomerang bracket. Secure
with 3/8 bolt and nut. Double check the setback
on the boomerang bracket.
12. Drill the set hole through all 3 brackets using a
5/16” drill bit in an area behind the first hole. Se-
cure the hole with a 5/16” bolt and the provided
nuts and lock washers. [See Fig. 8]
13. WITH THE GATE IN THE OPEN POSITION meas-
ure 38” from the center of the hole on the boom-
erang bracket to the center of the hole on the
gate bracket - this should be the position of the
gate bracket on the open gate. [See Fig. 9]
14. Additionally measure and mark the gate
mounting bracket so that it is vertically centered
on the horizontal bar.
15. To ensure that the gate mounting bracket is
leveled, secure one side of the bracket, check
for levelness, and secure the other side with pro-
vided carriage bolts, nuts, and washers. [See Fig.
10]
