Topens RK2600 User manual

Sliding Gate Opener
User’s Manual
Model:
TOPENS Website
http://www.topenstool.com/
RK2600(T)
★
Please read and follow all warnings, precautions and instructions before
installation and use.
★Periodic checks of the opener are required to ensure safe operation.
★Save this manual.
C030542
VER 20a

1
Table of Contents
General Safety .............................................................................................................................................. 2
Preparation for Installation............................................................................................................................. 3
Parts List ....................................................................................................................................................... 4
Accessories Parts (Included in some models, refers to the actual package)................................................. 5
Optional Accessories Parts List (Available at TOPENS Store) ...................................................................... 5
Technical Specifications & Features .............................................................................................................. 5
Installation Overview ..................................................................................................................................... 6
Installation of the Opener .............................................................................................................................. 6
Manual Operation.......................................................................................................................................... 7
Fit the Rack ................................................................................................................................................... 8
Install the magnets for Limit Switches ........................................................................................................... 8
Connecting of Power Supply ......................................................................................................................... 9
Connecting of the Control Board ................................................................................................................... 9
Setting of the Control Board .........................................................................................................................11
How to Program or Erase the Remote ........................................................................................................ 12
How to Use the Remote to Operate Your Gate Opener............................................................................... 13
Wireless Keypad Programming ................................................................................................................... 13
Troubleshooting........................................................................................................................................... 14
Maintenance................................................................................................................................................ 15

2
Thank you for purchasing sliding gate opener. We are sure that the products will be greatly satisfying as
soon as you start to use it.
The product is supplied with a user’s manual which encloses installation and safety precautions. These
should be read carefully before installation and operation as they provide important information about safety,
installation, operation and maintenance. This product complies with the recognized technical standards and
safety regulations.
General Safety
WARNING! An incorrect installation or improper use of the product can cause damage to persons,
animals or properties.
• Scrap packing materials (plastic, cardboard, polystyrene etc.) according to the provisions set out by current
standards. Keep nylon or polystyrene bags out of children’s reach.
• This product was exclusively designed and manufactured for the use specified in the present
documentation. Any other use not specified in this documentation could damage the product and be
dangerous.
• The factory declines all responsibility for any consequences resulting from improper use of the product, or
use which is different from that expected and specified in the present documentation.
• Do not install the product in explosive atmosphere.
• The factory declines all responsibility for any consequences resulting from failure to observe Good
Technical Practice when constructing closing structures (door, gates etc.), as well as from any deformation
which might occur during use.
• Disconnect the electrical power supply before carrying out any work on the installation. Also disconnect
any buffer batteries, if fitted.
• Fit an omnipolar or magnetothermal switch on the mains power supply, having a contact opening distance
equal to or greater than 3,5 mm.
• Make sure a residual current circuit breaker with a 30mA threshold is fitted before the power supply mains.
• Check that earthing is carried out correctly: connect all metal parts for closure (doors, gates etc.) and all
system components provided with an earth terminal.
• Fit all the safety devices (photocells, electric edges etc.) which are needed to protect the area from any
danger caused by squashing, conveying and shearing.
• Position at least one visible indication device (Alarm lamp), and fix a Warning sign to the structure.
• The factory declines all responsibility with respect to the automation safety and correct operation when
other supplier’s components are used.
• Only use original parts for any maintenance or repair operation.
• Do not modify the automation components, unless explicitly authorized by the factory.
• Instruct the product user about the control systems provided and the manual opening operation in case of
emergency.

3
• Do not allow persons or children to remain in the automation operation area.
• Keep radio control or other control devices out of children’s reach, in order to avoid unintentional
automation activation.
• The user must avoid any attempt to carry out work or repair on the automation system, and always request
the assistance of qualified personnel.
• Anything which is not expressly provided for in the present instructions is not allowed.
• Before installing the gate opener, check that all moving part as well as the sliding gate is in good
mechanical condition, correctly balanced and opens and closes properly.
• Save these instructions for future use.
Preparation for Installation
Before proceeding to your opener installation, check if your gate structure is in accordance with the current
standards, especially as follows:
The gate sliding track is linear and horizontal. The wheels are suitable for use. The gate should be mounted
and moved freely. Check that the structure is sufficiently strong and rigid, and that its dimensions and
weights conform to those listed in the specifications table of this document. Make sure that the gate is plumb
and level. The fence posts must be mounted in concrete. The gate does not bind or drag on the ground.
• The gate manual operation can be carried out smoothly along its entire run, and there is no excessive side
slipping.
• The opening and closing gate stops are positioned.
WARNING: Remember that control devices are intended to facilitate gate operation, but can not
solve problems due to any defects or deficiency resulting from failure to carry out correct installation or
maintenance. Take the product out of its packing and inspect it for damage. Should it be damaged, contact
your dealer. Remember to dispose of its components (cardboard, polystyrene, nylon, etc.) according to the
current prescriptions.
Refer to the following Figures for gate installation.

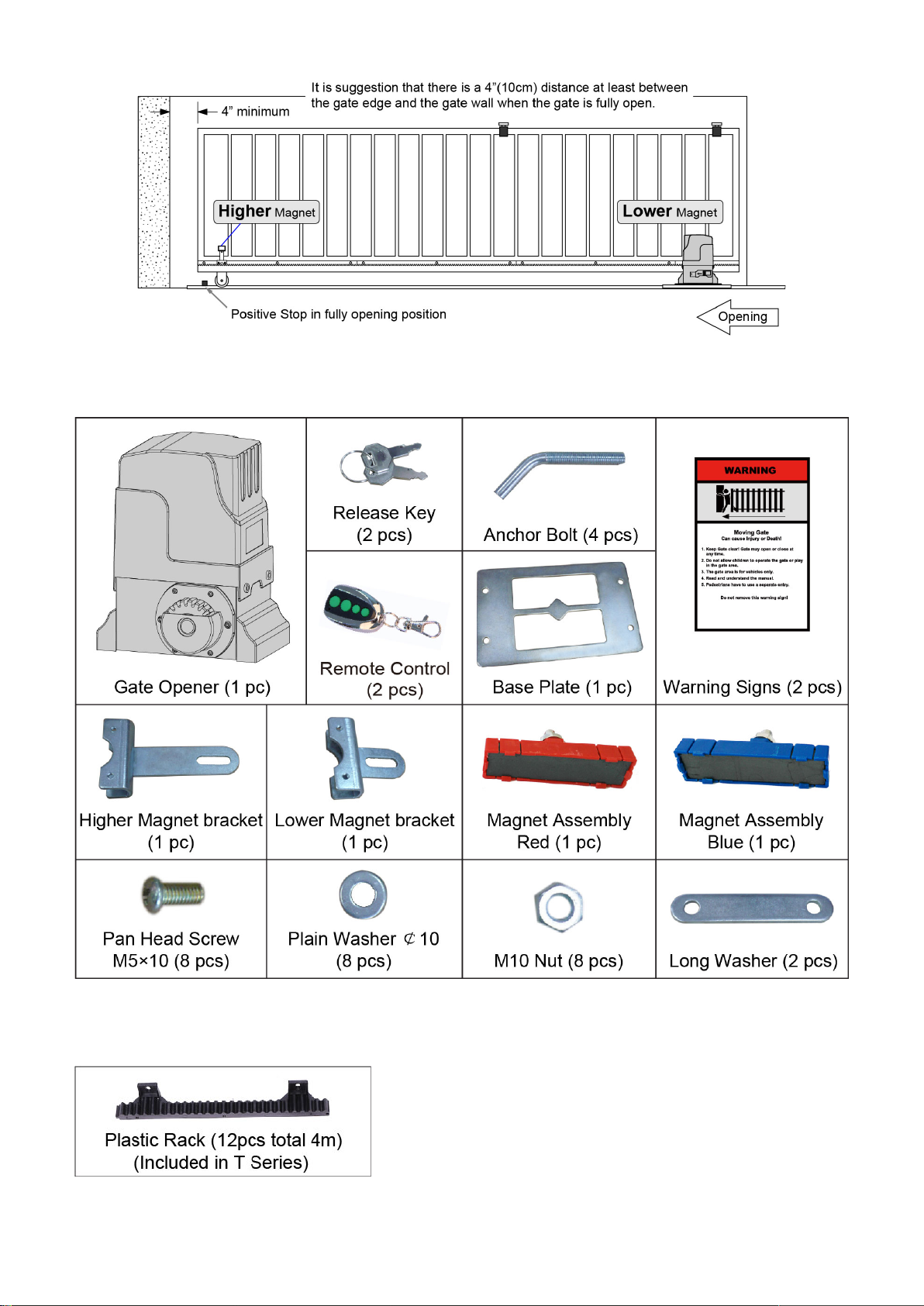

In sake of safety, a positive stop must be mounted on the two end of ground track.

4
Parts List
Extra Parts for RK2600T

5
Accessories Parts (Included in some models, refers to the actual package)
Optional Accessories Parts List (Available at TOPENS Store)
Technical Specifications & Features
Specifications
RK2600(T)
Power supply:110V~120V/60Hz or 220~240V/50Hz
Motor voltage: 120VAC or 230VAC
Absorbed power:1000W
Gate moving speed:
20 cm/s (8 in/s)
Max gate weight:
2600kg (5700lbs)
Max torque:
75Nm
Environmental conditions:
-20
℃~ +50℃ (
-4°F to 122°F)
Protection class:IP44

6
Features:
•Easy to install, and minimum maintenance requirement
•Midway mode
•Quick selection for gate open/close direction
•Reliable rolling code technology for remote control
•Emergency release key in case of power failure
•Stop in case of obstruction during gate opening
•Reverse in case of obstruction during gate closing
•Built in adjustable auto-closing (0, 30, 60, 90 seconds)
•Built in max. Motor Running Time (MRT) for multiple safety protection (90 seconds)
•Reliable electromagnetism limit for easy adjustment
•Can be equipped with wide range accessories

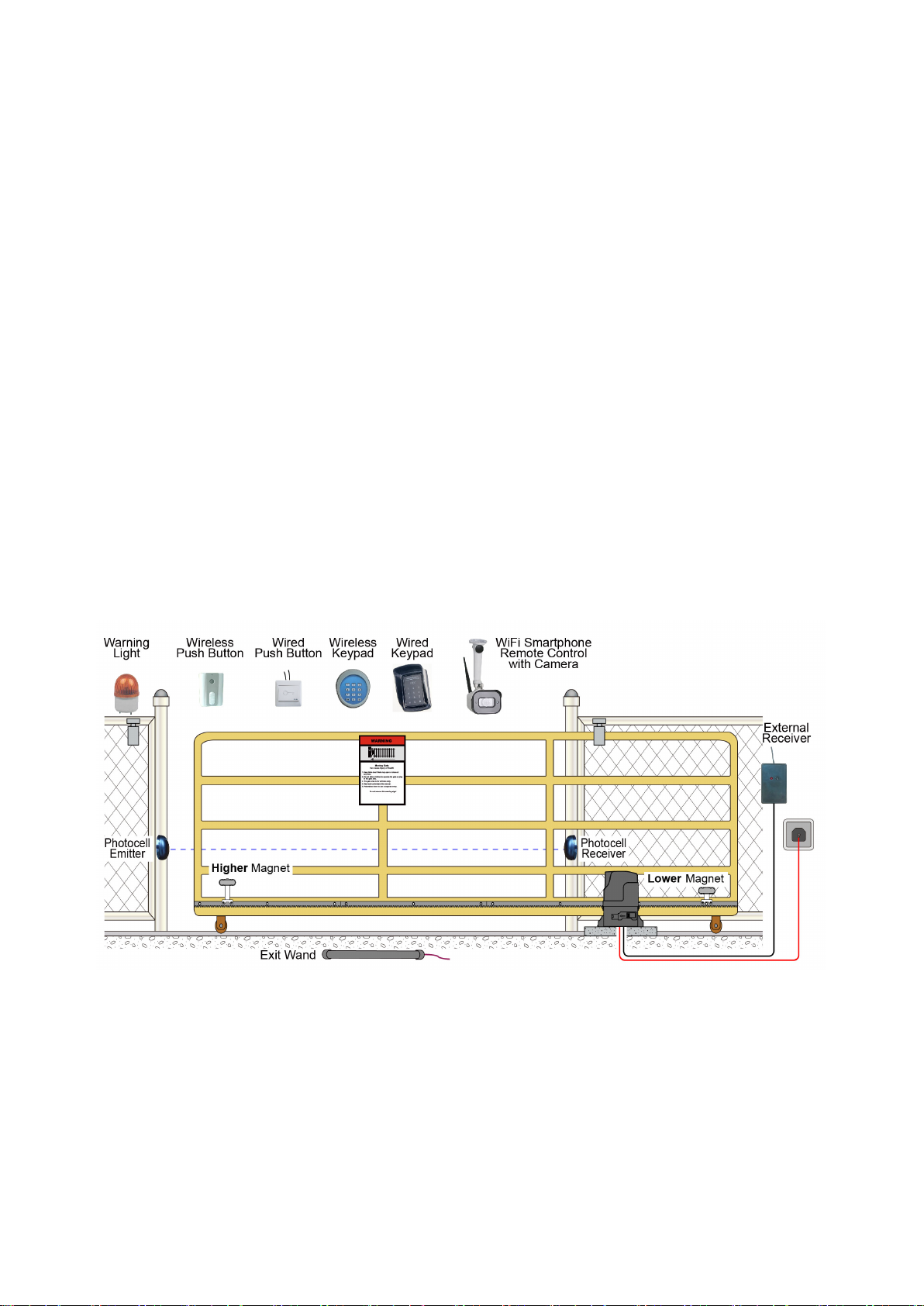

Installation Overview
Installation of the Opener
Caution:
*Be sure that the opener is installed in a level and paralleled position and is properly secured.
Improper installation could result in property damage, severe injury, and/or death.
* Before starting installation, ensure that there is no point of friction during the entire movement of
the gate and there is no danger of derailment.
* Ensure that the safety side panels are present.

7
Necessary Tools: The following tools may be necessary to install the Gate opener. You will need
screwdrivers, an electric drill, wire cutters and a wire stripper, a socket set, and possibly access to a welder.
When install the opener, you should build a concrete pad to support the base plate of opener in order to
maintain proper stability.
The installation proceeds are as follows:
1.Dig a hole for a concrete pad which should be approximately 47 x 40 x 35cm (18.5〞x 16〞x 14〞). It may
protrude 10 cm (4”) above ground and 25 cm (10”) in depth underground. Increase the pad height if
necessary to protect the system from flooding, heavy snow etc.
2. Prepare one or more conduits for the
electrical cables before pour concrete.
Remember that cable conduits have to
pass through the hole in the base plate.
3. Pour concrete and before it starts to
harden, check that it is parallel to the gate
leaf and perfectly level.
4. The four anchor bolts must be set into the
concrete when it is poured, make sure the
position of anchor bolts was placed
according to the position of mounting holes
on the base plate before concrete become
harden.
5. Mount the base plate to the concrete Pad.
It's only temporary installation. Further
adjustment will be required when install the
chain.
Manual Operation
The opener should be put in the manual (emergency release) position before fitting the chain, installing the
opener and limit switch. The process is as follows:
1) Push the cover in arrow direction, now the key slot appears.
2) Insert release Key into the key slot and turn it in counter-clockwise 90° to disengage the clutch between
the gear shaft and power output. Now the opener is in the manual operation.

8
Fit the Rack
Fit the galvanized steel rack
1. Start with gate in closed position
2. There are four sections of steel rack which is one meter length, each section for standard package. (you
can order extra rack from dealer if necessary)
3. Put one end of rack section on the gear of opener as a temporary support.
Make rack level and mark the rack’s mounting holes (three holes) on the gate.
4. Weld the rack nut on the gate as mark and connect the rack to the gate using the bolt provided. Before
weld, please keep 1.0mm space between the rack and the gear to avoid the weight of the gate leaf effect on
the opener.
Important:
1. Adjust opener’s height by using long washer if necessary.
2. Check that the rack teeth must engage the gear teeth throughout their full thickness. If not, adjust the
position of the opener or/and place a few shims between the rack and gate.
3. Manually slide the gate leaf to ensure the rack is proper on the gear of opener, weld the second nut.
4. Repeat same steps of first rack section to install the rest rack sections until proper length is reached.
5. Cut away any excess of the rack (Note: rack length must be longer than actual travel of the gate to
accommodate limit switch brackets on each gate side.)
6. Thoroughly fasten the four nuts as well as spring washers onto expansion bolt tightly, enabling the opener
is firmly secured on the concrete pad during the whole gate travel.
Install the magnets for Limit Switches
Before install limit switch, make sure the gate opener is put in manual operation. (the clutch connected with
gear shaft is disengaged) and the mains power supply is disconnected.
Position the two limit stop brackets approximately on the rack and move the gate by hand to fix them in
place.
Fit magnets bracket
Push the gate fully closed by hand. Locate and install the magnet bracket so that the opener will stop at the
desired close position when the close limit switch approaches it.
Push the gate fully open by hand. Locate and install the magnet bracket so that the opener will stop at the

9
desired open position when the open limit switch approaches it.

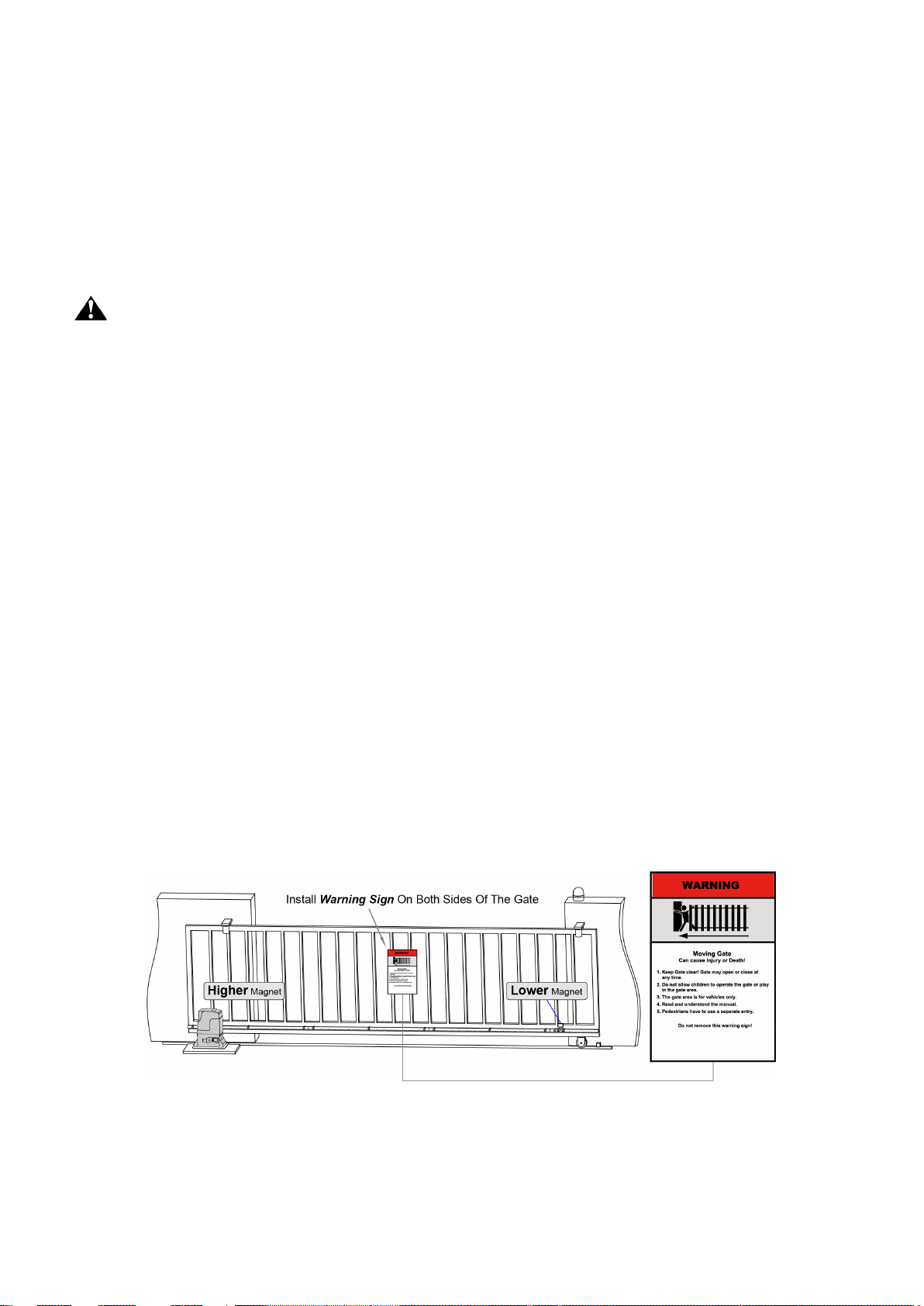

The higher magnet bracket must be installed at left side and lower magnet bracket must be installed
at right side from the view inside of property.Finally adjust the magnet to the proper position by moving
the gate with the motor. The magnet should be 20-30mm away from the magnetic limit switch. If it is too
far away, the switch will fail to work. The distance between the magnet and the opener should be 10-15mm
with the opener cover on. Adjust the position of the magnet until the positions of the opening and closing
meet the requirement.
Important Note: Please note the two magnet brackets (fixed plate) are different: one is higher and the other
is lower.
Connecting of Power Supply
WARNING: NEVER connect the gate opener to the power outlet before all
the installations have been done.

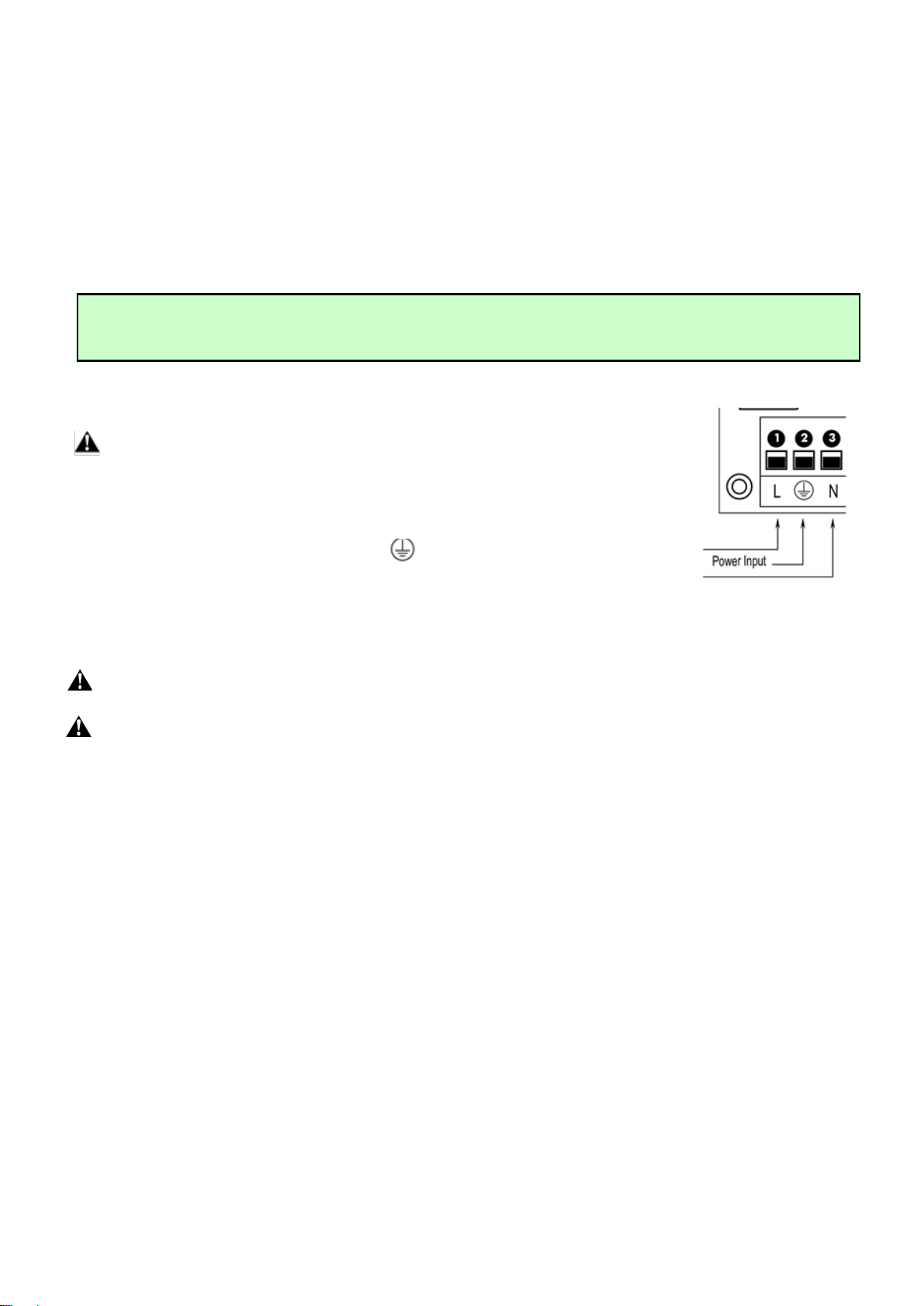

The power supply cord should be at least 3×2mm2 (3C×14AWG). Connect the live
wire and neutral wire to the “L” (1#) and “N” (3#) terminal of the control board
respectively; and connect the earth wire to “ ” (2#) terminal of the control board.
NOTE: The power supply cord is not included in the package.
Connecting of the Control Board
Warning
：
Before making any electrical wire connection or/and setting the control board, make
sure that the power switch is OFF.
Warning: A photocell is included in the package. The photocell must be installed with the gate
opener for safety protection or the gate opener could not close properly.

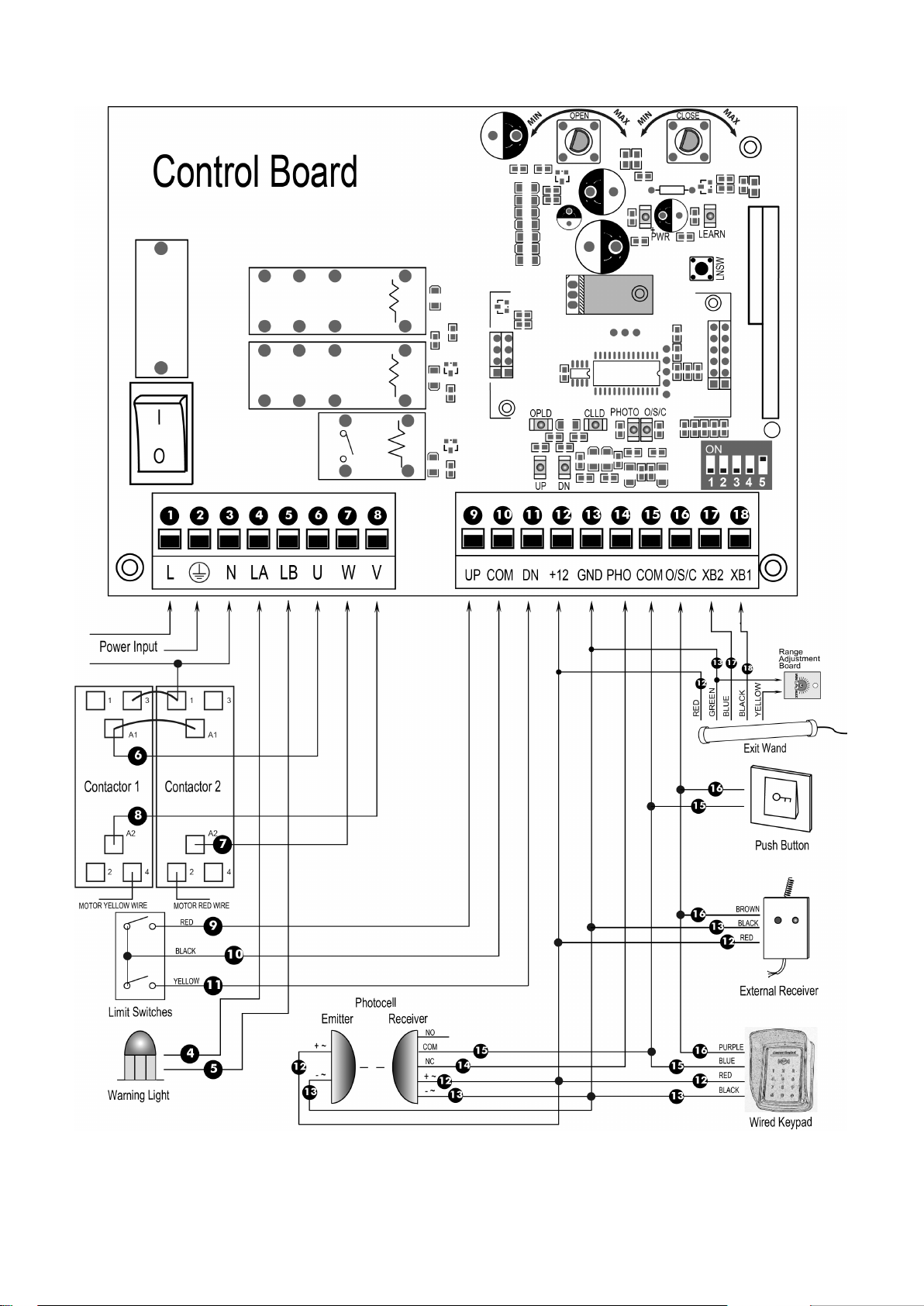

1. Contactors
The A1 terminal of both contactors should be wired to the “6” terminal of the control board.
The A2 terminal of contactor1 should be connected into the “8” terminal the control board.
The A2 terminal of contactor2 should be connected into the “7” terminal the control board.
2. Limit Switches
The RED wire of the limit switches should be connected into the “9” terminal.
The BLACK wire of the limit switches should be connected into the “10” terminal.
The YELLOW wire of the limit switches should be connected into the “11” terminal.
3. Warning Light (Included in some models, refers to the actual package)
One wire of the warning light should be connected into the “4” terminal, another should be connected into
the “5” terminal.
4. Photocell Beam System (PBS) (Normally Closed)
Use a 2-core cable to connect the “+ ~”terminal of the photocell’s emitter to the “12” terminal, the “- ~”
terminal to the “13” terminal. Also the “+ ~”and “- ~” terminals of the photocell’s receiver should be
connected to the “12” and “13” terminals in parallel.
Use another 2-core cable to connect the “NC”terminal of the receiver to the “14” terminal, the “COM”
terminal to the “15” terminal.
5. Push Button (Optional)
The push button should be wired to the “15” and “16” terminals. The gate opener works alternately by
Warning: Improper magnets installation may cause the gate crash into end
barrier, which is very dangerous !

10
pushing the button (open-stop-close-stop-open).
6. Exit Wand (Optional)
First insert the Adapter BOARD into the CONTROL BOARD, and then connect the wand to the control
board refers to following instruction.

11
The BLACK wire of the exit wand should be connected into the “#18” terminal.
The BLUE wire of the exit wand should be connected into the “#17” terminal.
The RED wire of the exit wand should be connected into the “#12” terminal.
The GREEN wire of the exit wand should be connected into the “#13” terminal.
The sensitivity adjustment board should be wired to the GREEN wire and the YELLOW wire of the wand. No
matter the polarity.
7. External Receiver (Optional)
The BROWN wire of the external receiver should be connected into the “16” terminal.
The BLACK wire of the external receiver should be connected into the “13” terminal.
The RED wire of the external receiver should be connected into the “12” terminal.
8. Wired Keypad (12VDC) (Optional)
The RED wire of the wired keypad should be connected into the “12” terminal.
The BLACK wire of the wired keypad should be connected into the “13” terminal.
The PURPLE wire of the wired keypad should be connected into the “16” terminal.
The BLUE wire of the wired keypad should be connected into the “15” terminal.
Setting of the Control Board
WARNING: Ensure the gate opener is Power Off when you make any adjustment of the gate
opener. Keep away from the gate during you set the gate opener system in case of the unexpected
gate moving. Carefully adjust the DIP switches to avoid the risk of machine damage and injury or
death. Always ask the help of professional
technician /electrician if you have any question.
1. DIP Switches
The DIP switches are used to set the running time of
the motor in midway mode, auto close time of the
gate opener and fast change the open/close direction
which is determined by the position of the gate
opener installed.
DIP Switch #1–#2: Running time of the motor in Midway Mode
This mode enables user to drive the vehicle through the gate quickly when the gate opens to certain width.
DIP Switch #1: ON – 4 Seconds OFF – 0
DIP Switch #2: ON – 2 Seconds OFF – 0
NOTE: The midway mode function would be disabled if both DIP switches are turned off. Factory
default setting is disabled. The midway mode could be activated by pressing button B of the remote
control when the gate is in the full closed position.
E.g. Running time of the operator in midway mode is 4+2=6 seconds.

12
DIP Switch #3–#4: Auto close time of the gate opener
DIP Switch #3: ON – 30 Seconds OFF – 0
DIP Switch #4: ON – 60 Seconds OFF – 0
NOTE: The auto close function would be disabled if both dip switches are turned to off (factory
default setting).

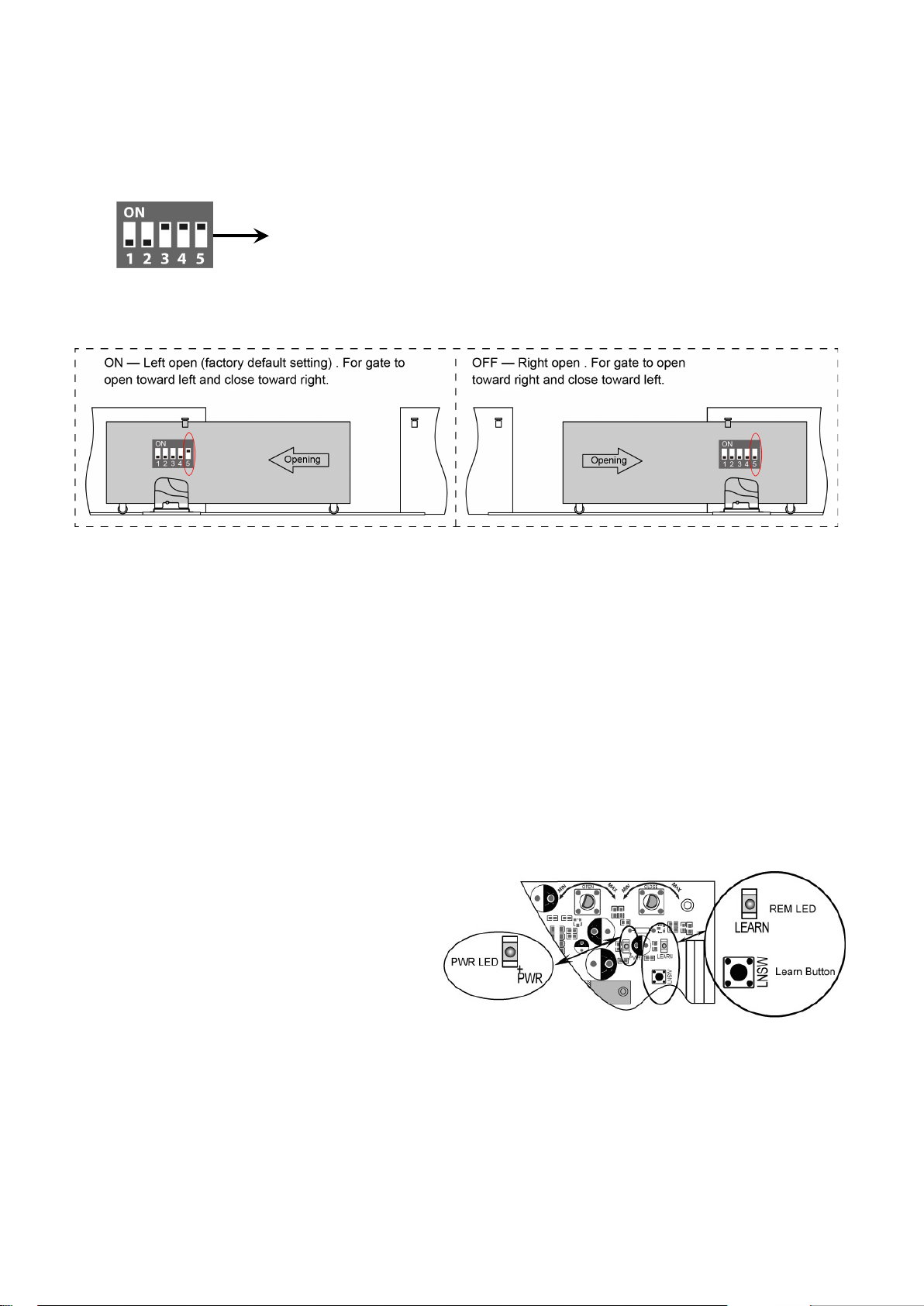

DIP Switch #5: Left/Right open
ON – Left open (factory default setting).
OFF – Right open. Turn switch OFF to change the opening direction easy if necessary.
How to Program or Erase the Remote
The remote MUST be programed to the opener BEFORE OPERATING. Please follow the steps to
program the remote.
Activate the opener only when gate is in full view, free of obstruction and properly adjusted. No
one should enter or leave gate area while gate is in motion. DO NOT ALLOW CHILDREN to
operate push button or remote. DO NOT ALLOW CHILDREN TO PLAY NEAR THE GATE.
If you purchase additional remote controls, the gate opener must be programmed to accept the
new remote code.
If you lose one of any remote control, please erase and reprogram all other remote controls to
have a new code for safety.
Program the remote
Press and release the learn button, the REM
LED light will be on, then press the key in the
remote twice in 2 seconds, the REM LED light
will flash for 4 seconds. Now the remote has
been programmed successfully.
Erase all the remote codes
Press and hold the learn button until the REM
LED light is off. Now all remote codes have been erased.
NOTE: Max. 8 remotes can be programmed for the opener. An External Receiver (optional) allows up to
250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is
available at TOPENS Store.
TOPENS ERM12 Universal External Receiver is also compatible with other brand swing gate
opener, sliding gate opener and garage door opener.
E.g. Auto close time of the gate operator is 30+60=90 seconds.

13
How to Use the Remote to Operate Your Gate Opener
Each remote has four buttons, from top to bottom are separately A, B, C and D. You may use this remote to
operate as many as 4 sets TOPENS swing gate openers or 1 set TOPENS sliding gate opener and 2 sets
TOPENS swing gate openers.
1. Use this remote to only operate TOPENS swing gate opener A, B, C and D four
buttons share same function once they are programmed with
TOPENS swing gate opener. You may choose any button to program it with our swing
gate opener. Every press of the button is able to active the gate opener to work
alternately (open-stop-close-stop-open).
2. Use one remote to operate TOPENS swing gate opener & sliding gate opener at
the same time
All of TOPENS sliding gate opener have midway mode. Button B is designed to
realize midway function (refer to more details in our TOPENS sliding gate opener manual). So it is must
program button A with sliding gate opener, while you may program either C button or D button with TOPENS
swing gate opener.

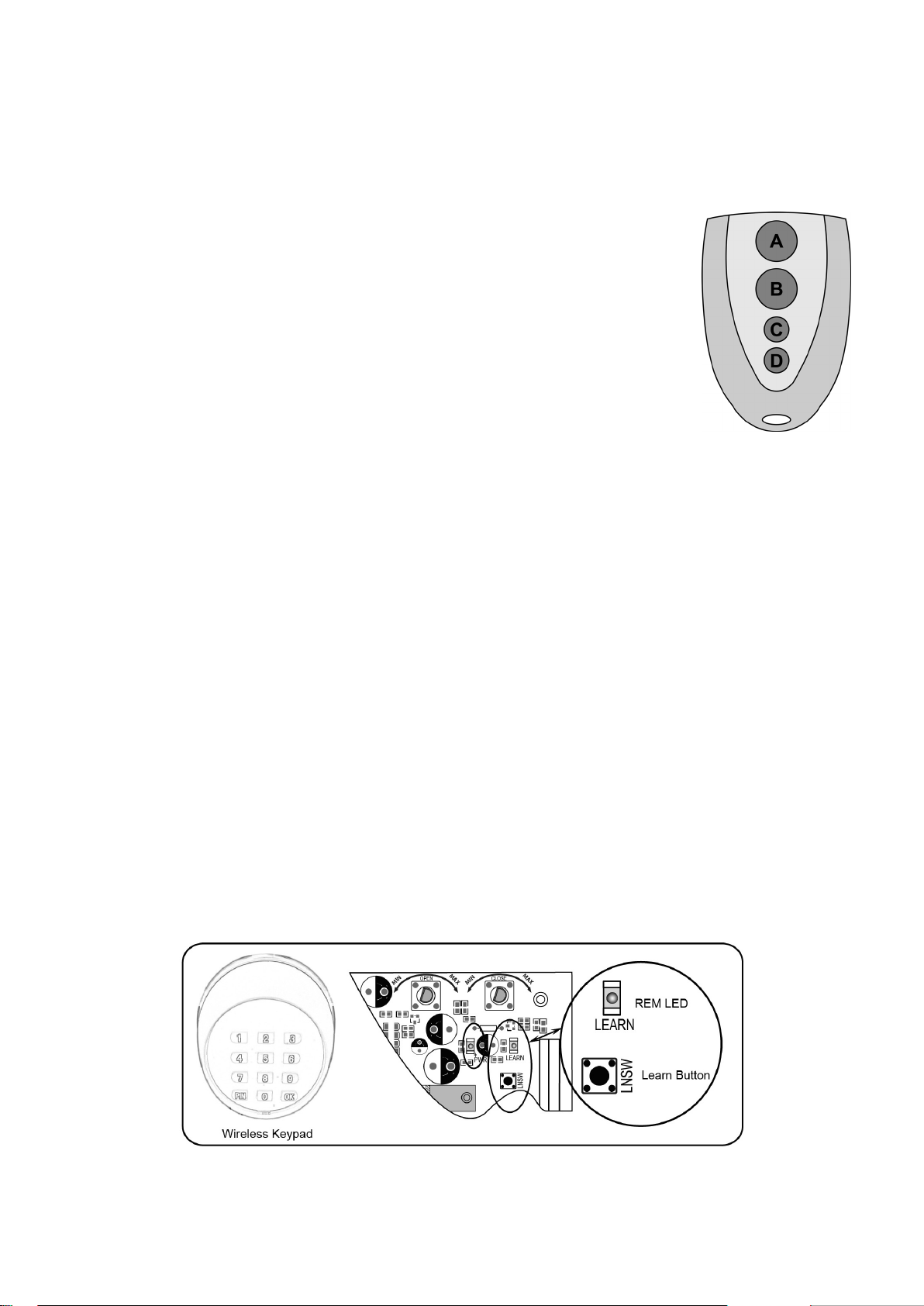

Wireless Keypad Programming
You can follow the below steps to program wireless keypad to the opener. Press the LNSW button until the
REM LED is ON,and then releases the button. Then press "OK" button on keypad and REM LED will flash
for 3 seconds and then be OFF which indicates the keypad has been programmed successfully. You can
use the default password “888888” to operate the opener after programming. You can press “PIN” “8 8 8 8 8
8” and then press “OK” to confirm to operate the opener.
Also you can change the password of the keypad follow the below steps. Press “PIN” and then input the six
digits old password and then press ”PIN” again, the REM LED will be ON. Input the six digits new password
and then press the “PIN” to confirm the new setting, REM LED will flash for 3 seconds and then be OFF
which indicates the password has been changed successfully. You can press “PIN” “6 digits new password”
and then press “OK” to confirm to operate the opener.
NOTE: Every step for pressing button during program must be finished within 1 second to ensure successful
programming.

14
Troubleshooting
Have a multi-meter to check voltage and continuity. Use caution when checking high voltage terminals.
Symptom Possible Solution(s)
The opener does not
run.
Power LED is
OFF.
1. Check the input voltage of the control board. It should be local AC
electricity.
2. The power switch is OFF. Make sure the power switch is ON.
3. Check the fuse in the control board. Replace the fuse if it was burnt out.
4. Check the control board. Replace the control board as necessary.
The opener does not
run. Power LED is
ON.
1. Ensure the remote control has been programmed to the control board
before operating.
2. The thermal protector is working because the high temperature after long
working time. Please wait for 20 minutes to let the motor become cold.
3. Check the installing position of the magnets. The opener would not run if
both of the limit switches are activated by one magnet.
4. Check the limit switch. Remove
the wire connection of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
5. Check the control board. Replace the control board as necessary.
Remote control does
not work.
1. The indicator light of remote control is not on. Check the battery in your
remote control. Replace the battery as necessary.
2. The distance you use the remote is too far away from the opener. Try it
again closer.
3. Remote control is not suitable for receiver. After making sure the codes are
correct, erase remote controls and then re-program the codes in the device.
4. Check the control board. Replace the control board as necessary.
The gate opens, but
stops and will not
return.
1. Check the installing position of the magnets. The opener would not run if
both of the limit switches are activated by one magnet.
2. Check the limit switch. Remove the wire connec
tion of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
3. Check the control board. Replace the control board as necessary.
The gate can open,
but fails to close.
1. Photocell is obstructed. Remove obstruction.
2. Check the limit switch. Remove
the wire connection of the limit switch
which is connected to the 9#, 10#, and 11# terminals of the control board and
then try it again. Replace the limit switch if the motor could run in both
directions.
3. Check the control board. Replace the control board if necessary.

15
Maintenance
Every six months check the following items for proper operation of the unit.
* Lubricate shafts and sprockets.
* Keep opener clean at all times.
* Check and tighten anchors bolts.
* Check for loose or corroded wire
* Ensure the opener is well earthed, and correctly terminated.
* Always check the Stop/Reverse in case of obstruction function when performing any maintenance. If this
function can’t be made operable, remove this opener from service until the cause of the malfunction is
identified and corrected.
The motor runs but
the gate doesn’t
move.
Ensure the clutch for emergency
release is adjusted properly and is not
slipping.

16
TOPENS Website
http://www.topenstool.com/
Any question, please do not hesitate to contact us:
E-mail: [e-mail]
Kindly include your Product Model, Purchasing Date & Site, Order #,
and your contact information. All your concerns will be replied within 24 hours.
Tel: [phone] (China)
Mon-Fri 9:00AM-5:30PM (UTC +08:00)
