Esteam NJA200D User manual

ESTEAM CLEANING SYSTEMS
OWNER’S MANUAL
Congratulations on your selection of a new Ninja soil extractor built in
Canada by “Esteam Cleaning Systems.” Our goal has been to produce the
best high performance line of carpet cleaning equipment on the market
today. Reading your owners manual will help to achieve maximum benefit
from your purchase.
760-026

1
TABLE OF CONTENTS
Page No.
Introduction on the Ninja 200D 1
Specifications 2
Maintenance 3
Safety Information 3
Operating Instructions 4
Trouble Shooting 7
Schematic 10
Circuit Indicator Option 27
Warranty Registration 33
Warranty 34

2
INTRODUCTION
Be it a small residential job or a large commercial contract, Esteam Cleaning Systems
industrial carpet cleaning extractors are right for your needs. The Ninja 200D delivers
the ultimate in power, capacity, durability, and performance. The Ninja 200D is a light
weight portable electronic truckmount, and is one of the most powerful soil extractors on
the market.
Only the highest quality components go into our equipment, to deliver you strength and
reliability in a long life high performance machine. All Esteam Cleaning Systems
equipment housings are made of high impact, unbreakable polyethylene.
The Ninja 200D incorporates a dual 2 stage vacuum producing 150 inches of water lift
or 185 inches of water lift with optional dual 3 stage vacuum.
SPECIFICATIONS
NINJA 200D
NJA200D
NJA200D-20
NJA200D-05
NJA200D-20-05
NJA200D-10
NJA200D-20-10
ELECTRICAL
Amps
Volts
One cord
15 amps
115 volts(220volts)
Two cords
15 amps per cord
115 volts(220volts)
Two cords
15 amps per cord
115 volts(220volts)
VACUUM MOTOR
Cfm’s
Vacuum lift
2-2 stage
94
150”
2-3 stage High Performance
101
185”
2-2 stage
94
150”
PUMP
200 psi
200 psi
200 psi
INTERNAL HEATER
N/A
N/A
1850 watt / 200ºF
SOLUTION TANK
(Clean water)
10.5 gallons (40 litres)
10.5 gallons (40 litres)
10.5 gallons (40 litres)
RECOVERY TANK
10.5 gallons (40 litres)
10.5 gallons (40 litres)
10.5 gallons (40 litres)
LENGHT
26 inches (66 cm)
26 inches (66 cm)
26 inches (66 cm)
WIDTH
17 inches (43 cm)
17 inches (43 cm)
17 inches (43 cm)
HEIGHT
34 inches (86 cm)
34 inches (86 cm)
34 inches (86 cm)
WEIGHT
110 lbs (49.8 kgs)
115 lbs (52 kgs)
115 lbs (52 kgs)

3
MAINTENANCE
DAILY:
- Clean high water level float screen inside the recovery tank.
- Ensure high level float ball is working properly.
- Rinse out recovery tank after use.
- Clean dirt and obstructions from the (recovery tank) drain valve rubber
gaskets to prevent premature wear.
- Rinse out pump with clean water at conclusion of work day.
- Clean poly housing with mild soap and water.
MONTHLY:
- Clean air inlet and check exhaust port.
- Check 1 ½ dump valve seal.
YEARLY:
- We recommend that your unit be inspected by a qualified service technician
once a year.
PREVENTATIVE MAINTENANCE:
-Never store this unit in a place where there is a possibility of the temperature
dropping below 00C (320F).
SAFETY INFORMATION
1. Prior to inspection or repair of this machine, disconnect all electrical cords
rendering the machine powerless. Failure to do so could result in serious or fatal
injury.
2. Inspect unit daily for worn or damaged components. E.g. frayed cord, loose plug,
or a plug with missing ground pin, etc.
3. This unit should only be operated when in an upright position on a level surface.
4. Do not operate unit unless it is properly grounded in a 3 pin grounded outlets.
Never bend or remove ground pin from plugs.
5. Ensure filters and screens are free from lint or dirt.
6. Do not run unit if vacuum motor or pump are wet. Allow sufficient time for motor
to dry before plugging unit in.
7. Do not use solvent based cleaning products in this extractor.

4
8. Keep air inlets and exhaust ports free from obstructions. Blocked air inlets or
exhaust ports can cause the unit to overheat.
9. Do not use solution or recovery tanks for storing hoses, cords or accessories.
10. When using electrical equipment around water it is important to wear rubber
soled shoes and keep machine properly grounded at all times. Failure to do so
could result in a fatal electric shock.
OPERATING INSTRUCTIONS
1. Insert electrical cords into 3 pin grounded outlets. Two cord machines that are
equipped with an Optional Circuit Indicator located above the Switch Plate. The
electrical cords must be plugged into separate circuits. When this is achieved the
green light will illuminate showing the machine is ready for operation.
2. We recommend the use of a Esteam liquid Defoamer, to prevent the machine
from prematurely shutting off due to excess foam in the recovery tank. Turn on
vacuum and pour approximately ¼ cup of Esteam Liquid Defoamer into the end
of the vacuum hose.
3. 200 PSI pump priming instructions: Using Primer Quick Connect
- Fill fresh water tank
- Attach vacuum and solution hose to machine
- Attach primer quick connect to end of solution hose
- Place solution hose with primer quick connect into open end of vacuum hose
and hold
- turn vacuum and pump switches on
- Once a continuous flow of water is entering the vacuum hose, this indicates
pump is primed
- Turn off vacuum and pump switches and disconnect primer quick connect
- Connect solution hose and vacuum hose to carpet wand
- Turn vacuum and pump switches on
- Machine is ready to use.
TO USE YOUR NINJA HEATER:
A. Hook the wand solution hose to the quick connect of your machine.
B. Plug the heater power cord into a wall that is on a separate circuit form the other
cord.
C. Turn the heater switch on.
D. When the red light goes out, solution is heated and ready to use.

5
OPERATING INSTRUCTIONS (CONTINUED)
WARNING: If your heater does not work DO NOT attempt to repair it yourself, call your
distributor for repair procedures. Using solvents in heaters can be hazardous and will
void your warranty. Allowing heaters to freeze will crack the heater cartridge and will
also void your warranty.
DANGER: No solvents of any type may be used in this system at any time. The use of
solvents is extremely hazardous resulting in possible fire and/or explosion.
4. Connect vacuum and solution hoses to the carpet cleaning wand.
5. Proceed to clean carpets.
6. When the recovery tank becomes full, vacuum will automatically stop extracting.
When vacuum stops extracting it will make a distinctive high pitched noise as all
the air flow will be cut off. At this time switch unit off. Drain the recovery tank by
pulling up on drain valve on front of machine.
NOTE: Ensure that the high water level float screen inside the recovery tank is free
from any obstructions. Be sure to close drain valve before resuming cleaning.
7. To empty solution tank remove vacuum hose from wand. Turn on vacuum and
extract solution from solution tank into recovery tank, then drain recovery tank.
NOTE: Do not completely submerge end of vacuum hose into solution. Allow some air
to enter end of vacuum hose with liquid.
8. When the job is completed empty and rinse out the solution and recovery tanks.
Allow vacuum to run for 3 to 5 minutes. This will eliminate all moisture from
vacuum assuring long vacuum life.
WARNING: When using electrical equipment around water it is important to wear
rubber soled shoes and keep machine properly grounded at all times. Failure to do so
could result in electric shock.

6

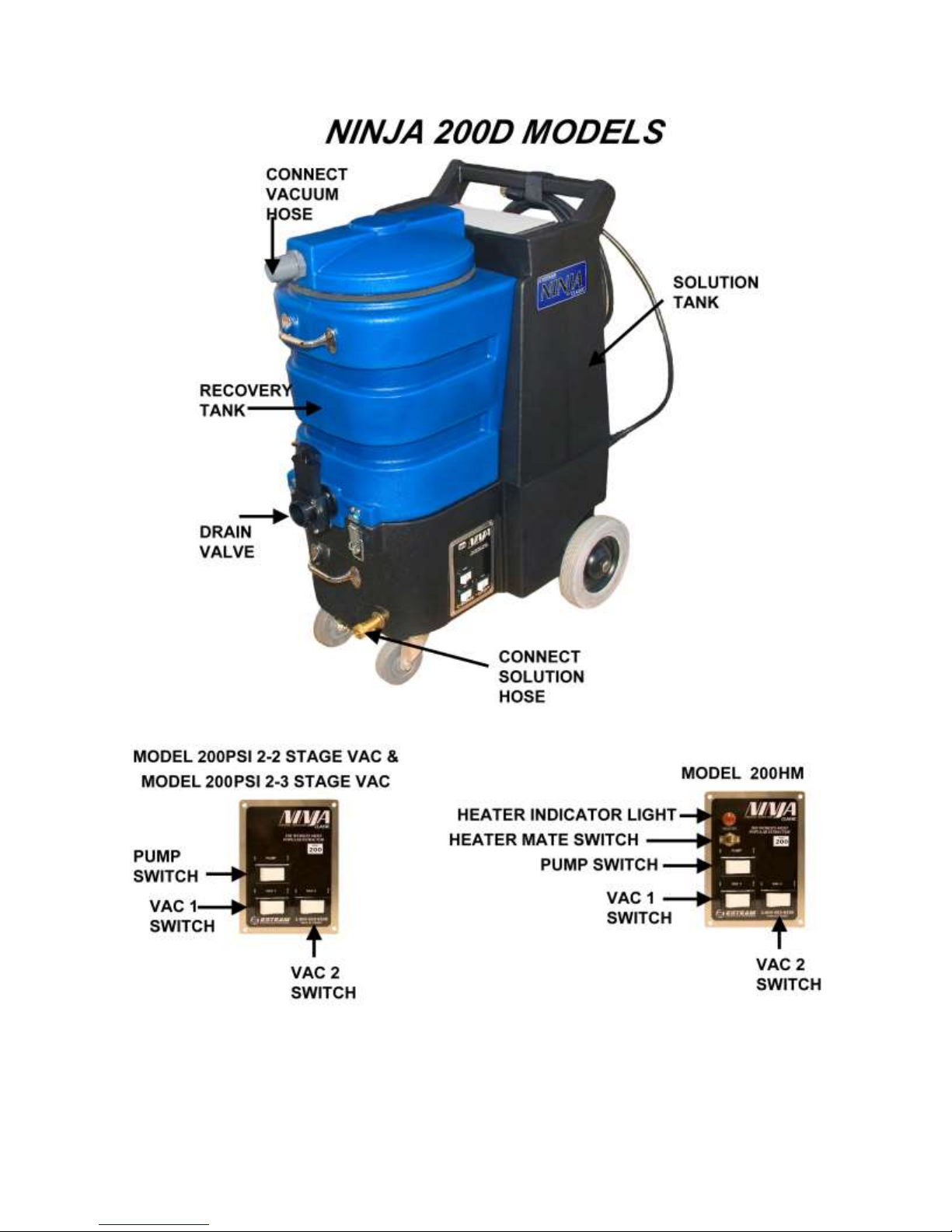

7
TROUBLE SHOOTING
WARNING: Prior to inspection or repair of this machine, disconnect all
electrical cords rendering the machine powerless. Failure to do so could
result in serious or fatal injury.
PROBLEM
CAUSE
SOLUTION
1. Entire unit will not
operate
1. Unit not plugged in
1. Connect unit to 3 pin
grounded outlets
2. Loose wiring
2. See dealer
2. Pump will not run
1. Switch not turned on
1. Turn on switch
2. Broken switch
2. See dealer
3. Loose wiring
3. See dealer
4. Pump motor defective
4. See dealer
3. Vacuum will not run
1. Switch not turned on
1. Turn on switch
2. Broken switch
2. See dealer
3. Loose wiring
3. See dealer
4. Blocked rotor
4. See dealer
4. Pump runs but does not
pump solution
1. Out of solution
1. Fill solution tank
2. Pump inlet screen
plugged
2. Clean inlet screen
3. Pump was not properly
primed
3. Prime pump using
priming quick connect
4. Kink in solution hose
4. Remove kink
5. Plugged jet or quick
connect
5. Remove blockage
6. Internal (inside machine)
or external solution line
damaged and leaking
6. See dealer
5. Pump runs but has loss
pressure
1. Partial kink in solution
hose
1. Remove kink
2. Partial blockage in
solution hose
2. Remove blockage
3. Jet orifice opening on
cleaning wand is too large
3. Total jet opening for 150
PSI pump should be .06 or
.08. Heat option should be
.03

8
PROBLEM
CAUSE
SOLUTION
6. Vacuum operatesbut has
poor or no suction
1. Recovery tank full
1. Drain recovery tank
2 Vacuum hose plugged
2. Locate and remove
blockage
3. Wand plugged
3. Locate and remove
blockage
4. Exhaust port blocked
4. Locate and remove
blockage
5. High level float stuck in
off position
5. Turn vacuum off and tap
top of float screen cage
6. Front drain valve left
open after draining
recovery tank
6. Close recovery tank
drain valve on front of
machine
7. Vacuum prematurely
stops extracting
1. Excess foam in recovery
tank
1. Add defoamer to
recovery tank
2. Lint or dirt on automatic
shut off float screen
2. Clean auto shut off float
screen
3. Defective float ball
3. Replace float screen
cage
8. Machine spits water out
of exhaust port
1. High level float not
working properly
1. Check auto shut off float
cage and ball for proper
operation
9. Machine blowing
excessive amounts of water
out of exhaust ports
1. Damaged (leaking)
recovery tank fittings
1. Immediately shut unit
down. Bring unit to a dealer
for service
10. Water accumulating in
bottom electrical
component area
1. Inside solution line
leaking
1. Immediately shut unit
down. Bring unit to a dealer
for service
2. Pump leaking
2. Immediately shut unit
down. Bring unit to a
dealer for service
3. Solution or recovery tank
leaking from above
3. Immediately shut unit
down. Bring to a dealer for
service
11. Heater won’t work
1. Heater cord not plugged
in
1. Connect cord to 3 Pin
(separate) outlet
2. Faulty Thermostat or
Thermo cut-out
2. See dealer
12. Water not hot enough
1. Check Jet size on wand
or upholstery tool
1. Do not exceed .03 orifice
size for maximum heat
transfer
2. Cold water used in
solution tank
2. Use hot tap water for
maximum heat transfer

9
NINJA 200D PSI

10
NINJA 200D PSI (P. 1)
REF
PART NO.
DESCRIPTION
NOTES:
1
580-015
1/4 Quick Connect (For priming pump )
2
305-230
Switch, Rocker 20 Amp
3
315-015
Cord, 25' Black 14/3 SJTW-A
4
335-005
Strain Relief, 12 Gauge
5
350-005
Strap Velcro
6A
355-401
Vacuum, 2 Stg - 110v (C/W: 355-405)
NJA200D
6B
355-500
Vacuum, 2 Stg - 220v
NJA200D-20
7
355-405
Vacuum Cap, Straight
8
400-115
Locknut, 1/4 x 20 Nylon SS
9
400-130
Locknut, 10 x 24 Nylon SS
10
400-135
Locknut, 1/4 x 20 Nylon Zinc
11
400-165
Locknut, 1/2"
12
405-010
Bolt, 1/4 x 1 SS
13
405-020
Bolt, 1/4 x 1-1/4 SS
14
405-065
Bolt, 1/4 x 6 Stove Zinc
15
405-615
CS, 1/4 x 1/2 SS (Hex HD)
16
405-620
CS, 1/4 x 3/4 SS (Hex HD)
17
410-005
MS, 1/4 x 1 Phil SS Flat/H
18
410-058
SMS, 4 x 1/4 Pan Phil S.S.
Not shown
19
410-125
SMS, 8 x 5/8 Pan Rob. S.S.
Not shown
20
410-160
MS, 10-24 x 3/4 Pan PH SS
21
410-205
MS, 10-32 x 1/2 Panphil SS
22
410-225
SMS, 10 X 1/2 Pan Rob. Zinc
Not shown
23
415-115
FW, 10 SS
24
415-120
FW, 1/4 Zinc
25
415-125
FW, 1/4 SS
26
415-155
FW, 1/2 SS (Stand/Max OD)
27
415-156
FW, 1/2 SS
28
415-305
FNDW, 1/4 SS
29
420-055
Rivet, AL/AL #46
Not shown
30
420-105
Rivet, AL/ST #66
31
420-151
Rivet, AL/AL Fullysealed #68
32
425-005
Clamp, #8 Hose 1/2 x 1
33
425-010
Clamp, #20 Hose 13/16 x 1 3/4
34
435-015
Handle, Brass/Chrome
35
440-006
S.S. Hinge 2" x 2"
36
445-015
Latch, Machine
37
445-020
Latch, Striker
38
455-075
Caster, 4" Swivel
39
455-052
Wheel Cap Dome
40
455-057
Wheel, 8" Grey/Black Hub
41
465-065
Brace, Ninja Tank
42
470-051
Axel, Ninja HD
43
475-010
Gasket, Rubber - 1 1/2" Dump Valve

11

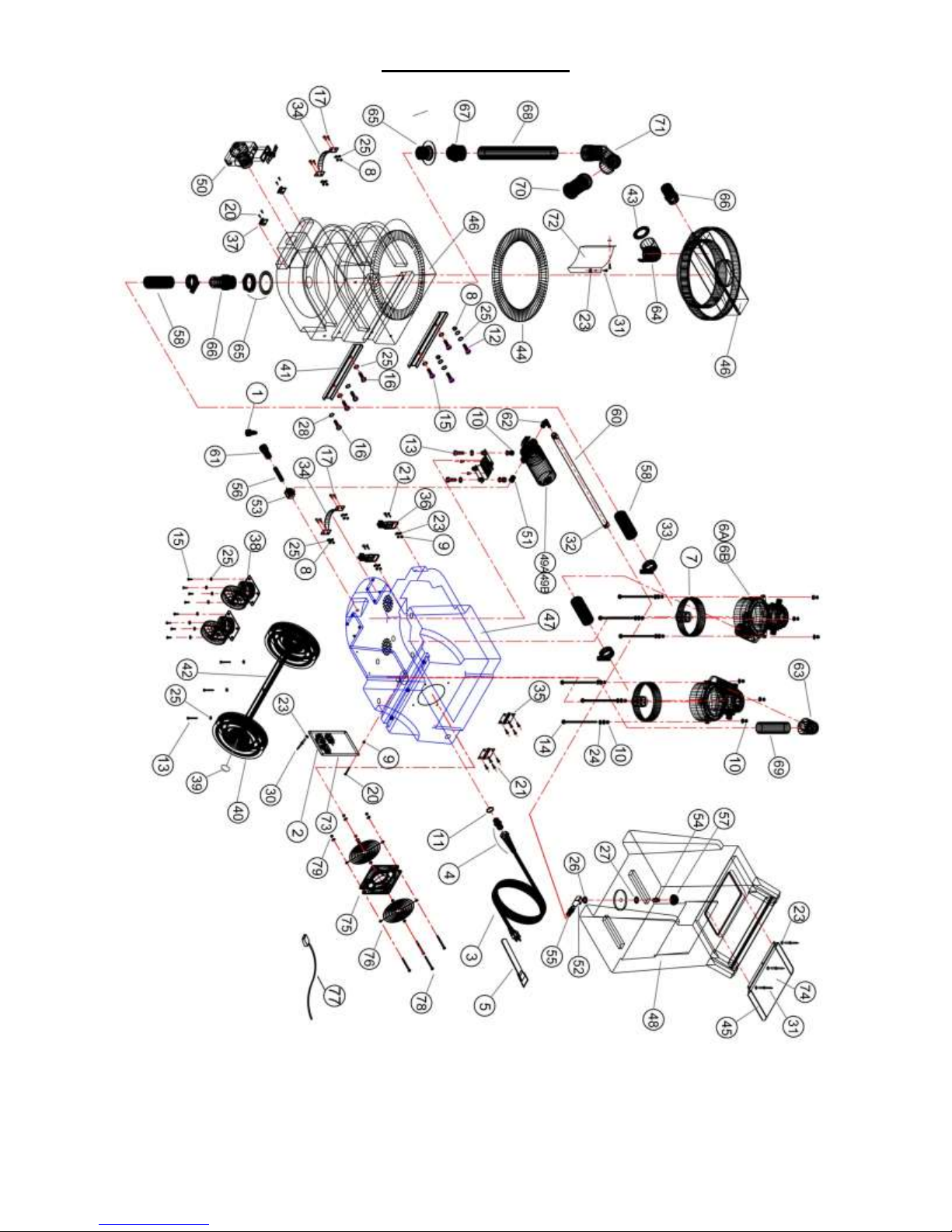

NINJA 200D PSI (P. 2)
44
475-030
Gasket, Lid 3/8"
45
475-040
Gasket, 1/8 x 1"
46
495-021C
Recovery Tank & Lid Ninja
47
495-035
Base, Ninja
48
495-040
Sol Tank Ninja
49A
511-106
Pump, 200 PSI (110v)
NJA200D
49B
511-310
Pump, 200 PSI (220v)
NJA200D-20
50
545-100
Dump Valve, 1 1/2"
51
555-024
Bushing, 3/8 M x 1/4 FM
52
555-182
Elbow 45, 1/4 FEM. Extruded
53
555-208
Elbow 90, 1/4 Street Extruded
54
555-272
Hex Nipple, 1/4" (Long)
55
555-370
Hose Barb, 1/2 Barb x 1/4 MPT
56
555-424
Long Nipple, 1/4 x 2 1/2"
57
560-030
Screen, Acorn
58
570-010
Vac Hose 1 1/2" Wire Reinforced
59
572-041
L.P. Hose 3/8”
Not Shown
60
572-155
Polyspring Hose, 1/2"
61
580-010
Q.C. 1/4" Fem (Closed)
62
585-110
Nylon, 90 Barb 1/2 x 3/8 NPT
63
590-010
PVC Elbow 1 1/4" 90, S x S
64
590-020
PVC ELB 1 1/2" 90, S x FIPT
65
590-205
PVC Wall Fitting, 1 1/2"
66
590-405
PVC Hose Barb 1 1/2" x MPT
67
590-415
PVC Adpt 1 1/2", S x MPT
68
595-005
ABS Pipe, 1 1/2"
69
595-110
PVC Pipe, 1 1/4"
70
597-010
Float Screen Cage
71
597-061
Adpt (RM) 30 Degree
72
845-010
Baffle, S/S
73
845-030
Switch Plate
74
845-040
Solution Tank Cover
75
333-015
Fan 6” 220V
76
560-330
Finger guards
77
315-040
Cord, Fan
78
410-175
MS, 10-24 x 2 1/2 Zinc
79
400-005
Lock nut 10-24 Zinc

12

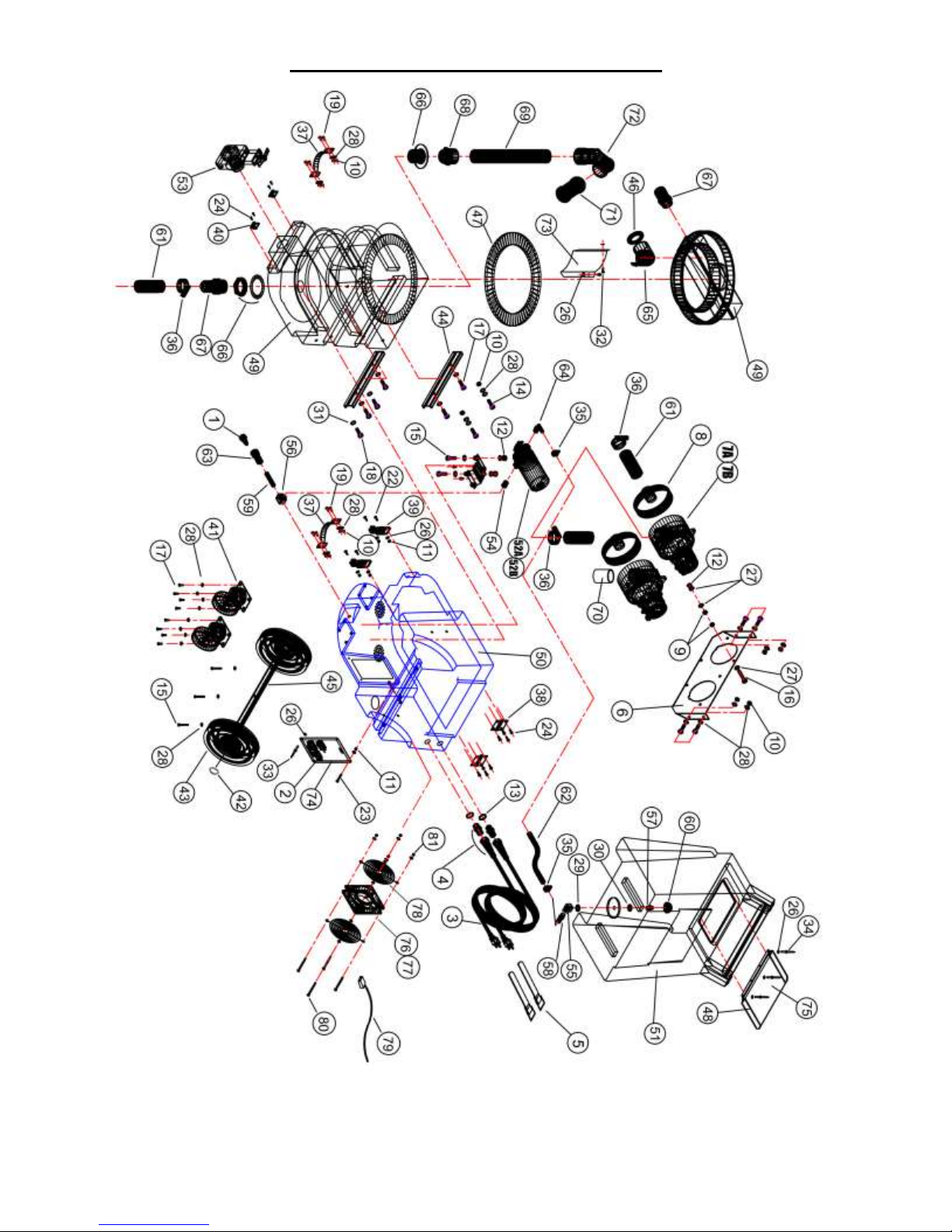

NINJA 200D PSI 2-3 STAGE VAC

13
NINJA 200D PSI 2-3 STAGE VAC (P. 1)
REF
PART NO.
DESCRIPTION
NOTES:
1
580-015
1/4 Quick Connect (For priming pump )
2
305-230
Switch, Rocker 20 Amp
3
315-015
Cord, 25' Black 14/3 SJTW-A
4
335-005
Strain Relief, 12 Gauge
5
350-005
Strap Velcro
6
355-005
BRKT, Vac 3-Stage
7A
355-411
Vacuum, 3 Stg - 110v (C/W: 355-405)
NJA200D-05
7B
355-510
Vacuum, 3 Stg - 220v
NJA200D-20-05
8
355-405
Vacuum Cap, Straight
9
400-010
Hex Nut, 1/4 x 20 Zinc
10
400-115
Locknut, 1/4 x 20 Nylon SS
11
400-130
Locknut, 10 x 24 Nylon SS
12
400-135
Locknut, 1/4 x 20 Nylon Zinc
13
400-165
Locknut, 1/2"
14
405-010
Bolt, 1/4 x 1 SS
15
405-020
Bolt, 1/4 x 1-1/4 SS
16
405-035
Bolt, 1/4 x 2 1/2 Stove Zinc
17
405-615
CS, 1/4 x 1/2 SS (Hex HD)
18
405-620
CS, 1/4 x 3/4 SS (Hex HD)
19
410-005
MS, 1/4 x 1 Phil SS Flat/H
20
410-058
SMS, 4 x 1/4 Pan Phil S.S.
Not shown
21
410-125
SMS, 8 x 5/8 Pan Rob. S.S.
Not shown
22
410-160
MS, 10-24 x 3/4 Pan PH SS
23
410-165
MS, 10-24 x 1 Pan Slot SS
24
410-205
MS, 10-32 x 1/2 Panphil SS
25
410-225
SMS, 10 X 1/2 Pan Rob. Zinc
Not shown
26
415-115
FW, 10 SS
27
415-120
FW, 1/4 Zinc
28
415-125
FW, 1/4 SS
29
415-155
FW, 1/2 SS (Stand/Max OD)
30
415-156
FW, 1/2 SS
31
415-305
FNDW, 1/4 SS
32
420-055
Rivet, AL/AL #46
Not shown
33
420-105
Rivet, AL/ST #66
34
420-151
Rivet, AL/AL Fullysealed #68
35
425-005
Clamp, #8 Hose 1/2 x 1
36
425-010
Clamp, #20 Hose 13/16 x 1 3/4
37
435-015
Handle, Brass/Chrome
38
440-006
S.S. Hinge 2" x 2"
39
445-015
Latch, Machine
40
445-020
Latch, Striker
41
455-075
Caster, 4" Swivel
42
455-052
Wheel Cap Dome
43
455-057
Wheel, 8" Grey/Black Hub
44
465-065
Brace, Ninja Tank

14
NINJA 200D PSI 2-3 STAGE VAC (P. 2)
45
470-051
Axel, Ninja HD
46
475-010
Gasket, Rubber - 1 1/2" Dump Valve
47
475-030
Gasket, Lid 3/8"
48
475-040
Gasket, 1/8 x 1"
49
495-021C
Recovery Tank & Lid Ninja
50
495-035
Base, Ninja
51
495-040
Sol Tank Ninja
52A
511-106
Pump, 200 PSI, 110v
NJA200D-05
52B
511-310
Pump, 200 PSI, 220v
NJA200D-20-05
53
545-100
Dump Valve, 1 1/2"
54
555-024
Bushing, 3/8 M x 1/4 FM
55
555-182
Elbow 45, 1/4 FEM. Extruded
56
555-208
Elbow 90, 1/4 Street Extruded
57
555-272
Hex Nipple, 1/4" (Long)
58
555-370
Hose Barb, 1/2 Barb x 1/4 MPT
59
555-424
Long Nipple, 1/4 x 2 1/2"
60
560-030
Screen, Acorn
61
570-010
Vac Hose 1 1/2" Wire Reinforced
62
572-155
Polyspring Hose, 1/2"
63
580-010
Q.C. 1/4" Fem (Closed)
64
585-110
Nylon, 90 Barb 1/2 x 3/8 NPT
65
590-020
PVC ELB 1 1/2" 90, S x FIPT
66
590-205
PVC Wall Fitting, 1 1/2"
67
590-405
PVC Hose Barb 1 1/2" x MPT
68
590-415
PVC Adpt 1 1/2", S x MPT
69
595-005
ABS Pipe, 1 1/2"
70
595-110
PVC Pipe, 1 1/4"
71
597-010
Float Screen Cage
72
597-061
Adpt (RM) 30 Degree
73
845-010
Baffle, S/S
74
845-030
Switch Plate
75
845-040
Solution Tank Cover
76
330-010
Fan 6” 110V
77
333-015
Fan 6” 220V
78
560-330
Finger guards
79
315-040
Cord, Fan
80
410-175
MS, 10-24 x 2 1/2 Zinc
81
400-005
Lock nut 10-24 Zinc

15
NINJA 200D PSI HEATER MATE

16
NINJA 200D PSI H.M (P. 1)
REF
PART NO.
DESCRIPTION
NOTES:
1
263-013
HP Hose 28”
2
580-015
1/4 Quick Connect (For priming pump )
3
305-210
Switch, Toggle 110v / 220v
4
305-225
Switch Plate, ON/OFF
5
305-230
Switch, Rocker 20 Amp
6
315-015
Cord, 25' Black 14/3 SJTW-A
7A
320-110
Lamp, Panel 110v
NJA200D-10
7B
320-900
Lamp, Panel 220v
NJA200D-20-10
8
335-005
Strain Relief, 12 Gauge
9
350-005
Strap Velcro
10A
355-401
Vacuum, 2 Stg - 110v (C/W: 355-405)
NJA200D-10
10B
355-500
Vacuum, 2 Stg - 220v
NJA200D-20-10
11
355-405
Vacuum Cap, Straight
12
400-115
Locknut, 1/4 x 20 Nylon SS
13
400-130
Locknut, 10 x 24 Nylon SS
14
400-135
Locknut, 1/4 x 20 Nylon Zinc
15
400-165
Locknut, 1/2"
16
400-240
Tinnerman Nut
17
405-010
Bolt, 1/4 x 1 SS
18
405-020
Bolt, 1/4 x 1-1/4 SS
19
405-065
Bolt, 1/4 x 6 Stove Zinc
20
405-615
CS, 1/4 x 1/2 SS (Hex HD)
21
405-620
CS, 1/4 x 3/4 SS (Hex HD)
22
410-005
MS, 1/4 x 1 Phil SS Flat/H
23
410-058
SMS, 4 x 1/4 Pan Phil S.S.
Not shown
24
410-125
SMS, 8 x 5/8 Pan Rob. S.S.
Not shown
25
410-160
MS, 10-24 x 3/4 Pan PH SS
26
410-165
MS, 10-24 x 1 Pan Slot SS
27
410-190
SMS, 10 x 1 FLT Soc Zinc
28
410-205
MS, 10-32 x 1/2 Pan Phil SS
29
410-225
SMS, 10 x 1/2 Pan Rob. Zinc
Not shown
30
415-115
FW, 10 SS
31
415-120
FW, 1/4 Zinc
32
415-125
FW, 1/4 SS
33
415-155
FW, 1/2 SS (Stand/Max OD)
34
415-156
FW, 1/2 SS
35
415-305
FNDW, 1/4 SS
36
420-055
Rivet, AL/AL #46
Not shown
37
420-105
Rivet, AL/ST #66
38
420-151
Rivet, AL/AL Fullysealed #68
39
425-005
Clamp, #8 Hose 1/2 x 1
40
425-010
Clamp, #20 Hose 13/16 x 1 3/4
41
425-130
Clamp, Tube 3”
42
435-015
Handle, Brass/Chrome
43
440-006
S.S. Hinge 2" x 2"
44
445-015
Latch, Machine
45
445-020
Latch, Striker
46
455-075
Caster, 4" Swivel
47
455-052
Wheel Cap Dome
48
455-057
Wheel, 8” Grey\Black Hub

17
NINJA 200D PSI H.M (P. 2)
49
465-065
Brace, Ninja Tank
50
470-051
Axel, Ninja HD
51
475-010
Gasket, Rubber - 1 1/2" Dump Valve
52
475-030
Gasket, Lid 3/8"
53
475-040
Gasket, 1/8 x 1"
54A
490-005
Foamed Casing, Round 1850W HM
NJA200D-10
54B
490-006
Foamed Casing, Round 1850W HM
NJA200D-20-10
55
495-021C
Recovery Tank & Lid Ninja
56
495-035
Base, Ninja
57
495-040
Sol Tank Ninja
58A
511-106
Pump, 200 PSI (110v)
NJA200D-10
58B
511-310
Pump, 200 PSI (220v)
NJA200D-20-10
59
545-100
Dump Valve, 1 1/2"
60
550-035
Check Valve 1/4 FM x FM
61
555-182
Elbow 45, 1/4 FEM. Extruded
62
555-208
Elbow 90, 1/4 Street Extruded
63
555-210
Elbow 90, 3/8 MPT x 1/4 MPT
64
555-272
Hex Nipple, 1/4" (Long)
65
555-370
Hose Barb, 1/2 Barb x 1/4 MPT
66
560-030
Screen, Acorn
67
570-010
Vac Hose 1 1/2" Wire Reinforced
68
572-041
L.P Hose 3/8”
Not shown
69
572-125
Pulse Hose, 3/8"
70
572-155
Polyspring Hose, 1/2"
71
580-010
Q.C. 1/4" Fem (Closed)
72
581-060
Crimp Ftng, 3/8" Pulse Hose –1/4 MPT
73
581-065
Crimp Ftng, 3/8" Pulse Hose 1/4 MPT SVL
74
585-110
Nylon 90 Barb 1/2 x 3/8 NPT
75
590-010
PVC Elbow 1 1/4" 90, S x S
76
590-020
PVC ELB 1 1/2" 90, S x FIPT
77
590-205
PVC Wall Fitting, 1 1/2"
78
590-405
PVC Hose Barb 1 1/2" x MPT
79
590-415
PVC Adpt 1 1/2", S x MPT
80
595-005
ABS Pipe, 1 1/2"
81
595-110
PVC Pipe, 1 1/4"
82
597-010
Float Screen Cage
83
597-061
Adpt (RM) 30 Degree
84
845-010
Baffle, S/S
85
845-030
Switch Plate
86
845-040
Solution Tank Cover
87
330-010
Fan 6” 110V
88
333-015
Fan 6” 220V
89
560-330
Finger guards
90
315-040
Cord, Fan
91
410-175
MS, 10-24 x 2 1/2 Zinc
92
400-005
Lock nut 10-24 Zinc

18
ESTEAM PUMP 200D PSI

19

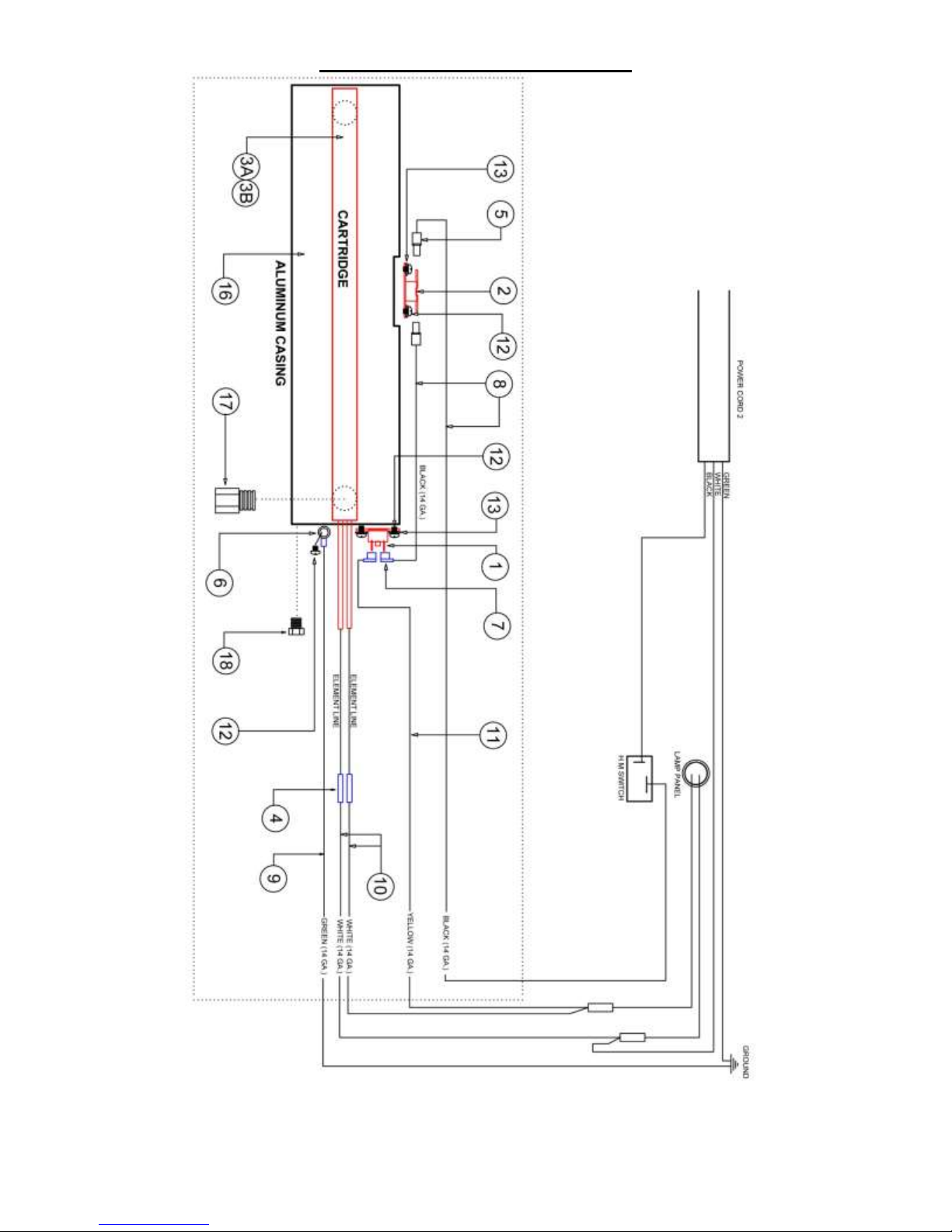

INTERNAL HEATER MATE
