ETC Source Four Zoom User manual

Part Number: 7060M2550-06.01 Rev: B
Released: 2019-08
Source Four Zoom
Assembly Guide
Production Dates: September 2004–Present

To view a list of ETC trademarks and patents, go to etcconnect.com/ip . All other trademarks, both
marked and not marked, are the property of their respective owners.
ETC intends this document, whether printed or electronic, to be provided in its entirety.

Table of Contents i
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Help from ETC Technical Services . . . . . . . . . . . . . . . . . . . . . . .2
15°–30° Basic Fixture . . . . . . . . . . . . . . . . . . . . . . 3
25°–50° Basic Fixture . . . . . . . . . . . . . . . . . . . . . . 4
Assembling Basic Fixture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Lamp Socket Assembly . . . . . . . . . . . . . . . . . . . . 5
Assemble lamp socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Reflector Housing Assembly . . . . . . . . . . . . . . . .9
Removing reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installing reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Front Barrel Assembly . . . . . . . . . . . . . . . . . . . .11
Assemble front barrel assembly . . . . . . . . . . . . . . . . . . . . . . .12
15°–30° Lens Tube . . . . . . . . . . . . . . . . . . . . . . .14
15°–30° Lens tube assembly . . . . . . . . . . . . . . . . . . . . . . . . . .15
15°–30° Gel frame endcap assembly . . . . . . . . . . . . . . . . . . .15
15°–30° Front lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . .15
15°–30° Rear lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .15
25°–50° Lens Tube . . . . . . . . . . . . . . . . . . . . . . .16
25°–50° lens tube assembly. . . . . . . . . . . . . . . . . . . . . . . . . . .17
25°–50° Gel frame endcap assembly . . . . . . . . . . . . . . . . . . .17
25°–50° Front lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . .17
25°–50° Rear lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Assemble lens tube (15°–30° and 25°–50°) . . . . . . . . . . . . . .18
Cleaning glass lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ii Source Four Zoom Assembly Guide

Introduction 1
Introduction
Welcome to the Source Four Zoom Assembly Guide .
Please note that the part numbers listed in this guide may differ from the parts required for
your particular Source Four fixture. Part numbers for fixtures change occasionally as parts are
replaced or upgraded.
To ensure that you are ordering the proper part for your specific fixture, please contact your
ETC dealer, or ETC Customer Service for assistance.
Document Conventions
This document uses the following conventions to draw your attention to important
information.
All ETC documents are available for free download from our website: etcconnect.com.
Please email comments about this manual to: [email protected].
Note:
Notes are helpful hints and information that is supplemental to the main text.
CAUTION:
A Caution statement indicates situations where there may be undefined or
unwanted consequences of an action, potential for data loss or an equipment
problem.
WARNING: A Warning statement indicates situations where damage may occur, people
may be harmed, or there are serious or dangerous consequences of an action.
WARNING: RISK OF ELECTRIC SHOCK! This warning statement indicates situations where
there is a risk of electric shock.

2Source Four Zoom Assembly Guide
Help from ETC Technical Services
If you are having difficulties, and your problem is not addressed by this document, try the ETC
support website at support.etcconnect.com or the main ETC website at etcconnect.com. If
none of these resources are sufficient, contact ETC Technical Services directly at one of the
offices identified below. Emergency service is available from all ETC offices outside of normal
business hours.
When calling for help, take these steps first:
• Prepare a detailed description of the problem
• Go near the equipment for troubleshooting
• Find your notification number if you have called in previously
Americas United Kingdom
ETC, Inc. ETC Ltd - UK
Technical Services Department Technical Services Department
3031 Pleasant View Road 26-28 Victoria Industrial Estate
Middleton, WI 53562 Victoria Road,
800-775-4382 (USA, toll-free) London W3 6UU England
[phone] [phone]
[email protected] te[email protected]
Asia Germany
ETC Asia ETC GmbH
Technical Services Department Technical Services Department
Room 1801, 18/F Ohmstrasse 3
Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany
9 Sheung Yuet Road [phone]
Kowloon Bay, Kowloon, Hong Kong [email protected]
[phone]
[email protected]
France
ETC France
62-64 rue Danielle
Casanova
Saint-Denis Cedex
F93200
[phone]
[email protected]

15°–30° Basic Fixture 3
15°–30° Basic Fixture
Reference
Number
Part
Number Description Quantity Required
1 7060A2030 15°–30° lens tube 1
2 7060A2020 Reflector housing assembly, double clutch 1
3 7060A2008 Lamp socket assembly 1
4 7060A4008-01 Knob set with male insert 1
5 7060A4037 Handle, insulated rear 1
6 HW5197 Screw, 1/4-20 x 5/8, black zinc 1
7 HW2181 Screw, 6-32 x 3/4, black Taptite 4
8See
page 11 Front barrel assembly
Optional
9 7060A2028 Balance Yoke 1
1
2
3
4
5
6
7
9

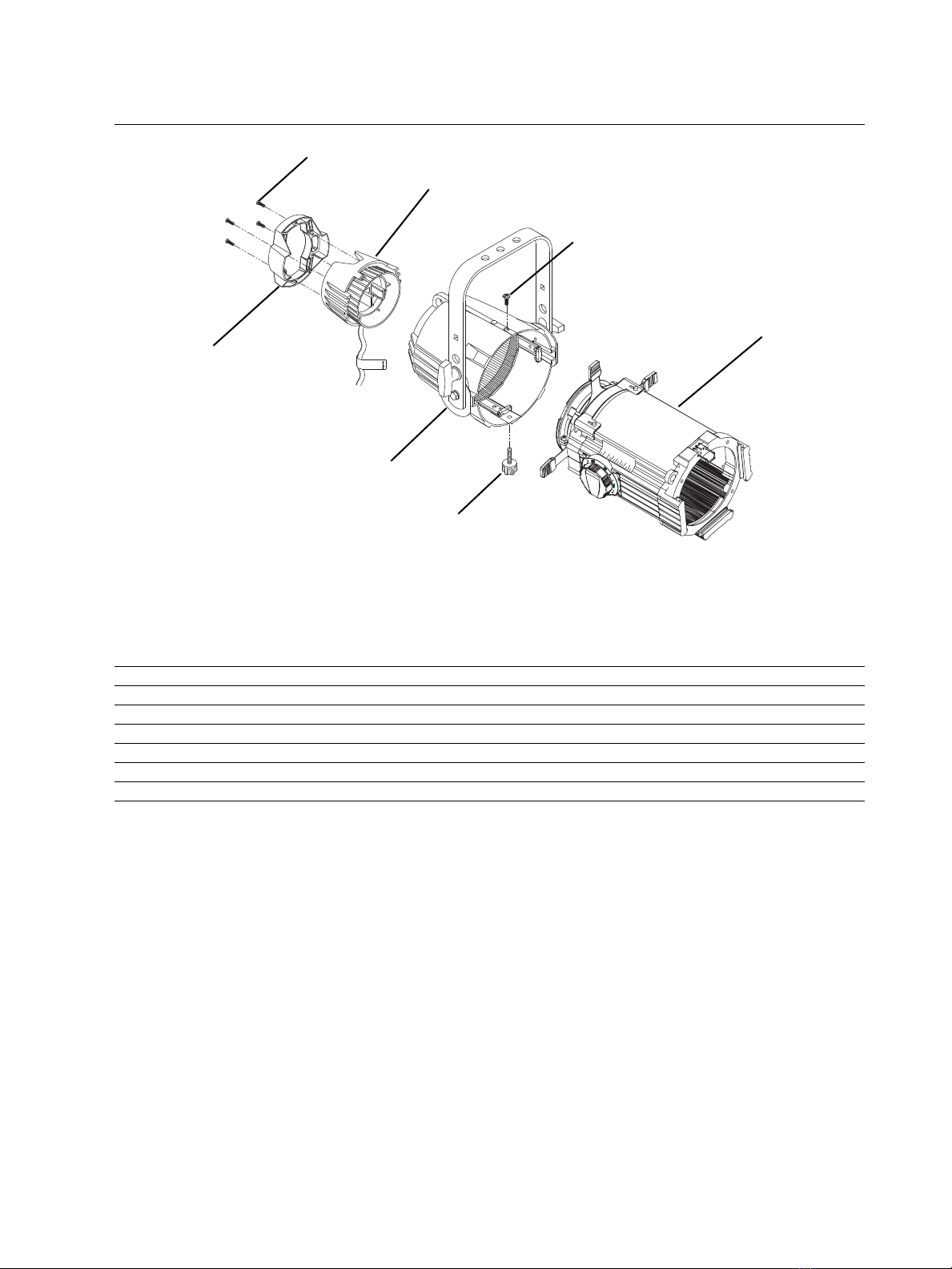

Figure 1
8

4Source Four Zoom Assembly Guide
25°–50° Basic Fixture
Assembling Basic Fixture
1: Follow instructions under Assemble lamp socket on page 6 .
2: Follow instructions under
Installing reflector on page 10 .
3: Follow instructions under
Assemble front barrel assembly on page 12
4: Follow instructions under Assemble lens tube (15°–30° and 25°–50°) on page 18 .
5: Insert lens tube assembly (1) fully into the reflector housing assembly (2). Turn lens tube assembly
1/4 turn and align the two mounting holes. Secure with screw (6) on top, and knob (4) on
bottom. Tighten both securely. See
Figure 1 or Figure 2 .
6: Install the lamp socket assembly (3) to the reflector housing (2) and secure with brass knurled
screw on rear of lamp socket assembly.
7: Release the gel retaining clip by pushing it sideways while gently pulling backwards.
8: Insert the color frame.
9: Lock the clip by pushing sideways while gently pushing it forward.
Reference
Number
Part
Number Description Quantity Required
1 7060A2032 25°–50° lens tube 1
2 7060A2020 Reflector housing assembly, double clutch 1
3 7060A2008 Lamp socket assembly 1
4 7060A4008-01 Knob set with male insert 1
5 7060A4037 Handle, insulated rear 1
6 HW5197 Screw, 1/4-20 x 5/8, black zinc 1
7 HW2181 Screw, 6-32 x 3/4, black Taptite 4

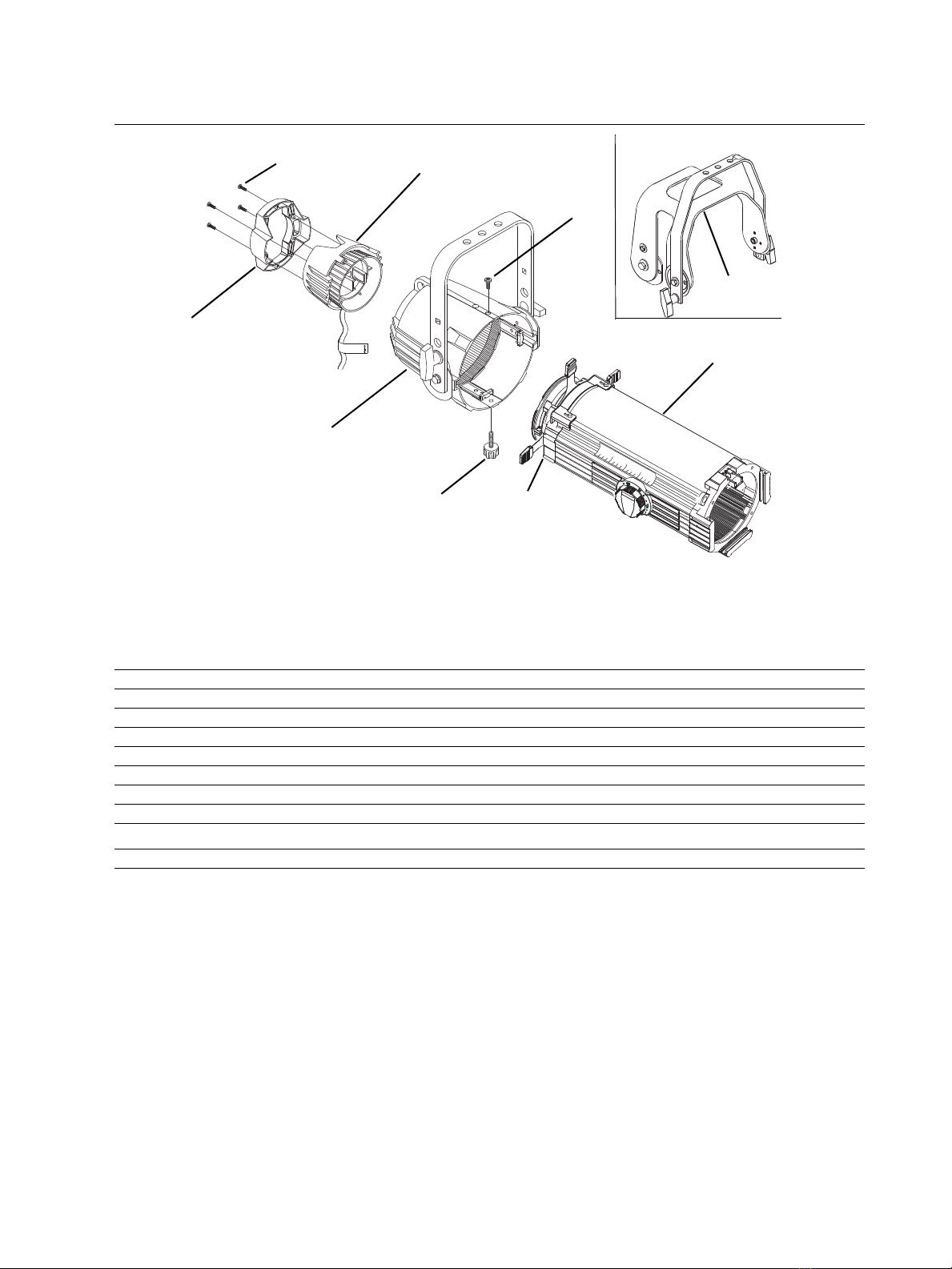

Figure 2
1
2
3
4
5
6
7

Lamp Socket Assembly 5
Lamp Socket Assembly
Reference
Number
Part
Number Description Quantity Required
1 7060A3055 Housing, socket, casting, painted 1
2 7060A3007 Socket, light baffle casting, raw 1
3 7060A4007 Knob, X-Y, lamp set 1
4 7060A4008-02 Knob, Z, lamp set w/female insert 1
5 7060A4011 Bushing, cup 1
6 7060A3011 Hub, index, casting 1
7 7060A3012 Spring, lamp retainer 1
8 HW748 Spring, compression 1
9 7060B7019 Complete UL socket assembly 1
10 HW534 Nut, hex, 1/4-20, black zinc 1
11 7060A3025 Screw, 1/4-20 knurled head 1
12 HW746 Retaining ring, flat, Southco 1
13 HW5123 Nut, hex, 9/16-18, black zinc 1
14 HW747 Washer, wave 1
15 7060A3056 Clamp, strain relief, painted 1
16 HW3103 Screw, 8-32 x 5/8 PhFHMS, black zinc 2
17 HW5122 Bolt, 1/4-20 x 1.75, full thread, black zinc 1
18 HW8209 Clip Tinnerman 1
19 7060B7003 48" W420 wire, 16 gauge, 200° C/300V, green UL
1180/CSA AWM with lug J490T installed 1
20 W6195 36" sleeve, fiberglass 1
21 HW749 Spring, ground 1
22 7060B7007 4" W420 wire, 16 gauge, 200° C/300V, green, UL
1180/CSA AWM with two J490T lugs installed 1
23 7060A4037 Handle, insulated rear, black 1
24 HW2181 Screw, 6-32 x 3/4, Taptite 4
25 7060A3085 Source Four Lamp Retainer Wire 1
6
5
1
13
14
20
21 9
10
22
2
25 17
18
23
24
11
4
3
8
12
15
16
19
7
22
Figure 3

6Source Four Zoom Assembly Guide
Assemble lamp socket
Tools Required:
• Open-end adjustable wrench or a 7/16” socket
• Needle-nose pliers
• #2 Phillips screwdriver

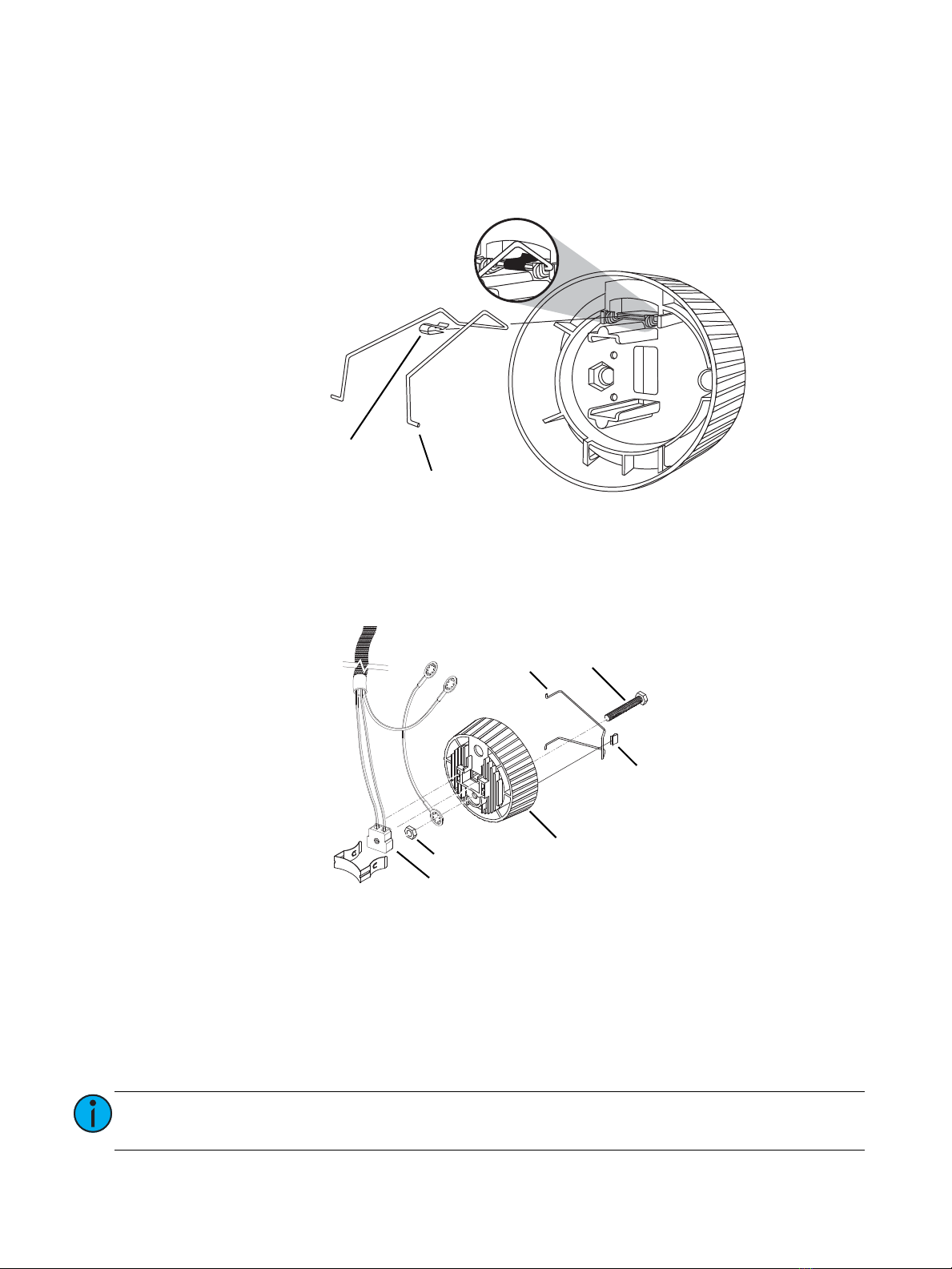

10: Set the crossbar of the retainer clip (25) under the two hooks on the clip bracket as shown in
Figure 4 .
11: Place the Tinnerman clip (18) over the retainer clip crossbar between the two hooks and press it
down firmly until it snaps into place.
12: Insert the bolt (17) through the light baffle socket casting (2). See
Figure 5 .
13: Install the green ground wire assemblies (19 and 22) on the bolt (17) with the prongs on the
crimped connectors toward the casting. Run both wires through the indent in the lip around the
bolt hole. Secure with nut (10) and tighten securely (60 inch pounds).
14: Place the socket assembly (9) into the light baffle socket casting (2). Be sure it is well seated.
15: Install the lamp retainer spring (7). The lamp retainer spring secures the socket. Insert the spring
one end at a time, making sure the rectangular slot in each side of the spring seats on the
corresponding tab in the casting.
Note:
If the spring does not seat correctly, coax it into place with a screwdriver or needle-
nose pliers.
18
25
Figure 4
18
17
2
22
19
25
97
10
Figure 5

Lamp Socket Assembly 7
16: Install the bushing cup (5) into the housing socket casting (1) as shown in Figure 6 . The cup
should slide smoothly up and down, but not side to side.
17: Insert the threaded end of the index hub (6) through the holes in the bushing cup and the back
of the housing socket casting (1).
18: Slide the X-Y knob (3) over the exposed index hub bolt (6), then insert the wave washer (14) on
the bolt and secure with the 9/16 hex nut (13). Hand tighten the X-Y knob (3).
19: Insert the knurled head screw (11) through the housing socket casting (1) as shown in
Figure 7 .
20: Install the shorter green ground wire (22) onto the screw. The prongs on the crimped connector
should be toward the casting.
21: Install the ground spring (21) onto the screw and secure it with the Southco flat retaining ring
(12). Install the Southco ring with its prongs away from the casting.
22: Lay the leads in the bottom half of the cable clamp (located in the housing socket casting [1]),
making sure that the fiberglass sleeving extends slightly past the screw holes in the housing
socket casting. Install new sleeving if necessary. Then, route the wires as shown in
Figure 8 .
23: Install the top half of the cable clamp (15) and secure it with the two screws (16). Tighten the
screws alternately to ensure a solid connection.
Note:
Install the wave washer with the upward curve toward the hex nut.
Note:
Use pliers to straighten the Southco retaining ring (12) if it bends when you install it
on the bolt.
CAUTION:
You must follow the wire routing diagram to ensure that the socket leads do
not interfere with the lamp focus mechanism.
5
1
6
14
13
3Figure 6
11
15
1
22
21
12
Cable Clamp in
Housing
16
8
4
Figure 7 Figure 8

8Source Four Zoom Assembly Guide
24: Using the four screws (24), attach the handle (23) to the lamp socket assembly. See Figure 3 .
25: Place the compression spring (8) on the protrusion on the inside of the index hub (6).
26: Insert bolt (17) through spring (8) and through the index hub (6) of the housing socket (1), joining
the two castings. Make sure wires are not pinched between the two pieces.
27: Before proceeding, check again to make sure the wires are still positioned as indicated in
Figure
6
. . Adjust if necessary.
28: Press the two castings together firmly so the bottom of the light baffle (2) sits on top of the cable
clamp (15), then install the X-Y lampset (3) and Z lamp knob (4). Hand tighten the knob all the
way to the right.
Note:
To ensure that the clamp holds the cable tightly, flatten the cable, then fold over the
sleeving before you install the top half of the clamp. Make sure the top edge of the
cable clamp is even with the edge of the socket to prevent interference with lamp
focus movement. Make sure sleeving is not pinched.
CAUTION:
You must install Z knob as described above to ensure proper lamp focus
travel.

Reflector Housing Assembly 9
Reflector Housing Assembly
Removing reflector
Tools Required:
• Minimally padded work surface (cardboard, carpet, or rubber mat recommended)
1: Place the reflector housing face down on your work surface so that the concave reflector surface
points downward.
2: Loosen the clutch and rotate the yoke so that it is perpendicular to the housing at roughly a 90°
angle. Tighten the clutch.
Reference
Number
Part
Number Description Quantity Required
1 7060A3054 Housing, reflector casting, painted black 1
2 7060A3006 Clip, reflector retainer 4
3 7060A4010 Bushing, gate 4
4 7060A3016 Plate, clutch 1
5 7060A3019 Spring, reflector support 1
6 7060A4015 Reflector, molded glass, coated 1
7 7060A3058 Bracket, yoke, painted 1
8 HW8144 Handle, yoke knob, 5/16 - 18 2
9 HW753 Rivet, machine, 3/16 x.720, flat head, black zinc 2
10 HW5126 Washer, flat, 5/16, black zinc 4
11 HW5193 Bolt 5/16-18 x 3/4, black zinc 2
12 HW5125 Bolt, carriage, 5/16-18 x.75, black zinc 2
13 HW752 Rivet machine, 3/16 x 5/16, black zinc 4
14 7060A4088 Label, S4 750w UL 1
WARNING: This procedure may crack or break the reflector. Always wear gloves, safety
glasses, and a dust mask when performing this procedure.
SOURCE FOUR
UL

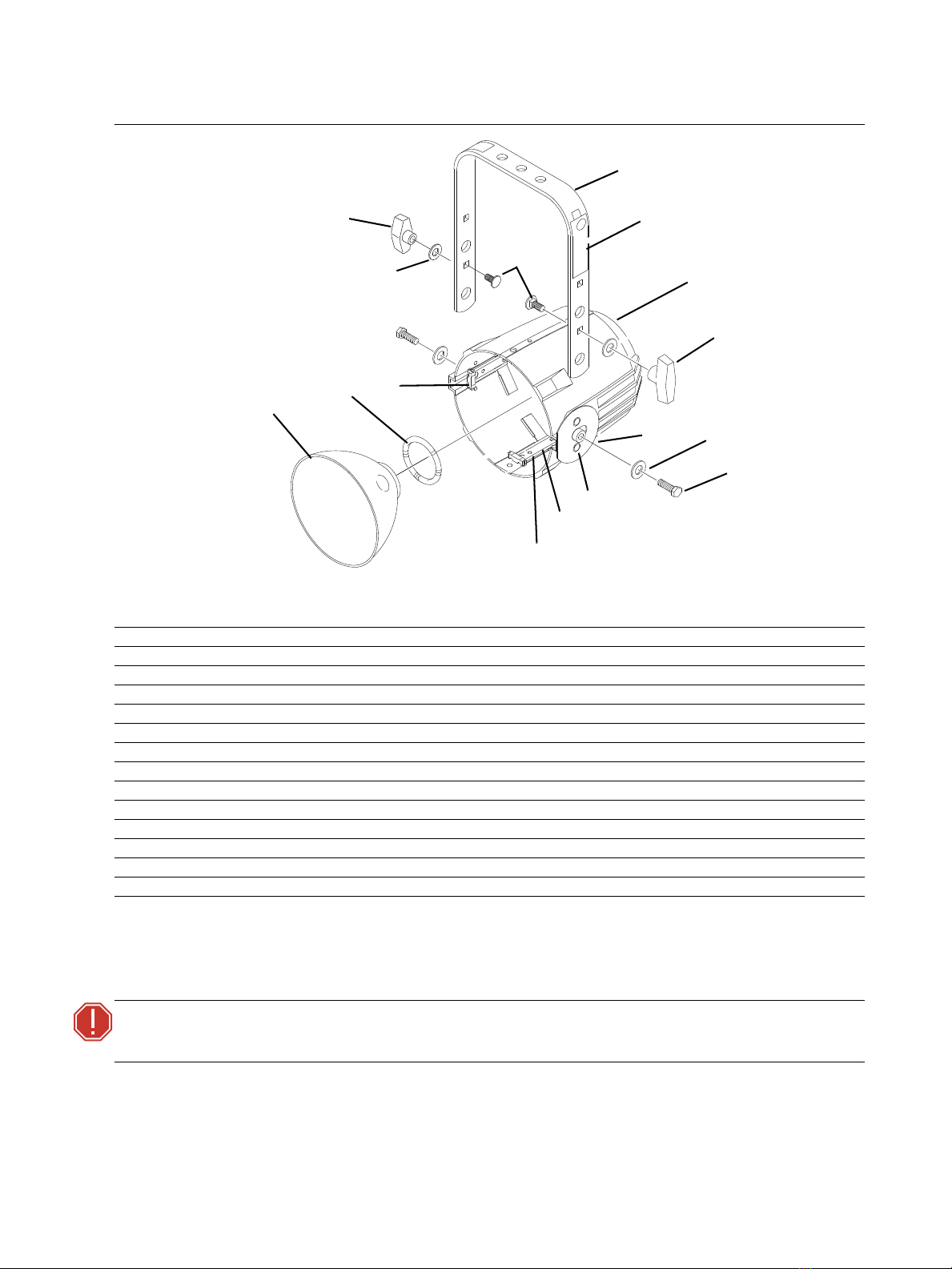

Figure 9
7
1
8
10
4
11
9
6
5
12
3
2
13
(2 required)
(4 required)
(4 required)
(4 required)
14
8
10

10 Source Four Zoom Assembly Guide
3: Using the yoke as your handle, raise the housing assembly off of the work surface a few inches
and then firmly tap the housing on the work surface. This should force the reflector out of its
clips.
4: Carefully lift the housing to see if the reflector is released. If it is not, repeat step 3 with slightly
more force.
Installing reflector
1: Place the reflector housing casting (1) on a flat work surface with the large opening facing up.
2: Install the reflector support spring (5) in the circular opening at the base of the casting.
3: Insert the reflector (6) at an angle, under any three adjacent legs of the reflector's clips.
4: Gently press down on the opposite side of the reflector until it snaps into place under the
remaining clips
.
Cleaning reflector
Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled
water or a 50%-50% mixture of each can be used to clean the glass surface.
Note:
The following assumes all four reflector retainer clips (2) have already been riveted to
the reflector housing casting (1) and the gate bushings (3) installed on the retainer
clips. See Figure 9.
Note:
If the reflector does not snap in, turn the casting over. Gently pull on the side of the
reflector that has not snapped in until the rest of the reflector slides into place.
WARNING: Do not use ammonia-based or other harsh commercial cleaners. Clean
reflector only as directed.
Commercially available glass cleaning agents should be avoided as they may
contain ammonia, other harsh chemical detergents or abrasive agents. These
cleaners may damage the glass surface and the Anti-Reflective coatings. Do
not immerse or soak the glass in any cleaning solution.
Step 3 Step 4
Under three
adjacent clips

Front Barrel Assembly 11
Front Barrel Assembly
Reference
Number
Part
Number Description Quantity Required
1 7060A3112 Front barrel, top casting, painted 1
2 7060A3113 Front barrel, bottom casting, painted 1
3 7060A2025 Shutter blade assembly, 22 gauge 4
4 7060A3001-01 Plate, divider with dimples (bottom) 1
5 7060A3003 Plate, gate (middle) 1
6 7060A3001-02 Plate, divider (top) 1
7 HW754 Shutter spring 4
8 HW3154 Screw, 8-32 x 5/8, PhPH, taptite, black zinc 2
9 7060A3099 Cover, iris slot 1
10 HW2177 Thumb Screw, 8-32 x 1/4, black zinc 2
Shutter Assembly: The bottom
divider plate (4) has four dimples
punched into the surface; the top
plate (6) has none. The middle
divider plates (5) are noticeably
thinner-gauge metal than the other
two.
See detail to
the right
3
5
6
4
Figure 10
Figure 11
10
9
8
7
1
2
3
4
5
6

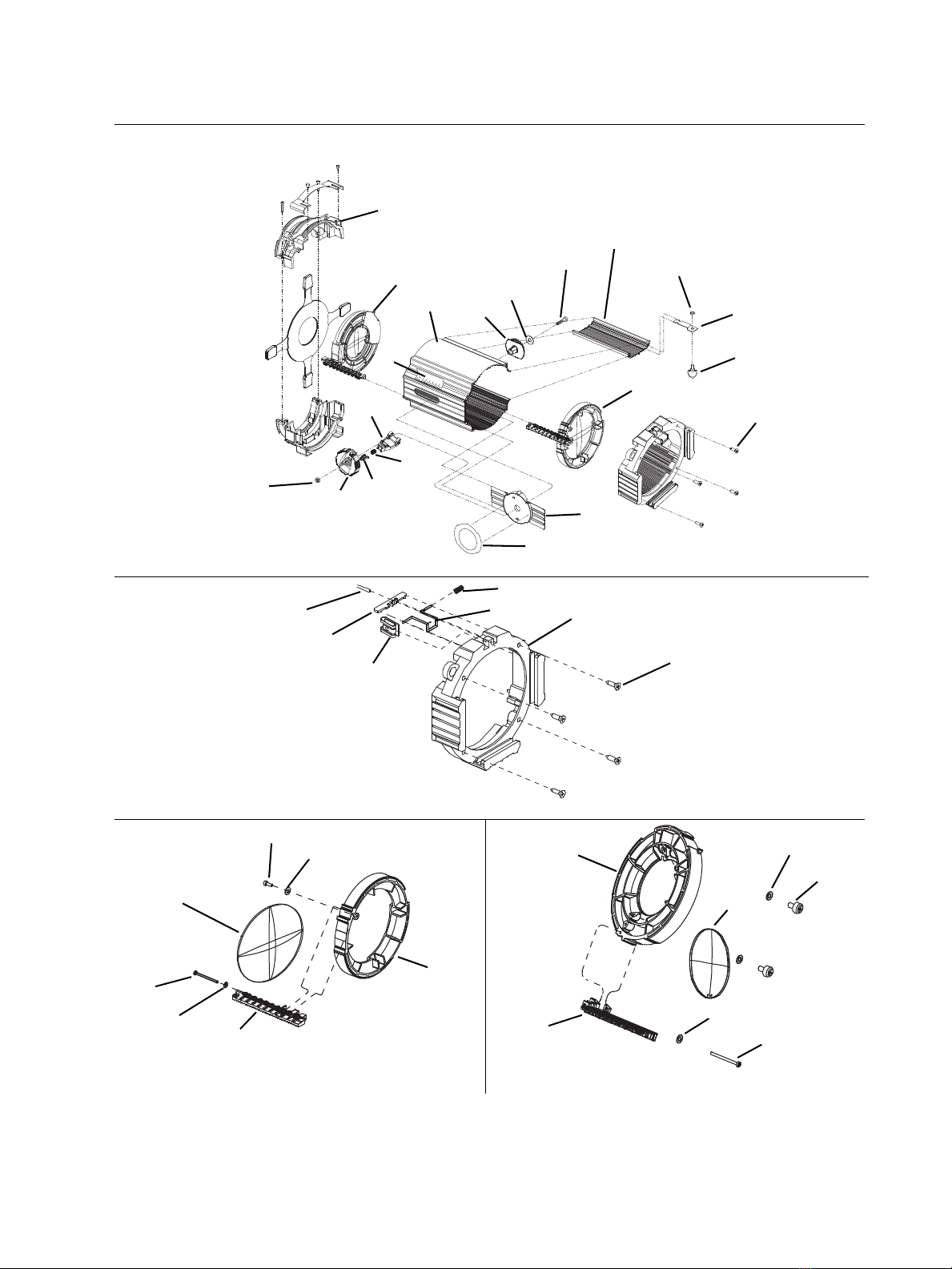

12 Source Four Zoom Assembly Guide
Assemble front barrel assembly
Tools Required:
• #2 Phillips head screwdriver
1: See
Figure 10 . Stand the top and bottom front barrel castings (1 and 2) upright with the shutter
end of the castings toward the bottom.
2: Slide the bottom divider plate (4) into its place in the bottom casting (2). The dimples on the
divider plate must point down.
3: With the bottom barrel casting (2) to your left, place one shutter blade (3) on top of dimpled
divider plate (4) handle facing outward, up and down. (See
Figure 11 ).
4: Place the middle gate plate (5) on top of the shutter blade.
5: Place another shutter blade (3) on top of the divider plate and then place the other divider plate
on top.
6: Place the two shutter blades on top of the divider. Pull the blade and plate assembly slightly
forward to allow the handle to slip through the slot in the bottom casting.
7: Place the top divider plate (6) on top of the two shutter blades.
8: With both front barrel castings still standing upright, join the two halves, sliding the handle of
the top shutter blade through the slot in the top front barrel casting (1).
9: Connect the halves of the gate assembly using two PHMS screws (8). Hand tighten only (25 inch
pounds).
WARNING: During assembly, the shutter springs can pop out of place. Always wear
protective eyewear during this procedure.
Note:
The top front barrel casting (1) contains the iris slot.
Note:
The bottom divider plate (4) has four dimples punched into the surface; the top plate
(6) has none. The middle divider plates (5) are noticeably thinner-gauge metal than
the other two.
The notches on the divider plates must fit against the flanges in the casting so the
plates do not move.
WARNING: Divider plate edges are sharp. Handle with caution.
Note:
Install shutter blades with the rounded side facing up toward the front of the casting.
Note:
Make sure no shutter assembly components are under the pattern holder guides.
Note:
The tops of the two front barrel castings must be even. Adjust as necessary before
completely tightening the screws. Failure to do this could interfere with the barrel
rotation.

Front Barrel Assembly 13
10: Turn the front barrel assembly over so that the narrower end is on your work surface.
11: Install the four shutter springs (7) between the four dimples in the shutter plate and the tabs in
the lip of the casting.
12: Place iris slot cover (9) over the iris slot. Use two screws (10) to secure the cover.
Note:
Install the springs at the joints in the castings on either of the tabs at the joint.

14 Source Four Zoom Assembly Guide
15°–30° Lens Tube
Figure 1215°–30° Lens tube assembly
15°–30° Gel frame endcap assembly
15°–30° Front lens assembly 15°–30° Rear lens assembly
Figure 13
Figure 15Figure 14
See Front Barrel Assembly on page 11
4
5
6
7
8
9
1
14
12
2
13
15
3
10
11
16
17
18
20
19
20
26
25
24
23
21
22
31
30
29
28
27
38 32
34
35
37
36
33

15°–30° Lens Tube 15
15°–30° Lens tube assembly
15°–30° Gel frame endcap assembly
15°–30° Front lens assembly
15°–30° Rear lens assembly
Reference
Number
Part
Number Description Quantity Required
1 7060A2030 15°–30° lens tube 1
2 7060A3091-01 Extrusion door 1
3 See below Front lens assembly 1
4 See below Rear lens assembly 1
5 HW5218 Nut, 1/4-20 metal lock Lowpro 1
6 7060A4056 Dial adjustment 1
7 7060A4066 Button, push, CAM lever 1
8 HW776 Spring, push-button 1
9 7060A4057 Lever, CAM 1
10 7060A4082 Zoom field angle label 1
11 7060A4054 Light baffle 1
12 7060A4058 Gear, spur 1
13 HW777 Wash spring 1
14 7060A4081 S4 Zoom angle label, 15-30 1
15 HW5224 Screw, 1/4-20 x 1-1/4, PHMS 1
16 HW8227 Retainer, 1/4 turn stud 1
17 7060A3114 Latch bracket 1
18 HW8225 Fastener, bail style 1
19 See below Gel frame endcap assembly 1
20 HW5217 Screw, 1/4-14 x 1, OHSL 1
Reference
Number
Part
Number Description Quantity Required
20 HW5217 Screw, 1/4-14 x 1, OHSL 4
21 7060A3111 Endcap, gel frame, black 1
22 7060A3100 Gel clip 1
23 HW750 Spring retainer 1
24 HW8226 Receptacle, 1/4 turn stud 1
25 7060A3097 Plate, gel clip retainer 1
26 HW3185 Screw, 8-32 x 3/8, PHPH, Taptite 1
Reference
Number
Part
Number Description Quantity Required
27 7060A4046 Front lens holder 1
28 7060A4050 Front gear rack 1
29 HW3118 Washer, flat #8, black 1
30 HW3114 Screw, 8-32 x 2, PHST, plastic 1
31 7060A4067 Front lens, glass 1
Reference
Number
Part
Number Description Quantity Required
32 HW4117 Washer, flat, teflon 2
33 HW4112 Screw, #10-14 x 5/8, plastic 2
34 HW3118 Washer, flat #8, black 1
35 HW3114 Screw, 8-32 x 2, PHST, plastic 1
36 7060A4051 Rear gear rack 1
37 7060A4068 Rear lens glass 1
38 7060A4048 Rear lens holder 1

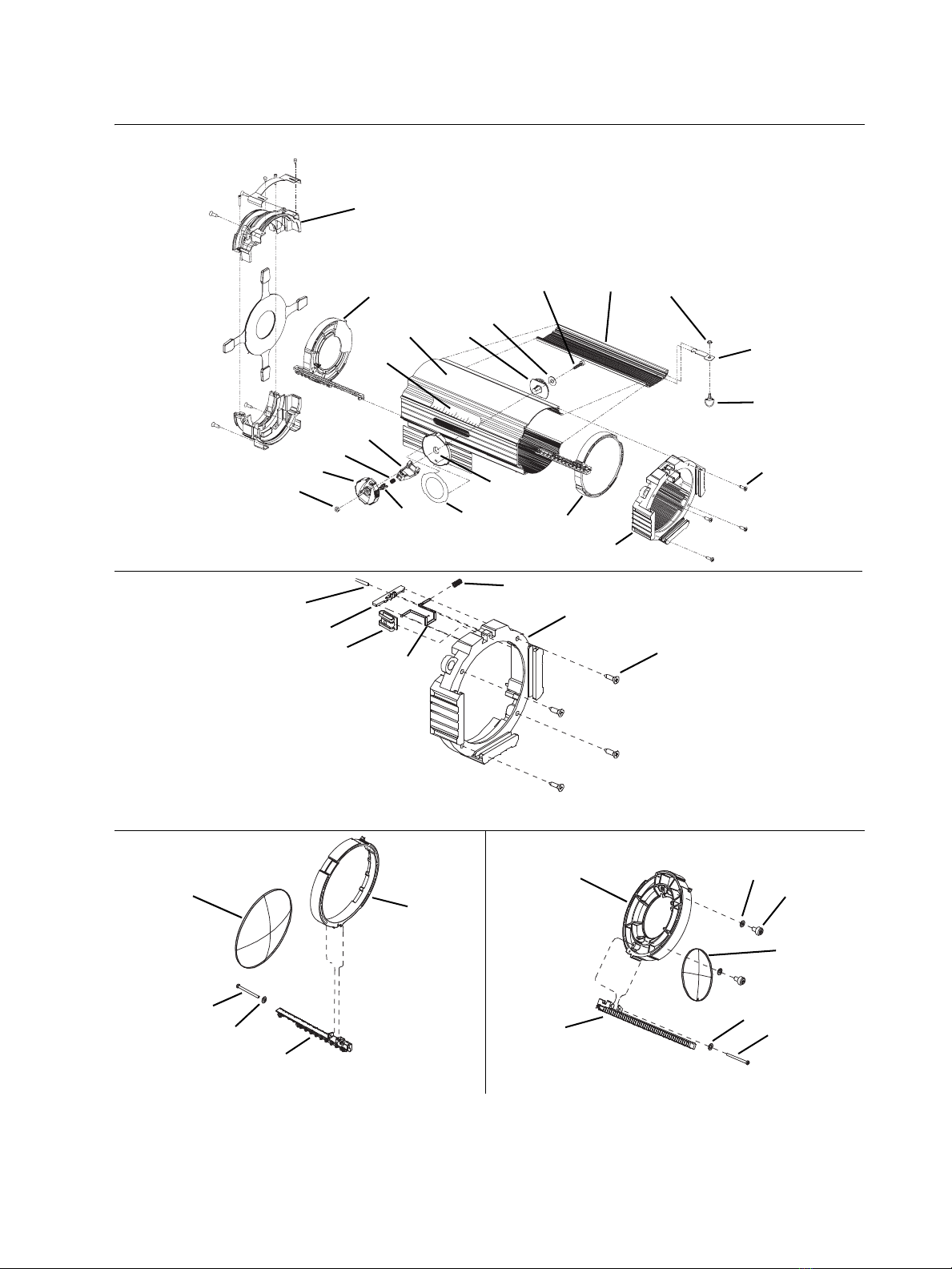

16 Source Four Zoom Assembly Guide
25°–50° Lens Tube
Figure 1625°–50° Lens tube assembly
25°–50° Gel frame endcap assembly
25°–50° Front lens assembly 25°–50° Rear lens assembly Figure 19Figure 18
4
1
14
9
5
67
8
15
18
17
16
13
12
2
3
11
10
26
25
24
23
20
Figure 17
22
30
31
27
33
32
28
29
34
40
36
38
37
39
20
See
Front Barrel Assembly on page 11
21
35
