ETC Source Four Mini LED User manual

Part Number: 7063M1220 Rev: D
Released: 2017-04
Source Four Mini™LED
User Manual

ETC
®
and Source Four Mini
™
are either registered trademarks or
trademarks of Electronic Theatre Controls, Inc. in the United
States and other countries.
All other trademarks, both marked and not marked, are the
property of their respective owners.
ETC intends this document, whether printed or electronic, to be
provided in its entirety. This product is intended for professional
use only. Read this entire document before using this product.

Table of Contents
Table of Contents i
Introduction . . . . . . . . . . . . . . . . . . . . . . . 1
Basic assembly . . . . . . . . . . . . . . . . . . . . . . 2
Installing a lens tube. . . . . . . . . . . . . . . . . 3
Installing a canopy or track fixture . . . . . 3
Installing a canopy fixture. . . . . . . . . . . . . . . . 4
Installing a track fixture . . . . . . . . . . . . . . . . . 6
Using the AD1 track adapter . . . . . . . . . . . 7
Adjustments . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the yoke position . . . . . . . . . . . . . . 8
Setting the angle with the yoke . . . . . . . . 8
Locking the rotation on the canopy and
track fixtures. . . . . . . . . . . . . . . . . . . . . . . . 8
Focusing the beam . . . . . . . . . . . . . . . . . . . 9
Shaping the beam . . . . . . . . . . . . . . . . . . . . . . 9
Projecting a pattern . . . . . . . . . . . . . . . . . 10
Using the color frame holder . . . . . . . . . . . . 10
Adjusting the C-clamp on the portable
fixture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning the glass lens . . . . . . . . . . . . . . 11

ii Table of Contents

Source Four Mini LED User Manual 1
Introduction

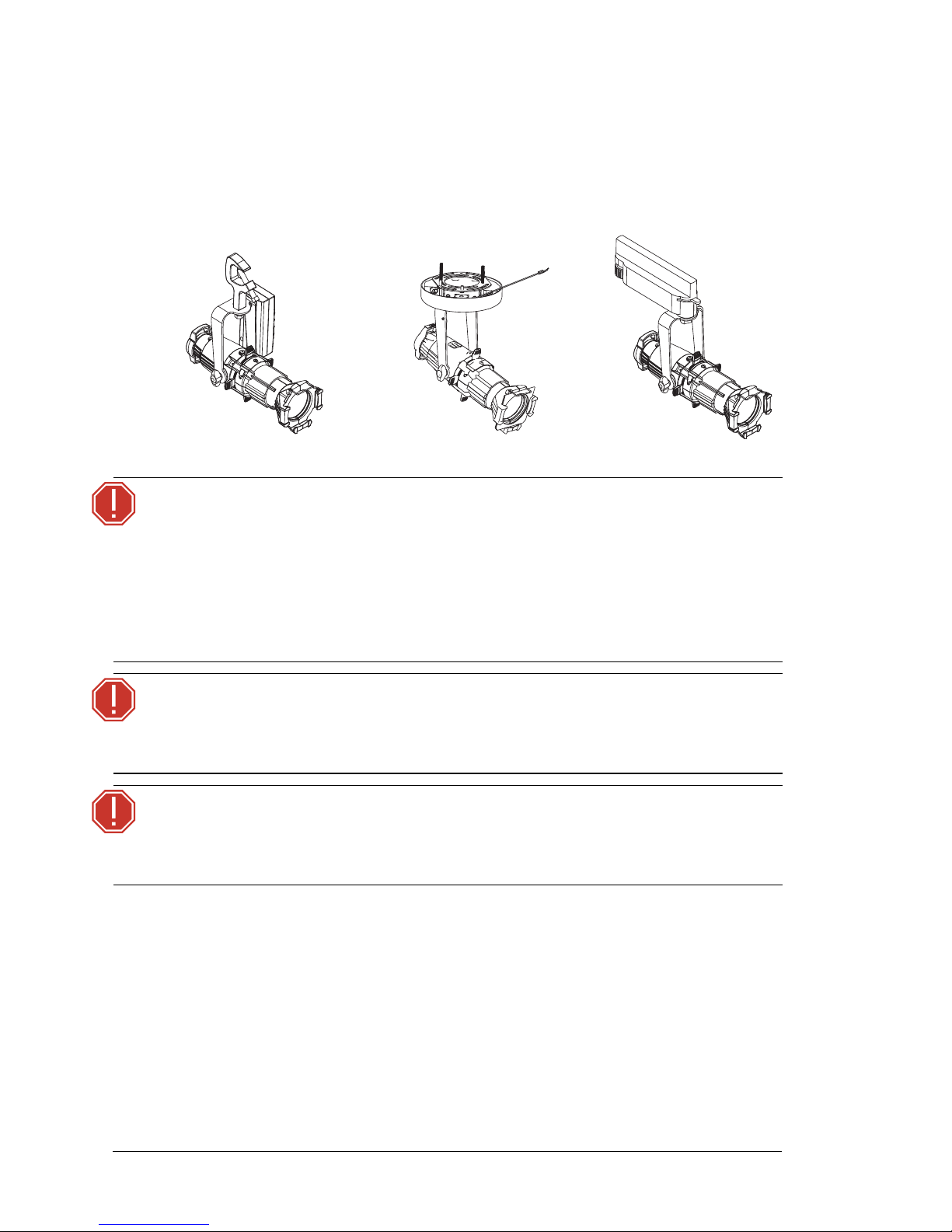

The Source Four Mini LED has three available mounting options. The portable
fixture includes a miniature C-clamp and yoke-mounted driver. The canopy-
mount fixture and track-mount fixture both include an integral driver. There
are four lens tube sizes available for each mounting option: 19°, 26°, 36°,
and 50°.
WARNING:
Please note the following safety warnings before use:
• Do not mount the fixture on or near combustible
surfaces.
• Do not operate the fixture without a lens installed.
• Always hang the fixture with the retaining clip on the
color frame holder in the locked position.
WARNING:
To reduce the risk of fire and electric shock, use the
track-mount fixture only with the DataTrack
™
(EUTRAC
®
)
track system.
AVERTIR:
Pour éviter le risque d'incendie ou de choc électrique
avec le modèle adaptateur pour rail, utiliser uniquement
avec une alimentation par rail DataTrack (EUTRAC).
Portable TrackCanopy

2Source Four Mini LED User Manual
Basic assembly

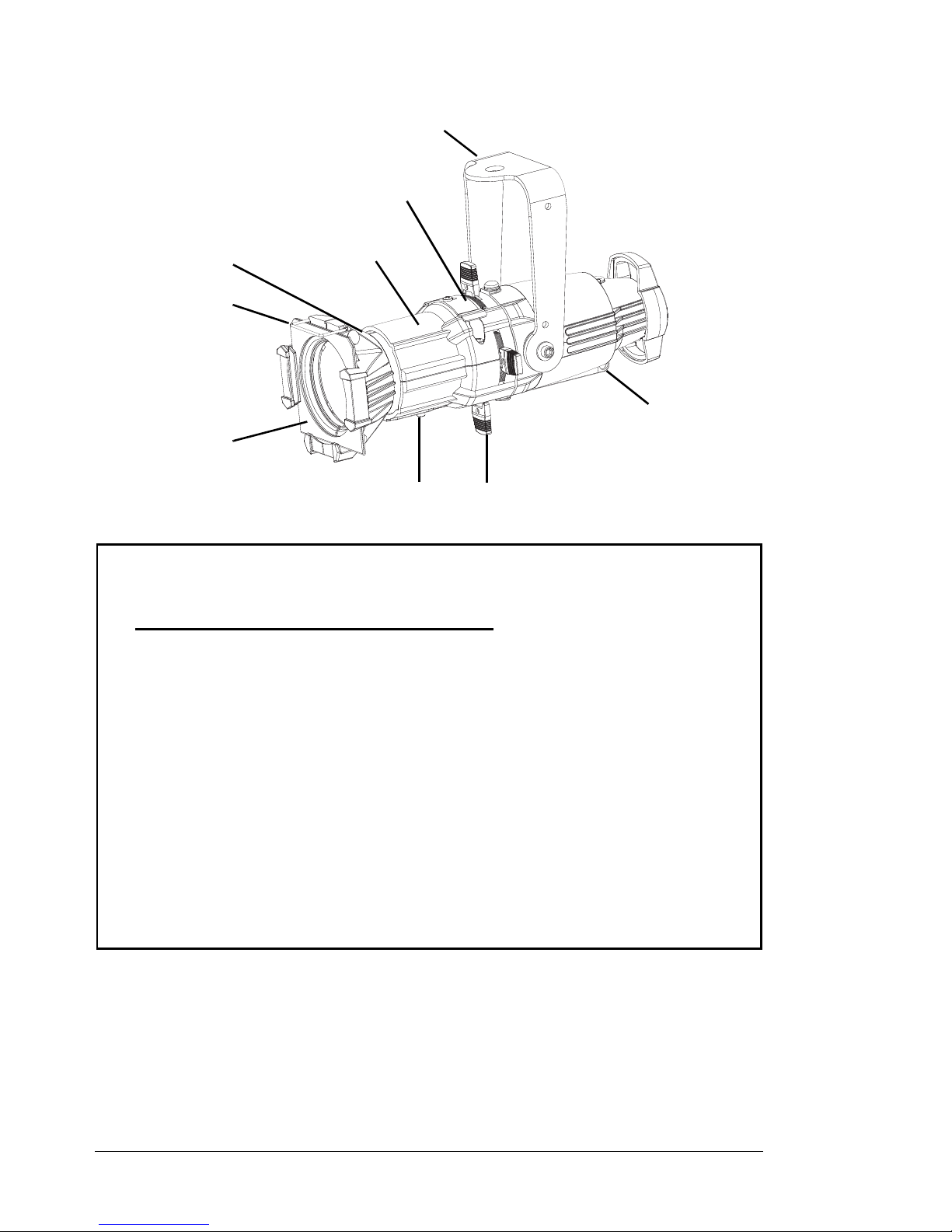

Color frame
retainer clip
Yoke
Pattern
holder slot
Shutter barrel
Color frame
Shutters x4
Lens tube
Beam focus knob
Safety cable
attachment
point
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, EXPOSURE
TO EXCESSIVE UV RADIATION, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of FIRE, ELECTRIC SHOCK, EXPOSURE TO
EXCESSIVE UV RADIATION, OR INJURY TO PERSONS:
1) Do not touch hot lens, guard, or enclosure.
2) Do not remain in light if skin feels warm.
3) Do not look directly at lighted lamp.
4) Keep lamp away from materials that may burn.
5) External temperature after 5 minutes of full-brightness operation
50°C (122°F).
6) External temperature when steady state is achieved 67°C (152.6°F).
SAVE THESE INSTRUCTIONS

Source Four Mini LED User Manual 3
Installing a lens tube
A lens tube must be installed prior to use of the Source Four Mini LED. There
are four lens tube sizes available: 19°, 26°, 36°, and 50°.
1: Unscrew the beam focus knob from the loose lens tube.
2: Slide the lens tube into the shutter barrel.
3: Install the beam focus knob.
Installing a canopy or track fixture
WARNING:
• TURN OFF POWER at main fuse or breaker box and
verify that the power is off before proceeding with
installation.
• Wiring must meet local and national codes.
• Do not mount the fixture on or near combustible
surfaces.
• Do not operate the fixture without a lens installed.
• Always hang the fixture with the retaining clip on the
color frame holder in the locked position.
Beam focus knob

4Source Four Mini LED User Manual
Installing a canopy fixture

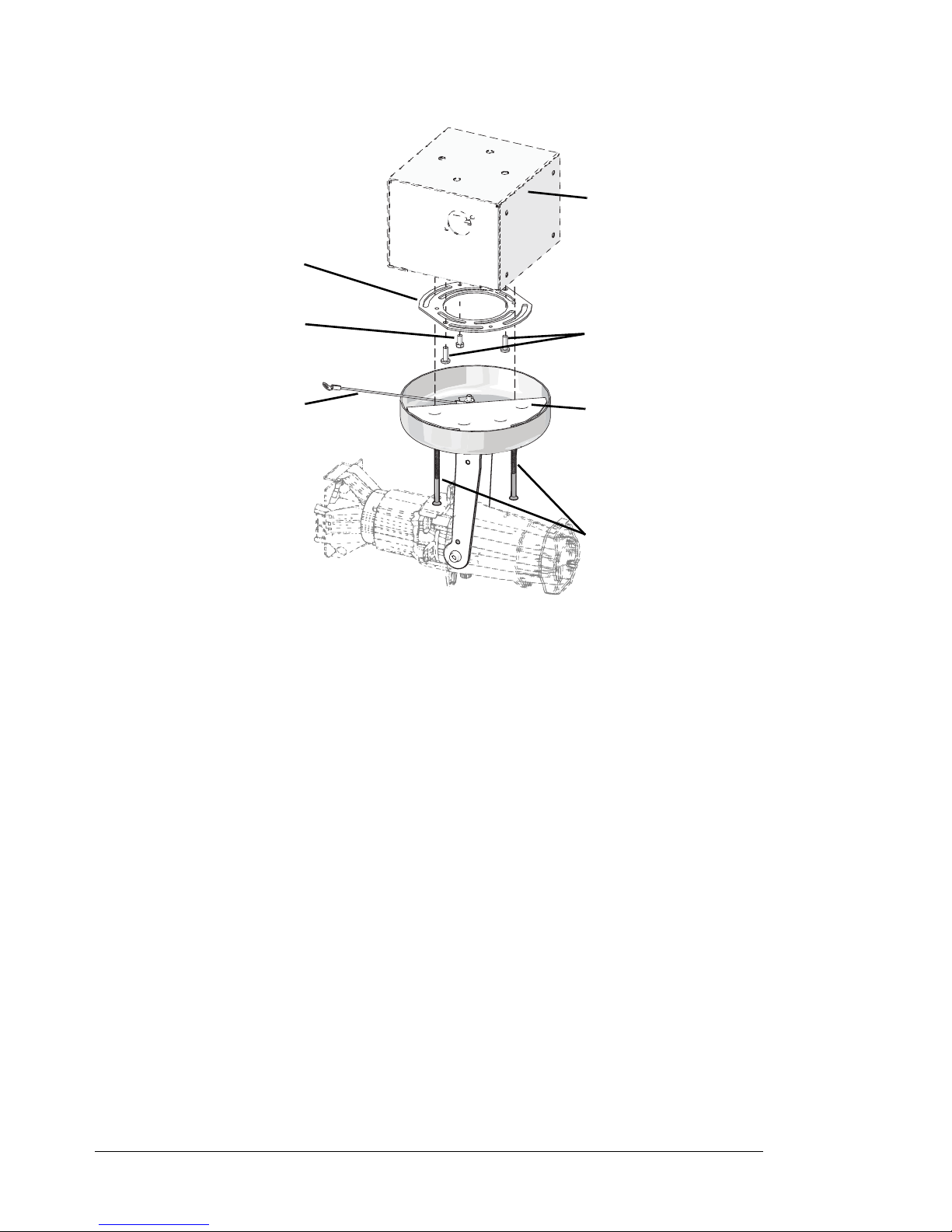

1: Remove the mounting plate from the fixture by removing the two
canopy screws and the ground screw. Set the ground screw safely
aside.
2: Using the mounting plate screws, secure the mounting plate to the
installed electrical box, which is not included.
Electrical box
(not provided)
Mounting plate
Canopy screws
Ground braid
Mounting plate
screws
Canopy plate
(four indentations
allow for multiple
screw nesting
positions)
Ground screw

Source Four Mini LED User Manual 5
3: Place the copper ground braid loop over the ground screw and attach
the ground screw to the electrical box.
4: Connect the building ground wire to the ground wire on the fixture,
following local electrical codes.
5: Connect your supply power wires to the lamp wiring using the included
two-position WAGO®connectors.
• For 120V fixtures: Connect the black wire to line and the white wire
to neutral.
• For 230V fixtures: Connect the brown wire to line and the blue wire
to neutral.
6: While keeping in mind the mounting plate orientation, use the canopy
screws to secure the fixture to the mounting plate.
7: Open all four of the shutter blades by sliding them outward until they
stop.
8: Install a gobo and gel as desired and confirm that they are properly
secured.
9: Restore power at the main fuse.
10: Focus the fixture as desired.
CAUTION:
The metal canopy plate has built-in indentations
allowing the mounting plate screws to nest into the
canopy plate. For an ideal flush mount installation you
may need to rotate the plate to accommodate these
indentations. See the following image.
Canopy screw hole
3
2
1
3
2
1
Mounting plate screw
installation detail
Canopy screw hole
Install the mounting plate screws in one of the three position-pairings
shown. Only the slots on the outer circumference will allow a true flush
mounting.

6Source Four Mini LED User Manual
Installing a track fixture
1: Insert the track adapter into the
track. The adapter will only fit one
way into the track with the tabs of
the adapter in the groove of the
track.
2: Lock the adapter into place.
3: Select circuit 1 or 2 using the circuit
selection wheel. (The 230V track
adapter has a three-circuit selector
knob.)
4: Focus the fixture.
5: Lock the fixture into place using the yoke lock.
WARNING:
To reduce the risk of fire and electric shock, use the
track-mount fixture only with the DataTrack (EUTRAC)
track system.
AVERTIR:
Pour éviter le risque d'incendie ou de choc électrique
avec le modèle adaptateur pour rail, utiliser uniquement
avec une alimentation par rail DataTrack (EUTRAC).
Circuit
selection wheel
Lock
Tabs
Cable protection posts on
both the yoke lock and the
yoke prevent the fixture
from rotating a full 360°.
To lock the yoke in place
use a 1.5 mm Allen wrench.

Source Four Mini LED User Manual 7
Using the AD1 track adapter
ETC offers the option of installing a track-mounted fixture with an adapter
that is compatible with Halo Track Systems. Halo Track Systems are not
available from ETC, but the Source Four Mini LED fixture can be custom-
ordered from ETC with the AD1 track adapter.
Both single and double circuit track can be accommodated with this adapter.

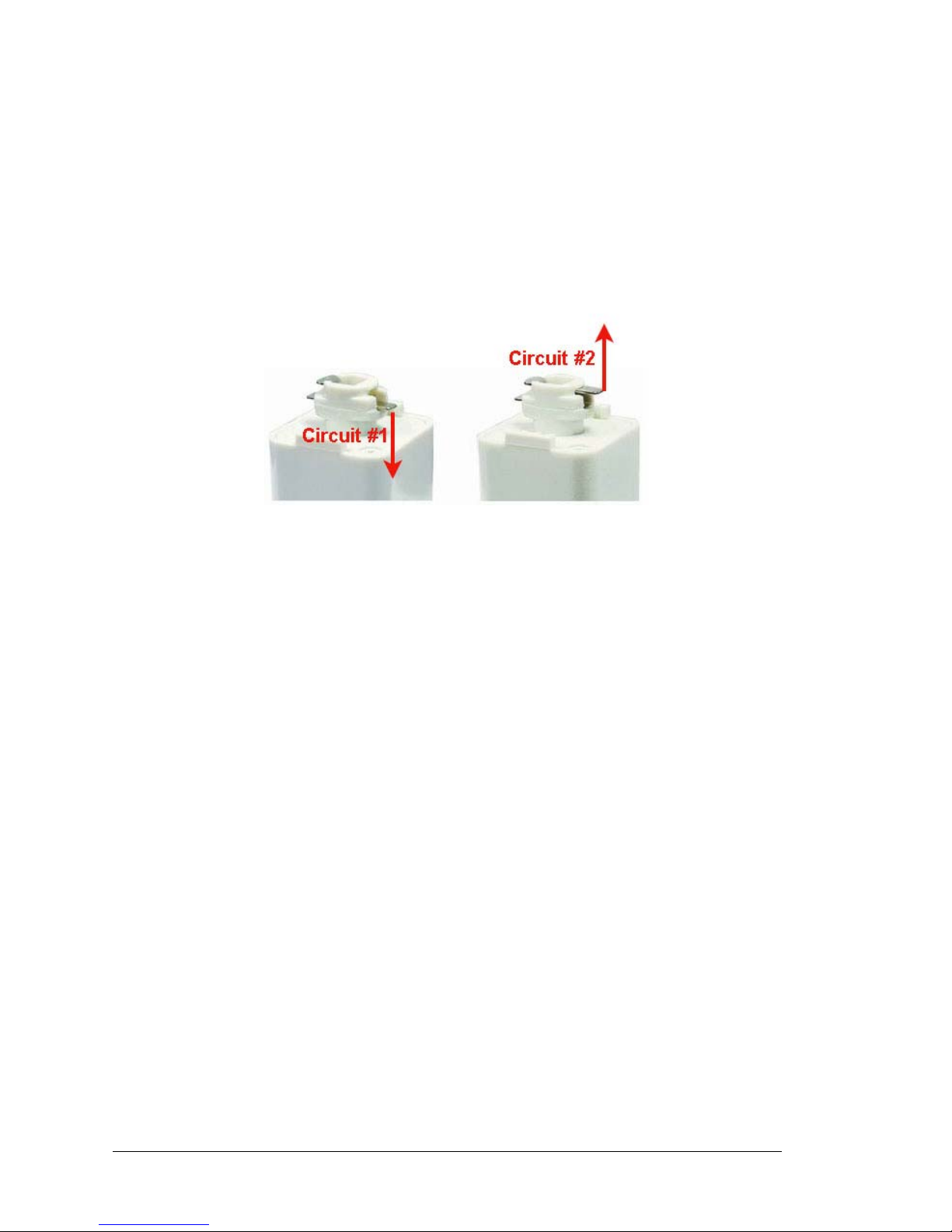

• For single circuit track, push the tab on the adapter to the lower
position.
• For double circuit track, push the tab to the upper position.
To install a fixture with the AD1 adapter:
1: Pull back on the retaining sleeve.
2: Insert the adapter into the track with the gold tabs parallel to the track.
3: Release the sleeve and rotate until you feel the adapter snap securely
into place.

8Source Four Mini LED User Manual
Adjustments
Adjusting the yoke position

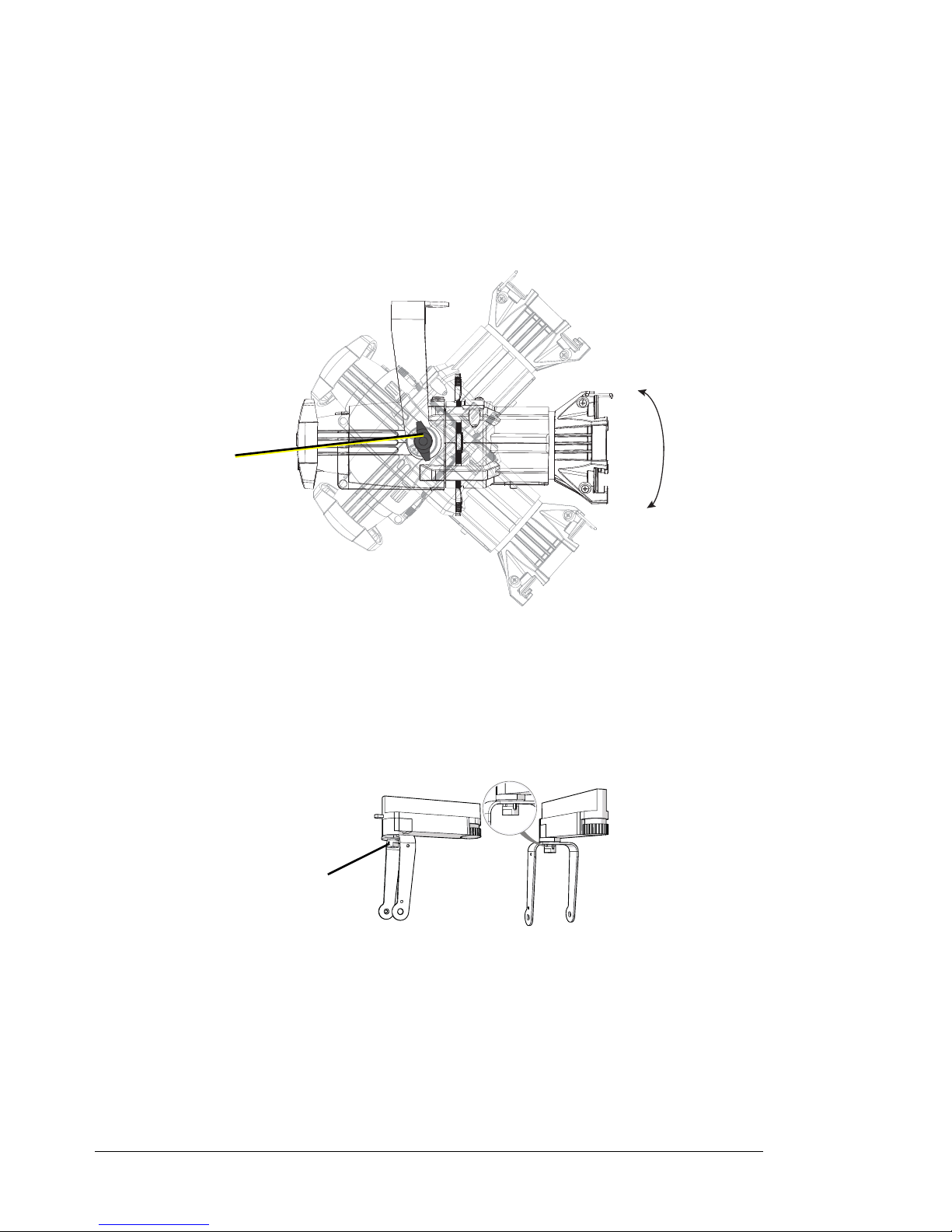

The Source Four Mini LED provides multi-positioning capabilities within its
yoke for overall fixture angle.
Setting the angle with the yoke
1: Loosen the yoke locking knob. Do not remove the knob.
2: Tilt the fixture to the desired position.
3: Tighten the yoke locking knob.
Locking the rotation on the canopy and track
fixtures
1: Rotate the fixture to the desired position. To protect the wiring, the
fixture cannot rotate completely around.
2: Insert a 1.5 mm Allen wrench into the small hole on the yoke lock.
3: Turn wrench to tighten the yoke lock.
Yoke locking
knob
Yoke lock

Source Four Mini LED User Manual 9
Focusing the beam
1: Loosen the beam
focus knob located
under the barrel.
Do not remove the
knob.
2: Slide the lens tube
forward or
backward to
achieve the desired
beam edge.
3: Once the fixture is
focused, tighten
the beam focus
knob.
Shaping the beam
Shape the beam with the four shutters or with a pattern.
The Source Four Mini LED has four shutters: left, right, top, and bottom. Each
shutter can be pulled out or pushed in to create the desired beam shape.
Beam focus knob

10 Source Four Mini LED User Manual
Projecting a pattern

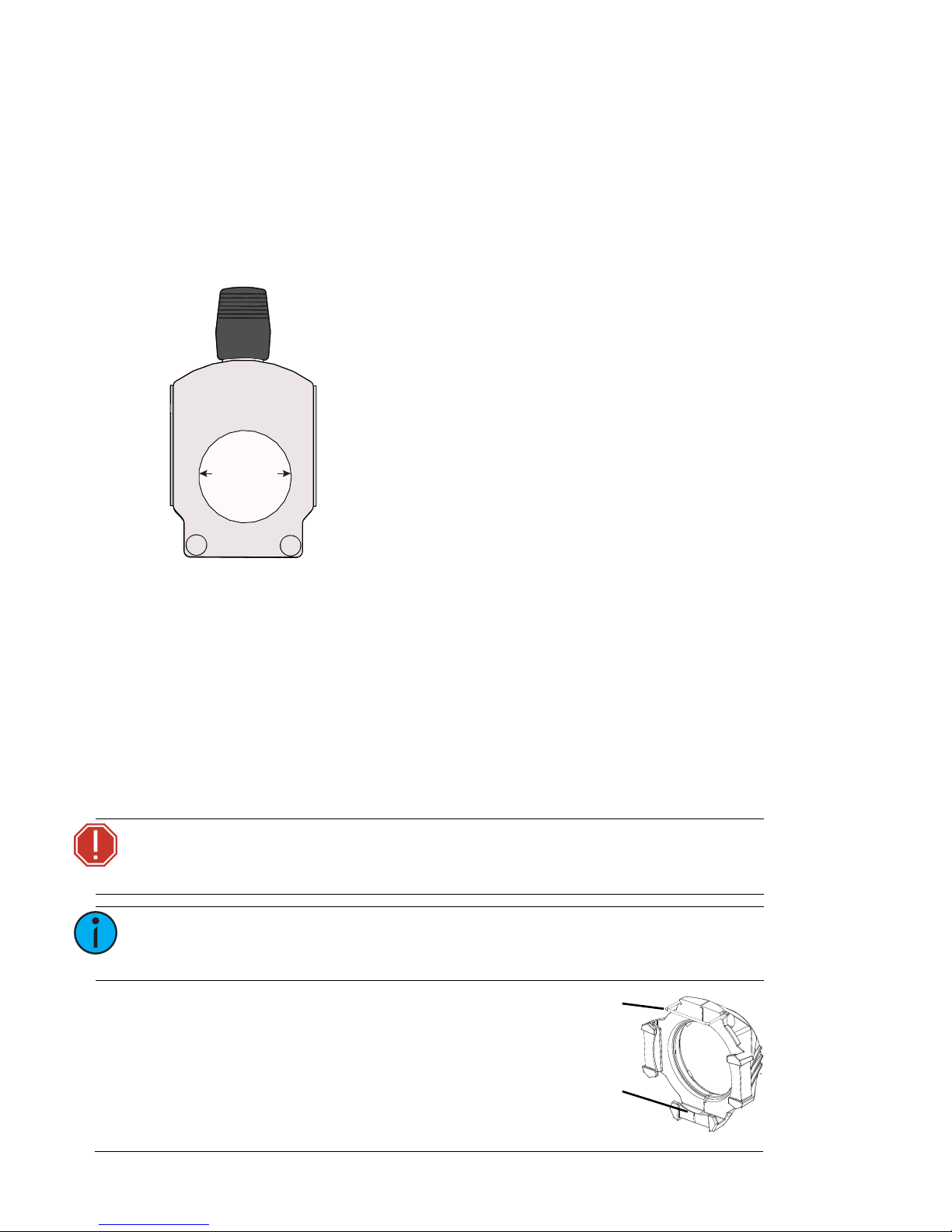

The Source Four Mini LED has a pattern holder slot on the top side of the
shutter barrel, in front of the shutter. It accommodates an E-size (37.5 mm
with a 25.4 mm image area) pattern holder.
Use an optional donut in the color frame holder to enhance pattern projection.
When the slot is not in use, a small sheet metal cover secured with a Phillips
screw prevents light leakage.
Using the color frame holder
The Source Four Mini LED comes equipped with a 2¾” or 70 mm color frame,
which is a metal frame used to hold color media (often referred to as gel) in
front of the lens. The color frame holder is equipped with a retaining clip that
prevents the color frame from falling out.
Additional accessories are available that also fit into the color frame holder.
Those accessories are top hat, short top hat, half hat, short half hat, and
donut. When you use an accessory, install the color frame in the rear slot of
the holder.
1: Release the retaining clip by gently
pushing it up.
2: Insert the color frame.
3: Lock the retaining clip by gently
pushing it down.
WARNING:
Make sure the color frame is locked in position with the
retaining clip.
Note:
The color frame should be inserted with the open side
down.
1”
Diameter
1: Use a Phillips screwdriver to loosen the
screw on the slot cover. Do not remove the
screw.
2: Slide the cover completely forward to
expose the slot.
3: Insert the pattern holder.
4: Slide the slot cover back toward the shutters
until it meets the pattern handle. Leave
enough space to move the handle.
5: Secure the slot cover by tightening the
screw.
Retaining clip
Color frame
holder

Source Four Mini LED User Manual 11
Adjusting the C-clamp on the
portable fixture

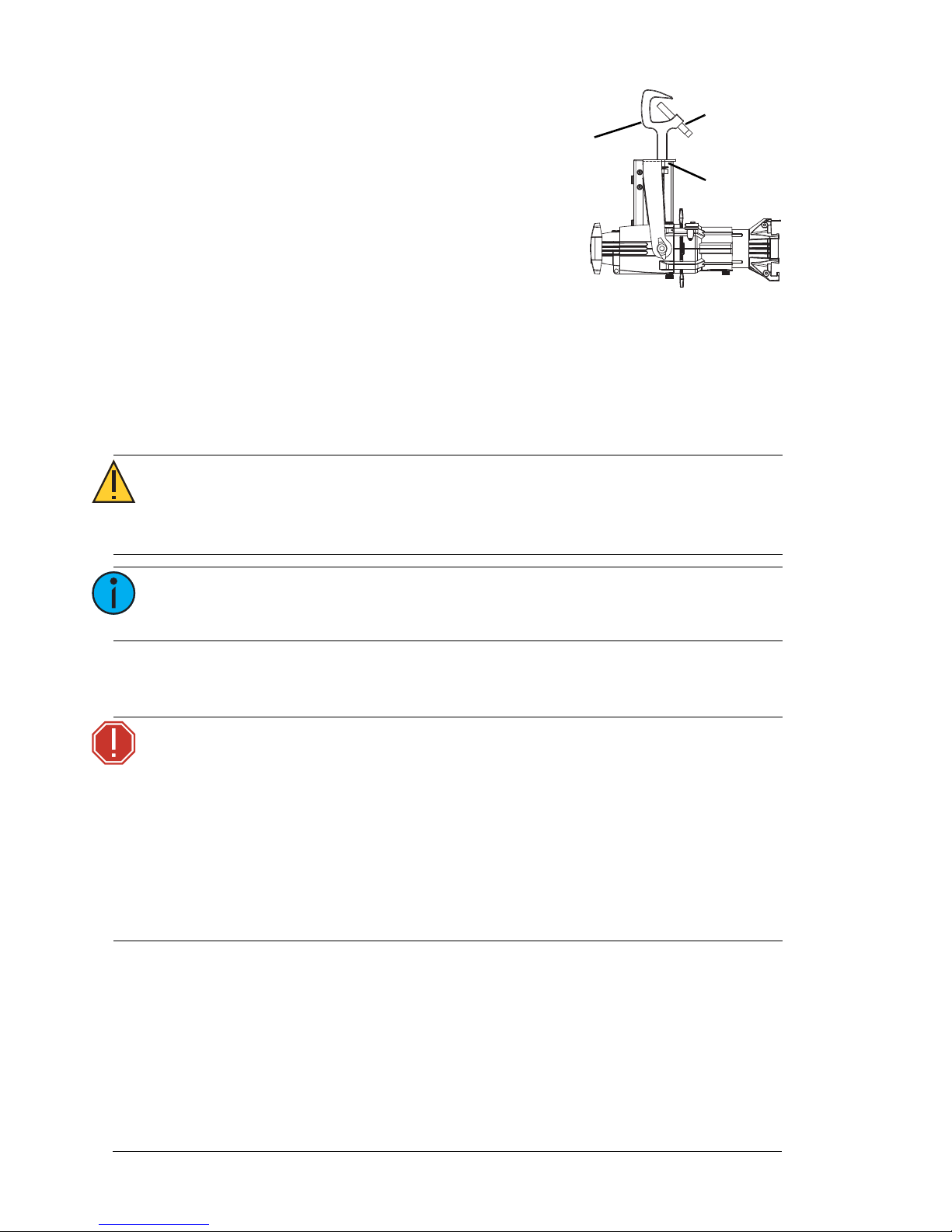

The C-clamp attaches the fixture to the
mounting pipe and allows you to adjust the
position of the fixture once it is mounted. The
C-clamp will fit a 3/8” to 1” pipe.
1: Tightly fasten the C-clamp to the yoke
with the provided yoke bolt and lock
washer.
2: Place the C-clamp on the mounting pipe, and then tighten the pipe bolt
to secure it.
3: Loosen the C-clamp yoke bolt and rotate the yoke to the desired
position.
4: Tighten the bolt to lock the fixture.
Cleaning the glass lens
1: Remove the beam focus knob from the barrel.
2: Remove the lens tube from the barrel.
3: Remove dust with a blast of oil-free air or wipe with a clean, lint-free
cloth. Isopropyl alcohol, distilled water, or a 50%-50% mixture of each
can be used to clean the glass surface.
4: Slide the lens tube back into the barrel with the color frame retainer clip
on the top.
5: Reinstall the beam focus knob.
CAUTION:
Tighten the C-clamp pipe bolt to about 18 in/lb
(approximately finger tight plus up to one-quarter turn).
Do not use excessive force.
Note:
The Source Four Mini LED yoke has a C-clamp hole with
a .406” diameter.
WARNING:
Do not use ammonia-based or other harsh commercial
cleaners. Clean lens only as directed.
Commercially available glass cleaning agents should be
avoided as they may contain ammonia, other harsh
chemical detergents, or abrasive agents. These cleaners
may damage the glass surface and the anti-reflective
coatings. Do not immerse or soak the glass in any
cleaning solution.
Yoke bolt
Pipe bolt
C-clamp

Corporate Headquarters  Middleton, Wisconsin, USA  Tel [phone]
Service (Americas)  [email protected]
London, UK  Tel [phone]  Service: (UK) [e-mail]
Rome, IT  Tel [phone]  Service: (UK) [email protected]
Holzkirchen, DE  Tel [phone]  Service: (DE) [email protected]
Hong Kong  Tel [phone]  Service: (Asia) [email protected]
Web: etcconnect.com  Copyright © 2017 Electronic Theatre Controls, Inc. All Rights
Reserved.  Product information and specifications subject to change .  ETC intends this
document to be provided in its entirety.
7063M1220  Rev D  Released 2017-04
