ETC S4WRDCII User manual

Source 4WRD Color II
Retrofit
Installation and User Manual
Version 3.0
Part Number: 7068M1220-3.0 Rev A
Released: 2023-01

To view a list of ETCtrademarks and patents, go to
etcconnect.com/ip. All other trademarks, both marked and not
marked, are the property of their respective owners.
ETC intends this document, whether printed or electronic, to be
provided in its entirety.

Table of Contents
Source 4WRD Color II Installation and User Manual i
Introduction 1
Help from ETC Technical Services 2
Safety 3
Retrofit the Fixture 5
Wire the Power Connector(If Needed) 5
Remove Incandescent Lamp Housing 6
Install the Reflector Insert 6
Install the Source 4WRD Color II Retrofit 8
Install the Fixture 10
Attach C-clamp and Safety Cable 10
Connect Cables 11
Configure the Fixture 12
Set the DMXAddress 12
Play Presets and Sequences 13
Data Loss Behavior 14
Focus the Fixture 15
Set the Z-adjustment 15

Adjust the Yoke Position 15
Shape the Beam 16
Troubleshoot the Fixture 17
Restore Factory Defaults 18
Update the Fixture Software 19
RDMValues 20
Clean and Maintain the Fixture 20
Clean the Fixture 20
Store the Retrofit 20
Clean the Lenses 21
Clean the Reflector Insert 22
Clean 5° and 10° Polymer Lenses 23
Specifications 24
Electrical 24
Environment 24
Weight 24
Optical 24
FCC Compliance 25
ii Source 4WRD Color II Installation and User Manual

Source 4WRD Color II Installation and User Manual 1
Introduction
The Source 4WRD Color II is a replacement for a standard Source Four
burner assembly. It converts the HPL source to an RGBA (red, green, blue,
and amber) LED and provides a significant reduction in power consumption.
The Source 4WRD Color II uses DMX dimming and requires power from a
non-dimmable source. When not using DMX, you can use any of the
12presets or 5sequences on the Source 4WRD Color II.
The Source 4WRD Color II can also be used with the Source 4WRD PAR or
PARNel Fixture Body to create a Source 4WRD Color II PAR or PARNel
fixture. For best results, we recommend that you use the included diffusion
on the Source 4WRD PAR or PARNel Fixture Body when paired with the
Source 4WRD Color. For more information, see the Source 4WRD Color II
PAR and PARNel datasheet at etcconnect.com.

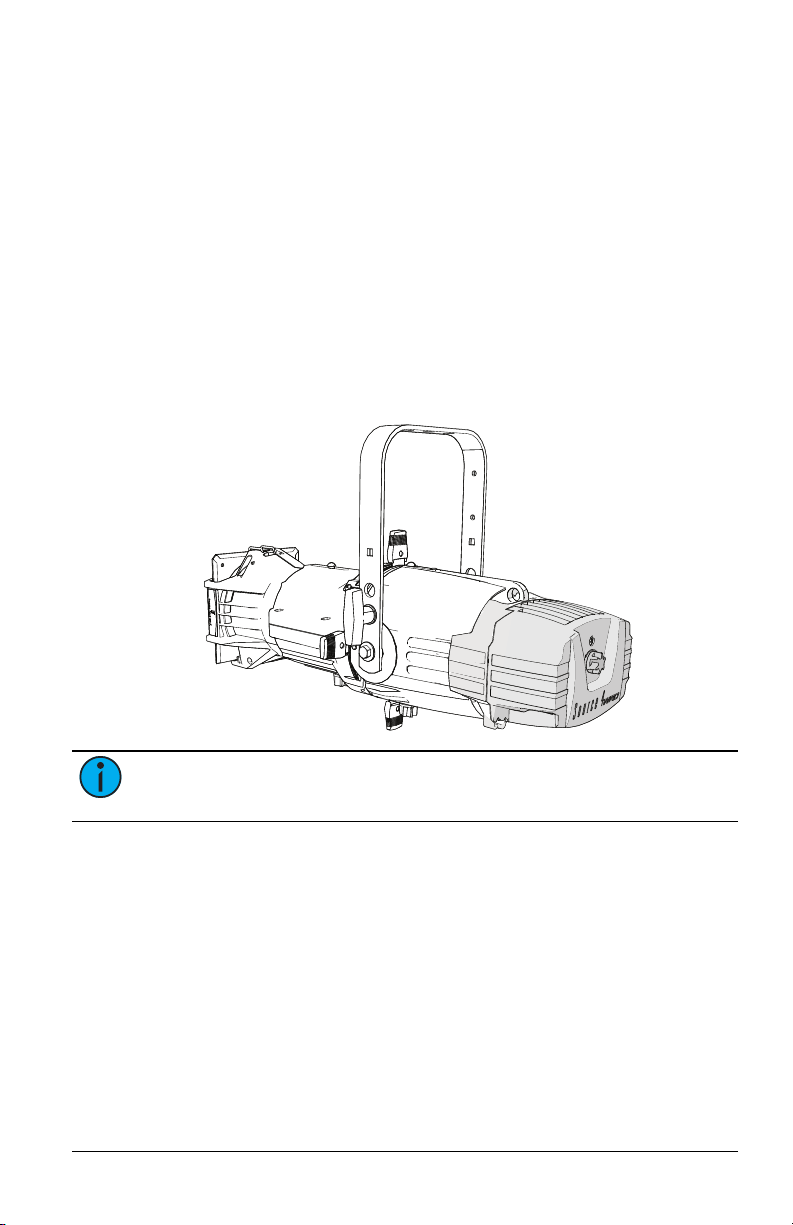

Retrofit kit,
shown installed
on a Source Four
fixture body
Note: The Source 4WRD Color II retrofit kit is not compatible with
Source Four LED, Fresnel, PAR, PARNel, or jr fixtures.

2 Source 4WRD Color II Installation and User Manual
Help from ETC Technical Services
If you are having difficulties and your problem is not addressed by this
document, try the ETC support website at support.etcconnect.com or the
main ETC website at etcconnect.com. If none of these resources are
sufficient, contact ETC Technical Services directly at one of the offices
identified below. Emergency service is available from all ETC offices outside
of normal business hours.
When calling for help, take these steps first:
• Prepare a detailed description of the problem
• Go near the equipment for troubleshooting
• Find your notification number if you have called in previously
ETC, Inc.
Americas
Technical Services Department
3031 Pleasant View Road
Middleton, WI 53562
800-775-4382 (USA, toll-free)
[phone]
[e-mail]
ETC GmbH
Germany, Austria, Switzerland,
Eastern Europe, and Russia
Technical Services Department
Ohmstrasse 3
83607 Holzkirchen, Germany
[phone]
[e-mail]
ETC Austin
High End Systems Products
Technical Services Department
2105 Gracy Farms Lane
Austin, TX 78758 USA
800-890-8989 (USA, toll-free)
[phone]
[e-mail]
ETC France
France
Zone Urbaparc -
Bâtiment E
6 Boulevard de la Libération
Saint-Denis, 93200
[phone]
[e-mail]
ETC Ltd
Europe, Middle East, and Africa
Technical Services Department
26-28 Victoria Industrial Estate
Victoria Road,
London W3 6UU England
[phone]
[e-mail]
ETCAsia
Asia
Technical Services Department
Room 1801, 18/F
Tower 1, Phase 1 Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
[phone]
[e-mail]

Source 4WRD Color II Installation and User Manual 3
Safety
The Source 4WRD Color II fixture is intended for professional use only. Read
the entire manual before using this equipment.
WARNING: Note the following warnings before use:
• The Source 4WRD Color II is not user serviceable. Field
modification of the Source 4WRD Color II will void your
ETC warranty.
• Do not use the fixture below 5°C (41°F).
• Minimum storage temperature is 5°C (41°F). When the
fixture has been stored or transported in cold
temperatures, allow it to warm to room temperature for
a minimum of 1hour before applying power. Applying
power to a cold fixture will cause damage to the fixture
and void the ETCwarranty.
• Do not use this fixture if a glass lens is deeply scratched
or cracked. Damaged lenses must be replaced.
• To prevent wiring damage, or abrasion, do not expose
wiring to edges of sheet metal or other sharp objects.
• Use the fixture in dry locations only, where humidity
does not exceed 90 percent (non-condensing). These
fixtures are not intended for outdoor use.
WARNING: Note the following safety warnings before use:
• Do not mount the fixture on or near a flammable surface.
• Do not use this fixture with a damaged power lead. If the
power lead (cord set) is damaged, it must be replaced.
• Mount and support the fixture only by the primary
suspension holes in the yoke.
• When the fixture is mounted, the axis between the yoke
attachment points must be parallel to the ground.
Mounting the fixture in a non-parallel orientation risks
property damage or bodily injury.
• Suspend the fixture from a suitable structure using only
hardware rated for the weight of the fixture.
• In addition to primary suspension, attach a safety cable to
the fixture housing. An appropriate attachment point
(hole) is provided in the protruding tab on the fixture
housing.
• Disconnect the unit from power and DMX and allow the
fixture to cool before removing or installing accessories,
and before all cleaning and maintenance.

4 Source 4WRD Color II Installation and User Manual
AVERTISSEMENT : Prendre connaissance des avertissements
de sécurité suivants avant toute utilisation :
• Ne pas installer le projecteur sur ou à côté d’une surface
inflammable.
• Ne pas utiliser ce projecteur avec un cordon d’alimentation
endommagé. Si le cordon d’alimentation (câble) est abîmé,
il doit être remplacé.
• Installer et accrocher le projecteur uniquement par les
trous de fixation principaux de la lyre.
• Lorsque le luminaire est accroché, l'axe entre les points de
fixation de la lyre doit être parallèle au sol. Le montage du
luminaire dans une orientation non parallèle risque de
causer des dommages matériels ou corporels.
• Accrocher le projecteur à une structure convenable en
utilisant seulement du matériel adapté au poids du
projecteur.
• En plus de l'accroche principale, fixer une élingue de
sécurité (modèle ETC400SC ou autre câble/dispositif de
sécurité certifié) au corps du projecteur. Un point
d’accroche (trou) approprié est prévu dans la patte qui
ressort du boîtier du projecteur.
• Déconnecter l’alimentation et le DMX et laisser le
projecteur refroidir avant d’enlever ou installer l'optique
découpe ou les autres adaptateurs, et avant tout nettoyage
et entretien.
The following symbols may appear on product labeling.
The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
Risk of electric shock Risque de décharge éléctrique
General warning Avertissement général
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec
les déchets ménagers mais doit être
déposé dans une collecte de déchets
électroniques ou dans un point de
collecte.

Source 4WRD Color II Installation and User Manual 5
Retrofit the Fixture
WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Installing the
Source 4WRD Color II retrofit kit requires knowledge of
luminaire electrical systems. If you are not qualified, do not
attempt installation. Contact a qualified electrician.
AVERTISSEMENT : RISQUE D'INCENDIE OU DE DÉCHARGE
ÉLECTRIQUE! Installer le nécessaire de conversion Source
4WRD Color II nécessite une connaissance des systèmes
électriques de projecteurs. Si vous n’êtes pas qualifié, ne
tentez pas l’installation. Faire appel à un électricien qualifié.
Note: THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF A
LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY AUTHORITIES HAVING JURISDICTION.

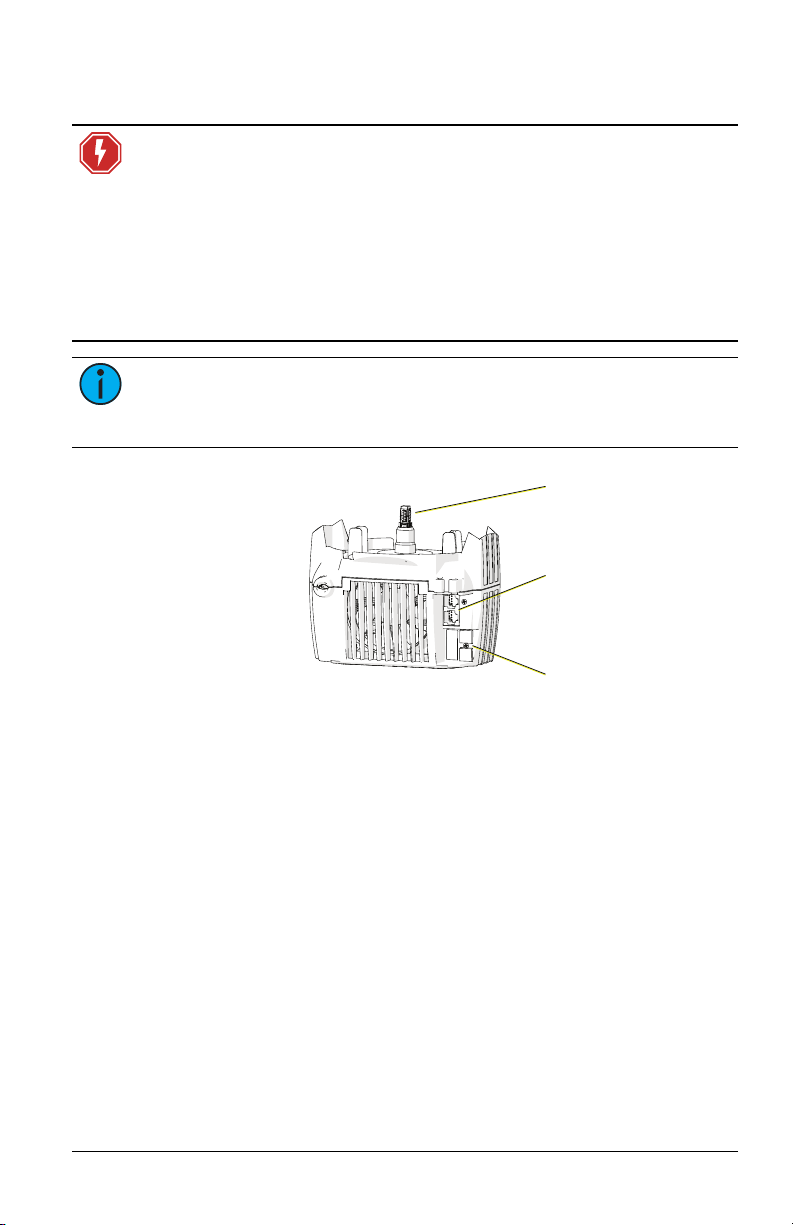

Retrofit kit
LEDs
RJ45 data in
and data thru
User interface and
navigation buttons
Wire the Power Connector(If Needed)
If you ordered a Source 4WRD Color II retrofit without a power connector,
wire the connector in accordance with all national and local electrical
codes:
• Black or Brown = Live
• White or White heat shrink on Blue wire = Neutral
• Green or Green/Yellow + Drain = Protective Earth

6 Source 4WRD Color II Installation and User Manual
Remove Incandescent Lamp Housing
1. Unplug the Source Four incandescent fixture and place it on a flat,
stable surface.
2. Loosen the brass thumb screw located above the beam adjustment
knob. The lamp housing is now loose.
3. Remove the lamp housing from the fixture body.
Note: The burner assembly is no longer needed. If you would like
ETC to recycle the burner assembly, contact ETC Technical Services
for more information. See Help from ETC Technical Services on
page2.
Install the Reflector Insert
When you use the Source 4WRD Color II with a Source Four fixture body,
you must install the reflector insert provided with the Source 4WRD Color II
in the Source Four fixture body.
CAUTION: Use the reflector insert only with the Source
4WRD Color II retrofit. Using the reflector insert with an
incandescent Source Four lamp can result in damage to the
product.
1. Remove the shutter barrel from the fixture in order to access the
reflector housing.
Loosen the barrel rotation knob at the bottom of the reflector housing
and loosen the retaining bolt on the opposite side of the reflector
housing. Rotate the shutter barrel and remove it from the reflector
housing.

Source 4WRD Color II Installation and User Manual 7
Barrel
rotation knob
Retaining
bolt Reflector
housing
2. Place the reflector housing on a flat surface with the reflector facing
up.
3. Position the reflector insert in the reflector housing over the top of the
reflector, taking care to align the centers of the reflector insert and
reflector.
Position reflector
insert over existing
reflector

8 Source 4WRD Color II Installation and User Manual
4. Gently rotate the reflector insert clockwise until the teeth on the
reflector insert tabs are secured against the bracket wings on the
reflector housing. Do not use excessive force when rotating the
reflector insert, as the reflector insert may flex under pressure.
Rotate clockwise
until teeth lock
under bracket
wings
Note: No additional diffusion is used with the reflector insert. The
reflector insert replaces the older Source 4WRD Color diffusion
insert.
5. Replace and secure the shutter barrel and lens tube.
Install the Source 4WRD Color II Retrofit
WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Install this kit
only onto luminaires that have the construction features and
dimensions shown in the images in this document and where
the input rating of the retrofit kit does not exceed the input
rating of the luminaire.
AVERTISSEMENT : RISQUE D'INCENDIE OU DE DÉCHARGE
ÉLECTRIQUE! N’installer ce kit que sur les projecteurs qui ont
les caractéristiques de construction et les dimensions
indiquées sur les images de ce document et où la puissance
électrique nécessaire à la conversion n’excède pas la
puissance maximale du projecteur.
WARNING: Do not make or alter any open holes in an
enclosure of wiring or electrical components during kit
installation.

Source 4WRD Color II Installation and User Manual 9
CAUTION: Do not touch or clean LED emitters with anything
other than oil-free canned air.
Tools required:
• Adjustable wrench
• #2 Phillips screwdriver
1. Use oil-free canned air to clean the LED emitters before you install the
retrofit. Do not touch the LEDemitters.
2. With the fixture resting securely on a flat surface, attach the supplied
threaded post to the back end of the fixture body. Use an adjustable
wrench to tighten the threaded post one-quarter turn past finger
tight.
3. Gently slide the Source 4WRD Color II onto the fixture body and
threaded post while guiding the LED tower into the lamp housing
hole, as shown in the following image. Take care to prevent contact
between the LEDs and the reflector.
Insert threaded
post here
Tighten
screw
Z-adjustment
knob
Source Four
fixture body
Lamp
housing
hole
4. Use a #2 Phillips screwdriver to tighten the screw located on the back
end of the Source 4WRD Color II, directly above the Z-adjustment
knob.
5. Pull gently to verify secure attachment.
6. Set the Z-adjustment using the Z-adjustment knob. See Set the Z-
adjustment on page15 .

10 Source 4WRD Color II Installation and User Manual
Install the Fixture
Retrofit
Source Four lens tube
(not included)
Adjustable yoke
Shutters (x4) Attached power lead
Cat5 cable
strain relief
Yoke locking knob
Attach C-clamp and Safety Cable
The C-clamp attaches the fixture to the mounting pipe and allows you to
adjust the position of the mounted fixture. ETC recommends using 1.5in
schedule 40 pipe.
1. Tightly fasten the C-clamp to the yoke with the provided yoke bolt
and lock washer.
2. Place the C-clamp on mounting pipe, and then tighten the pipe bolt
to secure it.
3. Loosen the C-clamp pan screw and rotate the yoke to the desired
position.
4. Tighten the pan screw to lock the fixture.
5. Connect the safety cable.
6. Tighten the C-clamp pipe bolt to 15–20 ft-lb (20–27 Nm),
approximately finger tight plus up to one-quarter turn.
CAUTION: Do not exceed 25 ft-lb (33 Nm) while tightening
the C-clamp pipe bolt. Do not use excessive force.
7. Tighten the yoke pivot bolt to 5–10 ft-lb (6–7 Nm), approximately
finger tight plus up to one-eighth turn.
CAUTION: Do not exceed 15 ft-lb (20 Nm) while tightening
the yoke pivot bolt. Do not use excessive force.

Source 4WRD Color II Installation and User Manual 11
Connect Cables
WARNING: Do not use or store the Source 4WRD Color II
fixture below 5°C (41°F). When the fixture has been stored or
transported in cold temperatures, allow it to warm to room
temperature for a minimum of 1 hour before applying power.
Applying power to a cold fixture will cause damage to the
fixture and void ETC warranty.
1. Connect one RJ45 data cable for data-in and one for data-thru, as
needed. Use the strain relief at the bottom of the fixture to support
the data cables (see image in Install the Fixture on the previous page ).
Leave a loop of data cable between the connector and the strain relief
to ensure that the connection point is not stressed.
• To order an RJ45-to-socket XLR adapter, use ETC part number
W6538.
• To order an RJ45-to-plug XLR adapter, use ETC part number
W6539.
2. If this is the last fixture in the line, terminate the fixture with a
120Ohm resistor. Please contact your ETC customer service
representative to purchase ETC part number N4086. See Help from
ETC Technical Services on page2 .
3. Connect the fixture to a non-dimmable power source.
DMXDimming
• When using DMX over Cat5, use Cat5e or better.
• Cable distance for full DMX daisy chain must not exceed 300m
(1000ft).
• Up to 32 fixtures can be connected together into a daisy chain.
• The fixture cannot be controlled via Ethernet protocols and should
not be directly connected to an Ethernet system.

12 Source 4WRD Color II Installation and User Manual
DMX channels
Channel Description Value
1 Intensity
2 Red
3 Green
4 Blue
5 Amber
6 Strobe 0 = No strobe
1–254 = Linear increase from 1 per second (DMX = 1)
to 33 per second (DMX = 254)
255 = No strobe
DMXpinout
Pin Description
1 DMX +
2 DMX -
3 DMX2 + (Pass Thru)
4 Not connected
Pin Description
5 Not connected
6 DMX2 - (Pass Thru)
7 Common (shield)
8 Common (shield)
Configure the Fixture
Up and down
navigation buttons
User interface
Use the up and down navigation buttons
to configure the fixture.
Set the DMXAddress
1. Press any button to wake the
display. The display shows the
DMX address.
2. Use the Up and Down buttons to
select the DMX address for the
fixture.
You can also use RDM for DMX
addressing.

Source 4WRD Color II Installation and User Manual 13
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-
configured sequences. When you play a preset or sequence on a fixture:
• The same preset number or sequence number plays on any connected
fixtures that are not receiving DMX.
• If you power down the fixture, the preset or sequence resumes when
you power it on again.
1. Press the Up button and Down button simultaneously to activate the
Presets/Sequences menu. The last active preset or sequence plays
automatically. (If DMX data is present, the current preset or sequence
plays in the background and DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Up button and
Down button simultaneously. The display will revert to show the DMX
start address.
Pre-configuredPresets
You can re-record presets (see Re-record Presets on the next page ), and you
can modify presets and sequences via RDM.
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink

14 Source 4WRD Color II Installation and User Manual
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Up button and Down button simultaneously to activate the
Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold either the Up button or Down button to re-record the
preset. The display shows a three-second countdown, and then
records the current look to the preset.
Adjust Preset Intensity
1. Ensure that DMX data is not present.
2. Press the Up button and Down button simultaneously to activate the
Presets/Sequences menu.
3. Press the Up button or Down button as needed to scroll to the preset
that you want to adjust.
4. Press and hold either the Up button or Down button. The display
shows L: followed by either an intensity level from 0–99 or FL for
full.
5. Press either the Up button or Down button to adjust the intensity. You
can hold either button to scroll rapidly through intensity level values.
The new intensity value is saved after five seconds with no buttons
pressed.
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
• If you selected a preset or sequence, that preset or sequence
automatically plays.
• If no preset or sequence is active in the background, the fixture goes
dark and the DMXstart address flashes on the user interface.

Source 4WRD Color II Installation and User Manual 15

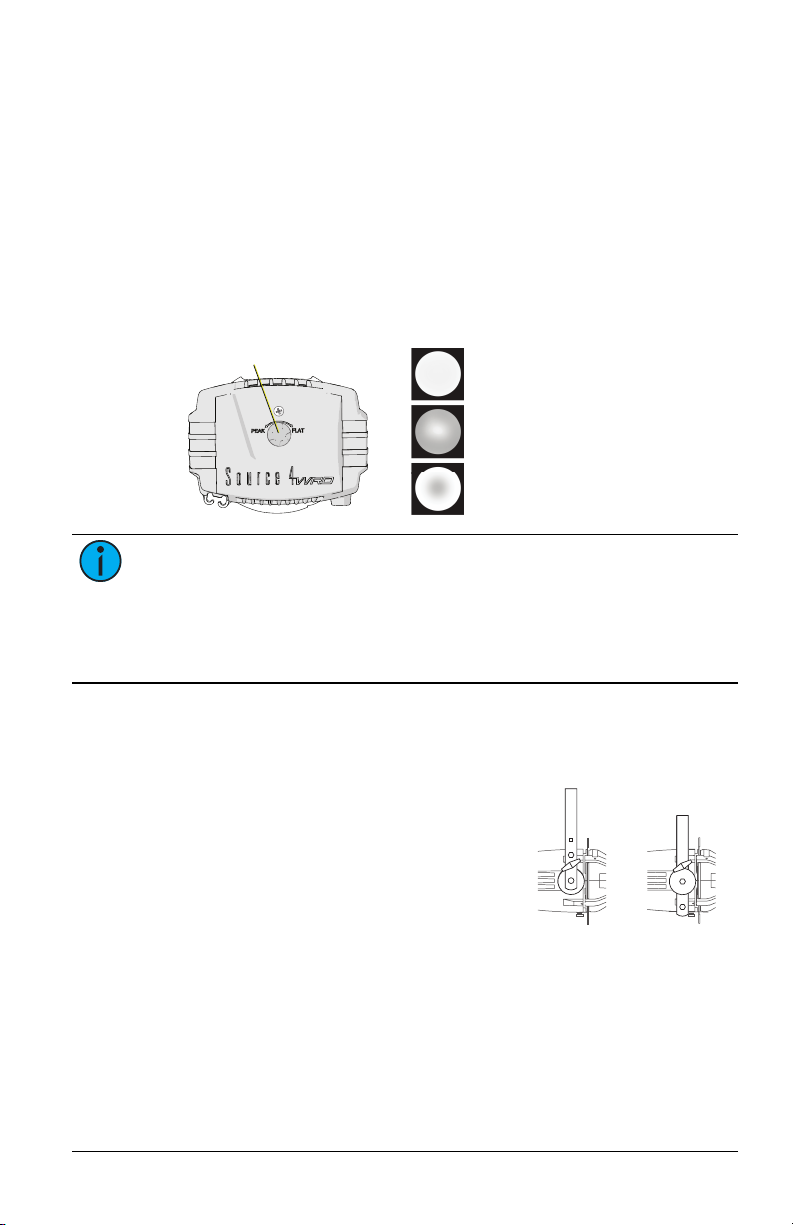

Focus the Fixture
Set the Z-adjustment
Use the Z-adjustment knob located on the rear of the fixture to adjust the
field of the LED light for specific applications.
1. Turn on the fixture and aim it at a flat surface.
2. Slide the fixture barrel toward or away from the Source 4WRD Color II
to create a hard-edged beam of light.
3. Turn the knob toward PEAK or FLAT until you achieve the desired
field.
Ideal beam of
uniform light
Adjust toward PEAK to
blend overlapped beams
Adjust toward FLAT to
improve sharp focus
Z-adjustment knob
Note: The Source 4WRD PAR or PARNel Fixture Body optics are
optimized for PEAKfocus. When using the Source 4WRD Color II in a
Source 4WRD PAR or PARNel Fixture Body, turn the Z-adjustment
knob toward PEAK until the knob becomes loose, and then tighten
the Z-adjustment knob an additional quarter turn. This sets the LED
light source into the appropriate position within the fixture.
Adjust the Yoke Position
Change the Height Position
Low clearance
position
General use
position
1. Remove the yoke locking knobs, washers,
and hex bolts from either side of the
fixture.
2. Raise or lower the fixture to the desired
position within the yoke.
3. Reinstall the yoke’s hex bolts, washers,
and locking knobs.
4. Tighten the yoke knobs to secure the
yoke in position.

16 Source 4WRD Color II Installation and User Manual
Set the Angle within the Yoke
Yoke locking
knob
1. Loosen the yoke locking knob. Do not
remove the knob.
2. Tilt the fixture to the desired position.
3. Tighten the yoke locking knob to secure in
position.
Shape the Beam
You can shape the beam by using the shutters, a
pattern, an optional drop-in iris, and by rotating the barrel.
Use the Accessory Holder
The accessory holder is equipped with a spring-loaded retaining clip that
prevents color frames and accessories from falling out.
WARNING: Make sure all color frame accessories are locked
in position with the retaining clip before hanging the fixture.
AVERTISSEMENT : S’assurer que tous les porte-filtres sont
verrouillés en place à l’aide du verrouillage de la cassette
avant de suspendre le projecteur.
Retaining
clip
1. Release the retaining clip by pushing it
sideways while gently pulling backwards.
2. Insert the color frame or accessory.
3. Lock the retaining clip by pushing sideways
while gently pushing forward.
Use a Pattern
The pattern holder slot is on the top side of the barrel and in front of the
shutters. It accommodates A-size, B-size, and glass pattern holders. Because
the Source 4WRD Color II fixture aperture is 3 inches wide, ETC
recommends A-size patterns for maximum effectiveness. Set the
Z-adjustment to FLATfor the sharpest pattern focus (see Set the Z-
adjustment on the previous page ).
7.93 cm
(3.12 in)
diameter
7 cm
(2.75 in)
diameter
9.4 cm
(3.7 in)
9.4 cm
(3.7 in)
A-size pattern holder:
Holds 7.6 cm (3 in)
diameter patterns
B-size pattern holder:
Holds 6.35 cm (2.5 in)
and 7 cm (2.75 in)
diameter patterns
