ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Corpora te He adquarters nMiddleton, WI, USA |[phone]
Globa l Offices nLondon, UK |Rome, IT |Holzkirchen, DE |Paris, FR |Hong Kong
Dubai, UAE |Singapore |New York, NY |Orlando, FL |Los Angeles, CA |Austin, TX
Web etcconnect.com |Support support.etcconnect.com
Conta ct etcconnect.com/contactETC |© 2021 Electronic Theatre Controls, Inc.
Trademark and patent info: etcconnect.com/ip |Product information and specifications
subject to change. ETCintends this document to be provided in its entirety.
7416M2100-2.0 Rev C Released 2021-12
Overview
The ColorSource Spot jr provides built-in zoom capability and uses the RGB-L
(red, green, blue, and lime) color system to provide a rich, bright light.
The ColorSource Spot jr is available in both original and Deep Blue variants.
The Deep Blue uses an array that offers richer, more saturated blues and
stronger magentas in exchange for the more jewel-toned blues like sky or
turquoise. For more information, see the ETC website at etcconnect.com.
Note: Features described in this document require the latest version
of software. For information on updating fixture software, see Update
the Fixture Software on page10.

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Safety
For professional use only. Read the entire manual before using this
equipment.
WARNING:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not mount the fixture on or near a flammable surface.
•
When the fixture is mounted, the axis between the yoke
attachment points must be parallel to the ground. Mounting
the fixture in a non-parallel orientation risks property
damage or bodily injury.
•
Disconnect the fixture from power and DMX and allow it to
cool before installing accessories or performing any cleaning
and maintenance.
AVERTISSEMENT :
•
Risque de lésion oculaire. Ne fixez pas directement la
lumière.
•
Ne pas installer le projecteur sur ou à côté d’une surface
inflammable.
•
Lorsque le luminaire est accroché, l'axe entre les points de
fixation de la lyre doit être parallèle au sol. Le montage du
luminaire dans une orientation non parallèle risque de
causer des dommages matériels ou corporels.
•
Débranchez le projecteur de son alimentation et du DMX et
laissez-le refroidir avant d’installer des accessoires ou
d’effectuer un nettoyage ou un entretien.
WARNING: RISK OF ELECTRIC SHOCK! The light source in this
luminaire is not user-replaceable, and must be replaced only by a
qualified technician. Contact ETC Customer Support for
assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La
source lumineuse de ce projecteur n'est pas remplaçable par
l'utilisateur et ne doit être remplacée seulement par un
technicien qualifié. Contactez le service client ETC pour obtenir de
l’assistance.
ColorSource Spot jr Page 2 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0

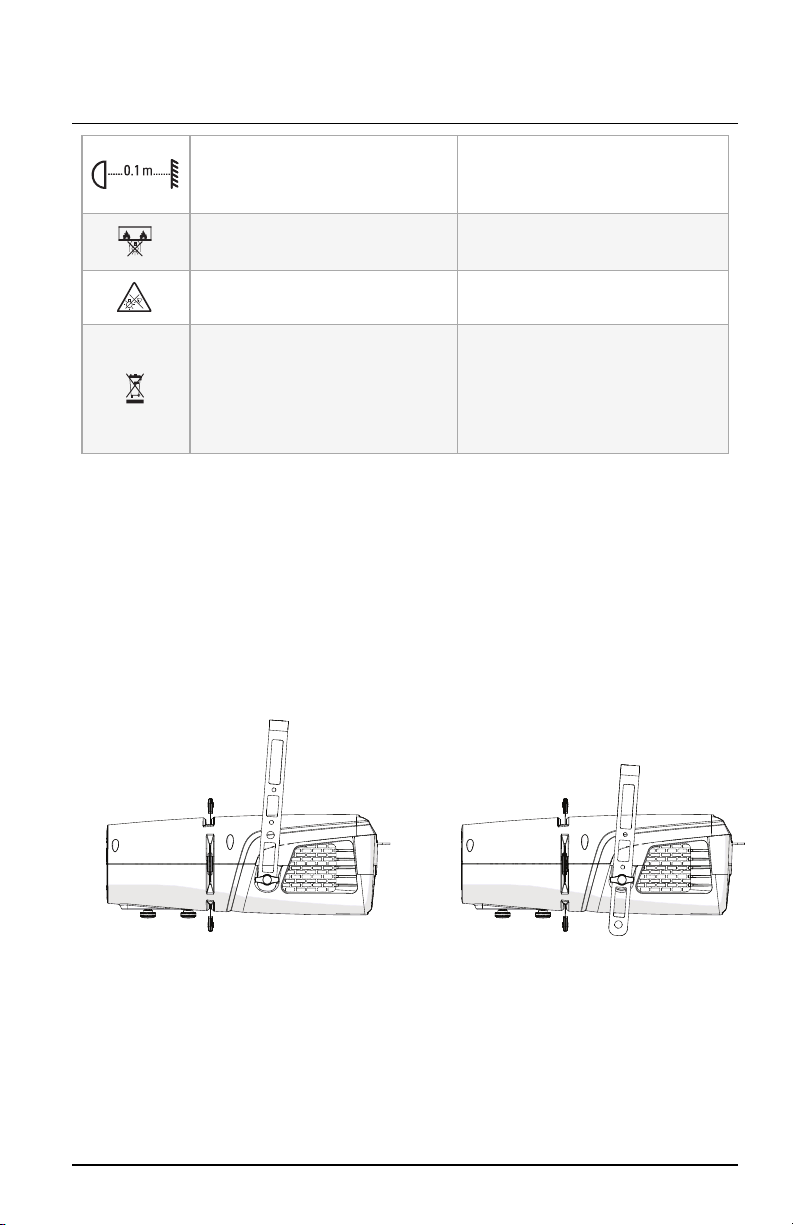

The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
Do not mount the fixture on or
near a flammable surface.
Ne pas installer le projecteur sur ou
à côté d’une surface inflammable.
Do not stare at the operating light
source.
Ne pas regarder la source de lumière
lorsqu’elle fonctionne.
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec
les déchets ménagers mais doit être
déposé dans une collecte de déchets
électroniques ou dans un point de
collecte.
Installation
Mounting
The ColorSource Spot jr ships with a standard yoke for mounting with a
clamp. You can adjust the position of the yoke when necessary for low-
clearance mounting. Mount the ColorSourceSpot jr in an orientation where
the knobs are on the bottom. (This ensures that the accessory slot is oriented
correctly, and ensures ease of movement for the Zoom knob and Focus knob.)
Standard yoke position Low-clearance yoke position
ColorSource Spot jr Page 3 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0

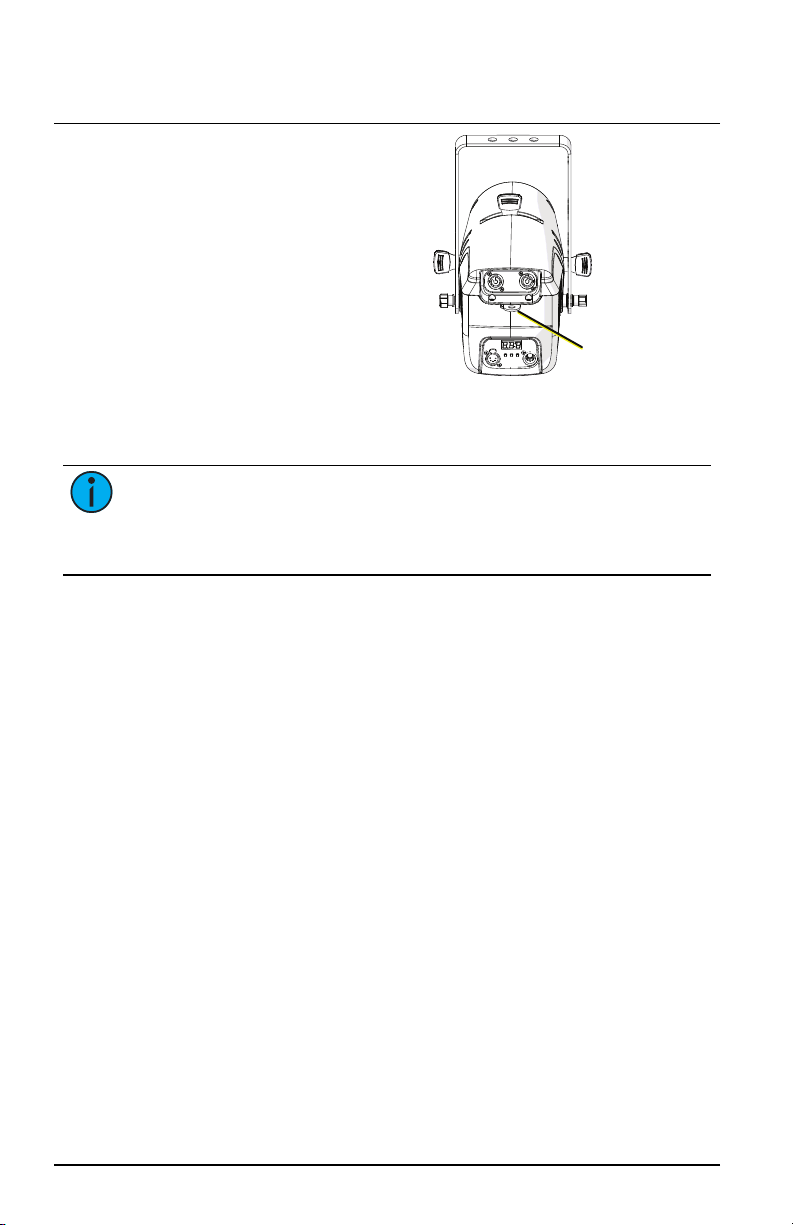

Safety cable
attachment loop
Safety Cable
A safety cable (or other approved
safety device) must be attached to the
fixture. The attachment loop is on the
rear of the fixture. Leave as little slack
as possible in the safety cable to avoid
catching the yoke of the fixture.
Connectors
•
Power: Two powerCON®
connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin XLR connectors for data in and thru
Note: The ColorSource Spot jr is not self terminating. You must
terminate the last fixture in line with a 120 Ohm resistor. To purchase
a terminator, please contact ETC customer service and request part
number SGE1507 (XLR terminator).
Set Up the Fixture
1. Plug the power cord into the powerCON In connector on the rear of the
fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX line,
terminate the fixture. See Connectors above .
4. Plug the power cord into the power source.
Power Up
Press any button to wake the display. The display shows the DMX address.
See Set the DMXAddress on page6 .
You can press the Mode button to access the Presets/Sequences menu. See
Play Presets and Sequences on page8 .
ColorSource Spot jr Page 4 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Adjust the Tilt
The fixture can be tilted up and down and rotated (panned) as needed.
1. Loosen, but do not remove the yoke locking knob.
2. Tilt the fixture to the desired angle.
3. Tighten the yoke locking knob.
Yoke
locking knob
Adjust the Zoom and Focus the Fixture
Use the Zoom knob to adjust the 25°–50° zoom, and use the Focus knob to
adjust the field. Because the Zoom knob and Focus knob are easiest to adjust
when on the bottom of the fixture, avoid mounting the ColorSourceSpot jr in
an orientation where the knobs are on top.
Accessory slot
Shutters
(x4)
Zoom
knob
Focus
knob
Accessory holder
(optional)
attaches to front
ColorSource Spot jr Page 5 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Accessories
You can use standard accessories, such as a gobo, in the accessory slot(see
image above). You can also attach an accessory holder to the front of the
fixture (order part number 7416K1001). After you attach the accessory holder,
you can use it to secure accessories such as a top hat or half hat. See the
ColorSource Spot jr datasheet at etcconnect.com for accessory information.
You can attach a ColorSource Relay to the yoke. See etcconnect.com for more
information about ColorSource Relay.
Set the DMXAddress
1. Press any button to wake the display. The display shows the DMX
address.
2. Use the Up and Down buttons to select the DMX address for the fixture.
You can also use RDM for DMX addressing. See RDM Values on page13 .
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of four available
mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows the
current DMX control mode.
3. Press the Up button or Down button to change the DMX control mode.
•
5ch: 5-channel mode (intensity, red, green, blue, and strobe). This is
the default mode.
•
dir: Direct emitter control (intensity, red, green, blue, indigo, lime, and
strobe).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults to
3200K White).
•
rgb: RGB mode (red, green, and blue).
4. Press the Mode button to confirm your selection.
The display will automatically return to the DMX address after 10 seconds of
inactivity, and edits to the DMX control mode will not be saved. This cancels
unsaved changes.
ColorSource Spot jr Page 6 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
DMXControl Channels
DMX
Channel
5ch
(5 channel)
dir
(Direct)
1ch
(1 Channel)
rgb
(RGB)
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue/Indigo*
5 Strobe** Lime
6 Strobe**
*Original ColorSource Spot jr fixture uses blue in channel 4; Deep Blue fixture uses indigo in
channel 4.
**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate
from 1 per second up to 33 per second.
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
•
If you selected a preset or sequence, that preset or sequence
automatically plays.
•
If no preset or sequence is active in the background, the fixture goes
dark and the DMXstart address flashes on the user interface.
Lock the User Interface
After you have set up the fixture, you can lock the user interface to prevent
additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user interface is
locked.
2. To unlock the user interface, press and hold the Up button and Down
button simultaneously for 3 seconds.
ColorSource Spot jr Page 7 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-configured
sequences. When you play a preset or sequence on a fixture:
•
The same preset number or sequence number plays on any connected
fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes when
you power it on again.
You can re-record presets and sequences through an RDM device or manually
on the fixture. See Re-record Presets on the facing page .
1. Press the Mode button to activate the Presets/Sequences menu. The last
active preset or sequence plays automatically. (If DMX data is present, the
current preset or sequence plays in the background and DMX data
continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Mode button a second
time. The display will revert to show the DMX start address.
Pre-configuredPresets
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
ColorSource Spot jr Page 8 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The preset
number blinks once to confirm that the preset has been recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel mode
(1ch), you cannot re-record presets.
When you re-record presets with the fixture in RGB mode (rgb), the
intensity is set to full and the strobe is turned off.
See Change the DMXControl Mode on page6.
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and then
press the Up button or Down button to select the preset that you want to
edit.
3. Press and hold the Mode button for 3 seconds. The display shows L:
followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of the
preset in real time.
5. Press the Mode button to confirm your selection and return to
thePresets/Sequences menu.
The display will automatically return to thePresets/Sequences menu after
10seconds of inactivity, and edits to the preset intensity will not be saved.
ColorSource Spot jr Page 9 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Troubleshooting
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software updates.
For information on UpdaterAtor, see the UpdaterAtor Software Quick Guide
and the UpdaterAtor Software ReleaseNote , which you can download from
etcconnect.com.
You can push newer software versions from a connected fixture to selected
ColorSource fixtures(see table that follows).
Note: If you have other types of fixtures in your DMX run, you do not
need to disconnect them before pushing the updated fixture
software. The update process will ignore any other fixture types in the
DMXrun.
Note: Not sure what version of fixture software is installed?The
version number appears on the display when the fixture powers up.
This fixture... ...can push software to these fixtures/releases when connected
CYC Linear PAR Spot Spot jr
≤v1.7 ≤v1.7 ≤v1.7 v3.0 ≤v1.7 v3.0 v2.0 v3.0
CYC v1.7 or earlier X X X X
Linear v1.7 or earlier X X X X
PAR v1.7 or earlier X X X X
PAR v3.0 X X
Spot v1.7 or earlier X X X X
Spot v3.0 X X
Spot jr v2.0 X
Spot jr v3.0 X
1. Remove power and DMX In from the fixture that is running the software
version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously while
restoring power.
3. The display shows Udt rdy to indicate the update mode is selected.
ColorSource Spot jr Page 10 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
4. Press the Mode button to start the update process.
•
The display alternates between Udt and the percentage complete while
updating.
•
The display blinks once to indicate that the update is complete.
5. Reconnect DMX In on the fixture.
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5 seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem with
the color calibration. The fixture will need to be returned to the ETC
factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the fixture
has gone into over-temperature protection mode to avoid damaging the
fixture. Once the fixture has self-cooled, the error will automatically clear.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear the
error. If the error persists, contact ETC (visit etcconnect.com/contactETC).
ColorSource Spot jr Page 11 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Specifications and Reference
For current and complete compliance and specifications, see the ColorSource
Spot jr datasheet at etcconnect.com.
Environment
The ColorSource Spot jr operates in ambient temperatures of 0°C–40°C and
comes with a variable-speed fan. The ColorSource Spot jr is for indoor use
only.
•
Maximum recommended ambient operating temperature: Ta=40°C
(104°F)
•
Maximum anticipated external surface temperature at 40°C ambient:
Tmax = 48°C (119°F)
•
External temperatures after 5 minutes of full-brightness operation at
25°C (77°F) ambient: 42°C (108°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 42°C (108°F)
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz.
•
Maximum power consumption is 200 W.
•
Up to 7 luminaires(15 A max) may be linked via power thru connector (8
luminaires total per circuit) when used with an R20Relay Module or
Unison Echo Relay Panel. Consult breaker trip curves when used with
other equipment. Requires power from a non-dimmable source.
•
Inrush:
-
120 V: 35 A (first half-cycle)
-
240 V: 45 A (first half-cycle)
Typical Power Consumption
100 V 120 V 230 V
Power Current Power Current Power Current
Idle 2.1 W 0.05 A 2.6 W 0.05 A 2 W 0.06 A
Direct at Full 168 W 1.69 A 166 W 1.40 A 162 W 0.73 A
ColorSource Spot jr Page 12 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
RDM Values
Parameter Fixture Value Description
Manufacturer
ID All 0x6574 Electronic Theatre Controls
Model ID
ColorSource
Spot jr 0x0219 ColorSource Spot jr (v2.0) or ColorSource Spot jr CPU2 (v3.0)
ColorSource
Spot jr DeepBlue 0x021A ColorSource Spot jr DeepBlue (v2.0) or ColorSource Spot jr DB CPU2 (v3.0)
DMXStart
Address All 0x00F0 Range = 1–512
DMX
Personality All 0x00E0
1 = 5 Channel
2 = Direct
3 = 1 Channel
4 = RGB
Output
Frequency All 0x8123 0 = Standard (1.2 kHz) 1 = High (25kHz)
ColorSource Spot jr Page 13 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
FCC Compliance
ColorSource Spot jr
(For any FCC matters):
Electronic Theatre Controls, Inc.
3031 Pleasant View Road
Middleton, WI 53562
[phone]
etcconnect.com
This device complies with Part 15 of the FCCRules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference,
and (2)this device must accept any interference received; including
interference that may cause undesired operation. Visit
etcconnect.com/products for current and complete compliance information
including FCC compliance.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. Any modifications or changes to this product not
expressly approved by Electronic Theatre Controls, Inc. could void the
user’s authority to operate the product. Operation of this equipment
in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at their own
expense.
ColorSource Spot jr Page 14 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
ColorSource Spot jr Page 15 of 16 ETC

ETC Installation Guide
ColorSource Spot jr v2.0/v3.0
Quick Reference
DMXControl Channels
DMX
Channel
5ch
(5 channel)
dir
(Direct)
1ch
(1 Channel)
rgb
(RGB)
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue/Indigo*
5 Strobe** Lime
6 Strobe**
*Original ColorSource Spot jr fixture uses blue in channel 4; Deep Blue fixture uses indigo in
channel 4.
**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate
from 1 per second up to 33 per second.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem with
the color calibration. The fixture will need to be returned to the ETC
factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the fixture
has gone into over-temperature protection mode to avoid damaging the
fixture. Once the fixture has self-cooled, the error will automatically clear.
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear the
error. If the error persists, contact ETC (visit etcconnect.com/contactETC).
ColorSource Spot jr Page 16 of 16 ETC
