Introduction
The Source 4WRD Color is a replacement for a standard Source Four burner
assembly. It converts the HPL source to an RGBA (red, green, blue, and amber)
LED and provides a significant reduction in power consumption. The Source
4WRD Color uses DMX dimming and requires power from a non-dimmable
source. When not using DMX, you can use any of the 12presets or
5sequences on the Source 4WRD Color.
For complete information, download the Installation and User
Manual at etcconnect.com, or view online help on your
smartphone or tablet by scanning this code.
What's in the Box
•
Source 4WRD Color retrofit
•
Threaded post (see Install the Source 4WRD Color Retrofit on page3 )
•
Diffusion (required—see Install Diffusion on Reflector on page5 )
Safety
The Source 4WRD Color fixture is intended for professional use only. Read
the entire manual before using this equipment.
WARNING: Note the following safety warnings before use:
•
Do not mount the fixture on or near a flammable surface.
•
Do not use this fixture with a damaged power lead. If the
power lead (cord set) is damaged, it must be replaced.
•
Mount and support the fixture only by the primary
suspension holes in the yoke.
•
Suspend the fixture from a suitable structure using only
hardware rated for the weight of the fixture.
•
In addition to primary suspension, attach a safety cable to
the fixture housing. An appropriate attachment point
(hole) is provided in the protruding tab on the fixture
housing.
•
Disconnect the unit from power and DMX and allow the
fixture to cool before removing or installing accessories,
and before all cleaning and maintenance.

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
WARNING: Note the following safety warnings before use:
•
The Source 4WRD Color is not user serviceable. Field
modification of the Source 4WRD Color will void your ETC
warranty.
•
Do not use the fixture below 5°C (41°F).
•
Minimum storage temperature is 5°C (41°F). When the
fixture has been stored or transported in cold
temperatures, allow it to warm to room temperature for
a minimum of 1hour before applying power. Applying
power to a cold fixture will cause damage to the fixture
and void the ETCwarranty.
•
Do not use this fixture if a glass lens is deeply scratched or
cracked. Damaged lenses must be replaced.
•
To prevent wiring damage, or abrasion, do not expose
wiring to edges of sheet metal or other sharp objects.
•
Use the fixture in dry locations only, where humidity does
not exceed 90 percent (non-condensing). These fixtures
are not intended for outdoor use.
Retrofit the Fixture
WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Installing the
Source 4WRD Color retrofit kit requires knowledge of luminaire
electrical systems. If you are not qualified, do not attempt
installation. Contact a qualified electrician.
Note: THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF A
LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE
DETERMINED BY AUTHORITIES HAVING JURISDICTION.
Wire the Power Connector
If you ordered a Source 4WRD Color retrofit without a power connector, wire
the connector in accordance with all national and local electrical codes:
•
Brown = Live
•
Blue = Neutral
•
Green/Yellow = Protective earth
Source 4WRD Color (CE) Page 2 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
Remove Incandescent Lamp Housing
1. Unplug the Source Four incandescent fixture and place it on a flat,
stable surface.
2. Loosen the brass thumb screw located above the beam adjustment
knob. The lamp housing is now loose.
3. Slide the lamp housing away from the fixture body and locate the
screw that secures the earth bond wire to the fixture body. Loosen and
remove the screw and accompanying washer to free the earth bond
wire.
4. Remove the lamp housing from the fixture body.
Install the Source 4WRD Color Retrofit
WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Install this kit only
onto luminaires that have the construction features and
dimensions shown in the images in this document and where the
input rating of the retrofit kit does not exceed the input rating
of the luminaire.
WARNING: Do not make or alter any open holes in an enclosure
of wiring or electrical components during kit installation.
CAUTION: Do not touch or clean LED emitters with anything
other than oil-free canned air.
Tools required:
•
Adjustable wrench
•
#2 Phillips screwdriver
Source 4WRD Color (CE) Page 3 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
1. Use oil-free canned air to clean the LED emitters before you install the
retrofit. Do not touch the LEDemitters.
2. With the fixture resting securely on a flat surface, attach the supplied
threaded post to the back end of the fixture body. Use an adjustable
wrench to tighten the threaded post one-quarter turn past finger
tight.
3. Secure the earth bond wire to the fixture body using the provided
screw and washer.
4. Gently slide the Source 4WRD Color onto the fixture body and
threaded post while guiding the LED tower into the lamp housing
hole, as shown in the following image. Take care to prevent contact
between the LEDs and the reflector.
Insert threaded
post here
Tighten
screw
Z-adjustment
knob
Source Four
fixture body
Lamp
housing
hole
Secure earth
bond wire
5. Use a #2 Phillips screwdriver to tighten the screw located on the back
end of the Source 4WRD Color, directly above the Z-adjustment knob.
6. Pull gently to verify secure attachment.
7. Set the Z-adjustment using the Z-adjustment knob. See Set the Z-
adjustment on page8 .
Source 4WRD Color (CE) Page 4 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
Install Diffusion on Reflector
When you use the Source 4WRD Color with a Source Four fixture body, you
must install the diffusion provided with the Source 4WRD Color on the
output end of the reflector.
WARNING: Do not use the diffusion with a Source Four HPL
lamp. Using the diffusion with a Source Four HPL lamp can result
in damage to the diffusion and the fixture body.
1.
Fold corners x4
Shiny side
facing up
With the shiny side of the diffusion
facing up, fold the four tabbed corners
of the diffusion along the perforated
lines.
2. Remove the lens tube and shutter
barrel from the fixture in order to
access the reflector housing.
3. Insert the diffusion into the reflector housing with the dull side of the
diffusion facing the lamp and the shiny side facing out.
4. Ensure that the tabbed corners are snug under the reflector bracket
wings.
Tabbed corner fits
under reflector
bracket wings
5. Replace and secure the shutter barrel and lens tube.
Source 4WRD Color (CE) Page 5 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
Install the Fixture
Attach Hanging Clamp and Safety Cable
The hanging clamp attaches the fixture to the mounting pipe andallows you
to adjust the position of the mounted fixture. ETCrecommends using 1.5in
schedule 40 pipe.
Tightly fasten the hanging clamp to the yoke, and then connect the safety
cable.
Connect Cables
WARNING: Do not use or store the Source 4WRD Color fixture
below 5°C (41°F). When the fixture has been stored or
transported in cold temperatures, allow it to warm to room
temperature for a minimum of 1 hour before applying power.
Applying power to a cold fixture will cause damage to the fixture
and void ETC warranty.
1. Connect one RJ45 data cable for data-in and one for data-thru, as
needed. Use the strain relief at the bottom of the fixture to support the
data cables.
•
To order an RJ45-to-female XLR adapter, use ETC part number
W6538.
•
To order an RJ45-to-male XLR adapter, use ETC part number
W6539.
2. If this is the last fixture in the line, terminate the fixture with a
120Ohm resistor. Please contact your ETC customer service
representative to purchase ETC part number N4086.
3. Connect the fixture to a non-dimmable power source.
DMXDimming
•
When using DMX over Cat5, use Cat5e or better.
•
Cable distance for full DMX daisy chain must not exceed 300m
(1000ft).
•
Up to 32 fixtures can be connected together into a daisy chain.
•
The fixture cannot be controlled via Ethernet protocols and should not
be directly connected to an Ethernet system.
Source 4WRD Color (CE) Page 6 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0
Configure the Fixture
Up and down
navigation buttons
User interface
Use the up and down navigation buttons
to configure the fixture.
Set the DMXAddress
1. Press any button to wake the
display. The display shows the
DMX address.
2. Use the Up and Down buttons to
select the DMX address for the
fixture.
Play Presets and Sequences
The fixture has twelve factory-configured
presets and five factory-configured sequences. When you play a preset or
sequence on a fixture:
•
The same preset number or sequence number plays on any connected
fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes when
you power it on again.
1. Press the Up button and Down button simultaneously to activate the
Presets/Sequences menu. The last active preset or sequence plays
automatically. (If DMX data is present, the current preset or sequence
plays in the background and DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Up button and
Down button simultaneously. The display will revert to show the DMX
start address.
Source 4WRD Color (CE) Page 7 of 8 ETC

ETC Quick Guide
Source 4WRD Color (CE) Version 1.0.0

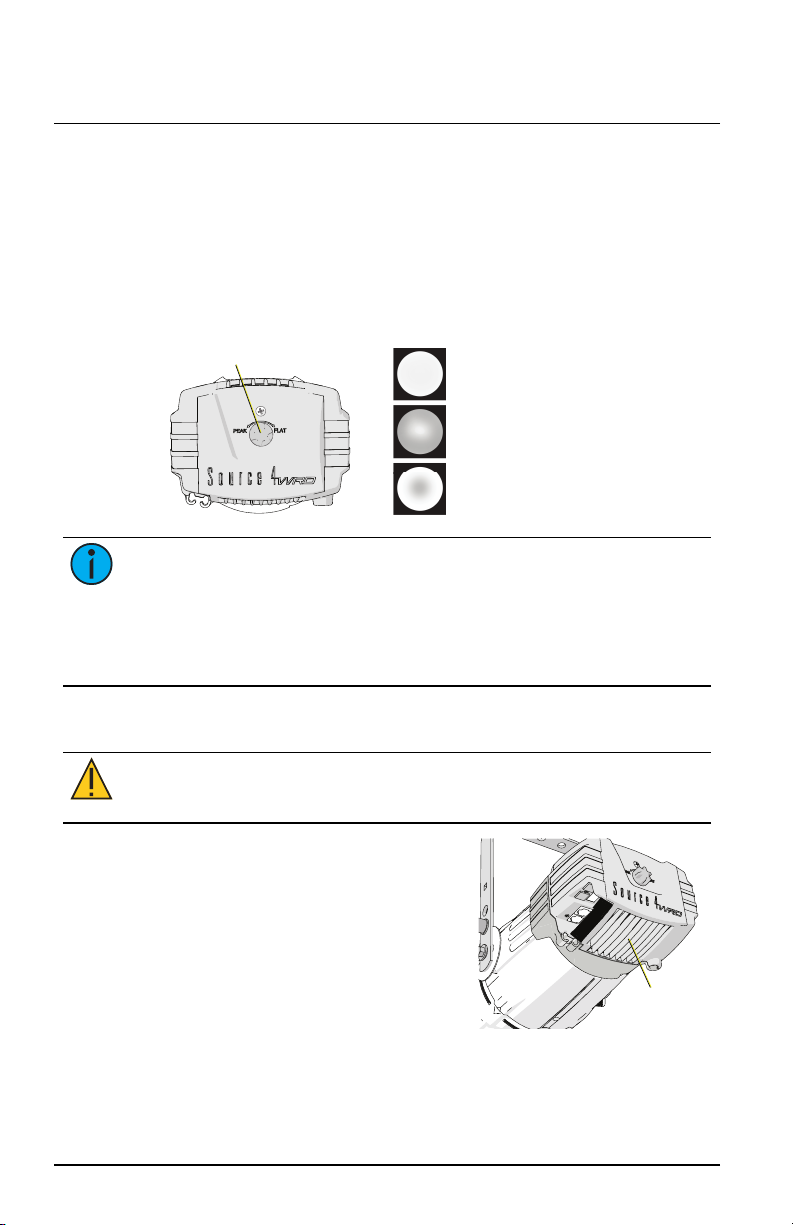

Set the Z-adjustment
Use the Z-adjustment knob located on the rear of the fixture to adjust the
field of the LED light for specific applications.
1. Turn on the fixture and aim it at a flat surface.
2. Slide the fixture barrel toward or away from the Source 4WRD Color to
create a hard-edged beam of light.
3. Turn the knob toward PEAK or FLAT until you achieve the desired field.
Ideal beam of
uniform light
Adjust toward PEAK to
blend overlapped beams
Adjust toward FLAT to
improve sharp focus
Z-adjustment knob
Note: The Source 4WRD PAR or PARNel Fixture Body optics are
optimized for PEAKfocus. When using the Source 4WRD Color in a
Source 4WRD PAR or PARNel Fixture Body, turn the Z-adjustment
knob toward PEAK until the knob becomes loose, and then tighten
the Z-adjustment knob an additional quarter turn. This sets the LED
light source into the appropriate position within the fixture.
Clean the Fixture
CAUTION: Do not touch or clean LED emitters with anything
other than oil-free canned air.
Fan and
fin stack
•
Use oil-free canned air to clean the
LED emitters prior to installation and
prior to storage.
•
Use oil-free canned air to clean the fan
and fin stack as part of regular fixture
maintenance.
Source 4WRD Color (CE) Page 8 of 8 ETC
