ETC F-Drive R12 Series User manual

F-Drive Series R12
Installation Manual
Part Number: 7148M2100 Rev: E
Released: 2022-01

To view a list of ETCtrademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked
and not marked, are the property of their respective owners.
ETC intends this document, whether printed or electronic, to be provided in its entirety.

Table of Contents
Table of Contents i
Introduction 1
System Components 1
F-Drive System Design Tool 1
Compatible Products 1
LEDDimming Compatibility Database 1
Documentation for Compatible Products 2
Document Conventions 2
Help from ETC Technical Services 3
Safety 4
IMPORTANTSAFEGUARDS 4
Label Symbols 4
Chapter 1 Overview 5
Features 5
Output Cards 5
CC-150Card 6
FTW-150Card 7
ChromaCard 7
CV-150Card 8
ArcLamp150Card 8
Before You Begin Installation 9
Installation Requirements 9
Chapter 2 Prepare to Install the R12 11
Inspect the Shipment 11
Parts and Tools 11
F-Drive R12 Wire and Terminal Specifications 11
Output Card Wire and Terminal Specifications 12
Rack-Mount Safety 12
Chapter 3 Install 48 VDCPower Supplies 13
Techincal Information from MEAN WELL 13
MEANWELLRKP-1UI Features 14
MEAN WELL RKP-1U with three RCP-2000 Modules 14
Install the Power Supply in the Rack 15

Connect Ground/Earth 15
Wire the DC Power Output 16
Final Installation Steps 17
Bussing Kit Parts Illustration 18
Chapter 5 Install the R12 19
Rack-Mount the R12 19
Connect the DCPower Input 19
DMXIn and Thru Connections 20
DMXCat5 Preparation and Termination 20
DMXCable Preparation and Termination 21
Terminate DMXIn and Thru 21
Panic 22
R12 Output Cards 22
Finish Installation 22
Chapter 6 Install R12 Output Cards 23
ChromaCard DMX Footprint 24
Mismatched Cards 24
Connect Luminaires to the Output Cards 24
Navis100 Luminaires 25
ArcSystem Pro One-Cell Luminaires 27
Third-Party Fixtures 28
ArcLamps 29
Configure the CV-150Card and ArcLamp150Card 29
Configure the CC-150Card 29
Record Installed Output Cards 30
Chapter 7 Panic Connector 31
Panic Switches 31
Wire the Panic Connector 32
Non-Isolated (Dry) Contact 32
Isolated (Wet) Contact (+48 VDC Signal) 32
How to Use R12 with a W1EmergencyDriver 33
Additional Non-Isolated (Dry) Contact 33
ii R12 Installation Manual

Chapter 8 Power Up and Control 34
Power Up Procedure 34
Identify 34
DMX System Control 34
ArcSystem Navis Luminaire DMXPersonalities 35
On Below Minimum 35
RDM Parameters 36
Live Edit Configuration Files 39
Edit Offline and Save Configuration Files to MicroSD39
Firmware Upgrade Instructions 40
MicroSD Firmware Upgrade Instructions 40
Maintenance 41
Troubleshooting 42
F-Drive R12 Control Card LEDIndicators 42
F-Drive R12 Output Card LED Indicators 43
Errors 44
MEANWELL LED Indicators 44
Appendix A Compliance 45
FCC Compliance 45
Table of Contents iii

iv R12 Installation Manual

1
Introduction
Congratulations on your purchase of the ETC F-Drive Series R12. The F-Drive Series R12
LEDpower control solutionprovides a modular, centralized approach for controlling
LEDluminaires. The R12 is a card cage enclosure that can hold up to 12 low-voltage output
cards, providing power and data to multiple circuits per card. By maintaining remote, easy
access to the output cards and power supplies, LED-based systems can be easily installed and
serviced, while ensuring critical components are readily accessible to support staff.
System Components
An F-Drive R12 system consists of the following:
•
One or more F-Drive R12 drivers.
•
One or more 48 VDCexternal power supplies.
•
Up to 12 R12 output cards.
•
B-Boxes (optional). FD-BBOX-4R can connect ArcSystem Navis 100 luminaires in star
topology. FD-BBOX-4M provides a convenient way to connect ArcSystem Pro One-Cell
luminaires. FD-BBOX-4T can be used with third-party loads.
•
Luminaires:ArcSystem Navis 100, ArcSystem Pro One-Cell, ArcSystem ArcLamps, or third-
party fixtures.
F-Drive System Design Tool
Visit the F-Drive System Design Tool (etcconnect.com/Products/Power-Controls/LED-Drivers/F-
Drive/F-Drive-System-Design-Tool.aspx) to design an F-Drive R12 system with different
luminaires, breakout boxes, cable lengths, and other system components.
Compatible Products
R12 output cards are compatible with Navis100 Fixed White, Fade to Warm, and RGBW
luminaires; ArcSystem Pro One-Cell, Pro One-Cell Small, and Pro One-Cell Micro luminaires;
ArcSystem ArcLamps; and a variety of constant current and constant voltage luminaires. For
more information on compatible products, see the resources below.
W1Drivers are compatible with Navis100 Fixed White, Fade to Warm, and RGBW luminaires;
ArcSystem Pro One-Cell Pro One-Cell Small, and Pro One-Cell Micro luminaires; and a variety
of constant current and constant voltage luminaires. For more information on compatible
products, see the resources below.
LEDDimming Compatibility Database
The LEDDimming Compatibility Database (etcconnect.com/compatibility/) is a searchable list of
devices that ETChas tested for compatibility with ETCdimming and control systems.

2 R12 Installation Manual
Documentation for Compatible Products
The following documents are available at etcconnect.com/Products/Power-Controls/LED-
Drivers/F-Drive/Documentation.aspx:
•
F-Drive B-Box4 Installation Guide
•
F-Drive Series R12 Installation Manual
•
F-Drive R12 and W1 Wiring Reference Guide
The following document is available at etcconnect.com/Products/Lighting-Fixtures/ArcSystem-
Navis/Documentation.aspx:
•
ArcSystem Navis 100 Installation Guide
The following document is available at etcconnect.com/Products/Lighting-Fixtures/Pro-One-
Cell/Documentation.aspx:
•
ArcSystem Pro D1 and D2 Series Drivers Installation Guide
The following document is available at etcconnect.com/Products/Lighting-
Fixtures/ArcLamp/Documentation.aspx
•
ArcLamp System Installation Manual
For current technical information about the MEANWELLRKP-1UI three-bay frame and RCP-
2000 48VDC power supplies, visit https://www.meanwell.com. The RCP-2000/RKP-1UI
Instruction Manual is available at
https://www.meanwell.com/webapp/product/search.aspx?prod=RCP-
2000&pdf=UkNQLTIwMDAsUktQLTFVLUUucGRm&a=4.
Document Conventions
This document uses the following conventions to draw your attention to important information.
Note: Notes are helpful hints and information that is supplemental to the main text.
CAUTION: A Caution statement indicates situations where there may be
undefined or unwanted consequences of an action, potential for data loss or
an equipment problem.
WARNING: A Warning statement indicates situations where damage may
occur, people may be harmed, or there are serious or dangerous
consequences of an action.
WARNING: RISK OF ELECTRIC SHOCK! This warning statement indicates
situations where there is a risk of electric shock.
All ETC documents are available for free download from our website: etcconnect.com.
Please email comments about this manual to: [e-mail].

3
Help from ETC Technical Services
If you are having difficulties and your problem is not addressed by this document, try the ETC
support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none
of these resources are sufficient, contact ETC Technical Services directly at one of the offices
identified below. Emergency service is available from all ETC offices outside of normal business
hours.
When calling for help, take these steps first:
•
Prepare a detailed description of the problem
•
Go near the equipment for troubleshooting
•
Find your notification number if you have called in previously
ETC, Inc.
Americas
Technical Services Department
3031 Pleasant View Road
Middleton, WI 53562
800-775-4382 (USA, toll-free)
[phone]
[e-mail]
ETC GmbH
Germany, Austria, Switzerland,
Eastern Europe, and Russia
Technical Services Department
Ohmstrasse 3
83607 Holzkirchen, Germany
[phone]
[e-mail]
ETC Austin
High End Systems Products
Technical Services Department
2105 Gracy Farms Lane
Austin, TX 78758 USA
800-890-8989 (USA, toll-free)
[phone]
[e-mail]
ETC France
France
Zone Urbaparc -
Bâtiment E
6 Boulevard de la Libération
Saint-Denis, 93200
[phone]
[e-mail]
ETC Ltd
Europe, Middle East, and Africa
Technical Services Department
26-28 Victoria Industrial Estate
Victoria Road,
London W3 6UU England
[phone]
[e-mail]
ETCAsia
Asia
Technical Services Department
Room 1801, 18/F
Tower 1, Phase 1 Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
[phone]
[e-mail]

4 R12 Installation Manual
Safety
The F-Drive Series R12 is intended for professional use only. Read the entire manual before
using this equipment.
IMPORTANTSAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
•
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
•
Do not use outdoors.
•
Do not let power supply cords touch hot surfaces.
•
Do not mount near gas or electric heaters.
•
Equipment should be mounted in locations and at heights where it will not
readily be subjected to tampering by unauthorized personnel.
•
The use of accessory equipment not recommended by the manufacturer may
cause an unsafe condition.
•
Do not use this equipment for other than intended use.
•
To reduce the risk of fire and overheating, make sure all connections are tight.
•
Turn off electrical power before modifying the lighting system in any way.
SAVE THESE INSTRUCTIONS
Note: Cable bundling limitations apply to F-Drive R12 Class 2 output cables. For more
information about maximum number of four-pair cables in a bundle, see NFPA 70 2020
National Electrical Code, table 725.144.
Label Symbols
R12 Drivers are conveniently labeled with relevant symbols for your safety. Refer to the product
label to see which symbols apply to your product.
General warning Avertissement général
This product should not be discarded as unsorted
waste but must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.
The product input or output is suitable for direct
current only.
L’entrée et la sortie de ce produit convient
uniquement au courant continu.
Safety extra low voltage device Dispositif de sécurité à très basse tension
Protective earth (ground) Protection Classe I Mise à la terre

Chapter 1 5
Chapter 1
Overview
+
+
+
+
+
+
+
+
+
+
+
+
+
F-Drive R12 Driver
Features
•
Compatible with a wide range of control systems
•
Compact size:fits EUor US19-inch rack, 2U height, 12.8 inch depth
•
Requires 48 VDCinput from an external power supply, recommended minimum 1500 W
•
Holds up to 12 low-voltage output cards for remote control of up to 48 circuits
•
Hot-swappable output cards
•
DMX/RDM control input with per-circuit patching
•
48 VDC pass-through for connection to downstream sense equipment
•
Panic/emergency contact input suitable for connection to external emergency systems
Output Cards
R12 output cards are available for a variety of low-voltage load types. Output cards are sold
separately.
Note: Certain output card and load configurations may overload the F-Drive R12
System. Visit the F-Drive System Design Tool (etcconnect.com/Products/Power-
Controls/LED-Drivers/F-Drive/F-Drive-System-Design-Tool.aspx) for more information
about system limits.

6 R12 Installation Manual

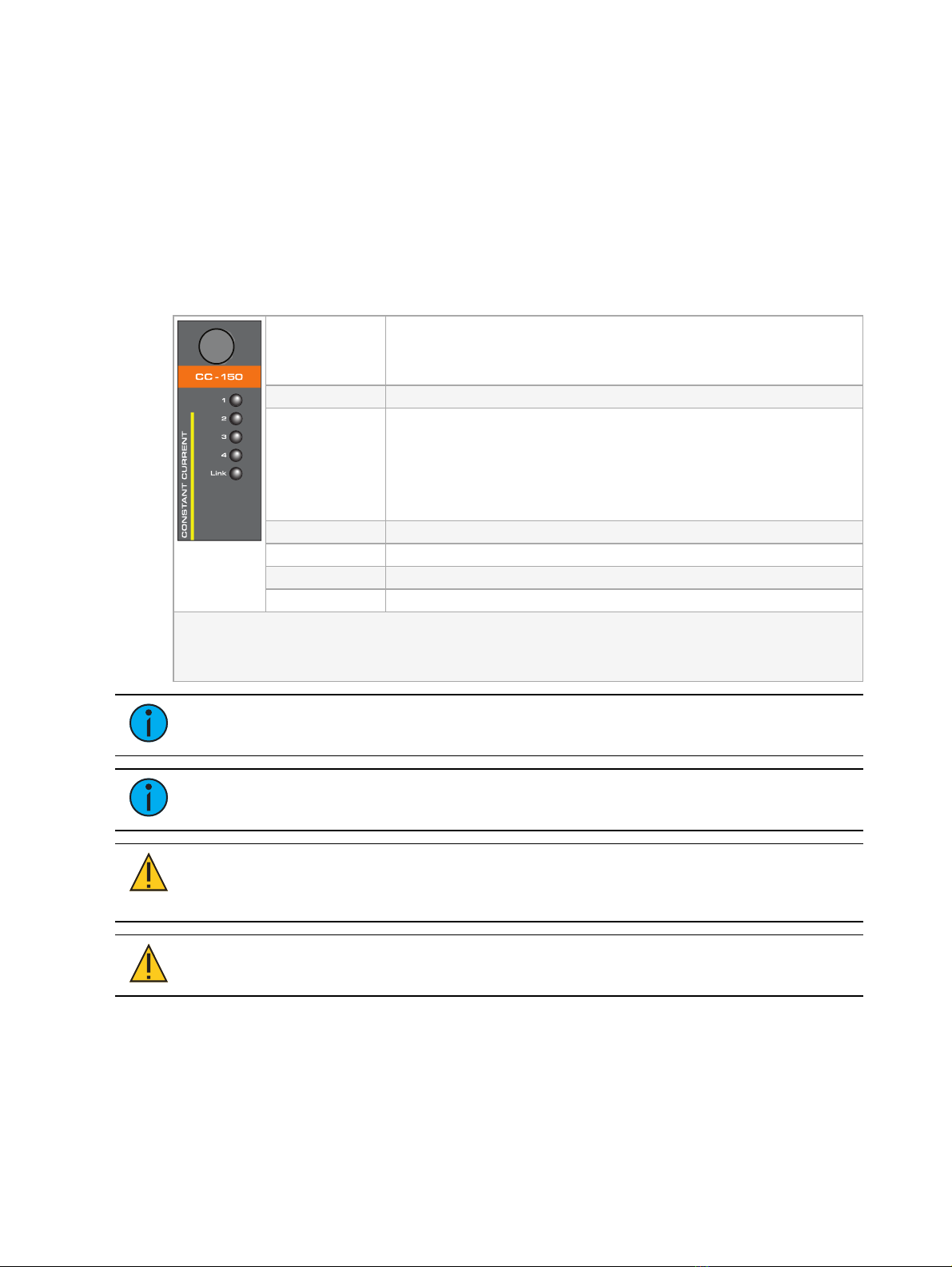

CC-150Card
The CC-150Card is designed for use with Navis100 Fixed White luminaires, most ArcSystem
Pro One-Cell White luminaires, and 200–700 mA constant current fixtures by other
manufacturers.
F-Drive Series R12 CC-150Card supports a wide variety of third-party loads. Determining
compatibility between these loads and the CC-150Card is an important step toward ensuring
the success of a project. Search the LED Dimming Compatibility Database at
etcconnect.com/compatibility to see if your load is compatible. If your load is not in the
compatibility database, follow the instructions at the link above to contact the ETC Applications
Engineering department to arrange for compatibility testing.
+
Output
adjustable 200–700mA constant current per channel, default output 600 mA
(see Configure the CC-150Card on page29 )
2.8A total per card
48VDC
Output Channels four channels on a single RJ45 or eight-pin terminal block
Loads
•
up to fourNavis100 Fixed White luminaires per card
•
up to four ArcSystem Pro One-Cell White or Fade to Warm luminaires per card
-
Pro One-Cell*
-
Pro One-Cell Small*
-
Pro One-Cell Micro*
•
200–700 mA constant current fixtures manufactured by others
Maximum Load 33 Wper two-pin channel, 134 W total per card
Model Number FDROCCC150
Part Number 7148K1011
Label Stripe Color yellow to match Navis100 Fixed White luminaire face and cap labeling
*The most convenient way to connect ArcSystem Pro One-Cell luminaires to a CC-150Card is with a B-Box4 with
RJ45 outputs (FD-BBOX-4R). Visit the F-Drive System Design Tool at etcconnect.com/Products/Power-Controls/LED-
Drivers/F-Drive/F-Drive-System-Design-Tool.aspxand see the F-Drive B-Box4 Installation Manual and
the F-Drive R12and W1 Wiring Reference Guide for more information.
Note: The CC-150Card does not support ArcSystem Pro One-Cell High Output
luminaires.
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on a FTW-150Card or a CC-150Card.
CAUTION: Setting the F-Drive CC-150Card to output more current than the
manufacturer recommends for the loads may reduce the lifetime or cause
damage to the loads. See Configure the CC-150Card on page29.
CAUTION: Do not exceed any Class 2 limits stated by the manufacturer of
the third-party load.

Chapter 1 7
FTW-150Card
The FTW-150Card is designed for use with Navis Fade to Warm luminaires.
+
Output
constant current, maximum 450 mA per channel
1.8A total per card
48VDC
Output Channels four channels on a single RJ45 or eight-pin terminal block
Loads up to four Navis 100 Fade to Warm luminaires per card
Maximum Load 21.6 Wper channel, 86 Wper card
Model Number FDROCFTW150
Part Number 7148K1010
Label Stripe Color green to match Navis Fade to Warm luminaire face and cap labeling
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on a FTW-150Card or a CC-150Card.
ChromaCard
The ChromaCard is designed for use with Navis RGBWluminaires.
+
Output 48 VDCpower and data
Output Channels four channels on a single RJ45*
Loads up to four Navis 100 RGBW luminaires per card
Maximum Load 2.1A, 100 Wper card
Model Number FDROCCHC100
Part Number 7148K1014
Label Stripe Color purple to match Navis RGBW luminaire face and cap labeling
*An eight-pin terminal block is present, but disabled.

8 R12 Installation Manual
CV-150Card
The CV-150Card supports a wide variety of third-party loads. Determining compatibility
between these loads and the CV-150Card is an important step toward ensuring the success of a
project. Search the LED Dimming Compatibility Database at etcconnect.com/compatibility to
see if your load is compatible. If your load is not in the compatibility database, follow the
instructions at the link above to contact the ETC Applications Engineering department to
arrange for compatibility testing.
+
Output adjustable 24–28 VDC constant voltage
2.1A per channel, 6.25A total per card
Output Channels four channels on an eight-pin terminal block*
Loads multiple 24 VDCfixtures
Maximum Load 50 Wper channel, 150 Wper card
Model Number FDROCCV150
Part Number 7148K1013
Label Stripe Color blue
*An RJ45 receptacle is present, but disabled.
CAUTION: Do not exceed any Class 2 limits stated by the manufacturer of
the third-party load.
ArcLamp150Card
The ArcLamp150Card is designed for use with ETCArcLamp retrofit screw-in LEDlamps.
Voltage drop is an important consideration for ArcLamp installations. See Voltage Drop on
page10 . For information on the installation of ArcLamps, see the ArcLamp System Installation
Manual . ETCdocuments are available free of charge at etcconnect.com.
+
Output adjustable 24–28 VDCpower and data
Output
Connectors four channels on an eight-pin terminal block†
Loads up to eight ArcLamps per channel and a maximum of thirty-two ArcLamps per
card
Maximum Load 50 Wper channel, 150 Wper card
Model Number FDROCAC150
Part Number 7148K1012
Label Stripe Color white
†An RJ45 receptacle is present, but disabled.
Note: Do not bridge outputs on R12 ArcLamp output cards. If your installation
requires more than eight ArcLamps per circuit, consider a standalone ArcLamp wall-
mount or rack-mount driver.

Chapter 1 9
Before You Begin Installation
Review the following information before installing the F-Drive R12.
Installation Requirements
•
Ambient operating temperature 0–40°C (32–104°F), 5–95% non-condensing humidity.
•
Dry locations only.
•
The R12 requires a 19-inch equipment rack that must support the weight of an R12 frame,
twelveoutput cards, and any power supplies and accessories.
•
The R12 is a 48 VDC input product that requires an external power supply for operation.
Clearance Requirements
F-Drive R12 Driver
CAUTION: To reduce risk of fire, do not install closer than 3 inches to
cabinet wall.
ATTENTION : Pour reduire les risques d'incendie, n'installez pas plus de 3
pouces au mur de l'armoir.
MEANWELLPower Supply Frame
If you are installing a MEAN WELL RKP-1UI three-bay external power supply frame, the built-in
DCfans require 10 cm (3/8in)clearance around the ventilation holes after mounting the three-
bay frame in the 19-inch equipment rack.
WARNING: RISKOFELECTRICSHOCK! Maintain 20mm (3/4in) clearance
behind the installed MEANWELLthree-bay frame. Equipment mounted
above or below a MEANWELLthree-bay frame must be 35cm(14in)or less
in depth. Equipment with a depth of more than 35cm(14in) mounted
immediately above or below a MEANWELL three-bay frame may cause an
unsafe electrical connection due to mechanical interference with the power
bussing connections.
AVERTISSEMENT : RISQUE DE CHOC ÉLECTRIQUE! Conservez un espace
de 20 mm (3/4 po) derrière le châssis du rack MEAN WELL installé. Tout
équipement monté au-dessus ou au-dessous d'un rack MEAN WELL doit
avoir une profondeur de 35 cm (14 po) ou moins. Tout équipement d'une
profondeur de plus de 35 cm (14 po) monté immédiatement au-dessus ou
au-dessous d'un rack MEAN WELL peut provoquer une connexion électrique
dangereuse en raison d'interférences mécaniques avec les connexions de bus
d'alimentation.
Note: If you are bussing two or more RKP-1UIrack systems together, they must be
installed vertically adjacent in the equipment rack.

10 R12 Installation Manual
Voltage Drop
Voltage drop along load wiring is a consideration for constant voltage loads. Voltage drop
calculations vary by project and are based on the type, length, and gauge of wire. The
CV-150Card and the ArcLamp150Card have an adjustabledial on the front of the output card
to set the 24–28VDC (+/-5%) output. Measure the voltage at the load and adjust the dial to
achieve 24VDC at the load. Contact a qualified electrician and refer to the following resources
for more information:
•
The F-Drive System Design Tool at etcconnect.com/Products/Power-Controls/LED-Drivers/F-
Drive/F-Drive-System-Design-Tool.aspx
•
Configure the CV-150Card and ArcLamp150Card on page29
•
Output Card Wire and Terminal Specifications on page12 for recommended wire gauges
Power Disconnect Device
Before installation, make sure you have an accessible input power disconnect device installed
ahead of your F-Drive R12.
WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all
power to the system before installation, maintenance, cleaning, or any
other system modification could result in serious injury or death.
AVERTISSEMENT : RISQUE DE MORT PAR DÉCHARGE ÉLECTRIQUE!
Négliger de débrancher toutes les sources d’alimentation du système avant
l’installation, l’entretien, le nettoyage ou toute autre modification du
système peut causer des blessures graves ou la mort.
De-energize main feed to F-Drive Power Control products and follow
appropriate Lockout/Tagout procedures as mandated by NFPA 70E. It is
important to note that electrical equipment such as breaker panels can
present an arc flash hazard if improperly serviced. This is due to the high
amounts of short-circuit current available on the electrical supply to this
equipment. Any work must comply with OSHA Safe Working Practices.
WARNING: RISK OF ELECTRIC SHOCK! Circuits that are installed without
an accessible power disconnect device cannot be serviced or operated
safely.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! Il est imprudent
d'utiliser ou de réparer les circuits installés sans qu'un dispositif de
déconnexion de l'alimentation ne soit accessible.

Chapter 2 11
Chapter 2
Prepare to Install the R12
Inspect the Shipment
Before you begin installation, check your shipment and confirm that it arrived complete and
undamaged.
1. Check the shipping container for physical damage.
•
If you find damage, document it to help with a claim against the shipper.
2. Inspect the order for completeness.
•
Check the box contents received against the packing list to ensure that your order is
complete.
•
If you discover a problem with the contents of the shipment, contact ETC. See Help from
ETC Technical Services on page3 .
R12 ships with the control card (ETCpart number 7148K1000) installed and with blanks covering
the slots for the output cards.
Note: All output cards and accessories are packaged separately.
Parts and Tools
The following supplies are required, but not provided:
•
Phillips screwdriver
•
Flatblade screwdriver
•
Wire stripping and cutting tool
•
Wire ties
F-Drive R12 Wire and Terminal Specifications
Terminal/Connector Wire Range/Specifications Strip Length
Power Input
Use provided DCpower
harness:2.4m (8ft) of 10mm2
(8AWG)
11 mm (7/16 in)
DMXIn/Thru three-
pin screw-terminal
connectors
Belden 9729 or equivalent
See wiring instructions at
DMXIn and Thru Connections
on page20 .
DMX In/Thru
three-pin
IDCconnectors
Cat5e (or better) 0.2mm2
(24AWG) or larger conductors
terminated to T568B standard
See wiring instructions at
DMXIn and Thru Connections
on page20
Panic three-pin
connector
0.05–2.5 mm2(30–12 AWG)
Follow class 2 wiring methods 6 mm (1/4 in)

12 R12 Installation Manual
Output Card Wire and Terminal Specifications
Output Card Terminal/Connector Wire Range/Specifcation Strip
Length
Torque
Rating
ChromaCard
FTW-150Card
CC-150Card
RJ45 connector for
output power or
power/data
You must use 0.25mm2
(23AWG) or larger
conductors in Category-
type cable.
Terminate to T568B
standard.
FTW-150Card
CC-150Card
eight-pin connector
for power output
0.2–1.5mm2
(26–14AWG)
Follow Class 2 wiring
methods.
6 mm
(1/4in)
0.4–0.5Nm
(3.5–4.4in-lb)
CV-150Card
ArcLamp150Card
eight-pin connector
for power output
1.5mm2(14AWG)
Follow Class 2 wiring
methods
6 mm
(1/4in)
0.4–0.5Nm
(3.5–4.4in-lb)
CAUTION: Do not coil excess Category-type cable.
Note: Use ONEtype of output connector for each card. For example, use the RJ45
receptacle OR the eight-pin terminal block on a FTW-150Card or a CC-150Card.
Note: Cable bundling limitations apply to F-Drive R12 Class 2 output cables. For more
information about maximum number of four-pair cables in a bundle, see NFPA 70 2020
National Electrical Code, table 725.144.
Rack-Mount Safety
The R12 and R12ExternalPowerSupply install into a standard 19-inch rack enclosure.
•
Elevated Operating Ambient: If the R12 is installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may elevate above the room
ambient. Do not operate the device in an enclosed environment above 40°C (104°F).
•
Reduced Air Flow: When installing the R12 in an equipment rack, the rack must be vented
and have adequate airflow to maintain an operating temperature below 40°C (104°F).
•
Mechanical Loading: The R12 and R12ExternalPowerSupply must be installed in a rack in
a horizontal flat orientation to ensure even mechanical loading in the rack, avoiding
hazardous or dangerous loading conditions.
•
Circuit Overloading: When installing the R12 in an equipment rack, consider the connection
of the equipment to the rack or power source to avoid overloading the rack circuit or supply
wiring. Consider the rack or power distribution in the equipment rack during installation.
•
Reliable Grounding: Maintain reliable grounding of the rack-mounted equipment. Give
particular attention to any supply connections other than direct connections to the branch
circuit (for example, the use of power strips).

Chapter 3 13
Chapter 3
Install 48 VDCPower Supplies
The MEANWELL RKP-1UI rack-mount units are 1U, low-profile power distribution solutions
perfectly suited for providing 48 VDCpower to the ETCF-Drive R12.
The MEANWELLrack-mount unit should only be installed by a qualified electrician or service
technician.
Note: Save these important parts that ship with your MEANWELLthree-bay frame.
Each MEANWELLthree-bay frame ships with:
•
One DB-25 terminator that must be installed in the CN500 port in order for the
three-bay frame to power on. See Final Installation Steps on page17
•
One RJ45 terminator that must be installed in one of the JK1 ports if you are
bussing multiple three-bay frames together. See Bussing Kit Parts Illustration on
page18.
•
Three power supply blanks to cover unused power supply module bays. Save these
blanks if you are not installing three power supply modules in each three-bay
frame.
ETCPart Number MEANWELLModel Description
PS505 MEANWELLRKP-1UI custom RKP-1UI rack-mount unit for ETC
PS504 MEANWELLRCP-2000 2000 Wpower supply module
Techincal Information from MEAN WELL
For current technical information, view the RKP-1UI specifications on the MEANWELL website
at https://www.meanwell.com. The RCP-2000/RKP-1UI Instruction Manual is available at
https://www.meanwell.com/webapp/product/search.aspx?prod=RCP-
2000&pdf=UkNQLTIwMDAsUktQLTFVLUUucGRm&a=4.

14 R12 Installation Manual
MEANWELLRKP-1UI Features
•
RKP-1UI three-bay frames fit in an EUor US 19 inch equipment rack
•
Each RKP-1UIrack-mount unit (three-bay frame)supports up to three RCP-2000 power
supply modules from MEANWELL.
•
Three RCP-2000 power supply modules provide up to 6000 W to a single RKP-1UI rack-
mount unit.
•
Bussing kits are available from ETCto bus together up to three rack systems. See Bussing
Kits on page17 .
•
Three bussed RKP-1UI rack-mount units bussed together and containing nine RCP-2000
power supplies can provide a maximum of 18000 W.
•
ETCoffers multiple power supply cord options for the RKP-1UI rack-mount unit:
-
15 A Edison plug to locking IECconnector (Model FDRPSICE15, ETCPart W6638)
-
20 A Edison plug to locking IECconnector (Model FDRPSICE20, ETCPart W6639)
-
16 A Schuko plug to locking IECconnector (Model FDRPSICS16, ETCPart W6640)
-
16 A Ceeform plug to locking IECconnector (Model FDRPSICC16, ETCPart W6672)
-
16 Abare end to locking IECconnector (Model FDRPSICEUBE16, ETCPart W6641)

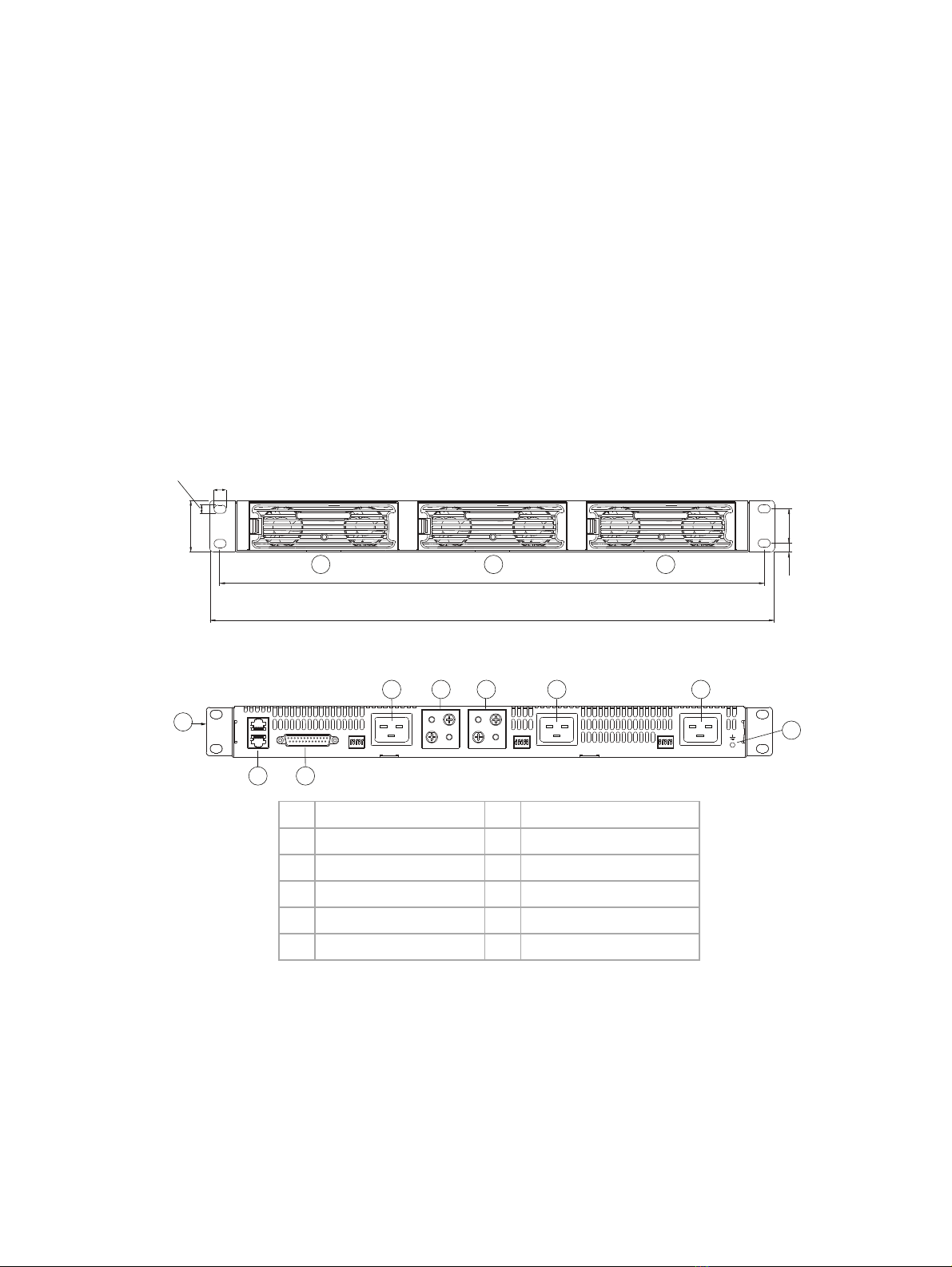

MEAN WELL RKP-1U with three RCP-2000 Modules
29.48 mm
(1-5/32 in)
7.42 mm
(9/32 in)
466.1 mm (18-11/32 in)
483.6 mm (19 in)
44 mm
(1-23/32 in)
7.1 mm
(9/32 in)
10.2 mm (13/32 in)
C B A
G HD E F
IJ
K L
+
-
AModule A GDC output terminal "+"
BModule B HDCoutput terminal "-"
CModule C IMounting bracket
DACinput for module A JGround/Earth stud
EACinput for module B KJK1 ports
FACinput for module C LCN500 port
