Overview
For complete information and step-by-step instructions, see the Desire Series by ETC D22, D40, D40XT,
D60, D60X User Manual
. Download ETC documentation at etcconnect.com.
The features shown in the following images may not appear on all Desire Series fixtures.

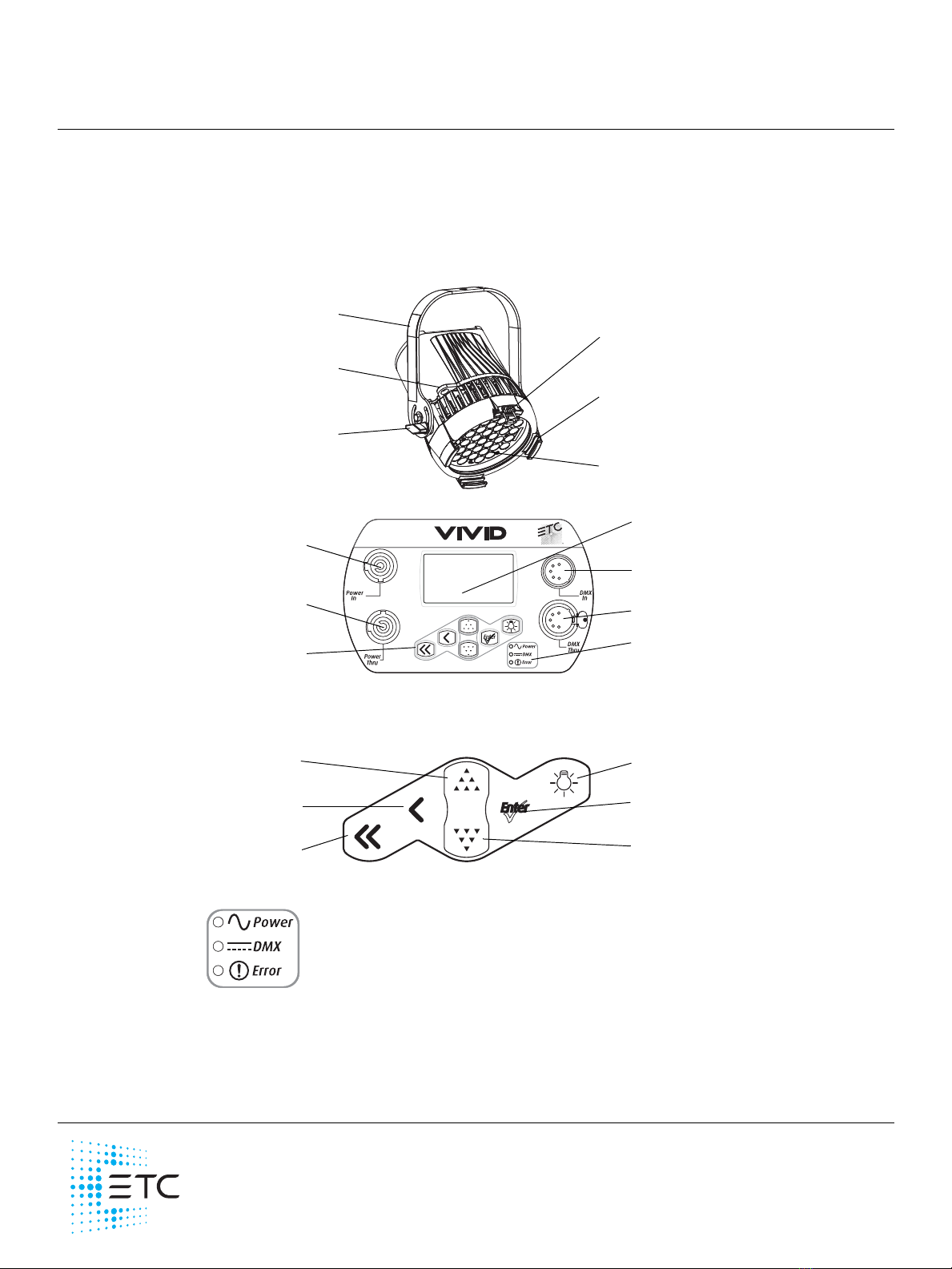

LED array
Accessory
holder
Yoke
Accessory
retainer
Yoke locking
knob
Safety cable
loop
PUSH
Power In
Power Thru
Keypad
LCD
DMX In
DMX Thru
Status
indicators
***There is no user interface on the D60X
Light Bulb
Home
Back
Up
Enter
Down
Power – Indicates AC power is On.
DMX – Indicates control signal is Active.
Error – Indicates data error, high temperature, or other unusual status.

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 2 of 13 ETC
Install
D22 Portable, D40, D40XT, D60, D60X
1: Hang or mount the fixture.
2: Attach safety cable.
3: Insert secondary lens with smooth side out, if desired.
4: Insert additional accessories, if desired (top hat, egg crate, etc.).
D22 Canopy and D22 Track
See the Desire Series D22 Installation Guide for details on installing the canopy and track-mounted versions
of the D22 fixture.
WARNING:
Use only hardware rated for total weight of fixture and accessories.
The safety cable (or other approved safety device) must be securely attached to
the safety cable loop before loosening the clamp.

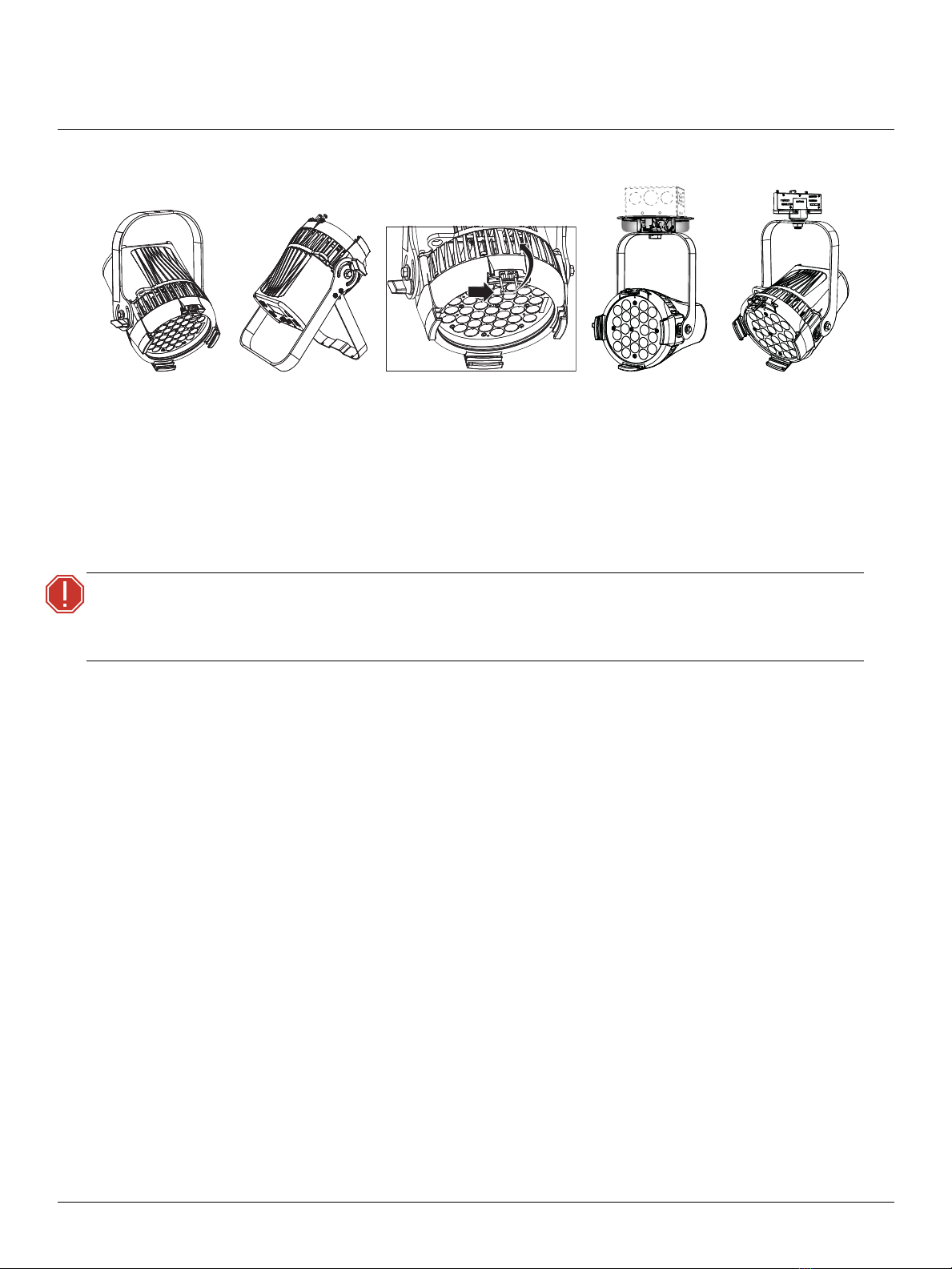

With yoke Accessory holder and clipWith floor stand Canopy mount
(D22 only)
Track mount
(D22 only)

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 3 of 13 ETC
Connect
D22 Portable, D40, D40XT, D60 and D60X
1: If using external DMX or RDM control, attach a 5-pin XLR cable to DMX In.
2: Connect the power cable to AC power.
3: Plug the XLR cable into the data source, if applicable.
4: Link any additional fixtures via Power Thru and DMX Thru connectors. (The D22 fixture does not have
the Power Thru option.)
D22 Canopy and D22 Track
See the Desire Series D22 Installation Guide for details on connecting the canopy and track-mounted
versions of the D22 fixture.
Focus
D60X fixtures do not have the user interface
that other Desire fixtures do. For information
on setting up D60X fixtures, see
Configure
D60X using RDM
on page 4 .
1: Supply power and wait for the fixture
to boot up.
2: Press []to open Presets &
Sequences.
3: Select Focus and press []to turn on
the LED array.
4: Adjust the position of the fixture.
5: Once the focus is set, press []to turn off the LED array and then press []to return to the home
screen.
WARNING:
• Do not link more than nine fixtures when using Power Thru (non-dimming,
100 to 240 VAC, 50/60 Hz). Power Thru is not available on all Desire Series
fixtures.
• Up to 32 devices can be daisy-chained together per data run.
• Disconnect power and DMX before all cleaning and maintenance.
PUSH
Power In DMX In
DMX Thru
Power Thru
(Power Thru not
available on D22)
***There is no user interface
on the D60X

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 4 of 13 ETC
Address
A DMX address is not needed if using stand-alone or master/slave control.
1: From the home screen, press []to open the Main Menu.
2: On the Main Menu, scroll to DMX Start Address and press [].
3: Use []or []to scroll to the desired address.
4: Press []to select the address number.
5: Press []to return to the home screen.
Quick Setup
1: On the Main Menu, scroll to Quick Setups and press [].
2: Scroll to the desired setup and then press []. An asterisk (*) indicates which setup is active.
3: Press []to return to the home screen. The top line of the home screen displays the name of the
active setup.
Individual features and settings are adjustable in the Advanced menu. See the
Desire Series by ETC D22,
D40, D40XT, D60, D60X User Manual
for more information on advanced features of Desire fixtures.
Quick Color (Vivid, Lustr+, Fire and Ice, Studio HD)
Quick Color allows you to easily select a color and its intensity from a predefined menu. This feature
overrides any presets or sequences previously selected and is only available when there is no external DMX
signal to the fixture.
1: Press []to open Presets and Sequences.
2: Scroll to Quick Color and press [].
3: Scroll to Color and press [].
4: Scroll to the desired color and press [].
5: Scroll to Intensity and press [].
6: Scroll to adjust the intensity and press [].
7: To exit Quick Color, press [].
Configure D60X using RDM
Up to 32 D60X fixtures can be daisy-chained on a DMX/RDM network. Each fixture can have a unique DMX
address and each address can be configured separately. Alternatively, more than one fixture can have the
same address, allowing you to configure them identically.
Use an RDM configuration tool or an RDM lighting control device to configure the fixtures. An RDM
configuration tool is installed on a PC, which is connected to the DMX/RDM network via Gadget II or a
DMX/RDM gateway. After the fixtures are configured, Gadget II or the gateway can be disconnected and
a DMX or RDM control device can be connected to the network for continued operation. For more
information on configuring fixtures using RDM, see the
Desire Series by ETC D22, D40, D40XT, D60, D60X
User Manual
. Download ETC documentation at etcconnect.com.
Note:
Exiting the Quick Color menu will return the fixture to the state it was in prior to entering
the menu.

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 5 of 13 ETC
Quick Setups
D40XT, D40, D60, and D60X: Vivid, Lustr+, Fire, Ice, Studio HD
D22: Lustr+, Studio HD
D22, D40, D40XT, D60, and D60X: Studio Tungsten and Studio Daylight
Quick Setup Profile Features Recommended Use
General Direct
• Standard dimming curve
• Regulated output for color
consistency
• 3200K white point setting
Factory default: For general
purpose use, including interior
architectural applications
Stage HSI
Plus 7 enabled
• Incandescent dimming curve
• Regulated output for color
consistency
• 3200K white point setting
Theatrical lighting: Duplicates the
color and dimming behavior of
tungsten and stage lighting
fixtures
XT Arch HSI
• Standard dimming curve
• Protected output
• 3200K white point setting
Exterior Architectural lighting:
Provides a high degree of color
consistency in high ambient
temperature environments.
High Impact RGB
• Quick dimming curve
• Boost mode for maximum
intensity
• 5600K white point setting
Event lighting: Enables quick
response, simple RGB control and
strobe channel for maximum
effect usage
Studio Studio
• Linear dimming curve
• Regulated output mode for
color consistency
Studio factory default: Enables
three-parameter control of white
light (intensity, white point, and
tint) via DMX from a console or
console-free fixture display
Quick
Setup Profile Features Recommended Use
Studio Studio
• Linear dimming curve
• Regulated output for
intensity stability
Allows you to control the intensity
from the fixture user interface (no
console required)
Stage Direct • Incandescent dimming curve
• Regulated output
Matches conventional fixture
performance
Single
Channel Direct
• Standard dimming curve
• Regulated output for color
consistency
For general purpose architectural use

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 6 of 13 ETC
DMX Input Channel Profiles
D40, D40XT: Vivid, Lustr+, Fire, Ice, Studio HD
D22: Lustr+, Studio HD
DMX
Profile
DMX
Channels
Channel Assignments
Notes
Vivid, Lustr+ Studio HD
Direct 9
1 - Red 1 - Red
Direct control of each individual color
with a separate master intensity
channel. The 9-channel profile will
produce the highest quality color cross
fades.
2 - Orange
(White if Lustr+) 2 - Orange
3 - Amber 3 - Amber
4 - Green 4 - Green
5 - Cyan 5 - 3200K White
6 - Blue 6 - 5000K White
7 - Indigo 7 - Indigo
8 - Intensity 8 - Intensity
9 - Strobe 9 - Strobe
RGB
5
(Ch. 4
not used)
1 - Red
Effectively addresses all seven colors via
three channels of control. RGB profile
will produce medium quality color cross
fades.
2 - Green
3 - Blue
4 - n/a
5 - Strobe
HSI 5
1 - Hue (coarse)
High resolution hue (two channels),
saturation, and intensity control.
HSI mode will produce color cross fades
around the color space.
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
HSIC 6
1 - Hue (coarse) High-resolution hue, saturation, and
intensity control as above, with the
addition of a color point channel to
adjust the color temperature of the
fixture in both white light and color.
Color cross fade performance is the
same as HSI.
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
6 - Color Point (CCT)
Studio 3
1 - Intensity Controls fixture as a white light unit. If
no DMX is present, you can adjust these
parameters using the user interface on
the fixture.
2 - Color Point (CCT)
3 - Tint

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 7 of 13 ETC
Additional profile options
Profile
Option Channel Assignments Notes
Plus 7
1 - Hue (coarse)
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
6 - n/a
7 - Plus 7 Control on/off
8 - Red
9 - Orange (white if Lustr+)
10 - Amber
11 - Green
12 - Cyan
13 - Blue
14 - Indigo
Adds seven additional color control channels to RGB, HSI,
HSIC, and Studio input profile settings. For example, HSI
with ‘Plus 7’ enabled becomes a 14-channel profile.
Use the HSI or RGB channels to achieve the desired color
and intensity.
Placing channel 7 at a value over 51% gives the fixture a
14-channel profile.
Channels 8–14 represent the native colors of the fixture
and allow the operator to adjust individual color channels
to fine-tune the color output.
Strobe Variable strobe control: 0% is no strobe. The fixture output will strobe more rapidly as
the strobe-channel value approaches 100%.

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 8 of 13 ETC
D60 & D60X: Vivid, Lustr+, Fire, Ice, Studio HD (no Fire or Ice in D60X)
DMX
Profile
DMX
Channels Channel Assignments Notes
Direct 10
1 - Red
Direct control of each individual color
with a separate master intensity
channel. The 10-channel profile will
produce the highest quality color cross
fades.
2 - Orange (White if Lustr+)
3 - Amber
4 - Green
5 - Cyan (3000K white if Studio HD)
6 - Blue (5000K White if Studio HD)
7 - Indigo
8 - Intensity
9 - Strobe
10 - Fan Control
RGB
6
(Ch. 4
not used)
1 - Red
Effectively addresses all seven colors via
three channels of control. RGB profile
will produce medium quality color cross
fades.
2 - Green
3 - Blue
4 - n/a
5 - Strobe
6 - Fan Control
HSI 6
1 - Hue (coarse)
High resolution hue (two channels),
saturation, and intensity control.
HSI mode will produce color cross fades
around the color space.
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
6 - Fan Control
HSIC 7
1 - Hue (coarse)
High-resolution hue, saturation, and
intensity control as above, with the
addition of a color point channel to
adjust the color temperature of the
fixture in both white light and color.
Color cross fade performance is the
same as HSI.
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Color Point (CCT)
6 - Fan Control
7 - Color Point (CCT)
Studio
6
(Ch. 4
not used)
1 - Intensity
Controls fixture as a white light unit. If
no DMX is present, you can adjust these
parameters using the user interface on
the fixture.
2 - Color Point (CCT)
3 - Tint
4 - n/a
5 - Strobe
6 - Fan Control

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 9 of 13 ETC
Additional profile options
D40XT, D40, D60, D60X: Studio Tungsten, and Studio Daylight
D22: Studio Tungsten and Studio Daylight
Profile
Option Channel Assignments Notes
Plus 7
1 - Hue (coarse)
2 - Hue (fine)
3 - Saturation
4 - Intensity
5 - Strobe
6 - Fan Control
7 - n/a
8 - Plus 7 Control on/off
9 - Red
10 - Orange (white if Lustr+)
11 - Amber
12 - Green
13 - Cyan
14 - Blue
15 - Indigo
Adds seven additional color control channels to RGB, HSI,
and HSIC input profile settings. For example, HSI with ‘Plus
7’ enabled becomes a 15-channel profile.
Use the HSI or RGB channels to achieve the desired color
and intensity.
Placing channel 8 at a value over 51% gives the fixture a
15-channel profile.
Channels 9–15 represent the native colors of the fixture
and allow the operator to adjust individual color channels
to fine-tune the color output.
Strobe Variable strobe control: 0% is no strobe. The fixture output will strobe more rapidly as
the strobe-channel value approaches 100%.
DMX
Profile
DMX
Channels Channel Assignments Notes
Studio 3
1 - Intensity Direct control of each individual color with a
separate master intensity channel. The 10-channel
profile will produce the highest quality color cross
fades.
2 - Strobe
3 - Fan Control (D60 only)
Direct 3
1 - Intensity
2 - Strobe
3 - Fan Control (D60 only)

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 10 of 13 ETC
Typical Power Consumption (D22)
Lustr+
Studio Tungsten
Studio Daylight
Studio HD
100V 120V 230V
Idle Power / Current 7.8W / 0.111 7.6W / 0.111A 7.4W / 0.094A
100% Boost Power / Current 56.8W / 0.578 56.5W / 0.475A 55.1W / 0.288
100V 120V 230V
Idle Power / Current 7.6W / 0.11A 7.6W / 0.11A 7.2W / 0.094A
100% Boost Power / Current 52.4W / 0.532A 51.8W / 0.445A 50.9W / 0.276
100V 120V 230V
Idle Power / Current 7.3W / 0.093A 7.2W / 0.091A 7.3W / 0.124A
100% Boost Power / Current 55.2W / 0.556A 55W / 0.462A 53.8W / 0.268
100V 120V 230V
Idle Power / Current 6.7W / 0.095A 6.7W / 0.098A 6.7W / 0.118A
100% Boost Power / Current 55W / 0.555A 54.6W / 0.464A 53.3W / 0.271A

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 11 of 13 ETC
Typical Power Consumption (D40 and D40XT)
Vivid
Lustr+
Fire
Ice
Studio HD
Studio Daylight
Studio Tungsten
100V 120V 240V
Idle Power / Current 10.5W / 0.135A 11W / 0.098A 12.7W / 0.078A
100% Boost Power / Current 102W / 1.12A 98W / 0.82A 95.6W / 0.403
100V 120V 240V
Idle Power / Current 10.3W / 0.125A 10.5W / 0.094A 12.2W / 0.074A
100% Boost Power / Current 104W / 1.16A 102W / 0.861 99.7 W / 0.418
100V 120V 240V
Idle Power / Current 10.5W / 0.125A 10.8W / 0.096A 12.5W / 0.076A
100% Boost Power / Current 91.2W / 1.02A 88.2W / 0.74A 87.2W / 0.369A
100V 120V 240V
Idle Power / Current 11.0W / 0.123A 11.2W / 0.099A 12.8W / 0.077A
100% Boost Power / Current 104.2W / 1.17A 102.2W / 0.867A 99.5W / 0.42A
100V 120V 240V
Idle Power / Current 11.1W / 0.134A 11W / 0.097A 12.8W / 0.077A
100% Boost Power / Current 106.2W / 1.19A 103.5W / 0.883A 101.3W / 0.426A
100V 120V 240V
Idle Power / Current 10.6W / 0.123A 10.6W / 0.095A 12.4W / 0.076A
100% Boost Power / Current 105.1W / 1.12A 103.3W / 0.878A 100.8W / 0.424A
100V 120V 240V
Idle Power / Current 10W / 0.111A 10.1W / 0.093A 11.9W / 0.075A
100% Boost Power / Current 104W / 1.05A 103.1W / 0.872A 100.3W / 0.422A

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 12 of 13 ETC
Typical Power Consumption (D60)
Vivid
Lustr+
Fire
Ice
Studio HD
Studio Daylight
Studio Tungsten
100V 120V 240V
Idle Power / Current 7.6W / 0.083A 7.7W / 0.083A 9.2W / 0.087A
100% Boost Power / Current 139W / 1.41A 136.1W / 1.15A 130.3W / 0.549A
100V 120V 240V
Idle Power / Current 7.3W / 0.1A 7.4W / 0.77A 9W / 0.086A
100% Boost Power / Current 143W / 1.46A 140.1W / 0.97A 135.1W /
100V 120V 240V
Idle Power / Current 7.9W / 0.105A 7.9W / 0.086A 9.4W / 0.089A
100% Boost Power / Current 129W / 1.35A 126.5W / 1.35A 122.7W / 0.52A
100V 120V 240V
Idle Power / Current 7.3W / 0.095A 7.4W / 0.081A 9W / 0.085A
100% Boost Power / Current 148.5W / 1.53A 147W / 1.28A 140.2W / 0.592A
100V 120V 240V
Idle Power / Current 7.2W / 0.086A 7.3W / 0.082A 8.9W / 0.086A
100% Boost Power / Current 146W / 1.5A 143.7W / 1.24A 138.2W / 0.58A
100V 120V 240V
Idle Power / Current 7.5W / 0.09A 7.6W / 0.084A 9.3W / 0.089A
100% Boost Power / Current 145.5W / 1.48A 142.8W / 1.22A 136W / 0.573A
100V 120V 240V
Idle Power / Current 7.4W / 0.088A 7.5W / 0.083A 9.1W / 0.088A
100% Boost Power / Current 145.8W / 1.49A 143.3W / 1.23A 137.1W / 0.577A

ETC Quick Guide
Desire Fixture Series
D22, D40, D40XT, D60, D60X Fixtures Page 13 of 13 ETC
Typical Power Consumption D60X
Vivid
Lustr+
Studio HD
Studio Daylight
Studio Tungsten
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.075A 4.1W / 0.067A
100% Boost Power / Current 117.9W / 1.19A 118W / 1A 115.6W / 0.526
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.2W / 0.075A 4.3W / 0.069A
100% Boost Power / Current 123.7W / 1.24A 123.6W / 1.04 121W / 0.546
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.76 A 4.3W / 0.068A
100% Boost Power / Current 125.1W / 1.26A 124.7W / 1.05A 122.5W / 0.552A
100V 120V 240V
Idle Power / Current 4.2W / 0.08A 4.3W / 0.76 A 4.2W / 0.068A
100% Boost Power / Current 125.1W / 1.26A 124.7W / 1.05A 122.5W / 0.552A
100V 120V 240V
Idle Power / Current 4.3W / 0.08A 4.2W / 0.073A 4.2W / 0.065A
100% Boost Power / Current 124.4W / 1.25A 123.7W / 1.04A 121.2W / 0.545A
