ETC ColorSource Fresnel V User manual

ETC Installation Guide
ColorSource Fresnel V v1.1
Corporate Headquarters nMiddleton, WI, USA |[phone]
Global Offices nLondon, UK |Rome, IT |Holzkirchen, DE |Paris, FR |Hong Kong
Dubai, UAE |Singapore |New York, NY |Orlando, FL |Los Angeles, CA |Austin, TX
Web etcconnect.com |Support support.etcconnect.com
Contact etcconnect.com/contactETC |© 2022 Electronic Theatre Controls, Inc.
Trademark and patent info: etcconnect.com/ip |Product information and specifications
subject to change. ETCintends this document to be provided in its entirety.
7417M2100-1.1 Rev A Released 2022-10
Overview
The ColorSource Fresnel V is an affordable LED fixture that uses the RGBIL
(red, green, blue, indigo, and lime) color system to provide a rich, bright
light. The fixture features motorized zoom, and wireless configuration
and control via NFC and the Set Light app. The ColorSource Fresnel V also
can be purchased with wireless DMX via Multiverse®.
Note: Features described in this document require the latest
version of software. For information on updating fixture software,
see Update the Fixture Software on page12.

ETC Installation Guide
ColorSource Fresnel V v1.1
Safety
For professional use only. Read the entire manual before using this
equipment.
WARNING:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not mount the fixture on or near a flammable
surface.
•
When the fixture is mounted, the axis between the
yoke attachment points must be parallel to the ground.
Mounting the fixture in a non-parallel orientation risks
property damage or bodily injury.
•
Disconnect the fixture from power and DMX and allow
it to cool before installing accessories or performing
any cleaning and maintenance.
AVERTISSEMENT :
•
Risque de lésion oculaire. Ne fixez pas directement la
lumière.
•
Ne pas installer le projecteur sur ou à côté d’une
surface inflammable.
•
Lorsque le luminaire est accroché, l'axe entre les points
de fixation de la lyre doit être parallèle au sol. Le
montage du luminaire dans une orientation non
parallèle risque de causer des dommages matériels ou
corporels.
•
Débranchez le projecteur de son alimentation et du
DMX et laissez-le refroidir avant d’installer des
accessoires ou d’effectuer un nettoyage ou un
entretien.
WARNING: RISK OF ELECTRIC SHOCK! The light source in
this luminaire is not user-replaceable, and must be replaced
only by a qualified technician. Contact ETC Customer
Support for assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La
source lumineuse de ce projecteur n'est pas remplaçable
par l'utilisateur et ne doit être remplacée seulement par un
technicien qualifié. Contactez le service client ETC pour
obtenir de l’assistance.
ColorSource Fresnel V Page 2 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1

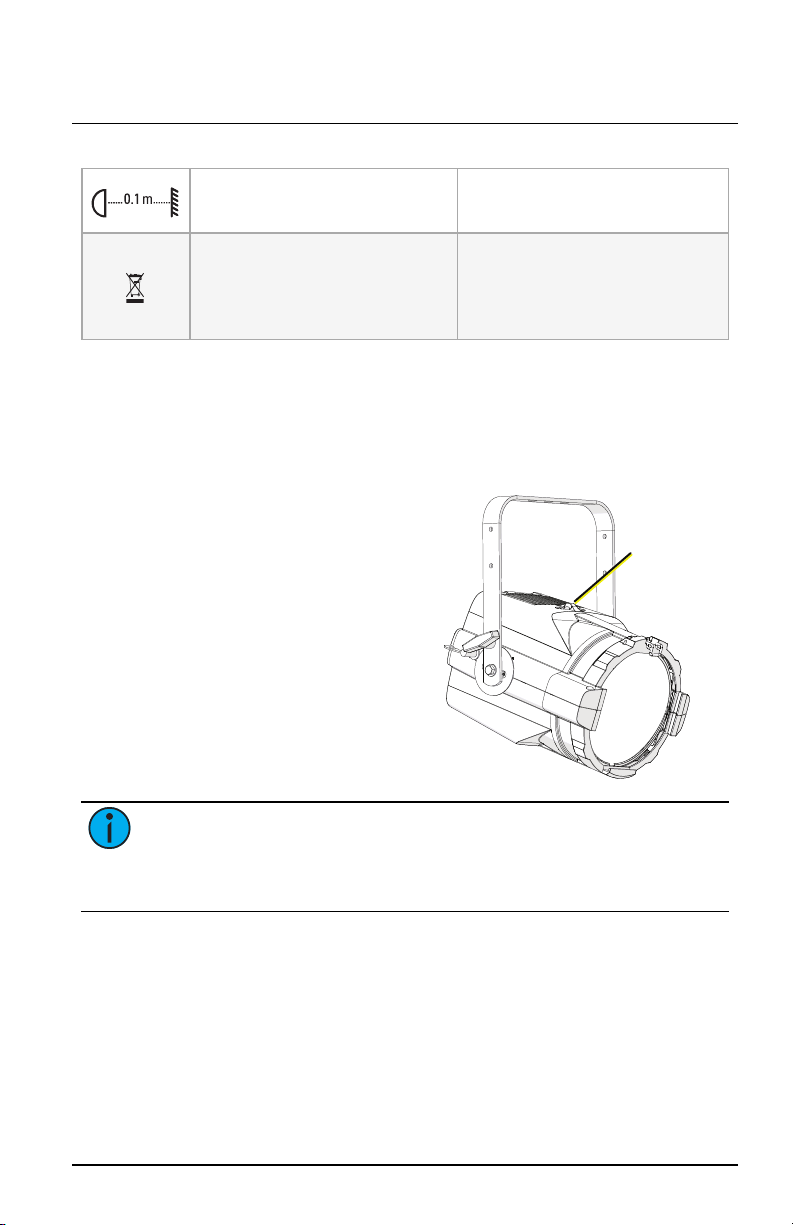

The following symbols may appear on product labeling.
The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté
avec les déchets ménagers mais
doit être déposé dans une collecte
de déchets électroniques ou dans
un point de collecte.
Installation
Mounting
The ColorSource Fresnel V ships with a standard yoke for mounting with a
clamp.
Safety cable
attachment
loop
Safety Cable
A safety cable (or other approved
safety device) must be attached to the
fixture. The attachment loop is on the
top of the fixture. Leave as little slack
as possible in the safety cable to avoid
catching the yoke of the fixture.
Connectors
•
Power: Two powerCON®TRUE1®
connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin
XLR connectors for data in and thru
Note: The ColorSource Fresnel V is not self terminating. You
must terminate the last fixture in line with a 120 Ohm resistor. To
purchase a terminator, please contact ETC customer service and
request part number SGE1507 (XLR terminator).
Set Up the Fixture
1. Plug the power cord into the powerCON TRUE1 In connector on the
rear of the fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX
line, terminate the fixture. See Connectors above .
4. Plug the power cord into the power source.
ColorSource Fresnel V Page 3 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Power Up
Press any button to wake the display. The display shows the DMX
address. See Set the DMXAddress on the facing page .
You can press the Mode button to access the Presets/Sequences menu.
See Play Presets and Sequences on page10 .
You can press the Zoom encoder to enter Focus mode and adjust the
zoom. See Adjust the Zoom and Focus the Fixture below .
Adjust the Tilt
The fixture can be tilted up and down and rotated (panned) as needed.
1. Loosen, but do not remove the yoke locking knob.
2. Tilt the fixture to the desired angle.
3. Tighten the yoke locking knob.
Adjust the Zoom and Focus the Fixture
DOWN
UPMODE
DMX IN
POWERTHRU
POWERIN
ZOOM/
ZOOM /
Yoke
locking
knob
Zoom encoder
• Turn to adjust zoom
• Press to enter Focus
mode
1. Press the Zoom encoder
to enter Focus mode. All
LEDs turn on at full, and
the display shows Foc.
2. Turn the Zoom encoder
to adjust the zoom
between flood and spot.
Turn the encoder
clockwise to adjust
toward flood, or
counterclockwise to
adjust toward spot.
3. Press the Zoom encoder
again to exit Focus
mode. (Focus mode will
end automatically after
5minutes if you do not
exit the mode.)
Accessories
You can insert two 7.5in accessories in the accessory slot. For available
accessories, see the ColorSource Fresnel V datasheet at etcconnect.com.
You can attach a ColorSource Relay to the yoke. See etcconnect.com for
more information about ColorSource Relay.
ColorSource Fresnel V Page 4 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Set the DMXAddress
1. Press any button to wake the display. The display shows the DMX
address.
2. Use the Up and Down buttons to select the DMX address for the
fixture.
You can also set the DMX address using RDM or using the Set Light app.
See RDM Values on page14 or Configure Fixtures Using the Set LightApp
on page9 .
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of four available
mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows
ctL (Control).
3. Press the Mode button. The display shows the current DMX control
mode.
4. Press the Up button or Down button to change the DMX control
mode. (The currently saved mode is indicated by a decimal point at
the end of the mode name.)
•
Stn: Standard mode (intensity, red, green, blue, strobe, zoom, and
fan). This is the default mode.
•
dir: Direct emitter control (intensity, red, green, blue, indigo,
lime, strobe, zoom, and fan).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults to
3200K White).
•
rgb: RGB mode (red, green, blue, and zoom).
5. Press the Mode button to confirm your selection. The display shows
ctL (Control).
6. Navigate to the rtn (Return) option to return to the DMX address
display.
The display will automatically return to the DMX address after 10 seconds
of inactivity, and edits to the DMX control mode will not be saved. This
cancels unsaved changes.
ColorSource Fresnel V Page 5 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
DMXControl Channels
DMX
Channel
Stn
Standard
dir
Direct
1ch
1 Channel
rgb
RGB
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue Zoom
5 Strobe* Indigo
6 Zoom* Lime
7 Fan* Strobe*
8 Zoom*
9 Fan*
* See DMX Parameter Values below for the DMXvalues that set these parameters.
DMX Parameter Values
Parameter DMX Value Description Comments
Fan
0–9 Auto
As fixture temperature increases, the
fan speed increases to accommodate
it.
10–19 Off
When the fixture gets too hot, the
fixture reduces the intensity instead of
turning on the fan.
20 Slow Minimum fan speed
21–248 Linear Increase in
Speed
Fan speed remains constant, and
intensity is reduced as needed when
the fixture gets too hot.
249 Fast Maximum fan speed (100%)
250–255 Auto
ColorSource Fresnel V Page 6 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Parameter DMX Value Description Comments
Strobe
0 No Strobe Shutter open
1–40 Dark Strobe Range is 1–40Hz.
41–80 Bright Strobe Range is 1–40Hz.
81–120 Pulse Strobe Strobe includes a fade up and fade
down on each pulse.
121–160 Random Strobe Strobe pulses at random intervals.
161–200 Flicker Effect Strobe pulses at random intervals and
at random intensity levels.
201–240 No Strobe Shutter open
241–254 LEDs Off Shutter closed
255 No Strobe Shutter open
Zoom
0 Full Spot
1–254 Linear Change
from Spot to Flood
255 Full Flood
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
•
If you selected a preset or sequence, that preset or sequence
automatically plays.
•
If no preset or sequence is active in the background, the fixture goes
dark and the DMXstart address flashes on the user interface. The
fixture stays at the last setting for the zoom position, and the fan
speed is set to Auto.
ColorSource Fresnel V Page 7 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Use Wireless Control
Set Up Multiverse Wireless Communication
This section applies only to the ColorSource Fresnel V fixture with the
optional Multiverse wireless DMXfeature.
You can use a City Theatrical Multiverse®transmitting device to wirelessly
configure and control the fixture. For information on using Multiverse
products, see the documentation provided with the products.
Note: For additional guidance and troubleshooting resources
when setting up your wireless system, download the Multiverse
Wireless Setup Information Guide at etcconnect.com.
To use Multiverse wireless communication, configure the Multiverse
settings on the fixture.
1. With the display showing the DMX address, press and hold the Mode
button for 3 seconds. The display shows ctL (Control).
2. Press the Up button or Down button until the display shows rAd
(Radio), and then press the Mode button to display the Multiverse
settings.
3. Use the Up button or Down button to navigate to the Multiverse
setting that you want to change (see table that follows). Press the
Mode button to select the setting, use the Up button and Down
button to modify it, and then press the Mode button again to return
to the Multiverse settings. (The currently saved mode is indicated by a
decimal point at the end of the mode name.)
Note: To disable wireless communication on the fixture, set the
Radio Strength (Str) to Off (oFF).
4. When you have finished configuring the Multiverse settings, navigate
to the rtn (Return) option to return to the rAd (Radio) option, and
then navigate to the rtn (Return) option to return to the DMX
address display.
001
Connection Status
The dot between the second and third digit on the
7-segment display indicates the current status:
•
On solid: Connected to a transmitter and
receiving data
•
On flashing: Connected to a transmitter, but not receiving data
•
Off:Not connected to a transmitter
ColorSource Fresnel V Page 8 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Display Setting Values Description
Uni Universe 001 – 999 Set the Universe value.
id SHoW ID 100 – 359
Set the value of the final three digits of the Show
ID (the prefix "24" is not displayed). For example,
for the SHoW ID24200, set the value to 200. This
value must match the SHoW ID value on the
Multiverse transmitting device.
PAS SHoW
Key 000 – 500
Set the SHoW Key value. This value must match
the SHoW Key value on the Multiverse
transmitting device.
Str Radio
Strength
•
Off
(oFF)
•
1 – 4
Set the value to the minimum level required for
successful communication between transmitters
and fixtures. Excess power output can cause
reflections and can degrade performance.
Off=Turns off power to the Multiverse radio.
Use this setting to disable wireless
communication on the fixture.
1=Low
2=Medium
3=High
4=Maximum
qAL Signal
Quality 1 – 100
Display of the signal quality. Values above 50%
are good signal quality, and above 80% are
excellent. This value can be helpful when
troubleshooting wireless performance.
SSi Signal
Strength -20 – -120
Display of RSSI(Received Signal
Strengthindicator) in dBm, ranging from -20
(strongest) to -120 (weakest). (Note that the
negative symbol does not display on the fixture.)
A display of "---" indicates that there's no
connection.
rtn Return Return to the rAd option.
Configure Fixtures Using the Set LightApp
Set Light app
Download the Set Light app to a smartphone with NFC
functionality, use the app to set fixture parameters, and
then tap the smartphone to the NFC tag on the fixture
to configure it wirelessly—even when the fixture is not
powered on. Or, after you configure the Multiverse
settings on the fixture, use the Set Light app to
configure one fixture or multiple fixtures wirelessly
from a smartphone or tablet.
Visit etcconnect.com/Apps or scan the code for more
information about the Set Light app.
ColorSource Fresnel V Page 9 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-
configured sequences. When you play a preset or sequence on a fixture:
•
The same preset number or sequence number plays on any
connected fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes when
you power it on again.
You can re-record presets and sequences through an RDM device or
manually on the fixture. See Re-record Presets on the facing page .
1. Press the Mode button to activate the Presets/Sequences menu. The
last active preset or sequence plays automatically. (If DMX data is
present, the current preset or sequence plays in the background and
DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through the
available presets and sequences.
3. To stop the selected preset or sequence, press the Mode button a
second time. The display will revert to show the DMX start address.
Pre-configuredPresets
Zoom is set to 50% for all presets, but you can change this value via RDM
or manually on the fixture. See Adjust the Zoom of Presets on the facing
page .
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
ColorSource Fresnel V Page 10 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset number
that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel
mode (1ch), you cannot re-record presets.
When you re-record presets with the fixture in RGB mode (rgb),
the intensity is set to full and the strobe is turned off.
See Change the DMXControl Mode on page5.
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and
then press the Up button or Down button to select the preset that
you want to edit.
3. Press and hold the Mode button for 3 seconds. The display shows L:
followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of
the preset in real time.
5. Press the Mode button to confirm your selection and return to
thePresets/Sequences menu. (If you don't press the Mode button,
the display returns to thePresets menu after 10 seconds without
saving your changes.)
Adjust the Zoom of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and
then press the Up button or Down button to select the preset that
you want to edit.
3. Press and hold the Zoom encoder for 3 seconds. The display shows F:
followed by either a zoom level from 0–99 or FL for full.
4. Press the Up button or Down button to change the zoom level of the
preset in real time.
5. Press the Zoom encoder to confirm your selection and return to
thePresets/Sequences menu. (If you don't press the Zoom encoder,
the display returns to thePresets/Sequences menu after 10seconds
without saving your changes.)
ColorSource Fresnel V Page 11 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Troubleshooting
Lock the User Interface
After you have set up the fixture, you can lock the user interface to
prevent additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user
interface is locked.
2. To unlock the user interface, press and hold the Up button and Down
button simultaneously for 3 seconds.
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software
updates. For information on UpdaterAtor, see the UpdaterAtor Software
Quick Guide and the UpdaterAtor Software ReleaseNote , which you can
download from etcconnect.com.
You can push newer software versions from a connected fixture to other
ColorSource Fresnel V fixtures of the same type.
Note: If you have other types of fixtures in your DMX run, you do
not need to disconnect them before pushing the updated fixture
software. The update process will ignore any other fixture types in
the DMXrun.
Note: Not sure what version of fixture software is installed?The
version number appears on the display when the fixture powers
up.
1. Remove power and DMX In from the fixture that is running the
software version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously while
restoring power.
3. The display shows Udt rdy to indicate the update mode is selected.
4. Press the Mode button to start the update process.
•
The first time that you push an updated software version,
additional required files must be copied before the update can
begin. The display alternates between Udt and c:XX to indicate
the percentage complete while required data is copied.
•
The display alternates between Udt and the percentage complete
while updating the connected fixtures.
•
The display blinks once to indicate that the update is complete.
5. Reconnect DMX In on the fixture.
ColorSource Fresnel V Page 12 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
These error codes may display on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem
with the color calibration. The fixture will need to be returned to the
ETC factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the
fixture has gone into over-temperature protection mode to avoid
damaging the fixture. If the error does not clear, contact
ETCTechnical Support (visit etcconnect.com/contactETC).
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear
the error. If the error persists, contact ETC Technical Support (visit
etcconnect.com/contactETC).
•
LnS: Indicates a motor power fault or a motor motion error. If the
error occurs regularly after a power cycle, contact ETC Technical
Support (visit etcconnect.com/contactETC).
Specifications and Reference
For current and complete compliance and specifications, see the
ColorSource Fresnel V datasheet at etcconnect.com.
Environment
The ColorSource Fresnel V operates in ambient temperatures of 0°C–
40°C, has a variable-speed fan, and is for indoor use only.
•
Maximum recommended ambient operating temperature: Ta=40°C
(104°F)
•
Maximum anticipated external surface temperature at 40°C
ambient: Tmax = 57°C (134°F)
•
External temperatures after 5 minutes of full-brightness operation at
25°C (77°F) ambient: 36°C (97°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 42°C
(107°F)
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz.
•
Maximum power consumption is 170 W.
ColorSource Fresnel V Page 13 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
•
Up to 8 luminaires(15 A max) may be linked via power thru
connector (9 luminaires total per circuit) when used with an
R20Relay Module or Unison Echo Relay Panel. Consult breaker trip
curves when used with other equipment. Requires power from a
non-dimmable source.
•
Inrush:
-
120 V: 36 A (first half-cycle)
-
240 V: 57 A (first half-cycle)
Typical Power Consumption
100 V 120 V 230 V
Power Current Power Current Power Current
Idle 6.09 W 0.1 A 6.26 W 0.1 A 5.35 W 0.13 A
Direct at Full 149.5 W 1.52 A 148.4 W 1.28 A 147.0 W 0.70 A
RDM Values
Parameter Value Description
Manufacturer ID 0x6574 Electronic Theatre Controls
Model ID 0x0281 ColorSource Fresnel V with Multiverse
0x0282 ColorSource Fresnel V
DMXStart Address 0x00F0 Range = 1–512
DMX Personality 0x00E0
1 = Standard
2 = Direct
3 = 1 Channel
4 = RGB
Output Frequency 0x8123 0 = Standard (5 kHz)
1 = High (25 kHz)
Multiverse
Universe* 0x8C05 Set the Universe value.
Multiverse
SHoWID* 0x8C00 Set the SHoW IDvalue. This value must match the SHoW ID value on the Multiverse transmitting device.
Multiverse
SHoWKey* 0x8C03
Set the SHoW Key value. This value must match the
SHoW Key value on the Multiverse transmitting
device.
Multiverse Radio
Strength (Enable)* 0x8C04
0 = Off
1=Low
2=Medium
3=High
4=Maximum
*Multiverse parameters are applicable only to the ColorSource Fresnel V fixture with the
optional Multiverse wireless DMX.
ColorSource Fresnel V Page 14 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
FCC Compliance
ColorSource Fresnel V
(For any FCC matters):
Electronic Theatre Controls, Inc.
3031 Pleasant View Road
Middleton, WI 53562
[phone]
etcconnect.com
This device complies with Part 15 of the FCCRules. Operation is subject
to the following two conditions:(1) this device may not cause harmful
interference, and (2)this device must accept any interference received;
including interference that may cause undesired operation. Visit
etcconnect.com/products for current and complete compliance
information including FCC compliance.
Note: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. Any modifications or
changes to this product not expressly approved by Electronic
Theatre Controls, Inc. could void the user’s authority to operate
the product. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at their own expense.
This device contains a wireless module with the following identification
numbers:
FCC ID: VU65995
ISED Compliance
This device contains a license-exempt transmitter/receiver that complies
with Innovation, Science, and Economic Development Canada’s license-
exempt RSSs. Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Contains IC ID: 7480A-5995
CANICES-005 (A)
ColorSource Fresnel V Page 15 of 16 ETC

ETC Installation Guide
ColorSource Fresnel V v1.1
Conformité ISDE
Cet appareil contient un émetteur/récepteur conforme aux CNR
d'Innovation, Sciences et Développement économique Canada (ISDE)
applicables aux appareils radio exempt de licence. Son fonctionnement
est soumis aux deux conditions suivantes:
1. L'appareil ne doit pas produire d'interférences.
2. L'utilisateur de l'appareil doit accepter toute interférence, même si
l'interférence est susceptible d'en compromettre le fonctionnement.
Contient ID IC: 7480A-5995
CAN NMB-005 (A)
Licensed Software
This product uses licensed software provided by third parties. Please visit
etcconnect.com/licenses for licensing information.
ColorSource Fresnel V Page 16 of 16 ETC
